Zanussi ZD21/6R User manual

16
mFrozen food must not be re-frozen once it has
been thawed out.
mManufacturers storage recommendations
should be strictly complied with.
mLollies can cause frost burns if consumed right
away from the freezer.
mDo not place carbonate or fizzy drinks in the
freezer as these may explode.
mWhen an old freezer is to be discarded make
sure to:
mDismount the doors in order to prevent chil-
dren from getting trapped inside.
Have the gas from the cooling system with-
drawn before making it to scrap iron.
mm
Warnings for your safety
Warnings for your safety. Carefully read
these instructions before installing and
using the machine.
mThis freezer is designed to be operated by adults
only. Children should not be allowed to tamper with
the controls or play with the product.
mAny electrical work required to install the applian-
ce should be carried out by a qualified electrician or
competent person.
mThis appliance is heavy. Care should be taken when
moving it.
mMake sure that the cable is not trapped underneath
the appliance, nor touches the motor.
mRepairs carried out by inexperienced persons may
cause injuries or serious malfunctioning. Refer to
the nearest Authorized Dealer.
mMake sure the rear part of the appliance stands
against a wall as there are working parts which heat
up and should not be of easy access.
mMake sure that there is a continous and adequate
ventilation as a failure to do so may result in dama-
ge to the appliance or deterioration of the food.
mThe appliance should be left for at least 4 hours
after installation before it is turned on ill order to
allow the refrigerant to settle.
mThis product must be serviced only by an AUTHO-
RIZED DEALER, and only GENUINE SPARE
PARTS must be employed.
mBefore cleaning or reparing the appliance, make
sure it is unplugged.
mIt is dangerous to alter the specifications or modify
this product in any way.
mThese domestic refrigerators are designed to be used
specifically for the storage and conservation of food.
mDO NOT USE SHARP INSTRUMENTS to scrap
off frost or ice. Frost may be removed by using a
plastic scraper. (See defrosting instructions).

17
Índex
Warnings for your safety pag. 16
Installation pag. 18
Changing the opening directions
of the doors and Panelling pag. 19 - 20
Regulation and Control pag. 21
How to use your
Refrigerator-Freezer pag. 22 - 23
Maintenance of your
Refrigerator-Freezer pag. 24 - 25
Something not working pag. 26 - 27
Normal noises when
functioning pag. 28
Guarantee, Service
and Spare Parts pag. 29
Tecnical Features pag. 30

18
Installation
Positioning
 Place the refrigerator away from direct sunlight and
heat sources.
 Maintain recommended ventilation - see Fig. 1.
 Make sure the refrigerator is accurately levelled tur-
ning the adjustable feet in order to avoid vibrations
and noises, Fig. 2.
 This is a built in design to be aligned with other fur-
niture
 The appliance must be located in places of maxi-
mum temperature as follows:
If the temperature are higher than these both above
mentioned, the functions of appliance coudl result
reduced.
Cleaning the interior
 Do not use alcohol or any cleanig product containing
alcohol because it can damage the cabinet.
 Before using the appliance for the first time wash the
interior whith luke warm water and some neutral
soap so as to remove the typical smell of a brand-
new product arid then dry thoroughly.
 Do not use detergents or abrasive powders as these
will damage the finish.
 Remove security used for transportation.
Electrical connection
mBefore plugging the appliance make sure that the
voltage and frequency shown on the «Technical
Features» correspond to your home supply.
mIt is essential that the appliance be efficiently
earthed.
For this purpose the supply cable plug incorporates
a special earth contact. If the sockets of your domes-
tic wiring system are not grounded, have the
appliance connected to a separate ground wire in
accordance with existing safety regulations.
«THE MANUFACTURER DECLINES TO
ACCEPT ANY LIABILITY IF THIS SAFETY
RULE IS NOT OBSERVED».
Starting  up
 Plug the appliance into the mains.
 Make sure the inner light turns on when opening the
door.
 Turn to intermediate position the knobs of the «tem-
perature regulator» «A».
Fig. 2
Fig. 1
SN +10 to +32ºC
N +16 to +32ºC
ST +18 to +38ºC
T +18 to +43ºC

19

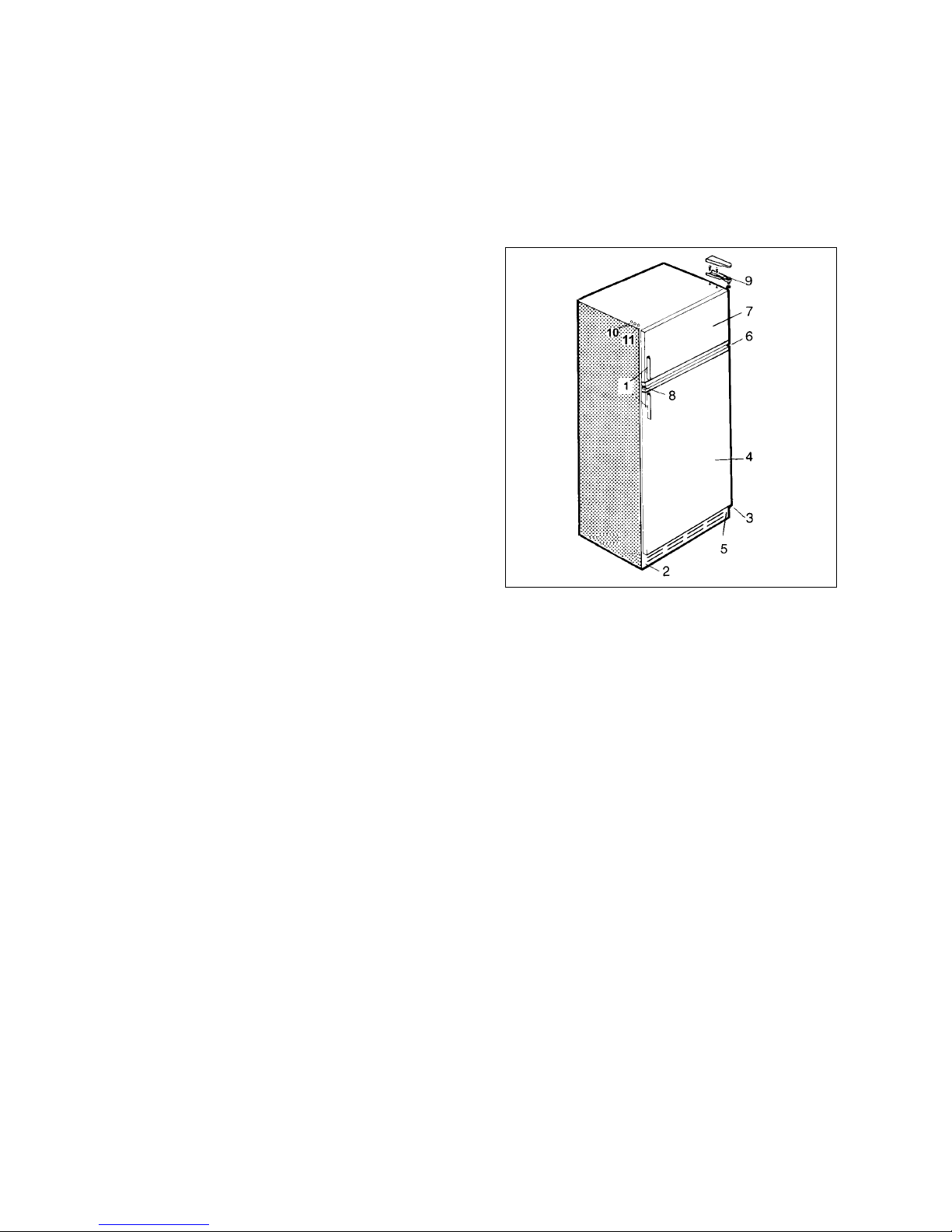

Changing the opening direction
of doors and Panelling
If you wish to change the opening side of the doors
proceed as follows:
1... Remove the handles of the doors, if they are side
fixing by screws.
2... Take off the plinth pressed on to.
3... Remove the inferior hing taking care for the dow-
ner door not to fall off and not to lose the plastic
spacer. Using a 10mm spanner, unscrew the hinge
pin and reassemble it on the opposite side.
4... Lift the downer door off the central hinge.
5... Remove the central hinge taking care for the upper
door not to fall off .
6... Take the upper door off the upper hinge. Be careful
not to lose the plastic ring.
7... Unscrew the plastic bolts of the opposite side of the
place of the central hinge taken out and introduce
them in the holes occupied before by the hinge.

20
Changing the opening direction
of doors and Panelling
If your refrigerator has top panel, you can manage in
the same way from point 1 to point 7 and then:

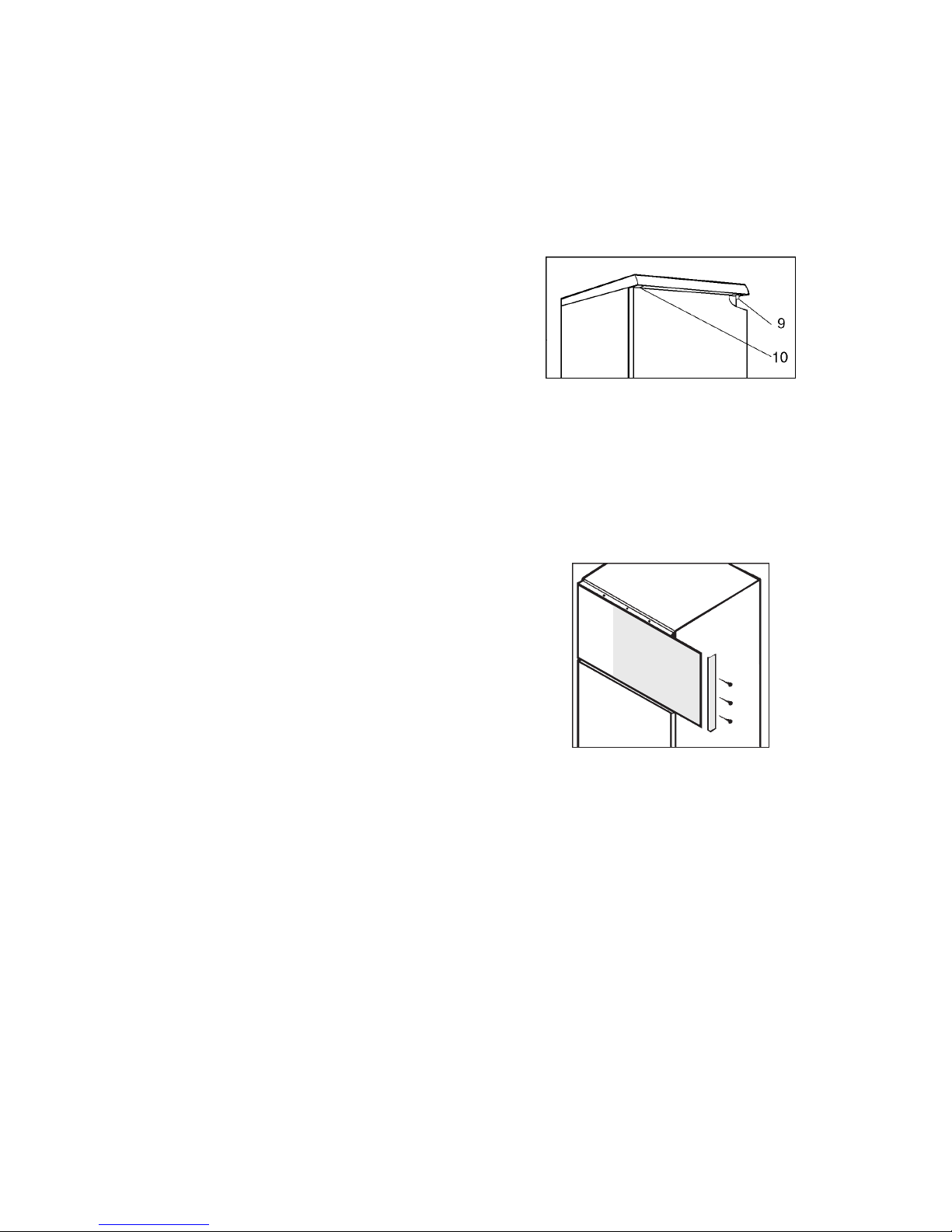

9... Unscrew the axle of the upper hing (9) and replace
it at the opposite side (10).
For the remaining parts proceed the other way round.
Once finished make sure that all joints close
perfectly well all around the door and chek that the
internal light turns of when the fridge door closes.
How to panel the door:
If your appliance is provided with metal strips for
panelling and you wish to do so proceed as follows:
1... Remove one of the side strips.
2... Loosen the screws of the remaining strips.
3... Start putting on the panel where you took off the
strip pushing it right up to the end.
4... Replace the strip on this side.
5... Tighten all screws
NOTE:
The panel dimensions must be 2 mm. shor-
ter than the doors. Maximun thickness of
the panel is 4 mm.

21
Regulation and Control

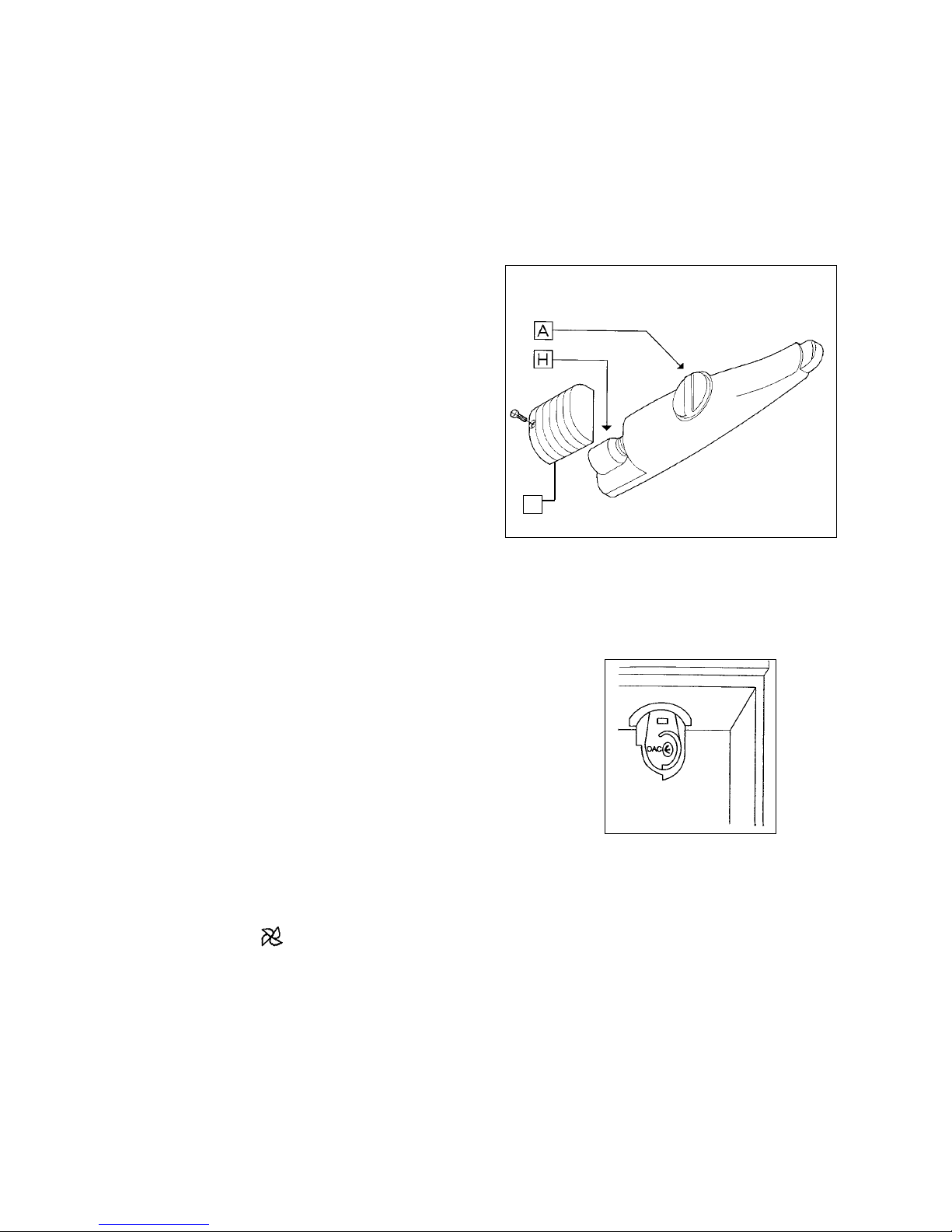

Temperature Regulator for Refrige-
rator:
«A»
Allows to adjust the temperature inside the refrigerator
according to use and external conditions.
 Pos. 1 = Minimum cold.
 Pos. 6 = Maximum cold.
 Pos. 0 = Motor disconnected.
Interior light:
Comes on when opening the door of the refrigerating
compartment.
When changing the light bulb, first remove the protec-
tive cover «X», by firmly holding the edge and pulling
it horizontally. (see point A1 «IF SOMETHING DOES
NOT WORK»).
Dinamic Refrigeration (DAC): (some
models only).
The Dynamic Refrigeration System give, in the fridge
compartment, extra efficiency showed in:
 Quicker refrigeration.
 More homogeneous temperature.
DAC (Dynamic Air Cooling system) has been mainly
designed for hot weather (ambient temperature above
25°), and also when the refrigerator is plenty of food.
To start working, push the switch.
When DAC is switched on, the cold production is hig-
her, thus you should turn the temperature regulator to
an adequate position ( ) to avoid excesive cold.
X

22
How to use your
Refrigerator-Freezer
Refrigerator Compartment:
This compartment is for storing drinks and
fresh food products.
The temperature inside is very evenly distribu-
ted. Make sure food does not touch the back
wall, since behind this surface is where the cold is
generated and food could bee partially frozen.
Also, this can impede the circulation of cold air.
This appliance is provided with an automatic
defrosting system. Consequently you will someti-
mes notice a thin layer of ice or drops of water on
the rear wall.
Freezer Compartment
This freezer, is marked , and is suitable
for freezing fresh foodstuffs and keeping food for
long periods.
Freezing of food
1... Place food on the upper grill.
2... Maintain food for at least 24 hours in that position.
3... The maximum quantity to be frozen within 24
hours is shown on the «Rating Plate», depending
on the model.
Keeping frozen food
For optimum consevation, the temperature inside the
freezer compartment must be at least -18°C.
This temperature is adjusted automatically.
Check that the «Temperature Control» is in a middle
position. Sometimes it may be necessary (insufficient
ventilation, high roon temperature, frequent opening
and closing of the door) to change the position of the
«Temperature Control».
If the appliance should be accidentally switched off by
a fault or power cut, take the following precautions:
 Keep the doors closed at all times.
 Find out how long the stoppage is expected to last.
Once normal power is restored:
A) If the freezer is full and the stoppage has been less
than «Time for temperature Rise» indicated for
each model in the «Technical Features» section,
then no damage will have been caused to the food.
B) If the freezer is not full, the cold will be lost more
quickly. If the food has not started to thaw, then
follow the instructions in «A».
C) If the food has begun to thaw, use them up as
quickly as possible, or cook them and refreeze
them.

23
How to use your
Refrigerator-Freezer
Useful Hints
Do not introduce any new food during a freezing
period.
Do not put any newly introduced food for freezing
near to already frozen food.
Wrap the food up properly or place it in hermethic
recipies before introducing it into the freezer.
Do not introduce any hot food into the freezer.
Food and drinks of a strong flavour may pass this on
to others and affect their flavour. Wrap them up ade-
quately or put them into tight closing bags.
Follow the instructions given in the cook books, fre-
ezing books and wrapping utensiles for better con-
servation of food.

24
Maintenance of your
Refrigerator-Freezer
Prior to undertaking any maintenance ope-
ration, be sure to unplug the appliance.
Defrosting of the freezer
The inner walls of the freezer become gradually cove-
red with a layer of frost keeping in mind not to open the
door frequently and keeping the food wrapped up in
closed bags.
Whenever the thickness of ice reaches 5 mm. the frost
should be removed. Here to proceed as follows:
1... Remove all food staffand place it in the coolest
possible place.
2... Never pull up the sticked ice, you must wait untill
it is melted, when the ice is soft you can remove it
by helping yourself with a plastic ice-scraper,
never use sharp objects, or heating households
because the appliance could be seriusly damaged.
3... Once removed the ice clean and dry the inside with
a soft piece of cloth.
4... You can plug it in again.

25
Maintenance of your
Refrigerator-Freezer
Defrosting of the refrigerator
Frost is automatically eliminated in the refrigerator.
Clean regularly the water drain opening «G».
Cleaning
 Do not use alcohol or any cleanig product containing
alcohol because it can damage the cabinet.
 Use lukewarm water and neutral soap or bicarbonate
of soda for cleaning the interior and the exterior of
the appliance. Never use detergents nor abrasive
powders.
 Clean the black grill on the read of the appliance
(condeser), motor and the upper and downer ventila-
tion slots with a brush or vacuum cleaner. This way
the performance of the appliance will improve and
energy consumption reduced.
 Clean the water container above the motor.
Idle periods
During periods when the appliance is not in use take
the following precautions:
 Unplug the appliance.
 Remove all the food.
 Defrost and clean the interior and all accessories.
 Leave the door ajar to permit the air to circulate in
the interior and thus avoid unpleasant smells.

26
Something not working
Some functioning problems may be due to causes which can easily be solved before
calling the Network Service. Follow theses instructions:
Problem Cause Solution
A) INTERNAL LIGHT
1. Inner light (Refrigerator  Appliance unplugged.  Plug the appliance into mains.
compartment) does not  No power at mains socket.  Chek the domestic
come on «H». instalación doméstica. automatic cutout.
 Bulb loose or burnt out.  Tighteen or substitute it fo
another of same rating.
 The temperature regulator is on  Change the regulator to another
0 position position
B) PERFORMANCE
1. The freezer or the refrigerator  The appropiate «Temperature  Change to another position.
do not cool. Regulator» is in position «0».
2. The freezer or the refrigerator  Door not properly closed.  Close well.
do not cool enough.  The door has been opened  Avoid frecuent opening.
frecuently.
 Inadequate position of  Change position to a cooler one.
«Temperature Regulator».
 Food has been introduced  The appliance will get back
recently in large quantities. to normal, wait.
3. Food gets frozen in the  «Temperature Regulator»  Change position to less cold.
refrigerator. on inadequate position.
 Food touches the back walls  Bring food forwards.
4. The motor does not stop  Temperature regulator  Change position to less cold.
running: on inadequate position.
 Door not properly closed.  Close the door correctly.
 Door opened frequently.  Avoid frequent opening.
 Food has been put in  Wait for the appliance to come
recently in large quantity. back to normal.

27
Problem Cause Solution
C) WATER/ICE
1. Makes too much ice.  «Temperature Regulator»  Change position to less cold.
in inadequate position.
 Door not properly closed.  Close correctly.
 Escessive door opening.  Avoid frequent opening.
2. Water in the lower part  Drain blocked  Clean duct «G».
of the Refrigerator.
3. Water in the vegetable box.  Wet vegetables have been  This is normal.
introduced.
4. The outside of the cabinet  High humidity level .  This is normal. It does not
steams up. in the room affect the performance.
of the appliance
D) DOORS
1. Door does not close.  The appliance is not  Level smooth.
properly levelled.
 Door has benn banged  Never bang the door.
too hard and bounces back.
 Food protudes.  Place food properly.
E) NOISES
 Appliance not properly levelled.  Level properly.
 Friction from back pipes.  Space well.
 Some fixing screw is loose.  Tihten the screw.
 Something inside is vibrating  Place correctly.
 Others.  See next page.
Something not working

28
Normal noises when functioning
1. Temperature Regulator.
May cause cracking sounds when the system connects
or disconnects.
2. Refrigerating system.
The injected cooling gas may produce a burbling sound
while running through the tubes.
3. Compressor.
May cause zumbing noises and/or slight bumping.
4. Insulation.
The material used has a tendency to increase noises,
but it does insulate perfectly and is of low energy con-
sumption.

29
Guarantee, Service
and Spare Parts
Together with the appliance you should receive an ins-
truction booklet like this together with:
 A guarantee card «Certificado de Garantia», with
the conditions of the guarantee printed on the back.
This documentation should always be at hand for con-
sulting. Should this appliance be sold or transfered to
another user, make sure that this documentation stays
with the appliance so the new owner can be acquainted
with the functioning of the appliance and relevant
warnigns.
Before calling the repairman
Read the user instruction and follow the advice and
directives given. In many cases, you will be able to cla-
rify any doubts yourself and thus avoid unnecessary
service calls.
The preceding section entitled «If the appliance does
not perform correctly» includes suggestions for what
should be checked before a serviceman is called.
If, after the above check, there is still a fault call your
nearest Service Centre «Asistencia Tecnica».
Please make sure you give the model and serial num-
ber of the appliance. This information can be found on
the data plate inside the cabinet.
Guarantee
According to the enclosed Guarantee registration card.
Service and spare parts
Can be obtained from our service organization
«Asistencia tecnica».
Model: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Product Number: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Serial Number: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
m Safey
Read the safety and warning texts at the begining
of the user instructions. The manufacturer is not
reponsible for faults caused by the product being
used incorrectly or for purposes other than those
specified in the user instructions.
m Warning
Dont use the fridge/freezer unit for storing explo-
sive gases or liquids, e.g. cigarette lighter gas,
petrol (gasoline), ether, acetone.

30
Tecnical Features
This appliance complies with the following CEE Directives:
 73/23 CEE of 19/02/73 (low voltage directive) and subsequent modifications.
 89/336 CEE del 03/05/89 (electromagnetic compatibility directive) and subsequent modifica-
tions.
DATA IN AGREEMENT WITH «UNE» REQUIREMENTS
MODEL 275 L. 314L.
«A» (mm) 1.520 1.550 1.670 1.700
VOLTAGE (V) ± 6%
220230 220230 220230 220230
FREQUENCY (Hz) 50 50 50 50
FREEZING
CAPACITY (Kg/24h) 4 4 4 4
POWER CONSUMPTION (W) 150 150 160 160
TEMPERATURE
RISING TIME (H) 24 24 24 24
DIMENSIONS WITH
DOORS CLOSED
DIMENSIONS WITH
DOORS OPEN
The refrigeration system and the insulation of this appliance does not content CFC as con-
tribuion and defence of the envorinment.
595
600 45
645
595
1.175
