Zanussi ZWG 390 User manual

WASHINGMACHINE
ZWG390
MADE IN ITALY
ZWG 390
QUICK
WASH
12 h
SYNTHETICS
DELICATES
PROGRAMME
XC
Extra Capacity
9 h
6 h
3 h
WASHING
END
PREWASH
SPIN
REDUCTION
EXTRA
RINSE
START
PAUSE
DELAY
START
COTTONS
L
D
C
B
A
40°
30°
SYNTHETICS
EASY IRON
WHITES an COLOURS
WHITES
COTTONS economy
WHITES an COLOURS
WHITES an COLOURS
COTTONS
SYNTHETICS
WOOL
SHORT CYCLE
RINSES
DELICATES an SPECIALS
WOOL
B
A
C
95°
60°
60°
40°
D
DELICATES
HANDWASH
DRAIN
40°
SPIN
30°
F
H
L
M
J
ELECTRONIC
900 rpm
USER MANUAL
132990280 CN
GB
132990280.qxd 20/02/2004 15:19 Pagina 1 (Nero/Process Black pellicola)

2
Dear customer,
Please read these operating instructions carefully
and pay particular attention to the safety notes
indicated in the first pages. We recommend that you
keep this instruction booklet for future reference and
pass it on to any future owners.
Transport damages
When unpacking the appliance, check that it is not
damaged. If in doubt, do not use it and contact the
Service Centre.
The symbols you will see on some paragraphs of this booklet have the following meaning:
The warning triangle and/or the key words (Warning!, Caution!) emphasize information that is particularly
important for your safety or correct functioning of the appliance.
The information marked with this symbol provides additional instructions and practical tips on the use of
the appliance.
Tips and information about economical and ecological use of the machine are marked with this symbol.
Our contribution to the protection of the
environment: we use recycled paper.
132990280.qxd 20/02/2004 15:19 Pagina 2 (Nero/Process Black pellicola)

ENGLISH
3
Contents
Maintenance 21
Door seal 21
Bodywork 21
Detergent dispenser drawer 21
Drain pump 21-22
Water inlet filter 22
Emergency emptying out 22
Frost precautions 22
Something not working? 23-24
Warnings 4-5
Disposal 5
Tips for environmental protection 5
Technical specifications 6
Installation 7
Unpacking 7
Positioning 7
Water inlet 7
Water drainage 8
Electrical connection 8
Your new washing machine 9
Description of the appliance 9
Detergent dispenser drawer 9
Use 10
Control panel 10
Controls 10-12
Washing hints 13
Sorting the laundry 13
Temperatures 13
Before loading the laundry 13
Maximum loads 13
Laundry weights 13
Removing stains 13
Detergents and additives 14
International wash code symbols 15
Operating sequence 16-17
Programme table 18-20
132990280.qxd 20/02/2004 15:19 Pagina 3 (Nero/Process Black pellicola)

4
Warnings
Installation
• All internal packing must be removed before using
the appliance. Serious damage may be caused to
the machine or adjacent furniture if the protective
transit devices are not removed or are not
completely removed. Refer to the relevant
paragraph in the instruction book.
• Any electrical work required to install this appliance
must be carried out by a qualified electrician.
• Any plumbing work required to install this
appliance must be carried out by a qualified
plumber.
• After having installed the machine, check that it is
not standing on its electrical supply cable.
• If the appliance is placed on a carpeted floor,
ensure that air can circulate freely between the
feet and the floor.
Use
• This appliance is designed for domestic use. It
must not be used for purposes other than those for
which it was designed.
• Only wash fabrics which are designed to be
machine washed. Follow the instructions on each
garment label.
• Do not overload the appliance. Follow the
instructions in the instruction book.
• Make sure that all pockets are empty. Objects such
as coins, safety pins, pins and screws can cause
extensive damage.
• Do not machine wash garments saturated with
petroleum, methylated spirits, trichlorethylene, etc.
If such fluids have been used to remove stains
prior to washing, wait until they have completely
evaporated from the fabric before placing
garments in the appliance.
• Place small items such as socks, belts, etc. in a
cloth bag or pillowcase to prevent them getting
trapped between the drum and the tub.
• Use only the recommended quantities of fabric
softener. An excessive amount could damage the
laundry.
• Leave the porthole door slightly ajar when the
appliance is not in use. This preserves the door
seal and prevents the formation of musty smells.
• Always check that water has emptied out before
opening the door. If not, drain the water following
the instructions in the instruction book.
• Always unplug the appliance and shut the water
tap after use.
General safety
• Repairs to the machine must be carried out only by
qualified personnel. Repairs carried out by
inexperienced persons could cause serious
danger. Contact your local Service Centre.
• Never pull the power supply cable to remove the
plug from the socket; always take hold of the plug
itself.
• During high temperature wash programmes the
door glass may get hot. Do not touch it!
The following warnings are provided in the interests of overall safety. You must read them carefully before
installing or using the appliance.
132990280.qxd 20/02/2004 15:19 Pagina 4 (Nero/Process Black pellicola)

ENGLISH
5
Disposal
Tips for environmental protection
Packaging materials
The materials marked with the symbol are
recyclable.
>PE<=polyethylene
>PS<=polystyrene
>PP<=polypropylene
This means that they can be recycled by disposing of
them properly in appropriate collection containers.
Machine
Use authorised disposal sites for your old appliance.
Help to keep your country tidy!
To save water, energy and to help protect the
environment, we recommend that you follow these
tips:
• Normally soiled laundry may be washed without
prewashing in order to save detergent, water and
time (the environment is protected too!).
• The machine works more economically if it is fully
loaded.
• With adequate pre-treatment, stains and limited
soiling can be removed; the laundry can then be
washed at a lower temperature, so saving energy.
• Measure out detergent according to the water
hardness, the degree of soiling and the quantity of
laundry being washed.
Child safety
• Children are often not aware of how dangerous
electrical appliances can be. When the machine is
working, children should be carefully supervised
and not be allowed to play with the appliance.
• The packaging components (e.g. plastic film,
polystyrene) can be dangerous to children - danger
of suffocation! Keep them out of children’s reach.
• Keep all detergents in a safe place out of children’s
reach.

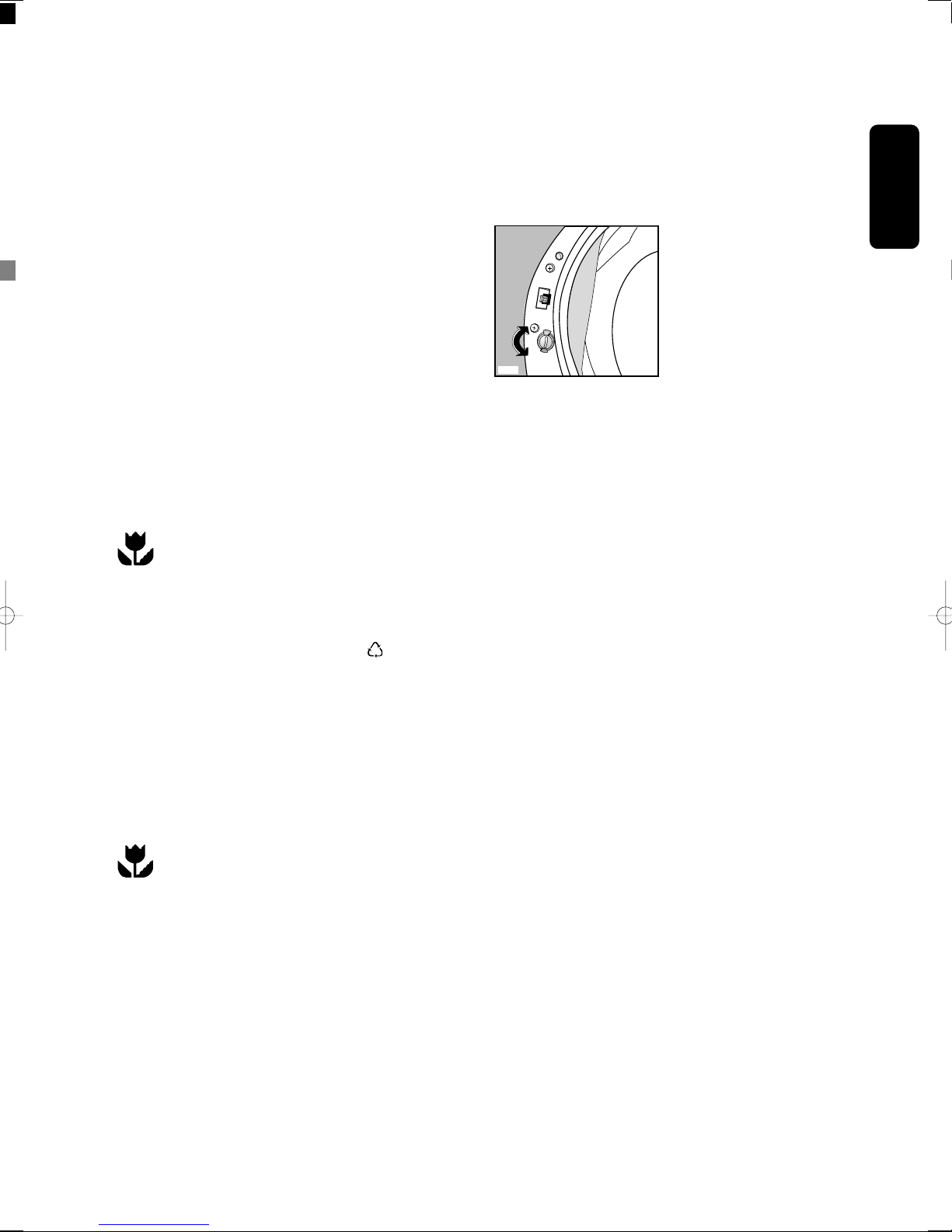

• Make sure that children or pets do not climb into
the drum. To avoid this the machine incorporates a
special feature. To activate this device, rotate the
button (without pressing it) inside the door
clockwise until the groove is horizontal. If
necessary use a coin.
To disable this device and restore the possibility of
closing the door, rotate the button anti-clockwise
until the groove is vertical.
• When the appliance is to be scrapped, cut off the
electrical supply cable and destroy the plug with
the remaining cable. Disable the door catch in
order to prevent children from becoming trapped
inside while playing.
P1131
132990280.qxd 20/02/2004 15:19 Pagina 5 (Nero/Process Black pellicola)

6
Technical specifications
DIMENSIONS Height 85 cm
Width 60 cm
Depth 59 cm
MAXIMUM LOAD Cotton 6 kg
Synthetics 3 kg
Delicates 3 kg
Woollens/Handwash 2,5 kg
SPIN SPEED 900 rpm max.
POWER SUPPLY VOLTAGE/FREQUENCY 220-230 V/50 Hz
TOTAL POWER ABSORBED 2200 W
MINIMUM FUSE PROTECTION 10 A
WATER PRESSURE Minimum 0,05 MPa
Maximum 0,8 MPa
This appliance complies with the following EEC Directives:
73/23/EEC of 19/02/73 relating to low voltage
89/336/EEC of 03/05/89 relating to electromagnetic compatibility.
132990280.qxd 20/02/2004 15:19 Pagina 6 (Nero/Process Black pellicola)

ENGLISH
7
Installation
Unpacking
All transit bolts and packing must be
removed before using the appliance.
You are advised to keep all transit devices so that
they can be refitted if the machine ever has to be
transported again.
1. Using a spanner, unscrew and remove the two
rear bottom screws. Slide out the two plastic pins.
2. Lay the machine on its back, taking care not to
squash the hoses. This can be avoided by
placing one of the corner packing pieces between
the machine and the floor.
3. Remove the polystyrene block(s) from the bottom
of the machine. Unscrew and remove the four
feet. Release the two plastic bags.
4. Very carefully slide out the left polythene bag,
removing it towards the right and then downwards.
5. Very carefully slide out the right polythene bag,
removing it towards the left and then upwards.
6. Fit the grid (A) on the bottom of the machine
using the four screws (B) you will find in the bag
containing the instruction booklet.
Re-fit the feet.
A
B
P1067
B
B
B
P1127
P1126
P1123
2
3
1
P0001
P1129
7. Set the machine upright and remove the
remaining rear screw. Slide out the relevant pin.
8. Plug all the holes with the plugs which you will
find in the envelope containing the instruction
booklet.
Positioning
Install the machine on a flat hard floor.
Make sure that air circulation around the machine is
not impeded by carpets, rugs etc. Check that the
machine does not touch the wall or other kitchen
units.
Carefully level by screwing the adjustable feet in or
out. Never place cardboard, wood or similar
materials under the machine to compensate for any
unevenness in the floor.
Water inlet
Connect the machine to a cold water tap with a 3/4"
thread by means of the water inlet hose situated at
the back of the appliance. Do not use to this purpose
old hoses already employed
The other end of the inlet hose which connects to the
machine can be turned in any direction. Simply
loosen the fitting, rotate the hose and retighten the
fitting, making sure there are no water leaks.
P0021
P1088
P1051
P0002
P1128
132990280.qxd 20/02/2004 15:19 Pagina 7 (Nero/Process Black pellicola)

8
The inlet hose must not be lengthened. If it is too
short and you do not wish to move the tap, you will
have to purchase a new, longer hose specially
designed for this type of use.
Important!
Before connecting up the machine to new pipework
or to pipework that has not been used for some time,
run off a reasonable amount of water to flush out any
debris that may have collected in the pipes.

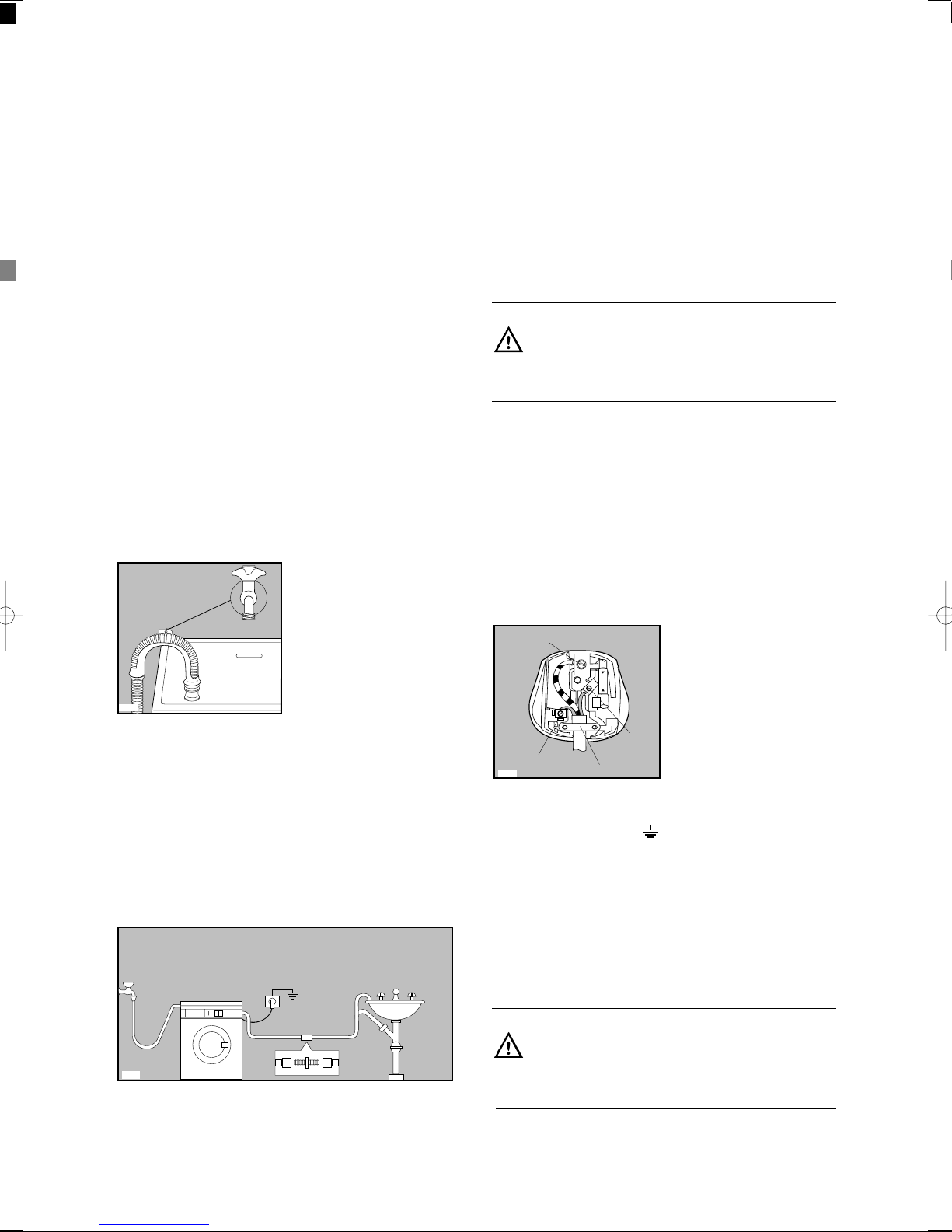

Water drainage
The end of the drain hose can be positioned in three
ways:
Hooked over the edge of a sink using the plastic
hose guide supplied with the machine. In this
case, make sure the end cannot come unhooked
when the machine is emptying.
This could be done by tying it to the tap with a piece
of string or attaching it to the wall.
In a sink drain pipe branch. This branch must be
above the trap so that the bend is at least 60 cm
above the ground.
Directly into a drain pipe at a height of not less
than 60 cm and not more than 90 cm.
The end of the drain hose must always be
ventilated, i.e. the inside diameter of the drain pipe
must be larger than the outside diameter of the drain
hose.
The drain hose must not be kinked.
For a correct functioning of the machine the
drain hose must remain hooked on the proper
support piece situated on the top part of the back
side of the appliance.
P1118
P0022
Electrical connection
This machine is designed to operate on a 220-230 V,
single-phase, 50 Hz supply.
Check that your domestic electrical installation can
take the maximum load required (2.2 kW), also
taking into account any other appliances in use.
WARNING: THIS APPLIANCE MUST BE
EARTHED.
The manufacturer declines any liability
should this safety measure not be
observed.
The appliance is supplied with a 13amp plug fitted.
In the event of having to change the fuse in the plug
supplied, a 13amp ASTA approved (BS1363A) fuse
must be used.
Should the plug need to be replaced for any reason,
proceed as described below.
The wires in the mains lead are coloured in
accordance with the following code:
Green and Yellow - Earth
Blue - Neutral
Brown - Live
The wire coloured green and yellow must be
connected to the terminal marked with the letter «E»
or by the earth symbol or coloured green and
yellow.
The wire coloured blue must be connected to the
terminal «N» or coloured black.
The wire coloured brown must be connected to the
terminal marked «L» or coloured red.
Upon completion there must be no cut, or stray
strands of wire present and the cord clamp must be
secure over the outer sheath.
WARNING:
A cut off plug inserted into a 13 amp socket
is a serious safety (shock) hazard.
Ensure that the cut off plug is disposed of
safely.
GREEN & YELLOW
BROWN
CORD CLAMP
BLUE
13A
P1041
E
N
L
132990280.qxd 20/02/2004 15:19 Pagina 8 (Nero/Process Black pellicola)

ENGLISH
9
Your new washing machine
This new washing machine, patented Zanussi, meets all modern needs for effective treatment of laundry with
low water, energy and detergent consumption.
Further savings are achieved by washing small loads of laundry, since water and electricity consumption is
proportional to the quantity and type of laundry being washed.
•The possibility of selecting the temperature, spin speed and all the options offered by this washing machine
gives you truly “customised” washing.
•The special HANDWASH programme with its new delicate wash system treats your woollens and delicate
items with extreme care.
•The balance control device prevents vibration during spinning.
•The ECO valve allows total use of detergent and reduces water consumption so saving energy.
1 Detergent dispenser drawer and programme chart
2 Control panel
3 Door handle
4 Drain pump
5 Adjustable feet
Detergent dispenser drawer
Prewash
Main wash
Fabric softener, starch
Description of the appliance
12
3
4
5
MADE IN ITALY
ZWG 390
QUICK
WASH
12 h
SYNTHETICS
DELICATES
PROGRAMME
XC
Extra Capacity
9 h
6 h
3 h
WASHING
END
PREWASH
SPIN
REDUCTION
EXTRA
RINSE
START
PAUSE
DELAY
START
COTTONS
L
D
C
B
A
40°
30°
SYNTHETICS
EASY IRON
WHITES an COLOURS
WHITES
COTTONS economy
WHITES an COLOURS
WHITES an COLOURS
COTTONS
SYNTHETICS
WOOL
SHORT CYCLE
RINSES
DELICATES an SPECIALS
WOOL
B
A
C
95°
60°
60°
40°
D
DELICATES
HANDWASH
DRAIN
40°
SPIN
30°
F
H
L
M
J
ELECTRONIC
900 rpm
C0110
132990280.qxd 20/02/2004 15:19 Pagina 9 (Nero/Process Black pellicola)

10
Use
C OT T ON S
L
D
C
B
A
12345 8 6 7
40°
30°
SYNTHETICS
EASY IRON
WHITES an COLOURS
WHITES
COTTONS economy
WHITES an COLOURS
WHITES an COLOURS
COTTONS
SYNTHETICS
WOOL
SHORT CYCLE
RINSES
DELICATES an SPECIALS
WOOL
B
A
C
95°
60°
60°
40°
D
DELICATES
HANDWASH
DRAIN
40°
SPIN
30°
F
H
L
M
J
ELECTRONIC
900 rpm
SYNTHETICS
DELICATES
PROGRAMME
XC
Extra Capacity
9 h
6 h
3 h
WASHING
END
PREWASH
SPIN
REDUCTION
EXTRA
RINSE
START
PAUSE
DELAY
START
MADE IN ITALY
ZWG 390
QUICK
WASH
12 h
Control panel
1 Detergent dispenser drawer and
programme chart
Programme Option buttons
Depending on the programme, different functions
can be combined. These must be selected after
choosing the desired programme and before
depressing the START PAUSE button.
When these buttons are pressed, the corresponding
pilot lights come on. When they are pressed again,
the pilot lights go out.
If an incorrect option is selected, the corresponding
pilot light flashes for about 2 seconds.
2 Options button
Press this button to select the following options:
•Prewash
Select this option if you wish your laundry to be
prewashed at 30°C before the main wash (not
available for wool, handwash and SHORT
CYCLE).
The prewash ends with a short spin in
programmes for cotton and synthetic fabrics,
whereas in the programme for delicate fabrics the
water is only drained.
•Quick wash
This button allows you to select the QUICK WASH
function, for laundry that is only slightly soiled
(cannot be selected with the wool, handwash,
SHORT CYCLE and COTTONS economy
programmes).
The washing time will be reduced according to the
type of fabric and the selected temperature.
Max. load for cotton 3 kg.
3 EXTRA RINSE button
The Extra Rinse option can be selected with all
programmes except the wool, handwash and
SHORT CYCLE programmes. The machine will
perform 2 additional rinses. This option is
recommended for people who are allergic to
detergents, and in areas where the water is very soft.
4 SPIN REDUCTION button
Press this button to reduce the spin speed, if you
want your laundry to be spun at a speed different
from the one proposed by the washing machine. The
relevant light will light up.
In the programmes for cotton, synthetics, wool and
handwash the spin speed will be reduced from 900
rpm to 450 rpm. In delicates and SHORT CYCLE
programmes the spin speed will be reduced from
700 rpm to 450 rpm.
132990280.qxd 20/02/2004 15:19 Pagina 10 (Nero/Process Black pellicola)

ENGLISH
11
5 START PAUSE button
After having selected the required programme, press
this button to start the machine; the corresponding
pilot light stops flashing and remains lit.
To interrupt a programme which is running, depress
the START PAUSE button: the corresponding pilot
light starts to flash.
To restart the programme from the point at which it
was interrupted, press the START PAUSE button
again.
6 DELAY START button
This button makes it possible to delay the starting of
the washing programme by 12, 9, 6 and 3 hours. The
delay you have selected is indicated by the coming
on of the corresponding light.
You must select this option after you have set
the programme and before you press the START
PAUSE button.
You can cancel the delay time at any moment,
before you press the START PAUSE button.
If you have already pressed the START PAUSE
button, and you wish to cancel the delay time,
proceed as follows:
• set the washing machine to PAUSE by pressing the
START PAUSE button;
• press the DELAY START button once, the light
relevant to the selected delay goes off .
• press the START PAUSE button again to start the
programme.
Important!
●The selected delay can be changed only after
selecting the washing programme again.
●The door will be locked throughout the delay time.
If you need to open the door, you must first set
the washing machine to PAUSE by pressing the
START PAUSE button. After approx. 2 minutes
the door can be opened. After you have closed
the door, press the START PAUSE button again.
The delay start cannot be selected with
programmes “DRAIN” and “SPIN”.

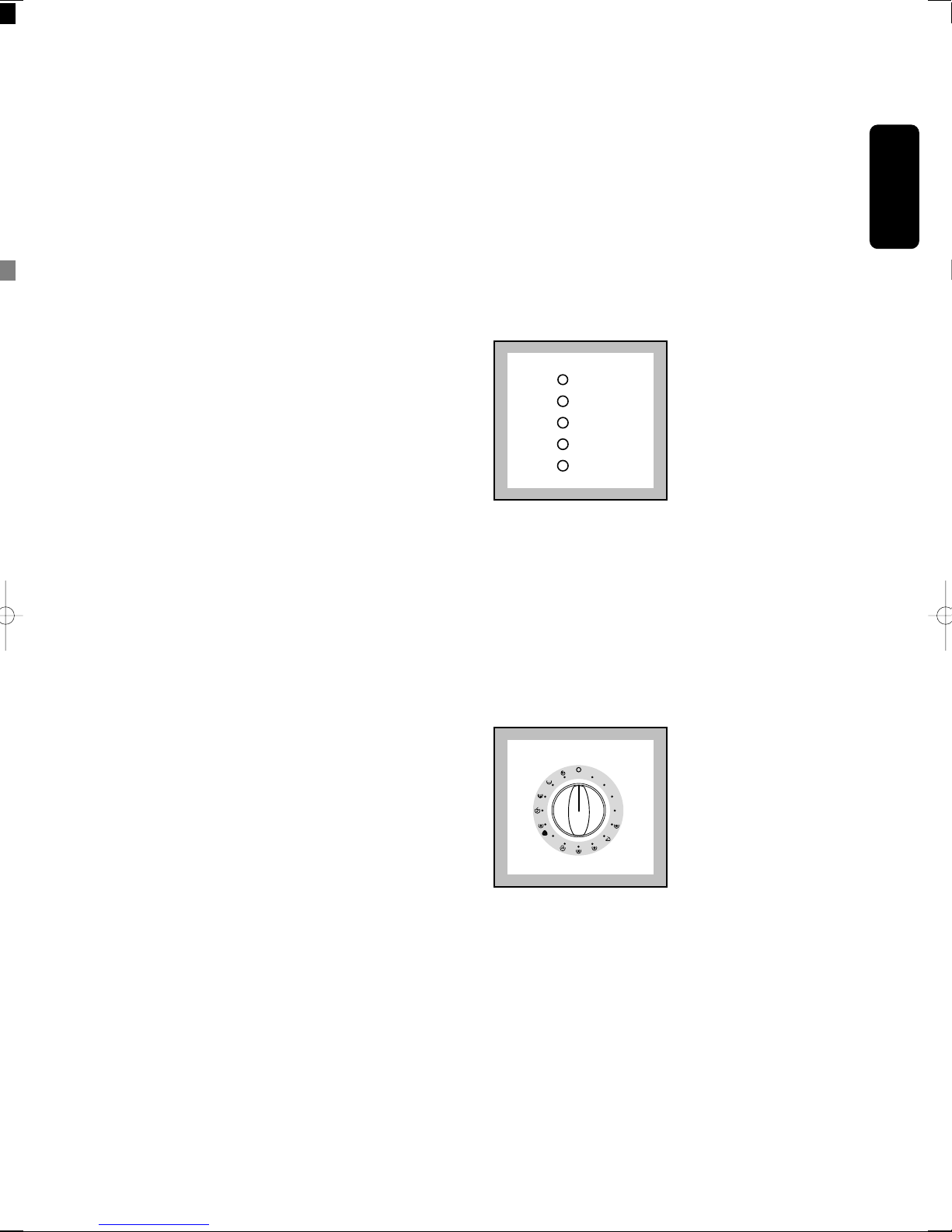

7 Programme progress display
When you choose the delayed start, the light
relevant to the selected delay lights up.
After the machine has started, the remaining time is
shown by the corresponding indicator light.
At the beginning of the programme, only the
WASHING light stays on. When the programme has
finished, the End pilot light comes on.
The End light flashes in the event of operating
problems:
• 4 flashes: door open
• 2 flashes: problem with water draining
• 1 flash: problem with water supply
For more information see paragraph “Something not
working”?
9 Programme selector dial
The selector dial can be turned either clockwise or
anticlockwise.
Position Ocorresponds to Reset programme/Switching
OFF of the machine.
At the end of the programme the selector dial
must be turned to position O, to switch the
machine off.
ATTENTION!
If you turn the programme selector dial to another
programme when the machine is working, the lights
of the programme progress display start to flash for 2
seconds. The machine will not perform the new
selected programme.
C OT T ON S
L
D
C
B
A
SYNTHETICS
DELICATES
PROGRAMME
9 h
6 h
3 h
WASHING
END
132990280.qxd 20/02/2004 15:19 Pagina 11 (Nero/Process Black pellicola)

12
Programme information
The wool wash cycle of this machine has been
approved by Woolmark for the washing of machine
washable Woolmark products provided that the
garments are washed according to the instructions
on the garment label and those issued by the
manufacturer of this washing machine. Licence No.
M9604.
With this programme it is possible to rinse and spin
garments which have been washed by hand.
The machine performs 3 rinses, followed by a final
short spin at the speed selected by means of the
relevant dial.
For emptying out the water of the last rinse in
programmes ending with water in drum.
Turn first the programme selector dial to O, then select
drain programme and depress the START PAUSE
button.
Separate short spin for hand washed garments
and after programmes ending with water in
drum. Before selecting this programme the
selector dial must be turned to “O”. You can
choose the speed by means of the relevant
button to adapt it to the fabrics to be spun.
Spin
Drain
Rinses
Wool This is a complete programme to be used for lightly
soiled laundry or for laundry which needs freshening
up.
Max load: 3. kg .
Washing temperature: 30°C
Number of rinses: 2 .
Programme duration: 30 minutes.
Short spin at 700 r.p.m max.
Particularly delicate washing suitable for articles of
clothing whose label indicates that they must be
hand-washed .
With this programme the laundry is gently washed to
prevent any creasing, so making ironing easier.
Easy Iron
Handwash
Short Cycle
132990280.qxd 20/02/2004 15:19 Pagina 12 (Nero/Process Black pellicola)

ENGLISH
13
Washing hints
Sorting the laundry
Follow the wash code symbols on each garment
label and the manufacturer’s washing instructions.
Sort the laundry as follows:
whites, coloureds, synthetics, delicates, woollens.
Temperatures
95° for normally soiled white cottons and linen
(e.g. tea cloths, towels, tablecloths,
sheets...)
60° for normally soiled, colour fast garments
(e.g. shirts, night dresses, pyjamas....) in
linen, cotton or synthetic fibres and for
lightly soiled white cotton (e.g. underwear).
(cold) for delicate items (e.g. net curtains),
30°-40° mixed laundry including synthetic
fibres and woollens.
Before loading the laundry
Never wash whites and coloureds together. Whites
may lose their “whiteness” in the wash.
New coloured items may run in the first wash; they
should therefore be washed separately the first time.
Make sure that no metal objects are left in the
laundry (e.g. hair clips, safety pins, pins).
Button up pillowcases, close zip fasteners, hooks
and poppers. Tie any belts or long tapes.
Remove persistent stains before washing. Rub
particularly soiled areas with a special detergent or
detergent paste.
Treat curtains with special care. Remove hooks or tie
them up in a bag or net.
Maximum loads
Recommended loads are indicated in the
programme charts.
General rules:
Cotton, linen: drum full but not too tightly packed;
Synthetics: drum no more than half full;
Delicate fabrics and woollens: drum no more than
one third full.
Washing a maximum load makes the most efficient
use of water and energy.
For heavily soiled laundry, reduce the load size.
Laundry weights
The following weights are indicative:
bathrobe 1200 g
napkin 100 g
quilt cover 700 g
sheet 500 g
pillow case 200 g
tablecloth 250 g
towelling towel 200 g
tea cloth 100 g
night dress 200 g
ladies’ briefs 100 g
man’s work shirt 600 g
man’s shirt 200 g
man’s pyjamas 500 g
blouse 100 g
men’s underpants 100 g
Removing stains
Stubborn stains may not be removed by just water
and detergent. It is therefore advisable to treat them
prior to washing.
Blood: treat fresh stains with cold water. For dried
stains, soak overnight in water with a special
detergent then rub in the soap and water.
Oil based paint: moisten with benzine stain
remover, lay the garment on a soft cloth and dab the
stain; treat several times.
Dried grease stains: moisten with turpentine, lay
the garment on a soft surface and dab the stain with
the fingertips and a cotton cloth.
Rust: oxalic acid dissolved in hot water or a rust
removing product used cold. Be careful with rust
stains which are not recent since the cellulose
structure will already have been damaged and the
fabric tends to hole.
Mould stains: treat with bleach, rinse well (whites
and fast coloureds only).
Grass: soap lightly and treat with bleach (whites and
fast coloureds only).
Ball point pen and glue: moisten with acetone (*),
lay the garment on a soft cloth and dab the stain.
Lipstick: moisten with acetone as above, then treat
stains with methylated spirits. Remove any residual
marks from white fabrics with bleach.
Red wine: soak in water and detergent, rinse and
treat with acetic or citric acid, then rinse. Treat any
132990280.qxd 20/02/2004 15:19 Pagina 13 (Nero/Process Black pellicola)

14
Quantity of detergent to be used
The type and quantity of detergent will depend on
the type of fabric, load size, degree of soiling and
hardness of the water used.
Water hardness is classified in so-called “degrees” of
hardness. Information on hardness of the water in
your area can be obtained from the relevant water
supply company, or from your local authority.
Follow the product manufacturers’ instructions on
quantities to use.
Use less detergent if:
– you are washing a small load,
– the laundry is lightly soiled,
– large amounts of foam form during washing.
residual marks with bleach.
Ink: depending on the type of ink, moisten the fabric
first with acetone (*), then with acetic acid; treat any
residual marks on white fabrics with bleach and then
rinse thoroughly.
Tar stains: first treat with stain remover, methylated
spirits or benzine, then rub with detergent paste.
(*) do not use acetone on artificial silk.
Detergents and additives
Good washing results also depend on the choice of
detergent and use of the correct quantities to avoid
waste and protect the environment. Although
biodegradable, detergents contain substances
which, in large quantities, can upset the delicate
balance of nature.
The choice of detergent will depend on the type of
fabric (delicates, woollens, cottons, etc.), the colour,
washing temperature and degree of soiling.
All commonly available washing machine detergents
may be used in this appliance:
– powder detergents for all types of fabric,
– powder detergents for delicate fabrics (60°C max)
and woollens,
– liquid detergents, preferably for low temperature
wash programmes (60°C max) for all types of
fabric, or special for woollens only.
The detergent and any additives must be placed in
the appropriate compartments of the dispenser
drawer before starting the wash programme.
If using concentrated powder or liquid detergents, a
programme without prewash must be selected.
The washing machine incorporates a recirculation
system which allows an optimal use of the
concentrated detergent.
Pour liquid detergent into the dispenser drawer
compartment marked just before starting the
programme.
Any fabric softener or starching additives must be
poured into the compartment marked before
starting the wash programme.
Follow the product manufacturer’s recommendations
on quantities to use and do not exceed the «MAX»
mark in the detergent dispenser drawer.
132990280.qxd 20/02/2004 15:19 Pagina 14 (Nero/Process Black pellicola)

ENGLISH
15
International wash code symbols
These symbols appear on fabric labels, in order to help you choose the best way to treat your laundry.
Energetic wash
Delicate wash
Max. wash
temperature
95°C
Max. wash
temperature
60°C
Max. wash
temperature
40°C
Max. wash
temperature
30°C Hand wash Do not
wash
at all
Bleaching Bleach in cold water Do not bleach
Ironing Hot iron
max 200°C Warm iron max 150°C Lukewarm iron max 110°C Do not iron
Dry cleaning Dry cleaning
in all solvents Dry cleaning in perchlorethylene,
petrol, pure alcohol,
R 111 & R 113
Dry cleaning
in petrol,
pure alcohol
and R 113
Do not
dry clean
Drying Flat On the line On clothes
hanger Tumble dry
high
temperature
low
temperature
Do not
tumble dry
95
60
60
40
40
40
30
30
132990280.qxd 20/02/2004 15:19 Pagina 15 (Nero/Process Black pellicola)

16
4.Select the required programme
Turn the programme selector dial to the required
programme. The light of the START PAUSE button
starts to flash.
5.Select the required options
The light corrisponding to the depressed button
illuminates.
6.Select the SPIN REDUCTION
button
Press this button if you wish your laundry to be spun
at a different sped from the one proposed by the
washing machine.
SPIN
REDUCTION
PREWASH
EXTRA
RINSE
QUICK
WASH
CO T T ON S
L
D
C
B
A
SYNTHETICS
DELICATES
PROGRAMME
Operating sequence
Before the first wash we recommend that you pour 2
litres of water into the main wash compartment
of the detergent drawer in order to activate the
ECO valve. Then run a cotton cycle at 60°C, with the
machine empty, in order to remove any
manufacturing residue from the drum and tub.
Pour half a measure of detergent into the main wash
compartment and start up the machine.
1.Place the laundry in the drum
Open the door.
Place the laundry in the drum, one item at a time,
shaking them out as much as possible.
Close the door.
2.Measure out the detergent
Pull out the dispenser drawer until it stops. Measure
out the amount of detergent recommended by the
manufacturer in a graduated cup and pour it into the
main wash compartment .
If you wish to carry out the prewash, pour detergent
into the appropriate compartment marked .
3.Measure out the additive
If required, pour fabric softener into the compartment
marked , without exceeding the «MAX» mark.
C0112
C0111
P0004
132990280.qxd 20/02/2004 15:19 Pagina 16 (Nero/Process Black pellicola)

ENGLISH
17
11. Cancelling a programme
Turn the selector dial to Oto cancel a programme
which is running. Now you can select a new
programme.
12. Opening the door after the
programme has started
First set the machine to PAUSE by pressing the
START PAUSE button.
If the door does not open, after about 2 minutes, this
means that the machine is already heating, that the
water level is above the bottom edge of the door or
that the drum is turning.
If you cannot open the door but you need to open it
you have to switch the machine off by turning the
selector dial to “O”. After about 2 minutes the door can
be opened (pay attention to the water level and
temperature!).
13 At the end of the programme
The machine stops automatically.
If there is water in the drum, the End pilot light
remains lit and the door is locked to indicate that the
water must be emptied out before opening the door.
To do this turn the programme selector dial to “O”
and then to programme “DRAIN” or “SPIN”. The spin
programme is performed at the maximum speed.
Switch the machine off by turning the programme
selector dial to “O”.
Wait approx. two minutes before opening the door to
give the electric locking mechanism time to release
it.
Remove the laundry from the drum and carefully
check that the drum is empty so as to avoid any
forgotten items being damaged in a subsequent
wash (e.g. shrinking) or their colour running into a
load of whites.
If you do not intend to carry out another wash, close
the water tap.
Leave the door open to prevent the formation of
mildew and unpleasant smells.

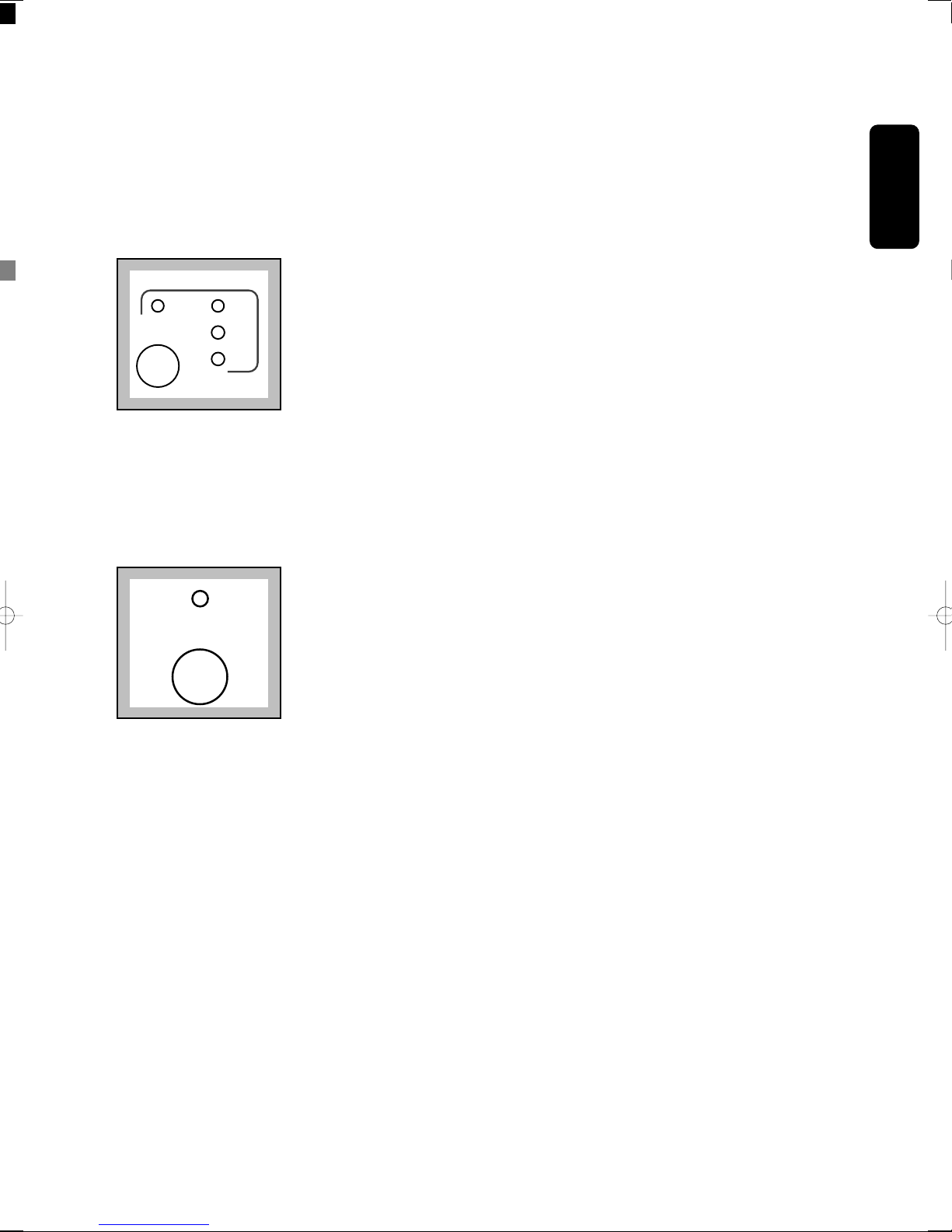

7.Select the DELAY START
Before you start the programme, if you wish the
starting to be delayed, press the DELAY START
button repeatedly, to select the desired delay. The
relevant light illuminates.
8.Start the programme
To start the selected programme, press the START
PAUSE button, the corresponding light stops
flashing.
The WASHING light illuminates.
If you have chosen a delayed start, the machine will
begin the countdown.
9.Altering a programme
You can alter the programme before it starts.
When the programme has started, you can only
reset it by turning the programme selector dial to O
and then you can select the new programme.
The washing water remains in the tub.
Start the new programme by depressing the START
PAUSE button.
10. Interrupting a programme
Depress the START PAUSE button to interrupt a
programme which is running, the corresponding light
starts to flash. Depress the button again to restart the
programme.
START
PAUSE
9 h
6 h
3 h
DELAY
START
12 h
132990280.qxd 20/02/2004 15:19 Pagina 17 (Nero/Process Black pellicola)

18
Programme table
PROGRAMMES FOR COTTON, SYNTHETICS
Programme
Position/
Temperature
Type of laundry Additional
functions Wash load max. Energy
kWh Water
lt Duration min.
Consumptions*
EASY
IRON
Synthetics or mixed
fabric to be gently
washed to prevent
creasing, so making
ironing easier
WHITES
AND
COLOURS
C-D-F
60°-40°-
Fast coloured and
non-fast cotton or
linen fabrics,
mormally soiled,
shirts, underwear,
towels
SYNTHE-
TICS Delicate fabrics, for example curtains
WHITES For heavily soiled
cotton items
A
95°
COTTONS
economy
White and coloured
cotton,for example
moderately soiled
sheets, household
linen, underwear
B
**
60°
40°
H
6 kg
3 kg 0.13 54 67
2.10 57 150
1.30 53 120
3 kg 0.40 73 75
PREWASH
QUICKWASH
EXTRA RINSE
SPIN REDUCTION
6 kg 1.04 53 140
EXTRA RINSE
SPIN REDUCTION
PREWASH
QUICKWASH
EXTRA RINSE
SPIN REDUCTION
PREWASH
QUICKWASH
EXTRA RINSE
SPIN REDUCTION
PREWASH
QUICKWASH
EXTRA RINSE
SPIN REDUCTION
6 kg
* The consumption data shown on this chart is to be considered purely indicative, as it may vary depending
on the quantity and type of laundry, on the inlet water temperature and on the ambient temperature. It
refers to the highest temperature for each wash programme.
** In compliance with EC directive 92/75, the consumption figures indicated on the energy label refer to the
wash programme B.
132990280.qxd 20/02/2004 15:19 Pagina 18 (Nero/Process Black pellicola)

ENGLISH
19
Programme table
PROGRAMMES FOR DELICATES, HANDWASH , WOOL AND SHORT CYCLE
Programme
Position/
Temperature
Type of laundry Additional
functions Wash load max. Energy
kWh Water
lt Duration
min.
Consumptions*
SHORT
CYCLE
For lightly soiled
laundry or for laundry
which needs
freshining up
WOOL
L-M
40°-
Wool bearing the label
DELICATES Delicate fabrics, for
example curtains
J
HANDWASH
Extremely delicate
items with lable
indicating “must be
handwashed
”
30°
30°
2,5 kg
3 kg 0.10 55 60
0.45 55 55
3 kg 0.23 39 30
PREWASH
QUICKWASH
EXTRA RINSE
SPIN REDUCTION
2,5 kg 0.23 39 30
SPIN REDUCTION
SPIN REDUCTION
SPIN REDUCTION
* The consumption data shown on this chart is to be considered purely indicative, as it may vary depending
on the quantity and type of laundry, on the inlet water temperature and on the ambient temperature. It
refers to the highest temperature for each wash programme.
132990280.qxd 20/02/2004 15:19 Pagina 19 (Nero/Process Black pellicola)

20
Programme table
SPECIAL PROGRAMMES
* The consumption data shown on this chart is to be considered purely indicative, as it may vary depending on
the quantity and type of laundry, on the inlet water temperature and on the ambient temperature.
Programme
selector dial
position
Rinses
Programme Programme
description Additional functions
Wash load
max. Energy
kWh Water lt Duration
min.
Consumptions*
For rinsing hand
washed items
3 rinses with liquid
additive, if required
Short spin at max.
speed
6 kg 0.05 57 30
/- - 1.5
6 kg --5
Drain
For emptying out
the water of the
last rinse
Separate spin for
cotton,
synthetics,
delicates and
wool/handwash
Water draining
Drain and short spin at
max. speed
Spin
SPIN
REDUCTION
/---
For cancelling the
programme
which is running
or to switch the
machine off.
O
Reset/Off
EXTRA RINSE
SPIN REDUCTION
132990280.qxd 20/02/2004 15:19 Pagina 20 (Nero/Process Black pellicola)
