Zenitel ELSII-10HM+ User manual

Network Speaker
Mounting & Installation Manual
A100K12171 EN
ELSIIHM+

2 3
About
Item Number Item Name Description
1023311311 ELSII-10HM+ Network Horn Speaker, 10W, Ethernet, Microphone
This document serves as a basic mounting and installation guide for Zenitels
Network Speaker, ELSII-10HM+.
Featured products:
1 Safety Information
This manual describes the necessary steps to mount and install the Zenitel
Network Speakers. It contains important instructions that must be followed.
The Network Speakers should be installed by a competent person in
accordance with national and local regulations.
NB! A waring symbol indicates that extra care must be taken.
Damage to equipment and/or injury can occur. Please read all
warnings before installing this product.
Zenitel takes no responsibility for damages caused by improper or inadequate
mounting and installation.
Important mounting and installation considerations
• These products must be installed where its weight can be fully supported.
• If using anchors, plugs or screws other than those specified by Zenitel,
they may not be able to hold the weight of the product, and this may cause
a safety hazard.
• When drilling holes in wall, pole or plate, make sure you use a drill with
the specified diameter. Make sure that you also follow the instructions
regarding the depth of the holes.
• Make sure that all screws are fully tightened. Applying excessive force to
the screws may damage your wall or cause damage to the product.
• Do not place a unit in environments with a high level of dust, heat, moisture
or vibration.
• Installation of all speakers must be done using shielded Ethernet cables
with grounding at the switch end.

4 5
2 ELSII-10HM+
ELSII-10HM+
Mounting & Installation of ELSII-10HM+

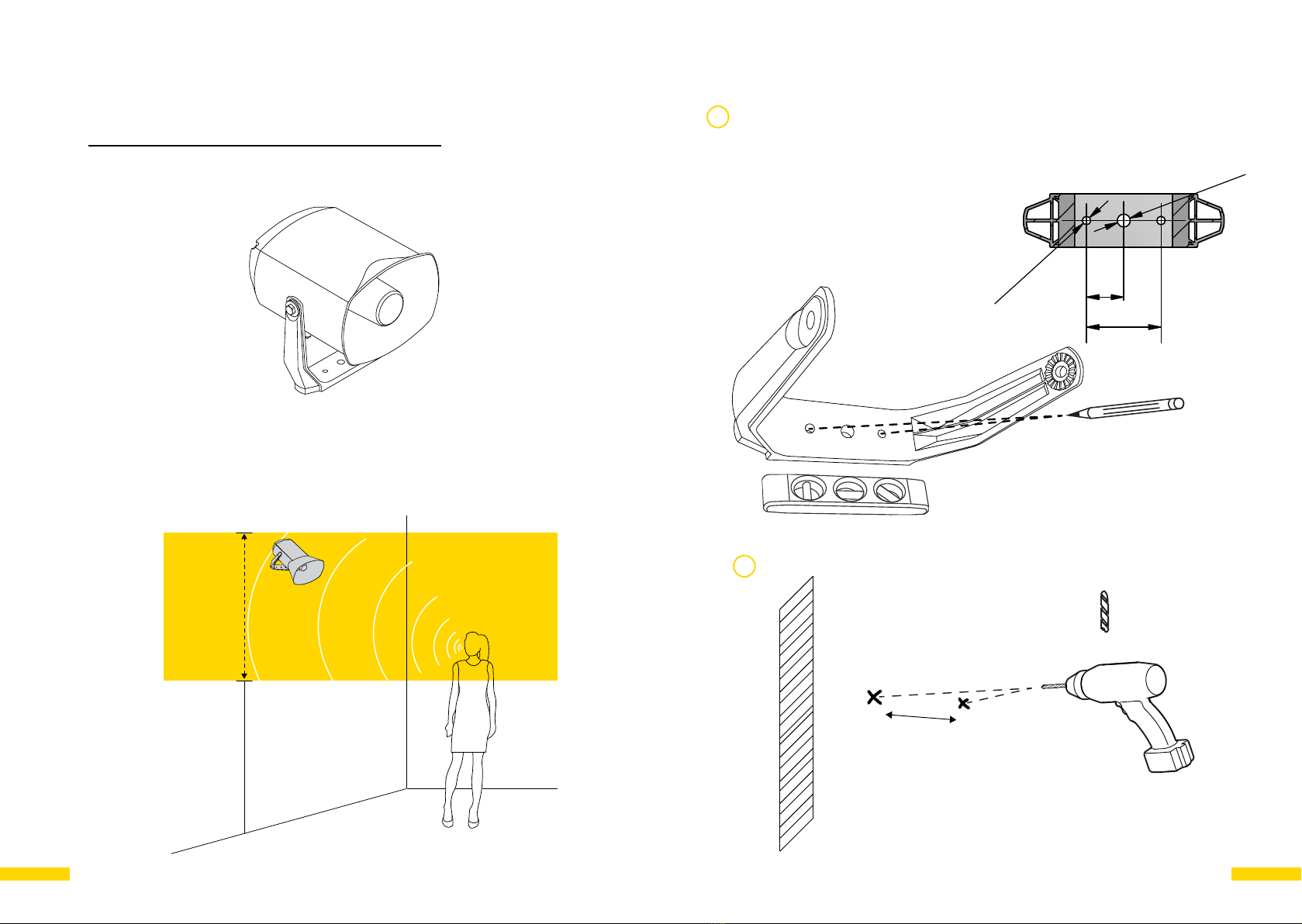

Mount the speaker at a height between 1,5-3 m for optimal placement of the
speaker microphones’ ability to detect voices.
Min. 1,5 m
Max. 3 m
2
Drill bit: 6 mm
60 mm
1Unscrew the ELSII-10HM+ from the mounting bracket, and place the
bracket on the specified location. The speakers can be mounted both
horizontally and vertically. In this
example the speaker is mounted
horizontally.
60
30
Ø
7(x2)
Ø
10,5

6 7
3Due to the bracket material, use as low a tightening torque as
possible when mounting the unit to the surface (1.5 Nm max.)
Wall mounting - recommended screws:
Pan Head DIN7981 for plug (Dry wall/ Concrete) or wooden wall, etc. Head
diameter: 12,5 M6x 38 or45 mm
2x Nylon plugs
2x M6 Screws
Mounting Plate or Column - recommended screws:
M6 x 20 or 25 with Philips head DIN7985 or Torx, head diameter: 12 mm.
2x M6 Screws
4Fasten the speaker to the mounting bracket. Then remove the back plate
on the speaker.

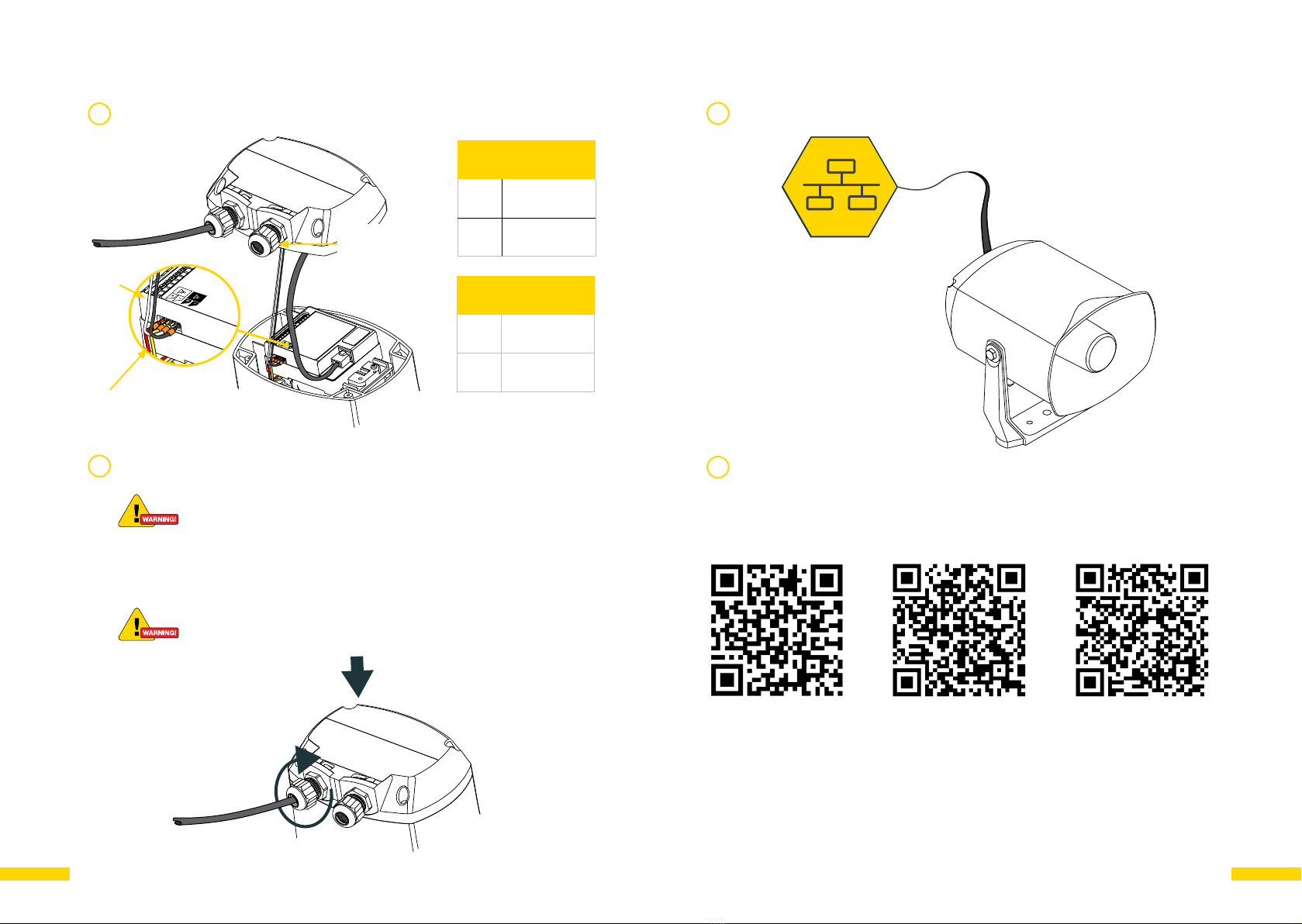

51. Run an Ethernet cable through the cable gland on the back plate, and
terminate the cable to a RJ45 connector.
2. Insert the Ethernet cable into the TKIS Kit Ethernet port.
The speaker must be installed using a shielded Ethernet
cable with grounding at the switch end.
Cable Gland:
M20, clamping range of 5-12 mm.
To guarantee the IP-66
rating, use a cable with
Ø 5-6 mm.

8 9
6Verify that microphone and speaker wires are correctly connected.
Speaker
+Red
- Yellow
Microphone
+ White
- Black
71. Reattach the back plate.
To maintain the IP-66 rating on the speaker, use a tightening
torque of 0,8 Nm.
2. Tighten the cable gland. Use a suitable tool when tightening the cap
nut of the cable gland to prevent the gland from twisting.
Use a tightening torque of 4-5 Nm on the cable gland to
maintain the IP-66 rating on the speaker.
Microphone
Wires
Speaker
Wires
Microphone
Gland
8Connect the speaker to the network.
9The speaker can operate in three dierent modes, depending on what
kind of server it should register to. Scan the QR-codes below according to
what mode you need to configure.
SIP Mode ICX - AplhaCom Edge Mode

10
ELSII-10HM Value
Weight 1.65 kg
Dimensions (HxWxD) 144 x 186 x 207 mm
Technical specifications Value
IP Rating IP 66
Relative humidity < 95% not condensing
Operating temperature range -40° to 70° C / -40° to 158 ° F
Encapsulation material ASA plastic
PoE (power over Ethernet) IEEE 802.3af standard, Class 0 (0.44W
to 12.95 W)
Power consumption Idle 1.8W, max 12W (depending on
volume)
Cable Gland (Ø) 1xM20 (20 mm)
The WEEE Directive does not legislate that Zenitel, as a ‘producer’, shall collect
‘end of life’ WEEE.
This ‘end of life’ WEEE should be recycled appropriately by the owner who should use
proper treatment and recycling measures. It should not be disposed to landfill.
Many electrical items that we throw away can be repaired or recycled. Recycling items helps
to save our natural finite resources and also reduces the environmental and health risks
associated with sending electrical goods to landfill.
Under the WEEE Regulations, all new electrical
goods should now be marked with the crossed-out
wheeled bin symbol shown.
Goods are marked with this symbol to show that
they were produced after 13th August 2005, and
should be disposed of separately from normal
household waste so that they can be recycled.
