Zephyr Presrv PRR24C01AS-OD Installation guide

WWW.ZEPHYRONLINE.COM
MAR23.0101
PRR24C01AS-OD
Presrv™ Single Zone Outdoor Refrigerator
EN Use, Care, and Installation Guide
FR Guide d’utilisation, d’entretien et d’installation

2PRR24C01AS-OD Use, Care, and Installation Guide
REFRIGERATOR
OUTDOOR
PRESRV™

3
PRR24C01AS-OD Use, Care, and Installation Guide
ZEPHYRONLINE.COM
Contents
Page
Safety Information ......................................................................................4-11
Types of Safety Warnings............................................................................. 4
General Safety ............................................................................................5-7
Save These Instructions ................................................................................ 8
Disposal of Old Appliance............................................................................. 8
Before Using Your Appliance ......................................................................... 9
Installation of Your Appliance ..................................................................... 9-10
Attention.......................................................................................................10
Electrical Connection ................................................................................... 11
Introduction ................................................................................................. 12

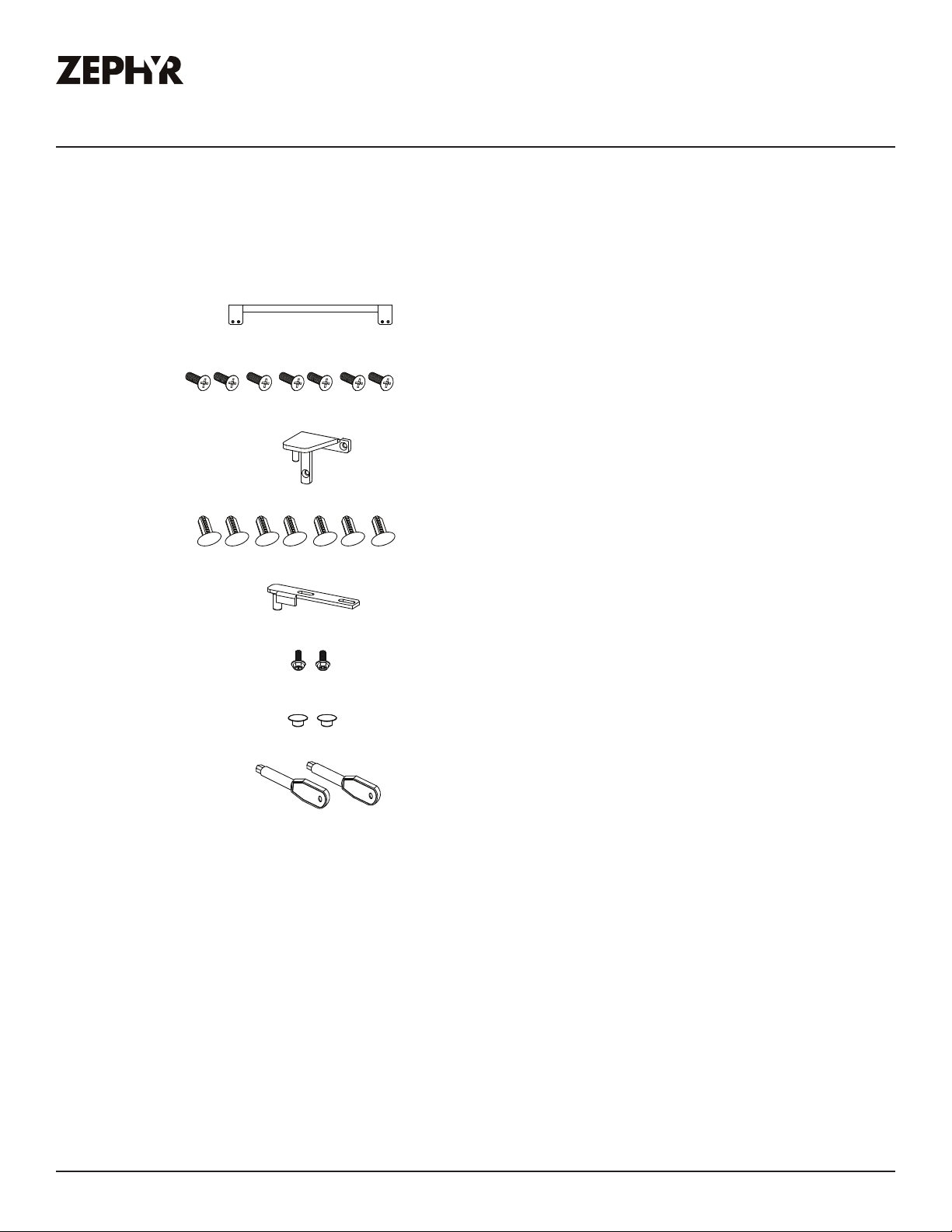

List of Materials............................................................................................ 13
Product Specications ...............................................................................14-17
Product Summary ........................................................................................14

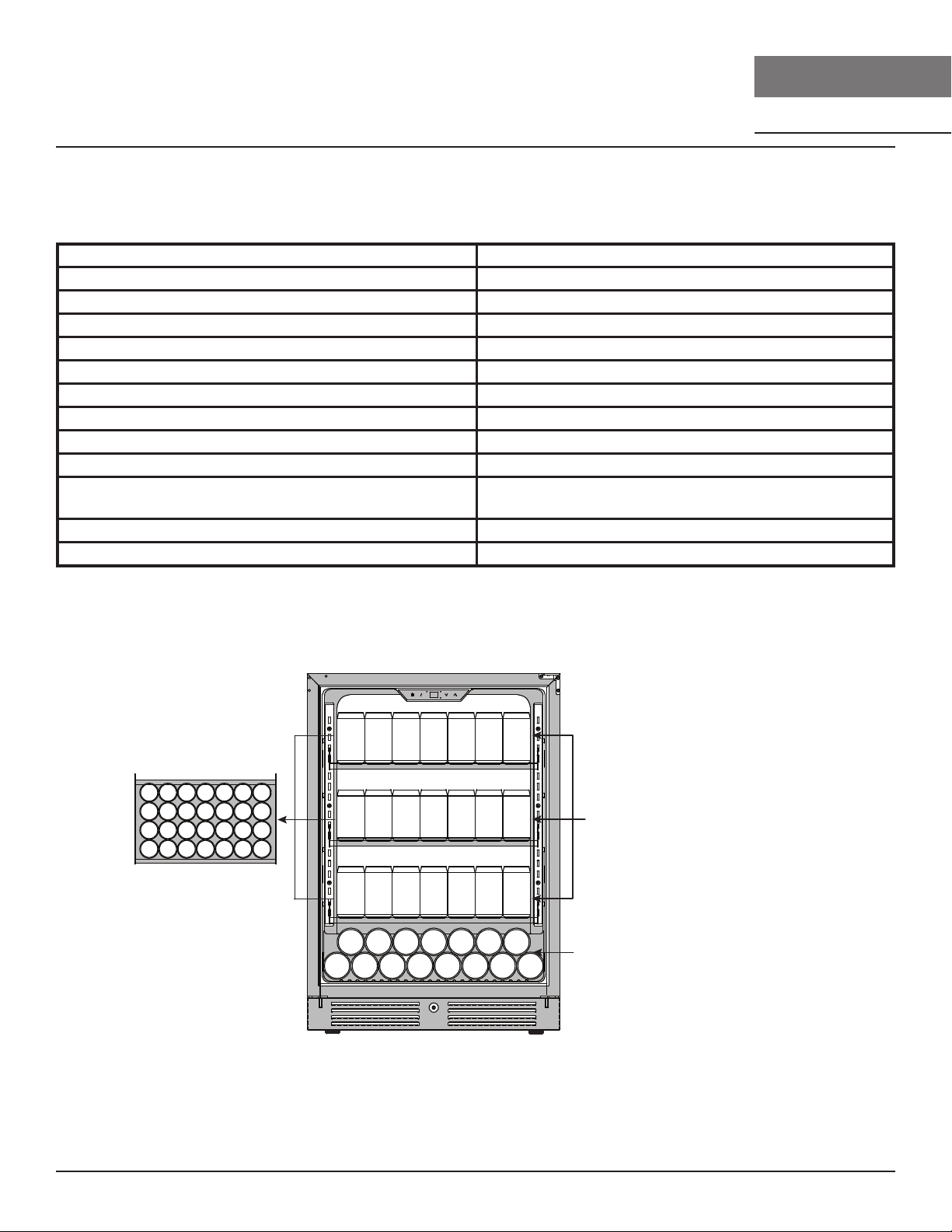

Internal Storage............................................................................................14

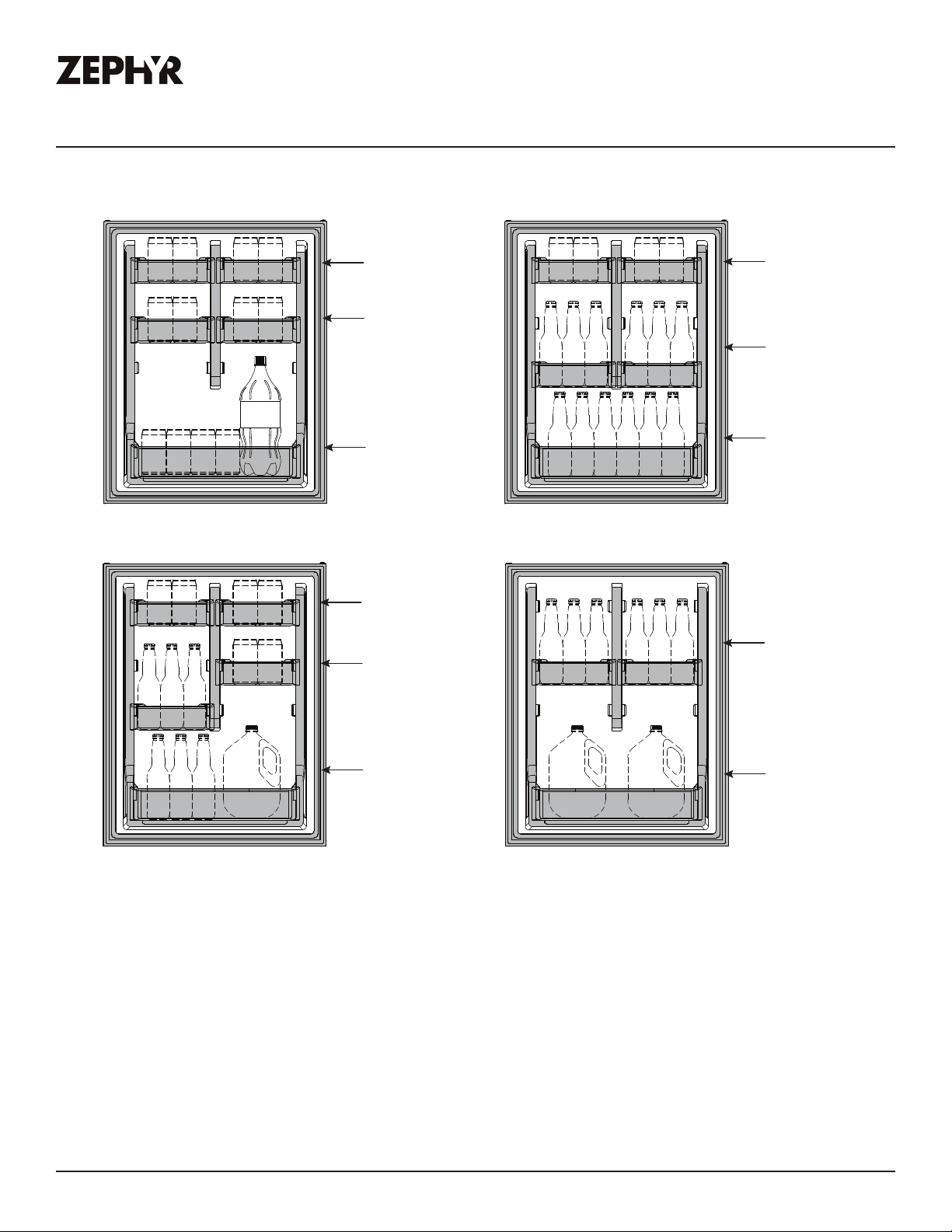

Internal Storage: Door Shelf Bin Configurations ...........................................15
Parts Identification .......................................................................................16

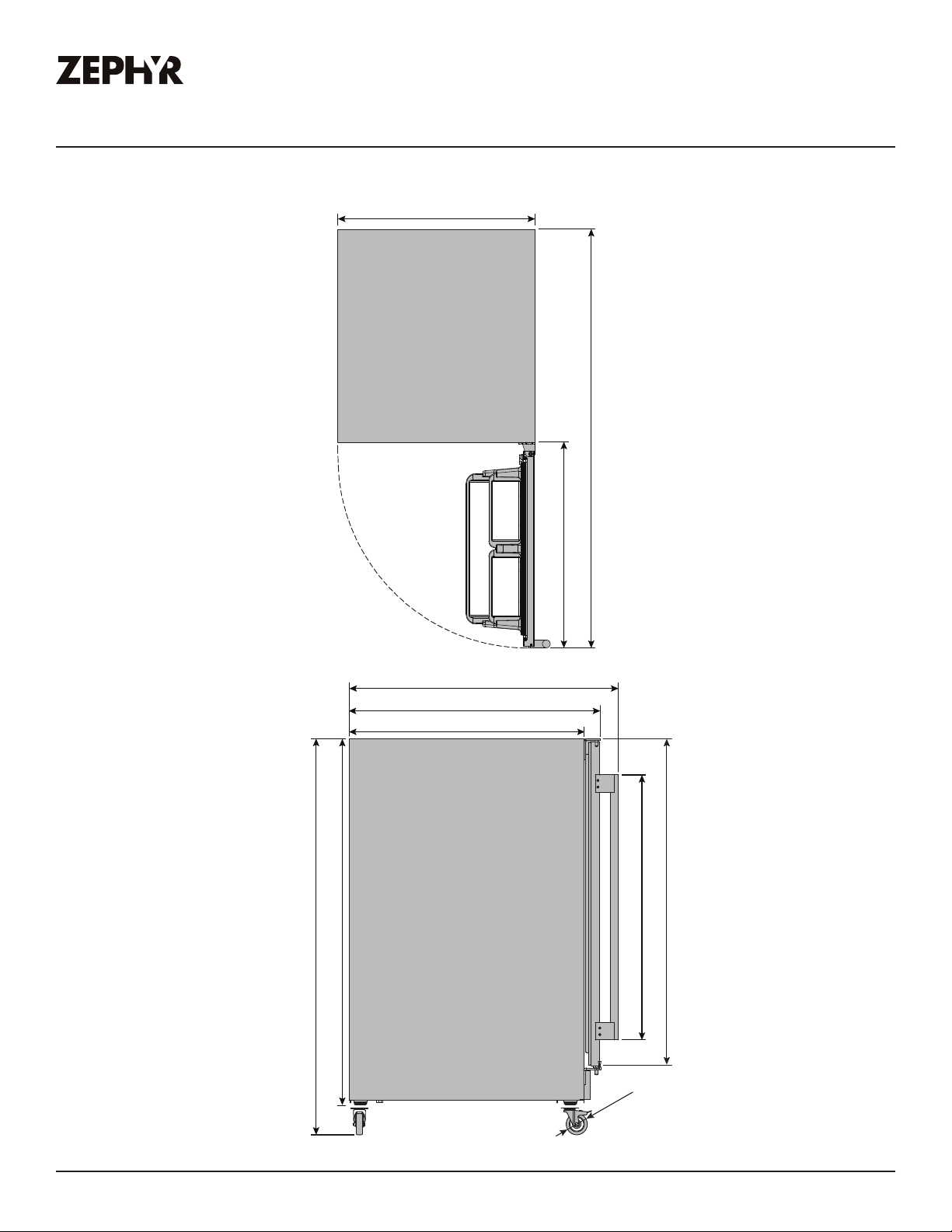

Dimensions...................................................................................................17
Installation Instructions............................................................................. 18-22
Installation Clearance Requirements ............................................................18
Carbon Filter ................................................................................................19
Installing the Handle.....................................................................................19
Reversing the Door Swing of Your Appliance................................................ 20
Removing the Glass Shelves .........................................................................21
Removing the Door Shelf Bins .......................................................................21
Installing the Optional Caster Wheel Accessory .......................................... 22
Operating Your Appliance ......................................................................... 23-25
Using the Control Panel............................................................................... 23
Internal Light ............................................................................................... 24
Sabbath Mode............................................................................................. 24
Demonstration Mode ................................................................................... 24
Temperature Alarm ...................................................................................... 24
Door Open Alarm......................................................................................... 25
Defrosting.................................................................................................... 25
Child Safety Lock ........................................................................................ 25
Foot Lock Feature........................................................................................ 25
Care and Maintenance.............................................................................. 26-29
Normal Sounds............................................................................................... 26
Cleaning the Unit ........................................................................................ 26
Cleaning the Condenser ..............................................................................27
Power Failure............................................................................................... 28
Moving Your Outdoor Refrigerator ............................................................... 28
Energy Saving Tips ...................................................................................... 28
Extended Non-Use....................................................................................... 29
Troubleshooting......................................................................................... 30-31
Notes............................................................................................................32
Limited Warranty .........................................................................................33
Product Registration.....................................................................................34

4PRR24C01AS-OD Use, Care, and Installation Guide
REFRIGERATOR
OUTDOOR
PRESRV™
Safety Information
Your safety and the safety of others are very important.
We have provided many important safety messages in this manual for your appliance. Always read
and obey all safety messages.
This is the Safety Alert Symbol. This symbol alerts you to potential hazards that can cause severe
bodily injury or death. All safety messages will follow the Safety Alert Symbol and either the words
“DANGER” “WARNING” or “CAUTION”
DANGER
WARNING
CAUTION
Danger means that failure to heed this safety
statement may result in severe injury or death.
Warning means that failure to heed this safety
statement may result in extensive product damage,
serious personal injury, or death.
Caution means that failure to heed this safety
statement may result in minor or moderate
personal injury, property or equipment damage.

5
PRR24C01AS-OD Use, Care, and Installation Guide
ZEPHYRONLINE.COM
Safety Information
When using an electrical appliance, basic precautions should
always be followed to reduce the risk of fire, electric shock, and
injury to persons.
DANGER
For your safety, read all instructions carefully before operating the appliance.
To reduce the risk of fire, electric shock or personal injury, unplug
or disconnect the appliance from the power supply before
servicing.
WARNING
Flammable refrigerant used! When handling, moving and use of
the refrigerator, make sure to avoid either damaging the
refrigerant tubing, or increasing the risk of a leak.
CAUTION
►Use this appliance only as described in this manual. Other uses not recommended may cause fire,
electric shock or personal injury.
►This appliance is not intended for use by young children or infirm persons unless they have been
adequately supervised by a responsible person to ensure that they can use the appliance safely.
►Young children should be supervised to ensure that they never play with the appliance.
►To protect against the risk of electric shock, NEVER IMMERSE the unit, cord, or plug in water or
spray any other liquid.
►Unplug the appliance from the plug socket when not in use, when moving from one location to
another and before cleaning.
General Safety

6PRR24C01AS-OD Use, Care, and Installation Guide
REFRIGERATOR
OUTDOOR
PRESRV™
Safety Information
For your safety, read all instructions carefully before operating the appliance.
►To disconnect the appliance, grip the plug and pull it from the wall outlet. Never pull by the cord.
►Never operate the appliance in the presence of explosive and/or flammable fumes.
►Never place the appliance or any of its parts near an open flame, cooking or other heating
appliance.
►Never operate the appliance with a damaged cord or plug, if the product malfunctions, or if it is
dropped or damaged in any manner.
►The use of attachments not recommended by the manufacturer may be hazardous.
►Never operate if the housing is removed or damaged.
►A loose fit between the AC outlet (receptacle) and plug may cause overheating and a distortion of
the plug. Contact a qualified electrician to replace loose or worn outlet.
Prop. 65 Warning for California Residents: This product may
contain chemicals known to the State of California to cause
cancer, birth defects, or other reproductive harm.
WARNING
►Locate the unit away from direct sunlight and sources of heat (stove, heater, radiator, etc.).
►This appliance is CFC and HFC free and contains small quantities of Isobutane (R600a), an
environmentally friendly coolant.
►You must ensure that the cooling circuit is undamaged when installing the appliance. However, if it
becomes damaged, avoid proximity to open fires and heat sources of all kinds. The room in which
the appliance is located should be ventilated properly and according to state and local codes.
►Never use an appliance with a damaged circuit.
►Ensure that the ventilation openings to and from a built-in appliance are never blocked or covered.
►No liability will be accepted for any damage caused by misuse of the appliance, or as a result of
repairs carried out by unqualified person. In this case neither the warranty nor any other liability
claims will apply.

7
PRR24C01AS-OD Use, Care, and Installation Guide
ZEPHYRONLINE.COM
Safety Information
For your safety, read all instructions carefully before operating the appliance.
Never operate any other electrical appliance inside this
appliance.
WARNING
►Never attempt to repair or replace any part of your appliance unless it is specifically
recommended in this manual. All other servicing should be referred to a qualified technician.
►Replace all access panels before operating.
►Use two or more people to move and install the appliance. Failure to do so can result in back or
other injury.
►Never clean appliance parts with flammable liquids. These fumes can create a fire hazard or
explosion. Never store or use gasoline or other flammable vapors and liquids in the vicinity of this
or any other appliance. The fumes can create a fire hazard or explosion.
►Never connect or disconnect the electric plug with wet hands.
►It is recommended that a separate circuit, serving only your appliance be provided. Use
receptacles that cannot be turned o by a switch or pull chain.
To reduce the risk of fire, electric shock or personal injury, unplug
or disconnect the appliance from the power supply before
servicing.
WARNING

8PRR24C01AS-OD Use, Care, and Installation Guide
REFRIGERATOR
OUTDOOR
PRESRV™
Safety Information
For your safety, read all instructions carefully before operating the appliance.
Save These Instructions
If you are experiencing problems, check the Troubleshooting Guide at the back of this manual. It lists
causes of minor operating problems that you can correct yourself.
Disposal of Old Appliance
Dispose of your appliance packaging properly. Refrigeration equipment must be properly disposed
of in a way which protects the environment. This applies to your old appliance and to your new unit
once it has reached the end of its service life.
Please ensure that old, worn appliances are rendered unusable
before disposal by removing the plug, cutting the power cable,
and removing or destroying any snap fastenings or bolts. You will
thus prevent children from locking themselves in the appliance
during play (risk of suocation) or endangering their lives in any
other way.
WARNING
►The appliance must not be disposed with normal household waste collection.
►The coolant circuit, particularly the heat exchange at the back/bottom of the unit, must not be
damaged.
►The symbol on the product or its packaging indicates that this product is not to be handled
as normal household waste but is to be taken to a recycling collection point for electrical and
electronic goods. By correctly disposing of this product you are contributing to the protection of
the environment. Improper disposal endangers health and the environment. Further information
about the recycling of the product may be obtained from your town hall or local waste collection
department.

9
PRR24C01AS-OD Use, Care, and Installation Guide
ZEPHYRONLINE.COM
Safety Information
For your safety, read all instructions carefully before operating the appliance.
Before Using Your Appliance
►Remove all exterior and interior packing.
►Before connecting the appliance to the power source, let it stand upright for approximately 2
hours. This will reduce the possibility of a malfunction in the cooling system caused by handling
during transportation.
►Clean the interior surface with warm water using a soft cloth.
►The door on this appliance can be opened from either the left or the right side. The unit is delivered
with the door opening on the left side. Should you wish to open the door from the right, follow the
instructions, “Reversing the Door Swing of Your Appliance,” listed below.
Installation of Your Appliance
Do not store or install appliance in direct sunlight.
WARNING
►The appliances are designed for either built-in, or free-standing installation.
►Place your appliance on a floor that is strong enough to support it when it is fully loaded. To level
your appliance, adjust the 4 legs until level.
►Locate the appliance away from direct sunlight and sources of heat (stove, heater, radiator,
etc.). Direct sunlight may aect the acrylic coating and heat sources may increase electrical
consumption. Extreme cold ambient temperatures may also cause the unit not to perform
properly.
►Never place the unit in damp areas.
►Plug the appliance into an exclusive, easily accessible electrical socket.
►Any questions concerning power and/or electrical connection should be directed towards a
qualified electrician or an authorized products service center.
►The air vent at the front of the appliance must never be covered or blocked in any way.

10 PRR24C01AS-OD Use, Care, and Installation Guide
REFRIGERATOR
OUTDOOR
PRESRV™
Safety Information
For your safety, read all instructions carefully before operating the appliance.
►The appliance must be installed to all electrical connections in accordance with state and local
codes.
►Use two or more people to move and install the outdoor refrigerator. Failure to do so can result in
back or other injury.
►The cooler may experience decreased cooling eciency if air flow is restricted due to a fully
loaded cabinet.
►Install the outdoor refrigerator in a well-ventilated area where the ambient temperature is above
50ºF and below 115ºF.
►Suitable for use in damp locations when installed in a GFCI-protected branch circuit. Intended for
outdoor-covered patio or lanai area.
►Damages caused by ambient temperatures of 40ºF or below are not covered by the warranty.
►If cooler is to be exposed to ambient temperatures of 50ºF or below for over 24 hours, the cooler
should be unplugged to help prevent damages.
Attention
►Never overload the cabinet.
►Never open the door unless necessary.
►Never cover shelves with aluminum foil or any other shelf material which may prevent air
circulation.
►Should the appliance be left empty for long periods, it is suggested that the appliance be
unplugged, and, after careful cleaning, leave the door ajar to allow air to circulate inside the
cabinet in order to avoid possible condensation, mold or odors from forming.

11
PRR24C01AS-OD Use, Care, and Installation Guide
ZEPHYRONLINE.COM
Safety Information
For your safety, read all instructions carefully before operating the appliance.
Electrical Connection
Check that the voltage marked on the product corresponds with your supply voltage.
This appliance should be properly grounded for your safety. The power cord of this appliance is
equipped with a three-pin plug which mates with standard three-pin wall outlets to minimize the
possibility of electrical shock.
Never under any circumstances cut or remove the third ground prong from the power cord supplied.
For personal safety, this appliance must be properly grounded.
Have the wall outlet and circuit checked by a qualified electrician to make sure the outlet is properly
grounded. When a standard two-pin wall outlet is encountered, it is your responsibility and obligation
to have it replaced with a properly grounded three-pin wall outlet.
To prevent accidental injury, the cord should be secured behind the appliance and not left exposed or
dangling.
The appliance should always be plugged into its own individual electrical outlet which has a voltage
rating that matches the rating label on the appliance. This provides the best performance and also
prevent overloading wiring circuits that could cause a fire hazard from overheating. Never unplug
the appliance by pulling the power cord. Always grip the plug firmly and pull straight out from the
receptacle. Repair or replace immediately all power cords that have become frayed or otherwise
damaged. Never use a cord that shows cracks or abrasion damage along its length or at either end.
When moving the appliance, be careful not to damage the power cord.
Never use your appliance with an extension cord unless this cord has been checked and tested by a
qualified technician or service person. The extension cord must be a UL/CUL Listed, 3-wire grounding
extension cord that has a grounding plug and outlet and that the electrical rating of the cord is 115
volts and at least 10 amperes.
Improper use of the grounded plug can result in the risk of
electrical shock. If the power cord is damaged, have it replaced
by a qualified electrician or an authorized service center.
WARNING

12 PRR24C01AS-OD Use, Care, and Installation Guide
REFRIGERATOR
OUTDOOR
PRESRV™
Introduction
Thank you for purchasing your Zephyr outdoor refrigerator. Zephyr is dedicated to developing
products that will enhance your lifestyle with superior quality and distinctive features. Please visit
www.zephyronline.com for more information on your product and other Zephyr products.
This manual contains important information regarding the proper installation, use, and maintenance
of your outdoor refrigerator. Following this manual will ensure that your product will work at its peak
performance and eciency.
For Your Records
Please write down the model number and serial number below for future reference. Both numbers are
located on the rating label on the back of your unit and inside the the unit towards the bottom of the
cabinet and are needed to obtain warranty service. You may also want to staple your receipt to this
manual as it is the proof of your purchase and may also be needed for service under warranty.
Model Number:
Serial Number:
Date of Purchase:
To better serve you, please do the following before contacting customer service:
If you received a damaged product, immediately contact the retailer or dealer that sold you the
product.
►Read and follow this instruction manual carefully to help you install, use and maintain your
outdoor refrigerator.
►Read the troubleshooting section of this manual as it will help you diagnose and solve common
issues.
►Visit us on the web at http://www.zephyronline.com to download product guides, additional
troubleshooting resources and up-to-date information.
►If you need warranty service, our friendly customer service representatives are available on our
website at http://zephyronline.com/contact or by telephone at 888-880-8368.

13
PRR24C01AS-OD Use, Care, and Installation Guide
ZEPHYRONLINE.COM
List of Materials
Screws (M4*12)
Pro style door handle
Reversible door hinge bracket
Grey decorative nails
Door axis
Screws (M5*12)
Quantity Part
Child safety lock keys
Door axis cap

14 PRR24C01AS-OD Use, Care, and Installation Guide
REFRIGERATOR
OUTDOOR
PRESRV™
Product Specications
Product Summary
This appliance requires a standard 115/120 Volt AC~60Hz electrical ground outlet.
DESCRIPTION OF PRODUCT Presrv Single Zone Outdoor Refrigerator
MODEL PRR24C01AS-OD
VOLTAGE/FREQUENCY AC 115/60Hz
AMPERAGE 1.5A
COLOR Stainless Steel
CAPACITY 5.6 cu/ft
REFRIGERANT R600a
TEMPERATURE RANGE 34°F - 50°F
DIMENSIONS (HxWxD) 33-7/8’’ X 23-7/8’’ X 23-5/8’’
GROSS WEIGHT (lb) 114lb
WEIGHT CAPACITY - STANDARD GLASS SHELF, SMALL
DOOR BIN, LARGE DOOR DIN
40lb, 4.4lb, 22lb
OPTIONAL CASTER WHEEL ACCESSORY PRCAST-C001
REPLACEMENT CARBON FILTER Z0F-C014
*Storage capacity is based on standard 12 oz. cans.
Internal Storage
99 can capacity without door
28 cans x 3
(std. 12oz)
15 cans
(std. 12oz)
o
o
R F
C
F
o
oC

15
PRR24C01AS-OD Use, Care, and Installation Guide
ZEPHYRONLINE.COM
Product Specications
Internal Storage: Door Rack Congurations
4 cans + 12 beer bottle capacity
6 cans + 9 beer bottles +
1 one-gallon jug capacity
16 cans + 1 two-liter bottle capacity
4 cans
(std. 12oz)
4 cans
(std. 12oz)
8 cans +
1 two-liter bottle
4 cans
(std. 12oz)
6 beer bottles
12 beer bottles
6 beer bottles
2 one-gallon jugs
6 beer bottles + 2 one-gallon jugs capacity
4 cans
(std. 12oz)
2 cans +
3 beer bottles
6 beer bottles +
1 one-gallon jug

16 PRR24C01AS-OD Use, Care, and Installation Guide
REFRIGERATOR
OUTDOOR
PRESRV™
Product Specications

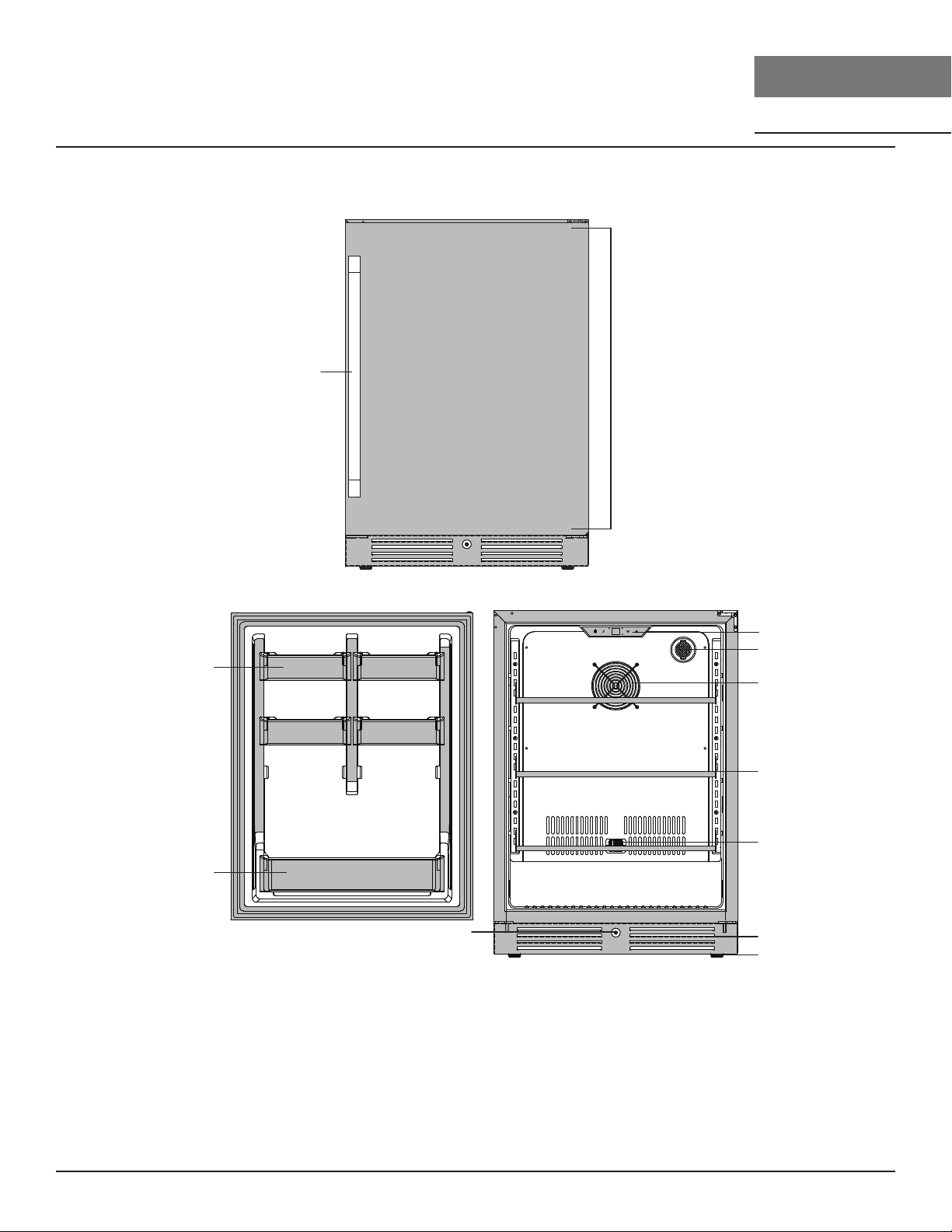

Parts Identication
Pro Style
Door Handle Seamless Stainless
Steel Door and
Stainless Steel
Exterior
Interior
Control Panel
Carbon Filter
Internal Fan
Height-Adjustable
Glass Shelves
Sensor
Front Vent
Leveling Legs
Child Safety Lock
Exterior
o
o
RF
C
F
o
oC
Door
Adjustable Door
Shelf Bin (small)
Door Shelf Bin (large)

17
PRR24C01AS-OD Use, Care, and Installation Guide
ZEPHYRONLINE.COM
Dimensions
Max 115°
23- 7/8 ”
33-7/8” - 34-7/8” (leveling legs)
21- 7/8 ”
23-
5/8 ”
25-
5/8 ”
37-1/2” (optional caster wheels
PRCAST-C001 sold separately)
2-7/8”
24-1/2”
46-1/4”
22-1/4”
29-7/8”
Top View
Side View
Product Specications

18 PRR24C01AS-OD Use, Care, and Installation Guide
REFRIGERATOR
OUTDOOR
PRESRV™
Installation Instructions

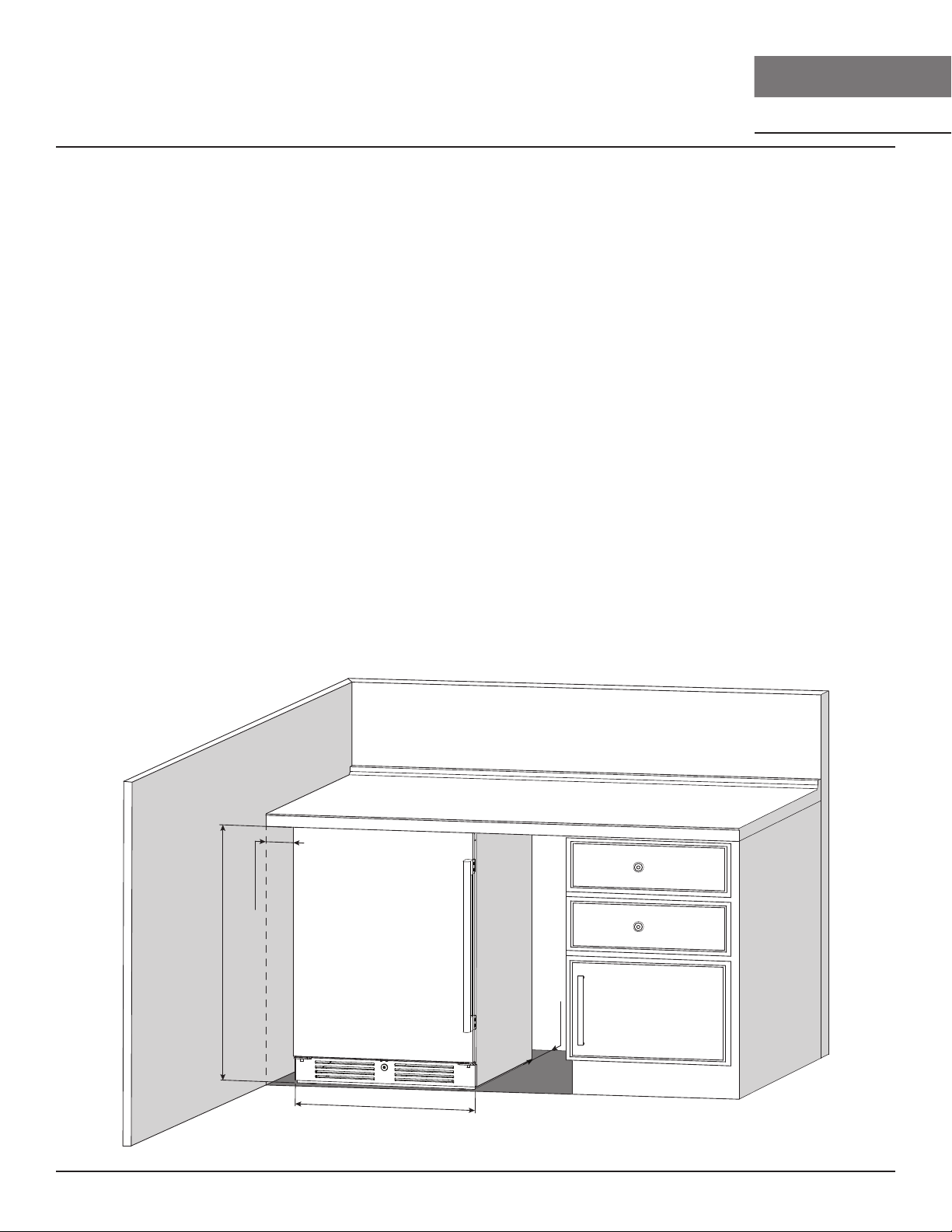

Installation Clearance Requirements
When installing the outdoor refrigerator under a counter, follow the recommended spacing
dimensions shown.
►For proper clearance of the electrical plug, allow at least 1” of clearance at the back as shown in
the diagram.
►An installation next to a wall will require a minimum 2-1/4” door clearance to accommodate the
Zephyr handle.
►The cabinet should allow at least 24” for the width and 34” for the height to accommodate the
outdoor refrigerator.
►The power cable is located on the back right of the unit and has a length of 72” to accommodate
multiple outlet locations.
►Once you are ready to install the unit, you must adjust the feet to level the outdoor refrigerator.
►This refrigerator can be fully built-in to cabinetry and does not require any additional clearances
besides what is referenced below.
►The installation should allow the unit to be pulled forward for servicing, if necessary.
2-1/4” Min.
24” Min.
34” Min.
1” Min.

19
PRR24C01AS-OD Use, Care, and Installation Guide
ZEPHYRONLINE.COM
Installation Instructions
Carbon Filter
A built-in carbon filter protects your beverages by acting
as a natural barrier against harmful odors. The carbon
filter should be replaced every 3-6 months depending on
the unit’s exposure level to odor. If the unit is placed in a
kitchen, regular replacement every three months is ideal.
Remove the carbon filter by turning counterclockwise to
unlock from rear panel.
Carbon Filter Replacement Part #: Z0F-C004
Installing the Handle
1. Place door handle to the side of the door where the screw holes are present.
2. Install the door handle by screwing (4) M4*12 screws to the side of the door.

20 PRR24C01AS-OD Use, Care, and Installation Guide
REFRIGERATOR
OUTDOOR
PRESRV™
Installation Instructions
Reversing the Door Swing of Your Appliance
Should you desire to reverse the opening direction of the door, please follow the instructions below.
Safely reversing the door swing of your appliance should require at least two people.
2
1
1
3
3
2
4
5
6
4
87
5
9
1. Take out the 2 screws from the lower door axis
plate (1), remove the door (2), and the door axis
plate (1).
2. Take out the 3 hinge screws from the top right
hinge (3) and remove it.
3. Remove the door handle (4) by unscrewing
4 screws. Remove the door axis cap (5) and
4 grey decorative nails (6). Install the door
handle, door axis cap, and grey decorative
nails on the opposite side of the door.
4. Remove the 3 grey decorative nails (7) from the
top left side and install them to the top right
side. Install the new door hinge bracket (8) to
the top left side with 3 screws.
5. Install the new lower door axis plate (9) and the
door by 2 screws once correctly aligned.
