Key Features
• Full-featured console suitable for ofce environments or
dispatch centers
• Accommodates up to 12 channels with a mix of control types:
DC remote, tone remote, local control, E&M control
• Fully eld programmable with “Any Button, Any Function”:
• Individual volume adjustment, mute, and instant
transmit per channel
• Simul-Select, All-Mute, Alerts, and Site Intercom
• Built-in encoder with optional single button paging steers
tones to proper channel and frequency
• Channel-to-channel patch and optional phone patch
• Interfaces with outside phone line or analog PBX port - ideal
for phone patches or administrative calls
• Optional Telephone/Radio Headset Interface allows one
common headset to operate both radio console and separate
telephone set
• Optional ANI decode/display shows unit identication of
calling units
• MDC-1200 Signaling. ANI and Emergency Alert/Acknowlege
features
Overview
The Zetron Model 4010 Dispatch Console is a self-contained,
multichannel, radio control console which is available in both
desktop or rackmount styles. It provides dispatchers with an
efcient means of monitoring and dispatching for a system
comprised of up to twelve radio chan nels. The M4010 presents
the operator with both aural and visual cues to simplify the task
of supervising a multichannel communications system.
The Model 4010 Dispatch Console offers a cost-effective high-
performance solution for a wide range of public safety, utility,
and private land mobile radio applications. It is specically
designed for police, re, EMS, railroad, and plant security
operations. Attractive enough for ofce environments, the Model
4010 is rugged enough for sustained, “24/7” communications
center use.
The Model 4010 can be congured with as few as two channels
and grow to twelve channels with the addition of modular
channel cards. Channel cards may be specied to be compatible
with all common local and remote control standards.The
rackmount 4010 may be equipped with an optional 60 button
expansion panel (if required).
Operation
The Model 4010 has been
designed to simplify the task of
operating a multichannel system,
allowing operators to concentrate
on the content of their dispatching
activities.
MultiFunction LCD — The backlit, wide viewing angle LCD serves
several purposes. It normally shows the time and the audio level.
During paging, it indicates the pager code being sent. In the
event of a self-diagnosed problem, the display spells out the
problem in plain English. ANI codes may be displayed as well.
Buttons— Button functions are clearly labeled and color coded
on the key’s surface to provide easy function association. All
primary functions are performed by a single keystroke.
Indicators — The indicators for the button’s function are located
next to the button for clear association. For dual functions, the
adjacent LED indicators use different colors to ensure positive
identication. The wide viewing angle ensures excellent visibility
even across the room.
Select/Unselect Speakers—Two speakers provide a left/right
audio effect, making it easy to distinguish whether the call was
from the primary (Selected) channel or some other channel.
Selecting a channel moves its monitor audio to the Select
speaker.

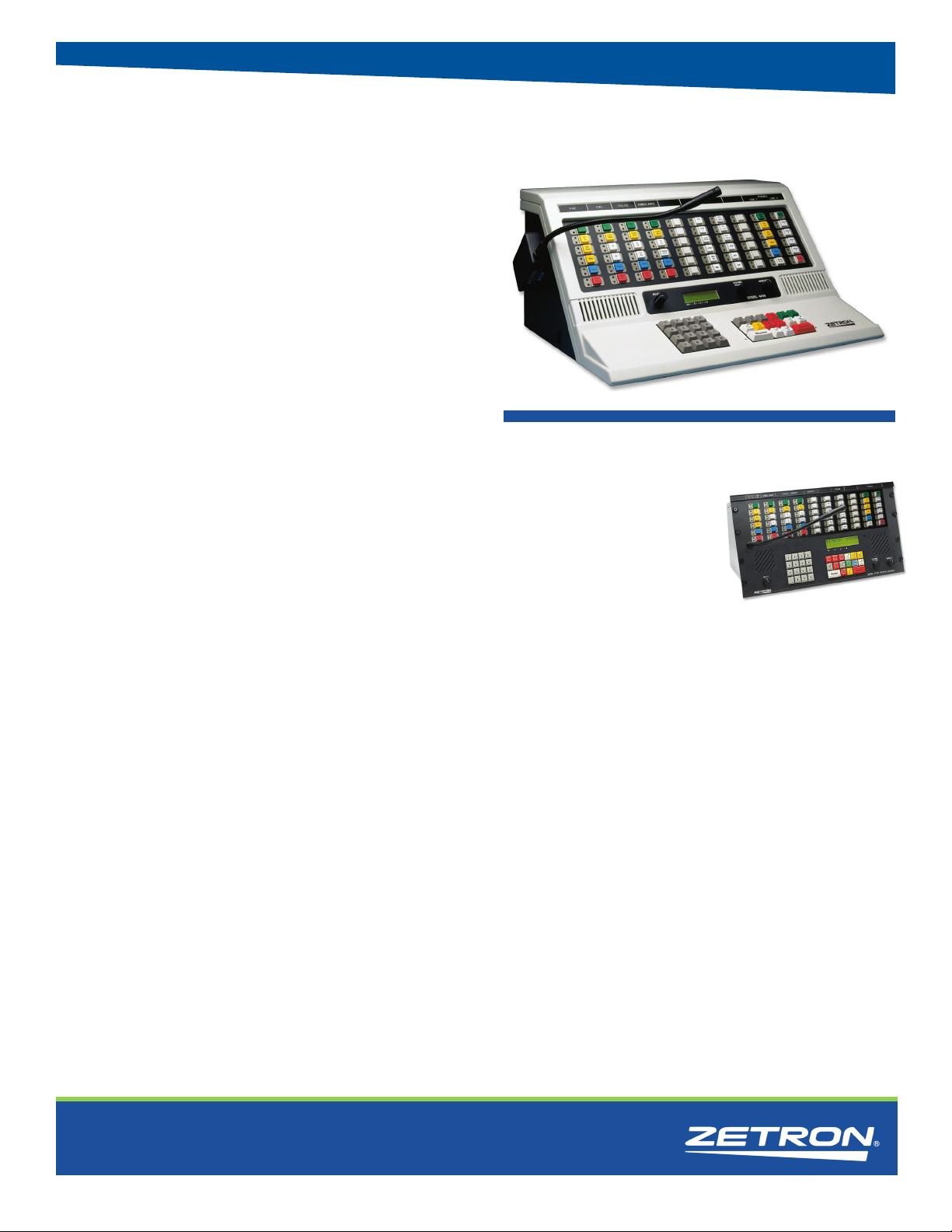

Model 4010 Rackmount

Operation
Individual Channel Volume/Mute — The volume on each channel
may be set independently, allowing the operator to prioritize
listening based on volume. The LCD display shows volume
percentage, allowing accurate settings. Single button muting
instantly reduces the volume of a channel to a predetermined
level.
Call— When channel activity is present, the channel’s “CALL”
indicator blinks, making it easy to locate the source of the call.
The call indication remains for a few seconds after the call stops
in the event the operator is busy with another activity.
Patch — The simplex, VOX operated patch can patch together
channels-to-channels or channels-to-telephone lines. The
operator may monitor the patch and operate on other channels.
Transmit—The operator may transmit over the selected
channel(s) by pressing the “Transmit” button or by pressing the
optional foot-operated transmit switch. With “Instant Transmit”,
the operator may transmit over a non-selected channel to reply
to a call without changing channel selection.
Monitor — This allows the operator to disable coded squelch on
the selected channel so the channel may be monitored for trafc
prior to transmitting.
Alert — Up to four different alert tones may be transmitted to
indicate the type or priority of the dispatch to follow.
Auxiliary Input/Output — Operators may control various contact-
closure operated devices (such as lights, door locks, and voter
controls) from the console. External inputs (such as voter
displays and alarms) may be monitored at the console.
Instant Call Paging — The operator may “tone out” an entire
sequence of pages with the press of a single Instant Call
button. Paging sequences are automatically routed to the
proper channel and frequency, eliminating potential human
errors. Paging sequences may contain self-initiating alert tones
for indicating specic types of events. The button’s indicators
provide a “check list” to verify that the proper pages were sent.
Multiformat capability eliminates the need to have a different
encoder for each type of pager/decoder.
Programming
One of the unique
features of the
Model 4010 system
is that it is FULLY
eld programmable
with the Console
Programming
System (CPS) and
an IBM-compatible
personal computer.
CPS not only allows channels to be congured for various
types of base stations, but it also allows any button to be
assigned any available function. This eliminates costly upgrades
while allowing the buttons to be recongured at any time
to accommodate new operating procedures or radio system
changes. Key top labels are removable and do not require
engraving, allowing the keys to be relabeled as easily as they
are programmed. Standard key top legends are supplied by
Zetron while custom legends may be created in the eld using
transparent key tops.
The console is shipped from the factory programmed and
labeled to customer specications, with a CD containing
the Windows Console Programming System and the factory
programming les.
Changing the function of a key is simply a matter of using
the cursor to select a new function from a menu-style list on
the computer screen. When all selections are made, the new
conguration is saved on the diskette and printed out for a paper
copy. When ready, the stored conguration may be downloaded
to the console in a matter of seconds. Congurations can also be
uploaded from a console to a PC for storage or modication.

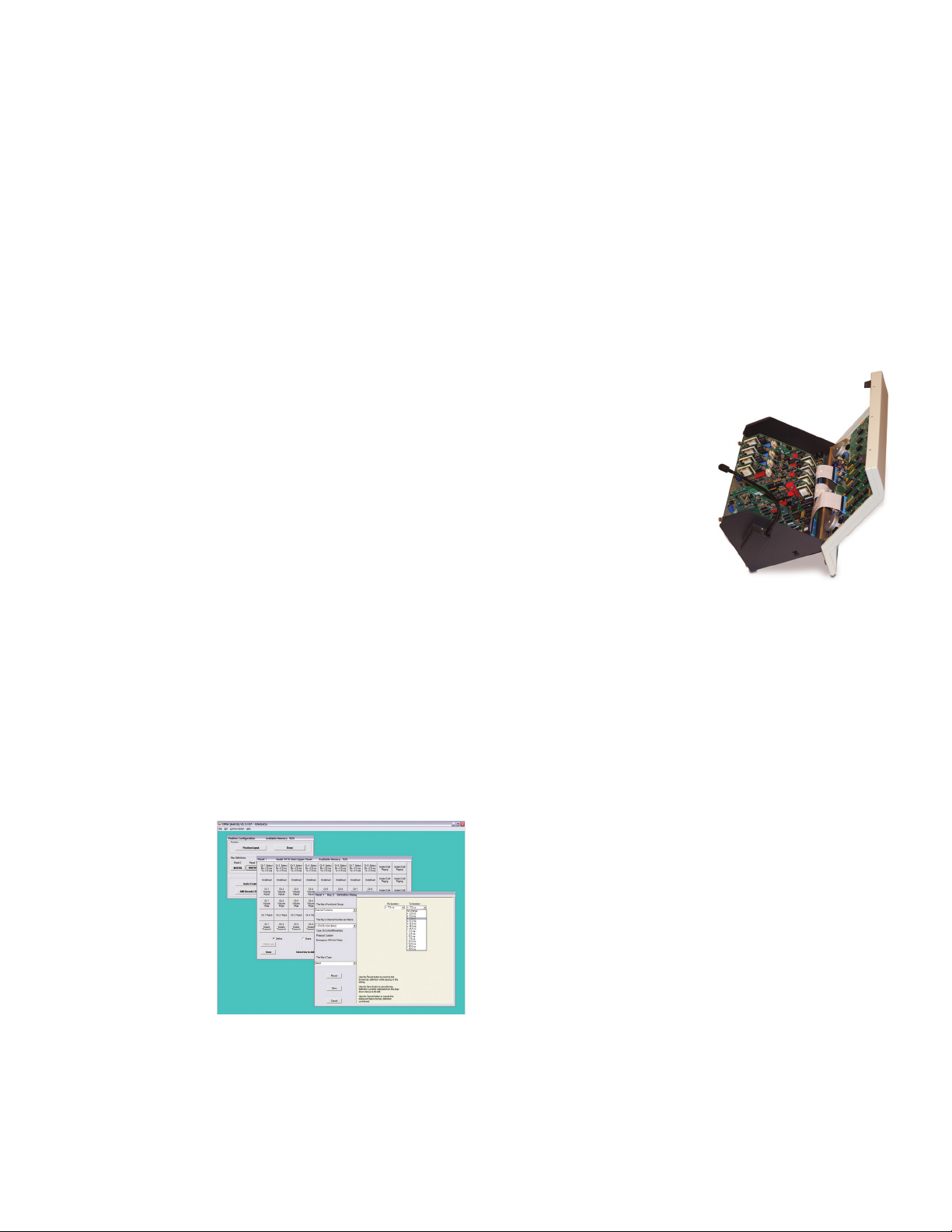

Installation and Maintenance
The Model 4010 is fully self-contained
requiring no external electronics.
It uses industry standard 25-pair
cables and punchdown blocks for
interfacing to radios and leased
lines. Standard or lightning-
protected connectorized punch-
down blocks are available.
External options, such as desk-
mic and headset jack are also
connectorized. All line adjustments,
status LEDs and conguration switch es are accessible through
the rear panel without any disassembly.
The Console operates from 12 Volts DC, which is available from
Zetron’s uni versal power-supply that accepts any voltage from 95
to 250 VAC at 47 to 440 Hz. The universal power-supply has UL,
CSA and VDE approvals.
The “clam-shell” design of the desktop Model 4010 and
the easily-removed back and top of the rackmount model
make access for maintenance and upgrades easy. All channel
electronics are contained on plug-in circuit cards for easy
replacement or expansion. Audio throughout the console
remains analog and is not digitized. In addition to providing
superior audio delity, this makes audio troubleshooting easier.
The service manual contains full schematics, parts IDs, parts lists
and theory of operation. Factory service, spare boards, and spare
parts kits are avail able.

Options
The wide variety of options available for the Model 4010 allow it
to be tailored to any dispatch environment.
MDC-1200 Signaling — Allows for an ID code to be transmitted
every time a radio is keyed, providing user-identication for
each radio. ID transmission may be programmed to occur at
the beginning or end of transmission, or both. When combined
with emergency alert/acknowledge signaling, mobile and
portable radios equipped with MDC-1200 protocol can transmit
an emergency ANI signal with the press of a button to request
immediate help. MDC-1200 signaling provides an efcient way
for the dispatcher to receive the identication information,
send an acknowledgment back to the radio, and respond to the
emergency.
Gooseneck Microphone— The unidirectional 12-inch gooseneck
mounts directly to the Model 4010.
Desk Microphone—The omnidirectional dynamic desk
microphone has its own transmit and monitor bars.
Handset and Cradle—When the PTT handset is in the console
mounted cradle, the console’s “select” speaker is live. When
the handset is lifted, the “select” audio reverts to the handset
earpiece.
Headset Jack— The headset jackbox may be mounted to the side
of the console or under a desk writing surface. When a headset
is not plugged into the jack, the console’s “select” speaker is live;
when it is plugged in, the “select” audio reverts to the headset
earpiece.
Telephone Radio Headset Interface—The telephone radio
headset interface allows one common headset to be used
for both radio and telephone, with a volume control for each.
When the telephone set indicates that it is connected to a line
(off- hook), the common headset is switched to the telephone
and the console’s “select” speaker becomes live. If the operator
transmits on the console, the headset is momentarily switched
back to the radio console. When the telephone is disconnected
from the line, the headset reverts back to the console and the
console’s “select” speaker becomes muted. Requires off-hook
contact closure from telephone.
Footswitch — Footswitches are available for controlling selected
channel transmit and monitor, allowing hands-free operation.
Automatic Number Identication (ANI)—ANI codes generated
by mobile or portable radios are shown on the console’s LCD
display, when M4010 is equipped with an ANI decoder.
Phone Patch—The phone patch option allows the console
operator to establish a patch between any radio channel and a
telephone line.This option also allows the operator to originate
and answer telephone calls using the console.
Paging Formats— The built-in paging encoder is capable of
generating all popular signaling formats. The two most popular,
Motorola/GE two-tone, and DTMF are standard. Optional formats
include 1500 Hz or 2805 Hz rotary dial, Plectron, Quick-Call I
(2+2), and 5/6 Tone.
Expansion Panel—The Model 4115 Console Expander provides
60 extra programmable keys for controlling radio channels and
instant call paging functions. With the Expansion Panel installed,
the Model 4010R features 136 programmable keys.

www.zetron.com
ZETRON AMERICAS
PO Box 97004,
Redmond, WA USA
98073-9704
(P) [phone]
(F) [phone]
(E) [e-mail]
©Zetron, Inc. All rights reserved. Zetron® and
Zetron and Design® are registered trademarks of
Zetron, Inc. All other trademarks are properties of
their respective owners.
See Zetron price list for option pricing.
Specications subject to change without notice.
005-0447T January 2018
ZETRON EMEA
27-29 Campbell Court,
Bramley, Hampshire RG26
5EG, United Kingdom
(P) [phone]
(F) [phone]
(E) [email protected]
ZETRON AUSTRALASIA
PO Box 3045, Stafford Mail
Centre, Stafford QLD 4053,
Australia
(P) [phone]
(F) [phone]
(E) [email protected]
The Power to Respond
The Power to Respond
Specifications
TRANSMIT ELECTRICAL SPECIFICATIONS
Audio Output: +10dBm max. into 600 ohm line
Output Impedance: Transmit: 600 ohm balanced
Idle: 600 or 3500 ohms
Distoron: <2%atfulloutput.Hum,Cross-Talk
all-50dBatfulloutput
MicrophoneInput: -65dBmforfulloutput
Aux.MicInput: -20dBmforfulloutput
Page/SpareInput: -15dBm,notcompressed
FrequencyResponse: -3to+1dBfrom250-5000Hzexceptguard
tone notch
Compression: Inputlevelincreaseof30dBabovekneeof
compressioncauses<3dB outputincrease
RECEIVE ELECTRICAL SPECIFICATIONS
InputImpedance: 600or10Kohm(4-wire)
3500ohm(2-wire)
LineBalance: 66dBat1000Hz
RxSensivity: -30dBmmax.atkneeofcompression;
adjustable
FrequencyResponse: -3to1dBfrom250-5000Hzexcept
guard tone notch
Compression: Inputlevelincreaseof30dBabovekneeof
compressioncauses<3dBoutputincrease
Distoron: <2%
CallLight: Sensivity20dBbelowkneeofcompression
AudioOutputs: 5wasinto4ohms
Mute: Programmablefrom0to-28dBorfullmute
“All-mute”meprogrammable
PHYSICAL SPECIFICATIONS
Size:
• Desktop:9”highx18”widex14”deep
• Rackmount:10.5”highx19”wx10.5”deep
Weight: 15 lbs.
Dust/LiquidIngress: NEMA1,IEC60529IP30
OperangTemp: 5to50degreesCelsius
OTHER ELECTRICAL SPECIFICATIONS
ChannelInterface:
• Tx/RxAudiopair(for2w/4
• RxAudiopair(for4w)
• PTT relay contact
• Busy out
• Busyin/X-Mutein
• Supvcontrol/main-stby
• Recorder Out
ChannelControl: Local,E&M,ToneRemote,DCRemote,
Telephone(p/ring)
LocalControl: PTTnormallyopenrelaycontactrated
1.0Aat24VAC/DC
E&MControl: TxcontrolviaPTTrelay,external48Vrequired
ToneControl: 15standardtonessupported,
programmable(notrimmeradjustment)
650-2050Hz.HighLevelGuardTone
duraon120-600msec.FunconTone
Duraon40msec.GuardToneFreq.
2175Hz,alterable.Tonefreq.accuracy
+/-0.2%;mingaccuracy+/-1.0%
DCControl: Programmablefor+/-2.5,5.5,6.0,11,12.5,
and15.5mA.Operableupto8Kohmloop
resistance
Accuracy+/-.25mA
BusyChan.Detect: LocalCross-Busydetecon;GuardToneor
DCControldetecon(LOTL)oponal
PowerInput: 13.5VDC,3.5Amaxor95to250VAC,
47to440Hz64wasmax
Baery:11.5to15VDC,3.5Amax
AuxOutput: 4-FormCcontactsrated
0.5 Ampere
4-Opencollectoroutputsrated
0.25Ampere
AuxInputs: 8-TTLinputs(0-5VDC)
