ZHEJIANG DALI TECHOLOGY T1 User manual

T1
Thermal Image Camera
Quick Start Guide
ZHEJIANG DALI TECHNOLOGY CO LTD
© 2016 DALI TECHNOLOGY

2
1. Buttons Function
[1] Power/Menu
a) Press and hold 3+ second to turn / off the device.
b) Enter into the menu mode and select / confirm the settings
[2] F1 Select
Select Left/Up under the menu mode.
[3] F2 Select
Select Right/Down under the menu mode.
[4] Freeze /Back
a) Press to freeze the screen when imaging.
b) Press and hold to make calibration.
c) Press to Cancel / Back under the menu mode.
[5] USB interface
a) Connect with PC to transfer data [USB2.0];
b) Charge the battery.
[6] Buzzer
Make buzzer to alarm.
[7] Microphone
To make voice note when saving imaging.
[8] Indicator light
a) Green color when device turned on;
b) Red color when charging battery then turn green when fully
charged.
! Attention: We suggest to wait at least 10 secs to turn on the device
since turned off, that will be helpful to protect the device working well.
2
3
1
4
44
6
7
8
5

3
2.Operation
2.1 Load battery
2.2 Obtain Thermal Imaging
! Attention: Please press and hold the Freeze/Back button to make calibration if
the imaging has bad quality or retention.
Push the battery into the battery
compartment until hear the
sound, then the device will be
ready to be turned on. Please
hold both side of the battery
when pulling it out.
Load the battery then press the
power button (about 3 secs) until the
screen imaging. The device will be
finish the initialization and get ready
to work after about 30 secs.
Open the lens cover and aim at the
target.

4

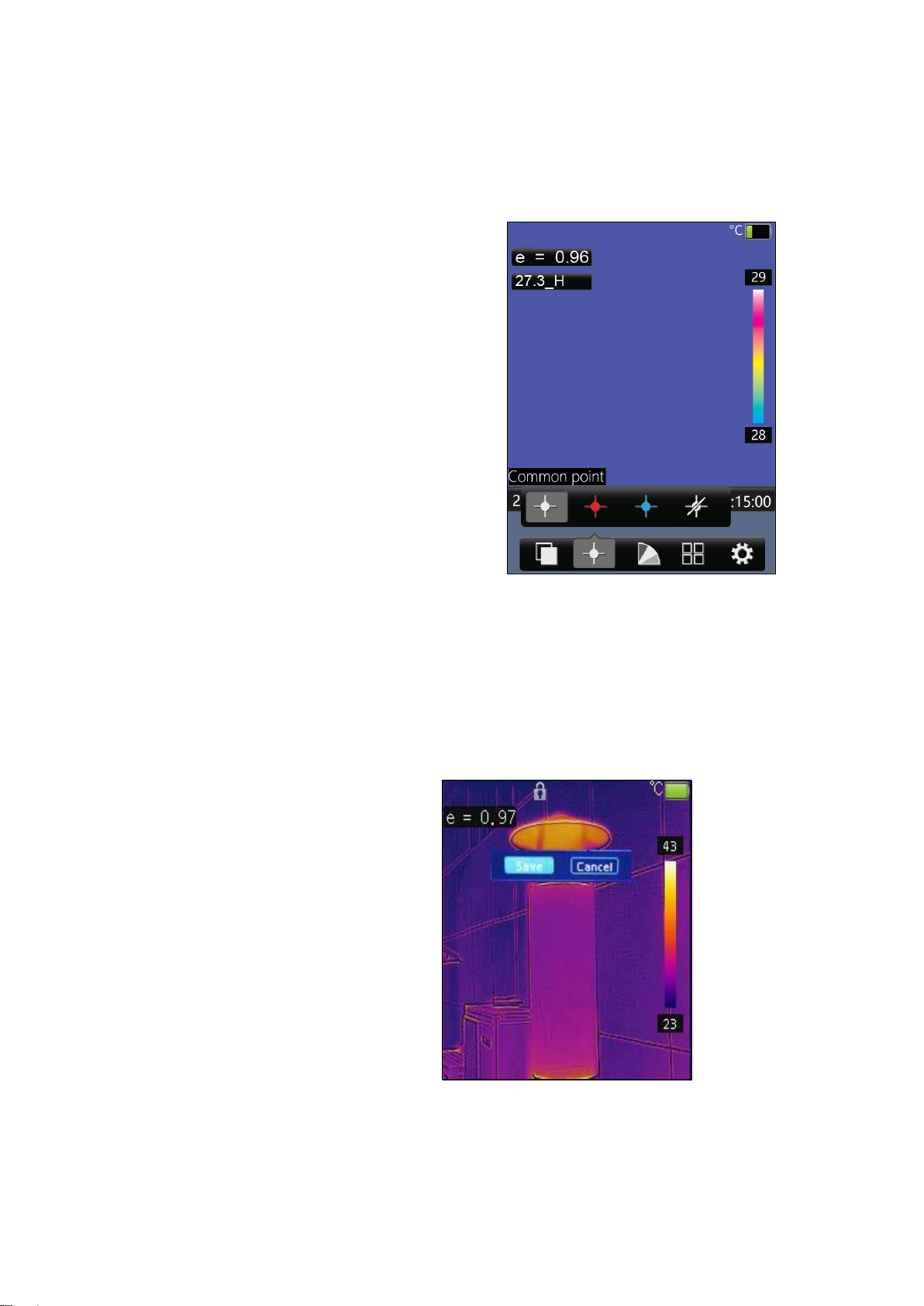

2.3 Measure Temperature
2.4 Freeze and save imaging
Press Freeze/Back button to
freeze the screen, then save the
imaging. Select cancel and
confirm to back to imaging
mode. The Voice annotation
notice will be on the screen
when saving the imaging if the
voice annotation function turned
on.
Press Menu Button to change the measure
point then aim the cursor to the target, then
the target temperature will be shown at the
top-left of the screen.
The temperature will be shown as “＞
XXX℃” or “＜XXX℃” when the target
temperature is higher/lower than the
selected temperature range.
[XXX=temperature range]

5
2.5 Playback
2.6 Export saved imaging
Connect device to PC by USB cable to export saved imaging.
Select “File” icon in menu.
Press F1、F2 button to select
different saved imaging.
Press Freeze/Back button to exit
Playback and enter imaging
mode.
