Zhen Optics Z2820U User manual

Information and Communication PTZ Camera
User Manual

Electric Safety
Caution to transport
Polarity of power supply
Installation and operation must accord with electric safety standard
Avoid stress,vibration and soakage in transport,storage and installation.
The power supply of the product is ±12V, the max electrical current is 2A .Polarity of the
power supply drawing.
Attentions
Careful of installation
Don't disassemble discretionarily.
Attention
Never move the camera by seizing the camera head. Don't rotate camera head by
hand; otherwise,mechanical trouble will occur.
This series item must put on the smooth desk or platform,and it can not be installed
slant ways;
If the camera is installed on TV or computer, the base can be fixed by four double-
sided adhesive trays.
Don't apply in corrosive liquid,gas or solid environment to avoid the cover which is
made up of organic material.
To make sure no obstacle in rotation range.
Never power on before installation is completed.
We are not responsible for any unauthorized modification or dismantling.
Electromagnetic filed under certain rate may affect camera image!
01
Information and Communication PTZ Camera

【】Contents
1. Fast installation
2. Product overview
3. Application instruction
1.1 Camera interface explanation
1.2 Power on initial configuration
1.3 Video output
1.4 Bracket mounting
2.1 Product introduction
2.1.1 Product model
2.1.2 Dimension
2.1.3 Accessory
2.2 Main features
2.2.1 Camera performance
2.2.2 Network performance
2.3 Technical specification
2.4 Interface instruction
2.4.1 External interface
2.4.2 Bottom DIP switch
2.4.3 Rotary switch
2.4.4 RS-232 interface
3.1 Video output
3.1.1 Power-on initial configuration
3.1.2 Video output
3.2 Remote controller
3.2.1 Keys instruction
3.2.2 Applications
3.3 Menu setting
3.3.1 Main menu
3.3.2 System setting
3.3.3 Camera setting
3.3.4 P/T/Z
3.3.5 Video Format
3.3.6 VERSION
3.3.7 RESTORE DEFAULT
02 03

Information and Communication PTZ Camera
4.1 Connecting mode
4.2 IE Log In
4.2.1 Web client
4.2.2 Preview
4.2.3 Playback
4.2.4 Configuration
4.2.5 Video configuration
4.2.6 Network configuration
4.2.7 System configuration
4.2.8 Logout
4.2.9 Wireless network
5.1 VISCA protocol list
5.1.1 Camera return command
5.1.2 Camera control command
5.1.3,Inquiry command
5.2,Pelco-D protocol command list
5.3 Pelco-P protocol command list
6.1 Camera maintenance
6.2 Troubleshooting
4. Network connection
5. Serial communication control
6. Camera maintenance and troubleshooting
04
08
18
04
05
05
06
08
08
08
09
09
09
10
11
13
13
14
15
16
18
18
18
19
19
21
23
23
23
24
27
28
28
29
30
32
32
33
33
34
35
38
39
41
41
42
42
43
49
53
54
55
55
30
42
55

Information and Communication PTZ Camera

04 05
1. Fast Installation
1.1 Camera Interface Explanation
Figure 1.1 Interface of ST (standard) series
1.Camera lens
2.Camera base
3.Remote Controller Receiver light
4.Bottom DIP switch
5.Tripod screw hole
6.Installation Orientation Hole
7.Rotary Switch: Video format select
8.RS232 control interface (input )
9.RS232 control interface (output )
10.RS485 input (left +,right-)
11.Audio Input interface
12.HD-SDI interface
13.DVI-I interface(including HDMI signal)
14.10/100M Network interface
15.DC12V Input Power Supply Socket
1.Camera lens
2.Camera base
3.Remote Controller Receiver light
4.Bottom DIP switch
5.Tripod screw hole
6.Installation Orientation Hole
Figure 1.2. Interface of U3 (USB3.0) series
7.RS232 control interface (input )
8.10/100M Network interface
9.DVI-I interface(including HDMI signal)
10.USB3.0 interface
11.DC12V Input Power Supply Socket
12.Power indicator
1.2 Power on Initial Configuration
Note: If you set preset 0,when Power on initial configuration is completed,the
automatically moves to the preset 0 position.
Note: USB2.0 output and USB3.0 output is the same interface.
1) Power on: connect DC12V power supply adapter with NO.15 showed in Figure
1.1or NO.11 in Figure1.2.
2) initial configuration: Power on with power indicator light on and remote control
receiver light blinking,camera head moves from bottom left to the bottom,and then
go to the HOME position (intermediate position of both horizontal and vertical ),
while the camera module stretches. When remote control receiver light stops
blinking,the self-checking is finished
This series has a variety of video output; ST models have video output from LAN,
DVI (HDMI) and 3G-SDI,while U3 models from LAN,DVI (HDMI),USB3.0 and USB3.0
is compatible with USB2.0.
1) video output from LAN
a. Network cable connection port: ST Model--No.14 in Figure1.1; U3 models--No. 8
in Figure1.2.
b. Webpage Login: open your browser and enter 192.168.5.163 in the address bar
(factory default); press Enter to enter into the login page; click on the “player is
not installed,please download and install!" and follow the installation steps for
installation. Then enter the user name admin and password admin (factory default);
press Enter to enter into the preview page,users can carry out PTZ control, video
recording,playback,configuration and other operations.
2) DVI(HDMI) video output
a. DVI video cable connection: ST models refer to No.13 in Figure1.1; U3 models
refer to No. 9 in Figure1. 2.
b. Connect the camera and the monitor via DVI video cable; video output is available
after camera initial configuration.
3) 3G-SDI video output
a. 3G-SDI video cable connection: ST models refer to No.12 in Figure1.1,U3 models
do not have 3G-SDI interface.
b. Connect the camera and the monitor via 3G-SDI video cable; video output is
available after camera initial configuration.
4) USB3.0 video output
a. USB3.0 video cable connection: ST models do not have USB3.0 interface. U3
models refer to NO.10 in figure1.2.
b. Connect the camera and the monitor via USB3.0 video cable,open video display
software,select image device,and then video output will be available.
5) USB3.0 compatible with USB2.0 output
a. USB3.0 video cable connection:ST models do not have USB3.0 interface. U3
models refer to NO.10 in Figure1. 2.
b. Connect the camera and the monitor via USB3.0 video cable,open video display
software,select image device,and then video output will be available.
1.3 Video output
camera

Information and Communication PTZ Camera

Information and Communication PTZ Camera

06 07
1.4 BRACKET MOUNTING
1) Bracket installation steps
2) Upside-down installation steps
Note: all bracket can not be installed on plasterboard.

Information and Communication PTZ Camera

Information and Communication PTZ Camera

08 09
There are two main series according to different video output interface,ST (standard)
and U3 (USB3.0 output).
2.1 Product introduction
2.1.1 Product model
2.Product overview
Model NO.X—XXX—XXX—XX
IR ---IR remote controller
WR---wireless remote controller
ST---standard interface(optional 5G wifi function)
U3---USB3.0 interface
12---12x optical zoom lens
20---20x optical zoom lens
S---1080P60 downward compatibility
M---1080P30downward compatibility
Please refer to corresponding features in this manual.
Note: 5Gwifi is optional for ST (standard) series only.
2.1.2 Dimension
Figure 2.2 Camera dimension
Model NO ST Series U3 Series.
Accessory
Standard
Power adapter 1piece Power adapter 1piece
RS232 cable 1piece RS232 cable 1piece
User manual 1piece User manual 1piece
Double side glue- shim
4pcs
Double side glue- shim
4pcs
Warranty card 1piece
Optional
IR Remote controller
1piece
IR Remote controller or
wireless controller 1piece
Wireless controller 1piece
Cascade Cable 1piece USB3 0 cable.
Wall mounting bracket Wall mounting
bracket optional()
Upside down mounting-
bracket optional()
Upside down mounting-
bracket optional()
2.1.3 Accessory
When you unpack,check that all the supplied accessories are included:
2.2 Main Features
This series camera offers perfect functions,superior performance and rich interfaces.
The features include advanced ISP processing algorithms to provide vivid images
with a strong sense of depth,high resolution and fantastic color rendition. It supports
H.264/H.264+ encoding which makes motion video fluent and clear even with less
than ideal bandwidth conditions.
It employs 1/2.8 inch high quality CMOS sensor.
Resolution is up to 1920x1080 with frame rate up to 60 fps.
It has 12X/20X optical zoom lens for options. The
zoom lens is with 72.5 ° wide view angle without distortion.
Leading auto focus algorithm makes lens a fast,
accurate and stable auto-focusing.
Low Noise CMOS effectively ensure high SNR of camera
video.
Advanced 2D/3D noise reduction technology is also used to further reduce the noise,
while ensuring image sharpness.
By adopting high accuracy step driving motor mechanism, it works
extremely quiet and moves smoothly and very quickly to designated position.
2.2.1 Camera performance
1. Superb high-definition image:
2. Various optical zoom lens:
3. Leading Auto focus technology:
4. Low noise and High SNR:
5. Quiet PTZ:
12x

Information and Communication PTZ Camera

Information and Communication PTZ Camera

10 11
6. Multi-Format Video Outputs:
7. Multiple remote controls:
8. Low-power sleep function:
9. Support Multiple Control Protocol:
10. RS-232 cascade function:
11. 255 presets positions:
12. Wide application:
2.2.2 Network performance
1. Audio Input Interface:
2. Multiple Audio/Video compression:
3. Multiple network protocol:
4. 5G WI-FI function:
support DVI (HDMI),3G SDI,USB,wired LAN and
wireless LAN interfaces The 3G-SDI is available for 100m transmission at 1080p60
format.
There is IR remoter and 2.4G wireless remote for options.
The 2.4G wireless remote controller will not be affected by angle,distance or IR
interference. Support transparent transmission function.
Support low-power sleep/wake up,the consumption
is lower than 500mW under sleep mode
Support VISCA,PELCO-D,PELCO-P protocols
which can also be automatically recognized. Support VISCA control protocol
through IP port.
ST series support RS-232 cascade function which is
convenient for installing.
Up to 255 presets (10 presets by remoter).
tele-education,lecture capture,Webcasting,Videoconferencing,
Tele-training,Tele-medicine,Interrogation and Emergency command systems.
Support 16000,32000,44100,48000 sampling frequency
and AAC,MP3,PCM audio coding.
Support H.264/H.265 video compression;
AAC,MP3 and PCM audio compression; Support compression of resolution up to
1920x1080 with frame up to 60 fps and 2 channel 1920x1080p with 30 fps
compression.
Support ONVIF, RTSP, RTMP protocols and RTMP
push mode, easy to link streaming media server (Wowza,FMS)
If the product contains 5G wi-fi module, you can set up a wireless
wi-fi connection in a webpage,the specific configuration described in detail on the
page of web configuration.
2.3 Technical specification
Model ST U3 12/- ST U3 20/-
Camera Parameter
Optical Zoom 12X f,＝39.～46 1mm.
Sensor 1 2 8 inch high quality HD CMOS sensor/.
Effective Pixels
Video Format
16 9 2 07 megapixel:.
ST video format
1080P60 50 30 25 59 94 29 97 1080I60 50 59 94 720P60 50 30////./.; //.; ///
25 59 94 29 97/./.
U3 interface video format
1920X1080P60 50 30 25 1280X720P60 50 30 25 960X540P30 6///; ///; ;
40X360P30 640X480P30 352X288P30 960X540P30;;;
U3 compatible with U2:
960X540P30 640X360P30 1280X720P10 15 7; ; / ; 20X576P50;
720X480P60 640X480P30 352X288P30;;.
View Angle
Iris
Digital Zoom 10X
Minimum
Illumination 0 5Lux F1 8 AGC ON.(., )
DNR 2D 3D DNR&
White Balance Auto Manual One Push 3000K 4000K 5000K 6500K/ / ////
Focus Auto Manual/
Aperture Auto/Manual
Electronic Shutter Auto Manual/
BLC ON OFF/
WDR OFF Dynamic level adjustment/
Video Adjustment Brightness Color Saturation Contrast Sharpness B W,, , , ,/
mode Gamma curve,
SNR 55dB>
Input Output Interface/
Video Interfaces 12 20 ST el 3G SDI DVI HDMI LAN/- Mod: - , ( ),
12 20 U3 DMI LAN/ - Model:USB3.0,DVI(H ),
Image Code
Stream Dual stream output
Video ompression
Format H264H265.,.
Control Signal
Interface RS 232 Ring through RS232 output-
6.3°(tele)--72.5°(wide) 3.3°(tele)--54.7°(wide)
F1.8 F2.4 F1.6 F3.5～～
20X,f 5.5 110mm＝～

Information and Communication PTZ Camera

Information and Communication PTZ Camera

12 13
Model ST U3 12/- ST U3 20/-
Input Output Interface/
Control Protocol VISCA Pelco D Pelco P Baud Rate 115200 9600 4800 2400bps/-/-; : ///
Audio Input
Interface Double track 3 5mm linear input.;
Audio
Compression
Format
AAC MP3 PCM Audio compression//
HD IP Interface 100M IP G WiFi optional Support Viscaport(100BASE-TX); 5 ( ),
protocol control through IP port.
Network Protocol RTSP RTMP ONVIF/,
Power Interface HEC3800 outlet DC12V()
PTZ Parameter
Pan Rotation
Tilt Rotation
Pan Control
Speed
Tilt Control Speed
Preset Speed
Preset Number 255 presets 10 presets by remote controller()
Other Parameter
Supply Adapter AC110V AC220V- to DC12V/1.5A
Input Voltage DC12V 0?%
Input Current 1A Max()
Consumption Max12W ( )
Store Temperature
Store Humidity 20 95%- %
Working
Temperature
Dimension 258mmX172mmX168mm
Weight 1 54KG.
Remote perationO
()IP Remote Upgrade Reboot and et, Res
Accessory power supply RS232 control cable remoter manual warranty card,,,,
170°
-30° 90°～+
0.1 -100°/sec
0.1-40°/sec
Pan: 100°/sec,Tilt: 40°/sec
-10 60℃℃～+
-10 50℃℃～+
2.4 Interface instruction
1) External interface of ST models: Rotary switch,RS232 input output,RS485 input,
audio input,3G-SDI output,DVI（HDMI）output,LAN,DC12V power interface.
2.4.1 External Interface
Figure 2.3 ST model external interface diagram
External interface of U3 model: RS232 input,LAN,DVI HDMI output,USB3.0 output,
DC12V power interface
（）
Figure 2.4 U3 model external interface diagram

Information and Communication PTZ Camera

Information and Communication PTZ Camera

14 15
2.4.2 Bottom DIP Switch
ST model and U3 model Bottom DIP Switch diagram shown in Figure 2.5:
ST model two DIP switches are set to ON or OFF to select different modes of operation
as shown in Table 2.2
Table 2.2 DIP Switch setting
Figure 2.5 Bottom DIP Switch diagram
No SW2 SW1 Explanation.
1 OFF OFF Software upgrade mode
2 ON ON Working mode
No SW2 SW1 Explanation.
1 ON OFF Working mode
2 ON ON USB3 0 software upgrade mode.
3 OFF ON ARM software upgrade mode
U3 model two DIP switches are set to ON or OFF to select different modes of operation
as shown in Table 2.3
Table 2.3 DIP Switch setting
Note: Working mode can be applicable for web upgrade.
2 4 3 Rotary DIP Switch..
Sixteen rotary DIP 0 F interface diagram shown in Figure 2 6-.;
Sixteen rotary DIP 0 F corresponding to the video format as shown in Table 2 4-.:
Note ST model have rotary DIP U3 model is without rotary DIP:; .
Figure 2 6 Rotary Dial diagram.
Table 2 4 Rotary Dial corresponding to the.
video formats
Dial
-up
video
format
Dial
-up video format
7 1080P25 F
Display het
video format
set on the
menu
0
1
2
3
4
5
6
1080P60
1080P50
1080I60
1080I50
720P60
720P50
1080P30
8
9
A
B
C
D
E
720P30
720P25
1080P59.94
1080I59.94
720P59.94
1080P29.97
720P29.97
Note: 1. After switching DIP,you need to restart the camera to take effect.
2. Only when the rotary dial code is F,the video format is displayed on the
item.
3. Rotary switch setting is 0-E, rotary switch setting decides video format.
menu

Information and Communication PTZ Camera

Information and Communication PTZ Camera

16 17
244RS232interface.. -
1ST) model RS-232C interface specification as shown below
Computer or keyboard and acamer
connection method
Camera WindowsD
1DTR.1DCD.
2DSR.2RXD.
3TXD.3TXD.
4GND.4DTR.
5RXD.5GND.
6GND.6DSR.
7IR.OUT 7RTS.
8NC.8.CTS
.9RI
2 RS 232 Mini DIN e) - - 8-pin Port D finition
NO P Definition.ort
1 DTR Data Terminal Ready
2 DSR Data Set Ready
3 TXD Transmit Data
4 GND System Ground
5 RXD Receive Data
6 GND System Ground
7 IR OUT IR Commander Signal
8 NC No Connection
B9-
Camera cascade connection method
Camera 1 Camera 2
1DTR 1DTR..
2DSR 2DSR..
3 TXD 3 TXD..
4GND 4GND..
5RXD 5RXD..
6GND.6GND.
7IR.OUT 7OPEN.
8.NC 8 OPEN.
NO Port Definition.
1 DCD Data Carrier Detect
2 RXD Receive Data
3 TXD Transmit Data
4 DTR Data Terminal Ready
5 GND System Ground
6 DSR Data Set Ready
7 RTS Request to Send
8 CTS Clear to Send
9 RI Ring Indicator
3) Rs232 (DB9) Port Definition
4) VISCA networking as shown below:
Note: ST model has RS232 input and output interface,so you can cascade as
the above way;
It won't work for U3 model,since U3 model only has RS232

Information and Communication PTZ Camera

Information and Communication PTZ Camera

18 19
3.1 Video Output
Connecting the power,camera will have initial configuration,IR indicator light will be
flashing. When the camera return to the HOME position(middle position for P/T),
and lens finish zoom in/out,the auto-testing is finished. IR led will also stop flashing.
If the preset 0 is set,camera will rotate to the 0 preset position after initial configuration.
Connect to the video output cable: the user select the output mode according to the
machine model.
Figure 1.4.1 is for your reference (output interface introduction for each product)

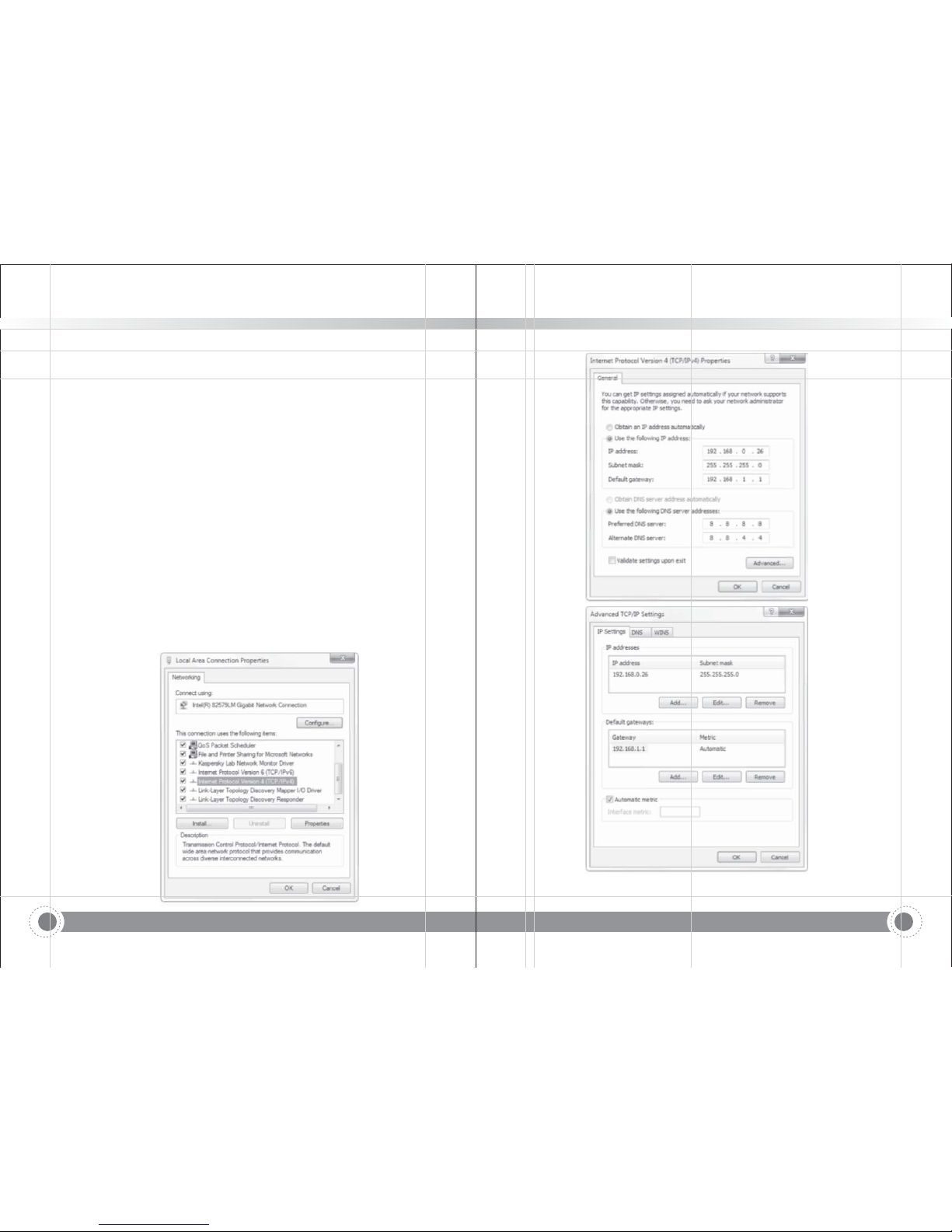

1) network output: connect this product and your computer through network cable,
then open the browser,enter the camera IP address (factory default 192.168.5.163)
in the address bar,then to the login page and input a user name and password
(factory default are “admin”) ,Finally enter the preview page,and the image comes out.
2) 3G-SDI output or DVI (HDMI) output: Connect the monitor with the corresponding
video output interface,then the monitor output image.
3) USB3.0 output: Connect this product with computer USB3.0 interface (blue),open
the Device Manager to see whether there is an image device and whether the
Universal Serial Bus controllers recognize USB3.0 device. After properly identified,
open the software,choose the image device and then it will output image.
4) USB3.0 compatible with USB2.0 output: Connect this product with computer USB2.0
interface (black),open the Device Manager to see whether there is an image device
and whether the Universal Serial Bus controllers recognize USB3.0 device. After
properly identified, open the software,choose the image device and then it will
output image.
3.1.1 Power-On Initial Configuration
3.1.2 Video output
Note: If you forget your user name, password, IP address, you can manually
the default by the remote controller key combination * #restore
3. Application Instruction
3 2 1 Keys Instruction..
1 Standby key.
After 3S long press the camera will step into standby,
mode Long press 3S again the camera will initial.,
configuration again and back to HOME position.
( : - on and Preset 0 isNote If power on mode is turned
set and there is no operation within 12s it will,,
automatically nt to the specified preset positionpoi .
2 Camera address selection.
Select the camera address which wants to be
controlled
3Numberkey.
Set or run esets0-9 pr
4key.*,#
Key usecombination
5 Focus control key.
Auto focus Enter into auto focus mode:.
Manual focus The camera focus mode is manual:
Switch the camera focus mode to manual focus by
pressing focus or focus to adjust[+][-] .
6 Zoom Control key.
zoom＋:Lens near
zoom－:Lens far
7 Set or clear preset key.:
Set preset Set preset key 0 9 number key:+-:
Clear preset key Clear preset key 0 9 number key:+-
8 pan tilt control key./
Press key :Up
Press key :Down
Press key :Left
Press key Right:
?:OME key Return to the middle position or enter
into the next level menu
9BLC ntrol,cokey
Back light ON OFF Turn f the back light/ : on or of
10 Menu setting.
Open or close the OSD menu
Enter exit the OSD menu or return to the previous/
menu.
3.2 Remote controller

Information and Communication PTZ Camera

Information and Communication PTZ Camera

20 21
11. Camera IR remote control address setting
12. Key combination Functions
F1 Camera Address No.1
F2 Camera Address No. 2
F3 Camera Address No. 3
F4 Camera Address No. 4
1) Clear all presets
2) 6 Restore factory defaults
3) 9 Flip switch
4) Auto:Enter into the aging mode
5) 3 Menu set to Chinese
6) 4 Menu set to English
7) Manual:Restore the default user name,password,and IP address
8) 0 Switch the video format to 1080P60
9) 1 Switch the video format to 1080P50
10) 2 Switch the video format to 1080I60
11) 3 Switch the video format to 1080I50
12) 4 Switch the video format to 720P60
13) 5 Switch the video format to 720P50
14) 6 Switch the video format to 1080P30
15) 7 Switch the video format to 1080P25
16) 8 Switch the video format to 720P30
17) 9 Switch the video format to 720P25
【*】+【＃】+【 】:
【*】+【＃】+【 】:
【*】+【＃】+【 】:
【*】+【＃】+【 】:
【#】+【#】+【#】:
【*】+【#】+【 】:
【*】+【#】+【 】:
【*】+【#】+
【*】+【#】+【 】:
【*】+【#】+【 】:
【*】+【#】+
【#】+【#】+【 】:
【#】+【#】+【 】:
【#】+【#】+【 】:
【#】+【#】+【 】:
【#】+【#】+【 】:
【#】+【#】+【 】:
【#】+【#】+【 】:
【#】+【#】+【 】:
【#】+【#】+【 】:
【#】+【#】+【 】:
3.2.2 Applications
Key Instruction:
Finishing initialization,it can receive and execute the IR commands. Press the remote
controller button,the indicator light is flashing; release the button,the indicator light
stops flashing. Users can control the pan/tilt/zoom,setting and running preset positions
via the IR remote controller.
1, In this instruction,“press the key” means a click rather than a long-press,and a
special note will be given if a long-press for more than one second is required.
2, When a key-combination is required,do it in sequence. For example,“
means press“ first and then press“ and last press“ F1
1 Camera Selection
【 *】+【#】+
【*】” 【#】” 【 】”.
)
【】”F1
Select the camera address to control.
Up: press Down: press
Left: press Right: press
Back to middle position:press“ HOME
Press and hold the up/down/left/right key, the
pan/tilt will keep running, from slow to fast, until
it runs to the endpoint; the pan/tilt running stops
as soon as the key is released.
【】”
2) Pan/Tilt Control
3) Zoom Control
ZOOM IN: press “ZOOM key
ZOOM OUT: press “ZOOM ” key
Press and hold the key,the camera will keep
zooming in or zooming out and stops as soon as
the key is released.
”

Information and Communication PTZ Camera

Information and Communication PTZ Camera

22 23
Focus (near): Press ” focus+ key
(Valid only in manual focus mode)
Focus (far): Press “ focus- key
(Valid only in manual focus mode)
Auto Focus: Support
Manual Focus: Support
Press and hold the key,the action of focus will keep
continue and stops as soon as the key is released.
【】”
【】“
4) Focus Control
5) BLC Setting
BLC ON / OFF: support
1. Preset setting: to set a preset position,the users
should press the “ SET PRESET key first
and then press the number key 0-9 to set a relative
preset,
2. Preset Running: Press a number key 0-9 directly
to run a relative preset.
3. Preset clearing : to clear a preset position, the
user can press the “ CLEAR PRESET key
first and then press the number key 0-9 to clear
the relative preset;
【】”
【】”
Note: 10 preset positions in total are available by
remote controller.
Note: Action in vain if a relative preset position
is not existed.
Note : press the“ key three times continually
to cancel all the presets.
【#】”
6) Presets setting,Running,clearing
F1 Camera Address No.1
F2 Camera Address No. 2
F3 Camera Address No. 3
F4 Camera Address No. 4
【*】+【＃】+【 】:
【*】+【＃】+【 】:
【*】+【＃】+【 】:
【*】+【＃】+【 】:
7) Camera Remote Controller Address Setting
3.3 MENU SETTING
3.3.1 Main menu
In normal working mode,press MENU key to display the menu,using scroll arrow
to point at or highlight the selected items.
【】
MENU
Language English
(Setup)
(Camera)
(P/T/Z)
(Video Format)
(Version)
(Restore Default)
]Select ]Change Value
[Menu]Back [Home]OK
＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝
[↑↓ [← →
LANGUAGE:
SETUP:
CAMERA OPTION:
PTZ OPTION:
VERSON:
Restore Default:
] Select:
] Change value:
[MENU] Back:
[Home] OK:
Language setting,Chinese / English
System setting
Camera setting
Pan tilt setting
camera version setting
Reset setting
for selecting menu
for modify parameters
Press [MENU] to return
Press [Home] to confirm
[
[
↑↓
←→
3.3.2 System setting
Move the pointer to the (Setup) in the Main Menu,click the HOME key and enter
into the (System Setting) as shown below,
【】
SETUP
Protocol Auto
Visca Address 1
Visca Address Fix OFF
PELCO-P Address 1
PELCO-D Address 1
Baud rate 9600
]Select ]Change Value
[Menu]Back
＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝
[↑↓ [← →

Information and Communication PTZ Camera

Information and Communication PTZ Camera

24 25
PROTOCOL:
Visca ADDR:
Baud rate:
Visca Address Fix:
3.3.3 Camera setting
VISCA/Pelco-P/Pelco-D/Auto
VISCA=1~7 Pelco-P=1~255,Pelco-D =1~255
2400/4800/9600/115200
On/Off
Move the pointer to the (CAMERA) in the Main Menu,click the HOME key and enter
the (CAMERA) as follow,
【】
CAMERA
(Exposure)
(Color)
(Image)
(Focus)
(Noise Reduction)
Style default
]Select ]Change Value
[Menu]Back [Home]OK
＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝
[↑↓ [← →
EXPOSURE:
COLOR:
Image:
Focus:
Noise Reduction:
Style:
1) EXPOSURE SETTING
Enter into Exposure setting
Enter into color setting
Enter into image setting
Enter into focus setting
Enter into noise reduction
default,standard,clear,bright and soft for options
Move the pointer to the (EXPOSURE) in the Main Menu, click the HOME and enter
the (EXPOSURE SET) as follow,
【】
EXPOSURE
Mode Auto
EV OFF
BLC OFF
Flicker 50Hz
G.Limit 3
DRC 2
]Select ]Change Value
[Menu]Back
＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝
[↑↓ [← →
MODE :
EV:
Compensation level:
BLC:
Flicker:
Gain limit:
Shutter priority:
IRIS priority:
BRIGHTNESS:
DRC:
2) COLOR SETTING
Auto,Manual,Shutter priority,Iris priority and Brightness priority.
exposure compensation setting, ON/OFF (only available under AUTO exposure
mode)
-7~7 for options(only available when EV is ON)
ON/OFF for options (only available in auto mode)
OFF/50Hz/60Hz for options (only available in Auto/Iris priority/Brightness
priority modes)
0~15(only available in Auto/ Iris priority /Brightness priority mode)
1/25,1/30,1/50,1/60,1/90,1/100,1/120,1/180,1/250,1/350,1/500,
1/1000,1/2000,1/3000,1/4000,1/6000, 1/10000(only available in
Manual and Shutter priority mode)
OFF,F11.0,F9.6,F8.0,F6.8,F5.6,F4.8,F4.0,F3.4,F2.8,F2.4,F2.0,F1.8
(only available in Manual and Iris priority mode)
0~23 (only available in Brightness priority mode)
Dynamic range ,1~8 and OFF for options.
Move the pointer to the (COLOR) in the Main Menu, click the HOME and enter the
(COLOR SET) as follow,
【】
COLOR
WB Mode Auto
RG Tuning 0
BG Tuning 0
Saturation 100%
Hue 7
AWB Sensitivity Low
]Select ]Change Value
[Menu]Back
＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝
[↑↓ [← →
MODE :
RG tuning:
BG tuning:
RG:
BG:
Saturation:
Hue:
AWB sensitivity:
Auto,Manual,Shutter priority,Iris priority and Brightness priority.
red gain tuning,-10~10 for options (only available when white balance
mode is AUTO)
blue gain tuning,-10~10 for options (only available when white balance
mode is AUTO)
red gain,0~255 for options ((only available when white balance mode is MANUAL)
blue gain,0~255 for options ((only available when white balance mode is MANUAL)
60%,70%,80%,90%,100%,110%,120%,130%,140%,150%,160%,170%,
180%,190%,200% for options.
0~15 for options.
high,middle,low for options (only effect when white balance mode
is AUTO).

Information and Communication PTZ Camera

Information and Communication PTZ Camera

26 27
3) IMAGE
Move the pointer to the (IMAGE) in the Menu,click the HOME and enter the (IMAGE)
as follow,
【】
Brightness 7
Contrast 7
Sharpness 4
Flip-H OFF
Flip-V OFF
B&W-Mode Color
Gamma Default
DZoom OFF
DCI Close
]Select ]Change Value
[Menu]Back
＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝
[↑↓ [← →
Brightness:
Contrast:
Sharpness:
Flip-H:
Flip-V:
B&W mode:
Gamma:
Dzoom:
DCI:
0~14
0~14
0~15
horizontal flip, On/Off
vertical flip,On/Off
color,B/W for options
default,0.45,0.50,0.55,0.63
digital zoom options: On/Off
Dynamic Contrast: Off,1 8～
4) FOCUS
Move the pointer to the (FOCUS) in the Menu,click the HOME and enter the (FOCUS)
as follow,
【】
FOCUS
Focus Mode Auto
AF-Zone Center
AF-Sensitivity Low
]Select ]Change Value
[Menu]Back
＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝
[↑↓ [← →
Focus mode:
AF-Zone:
AF-Sensitivity:
Auto,manual
Up,middle,down
High,middle,low
5) NOISE REDUCTION
Move the pointer to the (NOISE REDUCTION) in the Menu,click the HOME and
enter the (NOISE REDUCTION) as follow,
【】
NOISE REDUCTION
NR-2D3
NR-3D 5
Dynamic Hot PixelOFF
]Select ]Change Value
[Menu]Back
＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝
[↑↓ [← →
2D NOISE REDUCTION:
3D NOISE REDUCTION:
Dynamic Hot Pixel:
3.3.4 P/T/Z
Auto,close,1~7
Close,1~8
Close,1~5
Move the pointer to the (P/T/Z) in the Main Menu,click the HOME and enter the
(P/T/Z) as follow,
【】
P/T/Z
Speed by zoom ON
Zoom speed 8
Image Freezing OFF
Acc Curve Slow
]Select ]Change Value
[Menu]Back
＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝
[↑↓ [← →
Speed by zoom:
Zoom speed:
Image Freezing:
Acc curve :
Only effective when use remote controller,On/ Off optional.
When zoom in,the PT control speed by remoter decreases proportionally.
Set the zoom speed for remote controller,1~8
On/Off
accelerating curve,Fast/slow for options.

Information and Communication PTZ Camera

Information and Communication PTZ Camera

28 29
3.3.5 Video Format
Move the pointer to the (Video Format) in the Menu,click the HOME and enter the
(Video Format) as follow,
【】
VIDEO FORMAT
1080P60 1080P50
1080I60 1080I50
1080P30 1080P25
720P60 720P50
720P30 720P25
1080P59.94 1080I59.94
1080P29.97 720P59.94
720P29.97
]Select
[Menu]Back [Home]OK
＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝
[↑↓
Note:
SM
3.3.6 VERSION
For ST series,only when rotary dial switch is F,the video format is displayed
on the menu item.
series supports up to 1080p60 , series supports up to 1080p30.
Pls exit the menu after any modifications,then it can be saved after power off/on.
Move the pointer to the (VERSION) in the Main Menu,click the HOME and enter
the (VERSION) as follows.Note: Version information will be different for different
models and manufacture date.
【】
VERSION
MCU Version 2.0.0.15 2015-12-18
Camera Version 2.0.0.13 2015-12-18
AF Version 2.0.0.6 2015-12-11
Lens 12X(20X)
[Menu]Back
＝＝＝＝ ＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝
MCU Version:
Camera Version:
AF Version:
Lens:
Display MCU version information
Display camera version information
Display the focus version information
Display the lens zoom
3.3.7 RESTORE DEFAULT
Move the pointer to the (RESTORE DEFAULT) in the Main Menu,click the HOME
and enter the (RESTORE DEFAULT) as follow,
【】
Restore Default? NO
]Select ]Change Value
[Menu]Back [Home]OK
RESTORE DEFAULT
＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝
[↑↓ [← →
Restore default:
Note:
YES/No(color style and video format cannot be restored to default
setting)
If the address of former remoter is not 1 but another one from 2,3,4,the
corresponding camera address will restore to 1 when all parameters or system
parameters are restored. User should change the remoter address to be 1
(press No.1 according to the camera so to get normal operation ).

Information and Communication PTZ Camera

Information and Communication PTZ Camera

30 31
Direct connection: Connect the camera and computer by network connecting cable.
Internet connection mode: Connect the camera to Internet by Router or Switch and
user can log in the device by browser.
Note: Please do not put the power and network cable in places where can be easily
touched to prevent video quality lowered by unstable signal transmission due
to poor contact of cables.
The computer must have the network segment where the camera IP address belong
to. The device will not be accessible if without the segment. I.E. The camera default
IP address is 192.168.5.163,then segment 5 must be added in the computer. Specific
steps are as below:
Firstly open the window of Local Area Connection Properties on computer, select
the “Internet protocol version 4(TCP/IPv4)” as shown by picture on the left. Double
click or click the property “Internet” protocol version 4 (TCP/IPv4)to enter into the
Internet Protocol Version 4(TCP/IPv4) Properties window,select “Advanced” to enter
into the Advanced TCP/IP Setting and add IP and subnet mask in the IP browser as
picture shown below. Click the “Confirm” to finish the adding of IP segment. User
can add the corresponding network segment according to the revised IP address of
the camera.
4.1 Connecting Mode
4.Network Connection
Note: The IP address to be added cannot be same with that of other computers or
devices.The existence of this IP address needs to be verified before adding.

Information and Communication PTZ Camera

Information and Communication PTZ Camera

32 33
Click the “Start” and select “Operation” to input cmd as picture below to verify if the
network segment has been successfully added.
Click “OK” and open the DOS command window,input ping 192.168.5.26 and press
Enter key,it will show message as below: which means network segment adding is
succeed.
User can also to verify network connection as steps above mentioned after the finish
of camera self-check. If IP is default, open DOS command window and input
192.168.5.163,then press Enter key, then network connection is normal.
Input the IP address 192.168.5.163 of the device in the address filed of browser and
click Enter button to enter into Web Client login page as below picture. User can login
as administrator and normal user. If login as administrator(Default User name/
Password:admin) ,users can preview, playback, configuration and cancel in the Web
Client; If login in as normal user(Default User name/Password:user1 or user2), users
can only preview,playback and cancel,no option for configuration.
Language options:Upper right corner of the login screen displays " | English",
click it to select the right language.
4.2 IE Log In
4.2.1 Web client
1) Web client Log In
Note: Web access supported browsers: IE,360 browser and other conventional
browser.

2) Download/Install Plug in
4.2.2 Preview
1) Login as administrator
2) Login as normal user
NOTE: There is no configuration rights for normal user login.
4.2.3 Playback
1) Playback video files
2) Playback picture files
Local recording / default snapshot file storage directory D: \IPCam \
When first using IE browser to access the web conferencing camera,the login page
will appear “Playback plug-in is not installed,please download and install!”. Click on this
message,download and install MRWebXinstall.exe,according to information prompts.
After installing the plug,enter user name and password,click and Sign (initial default
user name and password: "admin",users can change the user name and password
on their own after entering) into the Web client management interface.
After successful login into the management interface,it enter the video preview interface.
In the preview screen, users can control PTZ, zoom, focus, video capture, sound,
focus,full screen and set the preset position,run,delete and other operations.
User name,password,the default admin
PTZ control can be carried out, zoom, focus, video capture,sound,zoom,full screen
and set the preset position, run, and delete; you can preview, playback, configuration,
log off.
Default User name/password:user1 or user2
PTZ control can be carried out,zoom, focus, video capture, sound, zoom, full screen
and set the preset position, run, and delete; you can preview, playback and log off.
First,please record,snapshot and save the file when previewing.Click "Playback" to
enter recording file and picture files playback page ,and then select the file "Video
File" and click Search,and search out the video file,click Play to play the video file.
First,please record,snapshot and save the file when previewing.Click "Playback" to
enter recording file and picture files playback page ,and then select the file "Image
File" and click Search,and search out the video file,click Play to play the image file.

Information and Communication PTZ Camera

Information and Communication PTZ Camera

34 35
Click Configuration to enter into the device parameters setting page
There are the following options: Local configuration, audio configuration, video
configuration, network configuration, PTZ configuration, internet access configuration,
system configuration, detailed description see the following table.
4.2.4 Configuration
Menu
Local configure
Audio configure
Video configure
Network configure
System configure
Including video preview mode, record video packing time,
record video storage route settings etc.
Including audio compressing format, sampling frequency,
sampling precision, compressing code rate settings etc.
Including video encoding, video parameters, character-
overlapping, character size, video output setting etc.
Including basic parameters, Ethernet, DNS, wireless network
setting etc.
Including equipment property,system time,user management,
version update,Reset,Reboot device settings etc.
Explanation
1) Local configuration
Video Preview Mode:
Recording packing time(minute):
Recording/Snapshot file storage route:
Save
2) Audio Configuration
Switch:
Compressing format:
Sampling frequency:
Sampling precision:
Compressing code rate:
Note: 1. Click “SAVE”,it will remind”Enable has changed. Restart the device to
take effect after the success of the save.”,then please reboot the camera
to make new setting effect.
user can choose real-time priority or fluency priority: The delay
will be small when under real time priority mode and fluency will
be good when under fluency priority mode. Setting based on
the user need (Default value: real time best (1),real time normal
(2),fluency normal (3),fluency good (4) and fluency best (5)
Set recording video packing time (default is 3,
range from 1~120 minutes)
Set local recording video/snapshot file
storage route.(Default D:\MyIPCam\)
Click the button to make settings effective.
Choose to enable the audio or not.
Set audio compressing format and the device will reboot
automatically after change (default MP3,PCM,AAC optional)
Set sampling frequency and the device will reboot automatically
after change (default 44100,16000,32000 and 48000 optional)
Set sampling precision (default 16bits)
Set audio compressing code rate (default 64bits,32,48,
96,128bits optional)
2. U3 series does not have audio input interface, only ST series has this
configuration.
4.2.5 Video configuration
1) Video encoding
Code stream:Stream:
Compression Format:
Video Size:
Stream Rate control:
Image Quality:
Rate (Kb / s):
Frame rate (F / S):
Key frame interval:
Key frame minimum QP:
Stream Name:
Note: Usually reserve live only and modify the information behind that.
Different video output mode setting,use different streams.
(Main stream,secondary stream)
Set the video compression format,save and reboot to take
it effect (primary / secondary stream default:H.264,H.265
optional)
Set video image resolution,save and reboot to take it effect (main stream
default 1920 * 1080 or 1280 * 720 optional; default secondary stream
640*320,320*180,1280*720, optional )
Set rate control mode,save and reboot to take it effect (Primary
/ secondary stream default variable bit rate,fixed rate is for option).
Set the image quality,image quality can be changed only when rate
control is variable bit rate,(main stream defaulted is better, secondary
stream default is not good, there are best, better, good, bad, worse,
worst for options).
Set the video bit rate (main stream default 8192Kb/s,64-20480Kb/s
optional; secondary stream default 2048Kb/s,64-8192Kb/s optional).
Set the video frame rate (primary / secondary stream default 25F / S,
primary stream 5-60F/S optional,secondary stream 5-30F / S optional ).
Set the key frame interval (primary / secondary stream default
75F, primary / stream 1-300F optional. secondary stream 1-150F
optional).
default 10, 10~51 for options.
When get rtsp or rtmp stream, the user can modify the stream name;
the main stream (default: live / av0), secondary stream (default:live / av1)
Click the "Save" button to display the "saved successfully" message,then settings
take effect.
2) Stream Release
Switch:
Protocol:
Host Port:
Host Address:
Stream Name:
User:
Password:
To turn on/off the main / secondary stream.
primary / secondary stream applies RTMP protocol.
server port number (default 1935,0-65535 optional)
server IP addresses (default 192.168.5.11)
choose a different stream name (live / av0,live / av1 optional).
Set the user name.
Set the password.
Click on the "Save" button to display the "Save successful" message, then settings
take effect. Method of obtaining RTSP: rtsp: // device IP address: 554 / live / av0
(av0 main stream; av1 secondary stream)

Information and Communication PTZ Camera

Information and Communication PTZ Camera

36 37
3) Video Parameters
b, Exposure: Exposure mode, exposure compensation,back light compensation,
anti-flicker,gain limit,DRC ,shutter speed, aperture value and
brightness can be set.
Exposure Mode:
Exposure compensation:
Exposure compensation value:
BLC:
Anti-flicker:
Gain limit:
Dynamic range:
Shutter speed:
Aperture value:
Brightness:
c, Color: White balance,saturation,Hue,white balance sensitivity,red tuning,
blue tuning, red gain and blue gain can be set.
White balance modes:
Red tuning:
Blue tuning:
a, Focus: Focus mode, focus range, focus sensitivity can be set.
Focus Mode: set the focus mode (the default auto, manual optional)
Focus range: set the focus range (the default middle, the upper and lower
optional)
Focus Sensitivity: Set the focus sensitivity (default is low, high, medium
optional)
Set the exposure mode (the default automatic, manual, shutter
priority,aperture priority,Brightness priority optional)
Exposure compensation setting is active when it is auto
status (default is off).
Set the exposure compensation value,valid when
it is set for auto(default -7,-7 ~7 optional).
Set back light compensation, valid when it is auto status (default is off).
Set up anti-flicker mode, valid when status of automatic, aperture or
brightness priority (default 50Hz,closed,60Hz optional).
set the gain limits,auto, active when it is status of aperture or brightness
priority(default 7,0-15 optional).
set the dynamic range (default 2,1-8 and OFF optional).
active when it is status of manual or shutter-priority (default 1 / 90,
1 / 90,1 / 100,1 / 1/120 / 180,1 / 250,1 / 350,1 / 500,1 / 725 1 / 1000,
1 / 1500,1 / 2000,1 / 3000,1 / 1/4000 / 6000,1 / 10000 optional).
Set the aperture value,active when it is status of manual or aperture
-priority(default F1.8,closed,F9.6,F8.0,F6.8,F5.6,F4.8,F4.0,F3.4,
F2 .8,F2.4,F2.0,F1.8 optional).
Set the brightness value,active when it is a state of brightness priority
(default 7,0-23 optional).
Set the white balance mode (the default automatic, 3000K,
4000K, 5000K, 6500K, manual, One-push optional).
Note: Click the “Correction” button when selected the One-push white balance mode.
red trimming only effective when set white balance AUTO,(default 0,
-10~10 optional)
blue trimming only effective when set white balance AUTO,(default 0,
-10~10 optional)
Saturation:
Auto white balance Sensitivity:
Hue:
White balance sensitivity:
Red Gain:
Blue Gain:
d, Image: Brightness, contrast, sharpness, black and white mode, Gamma, DCI,
Horizontal Flip, Vertical Flip and Digital zoom can be set.
Brightness:
Contrast:
Sharpness:
Black and white mode:
Gamma:
Dynamic contrast:
Flip Horizontal:
Flip Vertical:
Digital zoom:
e. Noise Reduction: 2D noise reduction,3D noise reduction and dynamic dead
pixel correction available.
2D Noise Reduction:
3D Noise Reduction:
Dynamic dead pixel correction:
Note: Click “Refresh”to make revision of any video parameters of a,b,c,d,e effective .
F. Style: default, standard, clear, bright and soft for options
Note: if the above a, b, c, d, e value changes, click refresh to take effect.
Set the saturation (default 100%, 60%, 70%,80%, 90%,100%, 110%,
120%,130%,140%, 150%,160%, 170%,180%,190%,200%,optional).
Sensitivity Auto white balance settings (default is
low,high,medium optional).
Set the chrome (default 7,0-14 optional).
default low, middle / high optional)
Set the red gain,effective when it is manual (default 145,0-255 optional).
Sets the Blue gain,effective when it is manual (default 56,0-255 optional).
Set the brightness (default 7,0-14 optional).
set the contrast (default 7,0-14 optional).
Set the sharpness value (default 4,0-15 optional).
Set black and white mode (default color,black/white optional ).
Gamma value setting (default,0.45,0.50,0.52,0.55 optional).
dynamic contrast setting(default close,1~8 optional)
Set Flip Horizontal (default Off,On optional).
Set vertical flip (default Off,On optional).
digital zoom setting((default Off,On optional).
Set 2D noise reduction level (default 3,1-7 and Off optional).
Set 3D noise reduction level (default 3,1-8 and Off optional).
Set Dynamic dead pixel correction (default Off,
1-5 optional).
4) Character-Overlapping
Display date and time:
Display Title:
Font Color of Time:
Font Color of Title:
Moving characters:
Title Content:
Time Content:
Set whether to display the time and date (default display).
Set whether to display the title (default display).
Set font color of time and date (default white,black,yellow,red,
blue optional).
Set font color of title (default white,black,yellow,red,blue optional).
Set the display position of moving date,time and title ,click on
the "up,down,left,right" buttons to move the corresponding
character position.
Set title content (default CAMERA1).
Set time content (default 1970/01/10 05:36:00)
Click on the "Save" button and display the "Save successful" message,then valid

Information and Communication PTZ Camera

Information and Communication PTZ Camera
