1
8965, 8968, 8975, and 8985 Access Cards
Installation Instructions
Document Number 8900-A2-ZZ40-50
December 2005
Contents
End User License Agreement (Zhone and Affiliates) ................................ 1
Access Cards ............................................................................................ 3
Product Documentation Online ................................................................. 4
Installation Overview ................................................................................. 4
Cables You Need ....................................................................................... 5
Installing the Cards in a BLC ..................................................................... 6
Connecting to the ATM or IP Network ....................................................... 7
Connecting 24-Port Models to an MDF or POTS Splitter .......................... 7
Connecting 48-Port Models to an MDF or POTS Splitter .......................... 11
Front Panel LEDs (Models 8965, 8975, and 8985) ................................... 14
Front Panel LEDs (Model 8968) ................................................................ 16

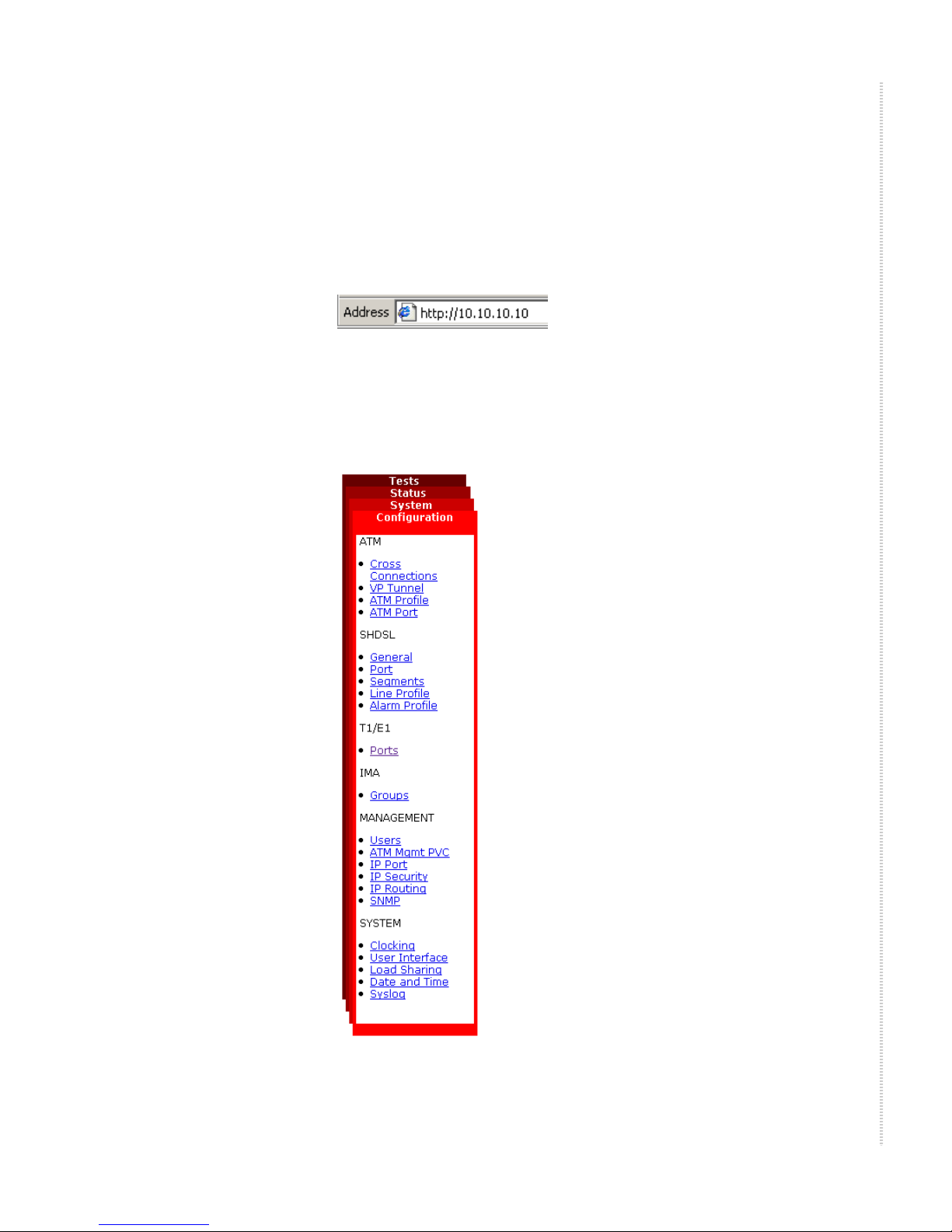

Logging In to the BLC ............................................................................... 17
Configuration ............................................................................................. 18
Contacting Global Service and Support .................................................... 19
Technical Support ...................................................................................... 19
Service Requirements ............................................................................... 19
Trademarks ............................................................................................... 19
End User License Agreement (Zhone and Affiliates)
License. Zhone Technologies, Inc. and/or an affiliate ("Zhone") hereby grants
you ("User")—either an individual or a single business entity—the
non-exclusive right to install, access, run, or interact with ("Use") one copy of
the enclosed software (which may have been, or may be, provided on media,
as part of a hardware platform, through download, or otherwise) and
associated documentation ("Software") on the first computer system on which
Do not install this Software unless you agree to these provisions.
Return the Software promptly for a refund if you do not agree.

.
28965, 8968, 8975, and 8985 Access Cards 8900-A2-ZZ40-50
User installs the Software ("System") solely for internal business purposes
(including, without limitation, providing products and services to User's
customers) and subject to the restrictions below). Zhone may, in its sole
discretion, make available future updates or upgrades to the Software each of
which is also Software subject hereto. Title to and all patent rights, copyrights
and other intellectual property rights in the Software are retained by Zhone
and its direct and indirect suppliers and licensors ("Licensors").
Restrictions. The Software may not be (a) Used on or from any system other
than the System; (b) Used with more than any maximum number of
subscribers stated in the documentation accompanying the Software; (c) Used
so as to circumvent any technological measure included therein or provided
by Zhone from time to time to control access to or limit use of the Software;
(d) sublicensed, rented, leased or lent to third parties; (e) imported or exported
into any jurisdiction except in compliance with all applicable laws of the
United States and such jurisdiction; (f) transferred to a third party unless (A)
User transfers the original and all surviving copies to a third party who has
agreed in writing to be bound hereby and (B) such third party pays to Zhone
such reasonable additional fee as Zhone may impose from time to time with
respect to such transfer; or (g) made available to third parties as part of any
time-sharing or service bureau arrangement. User shall not have the right to
use the Software or any portion thereof for a use other than that contemplated
by its documentation. User will not copy all or any part of the Software or
attempt, or encourage or permit any third party, to modify, adapt, make
derivative works from, reverse engineer, reverse compile, disassemble or
decompile the Software or any portion thereof except and only to the extent
that such activity is expressly permitted by law notwithstanding this
limitation. Violation of any of the foregoing shall be deemed a material breach
hereof. User may make a reasonable number of copies solely for archival or
disaster recovery and subject to the restrictions imposed by copyright law, but
may not modify or otherwise copy the Software. User agrees to reproduce
product identification, copyright and other proprietary notices of Zhone and
Licensors on all copies. User's rights are only as expressly stated herein.
Zhone may immediately terminate your rights if you violate the provisions
hereof.
Limited Warranty. Zhone warrants that the media containing the Software is
free from defects in material and workmanship for ninety (90) days following
your purchase of the Software. You may provide written notice of such defect
(addressed to Zhone Technologies, Inc., Attention: Customer Service, 7001
Oakport Street @ Zhone Way, Oakland, CA 94621) no later than ten (10) days
following expiration of such period and, as your sole and exclusive remedy,
Zhone will provide replacement media. NEITHER ZHONE NOR ITS
LICENSORS MAKE ANY OTHER WARRANTY, EXPRESS, IMPLIED
OR STATUTORY. ZHONE AND ITS LICENSORS DISCLAIM ALL
WARRANTIES OF FITNESS FOR PARTICULAR PURPOSE,
MERCHANTABILITY AND NON-INFRINGEMENT. Some states or other
jurisdictions do not allow the exclusion of implied warranties on limitations
on how long an implied warranty lasts, so the above limitations may not apply
to you. This warranty gives you specific legal rights, and you may also have
other rights which vary from one state or jurisdiction to another.

8900-A2-ZZ40-50 8965, 8968, 8975, and 8985 Access Cards 3
Limit of Liability. In case of any claim hereunder or related to the Software,
neither Zhone nor its Licensors shall be liable for direct damages exceeding
the price paid by User for the Software or for special, incidental,
consequential or indirect damages, even if advised in advance of the potential
thereof.
U.S. Government Users. The Software is a "commercial item" as defined at
48 C.F.R. 2.101, consisting of "commercial computer software" and
"commercial computer software documentation" as such terms are used in 48
C.F.R. 12.212. Under 48 C.F.R. 12.212 and 48 C.F.R. 227.7202-1 to
227.7202-4, U.S. Government Users acquire the Software only with the rights
set forth therein.
Third Party Licensors. This Zhone End User License Agreement may be
accompanied by differing or additional provisions applicable to portions of
the Software provided by one or more Licensors ("Licensor Provisions").
User acknowledges and agrees that its Use of such portions of the Software is
subject to the Licensor Provisions.
Access Cards
The Models 8965, 8968, 8975, and 8985 access cards are circuit boards
mounted in an 8620 or 8820 Broadband Loop Carrier (BLC), used to transport
Asynchronous Transfer Mode (ATM) cells at high speeds over a single
twisted-pair connection or, optionally, two twisted-pair connections (8985
only). They must be used in conjunction with a Shelf Concentration and
Processing (SCP) card, which is used to configure and monitor the access
cards.
zModels 8965-B2 and 8968 support Asymmetric Digital Subscriber Line
(ADSL), ADSL2, and ADSL2+ concurrent with POTS. The Model 8965
has 24 DSL ports and the Model 8968 has 48 ports.
zModel 8975 supports ADSL or ReachDSL®2.2 on a port-by-port basis
depending on the capabilities of the line and endpoint. This feature is
known as ReachDSL+.
zModel 8985-B2 supports 2-wire and 4-wire Single-pair High-speed
Digital Subscriber Line (SHDSL).

.
48965, 8968, 8975, and 8985 Access Cards 8900-A2-ZZ40-50
Product Documentation Online
Complete documentation for this product is available at www.zhone.com.
Installation Overview
Before installing the access card, verify:
zThat you have obtained the applicable cables; refer to Cables You Need.
zThat the 8620 or 8820 Broadband Loop Carrier (BLC) is installed and
power is supplied to the chassis.
Installation of the access card consists of:
zInstalling the card in the BLC.
zConnecting to a Main Distribution Frame (MDF).
zConnecting to the uplink.
zConfiguring your unit using the web interface. Refer to the SCP card’s
online Help and the Model 8965, 8968, 8975, and 8985 Access Cards
User’s Guide for detailed configuration procedures.
Document Title
Hotwire Central Office Universal POTS Splitter, Models 6050 and 7020,
Installation Instructions
Hotwire ReachDSL Modem, Model 6390 with Inline Phone Filter,
Installation Instructions
Shelf Concentration and Processing (SCP) Card with ATM Uplink User’s
Guide
Shelf Concentration and Processing (SCP) Card with IP Uplink User’s
Guide
Shelf Concentration and Processing (SCP) Card Installation Instructions
8620 Broadband Loop Carrier Installation Guide
8820 Broadband Loop Carrier Installation Guide
Model 8965, 8968, 8975, and 8985 Access Cards User’s Guide
8820 Front Cable Management Bracket Installation Instructions

8900-A2-ZZ40-50 8965, 8968, 8975, and 8985 Access Cards 5
Cables You Need
The following standard cables are used with this product:
zFor the DSL network connection: Plug-ended Telco 50-pin cable for
connection from the BLC rear connector to the MDF or other demarcation
point. Refer to the appropriate BLC Installation Guide and, if applicable,
the documentation that came with your POTS splitter for more
information.
For Model 8968 cards, two cables are required.
zFor the uplink: Refer to the Shelf Concentration and Processing (SCP)
Card with ATM Uplink User’s Guide or Shelf Concentration and
Processing (SCP) Card with IP Uplink User’s Guide for cable
specification information.
For more information refer to Connector Pin Assignments in the Model 8965,
8968, 8975, and 8985 Access Cards User’s Guide.

.
68965, 8968, 8975, and 8985 Access Cards 8900-A2-ZZ40-50
Installing the Cards in a BLC
HANDLING PRECAUTIONS FOR
STATIC-SENSITIVE DEVICES
This product is designed to protect sensitive components from
damage due to electrostatic discharge (ESD) during normal
operation. When performing installation procedures, however, take
proper static control precautions to prevent damage to equipment. If
you are not sure of the proper static control precautions, contact your
nearest sales or service representative.
An access card can be installed in, removed from, and replaced in a BLC
without disrupting service to the other cards in the chassis.
To install the access card:
1Determine in which slot the unit will be installed. Verify that cards in
adjacent slots have been fastened.
2Remove the filler plate from the installation slot and store for possible
later use.
3Holding the access card with the component side facing up (8620 BLC) or
facing right (8820 BLC), insert it into the card guides.
CAUTION:
Do not force the unit into the slot. This could damage the backplane
connectors. If the card does not seat properly, remove the card and
reinstall it. If it still does not seat properly, call your service
representative.
!
00-16709
ALARMS
Major Minor
Fan
BA
POWER
SERIAL
SMCM
CLOCK
A
ALARM
246810 12 14 16 18
135
7911 13 15 17
LAN/WAN SLOT
B
CLOCK
B
A
SERIAL
MCC
AC
ALARM
48VRTN
48VNEG
POWERENTRYMODULE
LEFTUNIT:LINEA
RIGHTUNIT:LINEB
WARNING!
POWERMUST BE DISCONNECTED AT THE SOURCE
BEFORE REMOVINGOR INSTALLING THIS PWR ENTRY MODULE
48VRTN
48VNEG
POWERENTRYMODULE
LEFTUNIT:LINEA
RIGHTUNIT:LINEB
WARNING!
POWERMUST BE DISCONNECTED AT THE SOURCE
BEFORE REMOVINGOR INSTALLING THIS PWR ENTRY MODULE
DSL
SYSTEM
OK
Alm
Test
ETHERNET
TX
RX
Coll
DSL PORT
1
2
3
4
MCP
SYSTEM
OK
Alm
Test
ETHERNET
TX
RX
Coll

8900-A2-ZZ40-50 8965, 8968, 8975, and 8985 Access Cards 7
4Slide the unit into the slot until the power and network connectors seat
firmly in the mating connectors on the backplane.
The unit performs a power-on self-test. All of the LEDs turn ON and OFF
briefly. When the self-test is completed successfully, the SYSTEM OK
LED begins to pulse.
If the LED is not pulsing, notify your service representative.
5Secure the unit by fastening the screws at each end of the faceplate.
Connecting to the ATM or IP Network
The connection to the ATM or IP network is made through the Shelf
Concentration and Processing (SCP) card in the BLC. Depending on the
model, the SCP card supports an OC3/STM1, E1 IMA, DS1 IMA, or Gigabit
Ethernet uplink. See the Shelf Concentration and Processing (SCP) Card
Installation Instructions for more information.
Connecting 24-Port Models to an MDF or POTS Splitter
You can connect 24-port access cards to an MDF or other demarcation point
through the BLC. Do not connect the Model 8985 to a POTS splitter. Refer to
the appropriate BLC Installation Guide for more information.
Refer to Connector Pin Assignments in the Model 8965, 8968, 8975, and 8985
Access Cards User’s Guide for pinouts of the BLC ports.
Fastening the Cable with Cable Ties
To fasten the Telco connector to the chassis using the provided cable ties:
1Replace the longer captive screw on the cable connector with the #4-40
Phillips pan-head screw shipped in a plastic bag with the BLC.
2Locate the connector on the back of the chassis that corresponds with the
slot where you installed the access card. Connectors are labeled 2 and 3
on the 8620 chassis, and 1–18 on the 8820 chassis.
3Plug the Telco 50-pin cable into the appropriate connector.
4Thread the provided cable tie through the anchor mount on the end of the
connector where the cable will lie. Tighten the cable tie around the
connector and cut off any excess.

.
88965, 8968, 8975, and 8985 Access Cards 8900-A2-ZZ40-50
5Secure the other end of the Telco 50-pin cable by tightening the captive
pan-head screw.
6If a ferrite choke is supplied with your access card, clamp it around the
cable as close as possible to the chassis. If it fits loosely around the cable,
fasten it with a cable tie.
Fastening a Cable with Locking Pivot Brackets
To fasten a Telco connector to the chassis with locking pivot brackets:
1Replace the longer captive screw on the cable connector with the #4-40
Phillips pan-head screw shipped in a plastic bag with the BLC.
2Install the locking pivot bracket onto the cable end of the connector using
the captive screw, as illustrated below.
3Locate the connector on the back of the chassis that corresponds with the
slot where you installed the access card. Connectors are labeled 2 and 3
on the 8620 chassis, and 1–18 on the 8820 chassis.
01-16900
Anchor
Mount
Telco 50-Pin
Connector
Cable
Tie
Replaced with
Supplied #4-40
Phillips Pan-head
Screw
Locking Pivot
Bracket Captive #4-40 Phillips-Head Screw
(Part of Locking Pivot Bracket)
Customer-Supplied
Cable with Connector Replace with a shorter
Captive Screw provided
with the Pivot Bracket
99-16162a-02
Locking Pivot
Bracket

8900-A2-ZZ40-50 8965, 8968, 8975, and 8985 Access Cards 9
4Insert the bottom edge of the locking pivot bracket inside the lower edge
of the rear panel cutout next to that connector.
5Align the two connectors.
6Rotate the connector until it is fully seated.
7Tighten the captive screw on the top of the cable's connector.
8If a ferrite choke is supplied with your access card, clamp it around the
cable as close as possible to the chassis. If it fits loosely around the cable,
fasten it with a cable tie.
Locking Pivot
Bracket
Receptacle on Backplane
Rear Panel
Cutout
99-16163d-01
Rotate
99-16163e-01
99-16163f-01
Tighten Screw

.
10 8965, 8968, 8975, and 8985 Access Cards 8900-A2-ZZ40-50
Connecting a 24-Port Card to the MDF
To connect the BLC containing the card to an MDF:
1Connect the cable to the chassis as described in Fastening the Cable with
Cable Ties on page 7 or Fastening a Cable with Locking Pivot Brackets
on page 8.
2Dress the cable to the side the connector is nearest.
3For a Model 8965, 8975, or 8985 with no POTS service:
— Attach the other end of the cable to the appropriate MDF or
demarcation point. A converter may be necessary for terminating the
other end of the cable on a punchdown block before cross-connecting
to an MDF.
For a Model 8965 or 8975 using an ADSL POTS splitter:
— Attach the other end of the cable to the DSL interface of the POTS
splitter. Refer to the document that came with the POTS splitter for
the additional connections.

8900-A2-ZZ40-50 8965, 8968, 8975, and 8985 Access Cards 11
Connecting 48-Port Models to an MDF or POTS Splitter
Connect a 48-port access card such as the Model 8968 to an MDF or other
demarcation point using the connectors on the faceplate of the card.
zConnect a cable to the bottom (8820) or right (8620) connector on the
card’s faceplate for DSL ports 1–24.
zConnect a cable to the top (8820) or left (8620) connector on the card’s
faceplate for DSL ports 25–48.
04-17508-01
ESD
SIM
A
1
2
3
DC FUSES
AB-48V RTN
ABAB
AB
DC
POWER F
A
N
M
A
J
O
R
M
I
N
O
R
ALARMS ALARM CLOCK
AB SERIAL SCM MCP LAN SCM MCP SIM
AC INPUT
SYSTEM
Acti e
Standby
Alarm
TX
RX
ETHERNET
Test
UPLINK
LK1 LK2 LK3 LK4
LK5 LK6 LK7 LK8
SCP-IMA
8417
G.DMT
G.Lite
8965
SYSTEM
OK
Alrm
Test
TX
RX
LOC
1/13 2/14 3/15 4/16
ATM BUS DSL PORT
5/17 6/18 7/19 8/20
PORT
9/21 10/22 11/23 12/24
PORT
ALT BANK
13-24 1-12
G.DMT
G.Lite
8965
SYSTEM
OK
Alrm
Test
TX
RX
LOC
1/13 2/14 3/15 4/16
ATM BUS DSL PORT
5/17 6/18 7/19 8/20
PORT
9/21 10/22 11/23 12/24
PORT
ALT BANK
13-24 1-12
ADSL2+
8968
OK
Alrm
Tes t
1/25
2/26
11/35
12/36
13/37
14/38
23/47
24/48
25 - 48 1 - 24
SYSTEM
25-48 1-24
Connector 2 Connector 1
ADSL2+
8968
OK
Alrm
Test
1/25
2/26
11/35
12/36
13/37
14/38
23/47
24/48
25 - 48 1 - 24
SYSTEM
25-48
1-24
Connector 2
04-17509
Connector 1

.
12 8965, 8968, 8975, and 8985 Access Cards 8900-A2-ZZ40-50
Refer to Connector Pin Assignments in the Model 8965, 8968, 8975, and 8985
Access Cards User’s Guide for pinouts of the access card connectors.
To connect each receptacle of a 48-port access card to an MDF or POTS
splitter:
1Replace the longer captive screw on your cable connector with the #4-40
Phillips pan-head screw shipped in a plastic bag with the BLC.
2Install the locking pivot bracket onto the cable end of the connector using
the captive screw, as illustrated below.
3Insert the bottom edge of the locking pivot bracket into the hook next to
the receptacle.
4Align the two connectors and press the cable connector onto the
receptacle.
5Tighten the captive screw on the top of the cable's connector.
Locking Pivot
Bracket Captive #4-40 Phillips-Head Screw
(Part of Locking Pivot Bracket)
Customer-Supplied
Cable with Connector Replace with a shorter
Captive Screw provided
with the Pivot Bracket
99-16162a-02
Locking Pivot
Bracket
Locking Pi ot
Bracket
Receptacle on Card
04-17513

8900-A2-ZZ40-50 8965, 8968, 8975, and 8985 Access Cards 13
6Dress the cables toward the nearest rail and fix them with cable ties.
Optionally, use front cable management brackets (feature number
PDN-8900-F1-001) to hold and direct the cables, as shown below. See the
8820 Front Cable Management Bracket Installation Instructions for more
information.
7If ferrite chokes are supplied with your access card, clamp them around
the cables as close as possible to the card. If they fit loosely around the
cables, fasten them with cable ties.
8For a card without POTS service, attach the other ends of the cables to the
appropriate MDF or demarcation point. A converter may be necessary for
terminating the other end of the cables on a punchdown block before
cross-connecting to an MDF.
For a card with POTS service, attach the other ends of the cables to the
DSL interface of your POTS splitter. Refer to the document that came
with the POTS splitter for the additional connections.
04-17516
ADSL2+
8968
OK
Alrm
Test
1/25
2/26
11/35
12/36
13/37
14/38
23/47
24/48
25 - 48 1 - 24
SYSTEM
25-48
1-24
ADSL2+
8968
OK
Alrm
Test
1/25
2/26
11/35
12/36
13/37
14/38
23/47
24/48
25 - 48 1 - 24
SYSTEM
25-48
1-24
ADSL2+
8968
OK
Alrm
Test
1/25
2/26
11/35
12/36
13/37
14/38
23/47
24/48
25 - 48 1 - 24
SYSTEM
25-48
1-24
ADSL2+
8968
OK
Alrm
Test
1/25
2/26
11/35
12/36
13/37
14/38
23/47
24/48
25 - 48 1 - 24
SYSTEM
25-48
1-24
ADSL2+
8968
OK
Alrm
Test
1/25
2/26
11/35
12/36
13/37
14/38
23/47
24/48
25 - 48 1 - 24
SYSTEM
25-48
1-24
ADSL2+
8968
OK
Alrm
Test
1/25
2/26
11/35
12/36
13/37
14/38
23/47
24/48
25 - 48 1 - 24
SYSTEM
25-48
1-24
ADSL2+
8968
OK
Alrm
Test
1/25
2/26
11/35
12/36
13/37
14/38
23/47
24/48
25 - 48 1 - 24
SYSTEM
25-48
1-24

.
14 8965, 8968, 8975, and 8985 Access Cards 8900-A2-ZZ40-50
Front Panel LEDs (Models 8965, 8975, and 8985)
The following table describes the meaning and states of the LEDs on the front
panel of the Model 8965, 8975, and 8985 access cards.
Table 1: Model 8965, 8975, and 8985 LEDs (1 of 2)
Type LED LED is . . . aIndicating . . .
SYSTEM OK Green, On
Off
Green, Pulsing
Green, Fast
Blinking
Card failure. System processing
functions have stopped.
No power to card.
Card functioning normally.
Firmware download needed.
Alrm Amber, On
Off
Alarm is present on the card. ATM
interface is not being detected.
Normal operation, no alarms.
Test Amber, On
Off
Amber,
Fast Blinking
Test in progress.
Normal operation, no tests.
Self-test is in progress.
AT M B U S
or
SYS BUS
TX Off
Green,
Fast Blinking
Inactive.
Cells are being transmitted.
RX Off
Green,
Fast Blinking
Inactive, link down.
Cells are being received.
LOC Amber, On
Off
Loss Of Clock. ATM bus clock
signal is not present.
Normal operation.
DSL
PORT
1–12
13–24
Green, On
Off
Green,
Slow Blinking
Green,
Fast Blinking
Good signal, unit is trained.
Port is disabled.
Port is in test, or is down.
Port is training.
04-17425-01
ATM
ADSL2+
8965
SYSTEM
OK
Alrm
Test
TX
RX
LOC
1/13
2/14
3/15
4/16
SYS BUS
DSL PORT
5/17
6/18
7/19
8/20
PORT
9/21
10/22
11/23
12/24
PORT
ALT BANK
13-24
1-12
05-17632
ReachDSL+
8975
SYSTEM
OK
Alrm
Test
TX
RX
LOC
1/13
2/14
3/15
4/16
ATM BUS
DSL PORT
5/17
6/18
7/19
8/20
PORT
9/21
10/22
11/23
12/24
PORT
ALT BANK
13-24
1-12
03-17426
AT M
SHDSL
8985
SYSTEM
OK
Alrm
Test
TX
RX
LOC
1/13
2/14
3/15
4/16
ATM BUS
DSL PORT
5/17
6/18
7/19
8/20
PORT
9/21
10/22
11/23
12/24
PORT
ALT BANK
13-24
1-12

8900-A2-ZZ40-50 8965, 8968, 8975, and 8985 Access Cards 15
ALT
BANK
Off
Amber,
Fast Blinking
The ports not currently displayed
by the port status LEDs are
functioning normally or are
disabled.
One of the ports not currently
being displayed by the port status
LEDs is down, in test, or in
training mode.
a. Pulsing: LED turns off momentarily once per second.
Slow Blinking: LED turns on momentarily once per second.
Fast Blinking: LED turns off and on in equal duration 4 times per second.
Table 1: Model 8965, 8975, and 8985 LEDs (2 of 2)
Type LED LED is . . . aIndicating . . .

.
16 8965, 8968, 8975, and 8985 Access Cards 8900-A2-ZZ40-50
Front Panel LEDs (Model 8968)
The following table describes the meaning and states of the LEDs on the front
panel of the Model 8968 access card. The card has 24 LEDs to show the state
of DSL ports. Depending on the setting of the switch on the face of the card,
the LEDs reflect the state of ports 1–24 or 25–48.
Table 2: Model 8968 LEDs
Type LED LED is . . . a
a. Pulsing: LED turns off momentarily once per second.
Slow Blinking: LED turns on momentarily once per second.
Fast Blinking: LED turns off and on in equal duration 4 times per second.
Indicating . . .
SYSTEM OK Green, On
Off
Green, Pulsing
Green,
Fast Blinking
Card failure. System processing
functions have stopped.
No power to card.
Card functioning normally.
Firmware download needed.
Alrm Amber, On
Off
Alarm is present on the card. ATM
interface is not being detected.
Normal operation, no alarms.
Test Amber, On
Off
Amber,
Fast Blinking
Test in progress.
Normal operation, no tests.
Self-test is in progress.
DSL
PORT
1–24
25–48
Green, On
Off
Green,
Slow Blinking
Green,
Fast Blinking
Good signal, unit is trained.
Port is disabled.
Port is in test, or is down.
Port is training.
ADSL2+
8968
OK
Alrm
Test
1/25
2/26
11/35
12/36
13/37
14/38
23/47
24/48
25 - 48 1 - 24
SYSTEM
25-48
1-24
04-17507

8900-A2-ZZ40-50 8965, 8968, 8975, and 8985 Access Cards 17
Logging In to the BLC
To access the web interface:
1Open your web browser. (Internet Explorer Version 6 or above is
recommended.)
2Type http:// and the IP address of the SCP card into the Address field of
your browser window. The default IP address is 10.10.10.10:
3A login window appears. Enter the User ID and Password, and click on
OK. The web interface screen appears.
4Click on the Configuration menu tab. The configuration screens listed
depend on the types of access cards and SCP card installed in the chassis.

.
18 8965, 8968, 8975, and 8985 Access Cards 8900-A2-ZZ40-50
Configuration
The following table shows the web interface Configuration screens most
likely to require modification, along with some fields found on each screen.
Refer to the online Help for more information.
Models 8955 and 8975 Models 8965 and 8968 Model 8985
DSL
zLine Profile
– Latency
–MaxRate
– Min Rate
– Max Additional
Noise Margin
– Min Noise Margin
– Target Noise
Margin
– Rate Adaptive
Mode
zGeneral
– Spectrum
Management
zPort
– Line Circuit Name
– Line Code
– Line Profile Name
– Alarm Profile Name
–MaxTxPower
– Far End Max Tx
Power
– POTS Detection
Voltage
– Status
DSL
zLine Profile
– Latency
–MaxRate
– Min Rate
– Max Additional
Noise Margin
– Min Noise Margin
–TargetNoise
Margin
– Rate Adaptive
Mode
zGeneral
– Spectrum
Management
zPort
– Line Circuit Name
–LineCode
– Line Profile Name
– Alarm Profile Name
– ADSL2 PSD Profile
–ADSL2+PSD
Profile
– Power Management
– Power Management
Status Enabling
– L0 and L2 Time
– Status
SHDSL
zLine Profile
–ProfileName
–MaxRate
– Min Rate
– Annex
– Remote
Management
– Reference Clock
– Target Margin
–WirePair
zGeneral
–Spectrum
Management
–Spectrum
Management
Region
zPort
– Line Circuit Name
– Line Profile Name
– Span Alarm Profile
Name
– Equivalent Working
Length
–Status
AT M
zCross Connections
–ByPort
– By Slot
ATM
zCross Connections
–ByPort
– By Slot
AT M
zCross Connections
–ByPort
– By Slot

8900-A2-ZZ40-50 8965, 8968, 8975, and 8985 Access Cards 19
Contacting Global Service and Support
Contact Global Service and Support (GSS) if you have any questions about
this or other Zhone products. Before contacting GSS, make sure you have the
following information:
zZhone product you are using
zSystem configuration
zSoftware version running on the system
zDescription of the issue
Technical Support
If you require assistance with the installation or operation of your product, or
if you want to return a product for repair under warranty, contact GSS. The
contact information is as follows:
If you purchased the product from an authorized dealer, distributor, Value
Added Reseller (VAR), or third party, contact that supplier for technical
assistance and warranty support.
Service Requirements
If the product malfunctions, all repairs must be performed by the
manufacturer or a Zhone-authorized agent. It is the responsibility of users
requiring service to report the need for service to GSS.
Trademarks
Hotwire and ReachDSL are registered trademarks of Zhone Technologies,
Inc. All other products and services mentioned herein are the trademarks,
service marks, registered trademarks, or registered service marks of their
respective owners.
E-mail [email protected]
Telephone (North America) 877-ZHONE20
Telephone (International) 510-777-7133
Internet www.zhone.com/support
Copyright 2005 Zhone Technologies

.
20 8965, 8968, 8975, and 8985 Access Cards 8900-A2-ZZ40-50
*8900-A2-ZZ40-50*
*8900-A2-ZZ40-50*
