ZION CARBON User manual

COLOR
Maple Wood and Glass
VOLTAGE
220 V
NW/GW
453 kg
MEAS
120 X 105 X 190 CM
BLUETOOTH SPEAKER
S HANDLE
HEAD PILLOW
CARBON PANEL
PARTS DESCRIPTION
1
DIGITAL
CONTROL PANEL
TEMPERED
GLASS DOOR
LED LIGHT
DOUBLE
HEMLOCK

SAFETY INSTRUCTIONS
When using an electrical appliance, basic precautions should always be followed,
including the following: Read all instructions before using.
DANGER - To reduce the risk of electric shock:
Always unplug this appliance from the electrical outlet immediately after
using and before cleaning.
Never use pins or other metallic fasteners with this appliance.
Carefully examine the covering before each use. Discard the appliance if the
covering shows any sign of deterioration, such as checking, blistering, or
cracking.
WARNING - To reduce the risks of burns, fire, electric shock or injury to persons:
Open wounds
Eye diseases
Sever sunburns
Elderly & weak people, especially those suffering from a disease, pregnant
women and infants are
prohibited. Children over the age of 6 years may use the sauna under the
supervision of adults.
If suffering from a disease directly related to temperature, seek the advice of a
doctor before using.
Do not place pets in the sauna.
Do not use the sauna if you are under the effects of alcohol.
Safety precautions
a. To avoid fire, do not dry clothes or leave any towels in the sauna.
b. To prevent burns or electric shocks, do not touch or use metal tools on the net
cover of the Carbon heater elements.
c. While in the sauna, do not touch the light bulb. If the bulb needs to be changed,
switch it off and wait until the sauna is shut off and the bulb is cool.
d. Do not spray waler on the Carbon tube. This activity may result in electro shock
or damage to the heater elements.
e. Do not use the Z10N Sauna Carbon sauna if you have any of the following
conditions.
2

GROUNDING INSTRUCTIONS
This product must be grounded. If it should malfunction or break
down, grounding provides a path of least resistance for the electric
current to reduce the risk of electric shock.
This product is equipped with a cord with an equipment-grounding
conductor and a grounding plug. The plug must be plugged into an
appropriate outlet that is properly installed and grounded in
accordance with all local codes and ordinances.
Danger-Improper connection of the equipment-grounding
conductor can result in a risk of electric shock.
Check with a qualified electrician or serviceman if you are in doubt
as to whether the product is properly grounded. Do not modify the
plug provided with the product - if it will not fit the outlet, have a
proper outlet installed by a qualified electrician.
Grounding Pin
SAFETY INSTRUCTIONS
Grounded
Outlet Box
Grounded
Outlet
3

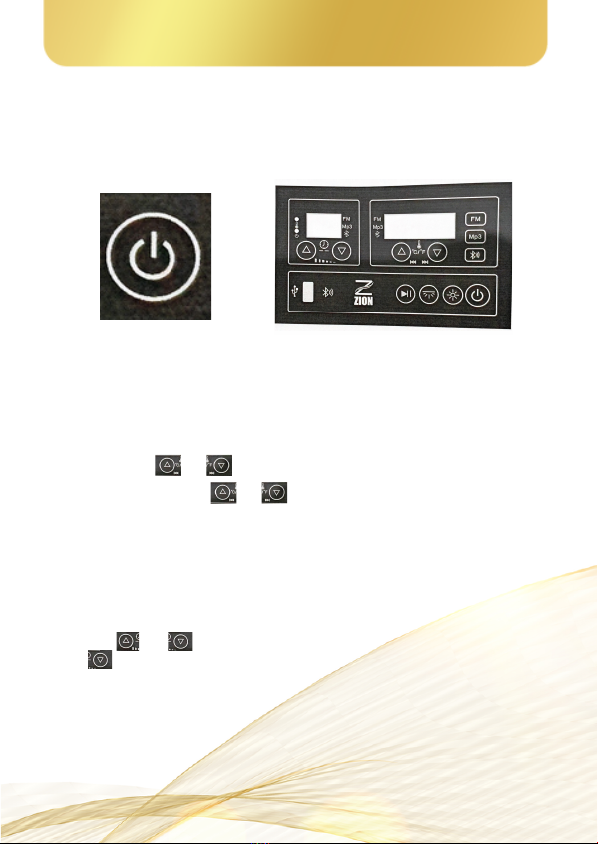

OPERATING SURROUNDINGS
a. Only plug the ZION Sauna into a 220volt-wall outlet. Do not share the outlet
with any other appliances. Plug the unit into the outlet and use the ON/OFF
switch to activate the sauna. Sauna should be unplugged when not in use.
b. Press the 'temperature' button to increase or decrease the temperature. If
the 'heat' light is on, the temperature setting will increase one degree every
time the '+' button is pushed. If pressed for three seconds, the setting will
increase quickly. Decrease the temperature in the same manner by pressing
the ' button. After the sauna reaches the desired temperature, the 'heat' light
turns off.
c. Press the light button to turn the interior light on and off.
d. If the sauna is too stuffy, open the vent in the ceiling or open the front door.
e. After your sauna session, turn off, and unplug the power cable.
f. To set the time press the 'function' button until the 'time" button blinks. Press
the '+'and '…' buttons to set the time from 5 to 90 minutes. If pressed for three
seconds, the timer will increase quickly. When the display reads 'O the timer
will buzz then the machine will shut off automatically after 5 minutes. To
extend the sauna session reset the timer again.
SAFETY INSTRUCTIONS
FOLLOWING CONDITIONS SHOULD CONSULT DOCTORS BEFORE USE
Suffered from malignant tumor
Serious heart disease
Serious skin disease
Serious boned hyperplasia
During pregnancy, be on the rest cure under the doctor's supervision
If there is a bend in the back caused by an accident or disease
Needing peaceful surroundings
Arthritis Disease
Implanted pacemaker for medical purpose
Suffered from bowels disease (i.e. gastritis, entritis, diarrhea, hepatitis)
Serious blood circulation trouble
Consciousness trouble
In hyperpyretic
4

Non-professional technicians are not allowed to dismantle or
repair the sauna to avoid fire, electrical shock or serious harm.
Do not spray or directly pour liquids to the switch when cleaning to
avoid insolation fault, electrical shock or short-circuiting.
When moving the sauna in the process of storing or maintenance,
be sure to disconnect the power plug from socket. Do not detach
the plug with wet hands
Make sure to shut off and detach the power plug when cleaning or
storing product. During cleaning or moving the machine, make
sure to detach power cord to avoid fire or electrical shock .
Do not place the machine onto an unstable surface to avoid
roasting, insulation failure, electrical shock or turnover. When
storing the machine, make sure to disconnect power plug to avoid
fire caused by electricity leaking. Unexpected earthquake or
external force may also cause damage or injury.
Clean power plug periodically to avoid fire due to dust.
Do not use it in any unsafe places or for other purposes. It is the
main reason of product damage or accident.
Keep supply cord unobstructed at all time, i.e. not twisted, knotted,
over flexed or pulled and do not place anything heavy on it.
The appliance has a heated surface. Persons insensitive to heat
must be careful when using the appliance.
SAFETY INSTRUCTIONS
For safety reasons and in order to clearly indicate potential dangers
should the product be used improperly, instructions have been
marked in the following manners and should be strictly noted.
CAUTIONS
5

SAFETY INSTRUCTIONS
6
CAUTIONS
Do not store it near a fire or flammable substances. It is one of the
reasons of causing product manipulation, deviation, or damage .
Should any abnormality occur(i.e. scorching smell), stop using
immediately and detach power plug from socket. Operating under
an abnormal situation will cause fire or electrical shock, please
contact your local seller or authorized service agent for
maintenance.
Only rated voltage must be used (220 V).
Be sure to keep children away during operating to avoid any
hazard.
If the supply cord is damaged, it must be replaced by the
manufacturer or its authorized persons for repair or maintenance
to avoid any hazard.
PRECAUTIONS
Check all the circuitry and the plug meet all
requirements.
Set the temperature and time to a comfortable level.
Drink a cup of water before the sauna session.
After 2 hours of continuous use, shut the sauna down
for one hour.
To avoid burns, do not touch the heating element.

INSTALLATION GUIDE
INSTALLATION PROCEDURE
11
1. right side board
2. digital panel
3. front board
4. bottom board
5. sitting baffle
6. sitting board
7. left side board
8. back board
9. internal top board
10.external top board
11. electric control panel
1. Structure of Carbon Sauna. See FIG-1
2. One unit is packed into three cartons. See FIG-2
FIG-2 Three Cartons FIG-2.1 C/no. for three cartons

INSTALLATION GUIDE
11
Check the C/NO. On both cartons if they are the same. If not, please notify the store
website you purchased your ZION Sauna Carbon Sauna.
For example, C/NO: 002 1 OF 3 and C/NO: 002 2 OF 3 are for one unit. See FIG-2.1
3. Make sure all parts are present before installing the unit. See packing list be Below:
4. Place the bottom board (Sauna room diagram,) in the desired location of your
sauna, and make sure which side is the front and which side is the back. See FIG-3.
H. Back rest
I. Front board
J. Internal top board
K. External top board
L. Cup holder
M. Magazine bracket
N. Towel bracket
O. Handle
A. User manual
B. Bottom board
C. Back Board
D. Left side board
E. Right side board
F. Sitting baffle
G. Sitting board
FIG-3 Placing bottom floor FIG-4 Assembling back board

INSTALLATION GUIDE
11
7. The latch has a guide tab that must be placed in the guide slot for alignment. Pick
up the back panel (hold it upright to the floor panel) and place the tab in the slot,
do not latch at this time. When the back wall and the front wall/side wall are set
together on the floor panel, close and pin the latches. See Figure 5
8. Put the sitting board (section 6) horizontally on corresponding battens of the
backboard. See FIG-6
9. Locate bench wall with heating element (section 5) and slide it down vertically
into the slot within the inside wall. Next, connect the bench's heater element wire to
corresponding wire from the back wall, then locate sitting baffle (section 5 and
slide into place. See Figure6, 7, 8 Note: Make sure the wires are tightly connected,
otherwise the heater will not work.
5. Align the backboard (section 8) with bottom board's corresponding battens;
make sure they are in line. See FIG-4
6. Align the right board (section 7) with bottom board's corresponding battens;
make sure right board fits flush into backboard. See FIG-4
FIG-5 (Combination to assembly) Buckle

INSTALLATION GUIDE

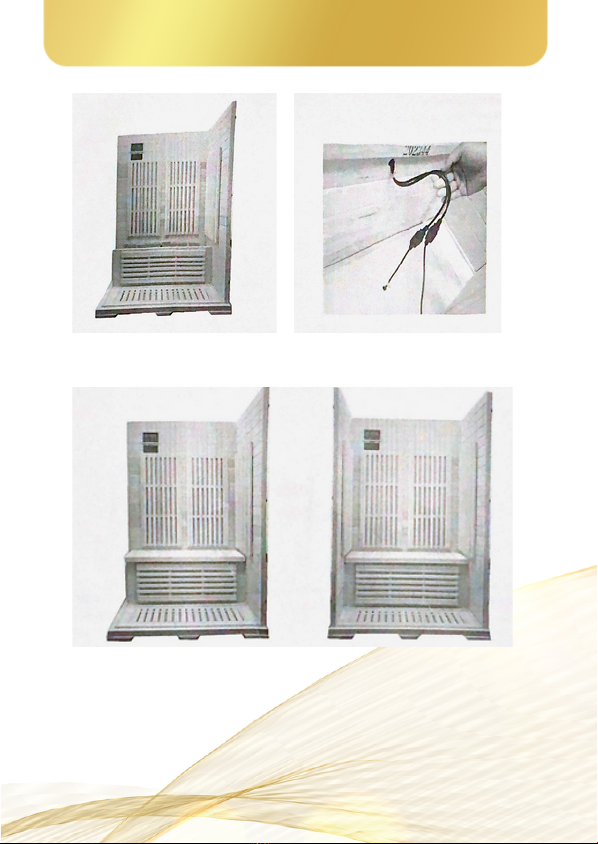

FIGUR E 6. A SSEMBL ING BENC H
CHAIR BRACK ET
11
FIGUR E 7. C ONNECT ING WIRE
FIGUR E 8. A SSEMBL ING SITT ING
BOARD
FIGUR E 9. A SSEMBL ING LEFT
BOARD
10. Align the left board (section 1) with bottom board's corresponding battens;
make sure left board fits flush into backboard and latch together. See FIG-9

INSTALLATION GUIDE
FIGUR E 10. ASSEMB LING FRO NT
BOARD
11
11. Align the front board (section 3) with bottom board's corresponding battens,
and then latch it with the left and right boards respectively. Notes: Take
caution of the glass door to avoid damage. See FIG-10.
FIGUR E 10. ASSEMB LING TOP
BOARD
12. Put all of the wires outside to leave enough space for setting up the top
board (section 9). See FIG-10.Open the door, raise the top board high enough
to see if it fits with the surrounding boards, then put down.

INSTALLATION GUIDE
FI G U RE 1 1 . LEA D ING T H E WIR E S OF
HE A T ERS O NTO T H E BOA R D THR O UGH T H E
CO R R ESPO N DING H OLE
11
13. During the course of putting down the internal top board, make sure all the
wires (mentioned above) and connecting plugs are slipped through the
corresponding holes of the top board, All these wires will be led into connecting
with the controller on the internal top board, See FIG-12
14. All the Carbon heaters are pre-assembled. Connect all the wires and
connectors to the corresponding outlets on the
top board, Please be sure all the plugs are connected tightly in case of outlet
damaqe. See FIG-13
FIGU R E 13. CONNE C T O RS ON THE
INTE R N A L TOP BOA R D
FI G U RE 1 2 . MAK E SURE WIRES WERE
CO L L ECTE D AND R EADY T O CON N ECT
FIGU R E 14. PUT D O W N THE WIRES
INTO T H E SAUNA C A B I N
15. After that, put down the power plugs of the speakers, temperature sensor,
control panel through the hole on the top
board. See FIG 13
16. All the wirings from top board should be linked with corresponding
connectors of the control panel, the temperature sensor and the radio
antenna. Otherwise, the sauna will not function if any connections are missed.
17. Making sure all steps are finished correctly, plug in the power and try using
the sauna at first to make sure it will work properly. Then put the external top
board (section 10) over the internal top board, and put out the power plug
through the corresponding hole in the external top board. See FIG-15

INSTALLATION GUIDE
11
FIGUR E 15. SLIP T HE POWER PLUG
THROU GH EXT ERNAL TOP BOAR D
FIGUR E 16. FIX TH E EXTERN AL
BOARD WITH SCREWS
FIGUR E 17 I NSTALL ING THE DOOR
HANDL E
18. Take the screws affixed on the external top board, then set up the board
using the cross screwdriver
19. Pls installing the door handle, Towel rack, and the Cup holder (Oxygen
ionizer if configured)

CONTROLLER PANEL
The Bluetooth speaker will be automatically on when
the massage chair is turned on.
Search and connect your mobile phone Bluetooth
device into the massage chair Bluetooth device
named " ---- ". The user can see that the new
Bluetooth device is successfully connected to the
massage chair Bluetooth speaker.
Bluetooth & Music Function
TIMER
TOUCH KEY
POWER BUTTON
11
HEAT

2. Temperature Setting
Without MP3/FM/BT display under normal working state, press the
temperature or to change the setting of the temperature.
Continuous press the or
Which can realize the function of continuously goes up or down. After
setting, it will automatically exit the setting function in about 5 seconds and
return to the actual temperature display state.
3. Time Setting
Without MP3/FM/BT display under normal working state ,press the time
button or to change the setting of the time ,continuous press the
or button which can realize the function of continuously goes up or
down. After setting, it will automatically exit the setting function in about 5
seconds and return to the actual temperature display state When setting
time down to '00", heaters stop to heat ,then there will be a sound remind 5
times.
HOW TO USE
1. Turning On the Sauna Carbon
Make sure that the sauna is plug in. ON-plug into electricity, the power
indicator is flashing, and Press power button and it will turn on
immediately.
A Warning: Do not insert or pull out the power plug with
wet hands, otherwise an electric shock would happen.
12

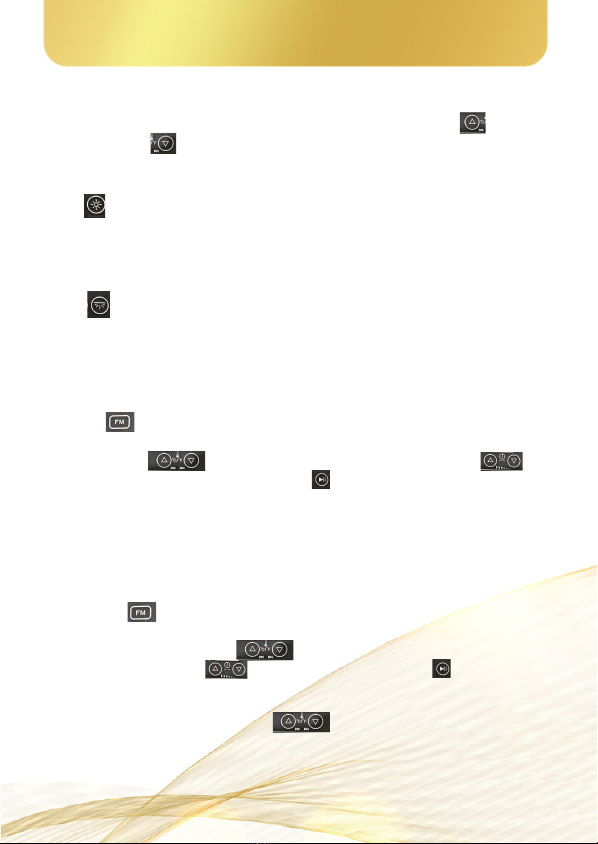

4. Fahrenheit / Celsius Setting
When setting the temperature, please press the press up button and
down button once at the same time to achieve F/C switch
5. Reading Lighting control
in the normal working state ‚Press light button once, the reading
light is lighting, press it again ,the light is off. Sauna In the off state, the light
can also be switched on and off.
6. Color Light
when the sauna is turn on , the color light will light up automatically
press the color light button once and the lights will light up with white color;
press the button time after time the lights will show red ,green ,blue ,yellow
purple, automatic, white color and off etc.
7.FM
Press button once display "F" as FM radio state then the screen will
display F- symbol and FM channel. At the same time the right temperature
of the "+, -" key to select "+, - "channel", the left "time +,
button to select the "volume +, -"; Press key to pause and play the radio.
Channel selection range: 76.0-108.0MHz. When searching the station, the
temperature and time display window will display the search frequency at
the same time (Example 103.3), and it will automatically return to the
display state of temperature and time after about 5 seconds.
8. MP3
Press the button twice is the MP3 player state . At this time, the screen
will display the "P." symbol and the first song to be played. At the same
time, the right temperature "+, -" key is the selection of the song
and the left "time +,-" key is the "volume "+,-", Press key to pause
and play the MP3.
When pressing the temperature "+, " keys to select the front and
next songs, the temperature display window will display. which song is
playing, and the time display window will show that the turn on contents of
playing now; After about 5 seconds, it automatically returns to the display
state of temperature and time.
HOW TO USE
12

HOW TO USE
12

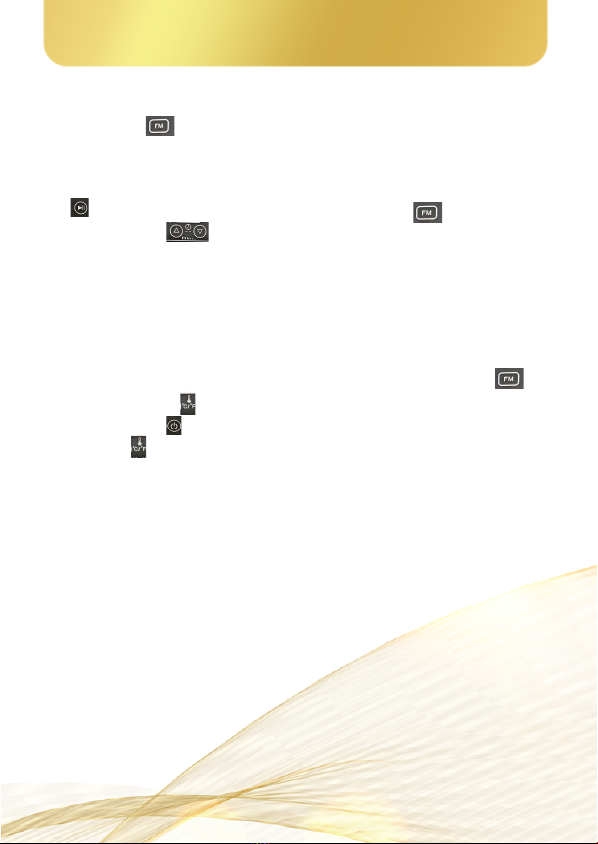

9. Bluetooth
Press the button 3 times, then the screen will display "B-"
After hearing the sound, the next step is to find the Bluetooth
name to connect with your mobile phone. After the connection is
successful, the music in the mobile phone can be played. Press
key to pause and play the Bluetooth; press 5 seconds.
The left time key are volume + and ".". After 5 seconds,
the display of temperature and time will automatically return.
The effective distance of Bluetooth is 10 meters. If it cannot be
played after connection, firstly please cancel the Bluetooth on
your mobile phone, and then re-plug into the sauna room, Then
search your mobile phone again and connect it.
10. This button you can change Between FM/MP3/Bluetooth.
11. This button is to turn on/off all the heaters. When you
pressed the on/off, then the following steps is to press this
button and all heater will start to work. Otherwise, the
screen display "--" means heaters don't work. Noted for duo
heater sauna.

DAILY CARE AND MAINTENANCE
After using the sauna, please turn off the power switch, and pull
the power cord plug out from the power socket
WARNING
Supervision and guidance is mandatory for those disabled mentally and physically. Please
advise with your doctor before using the sauna if you have ANY medical conditions. Children
under 18 should not use sauna and consult with a doctor for approval if attempted. Do not
operate the sauna if there are any children or pets near by. Serious injuries may occur if
those instructions are not followed.
SAFETY INSTRUCTIONS
1. Should any abnormality occur, shut off and detach power plug from socket.
2. When the power cord is damaged, it must be changed from a special
power cord available from the manufacturer or the service department. A
Warning: Do not dismantle, modify, or change components by
unauthorized person to avoid electric shock or fire.
16
