Zojirushi CV-DYC40 User manual

= T2z<)jirushi
E HYBRID WATER BOILER & WARMER
OPERATING INSTRUCTIONS
CV-DYC40
INDEX
IMPORTANT SAFEGUARDS.2
SPECIFICATIONS.5
PARTS NAMES AND FUNCTIONS.6
BOIL MODE.8

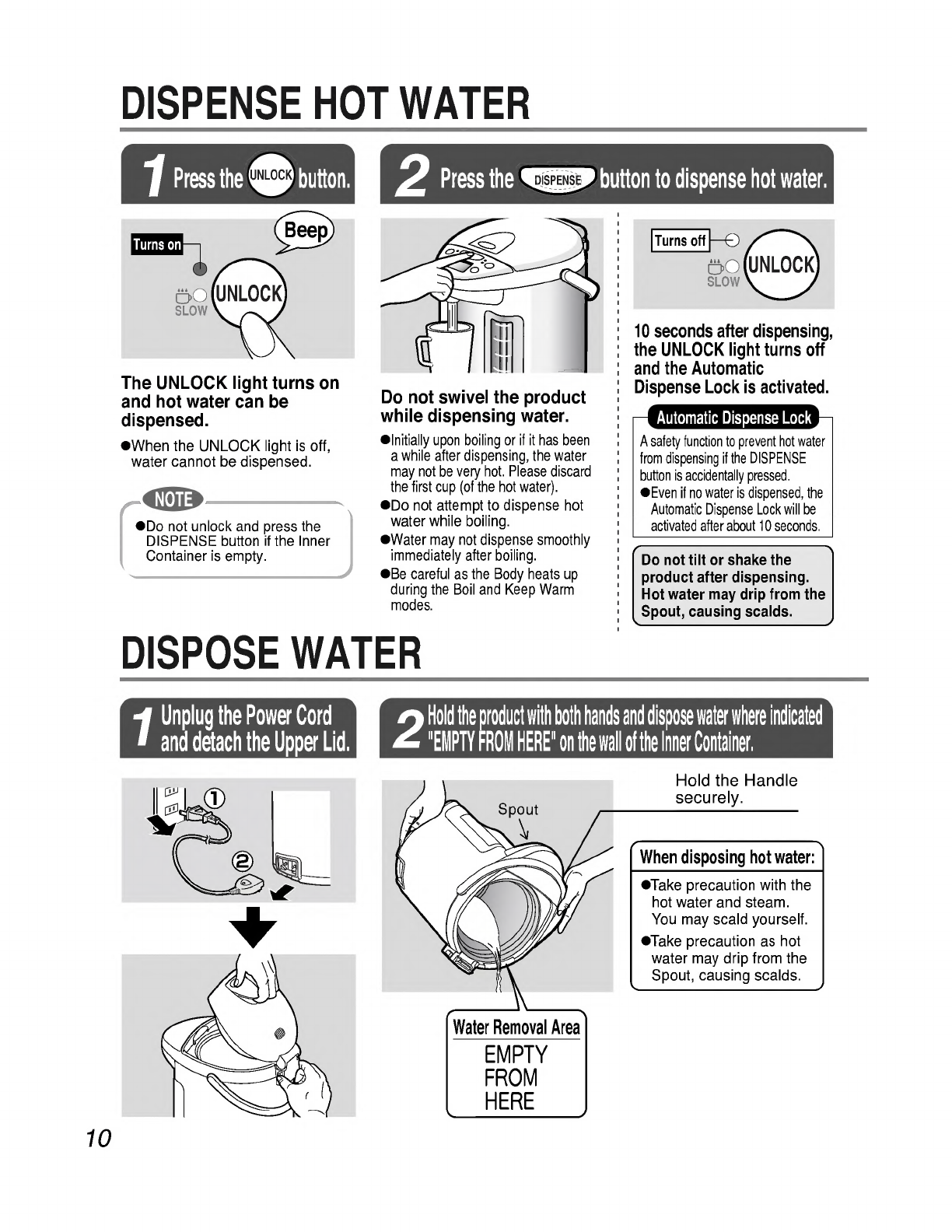

DISPENSE HOT WATER.10
DISPOSE WATER.10
AUTOMATIC SHUT-OFF FUNCTION.11
REBOIL MODE.11

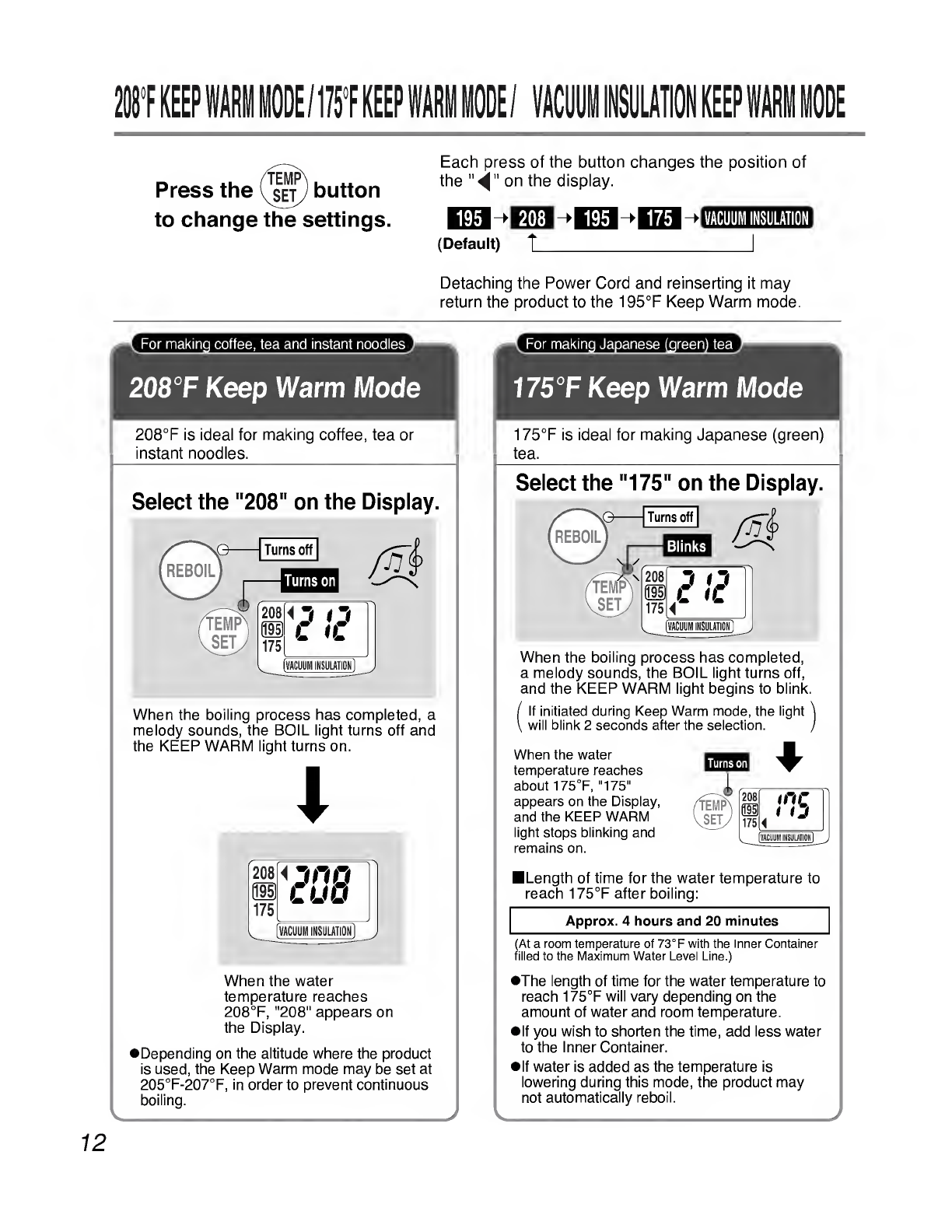

208°F KEEP WARM MODE.12
175°F KEEP WARM MODE.12

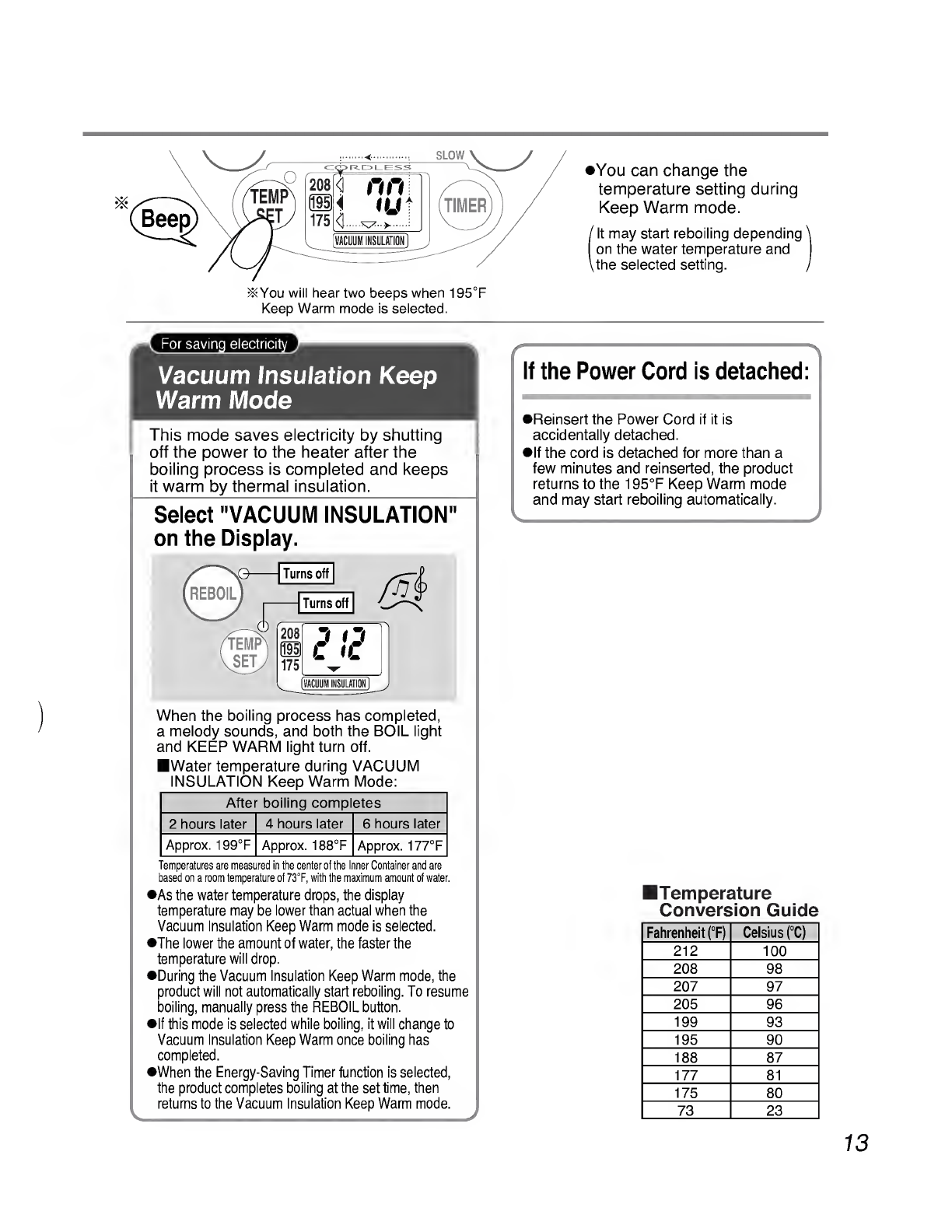

VACUUM INSULATION KEEP WARM MODE.13

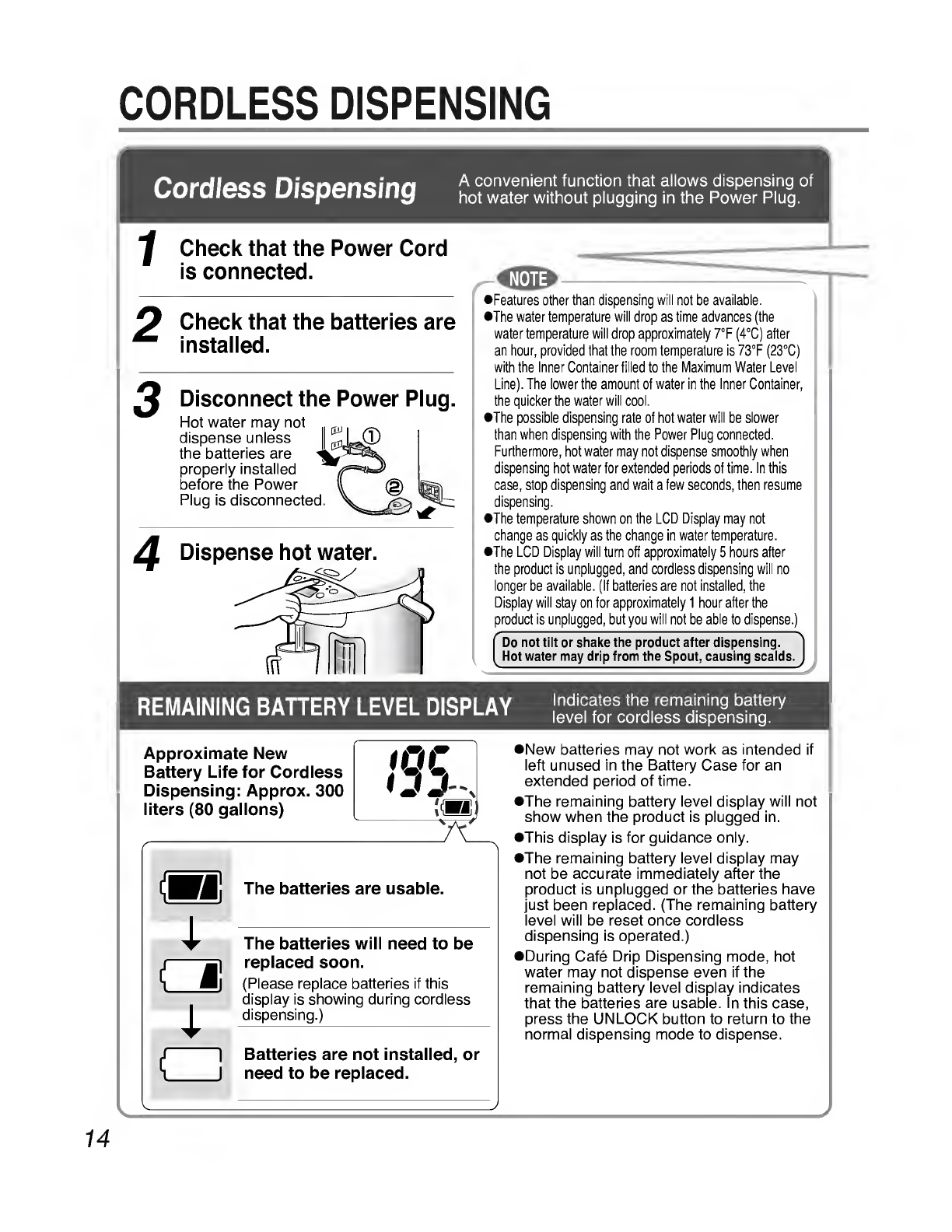

CORDLESS DISPENSING.14

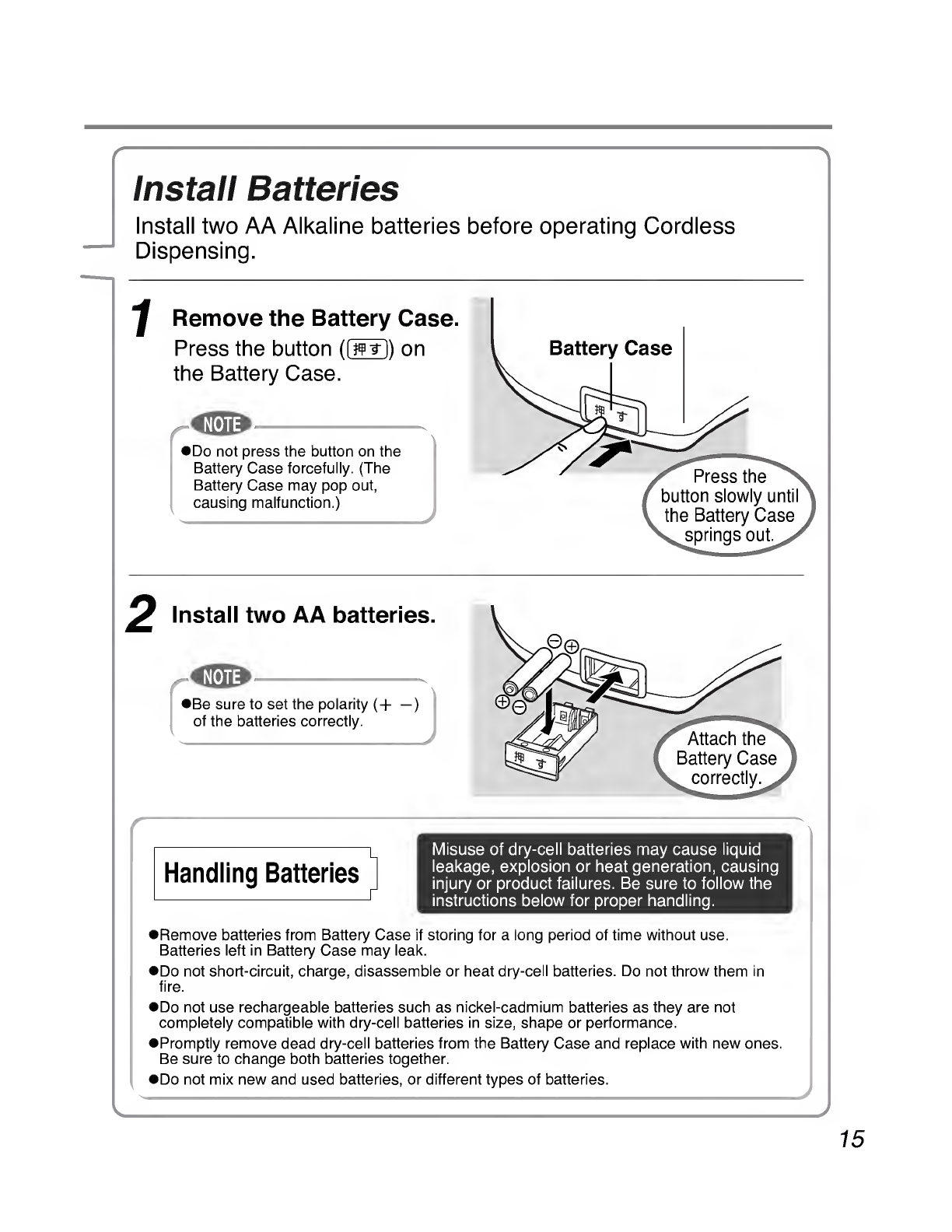

• INSTALL BATTERIES.15
HOW TO CHANGE THE INFORMATION SOUND.16
CAFE DRIP DISPENSING MODE.16
ENERGY-SAVING TIMER FUNCTION.16
CLEANING AND MAINTENANCE.18
• HOW TO REPLACE THE INNER LID GASKET.18
HOW TO PERFORM CITRIC ACID CLEANING.19
REPLACEMENT PARTS.19
Q&A ON PRODUCT USE.20
TROUBLESHOOTING GUIDE.20
ZOJIRUSHI CORPORATION

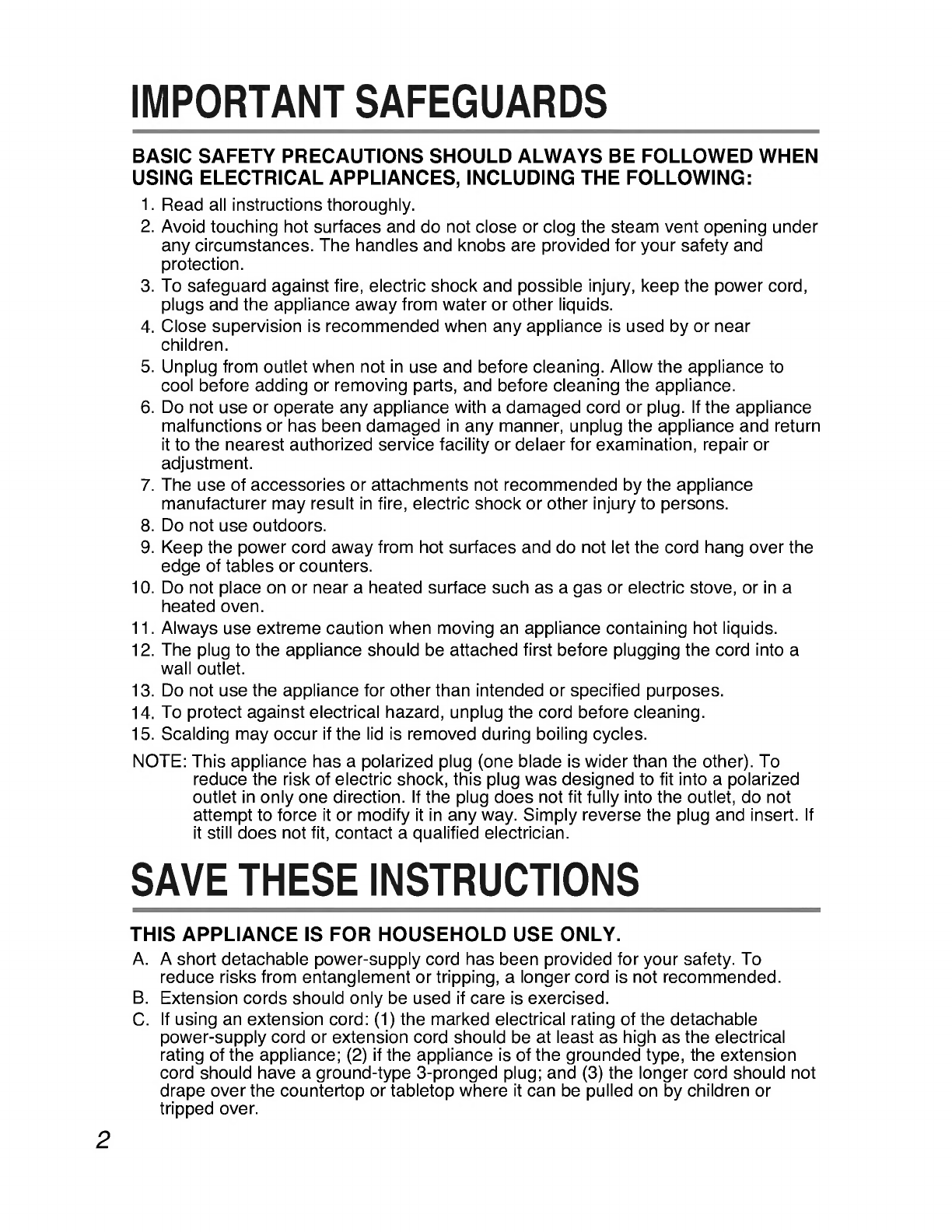

IMPORTANT SAFEGUARDS
BASIC SAFETY PRECAUTIONS SHOULD ALWAYS BE FOLLOWED WHEN
USING ELECTRICAL APPLIANCES, INCLUDING THE FOLLOWING:
1. Read all instructions thoroughly.
2. Avoid touching hot surfaces and do not close or clog the steam vent opening under
any circumstances. The handles and knobs are provided for your safety and
protection.
3. To safeguard against fire, electric shock and possible injury, keep the power cord,
plugs and the appliance away from water or other liquids.
4. Close supervision is recommended when any appliance is used by or near
children.
5. Unplug from outlet when not in use and before cleaning. Allow the appliance to
cool before adding or removing parts, and before cleaning the appliance.
6. Do not use or operate any appliance with a damaged cord or plug. If the appliance
malfunctions or has been damaged in any manner, unplug the appliance and return
it to the nearest authorized service facility or delaer for examination, repair or
adjustment.
7. The use of accessories or attachments not recommended by the appliance
manufacturer may result in fire, electric shock or other injury to persons.
8. Do not use outdoors.
9. Keep the power cord away from hot surfaces and do not let the cord hang over the
edge of tables or counters.
10. Do not place on or near a heated surface such as a gas or electric stove, or in a
heated oven.
11. Always use extreme caution when moving an appliance containing hot liquids.
12. The plug to the appliance should be attached first before plugging the cord into a
wall outlet.
13. Do not use the appliance for other than intended or specified purposes.
14. To protect against electrical hazard, unplug the cord before cleaning.
15. Scalding may occur if the lid is removed during boiling cycles.
NOTE: This appliance has a polarized plug (one blade is wider than the other). To
reduce the risk of electric shock, this plug was designed to fit into a polarized
outlet in only one direction. If the plug does not fit fully into the outlet, do not
attempt to force it or modify it in any way. Simply reverse the plug and insert. If
it still does not fit, contact a qualified electrician.
SAVyHESEJNSTRUCTIONS
THIS APPLIANCE IS FOR HOUSEHOLD USE ONLY.
A. A short detachable power-supply cord has been provided for your safety. To
reduce risks from entanglement or tripping, a longer cord is not recommended.
B. Extension cords should only be used if care is exercised.
C. If using an extension cord: (1) the marked electrical rating of the detachable
power-supply cord or extension cord should be at least as high as the electrical
rating of the appliance; (2) if the appliance is of the grounded type, the extension
cord should have a ground-type 3-pronged plug; and (3) the longer cord should not
drape over the countertop or tabletop where it can be pulled on by children or
tripped over.
2

Before use
These WARNINGS and CAUTIONS are intended to protect you and others from personal
injury and household damage. To ensure safe operation, please follow carefully.
WARNINGS
Do not modify the product. Only a repair technician
may disassemble or repair this unit.
• Attempting to do so may cause fire, electric shock or
injury. Make any repair inquiries to Zojirushi Customer
Service.
Do not immerse the product in water or splash it
with water, and do not put it on a wet surface such
as a sink.
• Doing so may cause short circuit or electric shock.
Do not plug or unplug the Power Cord if your
hands are wet.
• Doing so may cause electric shock or injury.
Do not touch the Steam Vent or bring your hands
or face near the Steam Vent.
• Doing so may cause burns or scalding. Take special
precautions with children and infants.
Do not cover the Steam Vent with anything such
as a dishcloth.
• Hot water may spill out, resulting in scalds. It may also
cause deformation or discoloration of the Upper Lid or
breakdown of the product.
Do not allow children to use the product
unsupervised. Keep it out of the reach of infants.
• Children are at risk of burns, electric shock or injury.
Do not fill over the Maximum Water Level Line.
• Overfilling may cause hot water to spill out, resulting in
scalds.
Always remove the Upper Lid before disposing
hot water.
• The Upper Lid may fall off and cause hot water to splash,
resulting in scalds.
Do not tilt or shake the product or carry in your
arms. Do not move it or drain hot water by holding
the Upper Lid.
• Doing so may result in scalding by hot water spilling out
from the Spout or Steam Vent, even if the Automatic
Dispense Lock is on. Always use the handle when
carrying.
Do not tilt the product or tip it over.
• Hot water may spill from the Spout or Steam Vent,
even if the Automatic Dispense Lock is on.
Do not slam the Upper Lid when closing.
• Hot water may dispense or spill out, resulting in scalds.
Do not use the product if the Power Plug or Power
Cord is damaged or if the Power Plug is loosely
inserted into the electrical outlet.
• Doing so may cause electric shock, short circuit or fire.
Close the Upper Lid securely.
• Hot water may spill out when the product is overturned,
resulting in scalds.
Do not remove the Upper Lid while boiling.
Do not damage the Power Cord. Do not bend, pull,
twist, fold, or attempt to modify the Power Cord.
Do not place it on or near high temperature
surfaces or appliances, under heavy items or
between objects.
• A damaged Power Cord can cause fire or electric
shock.
Do not use the product as a cooler or place ice
inside of it.
• Doing so may cause condensation, resulting in electric
shock or breakdown of the product.
Do not allow the prongs of the Appliance Plug to
become soiled with dust or come into contact with
any metal objects.
• Doing so may cause electric shock, short circuit or fire.
Do not allow infants or children to put the
Appliance Plug in their mouth.
• Doing so may cause electric shock or injury. Take
special precautions with children and infants.
Insert the Power Plug completely and securely
into the electrical outlet.
• A loosely inserted Power Plug may cause electric
shock, short circuit, smoke or fire.
Use only an electrical outlet rated at 15 amperes
minimum, and do not plug other devices into the
same outlet.
• Plugging other devices into the same outlet may cause
the electrical outlet to overheat, resulting in fire.
If the blades or surface of the Power Plug become
soiled, wipe them clean.
• A dirty Power Plug may cause fire.
Do not use a power source other than 120V AC.
• Use of any other power supply voltage may cause fire
or electric shock.
Do not boil anything other than water.
• Attempting to boil, cook, or heat up the following items
may cause bubbling or boiling over, which may cause
scalding. Doing so may also cause clogging of the
water route, corrosion of the Inner Container, or
peeling of the Nonstick Coating.
• Milk, sake, soup, charcoal, tea bags or tea leaves.
• Instant food.
• Food and sauce pouches or foods in plastic bags.
This product is not intended for use by persons
(including children) with reduced physical,
sensory or mental capabilities, or lack of
experience and knowledge, unless they have been
given supervision or instruction concerning use
of the product by a person responsible for their
safety. Children should be supervised to ensure
that they do not play with the product.
•The illustrations used in this Operating Instructions may vary from the actual product you have purchased.
3

IMPORTANT SAFEGUARDS (cont.)
Stop using immediately if you notice any of the following symptoms indicating a malfunction or breakdown.
• Continued use of the product may cause smoke, fire, electric shocks or injury.
• The Power Plug or Power Cord has become very hot.
• The Power Cord is damaged or the electricity turns on and off when touched.
• The Body is deformed or unusually hot.
• Smoke is arising from the product or there is a burning smell.
• Some part of the product is cracked, loose or unstable.
• The product emits steam for at least 10 minutes continuously and does not turn to Keep Warm mode.
If any of the above occurs, unplug the product immediately and return to the store where you purchased it for
check-ups and/or repairs.
CAUTIONS
Always use caution when opening the Upper Lid
and avoid skin contact with steam.
• Loose water or steam may escape upon opening the
Upper Lid and cause scalds.
Do not touch hot surfaces during or for a short
period of time after use.
•Touching hot surfaces may cause burns. Be especially
careful with metal parts such as the Inner Lid and the
Inner Container.
Please allow the product to cool down before
cleaning.
• Touching hot surfaces may cause burns.
Do not use the product near walls or furniture.
• Steam or heat may damage, discolor or deform walls or
furniture.
Do not swivel or move the product while
dispensing water.
• Hot water may splash out, resulting in scalds.
Do not place or use the product on unstable
surfaces or on surfaces that are vulnerable to heat.
• Doing so may cause fire.
Do not attempt to dispense hot water while it is
boiling.
• Hot water can spurt out, resulting in scalds.
Do not use other Power Cords than the one provided.
Do not use the Power Cord for other appliances.
Do not use the Power Cord for overseas models.
• Doing so may cause malfunction or fire.
Unplug the Power Plug from the outlet when the
product is not in use.
• Leaving the Power Plug in an outlet may cause the
insulation to become damaged, resulting in electric
shock, short circuit or fire, or result in injuries or scalds.
Do not touch the Lid Lock when carrying the
product.
• Doing so may cause the Upper Lid to open, resulting in
injuries or scalds.
Always unplug the product by holding the Power
Plug, not by pulling the Power Cord.
• Pulling the Power Cord to unplug the product may
cause electric shock, short circuit or fire.
Replace the Inner Lid Gasket if it becomes
discolored white.
• Hot water may spill out when the product is tilted or
tipped over accidentally, and may cause scalding.
If the Power Cord is damaged, it must be replaced
by an appropriate cord or assembly made available
by the manufacturer or its service agent.
IMPORTANT
Do not operate the product when it is empty.
• Doing so may burn or damage the product.
Avoid rough handling, dropping or bumping the
product.
• Doing so may cause damage or cease operation of the
product.
Avoid letting steam make contact with cabinets and
walls when using near or under a kitchen shelf.
• Doing so may cause discoloration or deformation.
Do not use the product near a heat source or on
top of induction heating cookers.
• Doing so may cause fire, breakdown or damage of the
product.
Do not allow hot water to come into contact with
the Control Panel or the Water Level Gauge.
• Doing so may cause breakdown of the product.
Allow the product to dry completely when storing
the product in an area where it may freeze for a
long period of time.
• If water left inside freeze, it may cause breakdown or
malfunction.
Do not drag the product over any surface while
attempting to move.
• Doing so may cause damage to surfaces such as
countertops.
Avoid using the product near a radio, TV, computer,
etc.
• The product may cause interference with certain
electronics.
Do not use the product where its steam may come
into contact with other electrical appliances.
•The steam may cause fire, malfunction, discoloration or
deformation to other electrical appliances.
4

SPECIFICATIONS
\ Model No.
CV-DYC40
Capacity
135 oz. (4.0 liters)
Rating
AC 120V 60Hz
Electric Consumption
840W
Average Power
Consumption
during Keep
Warm
208°F (98°C)
Approx. 20W
195°F(90°C)
Approx. 17W
175°F (80°C)
Approx. 14W
] Length of the Power Cord 2' 11" (0.9m)
External
Dimensions
(approx, inches) 8- % (W) x 11 (D)x13-%(H)
(approx, cm) 22 (W) x 28 (D) x 35 (H)
^Weight (including he Power Cord)
Approx. 7 lbs. (3.2 kg) j
•The average Keep Warm electric power consumption is for one hour, provided that the Inner
Container is full and the room temperature is approximately 73°F (23°C).
•The height refers to the product when the handle is down.
• In high altitudes or severely cold areas, the product may not perform as specified. Avoid using
the product in such areas or in other extreme conditions.
5

PARTS NAMES AND FUNCTIONS
The light sound you
may hear when
opening and closing
the Upper Lid is
normal, (see pg.21)
Water Removal Area
•Drain water here.
Maximum Water Level Line
Control Panel
Spout
•Hot water dispenses
from here.
Water Level Gauge
REFILL Line
•Fill water above the line.
Battery Case
Install two AA dry-cell batteries for
cordless dispensing, (see pg.15)
•Batteries are not included.
Filter
•For care and use instructions:
see pg.18
Lid Lock
_ Steam Vent
•Exercise care during the
boiling process as steam
emitting from the Steam
Vent is very hot.
Inner Lid Gasket
•Hot water may leak from the
gap between the Upper Lid
and the Body when tilted if the
Inner Lid Gasket becomes old
and turns white. This may
result in scalds.
Hinge
Inner Container
(Nonstick Coating)
Handle
Receptacle
•Appliance Plug inserts here.
Swivel Base
•Do not let the Power Cord
wrap around the Main Body
when turning.
Twist Tie
•Please remove the twist tie holding the Power Cord before use.
•Do not use the Power Cord bundled up. Doing so may cause
the Power Cord to become excessively hot, resulting in
malfunction.
Power Plug
Appliance Plug
6

CONTROL PANEL • Press buttons down firmly.
CAFE DRIP light
UNLOCK light
DISPENSE button
Press to dispense hot water, (see pg.10)
The raised dot (• ) in the center of the
DISPENSE button is provided for those with
visual impairment.
BOIL light
REBOIL button
Starts the Reboil function,
(see pg.11)
Also used when
performing Citric Acid
Cleaning (to initiate
cleaning, press this button
for more than 3 seconds),
(see pg.19)
TEMP SET button
Sets the Keep Warm temperature
(see pg.12)
KEEP WARM light
UNLOCK button
This button must be pressed to
dispense hot water, (see pg.10)
Press this button again for Cafe
Drip Dispensing mode.
(see pg.16)
CORDLESS
[208
i DOG
(1951
<00 Go,
1/b
< ▼ m\
(VACUUMINSULATION)
(UNLOCK)
SLOW
ENERGY-SAVING
TIMER button
Use when setting the
Energy-Saving Timer function,
(see pg.16)
Display
LCD display shows the water temperature
and Timer settings.
NOTE: Illustration is for reference only.
Actual display will not show all
functions simultaneously during use.
How to Open/Close the Upper Lid
To Open o Press the indented area of the
Lid Lock with thumb.
© Pull the Lid Lock up with fingers
to open the Upper Lid.
To Close Depress the Upper Lid until it
clicks shut.
How to Detach/Attach the Upper Lid
To Detach o Open the Upper Lid to about
a 45-degree angle.
© Press the Upper Lid Detach
button.
© Pull the Upper Lid forward
and up at an angle.
To Attach Push the Upper Lid back into
place at the same angle.
7

BOIL MODE
t O pen the Upper Lid and fill the
Inner Container with water using
a pitcher or other container.
To monitor the amount of
water you are filling, look at
the thickness of the stripes on
the Water Level Gauge.
r
_
I
When the Inner
Container is empty.
Water
— Level —j-
Gauge
The stripes on the
Water Level Gauge
appear thicker when
water is added.
•Do not fill the Inner
Container directly
from a water faucet
or place the product
on a wet surface
such as a sink.
(Exposing the
heating element
directly to water may
cause malfunction.)
2 Close the Upper Lid and connect the Power Cord.
Close the Upper Lid
securely.
I To ensure safe
operation while
boiling and to prevent
scalds if the product
\ is overturned. /
Be sure to insert the
Power Cord securely.
Otherwise, may cause electric
shock, short circuit, smoke or
fire.
Do not allow the
prongs of the
Appliance Plug to
get soiled with dust
or come into contact
with metal objects
such as pins.
It automatically starts the boiling process
while performing the Steam-Reduce function.
The BOIL light turns on and the Display
shows the water temperature.
Below 170°F: Display shows the water
temperature in 10°F increments.
Above 175°F: Display shows T175J - I"I80J
- T185J - T190J - T195J - T200J - T205J - T212J.
STEAM-REDUCE FUNCTION
(activates when boiling):
This feature automatically lowers the
power just before boiling to reduce the
amount of steam emitting from the
Steam Vent. (Water temperature will be
about 212°F when boiling.)
•Steam may become more noticeable
during winter when the room temperature
is colder or the amount of water is lower.
8

I Temperature
Conversion Guide
Fahrenheit (°F) Celsius (°C)
212 100
208 98
195 90
175 80
73 23
•Avoid splashing water on the Body or
Control Panel. (May cause malfunction.)
•Do not fill over the Maximum Water
Level Line. (Hot water may overflow
from the Steam Vent.)
•Do not fill the Inner Container with hot
water. (The Automatic Shut-Off function
may be activated.) (seepg.11)
•Do not fill the Inner Container with any
liquid other than water.
•Do not use water additives such as
charcoal for water purification or mineral
additives. (Small particles may get
clogged inside of the product.)
The first time
you use the product you
may notice the smell of
plastic. This is normal
and will gradually fade
away.
•At your initial use or when
using the product after a long period of storage:
Attach the Filter, fill the Inner Container with water to
the MAX line and boil as directed. Once it reaches a
boil, dispense about 34 oz. (1 liter) of water and
dispose the remaining water. Fill with fresh water.
•When using mineral or alkaline iodized water:
When mineral or alkaline iodized water is used, a
floating residue may develop or a milky white
substance may form on the surface of the Inner
Container. This is due to the ingredients in the water
and is harmless to your health. Frequent cleaning is
recommended.
When boiling has completed, a melody
sounds and it automatically switches
to 195°F Keep Warm mode.
How to change the Information Sound
from a melody to a beep, (see pg.16)
Time required to boil water:
Approx. 35 minutes
;&1 Includes approx. 4 minutes
to Dechlorinate.
S81
Length of time until
the water temperature
reaches about 195°F:
Approx. 1 hour
50 minutes
(At a room temperature of 73°F with the Inner Container filled to the Maximum
Water Level Line with water temperature at 73°F.)
195°F KEEP WARM MODE:
You can reduce electricity consumption by
about 51 %* 62 during 195°F Keep Warm mode
compared with 208°F Keep Warm mode.
^2 The energy savings has been
calculated under the conditions of
using the product 24 hours a day, 365
days a year, refilling water twice a
day, reboiling twice a day, then
deducting the electricity for boiling &
reboiling twice per day.
How to set the Keep Warm Mode:
208°F Keep Warm Mode, (see pg.12)
175°F Keep Warm Mode, (see pg.12)
Vacuum Insulation (Non-Electric)
Keep Warm Mode, (see pg.13)
•Add water when the water level is low
during the Keep Warm mode. (The
product automatically begins heating
the water.) If the water level is still not
high enough, it will not automatically
switch to Boil. In this case, press the
REBOIL button to manually start the
process, (see pg.11)
•Please follow the instructions below
to reduce the risk of scalding:
• Do not cover the Steam Vent with a
cloth.
• Be careful of steam coming out
from the Steam Vent.
• Do not open the Upper Lid while the
BOIL light is on.
■ Do not dispense hot water while it is
boiling.
9

DISPENSE HOT WATER
The UNLOCK light turns on
and hot water can be
dispensed.
•When the UNLOCK light is off,
water cannot be dispensed.
-
•Do not unlock and press the
DISPENSE button if the Inner
Container is empty.
Do not swivel the product
while dispensing water.
•Initially upon boiling or if it has been
a while after dispensing, the water
may not be very hot. Please discard
the first cup (of the hot water).
•Do not attempt to dispense hot
water while boiling.
•Water may not dispense smoothly
immediately after boiling.
•Be careful as the Body heats up
during the Boil and Keep Warm
modes.
DISPOSE WATER
Turns off —O
50
SLOW
10 seconds after dispensing,
the UNLOCK light turns off
and the Automatic
Dispense Lock is activated.
Automatic Dispense Lock
A safety function to prevent hot water
from dispensing if the DISPENSE
button is accidentally pressed.
•Even if no water is dispensed, the
Automatic Dispense Lock will be
activated after about 10 seconds.
( -
Do not tilt or shake the
product after dispensing.
Hot water may drip from the
Spout, causing scalds.
t Unplug the Power Cord
and detach the Upper Lid.
2 Hold the product with both hands and dispose water where indicated
"EMPTY FROM HERE" on the wall of the Inner Container.
Water Removal Area
EMPTY
FROM
HERE
Hold the Handle
securely.
( | 'v
When disposing hot water:
•Take precaution with the
hot water and steam.
You may scald yourself.
•Take precaution as hot
water may drip from the
Spout, causing scalds.
10

Automatic Shut-Off function
Turns on
208
UIJ
i nn
m
175
VACUUM INSULATION]_^
Short beep
x 10 times..
•Be careful not to repeat the boiling
process without filling the Inner
Container with water, as the
Nonstick Coating may discolor
and peel.
The Automatic Shut-Off function activates to shut down power to the
heater in order to prevent damage from overheating. The Display will
show "HH" to alert you that the Automatic Shut-Off has been
activated. The following conditions may cause activation:
•When plugged in without filling the Inner Container with water.
•When the water level is lower than the REFILL Line and
boiling has been attempted.
•When the Inner Container is empty or the Upper Lid is left
open for adding water.
•When pouring in hot water immediately after plugging in the
unit.
Unplug the product. Allow the Inner
Container to cool. Fill the Inner
Container with water and plug back in.
•Do not plug or unplug the
Power Plug or Appliance
Plug with wet hands. (Doing
so may cause short circuit
or electric shock.)
•Do not dispose hot water
with the Upper Lid in place.
(The Upper Lid may come
off, spilling hot water and
causing scalds.)
•Do not allow water to splash
on the Control Panel, Hinge,
Handle, Receptacle or
Battery Case. (Could cause
scalding or breakdown.)
•Please do not lose the Filter
while disposing water.
•Please make sure the
Battery Case does not fall
out.
•Dispose the water at least
once a day. (Leaving water
in the Inner Container can
accumulate scale.)
- Reboil mode
Press the (reboil) button.
This function is used when reboiling
water in the Keep Warm mode.
The BOIL light turns on when
the boiling process begins.
•The Steam-Reduce function may
not activate when reboiling.
•Do not attempt to dispense hot
water while reboiling.
•Water may not dispense
smoothly for a short period of
time after reboiling.
•Make sure the water level
is above the REFILL Line
before pressing the
REBOIL button.

.. /TEMPN.
Press the \ s ei ) button
to change the settings.
Each press of the button changes the position of
the "<(" on the display.
195
bH
208
bH
195
175
|-H
VACUUM INSULATION
(Default) X.
Detaching the Power Cord and reinserting it may
return the product to the 195°F Keep Warm mode.
For making coffee, tea and instant noodles For making Japanese (green) tea
208°F Keep Warm Mode I 175°F Keep Warm Mode
208°F is ideal for making coffee, tea or
instant noodles.
Select the "208" on the Display.
When the boiling process has completed, a
melody sounds, the BOIL light turns off and
the KEEP WARM light turns on.
I
[208
< zinc*
fi95
CuO
1/b
L_
VACUUM INSULATION }JJ
When the water
temperature reaches
208°F, "208" appears on
the Display.
•Depending on the altitude where the product
is used, the Keep Warm mode may be set at
205°F-207°F, in order to prevent continuous
boiling.
175°F is ideal for making Japanese (green)
tea.
Select the "175" on the Display.
When the boiling process has completed,
a melody sounds, the BOIL light turns off,
and the KEEP WARM light begins to blink.
( If initiated during Keep Warm mode, the light '
l will blink 2 seconds after the selection. ,
When the water
temperature reaches
about 175°F, "175"
appears on the Display,
and the KEEP WARM
light stops blinking and
remains on.
■ L ength of time for the water temperature to
reach 175°F after boiling:
Approx. 4 hours and 20 minutes
(At a room temperature of 73° F with the Inner Container
filled to the Maximum Water Level Line.)
•The length of time for the water temperature to
reach 175°F will vary depending on the
amount of water and room temperature.
•If you wish to shorten the time, add less water
to the Inner Container.
•If water is added as the temperature is
lowering during this mode, the product may
not automatically reboil.

Keep Warm mode is selected.
•You can change the
temperature setting during
Keep Warm mode.
/ It may start reboiling depending
on the water temperature and
\the selected setting.
Vacuum Insulation Keep
Warm Mode
This mode saves electricity by shutting
off the power to the heater after the
boiling process is completed and keeps
it warm by thermal insulation.
Select "VACUUM INSULATION"
on the Display.
When the boiling process has completed,
a melody sounds, and both the BOIL light
and KEEP WARM light turn off.
■ Water temperature during VACUUM
INSULATION Keep Warm Mode:
After boiling completes
2 hours later
4 hours later
6 hours later
Approx. 199°F
Approx. 188°F
Approx. 177°F
Temperatures are measured in the center of the Inner Container and are
based on a room temperature of 73°F, with the maximum amount of water.
•As the water temperature drops, the display
temperature may be lower than actual when the
Vacuum Insulation Keep Warm mode is selected.
•The lower the amount of water, the faster the
temperature will drop.
•During the Vacuum Insulation Keep Warm mode, the
product will not automatically start reboiling. To resume
boiling, manually press the REBOIL button.
•If this mode is selected while boiling, it will change to
Vacuum Insulation Keep Warm once boiling has
completed.
•When the Energy-Saving Timer function is selected,
the product completes boiling at the set time, then
returns to the Vacuum Insulation Keep Warm mode.
r i
If the Power Cord is detached:
•Reinsert the Power Cord if it is
accidentally detached.
•If the cord is detached for more than a
few minutes and reinserted, the product
returns to the 195°F Keep Warm mode
and may start reboiling automatically.
V___/
■ T emperature
Conversion Guide
Fahrenheit (°F)
Celsius (°C)
212
100
208 98
207 97
205 96
199 93
195 90
188
87
177 81
175 80
73 23
13

CORDLESS DISPENSING
Cordless Dispensing
A convenient function that allows dispensing of
hot water without plugging in the Power Plug.
1
Check that the Power Cord
is connected.
Check that the batteries are
installed.
Disconnect the Power Plug.
Hot water may not
dispense unless
the batteries are
properly installed
before the Power
Plug is disconnected.
^ Dispense hot water.
•Features other than dispensing will not be available.
•The water temperature will drop as time advances (the
water temperature will drop approximately 7°F (4°C) after
an hour, provided that the room temperature is 73°F (23°C)
with the Inner Container filled to the Maximum Water Level
Line). The lower the amount of water in the Inner Container,
the quicker the water will cool.
•The possible dispensing rate of hot water will be slower
than when dispensing with the Power Plug connected.
Furthermore, hot water may not dispense smoothly when
dispensing hot water for extended periods of time. In this
case, stop dispensing and wait a few seconds, then resume
dispensing.
•The temperature shown on the LCD Display may not
change as quickly as the change in water temperature.
•The LCD Display will turn off approximately 5 hours after
the product is unplugged, and cordless dispensing will no
longer be available. (If batteries are not installed, the
Display will stay on for approximately 1 hour after the
product is unplugged, but you will not be able to dispense.)
Do not tilt or shake the product after dispensing.
Hot water may drip from the Spout, causing scalds.
REMAINING BATTERY LEVEL DISPLAY
Indicates the remaining battery
level for cordless dispensing.
Approximate New
Battery Life for Cordless
Dispensing: Approx. 300
liters (80 gallons)
IQC
03
a
The batteries are usable.
The batteries will need to be
replaced soon.
(Please replace batteries if this
display is showing during cordless
dispensing.)
Batteries are not installed, or
need to be replaced.
•New batteries may not work as intended if
left unused in the Battery Case for an
extended period of time.
•The remaining battery level display will not
show when the product is plugged in.
•This display is for guidance only.
•The remaining battery level display may
not be accurate immediately after the
product is unplugged or the batteries have
just been replaced. (The remaining battery
level will be reset once cordless
dispensing is operated.)
•During Cafe Drip Dispensing mode, hot
water may not dispense even if the
remaining battery level display indicates
that the batteries are usable. In this case,
press the UNLOCK button to return to the
normal dispensing mode to dispense.

Install Batteries
Install two AA Alkaline batteries before operating Cordless
Dispensing.
Remove the Battery Case.
Press the button ( [ » * •) ) on
the Battery Case.
•Do not press the button on the
Battery Case forcefully. (The
Battery Case may pop out,
causing malfunction.)
P Install two AA batteries.
•Be sure to set the polarity (H-)
of the batteries correctly.
___ )
r
Misuse of dry-cell batteries may cause liquid
leakage, explosion or heat generation, causing
injury or product failures. Be sure to follow the
instructions below for proper handling.
Handling Batteries
•Remove batteries from Battery Case if storing for a long period of time without use.
Batteries left in Battery Case may leak.
•Do not short-circuit, charge, disassemble or heat dry-cell batteries. Do not throw them in
fire.
•Do not use rechargeable batteries such as nickel-cadmium batteries as they are not
completely compatible with dry-cell batteries in size, shape or performance.
•Promptly remove dead dry-cell batteries from the Battery Case and replace with new ones.
Be sure to change both batteries together.
•Do not mix new and used batteries, or different types of batteries.

HOW TO CHANGE THE INFORMATION SOUND / CAFE DRIP
DISPENSING MODE /ENERGY-SAVING TIMER FUNCTION
8%) How to Change the Information Sound 8%
Press the button for
more than 3 seconds
during the boiling process
or Keep Warm mode.
•Each button press changes the Information
Sound.
V
V
Press for more
than 3 seconds
Silent
V.
Cafe Drip Dispensing Mode o>
Press the
twice.
unlock) button
Press the i^dispense^ button to
dispense hot water.
When the
orange-colored CAFE
DRIP light turns on,
Cafe Drip Dispensing
mode is activated.
Long beep.
Turns on
When the light
turns off, the
Automatic
Dispense Lock
will be activated.
16

Information Sound:
The product informs you with a melody or beeps that
it has finished boiling or the timer has been set.
Once your desired sound
(melody or beep) is heard,
the setting is completed.
•The information sound cannot be changed
when the product is used cordless.
•If the Silent setting is selected, a beep will
indicate the setting has completed.
•The Information Sound will return to
Melody if the product is unplugged.
When and what types of
Information Sounds are heard:
Type
When\^
^1
Melody
| Beeping |
9 Silent (
Timer is set
Beautiful Dreamer X X
Boiling stops
v
Minuet 5 long beeps
X
y
This mode decreases the amount of water dispensed to 60% of the normal setting, making
it suitable for brewing cafe drip coffee.
•Pressing the UNLOCK button again during
Cafe Drip Dispensing mode returns it to the
normal dispensing mode.
•You can use the Cafe Drip Dispensing mode
for about 60 seconds while the CAFE DRIP
light is on.
•If the water level is low, it may take longer for
water to begin dispensing after pressing the
DISPENSE button.
•If the water level is low or boiling has just
completed, water may not dispense smoothly.
•Cordless dispensing may not work if the
remaining battery level is too low.
•Be careful not to burn yourself.
•If using a cone filter placed directly on
a cup, be careful not to let it fall inside
the cup while brewing.
•When using a manual drip coffee cone,
dispense a cup of hot water before
brewing. (The first cup may not be hot
enough.)
This function helps save energy by shutting off electricity to the product when not in use, and
completes boiling in the selected amount of time. The heater is turned off until ready to begin boiling.
-
•If the Power Cord is detached, the
Energy-Saving Timer function will be
cancelled and must be reset.
•To cancel the Timer, press the TIMER
button several times or press the
REBOIL button once.
' _ __ /
You could save electricity by about 30%
when 208”F (98°C) Keep Warm mode is
selected, and 15% when 195°F (90°C)
Keep Warm mode is selected.
I The energy savings has been calculated under the
conditions of using the product 24 hours a day, 365 days a
year, refilling and boiling water twice a day, reboiling once
\ a day, and using the Energy-Saving Timer set at 8H. /
J

CLEANING AND MAINTENANCE
Always unplug the Power Cord,
dispose all water, and allow to cool
completely before cleaning.
•Do not attempt to dry the product by turning it upside down when the bottom is wet.
(Water may get inside the body and cause it to break or rust.)
•Do not use a thinner, benzene, abrasive cleansers or brushes (nylon/metal), bleach or anything
that may damage the surface of the product. (May cause damage to the Nonstick Coating.)
•Do not use a dishwasher or dish dryer for cleaning or drying. (May cause the plastic parts to deform.)
•Before storing the product for a longer period of time, dry it completely and pack in a plastic bag to
prevent odors from being absorbed.
Inner Lid
s
Wipe with a soft wet sponge.
_/
1
Inner Container
Perform the Citric Acid Cleaning^
(see pg.19) periodically.
Body/Upper Lid
Especially when...
•Red rust-like spotting is visible on the Inner Container.
•Milky white or gray discoloration and/or filmy objects
are found in the water.
•Boiling is louder than usual.
•Hot water has an odor.
(The condition of the Inner Container will vary
depending on the water quality and frequency of use.)
Wipe clean with a
damp well-wrung cloth.
•Do not wash any part of the Body or
Control Panel with water. (May cause
malfunction or rust.)
Filter
Remove the Filter from the Inner
Container and wash with a soft brush.
Pull the Filter up to release, and press
down firmly to attach.
If you find it difficult to clean the Filter, replace
it with a new one.
•Never use the product without installing the Filter. (The
Filter prevents foreign objects from entering the Electric
Pump and obstructing the flow of hot water.) (see pg.19)
Power Cord
Wipe clean with a dry cloth.
HOW TO REPLACE THE INNER LID GASKET
Wipe new Inner Lid Gaskets with a wet soft sponge before attaching to the Inner Lid.
To remove the Inner Lid Gasket
(T) Loosen the 3 screws.
(§) Remove the Inner Lid Gasket.
When the Inner Lid
Gasket takes on a
white discoloration.
Please purchase
and replace with a
new one.
► D o not remove the screws from the
Upper Lid to avoid losing them.
To attach the Inner Lid Gasket
(T) Fit the Gasket of the Inner Lid securely to the
outer circumference as shown in the figure.
© Tighten the screws securely.
► I f you remove the Inner Lid, be sure to
reinstall it correctly.
J
J
Inner Lid Gasket
Screws (x3)
Hot water may leak from the gap between the Upper Lid and the Body when tilted if the
Inner Lid Gasket becomes old and turns white. This may result in scalds. If hot water
spews from the gap or there is steam even after replacing the Inner Lid Gasket, other parts
may be in need of repair. Please contact Zojirushi Customer Service.

Perform every 1-3 month(s) of usage
HOW TO PERFORM CITRIC ACID CLEANING
In order to prevent gas bubbles and bubbling-over, the Citric Acid Cleaner for
Electric Water Boilers (CD-K03E-JU) is recommended for cleaning. To purchase
this cleaner, please visit an authorized Zojirushi dealer or www.zojirushi.com.
Do not drink
the water used
for citric acid
cleaning.
Preparation:
Check that the Filter is attached
to the Inner Container.
► If the Filter is dirty, remove
it from the Inner Container,
wash with a soft brush and
reinstall.
7 Put 1 package of the Citric Acid Cleaner
CD-K03E-JU in a cup and add warm water to
dissolve. Pour it into the Inner Container and
fill with water to the Maximum Water Level Line.
► Do not fill over the
Maximum Water Level
Line. (Hot water may spill
out, resulting in scalds.)
2 Close the Upper Lid, insert the Power Plug and press the (wm) button for
more than 3 seconds. /
more than 3 seconds.
Beeps when the cleaning process begins. Beeps when the cleaning process is completed.
Long beep x 5
times
208
r i
095)
175
L J
(vacuum insulation]
Cleaning time:
Approx. 1.5 hours.
^Cleaning times may vary
depending on the amount
of water, water
temperature and room
temperature.
Unplug the Power Plug, detach the
Upper Lid and dispose water where
indicated "EMPTY FROM HERE."
(Please take precautions not to splash water
on the Hinge.)
To remove the smell of citric acid, fill the
Inner Container with water. Boil and
dispense about a cup of hot water, allow
to cool, then dispose the remaining water.
When disposing hot water:
•Take precaution with the hot water and
steam. You may scald yourself.
•Take precaution as hot water may drip
from the Spout, causing scalds.
•Repeated citric acid cleaning may
be necessary for hard-to-remove
residues or if water does not
dispense smoothly.
► I f mineral or alkaline iodized water is
used, calcium tends to build up on the
surface of the Inner Container. If scale
accumulates on the Inner Container or the
Filter, boiling may become louder than
usual and water may not dispense
smoothly. Frequent cleaning is
recommended when using mineral or
alkaline iodized water.
To cancel the Citric Acid Cleaning at any
time, unplug the Power Plug for more
than 5 seconds.
REPLACEMENT PARTS
•Replacement parts may be available for an
additional charge. Please replace damaged
parts only with new parts.
•When replacing parts, please record the model
number and part name beforehand. Then
contact either the store where you purchased
the product or Zojirushi Customer Service.
Zojirushi Customer Service
1-800-733-6270 www.zojirushi.com
Parts Names Parts Number
Inner Lid Gasket
627303-00
Filter
627402-00
Citric Acid Cleaner for
Electric Water Boilers
(1 oz. / 30 g x 4 packets)
CD-K03E-JU
19

20
Q&A ON PRODUCT USE
Is it okay to use the product for ^
heating liquids other than water? r
Do not fill the product with any liquid other than water. It may
cause malfunction, or may overflow and cause scalding.
Does the water need to be
changed every day? ^
To prevent scale from building up, please change the water at
least once a day.
Is it okay to use mineral water? ^
Yes. However, when mineral water is used, a floating residue may
develop or milky white substance may form on the surface of the
Inner Container. This is due to the ingredients in the water and is
harmless to your health.
Is it okay to use alkalized ionic ^
water? ^
Yes. However, calcium tends to build up on the surface of the
Inner Container with this type of water, so frequent cleaning is
recommended.
1 accidentally drank water while
performing the citric acid cleaning. ^
Is this harmful to my health?
Please follow the instructions shown on the package of the citric
acid cleaner CD-K03E-JU.
Is it okay to go out while the
product is switched on? ^
It is safe to use the product unattended as it has an Automatic
Shut-Off function (power to the heater will be automatically turned
off), which will be activated once it is empty of water.
pg-3
pg.10
pg-9
pg.19
pg-ii
TROUBLESHOOTING GUIDE points before calling for se
Condition
Water does not boil.
Cause > ( Remedy )
Power Plug is not connected to an
electrical outlet.
►
r 'n
Connect the Power Plug.
v J
Hot water has a
disagreeable odor.
•A mild plastic odor may be noticeable with a new product. This odor will gradually fade away.
•You may smell chlorine (used for sterilization of tap water) after boiling.
Water pours out by
itself from the Spout
or Steam Vent.
Check that the Inner Container is not filled
over the Maximum Water Level Line.
( 'N
Pour out the excess water until it is
below the Maximum Water Level Line.
V___y
Water is not hot.
Water does not
dispense or does
not pour properly.
•Initially upon boiling or if it has been a while after dispensing, the water may
not be very hot. Please discard the first cup (of the hot water).
Hot water does not pour properly a
few minutes after boiling.
►
r Open the Upper Lid to release air
bubbles, then close. (Be careful of
v, steam when opening the Upper Lid.)
A
J
> 4
Scale or other residue has accumulated
k
Clean the Inner Container and
A.
on the Inner Container and Filter.
J
r
Filter, (see pg.18)
J
* 1
The Automatic Dispense Lock is
k
Press the button, then press the
A
engaged.
V
Ljiispense^ button, (see pg.10)
J
* 1
Power Plug is not connected to an electrical
outlet. (When no batteries are used.)
►
Connect the Power Plug.
* 1
The batteries may be dead, not
installed correctly, or not installed at all.
►
r
Install new batteries, (see pg.15)
A,
J
* 1
The product is unplugged with no
k
f
Install batteries, unplug, and then
A,
batteries installed.
r
operate cordless dispensing.
V
J
* 1
Calcium may build up in the water route and
k
c
Perform citric acid cleaning.
A
prevent water from dispensing smoothly.
r
(see pg.19)
J
