Zoom NUD360-F Safety guide

NUD360-F Software User’s Manual Rev.1.4
Software User’s Manual
High Resolution 360°Network Camera
Model: NUD360-F
Issued: 2017/9/22
Software Version: Ver.A1D-502-V8.03.30-NB
Revision: Rev.1.4
Thank you for purchasing the ZOOM product.
Please read this manual carefully and use it correctly and safely.
Please read "Safety Instructions" before use.
Please keep this manual in a safe place.
Product operation and setting methods are described in the IP Utility and Web
Configurator instructions that are included in the CD-ROM provided with the product.
Note: In order to read the PDF file, Adobe Reader of Adobe Systems Corporation is
necessary. © ZOOM Co., Ltd. 2016

Software User’s Manual Ver.A1D-502-V8.03.30-NB
2
Table of Contents
1 Introduction ..................................................................................... 4
2 Recommended PC Specifications ......................................................... 7
3 Preparation 8
3-1 Connect the Equipment............................................................. 8
3-2 Configure the IP Addresses ....................................................... 8
3-2-1 Using DHCP server to assign IP addresses: .......................... 8
3-2-2 Use the default IP address of a camera: .............................10
3-2-3 Manually adjust the IP address of the PC: ...........................10
3-2-4 Manually adjust the IP addresses of multiple cameras: .........11
3-3 Access the Camera..................................................................12
3-3-1 The browser functionality comparison: ...............................12
3-3-2 Using IPv6 to Access the Camera.......................................14
4 Live View .....................................................................................15
4-1 Login .....................................................................................15
4-2 Live View..................................................................................16
5 Setup .....................................................................................19
5-1 Access the Setup Page.............................................................19
5-2 Host .....................................................................................19
5-2-1 Host...............................................................................19
5-2-2 GPS Position....................................................................20
5-3 Date & Time...........................................................................22
5-4 Network.................................................................................24
5-4-1 IP Address Filtering..........................................................24
5-4-2 Port Mapping...................................................................26
5-4-3 HTTPS............................................................................27
5-4-4 IEEE 802.1X....................................................................28
5-4-5 SNMP Setting ..................................................................31

Software User’s Manual Ver.A1D-502-V8.03.30-NB
3
5-4-6 RTP................................................................................33
5-4-7 Network (ToS, UPnP, Bonjour, ONVIF).................................34
5-5 IP Settings .............................................................................37
5-5-1 Connection Type..............................................................37
5-5-2 DNS...............................................................................38
5-5-3 DDNS.............................................................................39
5-6 Video & Audio.........................................................................42
5-6-1 Camera Options...............................................................42
5-6-2 Intelligent Video ..............................................................49
5-6-3 Compression ...................................................................64
5-6-4 Camera Calibration ..........................................................68
5-6-5 Video .............................................................................69
5-6-6 Audio .............................................................................81
5-7 Event.....................................................................................82
5-7-1 Event Server ...................................................................82
5-7-2 Event Configuration .........................................................87
5-7-3 Digital I/O ports ..............................................................87
5-7-4 Event List .......................................................................94
5-7-5 Manual Event ..................................................................98
5-7-1 Utility .............................................................................99
5-8 System ................................................................................101
5-8-1 User Account.................................................................101
5-8-2 System Info ..................................................................102
5-8-3 Factory Default..............................................................103
5-8-4 Firmware Upload ...........................................................103
5-8-5 Save & Reboot...............................................................105
5-9 Logout.................................................................................105
6 Troubleshooting .............................................................................106

Software User’s Manual Ver.A1D-502-V8.03.30-NB
4
1. Introduction
This is the installation manual for the high resolution 360 °network camera NUD 360-F.
Product Summary
This device is a surveillance camera equipped with a 10BASE-T / 100BASE-TX terminal
(network terminal) for the network.
By connecting a network such as LAN (Local Area Network) or the Internet to this device,
you can check the video and sound of the camera with PC (personal computer) on the
network.
Note: When checking the camera image on the PC, it is necessary to set the PC's network
environment. In addition, please install a web browser for the Internet in advance on the
PC.
Key Features
Newly designed fringe priority fisheye lens is installed, achieving high resolution in all
directions of 360 degree. A great improvement of the resolution of long-distance
images that other conventional fisheye cameras were not good at.
12.4 Mega pixel color CMOS sensor is implemented. 9 Mega H.264, 18 fps, 4 Mega
H.264, 30 fps streaming output is possible.
The camera body is full of intelligent functions such as motion detection and provides
a variety of monitoring methods.
Equipped with a SD memory card slot, you can save movies and still images.
Dust-proof and water-proof dome housing conforming to IP66 is adopted.
About immunity
This camera was created for the purpose of obtaining images to monitor for a specific
area. This camera alone does not prevent crime or the like.
We do not assume any responsibility with regard to the followings in any case.
①Accidental, special or consequential damages / injuries / harms caused directly or
indirectly in relation to this device
②Inconvenience, damage or harm to the device caused by user’s misuse or
inadvertent failure.
③Any malfunction or defect of the device, if the disassembling, repairing or
remodeling of this device is done by a user, irrespective of whether or not caused
by it.
④Inconvenience, damage, or harm caused by impossibility of displaying images due
to any cause or reason including failure / malfunction of this device.

Software User’s Manual Ver.A1D-502-V8.03.30-NB
5
⑤Malfunction of the device, or inconvenience, damage or harm caused as a result
by connecting with third party’s equipment.
⑥Any indemnification claims or complaints due to reasons such as infringement of
privacy by individuals or organizations who became subjects as a result of
surveillance video (including records) taken by the user being publicized or used.
⑦The registered information content will be lost due to some reason.
Every reasonable care has been taken during the writing of this manual. Please inform
your local office if you find any inaccuracies or omissions.
We are not responsible for accidents or damages caused by constructions not described
in this manual or instruction manual, or by a method not using specified parts. Also, if
a failure occurs due to its construction, it will be out of warranty for the product.
We will not be held responsible for any typographical or technical errors to the product
and manuals and reserves the right to make changes without prior notice.
About protection of personal information
Information that can be identified by the person himself / herself photographed in the
system using this camera falls under the "personal information" stipulated in the "Personal
Information Protection Law". Please handle image information properly according to the
law.
About trademark and registered trademark
Microsoft, Windows, Windows VISTA, Windows 7, Windows 8, Windows 10, Internet
Explorer are registered trademarks or trademarks of Microsoft Corporation in the
United States and other countries.
We are using screen photos according to the guidelines of Microsoft Corporation.
Windows's official name is Microsoft Windows Operating System.
Adobe, Adobe Reader, Acrobat Reader, and Adobe Active X are registered trademarks
or trademarks of Adobe Systems Incorporated in the United States and other countries.
SD logo, SDHC logo and SDXC logo are trademarks of SD-3C, LLC.
WiMAX is a trademark of WiMAX Forum.
QuickTime and Safari are registered trademarks or trademarks of Apple Computer, Inc.
in the United States and other countries.
Other company names, product names and logos described in this manual are
trademarks and registered trademarks of each company.
About copyright
Copying, disassembling, decompiling, reverse engineering, assignment of software
included in this product is prohibited. Also, exporting acts in violation of export laws of all
software included in this device are forbidden.

Software User’s Manual Ver.A1D-502-V8.03.30-NB
6
Networking precautions
As this device is used by connecting to the network, it is expected to suffer damages as
follows.
①Information leakage or flow out via this device
②Interruption or stop of this device by a malicious third party
③Illegal operation of this device by a malicious third party
In order to prevent such damages, under the responsibility of the user, please fully
implement the network security measures including the following measures.
When using this device on a system to which a PC is connected, check that checks and
disinfections against infections of computer viruses and malicious programs are
performed at regular intervals.
Use this device on a secure network using a firewall or the like.
To protect against unauthorized attacks, set a user name and password and limit the
users who can log in.
Implement countermeasures such as restricting access by user authentication so as
not to leak image data, authentication information (user name, password), alarm mail
information, FTP server information, DDNS server information etc. on the network.
Always close all browsers after accessing this device with an administrator.
Do not install the unit in such a location that the unit, cables etc.

Software User’s Manual Ver.A1D-502-V8.03.30-NB
7
2. Recommended PC Specifications
In order to configure or test the cameras, a PC with following basic specifications is needed:
CPU
Core 2 Duo 2.13 GHz or above
Memory
2 GB or above
Operating System
Windows 7
Windows 8, 8.1
Windows 10
Browser for
Accessing Firmware
Internet Explorer 9.0 and newer (full functionality)
Safari with Quick Time installed (partial functionality)
Other Browsers with Basic VLC Media Player
(partial functionality)
Video Resolution
1024x768 or higher

Software User’s Manual Ver.A1D-502-V8.03.30-NB
8
3. Preparation
Connect the Equipment
To be able to connect to the camera firmware from your PC, both the camera and the PC have
to be connected to each other via Ethernet cable. At the same time, the camera has to have
its own power supply. In case of PoE cameras, you can use a PoE Injector or a PoE Switch
between the camera and the PC. The cameras that have the DC power connectors may be
powered on by using a power adaptor.
The Ethernet port LED or Power LED of the camera will indicate that the power supply for the
camera works normally.
Configure the IP Addresses
In order to be able to communicate with the camera from your PC, both the camera and the
PC have to be within the same network segment. In most cases, it means that they both
should have very similar IP addresses, where only the last number of the IP address is
different from each other. There are 2 different approaches to IP Address management in
Local Area Networks –by DHCP Server or Manually.
3-2-1 Using DHCP server to assign IP addresses:
If you have connected the computer and the camera into the network that has a DHCP
server running, then you do not need to configure the IP addresses at all –both the camera
and the PC would request a unique IP address from DHCP server automatically. In such
case, the camera will immediately be ready for the access from the PC. The user, however,
might not know the IP address of the camera yet. It is necessary to know the IP address
of the camera in other to be able to access it by using a Web browser.
The quickest way to discover the cameras in the network is to use the simplest
network search, built in the Windows system –just by pressing the “Network”icon, all the
cameras of the local area network will be discovered by Windows thanks to the UPnP
function support of our cameras.

Software User’s Manual Ver.A1D-502-V8.03.30-NB
9
In the example below, the camera model that had just been connected to the network is
displayed.
Double-click the left mouse button on the camera model to automatically launch the default
browser of the PC with the IP address of the target camera filled in the address bar of the
browser already.
If you work with our cameras regularly, then there is even a better way to discover the
cameras in the network –by using IP Utility. The IP Utility is a light software tool that
can not only discover the cameras, but also list lots of valuable information, such as IP and
MAC addresses, serial numbers, firmware versions, etc, and allows quick configuration of
multiple devices at the same time.
Search and download the latest IP Utility from the website.
Upon launching the IP Utility, there will be an instant report as follows:
You can quickly notice the camera model in the list. Click on the IP address to automatically
launch the default browser of the PC with the IP address of the target camera filled in the
address bar of the browser already.

Software User’s Manual Ver.A1D-502-V8.03.30-NB
10
3-2-2 Use the default IP address of a camera:
If there is no DHCP server in the given network, the user may have to assign the IP
addresses to both PC and camera manually to make sure they are in the same network
segment.
When the camera is plugged into network and it does not detect any DHCP services, it
will automatically assign itself a default IP:
192.168.0.100
Whereas the default port number would be 80. In order to access that camera, the IP
address of the PC has to be configured to match the network segment of the camera.
3-2-3 Manually adjust the IP address of the PC:
In the following example, based on Windows 7, we will configure the IP address to
192.168.0.99 and set Subnet Mask to 255.255.255.0 by using the steps below:
1
2
3
4

Software User’s Manual Ver.A1D-502-V8.03.30-NB
11
3-2-4 Manually adjust the IP addresses of multiple cameras:
If there are more than 1 camera to be used in the same local area network and there is no
DHCP server to assign unique IP addresses to each of them, all of the cameras would then
have the initial IP address of 192.168.0.100, which is not a proper situation for network
devices –all the IP addresses have to be different from each other. The easiest way to
assign cameras the IP addresses is by using IP Utility:
With the procedure shown above, all the cameras will have unique IP addresses, starting
from 192.168.0.101. In case there are 20 cameras selected, the last one of the cameras
would have the IP 192.168.0.120.
Later, by pressing the “Refresh”button of the IP Utility, you will be able
to see the list of cameras with their new IP addresses.
Please note that it is also possible to change the IP addresses manually by using the Web
browser. In such case, please plug in only one camera at a time, and change its IP address
by using the Web browser before plugging in the next one. This way, the Web browser will
not be confused about two devices having the same IP address at the same time.

Software User’s Manual Ver.A1D-502-V8.03.30-NB
12
Access the Camera
Now that the camera and the PC are both having their unique IP addresses and are under
the same network segment, it is possible to use the Web browser of the PC to access the
camera.
You can use Microsoft Internet Explorer to access the camera.
3-3-1 The browser functionality comparison:
Functionality
Internet
Explorer
Other
Browsers
Live Video
Yes
Yes*
Live Video Area Resizable
Yes
No
PTZ Control
Yes
Yes
Capture the snapshot
Yes
Yes
Video overlay based configuration (Motion
Detection regions, Privacy Mask regions)
Yes
No
All the other configurations
Yes
Yes
* When using non-Internet Explorer browsers, free third-party software plug-ins must be installed
to the PC first to be able to get the live video feed from the camera.
Browser
Required Plug-in Software
Safari
QuickTime (http://www.apple.com/quicktime/download/)
Any Other Browser
Basic VLC Media Player (http://www.videolan.org)
Disclaimer Notice: The camera manufacturer does not guarantee the compatibility of its
cameras with Quick Time and VLC –since they are third party software; the third party
has the right to modify their utility any time which affect the compatibility. In such cases,
please use Internet Explorer browser instead.
When using Internet Explorer browser, the ActiveX control for video stream management
will be downloaded from the camera directly –the user just has to accept the use of such
control when promoted so. No other third party utilities are required to be installed in
such case.

Software User’s Manual Ver.A1D-502-V8.03.30-NB
13
The following examples in this manual are based on Internet Explorer browser in order
to cover all functions of the camera.
Assuming that the camera’s IP address is 192.168.0.100, you can access it by opening the
Web browser and typing the following address into Web browser’s address bar:
http://192.168.0.100
Upon successful connection to the camera, the user interface called Web Configurator would
appear together with the login page. The HTTP port number was not added behind the IP
address since the default HTTP port of the camera is 80, which can be omitted from the
address for convenience.
Before logging in, you need to know the factory default Account and Password of the
camera.
Account: Admin
Password: 123456

Software User’s Manual Ver.A1D-502-V8.03.30-NB
14
3-3-2 Using IPv6 to Access the Camera

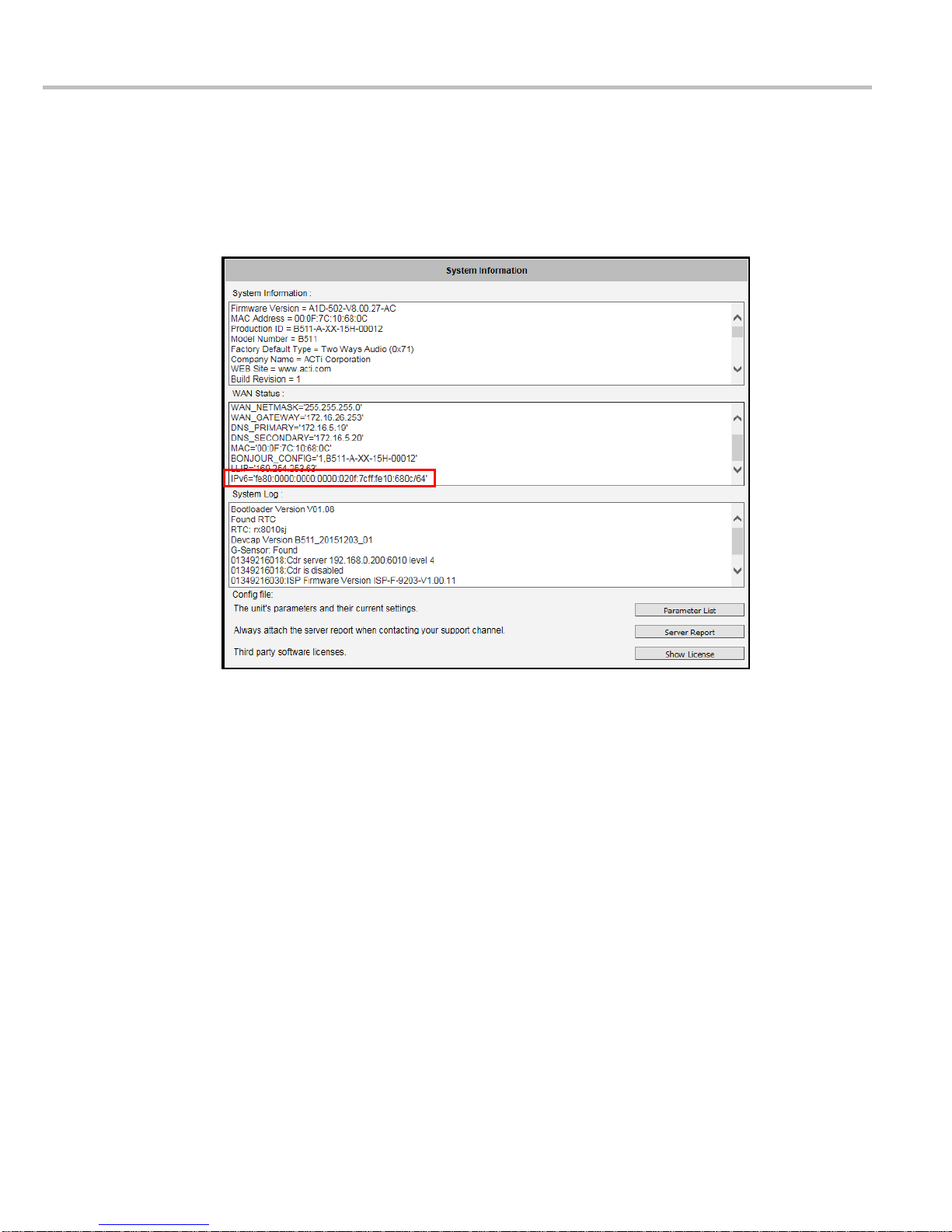

The camera is IPv6-ready and has been assigned its unique static IPv6 address. The IPv6
address can be found under the System > Sytem Info menu (see 5-8 System Info on
page 98 for more information).
To access the camera with the IPv6 address, type the IPv6 address enclosed in square
brackets on the web browser address bar. For example:
http://[fe80:0000:0000:0000:020f:7cff:fe0d:690c]

Software User’s Manual Ver.A1D-502-V8.03.30-NB
15
4. Live View
This section describes how to configure the IP camera. The administrator has unlimited access
to all settings, while the normal user can only view live video.
Login
Initially there exists only administrator’s account in the camera (Account: Admin, Password:
123456) –you have to use that account to log in. You can later create normal user accounts
with limited access rights if necessary.
Feel free to choose your local language from the list of languages or keep it as English. After
pressing “Login”, you will be able to access the user interface of Web Configurator.
Upon successful login, you will be able to see the Live View page. In case of Internet Explorer
browser, you may be prompted to allow the installation of ActiveX control from the camera.
Press “Install”then. The live video will appear shortly after that.

Software User’s Manual Ver.A1D-502-V8.03.30-NB
16
Live View
The live view will appear automatically with the default video resolution.
While being on the Live View page, the Live View icon appears as being
pressed:
If you leave the Live View page, you can later return by pressing that button.
If the resolution of the PC’s monitor is bigger than the resolution of the live video, you will
be able to see the whole size of the video immediately. If not, you will only see part of the
video at first and you would have to use the scroll bars to see the rest of the video area. In
order to see the whole video on your display, you can temporarily re-scale the video to
better fit your screen by pressing the digital zoom buttons:
- Enlarge the video size digitally
- Reduce the video size digitally
Note: These digital zoom adjustments do not influence the actual video resolution of the
camera. Regardless of how large or small the video appears on the display after pressing the
digital zoom buttons, the actual video stream size of the camera is the same as before.

Software User’s Manual Ver.A1D-502-V8.03.30-NB
17
You can also digitally re-scale the video to fully match the size of your display with just 1 click:
- Full screen Mode
You may use ESC key from the keyboard to exit the full screen mode.
The cameras have triple stream capability –the Stream 1 is usually the high resolution
stream with the purpose of being recorded by NVR while Stream 2 and Stream 3 have lighter
video configuration for NVR live view purposes, to reduce the computing power of the NVR
PC. The streams can be configured under Web Configurator’s Setup page. To see how each
of the stream looks like, click the Stream (number) button and select the stream you want
to view.
- Show the Stream 1 video
- Show the Stream 2 video
- Show the Stream 3 video

Software User’s Manual Ver.A1D-502-V8.03.30-NB
18
To capture the snapshots of the current live view, press the snapshot button.
The snapshots are saved in Pictures folder.
- Take a Snapshot
Cameras with audio function have the audio controls on Live View page.
-Speak to Camera
To speak to the camera, press the microphone button. If the camera is
connected to a network video recorder, the audio will be recorded with the video
stream.
To adjust the volume level of the speakers connected to the PC that runs the Web Configurator
in order to hear the audio from the camera’s microphone or line-in device, use the audio
controls as below:
Audio Muted:
Audio level adjusted to the maximum:
This volume control appears on the user interface only when the Audio-in function of the
camera has been “Enabled”under Setup page.

Software User’s Manual Ver.A1D-502-V8.03.30-NB
19
5. Setup
The following chapters guide you through the Setup functions of the camera.
Access the Setup Page
To configure any of the camera settings, go to the Setup menu by pressing the following
button on Live View page:
- Go to Setup
The left side of the Setup page contains the list of Setup items.
Several items in the Setup page are divided into groups, such as
Network, IP Settings, etc. You can expand the groups to see the sub-
items by pressing the [+] button.
The following chapters of this manual explain each Setup item separately. The chapters are
listed in the same order as the list of Setup menu items.
Host
This section Host contains the controls for following functions:
Host
GPS Position
5-2-1 Host
The function “Host”allows the administrator to define the name of the camera and
preferred user interface language.

Software User’s Manual Ver.A1D-502-V8.03.30-NB
20
There are two kinds of names –Host Name and Camera Name.
Host Name is used to identify the camera by a DHCP server. In some networks with very
strict security policy, it is required that all the network devices should have their host
name, and when the devices attempt to access the network by requesting an IP address
from a DHCP server, the DHCP server would check if the host name is among the allowed
devices. On this page, it is possible to edit the Host Name. To actually include the Host
Name in DHCP discovery packet sent from a camera, please go to IP Settings and make
sure the device is in Dynamic IP Address mode and “Use host name”is checked.
Camera Name is used to identify the device by Video Management System or by
Software Tools. Usually, upon installation of the camera, the actual installation location
is used as an easy-to-remember Camera Name, such as “Front Gate”or “Elevator 1”. In
many cases the VMS is able to modify the Camera Name directly via its own user
interface without needing to access Web Configurator.
Language selection under Host has the same purpose as the one on the login page of Web
Configurator.
After changing any of the items above, press Apply to save the changes. The Reset button
undoes the changes that had just been made but not applied yet.
5-2-2 GPS Position
The GPS Position section allows users to manually set the GPS position of the camera
and find the location of the camera on the map when using a Network Video Recorder
(NVR).
Check the Enabled box to enable this feature.
