ZOVCAND K2251 User manual

A: Foreword:
1. Please read this manual carefully before
installation and operation.
2. Please pay attention to the warnings,
cautions and safety guidelines.
3. Please keep this manual.
4. To get best effect, please choose different
distance, heating time and procedure
according to different paint, operation
condition and actual natural condition.
B: Features:
One mechanical timer: 0-60 minute timing.
Automatic timed shut-off: reduces the
chance of paint finish damage due to
overheating.
Independent lamp switch.
Powerful heat penetration directly into inner
paint layers to accelerate molecular
reaction of paint. Super fast drying for
polyurethane paint (double-component
paint) for limousine, single-component
coating and water-based paint.
Durable IR bulb (emitter).
High-light, wide-angle, fully focused
reflector. Uniform, focused cure area: no
hot or cold spots.
Cassette can rotate 360 degrees.
"slide and lock" bracket.
Bolt through column: no danger of dropping
to ground.
Replaceable lamp bulb. Removable grill.
Cleanable, solvent-resistant reflector.
Strong, durable column (stainless) and
pedestal construction.
C: Warranty:
One year from the date of purchase
D: Specifications:
◇Input voltage: 220-240V 50HZ（1PH）
◇IR lamp bulbs: 2×1050W
◇Max power: 2150W
◇Rated input current: 12A
◇Covering area : 0.6M×0.8M
◇Timing range: 0-60MIN
◇Timer operation: By knob
◇Temperature: 60℃--70℃
◇Recommended curing distance: 30-50cm
(please adjust it according to actual
conditions)
E: Safety instructions:
1. Do not modify or neutralize safety
elements;
2. Do not modify the technical specifications
of the product.
3. Often clean reflector and lamp bulb with
moistened fabric or cotton and keep them
clean. Do not use this equipment until 20
minutes after cleaning; otherwise,
lamp bulb will be broken easily.
4. This product must be earthed.
5. Do not use this product in a spray booth
where there may be flammable gas.
6. Air must be decontaminated for working
area if this product is used in spray booth.
7. It must be protected with a 10 AMP fuse.
8. Isolate power supply before removing
covers.
9. DO NOT move this machine during
operation as this may lead to premature
lamp failure.
10. This machine must not be pointed at
personnel or easily flammable objects.
11. Do not bump or knock this product.
12. Avoid hard objects to get inside of cassette.
13. Pay attention to uneven floor when moving
this product and avoid overturning it.
14. Remove packing pieces from cassette
before use.
15. Remove all things in front of lamp lamp bulb
before turn on it.
16. Keeps lamp away from paint spraying area
at least 4 meters before starting this
equipment.
17. Do not hold mains cable to move this
product.
18. If lamp doesn’t work when turn on this
product, connector of lamp maybe
loosened. Turn off power and connect lamp
again.
F: Suggested drying time
(Minutes. For reference only. You may adjust it
according to actual conditions):
Paint type
Time
Waterborne basecoat
7-10
Filler/Stopper
7-12
Primer
8-13
Waterborne primer
10-15
Hi-build
12-17
Solid-color
13-16
Clear coat
14-17
Manual for Shortwave Infrared Paint Dryer
K2251 ZOVCAND ELECTRIC APPLIANCE CO., LTD || www.zovcand.com

G: Replacing lamp bulb:
1. Disconnect unit from mains power supply.
2. Remove grille.
3. Remove end cover of cassette.
4. Slacken heat dissipation cover that is in the back of cassette.
5. Slacken and disconnect lamp bulb wire connector.
6. Take out the bulb, replace or fit bulb as the broken one, and
connect wires as before.
7. Refit reflector, grille、back cover and end cover
of cassette in turn.
8. Use a soft cloth with solvent such as Methylated Spirits to
clean reflector board, side cover and lamp bulbs.
H: Installation instructions:
1. Install casters with stand.
2. Connect column with stand; use column straightener to make column upright,
and use screws and relevant bolt to fasten.
3. Mount bracket up to column. Connect cassette assembly with bracket bolt
Screw down bracket handle.
4. Plug lamp cable to cable sockets of control box. Connect plug with suitable
socket.
①. Live wire（Brown）；Naught wire（Blue）；Earth wire（Yellow and green）.
②. Power supply: 220V 50/60Hz, 1 phase, 16Amp.
③. Remove sticker on grille and cushions under bulbs before use.
④. When adjusting cassette height, use one hand to hold cassette, and screw
bracket handle with the other hand. And then hold the cassette and slide
bracket up or down with two hands. To avoid damaging lamp, do NOT move it
with only one hand.
I: Operation instructions:
J: Troubleshooting:
Problem
Possible cause
Possible solution
Uneven cure
I.R cassettes not shaped to contours of
repair
Adjust I.R. cassettes for even heat
distribution
Solvent popping
1. Unit too close to panel; 2. Insufficient
warm-up time; 3. Paint system has a fast
thinner
1. Move unit further away; 2. Increase
warm-up time; 3. Use a standard or slow
thinner
Under cure or
softness of paint
film
1. Unit too far away; 2. Insufficient
bake time; 3. Excessive film weight
1. Move unit closer; 2. Increase full bake
time; 3. Apply lighter coats
Difficulty in
polishing
out dirt nibs
1. Too long on bake cycle; 2. Unit too close
to panel
1. Reduce cure time; 2. Move unit further
away.
Softness on
edges of repair
Repair too large for I.R. unit
1. Split area into two; 2. Move unit for 2nd
application; 3. If warm-up is used, it will
not be necessary on 2nd application.
Note: only K1, K2, K3 & K3C has warm-up function.
Manual for Shortwave Infrared Paint Dryer
K2251 ZOVCAND ELECTRIC APPLIANCE CO., LTD || www.zovcand.com
6
5
123
4
Disconnect tube
wire connecter
AMove dryer to obtain optimal distance (recommended distance: 50cm. You may
adjust it according to actual conditions.).
BSet baking time.
CTurn on power switch (if you use only one lamp, just turn on one lamp switch).

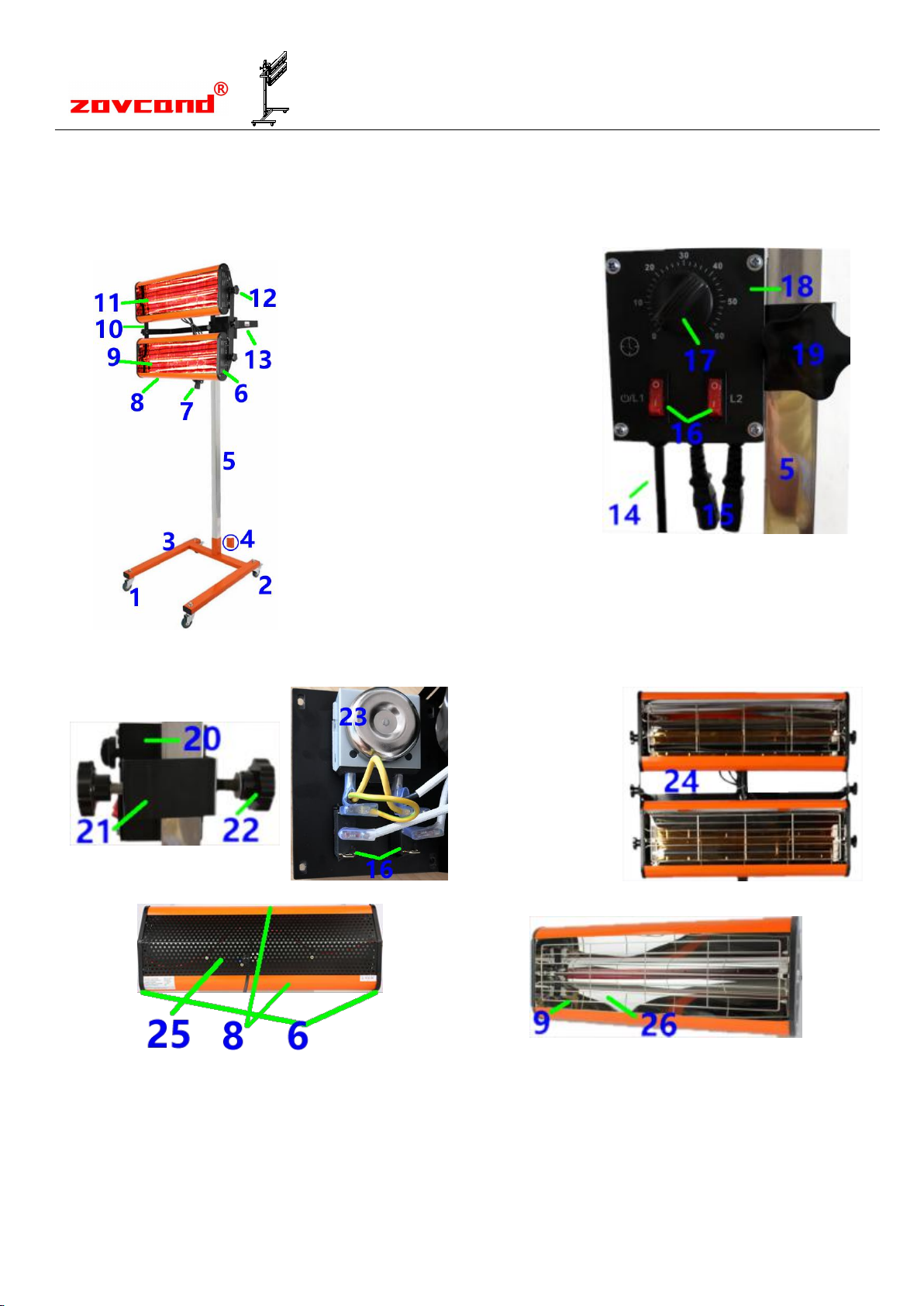

K: Parts list:
1. front castor
2. rear castor
3. stand
4. column straightener
5. column
6. end cover
7. lamp cable
8. side cover
9. grille
10. cassette connector
11. bulb
12. M8 hand nut
13. U-bar
14. power cable
15. cable socket
16. switch
17. timer knob
18. control panel
19. bracket handle
20. control box
21. bracket
22. M12 hand nut
23. timer
24. cassette
assembly
25. back cover
26. main reflector
L: Packing list
Main carton: stand*1, replacement bulb*1, cassette assembly*1, control box*1
Column carton: column*1
