ZUHNE MODENA 23 User manual

MODENA 23
x 18in23in x 10in
[e-mail]
1-855-55-ZUHNE
www.zuhne.com

1
PRODUCT DESCRIPTION
Premium grade handmade sink
16 gauge Stainless Steel T304
10mm/0.4inch radius coved corners
Best-in-breed sound and thermal insulation
Limited lifetime warranty
PACKING LIST
Sink
Strainer(s)*
Bottom Grid(s)**
Mounting Hardware
Cut-out Template
*All sinks come with a basket strainer. Double bowl sinks include a second strainer.
**Single bowl sinks include a one-piece bottom grid. Double bowl sinks come with a two-piece bottom grid.
PRODUCT INFORMATION
PRODUCT INFORMATION
INSTALLATION
INSTRUCTIONS
CARE AND MAINTENANCE
SUPPORT AND WARRANTY

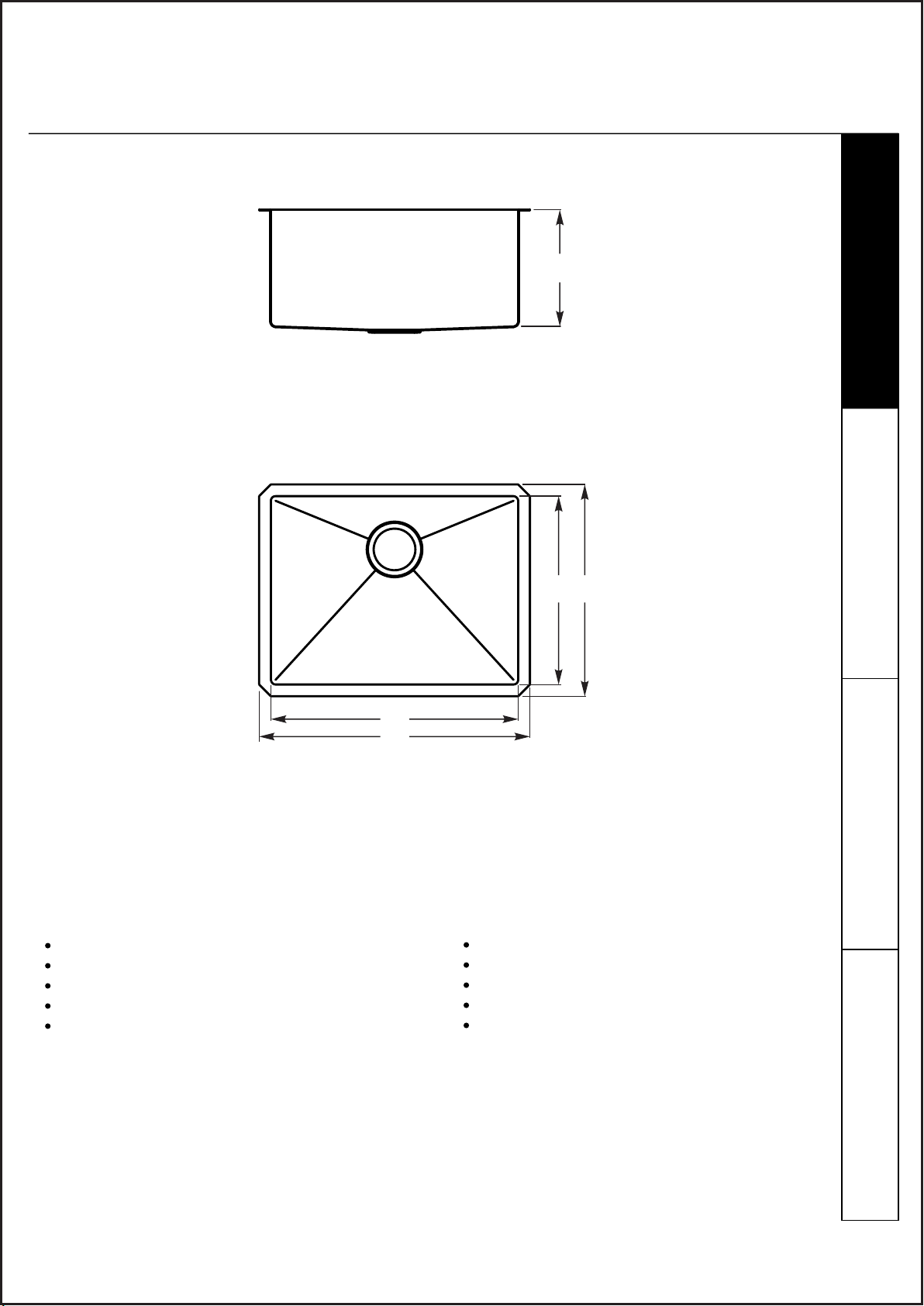

16" 18"
21"
23"
10"
Fig.1

2
CAUTION
Due to the weight and sharp edges of the sink, exercise caution when handling, moving or lifting the box
or the sink. Use safety gloves and protective gear for eyes and ears. Get assistance when lifting or
mounting the sink at any time during the installation procedure. DO NOT attempt to handle or install this
product if doing so poses a risk of bodily injury or if you are medically unfit to carry out the installation.
IMPORTANT: Zuhne strongly recommends that this product be installed by a licensed plumber. Ensure
that installation complies with applicable plumbing and building codes.
CHECK LIST: Have the following tools and materials available prior to commencing
installation:
Silicone adhesive sealant
Tape measure and pencil
Hacksaw/Jigsaw
Denatured alcohol
Rags
Ensure the following prior to installing the product:
None of items in packing list are missing
Counter top is clean, dry, flat and unobstructed
Water supply is turned off
INSTALLATION

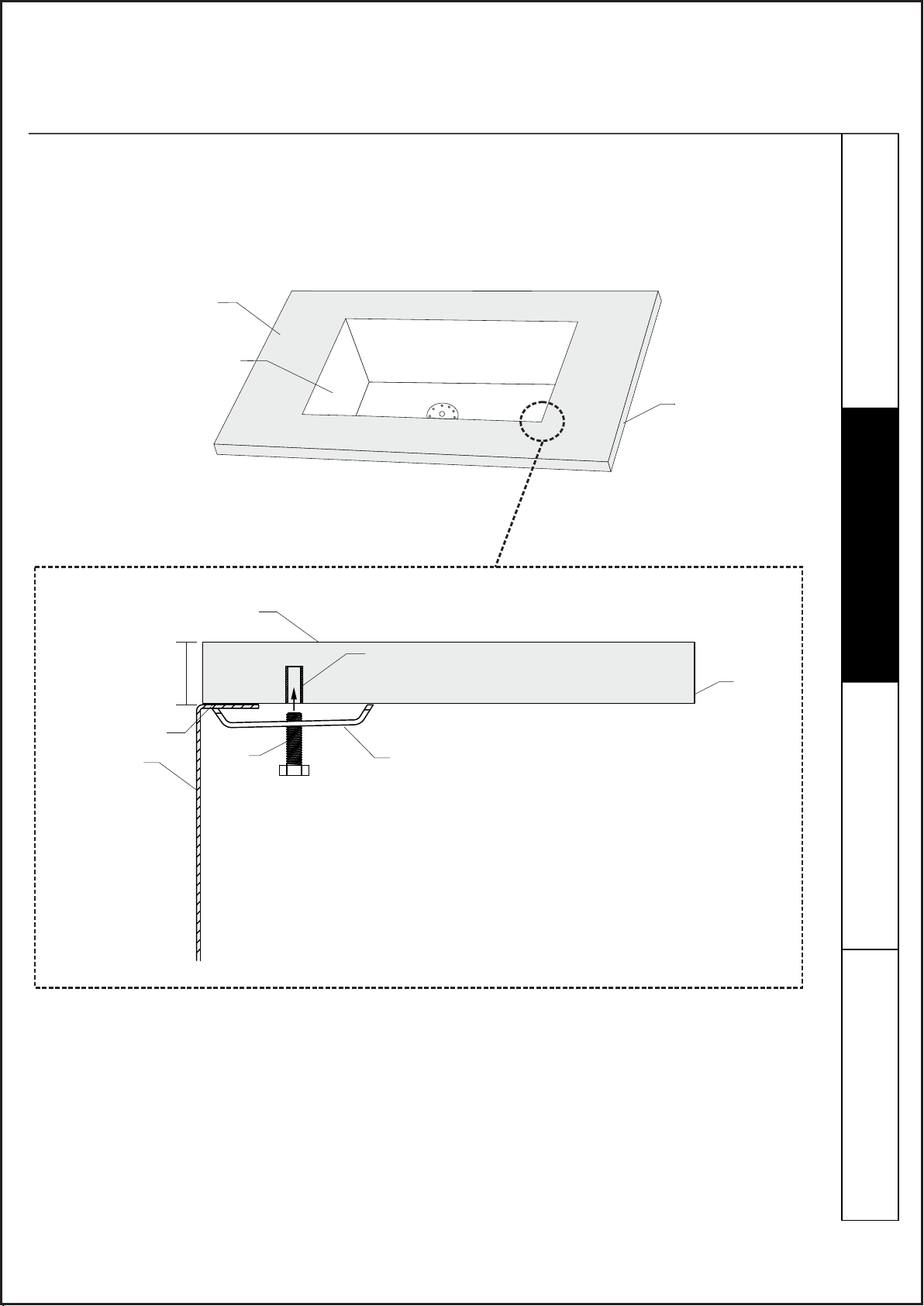

Figures 2, 3 illustrate how the sink is under-mounted onto the countertop. Follow these steps:
Place the cutout template at the desired position on the countertop, ensuring that the
bowl(s) are centralized and aligned with cabinet and faucet holes.
Use cutout template to size countertop opening and cut the countertop accordingly. Note that
the cutout template is to be used for reference only. Confirm that the countertop opening is
correctly dimensioned on all sides by measuring against the sink directly. The countertop
opening must be aligned on all sides with the sink flange.
Drill holes will be required on the underside of the countertop to screw the mounting
brackets. These holes should be approximately 1 inch away from the edges of the sink flange
and must be spaced evenly all around the sink flange at approximately 6-8 inches apart.
Screw mounting brackets onto the countertop loosely, pointing them parallel to the
countertop opening (bent end of the mounting brackets must not be screwed).
At this time, ensure that the underside of the countertop (area that the sink flange will adhere
to) is clean and smooth. Ensure that the sink flange is also clean.
Apply silicone adhesive sealant on the sink flange evenly. Place and align sink flange to the
countertop cutout and push sink firmly onto the countertop.
Keeping the sink pressed up against the countertop, turn bent end of the mounting brackets
so that they snug under the sink flange.
Check sink-countertop alignment from all sides again and fasten mounting brackets.
Ensure that the countertop surface and sink are clean. Wipe away excess silicone adhesive
immediately.
1.
2.
3.
4.
5.
6.
7.
8.
9.
IMPORTANT: Apply silicone sealant adhesive on the sink flange only after ensuring that the countertop
opening is in complete alignment with the sink AND that the mounting brackets are placed correctly.
PRODUCT INFORMATION
INSTALLATION
INSTRUCTIONS
CARE AND MAINTENANCE
SUPPORT AND WARRANTY
INSTALLATION INSTRUCTIONS

3
PRODUCT INFORMATION
INSTALLATION
INSTRUCTIONS
CARE AND MAINTENANCE
SUPPORT AND WARRANTY
INSTALLATION INSTRUCTIONS
Counter Top
Counter Top
Edge
Screw
Silicone Adhesive
Mounting Bracket
Fig.2
Fig.3
Counter Top
Stainless Steel Sink
Counter Top
Edge
Stainless Steel Sink
3/4"
(min.height)
Anchor

DO NOT
Leave standing water in the sink. Keep the sink clog-free at all times.
Use abrasive cleaning materials such as steel wool that may scratch the surface.
Use industrial grade or acid-based cleaning solutions that can damage the sink’s surface or finish.
Leave corrosive or rust-prone materials such as metal utensils or cookware in the sink.for long periods of time
Leave any cleaning materials or household cleaning agents or bleach for long periods of time in the sink.
Leave water spots on the sink. Clean and towel-dry the sink after every use.
Use a sharp object such as a knife directly or indirectly on the sink.
Rub or scrub against the direction of the grain lines on the sink.
CLEANING
Stubborn stains may be removed using mild abrasive cleaners such as Bar Keepers Friend.
Use a mixture of vinegar and water if you find mineral deposits on the sink. Rinse the sink thoroughly if
vinegar or other cleaning solutions are used.
Clean the sink daily using mild soap and warm water. Wipe the sink dry after every use. Rub lightly in the
direction of the grain lines.
You have purchased a premium product that is guaranteed to last a lifetime if proper care is taken.
4
PRODUCT INFORMATION
INSTALLATION
INSTRUCTIONS
CARE AND MAINTENANCE
SUPPORT AND WARRANTY
CARE AND MAINTENANCE

5
Customer Support
ZUHNE, LLC
8383 Commerce Park Drive #600
Houston, TX 77036
1-855-55-ZUHNE
www.zuhne.com
[e-mail]
ZUHNE, LLC
Limited Lifetime Warranty
Sinks
Exclusions
1. Abuse, neglect, misuse or misapplication.
2. Improper, dangerous, or destructive maintenance procedures.
3. Damages caused by services performed by unauthorized servicers.
4. Use in conjunction with any unapproved device.
5. Installation in an environment that is corrosive or otherwise destructive to the product, whether internal or external.
6. Installation in violation of applicable state or local plumbing or housing codes.
7. Acts of God including, but not limited to: fire, flood or natural disaster.
Under this Warranty, ZUHNE will only provide replacement parts. The Owner will be responsible for any other costs incurred
including labor costs for servicing the product, shipping, delivery, and handling of the replacement part, costs for permits or
materials necessary for the repair, or incidental costs resulting from damage external to the unit resulting from the failure.
This Warranty only applies to the 50 States of the U.S.A. ZUHNE shall not be liable for any claim or demand against ZUHNE by
any other part for damages of any kind, including, but not limited to incidental and consequential damages, arising out of the
subject matter of this Agreement. Some States do not allow exclusion or limitation of incidental or consequential damages, so
the above limitation or exclusion may not apply to you. This Warranty gives you specific legal rights. You may also have other
rights that vary from State to State.
NOTWITHSTANDING ANYTHING IN THIS WARRANTY TO THE CONTRARY, EXCEPT FOR ZUHNE’s AFFIRMATIVE OBLIGATIONS
EXPRESSLY SET FORTH IN THIS WARRANTY, ZUHNE DISCLAIMS ANY AND ALL WARRANTIES, EITHER EXPRESS OR IMPLIED,
REGARDING THE PRODUCT AND ITS FUNCTIONALITY, PERFORMANCE, MERCHANTABILITY, FITNESS FOR PARTICULAR PURPOSE
OR INTELLECTUAL PROPERTY RIGHTS. ZUHNE DISCLAIMS ALL OTHER OBLIGATIONS OR LIABILITIES ON ITS PART AND NEITHER
ASSUMES NOR AUTHORIZES ANY OTHER PERSON TO ASSUME FOR ZUHNE ANY OTHER LIABILITIES IN CONNECTION WITH THE
PERFORMANCE OF THE PRODUCT. THIS WARRANTY ONLY COVERS REPLACEMENT PARTS AND DOES NOT COVER COST OF LABOR
OR SERVICES UNDER ANY CIRCUMSTANCES.
In the event of a ZUHNE recognized defect, malfunction, or failure to conform with this Warranty and based upon ZUHNE’s
approval of warranty claim, ZUHNE, at its sole and absolute discretion, will settle the warranty claim of such defect,
malfunction, or failure to conform with this Warranty. In order to make a claim under this Warranty, the Owner must notify
ZUHNE or its authorized representative of the failure of the Product to conform to this Warranty.
Please refer to the Use & Care Manual supplied with your new ZUHNE product. This Warranty becomes null and void if any of
the following are determined to be contributing factors to failure of the Product under this Warranty.
Pursuant to the terms and conditions set forth in this Limited Lifetime Warranty (this “Warranty”), ZUHNE, LLC (“ZUHNE”)
hereby warrants to the original consumer purchaser (“the Owner”), in the originally installed location, the enclosed sink (the
“Product”) to be free from any material defects in materials and workmanship. There are no express warranties other than
those contained in this Warranty, and all representations or affirmations made by ZUHNE or any other person were for
illustrative purposes only. No agent, employee, or representative of ZUHNE has any authority to bind ZUHNE to any
affirmation, representation, or warranty concerning the Product, and unless an affirmation, representation, or warranty
made by an agent, empolyee, or representative is specifically included within this Warranty, it will not be enforceable by the
Owner.
