Installation and Use Manual
ISLAND HOOD
iCHORUS

www.zuhne.com iCHORUS 36 Island Hood
1
WARNING
TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK, OR INJURY TO PERSONS, OBSERVE
THE FOLLOWING:
1. Use this unit only in the manner intended by the manufacturer. If you have questions, contact the
manufacturer at the address or telephone number listed in the warranty.
2. Before servicing or cleaning unit, switch power off at service panel and lock service panel to
prevent power from being switched on accidentally. When the service disconnecting means
cannot be locked, securely fasten a prominent warning device, such as a tag, to the service
panel.
3. Installation work and electrical wiring must be done by a qualified person(s) in accordance with
all applicable codes and standards, including fire-rated construction codes and standards.
4. Sufficient air is needed for proper combustion and exhausting of gases through the flue (chimney)
of fuel burning equipment to prevent backdrafting. Follow the heating equipment manufacturer’s
guidelines and safety standards such as those published by the National Fire Protection
Association (NFPA), and the American Society for Heating, Refrigeration and Air Conditioning
Engineers (ASHRAE), and the local code authorities.
5. When cutting or drilling into wall or ceiling, do not damage electrical wiring and other hidden
utilities.
6. Ducted fans must always be vented to the outdoors.
7. Do not use this unit with any separate solid-state speed control device.
8. To reduce the risk of fire, use only metal ductwork.
9. This unit must be grounded.
TO REDUCE THE RISK OF A RANGE TOP GREASE FIRE:
A. Never leave surface units unattended at high settings. Over heat cause smoking and greasy
spillovers that may ignite. Heat oils slowly on low or medium settings.
B. Always turn hood ON when cooking at high heat or when flambéing food (i.e. Crepes
Suzette, Cherries Jubilee, Peppercorn Beef Flambé).
C. Clean ventilating fans frequently. Grease should not be allowed to accumulate on fan or
filter.
D. Use proper pan size. Always use cookware appropriate for the size of the surface element.
WARNING
TO REDUCE THE RISK OF INJURY TO PERSONS IN THE EVENT OF A RANGE TOP GREASE
FIRE, OBSERVE THE FOLLOWING:*
1. SMOTHER FLAMES with a close-fitting lid, cookie sheet, or metal tray, then turn off the burner.
BE CAREFUL TO PREVENT BURNS. If the flames do not go out immediately, EVACUATE AND
CALL THE FIRE DEPARTMENT.
2. NEVER PICK UP A FLAMING PAN - You may be burned.
3. DO NOT USE WATER, including wet dishcloths or towels - violent steam explosion will result.
4. Use an extinguisher ONLY if:
A. You know you have a Class ABC extinguisher and you already know how to operate it.
B. The fire is small and contained in the area where it started.
C. The fire department is being called.
D. You can fight the fire with your back to an exit.
* Based on “Kitchen Fire Safety Tips” published by NFPA.

www.zuhne.com 2
CAUTION
1. To reduce risk of fire and to properly exhaust air, be sure to duct air outside. Do not vent exhaust
air into spaces within walls or ceilings or into attics, crawl spaces, or garages.
2. Take care when using cleaning agents or detergents.
3. Avoid using food products that produce flames under the Range Hood.
4. For general ventilating use only. Do not use to exhaust hazardous or explosive materials and
vapors.
5. To avoid motor bearing damage and noisy and/or unbalanced impellers, keep drywall spray,
construction dust, etc. off power unit.
6. Your hood motor has a thermal overload which will automatically shut off the motor if it becomes
overheated. The motor will restart when it cools down. If the motor continues to shut off and
restart, have the hood serviced.
7. For best capture of cooking impurities, the bottom of the hood should be a minimum of 24" and a
maximum of 33" above the cooking surface.
8. Two installers are recommended because of the large size and weight of this hood.
9. This product is equipped with a thermostat which may start blower automatically. To reduce the
risk of injury and to prevent power from being switched on accidentally, switch power off at
service panel and lock or tag service panel.
10. Use with approved cord-connection kit only.
11. Please read specification label on product for further information and requirements.
iCHORUS 36 Island Hood

www.zuhne.com 3
PREPARE THE HOOD
iCHORUS 36 Island Hood
Unpack hood and check contents.
You should receive:
1 - Hood
1 - Decorative Flue Assembly
1 - Parts Bag containing:
1 - Mounting Plate
1 - Installation Instructions
1 - Vent
1 - Warranty Card
1 - Instruction paper
1 - S hook
4 - Angle Iron
12 - Mounting Screws (6 x 45mm for wooded ceiling)
12 - Drywall Anchors
8 - Explode Screws (for concrete ceiling installation)
42 - Mounting Screws (4 x 14mm, 26 pcs for set of washer and nut, 2 pcs for spare)
26 - Washer (2 pcs for spare)
26 –Nut (2 pcs for spare)
8 - Mounting Screws (4 x 8mm for φ8 holes)
1 - Aluminum Flex Duct
MOUNTING
SCREWS (4 X
8MM)
DRYWALL
ANCHORS
NUT
WASHER
MOUNTING
SCREWS (6
X 45MM)
ALUMINUM
FLEX DUCT
MOUNTING
PLATE
VENT
ANGLE
IRON
INSTRUCTION PAPER
MOUNTING
SCREWS (4
X 14MM)
S HOOK
EXPLODE
SCREWS

www.zuhne.com iCHORUS 36 Island Hood
4
PREPARE THE HOOD
WARNING
Note: This range hood must be properly
grounded. The unit should be installed by
a qualified electrician in accordance with
all applicable national and local electrical
codes.
The minimum hood distance above
cooktop must not be less than 24’’. A
maximum of 33” above cooktop is
highly recommended for best capture
of cooking impurities. Distances over
33” are at the installer and users
discretion.

www.zuhne.com iCHORUS 36 Island Hood
5
INSTALLATION PROCEDURE

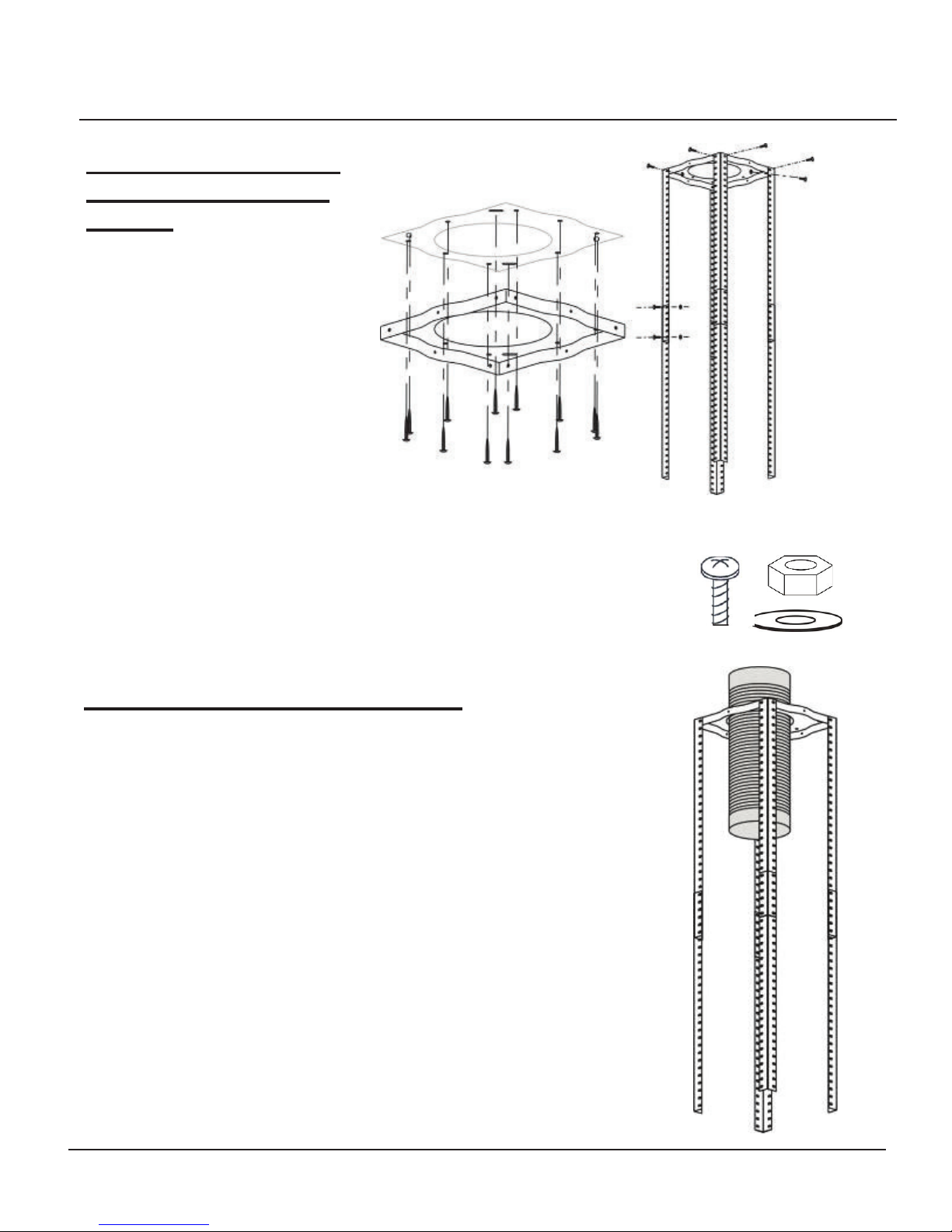

INSTALL MOUNTING
PLATE AND ANGLE
IRON
1. Fix the instruction paper onto
the ceiling. Drill holes as the
paper show.
2. Put the drywall anchors into
the holes and pick out the
mounting plate and use 12
pcs mounting screws to fix the
plate onto the ceiling.(If for
concrete ceiling, pls use the 8
pcs of explode screws).
3. Put out the 8 pcs of angle iron,
use 8 pcs of mounting
screws(4*14mm) with washers and nuts to fixe 4 pcs angle iron onto the mounting
plate.
4. Adjust the height X of the chimney( as shown on the picture 1), use
16 pcs of munting screws(4*14mm) with washers and nuts to fixe
the other 4 pcs angle iron onto the angle irons which have been
installed.
INSTALL THE DUCTWORK
NOTE: To reduce the risk of fire, use only metal ductwork.
1. Decide where the ductwork will run between the hood and
the outside.
2. A straight, short duct run will allow the hood to perform
most efficiently.
3. Let the one side of the duct go outside through the hole of
6.7’’ as shown.

www.zuhne.com iCHORUS 36 Island Hood
6
INSTALLATION PROCEDURE
INSTALL CHIMNEYS
1. Pick out the chimneys, put the inside
chimney through the angle irons and up
to the ceiling, use 4 pcs of mounting
screws(4*8mm) to fix the chimney onto
the mounting plate. See picture shown.
2. Put the outside chimney onto the inside
chimney and use the S hook to fix on the
angle iron. See picture shown.

www.zuhne.com iCHORUS 36 Island Hood
7
INSTALLATION PROCEDURE
PREPARE THE HOOD
Note: On stainless steel hoods,
carefully remove the plastic
protective film from all exterior
surfaces of the hood and
decorative flues, prior to final
installation.
1. Pick out the hood from the
carton.

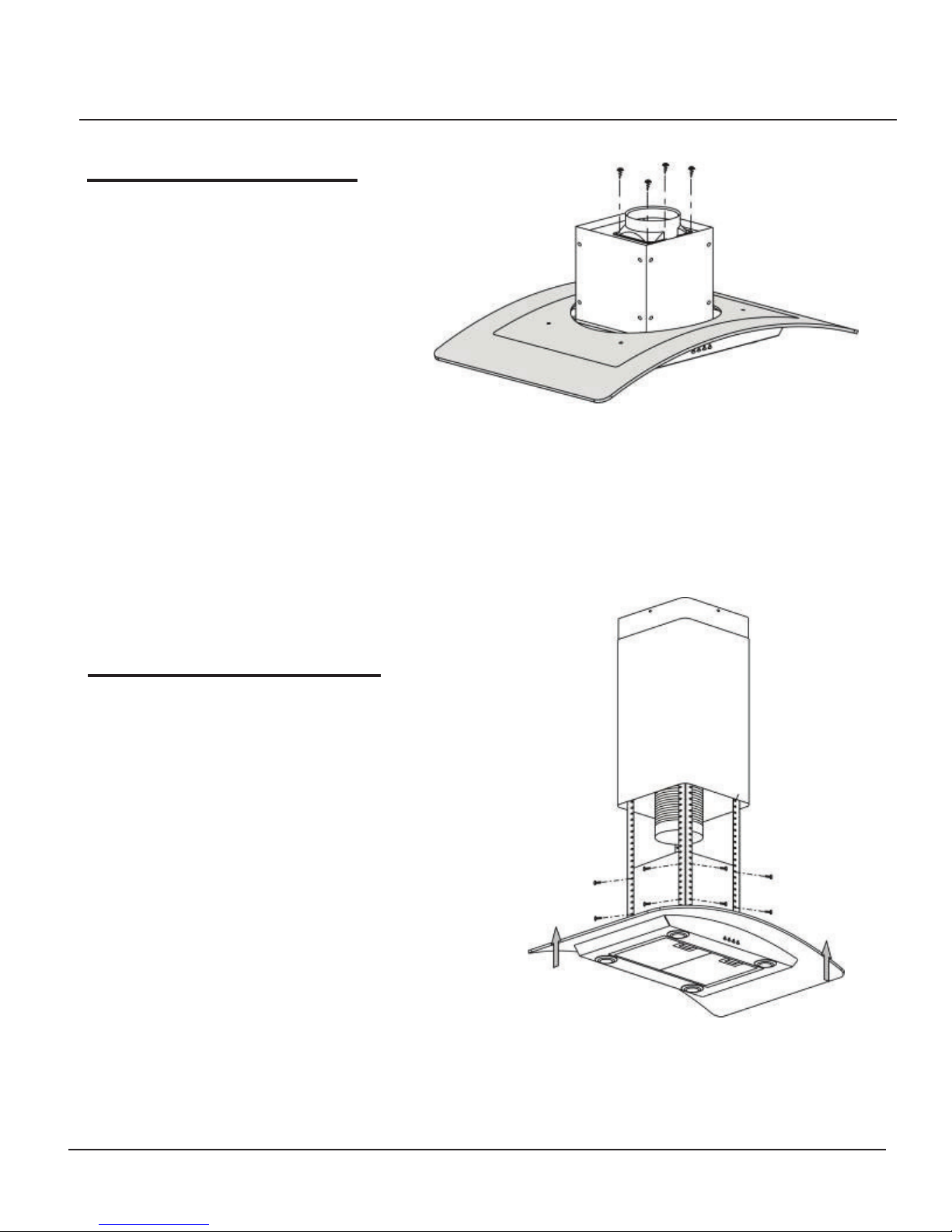

2. Install the vent into the
duct connector of the
cooker hood with 4 pcs mounting screws(4*8mm).
INSTALL THE HOOD
Note: at least two people will be required to
mount the hood.
1. Raise the hood into its mounting position.
2. Fix the hood onto the angle irons with 16
pcs of mounting screws(4*14mm). See
picture as shown.

www.zuhne.com iCHORUS 36 Island Hood
8
INSTALLATION PROCEDURE

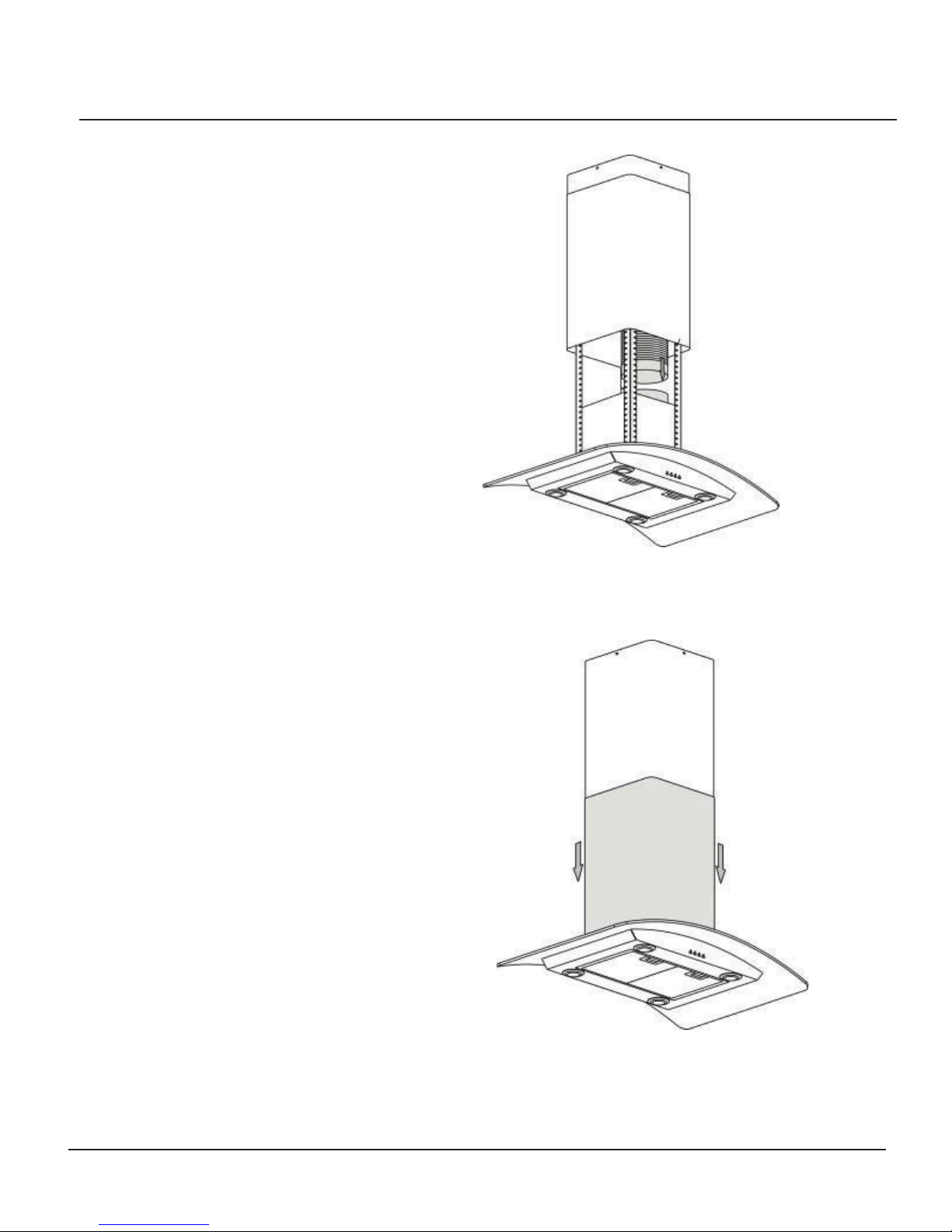

3. Pull the duct as the direction showed on
the picture, and make it fix onto the vent.
4. Loose the S hook, and pull the outside
chimney as shown.

www.zuhne.com iCHORUS 36 Island Hood
9
MAINTENANCE
Proper maintenance of the Range Hood
will assure proper performance of the unit.

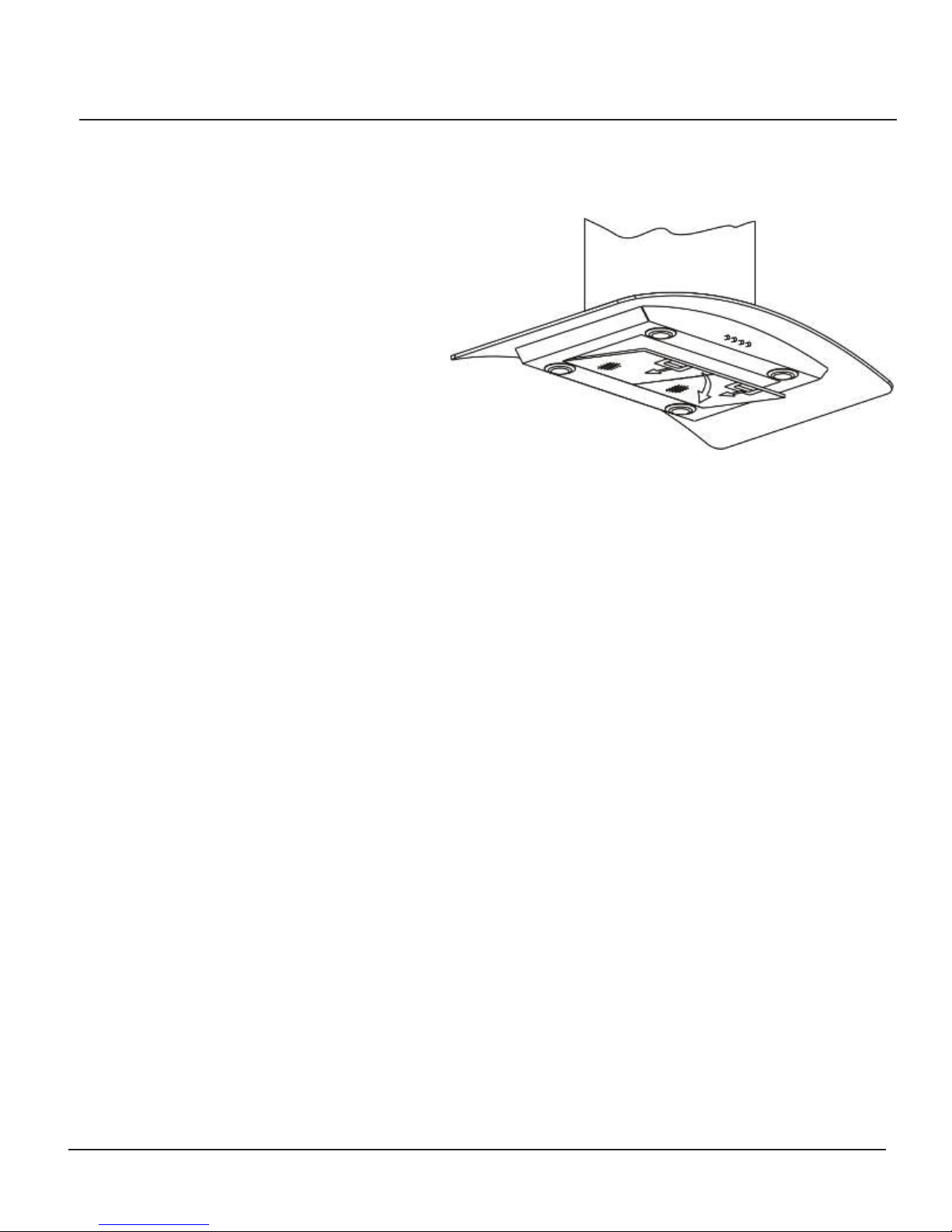

Filters
The filters must be cleaned approximately
once every 30 hours of operation (when
the central segment on the display goes
on or starts blinking).
Use a warm detergent solution. Grease
filters are dishwasher safe.
Remove filter by pushing filter towards the
back of hood and rotating filter downward.
Duct free(Carbon) Filters
The duct free filters should be changed every 6 months. Rotate the filters to remove and replace.
Hood Cleaning
Stainless steel is one of the easiest materials
to keep clean. Occasional care will help preserve its fine appearance.
Cleaning tips:
-Hot water with soap or detergent is all that is usually needed.
-Follow all cleaning by rinsing with clear water. Wipe dry with a clean, soft cloth to
avoid water marks.
-For discolorations or deposits that persist, use a non-scratching household cleanser
or stainless steel polishing powder with a little water and a soft cloth.
-For stubborn cases, use a plastic scouring pad or soft bristle brush together with
cleaner and water. Rub lightly in direction of polishing lines or "grain" of the stainless
finish. Avoid using too much pressure which may mar the surface.
-DO NOT allow deposits to remain for long periods of time.
-DO NOT use ordinary steel wool or steel brushes. Small bits of steel may adhere to
the surface causing rust.
-DO NOT allow salt solutions, disinfectants, bleaches, or cleaning compounds to
remain in contact with stainless steel for extended periods. Many of these com
pounds contain chemicals which may be harmful. Rinse with water after exposure
and wipe dry with a clean cloth.
Painted surfaces should be cleaned with warm water and mild detergent only.

www.zuhne.com iCHORUS 36 Island Hood
10

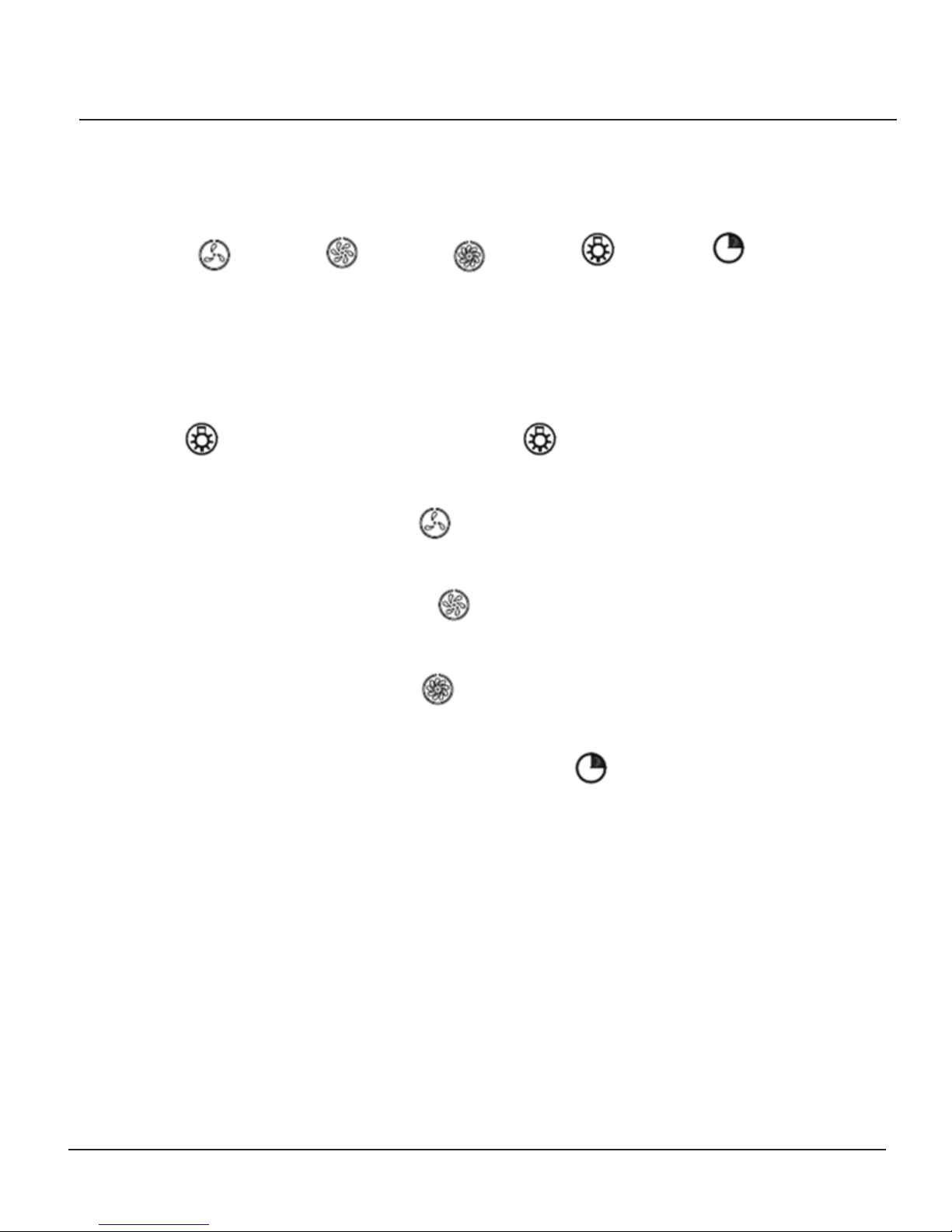

TOUCH CONTROLS
(High), (Light),
(Low), (Mid), (Time setting).
Controls
The hood is operated using the 5 touch-buttons located at eye-level on the right hand corner
of the hood.
1. Power on: After you have connected the cooker hood to the mains supply the
backlight will turn on. The backlight will turn off after 5s without any operation and
hood will enter stand-by mode.
2. Press button once; lights will be on . Press button again; lights
will be off.
3. Push the low button, the indicating light , and the motor runs at low speed.
Push it again and the motor will stop.
4. Push the middle button, the indicating light , and the motor runs at mid speed.
Push it again and the motor will stop
5. Push the high button, the indicating light , and motor runs on high speed. Push
it again and the motor will stop.
6. Whilst the cooker hood is in use, if you press the timer button once the hood
will run for 5 minutes and then cut off.

www.zuhne.com iCHORUS 36 Island Hood
11
LIGHTS MAINTENANCE
LED LIGHTS
ALWAYS SWITCH OFF THE ELECTRICITY SUPPLY
BEFORE CARRYING OUT ANY OPERATIONS ON THE
APPLIANCE.
To change the light:
1. Open the filter and find the spring of the light, push the
spring and the lgight will be slip out. Change the light as with
same kind of 4Volt,3 Watt LED light. CAUTION: LIGHT MAY
BE HOT,PLEASE ROTATE WHEN THELIGHT IS COOL!

www.zuhne.com iCHORUS 36 Island Hood
12
TROUBLESHOOT
Fault
Cause
Solution
Light on, but motor does
not work
The leaf blocked
Get rid of the blocking
The capacitor damaged
Replace capacitor
The motor jammed bearing damaged
Replace motor
The internal with of motor off or a bad
smell from the motor
Replace motor
Light does not work, motor
does not work
Beside the above mentioned, check the following:
Light damaged
Replace lights
Power cord looses
Connect the wires as per the
electric diagram
Oil leakage
One way valve and the air
ventilation entrance are not tightly
sealed
Take down the one way valve
and seal with glue
Leakage from the connection of
U-shaped section and cover
Take U-shaped section down
and seal with soap or paint
Shake of the body
The leaf damaged and causes
shaking
Replace the leaf
The motor is not tightly hanged
Lock the motor tightly
The body is not tightly hanged
Fixed the body tightly
Insufficient suction
The distance between the body and
the gas top too long
Readjust the distance
Too much ventilation from open
doors or windows
Choose a new place and
resemble the machine
The machine inclines
The fixing screw not tight enough
Tighten the hanging screw and
make it horizontal
The hanging screw not tight enough
Tighten the hanging screw and
make it horizontal
