ZUHNE Ventus 30 Guide

zuhne
..
1-855-55-ZUHNE | www.zuhne.com
Installation and Use Manual
WALL MOUNTED HOOD
VENTUS

www.zuhne.com VENTUS 30 Kitchen Range Hood
1
WARNING
TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK, OR INJURY TO PERSONS, OBSERVE
THE FOLLOWING:
1. Use this unit only in the manner intended by the manufacturer. If you have questions, contact the
manufacturer at the address or telephone number listed in the warranty.
2. Before servicing or cleaning unit, switch power off at service panel and lock service panel to
prevent power from being switched on accidentally. When the service disconnecting means
cannot be locked, securely fasten a prominent warning device, such as a tag, to the service
panel.
3. Installation work and electrical wiring must be done by a qualified person(s) in accordance with
all applicable codes and standards, including fire-rated construction codes and standards.
4. Sufficient air is needed for proper combustion and exhausting of gases through the flue (chimney)
of fuel burning equipment to prevent backdrafting. Follow the heating equipment manufacturer’s
guidelines and safety standards such as those published by the National Fire Protection
Association (NFPA), and the American Society for Heating, Refrigeration and Air Conditioning
Engineers (ASHRAE), and the local code authorities.
5. When cutting or drilling into wall or ceiling, do not damage electrical wiring and other hidden
utilities.
6. Ducted fans must always be vented to the outdoors.
7. Do not use this unit with any separate solid-state speed control device.
8. To reduce the risk of fire, use only metal ductwork.
9. This unit must be grounded.
TO REDUCE THE RISK OF A RANGE TOP GREASE FIRE:
A. Never leave surface units unattended at high settings. Over heat cause smoking and greasy
spillovers that may ignite. Heat oils slowly on low or medium settings.
B. Always turn hood ON when cooking at high heat or when flambéing food (i.e. Crepes
Suzette, Cherries Jubilee, Peppercorn Beef Flambé).
C. Clean ventilating fans frequently. Grease should not be allowed to accumulate on fan or
filter.
D. Use proper pan size. Always use cookware appropriate for the size of the surface element.
WARNING
TO REDUCE THE RISK OF INJURY TO PERSONS IN THE EVENT OF A RANGE TOP GREASE
FIRE, OBSERVE THE FOLLOWING:*
1. SMOTHER FLAMES with a close-fitting lid, cookie sheet, or metal tray, then turn off the burner.
BE CAREFUL TO PREVENT BURNS. If the flames do not go out immediately, EVACUATE AND
CALL THE FIRE DEPARTMENT.
2. NEVER PICK UP A FLAMING PAN - You may be burned.
3. DO NOT USE WATER, including wet dishcloths or towels - violent steam explosion will result.
4. Use an extinguisher ONLY if:
A. You know you have a Class ABC extinguisher and you already know how to operate it.
B. The fire is small and contained in the area where it started.
C. The fire department is being called.
D. You can fight the fire with your back to an exit.
* Based on “Kitchen Fire Safety Tips” published by NFPA.

www.zuhne.com VENTUS 30 Kitchen Range Hood
2
CAUTION
1. To reduce risk of fire and to properly exhaust air, be sure to duct air outside. Do not vent exhaust
air into spaces within walls or ceilings or into attics, crawl spaces, or garages.
2. Take care when using cleaning agents or detergents.
3. Avoid using food products that produce flames under the Range Hood.
4. For general ventilating use only. Do not use to exhaust hazardous or explosive materials and
vapors.
5. To avoid motor bearing damage and noisy and/or unbalanced impellers, keep drywall spray,
construction dust, etc. off power unit.
6. Your hood motor has a thermal overload which will automatically shut off the motor if it becomes
overheated. The motor will restart when it cools down. If the motor continues to shut off and
restart, have the hood serviced.
7. For best capture of cooking impurities, the bottom of the hood should be a minimum of 24" and a
maximum of 33" above the cooking surface.
8. Two installers are recommended because of the large size and weight of this hood.
9. This product is equipped with a thermostat which may start blower automatically. To reduce the
risk of injury and to prevent power from being switched on accidentally, switch power off at
service panel and lock or tag service panel.
10. Use with approved cord-connection kit only.
11. Please read specification label on product for further information and requirements.

www.zuhne.com VENTUS 30 Kitchen Range Hood
3

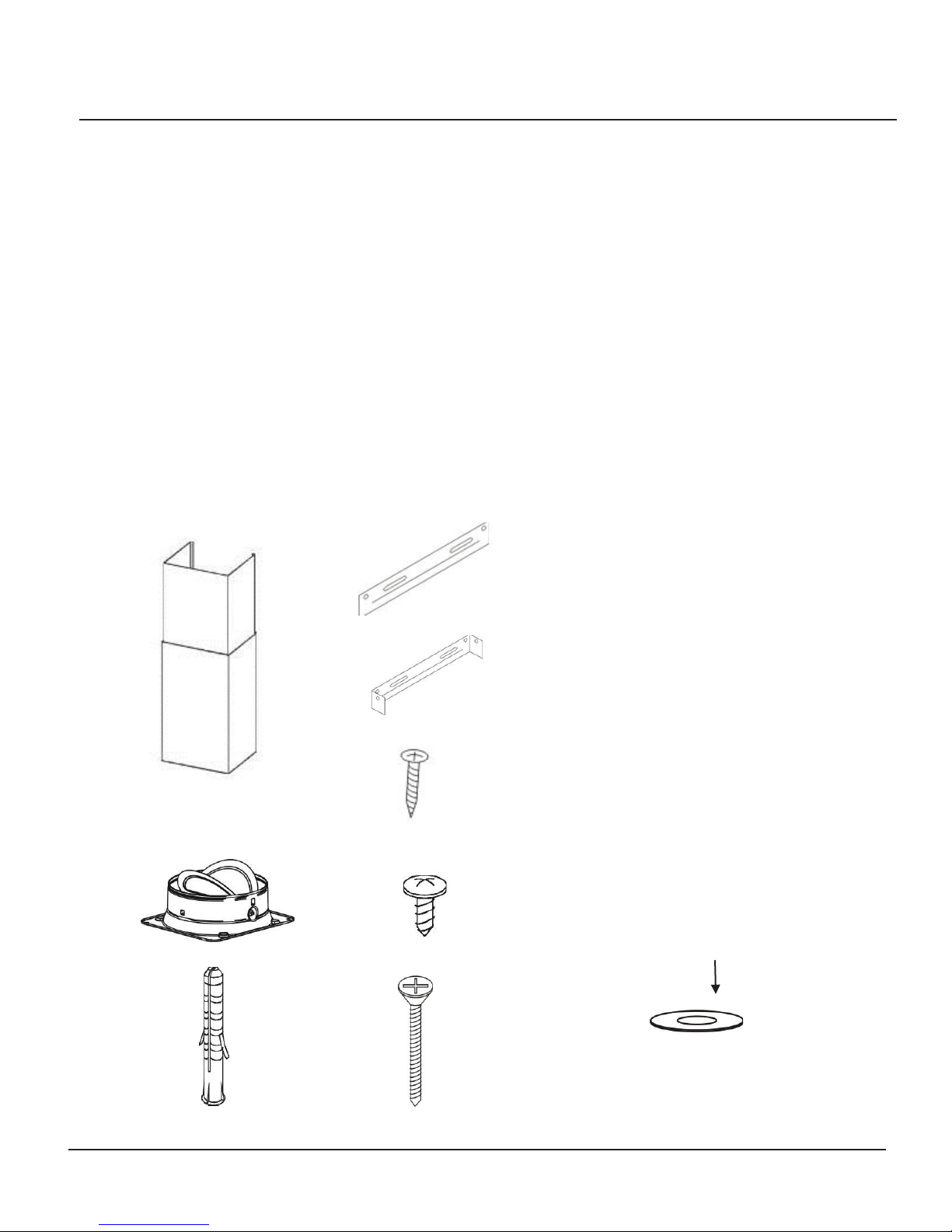

Please unpack hood and check contents.
You should receive:
1 - Hood
1 - Decorative Flue Assembly
1 - Parts Bag containing:
1 - Mounting Bracket 1 - Installation Instructions
1 - Vent 1 - Warranty Card
1 - Duct fixing support 2 - Safety screws (ST4 x30mm)
1 - Slidery duct fixing support
7 - Mounting Screws (4 x 40mm)
10 - Mounting Screws (4 x 8mm)
9 - Drywall Anchors (2 for φ8 holes)
2 - Washer (for φ8 holes)
1 - Aluminum Flex Duct
VENT
DUCT FIXING SUPPORT
SLIDERY DUCT FIXING SUPPORT
MOUNTING
SCREWS (4
X 8MM)
MOUNTING
SCREWS (4 X
40MM)
DRYWALL
ANCHORS
WASHER
SAFETY SCREW (ST4 x30MM)
DECORATIVE FLUE
PREPARE THE HOOD

www.zuhne.com VENTUS 30 Kitchen Range Hood
4

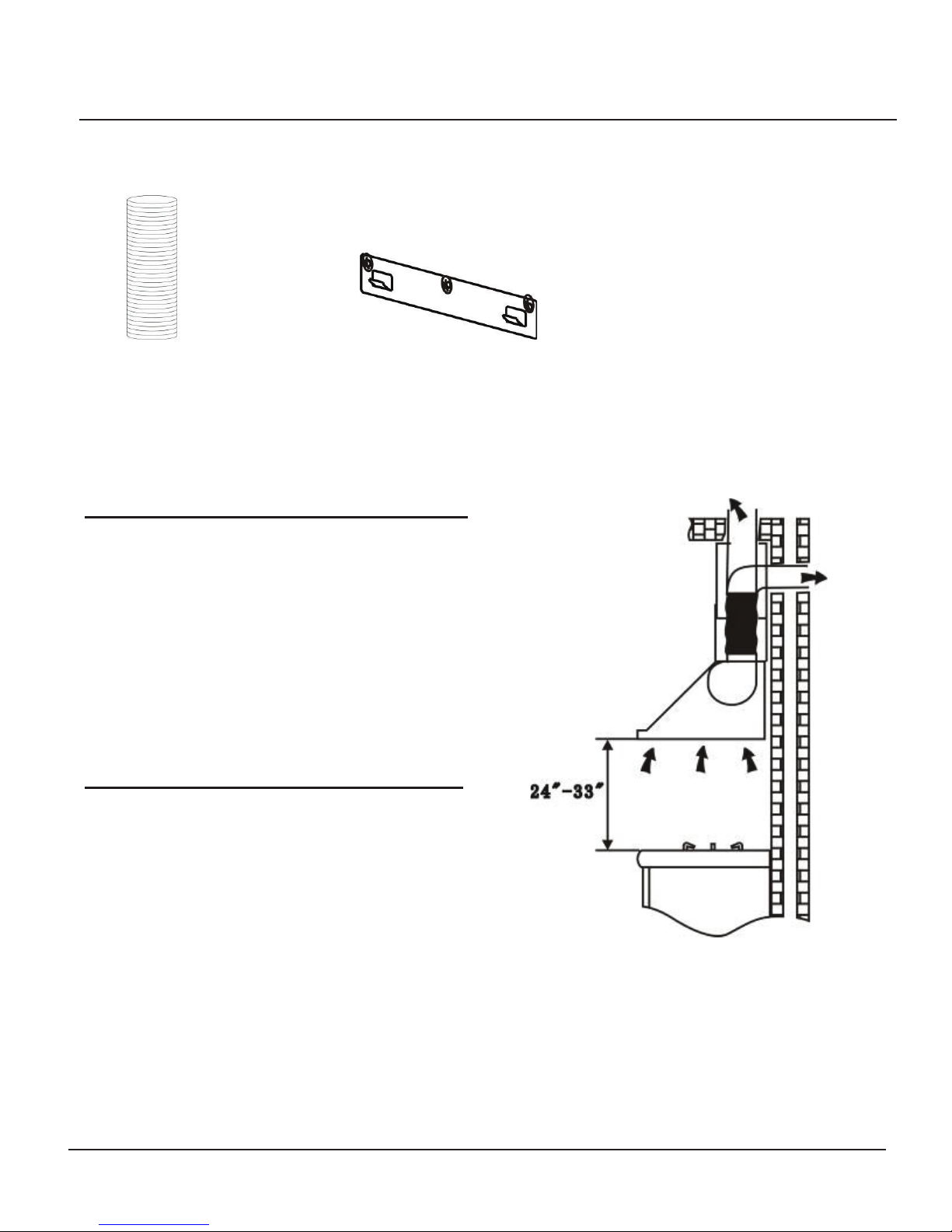

PREPARE THE HOOD
WARNING
Note: This range hood must be properly
grounded. The unit should be installed by a
qualified electrician in accordance with all
applicable national and local electrical codes.
The minimum hood distance above cooktop must not
be less than 24’’. A maximum of 33” above cooktop is
highly recommended for best capture of cooking
impurities. Distances over 33” are at the installer and
users discretion.
INSTALL THE DUCTWORK
NOTE: To reduce the risk of fire, use only metal
ductwork.
1. Deside where the ductwork will run between the
hood and the outside.
2. A straight, short duct run will allow the hood to
perform most efficiently.
3. Install the Aluminum Flex duct on the vent
towards hood location.
ALUMINUM FLEX
DUCT
MOUNTING BRACKET

www.zuhne.com VENTUS 30 Kitchen Range Hood
5

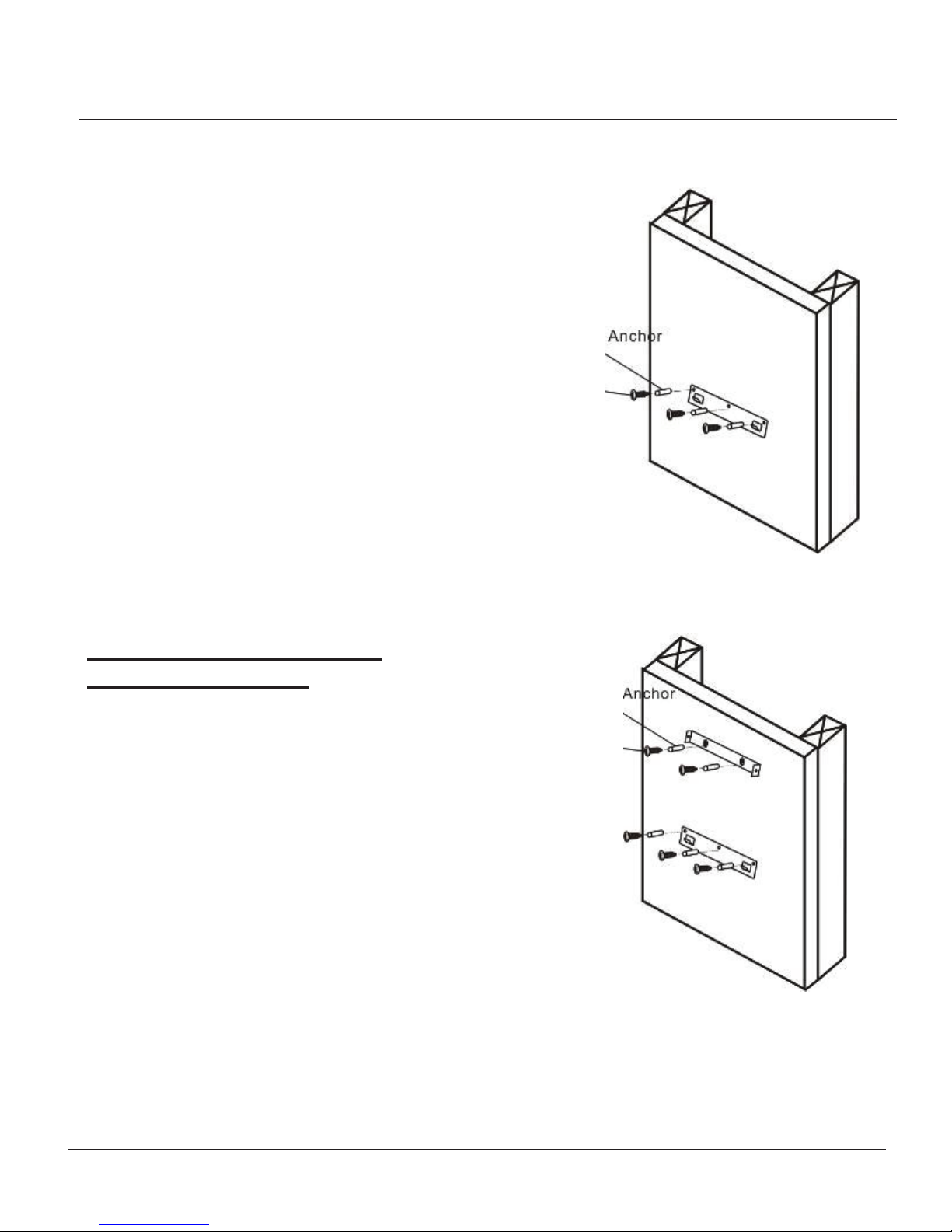

INSTALL MOUNTING BRACKETS
1. After eveluating the height of the hood, place the hook
center over installation location. Drill 3 holes of Ø8mm
on a suitable place to fix the mounting brackets.
2. Put the drywall anchors into the holes and fix the
mounting screws (4x40mm) into the anchors, and install
the hook on the wall as shown.
INSTALL SLIDERY DUCT
FIXING SUPPORT
1. Calculate the final height of the U-shaped section, drill 2
holes of Ø8mm on a suitable place in line with the slidery
duct fixing support.
2. Put the drywall anchors into the holes and fix the mounting
screws (4x40mm) into the anchors, and install the hook on
the wall as shown. (The rest two pares of 4x40mm screw
and drywall anchors are for spare)

www.zuhne.com VENTUS 30 Kitchen Range Hood
6
PREPARE THE HOOD
Note: On stainless steel hoods,
carefully remove the plastic
protective film from all exterior
surfaces of the hood and decorative
flues, prior to final installation.
1. Pick out the hood from the carton.
2. Install the vent into the duct
connector of the cooker hood.
3. Fix the extensive pipe onto the vent.
Screw: 4x8mm

www.zuhne.com VENTUS 30 Kitchen Range Hood
7
INSTALLATION PROCEDURE
INSTALL THE HOOD
Note: at least two people will be required to mount
the hood.
1. Raise the hood into its mounting position.
2. Align the rectangular opening on the back of the hood
with the wall-mounting bracket. Gently lower the hood
until it securely engages the bracket.
3. Open the Al. filter and find the two φ8 mm holes
on the back of the hood. Level the hood with 2
mounting screws (ST4*30mm) with washer. Use
drywall anchors provided.
4. Measure the height of the glass to the slidery duct
fixing support. Adjust the height of the chimney
according to the height. Then use the duct fixing
support with two screws (4x8mm) to fix the chimneys.
Shown as in the pic.

www.zuhne.com VENTUS 30 Kitchen Range Hood
8
INSTALLATION PROCEDURE

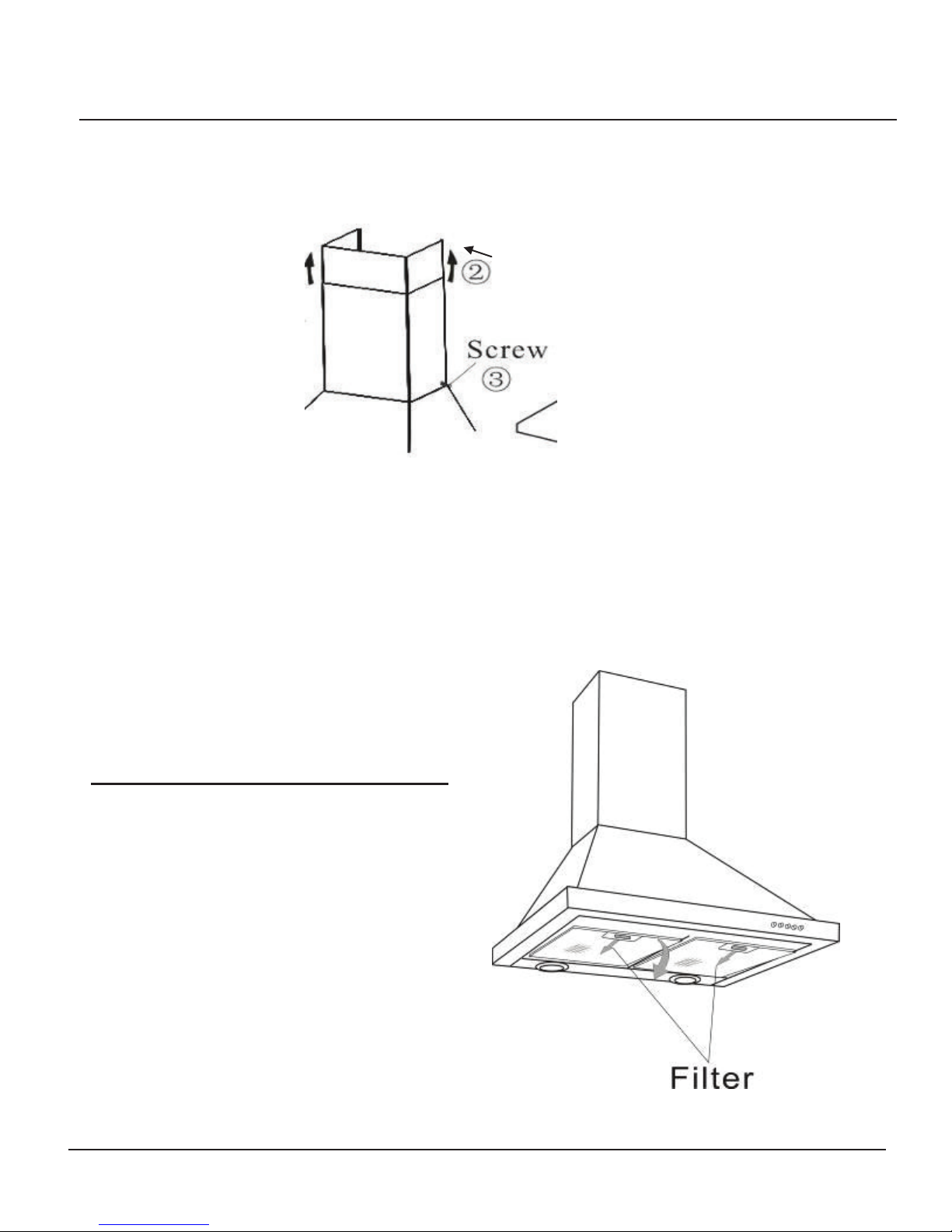

5. Put the chimney on the hood, use two screws (4x8mm)to
fix the chimney to the slidery duct fixing support.
6. Use the other two screws (4x8mm) to fix the bottom of chimney.
7. After adjusting the position, open the filter and fix the
body inside with safety screws.
MAINTENANCE
Proper maintenance of the Range Hood will
assure proper performance of the unit.
Filters
The filters must be cleaned approximately once
every 30 hours of operation (when the central
Screw
segment on the display goes on or starts blinking).
Use a warm detergent solution. Grease filters are
dishwasher safe.
Remove filter by pushing filter towards the back of
hood and rotating filter downward.

www.zuhne.com VENTUS 30 Kitchen Range Hood
9
MAINTENANCE
Ductfree(Carbon) Filters-buy separately
The ductfree filters should be changed every 6 months. Rotate the filters to remove and replace.
Hood Cleaning
Stainless steel is one of the easiest materials
to keep clean. Occasional care will help preserve its fine appearance.
Cleaning tips:
-Hot water with soap or detergent is all that is usually needed.
-Follow all cleaning by rinsing with clear water. Wipe dry with a clean, soft cloth to avoid water
marks.
-For discolorations or deposits that persist, use a non-scratching household cleanser or stainless
steel polishing powder with a little water and a soft cloth.
-For stubborn cases, use a plastic scouring pad or soft bristle brush together with cleaser and
water. Rub lightly in direction of polishing lines or "grain" of the stainless finish. Avoid using too
much pressure which may mar the surface.
-DO NOT allow deposits to remain for long periods of time.
-DO NOT use ordinary steel wool or steel brushes. Small bits of steel may adhere to the surface
causing rust.
-DO NOT allow salt solutions, disinfectants, bleaches, or cleaning compounds to remain in
contact with stainless steel for extended periods. Many of these compounds contain chemicals
which may be harmful. Rinse with water after exposure and wipe dry with a clean cloth.
Painted surfaces should be cleaned with warm water and mild detergent only.
LED LIGHTS
ALWAYS SWITCH OFF THE ELECTRICITY
SUPPLY BEFORE CARRYING OUT ANY
MAINTENANCE.
To change the light:
1. Open the filter and find the spring of the light, push the spring and the light will be slip out.
Change the light as with same kind of 4Volt,3 Watt LED light. CAUTION: LIGHT MAY BE
HOT,PLEASE ROTATE WHEN THELIGHT IS COOL!

www.zuhne.com VENTUS 30 Kitchen Range Hood
10
TOUCH CONTROL SET
(High), (Light),
1. Power on: After you have connected the cooker hood to the mains supply the
backlight will turn on. The backlight will turn off after 5s without any operation and
hood will enter stand-by mode.
2. Press button once; lights will be on . Press button again; lights
will be off.
3. Push the low button, the indicating light , and the motor runs at low speed.
Push it again and the motor will stop.
4. Push the middle button, the indicating light , and the motor runs at mid speed.
Push it again and the motor will stop
5. Push the high button, the indicating light , and motor runs on high speed. Push
it again and the motor will stop.
6. Whilst the cooker hood is in use, if you press the timer button once the hood
will run for 5 minutes and then cut off.
(Low), (Mid), (Time setting).
Controls
The hood is operated using the 5 touch-buttons located at eye-level on the right hand corner
of the hood.

www.zuhne.com VENTUS 30 Kitchen Range Hood
11
TROUBLE SHOOT
Fault
Cause
Solution
Light on, but motor does
not work
The leaf blocked
Get rid of the blocking
The capacitor damaged
Replace capacitor
The motor jammed bearing damaged
Replace motor
The internal with of motor off or a bad
smell from the motor
Replace motor
Light does not work, motor
does not work
Beside the above mentioned, check the following:
Light damaged
Replace lights
Power cord looses
Connect the wires as per the
electric diagram
Oil leakage
One way valve and the air
ventilation entrance are not tightly
sealed
Take down the one way valve
and seal with glue
Leakage from the connection of
U-shaped section and cover
Take U-shaped section down
and seal with soap or paint
Shake of the body
The leaf damaged and causes
shaking
Replace the leaf
The motor is not tightly hanged
Lock the motor tightly
The body is not tightly hanged
Fixed the body tightly
Insufficient suction
The distance between the body and
the gas top too long
Readjust the distance
Too much ventilation from open
doors or windows
Choose a new place and
resemble the machine
The machine inclines
The fixing screw not tight enough
Tighten the hanging screw and
make it horizontal
The hanging screw not tight enough
Tighten the hanging screw and
make it horizontal
