ZULU AUDIO Zulu Alpha 1201 User manual

Instruction Manual
SAFETY PRECAUTION to be read before any usage of the product:
• Never subject speaker to extremes of light, temperature, moisture or vibration.
• Batteries (Battery pack or batteries installed) shall not be exposed to excessive heat such as sunshine, re or the
like.
• Do not use or store this speaker in a location subject to:
a. Extreme high temperature, such as in a sun-heated car.
b. Direct sunlight.
c. High humidity or places with corrosive substances.
d. Sub-zero conditions, especially during winter.
• Never use alcohol, benzene, thinner, cleaning uid or other chemicals. Don’t use compressed air to remove dust.
• Clean only with a dry cloth. Be careful not to wipe it with anything abrasive.
• Don’t block any of the ventilation openings, install according to the manufacturer’s
instructions.
• Refer all servicing to qualied service personnel. Servicing is required when the
unit has been damaged in any way.
• This device should be used in conditions which allow sucient ventilation.
• Do not cover with newspaper, table clothes, curtains, etc.
• Keep minimum distances (recommended distance : 10 cm) around the apparatus
for sucient ventilation.
• Do not place on or close to this device: ames or re sources, such as lighted
candles, etc.
• The apparatus shall not be exposed to dripping or splashing. Objects lled with liquids, such as vases, shall be
placed on the apparatus.
• This apparatus includes a battery. Please comply to the local regulations for
battery disposal.
• Do not use this product in extreme weather conditions.
FCC INFORMATION
This equipment has been tested and found to comply with the limits for a Class B Digital Device, pursuant to
Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates, uses, and can radiate radio frequency
energy and, if not installed and used in accordance with the instructions, may cause harmful interference to
radio communications. However, there is no guarantee that interference will not occur in a particular
installation.
If this equipment does cause harmful interference to radio or television reception, which can be determined
by turning the equipment o and on, the user is encouraged to try to correct the interference by one or more
of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the distance between the equipment and receiver.
• Connect the equipment to an outlet on a circuit dierent from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
This equipment complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:
1. This equipment may not cause harmful interference.
2. This equipment must accept any interference received, including interference that may cause undesired
operation.
Modications not authorized by the manufacturer may void the user’s authority to operate this device.
LIITHIUM- ION BATTERY WARNINGS
This device contains a Lithium-ion battery. The battery must be recycled or disposed of properly. Contact
your local waste management oce for information on battery recycling or disposal.
The battery of this device can only be replaced by qualied service personnel.
Danger of explosion if battery is incorrectly replaced. Replace only with the same
or equivalent type.
Specications:
Bluetooth version: V4.1 Support:HSP / HFP / A2DP /AVRCP
Range Class 2, up to 16.4 ft (5m)
Frequency range：2402-2480MHz
Operating Temperature：-10℃~40℃
Power Input 5V 1A
Rechargeable Battery: 200mAh
Charging time: 2.5hours
Battery Life Approx.: up to 4 hours
Total Power Output 2Wx 2
Frequency Response :40Hz ~20kHz
Water Resistance Splash Resistant：IPX4
Product Weight: 75 g (approximately)
Product Dimensions：1.83"W x 0.75"T x 25.68"L
Know you speaker
How to wear your speakers:
1) Put the speakers on your shoulder and the wire of the speaker around your neck as shown below.
2) Slide the magnet under the speaker and place the magnet under your t-shirt, then attach the speaker on
your shirt. Note: thickness of your t-shirt should not be over 5 mm.
You can adjust the speakers to their most comfortable position by moving the cable clip up or down.
Note: please make sure you remove the magnet under your shirt before you adjust the position of the
speaker.
Charging the speakers:
1) Connect the small end of the micro USB charging cord into the battery recharge female connector of
speaker.
2) Connect the other end of the micro USB cable to one of your computer USB port or any appropriate USB
charger.
3) The Red LED will light up when charging.
4) LED turn in to blue when fully charged.
Note:
1.Make sure you fully charge your speaker for 2.5 hours before using it for the rst time.
2. The Speaker will be automatically o when charging.
Switch On/O:
To switch on: When the speaker is OFF, press MFB button and hold for 2 seconds，blue LED stays on for 2
seconds.
To switch o: When the speaker is ON, press MFB button and hold for 5 seconds, red LED light stays on for 2
seconds.
Pairing with a Bluetooth enabled device:
First Time Pairing:
1) When the speaker is o, press MFB button for 6 seconds till you hear second set of tones and the LED will
ash Blue and Red alternatively.
2) Keep your speaker and device within 3 feet of each other.
3) Turn on the Bluetooth function on your device and search for “Zulu Audio” in the list of available devices, and
press connect.
4) You will hear a tone alert and the LED light will ash blue quickly after pairing connection succeeds.
Pairing with device which has been paired before.
When the speaker is o, press MFB button for 2 seconds until you hear a tone alert, it will be connected
automatically when the Bluetooth of the device is ON. If they don’t connect in 48 seconds, the speaker will
enter pairing mode; then follow above steps to connect the speaker to your device. (pairing memory goes up
to 8 devices).
To clear pair list, press the vol – and vol + buttons together for 2 seconds. After this operation, the speaker will
power o and the pair list will be cleared.
The speaker will automatically turn o after disconnect for 2 minutes.
Magnetic Field:
Can be harmful to individuals with pacemakers or similar implanted devices.
Keep away from credit cards, computer drives and recorded media.
WARNING
Do not expose speaker to dripping or splashing while charging. Speaker should not be used when
raining or snowing. Submerging it in water or other liquids may result in permanent damage to
speaker.

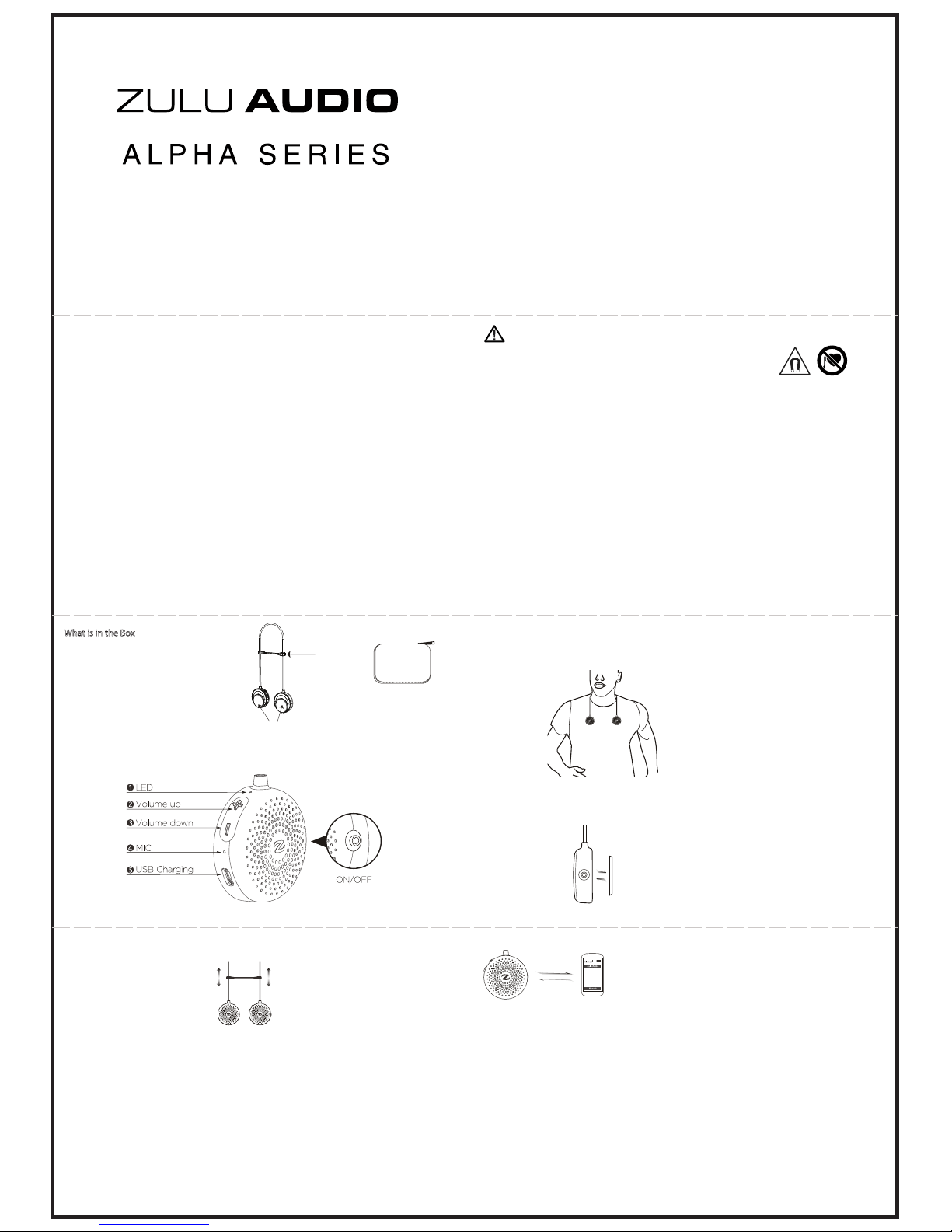

What is in the Box
Micro USB Charging Cable x 1
Carry Case x 1
Instruction Manual x 1
Wearable Speaker (with magnets) x 1
Extra magnet x 1
Cable Tie (on the speaker) x 1
(MFB button)
cable tie
Two pcs magnets
attached with speakers
Carry case
Inside with
1pc extra magnet
Micro USB charging cable

When disconnecting the speaker:
1) Switch o the Bluetooth function on your device, the speaker’s LED will ash blue slowly.
2) Switch o the speaker as mentioned above, the pairing memory will be stored for next time.
When you pair the speaker with the same device, it will be connected automatically when you switch on
the speaker and the Bluetooth function of your device.
Music Playing:
(after Bluetooth connection succeeds)
Play/Pause: press MFB button to play or pause music. To resume, press MFB button again.
Track forward:
Press and hold Vol + button for about 2 seconds.
Track backward:
Press and hold Vol – button for about 2 seconds.
Volume up:
Press the Vol + button once.
Volume down:
Press the Vol – button once.
Handsfree function:
Answer call:
To answer a call, press the MFB button once. Music will play again automatically when the call ends.
End call:
Press the MFB button once to end the call.
Reject call:
Press and hold the MFB button for about 2 seconds.
Redial last call:
In music playing or standby mode, press the MFB button twice quickly.
Mute /un-Mute:
Press and hold vol – button for 2 seconds to mute/un-mute during a call.
Voice dial:
In standby and music playing mode, press Vol – and Vol + together to activate voice dial function, then say
the contact name you would like to dial.
2nd Incoming Call:
To take the 2nd incoming call and end the 1st call, short-press the MFB button once.
To take the 2nd incoming call and hold the 1st call, press the MFB button for 2 seconds.
To switch between to the 1st call and hold the 2nd call, press the MFB button for 2 seconds.
To end the present call and switch to holding call, short-press the MFB button once.
Switch between speaker and your phone:
During answering or making a phone call via the speaker, press and hold ‘Vol +’for 2 seconds, the call will
switch to your phone. To switch back, press and hold ‘Vol +’for 2 seconds.
Battery display:
When the speaker is connected to an iOS device, the battery level of the speaker will be indicated on the iOS
device’s screen.
Low battery: the red light will ash once per 2.5 seconds for a total of 20 seconds; this will occur every 130
seconds on an endless loop until the unit is completely out of battery.
Instruction for pairing with two mobile phones:
1) Pair the rst mobile phone (see the steps in‘Pairing with a Bluetooth enabled device’)
2) Then turn o the headset and reboot the device to the pairing mode.
3) Pair the second mobile phone using the same steps. After pairing succedes, the speaker is now paired to
two mobile phones, you can play music on either one and answer phone calls from either as well.
LED indicator and Voices Alert
Trouble Shooting
Problem What to Do
The Speaker is on, but it is not
connecting to my device.
Please switch o the speaker and the Bluetooth function of your
device. Then follow the instruction in the “Pairing Section”.
The speaker is connected to my
device, but there is no sound.
1. Please make sure that you turn up the volume of both speaker
and your device.
2. Some smart phones/ laptops require you to setup the speaker as
an audio output device before sound is transmitted, please check
the instruction of your device.
3. If you are using a music player or other device, please make sure
it supports A2DP stereo music prole.
The sound is not very clear/ the
caller cannot hear my voice.
1. Keep your smartphone close to the speaker.
2. Adjust the volume on your phone and speaker.
3. Make sure there is no source of interference nearby.
4. Make sure the mic on the speaker is not covered.
The connection is not stable
and cuts out intermittently.
Please make sure there are no objects between the speaker and
your device and make sure no radio or WIFI interference nearby.
Speaker seems out of range. Speakers have maximum range of 16.4feet(5M). The actual range
will depend on usage and environment. Connection is usually
good within 15-25 feet when no major obstacles are between the
devices.
My speaker won’t turn on. Please recharge it and make sure it has enough battery power.
Disclamier:
Updates to hardware components are made regularly. Therefore some of the instructions, specications,
and pictures in this document may dier slightly from your particular situation. All item described in this
guide are for illustration purposes only and may not apply to every situation. No legal right or entitlements
may be obtained from the descriptions made in this manual.
Disposal:
We urge you to follow the correct disposal procedure for the product, packaging materials, and, if
applicable, accessories and batteries. This will help conserve natural resources and ensure that the materials
are recycled in a manner that protects health and the environment.
You must follow laws and regulations about disposal. Electrical waste products and batteries must be
disposed of separately from household waste when the product reaches the end of its life. Contact the store
where you bought the product or your local authorities to learn about proper disposal and recycling
practices.
The batteries must be disposed of at your local recycling point. See the operating instructions to nd out
how to remove the batteries for disposal.
We apologise for any inconvenience caused by minor inconsistencies in the operating instructions, which
The symbol means that the unit complies with European safety and
electrical interference directives.
The Bluetooth® word mark and logos are registered trademarks owned by the
Bluetooth SIG, Inc. and any use of such marks by Allan Mark, LLC is under license.
Declaration of Conformity
The following product has been deemed to comply with the requirements of the listed European Directives: -
RED Directives (2014/53/EU)
Low Voltage Directive (2014/35/EU)
Electromagnetic Compatibility Directive (2014/30/EU)
Product Description: Bluetooth Speaker
Brand: Zulu Audio
Model numbers: Zulu Alpha 1201,Zulu Alpha 1202
The above listed product conforms to the following EU Standards:
EN 60950-1: 2016+A11:2009+A1:2010 +A12:2011+A2:2013
EN 301 489-1 V2.2.0: 2017-03 (draft)
EN 301 489-17 V3.2.0: 2017-03 (draft)
EN 300 328 V2.1.1
EN 62479: 2010
The person responsible for this declaration is:
Name: Je Arias
Position: Managing Partner
Signature:
Date: September 11th, 2017
Function LED indicator Voice Alert
Power On Blue LED light stays on for
2 seconds
Du Du Du Du Tone
Power O Red LED light stays on for 2
seconds
Du Du Du Du Tone
Charging LED shows Red light
Fully Charged Blue LED light On
Pairing mode LED ashes Red and Blue
alternately
Du DuTone
Connection Success Blue LED light ashes
quickly
DuTone
Answer Call Blue LED light ashes once
every 8 seconds
DuTone
Standby (connected
and ready for music)
Blue LED light ashes twice
every 5 seconds
Importer:
Allan Mark, LLC
54 W 11th Ave, Denver, CO 80204
