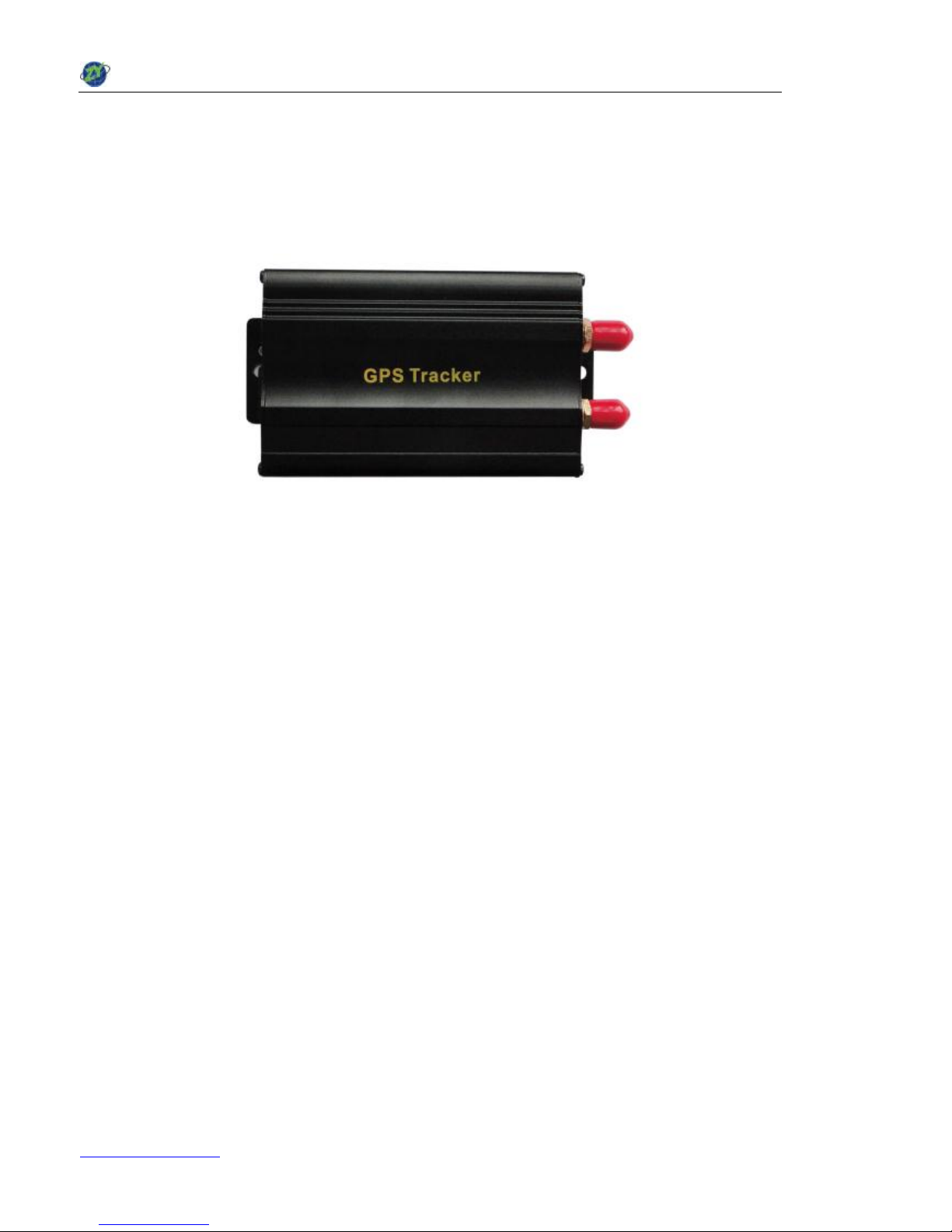

GPS103 User Manual of GSM/GPRS/GPS
Tracker for Vehicle
Function introduction
The portable satellite positioning system is a new product,which Set multiple functions of security,
positioning, monitoring surveillance, emergency alarms and tracking in its entirety. its compact size, easy to use,
easy to operate, mainly used for location and tracking in vehicles and other mobile object
The product fully supports the functions of SMS / GPRS / Internet data transmission,to make it more
widely used in large-scale monitoring, emergency scheduling, location-based services, traffic safety and many
other areas of management.
Features
1Support bothGPS / GSM station positioning ways.
2Support SMS/GPRS/Internet Network data transfer (GPRS/Internet instructions in CD enclosed）
3Support GPRS on-line and the line re-connected automatically.
4Support work based on existing GSM/GPRS network..
5Support configuration by remote terminal.
6Standby current is only 80mA.
7Support for point-to-point, point to group,group-to-group monitoring.
8Set multiple functions of security, positioning, monitoring surveillance, emergency alarms and tracking in
its entirety.

ZY INTERNATIONAL LIMITED GPS103CarTrackerManual.pdf
ZY INTERNATIONAL LIMITED
ADD:RM 1202,12/F,TUNG CHUN COMMERCIAL CENTRE,438-444 SHANGHAI STREET,KOWLOON,HONGKONG
TEL: [phone] FAX:[phone]
http://www.zhyichina.com

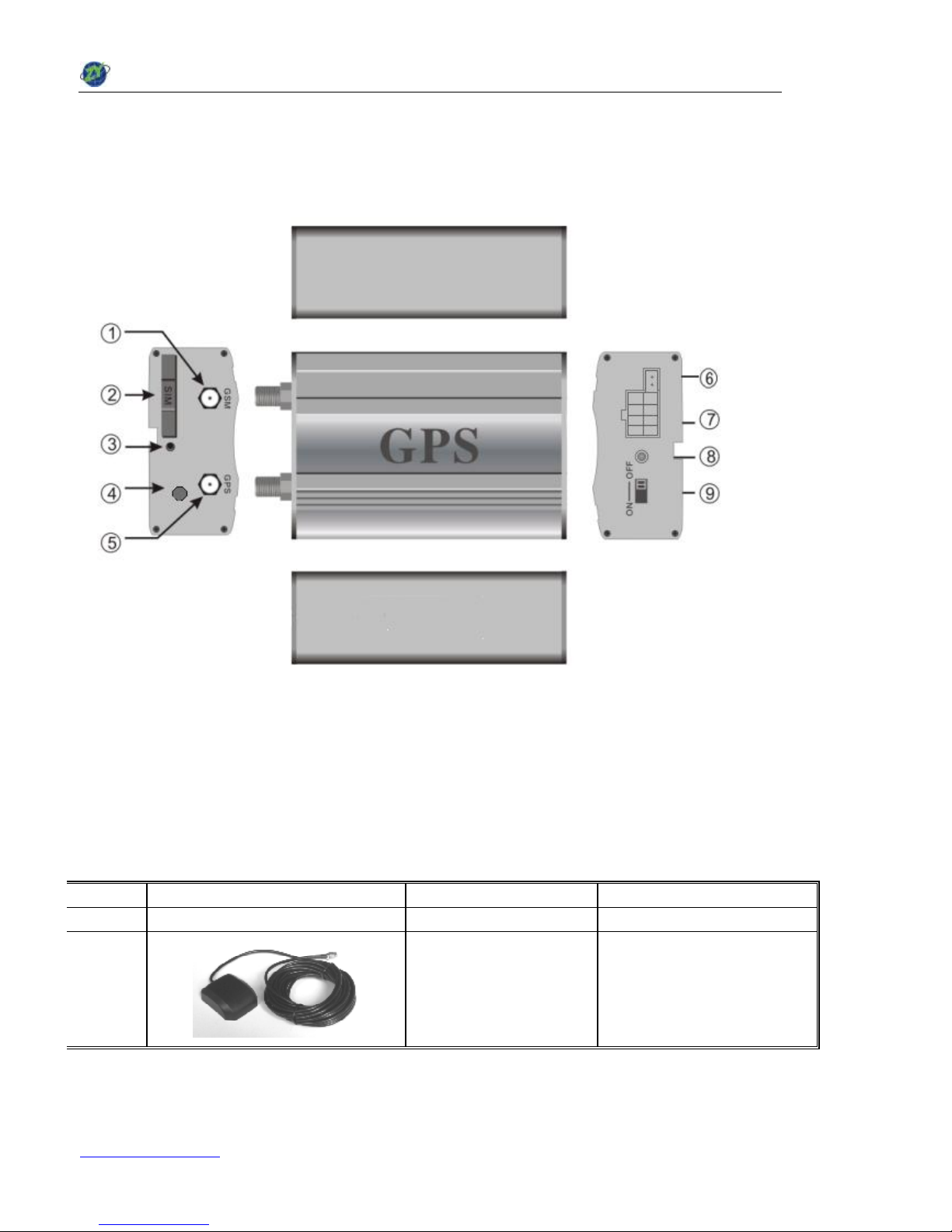

Hardware description
1GSM Antenna plug 2 SIM card slot
3SIM card slot 4 monitor jack
5GPS Antenna 6 Sensor plug
7outside cable 8 power/GSM LED indicator
9backup battery swich
NO. PHOTOES NAME NOTE
1 Main Unit 7.5cm*5.4cm*2.5cm
2
GPS Antenna 5 meters long

ZY INTERNATIONAL LIMITED GPS103CarTrackerManual.pdf
ZY INTERNATIONAL LIMITED
ADD:RM 1202,12/F,TUNG CHUN COMMERCIAL CENTRE,438-444 SHANGHAI STREET,KOWLOON,HONGKONG
TEL: [phone] FAX:[phone]
http://www.zhyichina.com

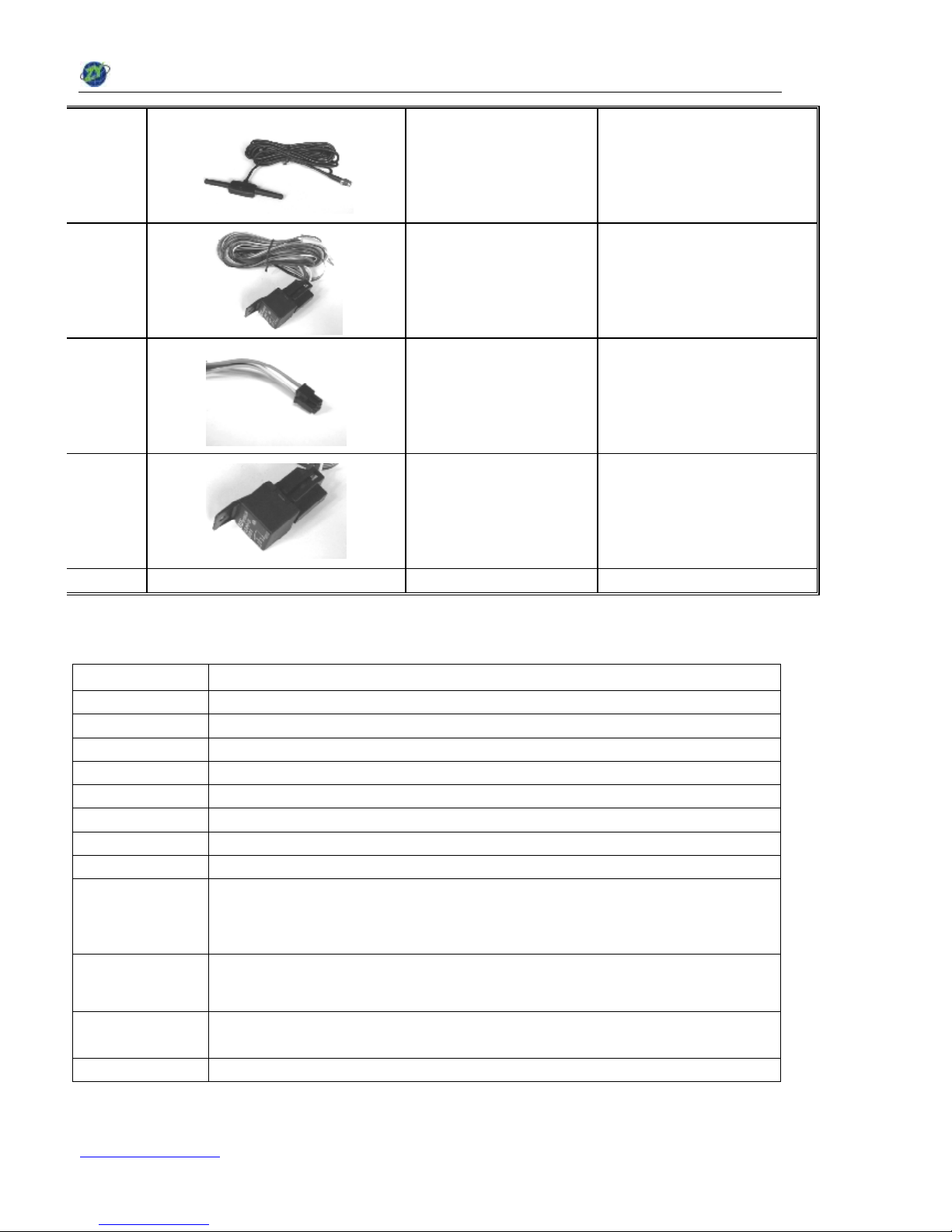

3
GSM Antenna 3 meters long
4
Harness
4-1
Plug 6 PIN
4-2
Relay
5 Manual
4.Specification
content specification
Dim. 83*54*26mm
Weight 115g
Network GSM/GPRS
Band 850/1800/1900Mhz or 900/1800/1900Mhz
GPS chip SIRF3 chip
GSM/GPRS Simcom300d or Simcom340d
GPS sensitivity
-159dBm
GPS accuracy 5m
Time to first fix
Cold status 45s
Warm status 35s
Hot status 1s
Voltage of car
power system 12V input
Car charger
output Cut off the power and the oil sytem and control the power system 0V
Car power door 0V（Negative trigger）or 12V（positive trigger）

ZY INTERNATIONAL LIMITED GPS103CarTrackerManual.pdf
ZY INTERNATIONAL LIMITED
ADD:RM 1202,12/F,TUNG CHUN COMMERCIAL CENTRE,438-444 SHANGHAI STREET,KOWLOON,HONGKONG
TEL: [phone] FAX:[phone]
http://www.zhyichina.com
input ACC:12V
sensor 0V
SOS botton 0V
Battery Chargeable changeable 3.7V 800mAh Li-ion battery
Storage Temp. -40 C to +85 C
Operation
Temp. -20 C to +55 C
Humidity 5%--95% non-condensing
Starting
1．: Wiring of installation
1Insert the wiring harness with the allocation of products to the correct wiring holes..
2To identify and cut off the car's fuel pump control circuit, the red wire connect with the engine side, yellow
wire connect with the oil side.
3Red and black wires, that is the products power cords connect with the positive and negative of car power, the
red connect with the positive of car power,and the black connect with the negative of car power.
4Red-black wire connect to the SOS button.
5Knowing about the type of the door trigger is positive or negative trigger.and connect the right wires
to the door control circuit.In this case,It will alarm when the door open in armed state.
6As shown below,insert the sensor plug into the sensor slot
7Connect GPS antenna connected to the GPS antenna terminal and connect the GSM antenna to GSM antenna
plug.
8Insert the external monitor mic into the monitor jack.

ZY INTERNATIONAL LIMITED GPS103CarTrackerManual.pdf
ZY INTERNATIONAL LIMITED
ADD:RM 1202,12/F,TUNG CHUN COMMERCIAL CENTRE,438-444 SHANGHAI STREET,KOWLOON,HONGKONG
TEL: [phone] FAX:[phone]
http://www.zhyichina.com

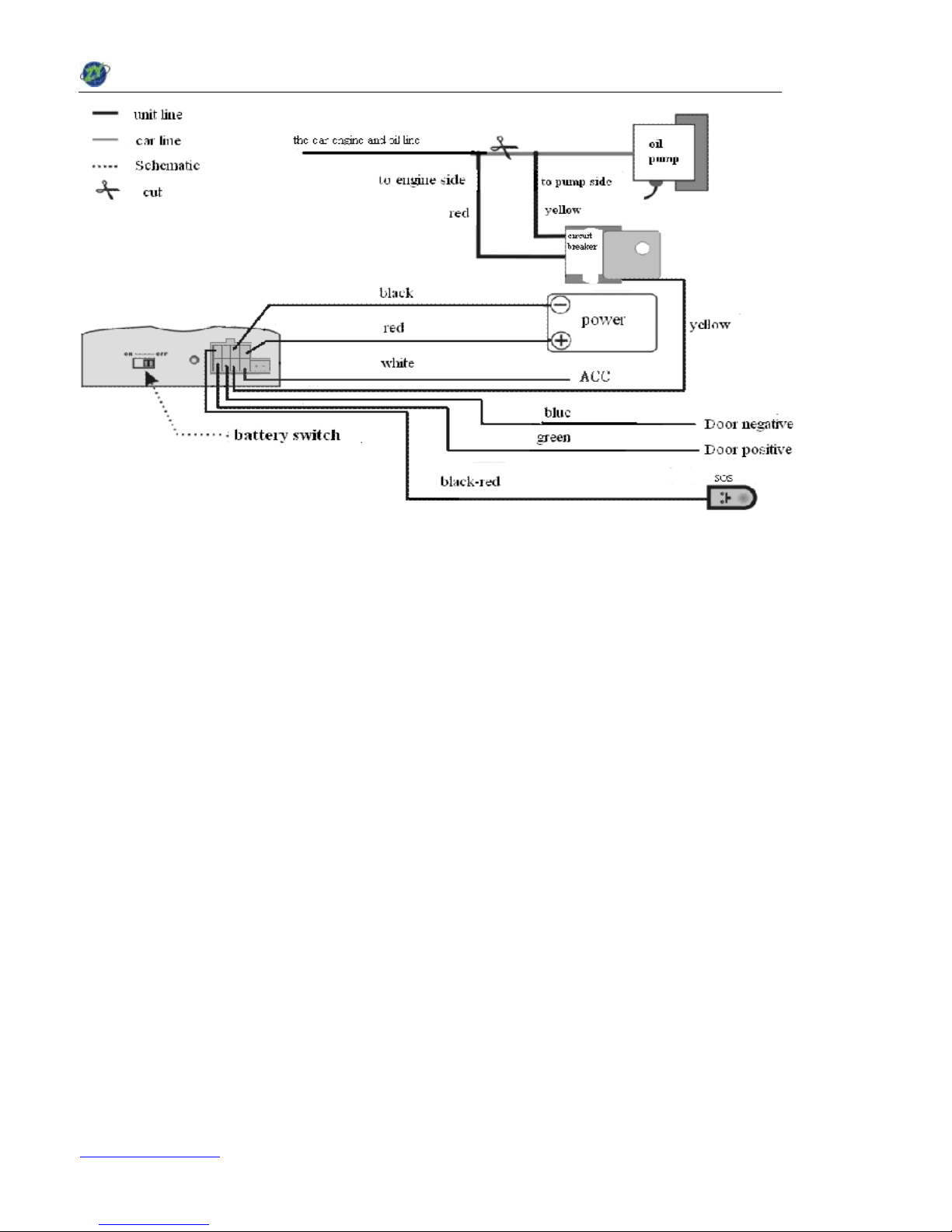

wiring of installation:
2: SIM card installation
Please make sure that the SIM card is able to execute the function of incoming calls display , no calls can be
diverted and the PIN code is locked.
The SMS format must be TXT format,and cant recognize the PDU format.
Push the foil along and open it,put the SIM card into the holder,and turn the foil and fasten it in place.
3: Connecting with power to work
The Red and black power wires connect with the 12V car power system, and check out the GSM / GPS
antenna is connected, swich the power on after the tracker deivice working.
At this time the green light indicator on, red indicator of GSM network start flashing,In 10 or 40
seconds,the unit will begin to work and acquire the GSM singals as well as the GPS singals.the GSM indicator
will keep flashing every 3 seconds.
4: Initialization
Send SMS”begin+password”to the unit,it will reply”begin OK”and initialize all the settings（default password：
123456）。
5: Change password
Send SMS password+old password+space+new password to the unit to change the password.
For example: send SMS”password123456 888888 to the unit. If succeeded,”password OK”will be replied to you
cell phone via the tracker device.If failed.namely,the SMS”Password fail”is received,pls check out the format of
the commands sent,and repeatly send.
Be sure to keep the new password in mind,you have to upload the software to restore the original setting in case
