GPS TRACKER TK-107
USER MANUAL
UPreface
Thank you for purchasing GPS Vehicle Tracker. This manual shows how to operate the device
smoothly and correctly. Make sure to read this manual carefully before using this product. Please note
that specification and information are subject to changes without prior notice in this manual. Any
change will be integrated in the latest release. The manufacturer assumes no responsibility for any
errors or omissions in this document.

ZY INTERNATIONAL LIMITED GPSTrackerManual_TK107
2
Content
1 Summary ------------------------------------------------------------------------------------------------- 2
2 Application ------------------------------------------------------------------------------------------------ 3
3 Hardware Description -------------------------------------------------------------------------------- 3
3.1 Front Face ------------------------------------------------------------------------------------ 3
3.2 Rear Face -------------------------------------------------------------------------------------- 4
3.3 Interior --------------------------------------------------------------------------------------- 4
4 Specifications ---------------------------------------------------------------------------------------- 4
5 SIM Card Installation ------------------------------------------------------------------ 5
6 Startup ------------------------------------------------------------------------------------- ----------- 5
7 Usage --------------------------------------------------------------------------------------------------- -- 7
8 Track Modes ---------------------------------- --------- -------- ---------------------------------------- 7
8.1 Initialization ---------------------------------- --------- -------- 7
8.2 Change Password ---------------------------------- --------- -------- 7
8.3 Authorization ---------------------------------- --------- -------- 7
8.4 Auto-Track ---------------------------------- --------- -------- 9
8.5. Tlimit Function---------------------------------- --------- --------
8.6. GPS refurbish setting---------------------------------- --------- --------
8.7 Reboot remotely---------------------------------- --------- --------
8.8 Geo-fence ---------------------------------- --------- -------- 9
8.9 Movement Alert ---------------------------------- --------- -------- 11
8.10 Overspeed Alert ---------------------------------- --------- -------- 11
8.11 IMEI Checking ------------------------------ --------- -------- 12
8.12 Time differences setting ----------------------------------------------------------------- 12
8.13 SOS Function --------------------------------- --------- -------- 13
8.14 SMSLINK --------------------------------- --------- --------------------------------------13
8.15 SMSONE ----------------------------------------------------------------------------13
8.16 Low Battery Alert --------------------------- --------- -------- 14
8.17 SMS Center ------------------------------ --------- -------- 14
8.18 GSM ID ------------------------------------------------------------------ 14
8.19 Motion Sensor ------------------------------ --------- -------- 14
8.20 SD Card Function ------------------------------ --------- -------- 15
8.21 Switch on/off ------------------------------ --------- -------- 15

ZY INTERNATIONAL LIMITED GPSTrackerManual_TK107
3
9 Monitoring Mode ------------------------------ --------- -------- 15
10 Talking Mode ------------------------------ --------- -------- 15
11 GPRS Setting -------------------------------------------------------------------- 16
12 Cautions --------------------------------------------------------------------- 17
13 Faults & Solutions --------------------------------------------------------------------- 17
14 commands ------------------------------------------------------------------------ 17
1 Summary
Working based on existing GSM/GPRS network and GPS satellites, this product can
locate and monitor any remote targets by SMS or GPRS,and guard against theft of
Vehicle.
2 Applications
 Vehicle rental / Fleet management,etc.
 Protect the child / the elder / the disabled / pet,etc.
 Businessmen safety.
 Personnel management.
 Covert tracking.
3 Hardware Description

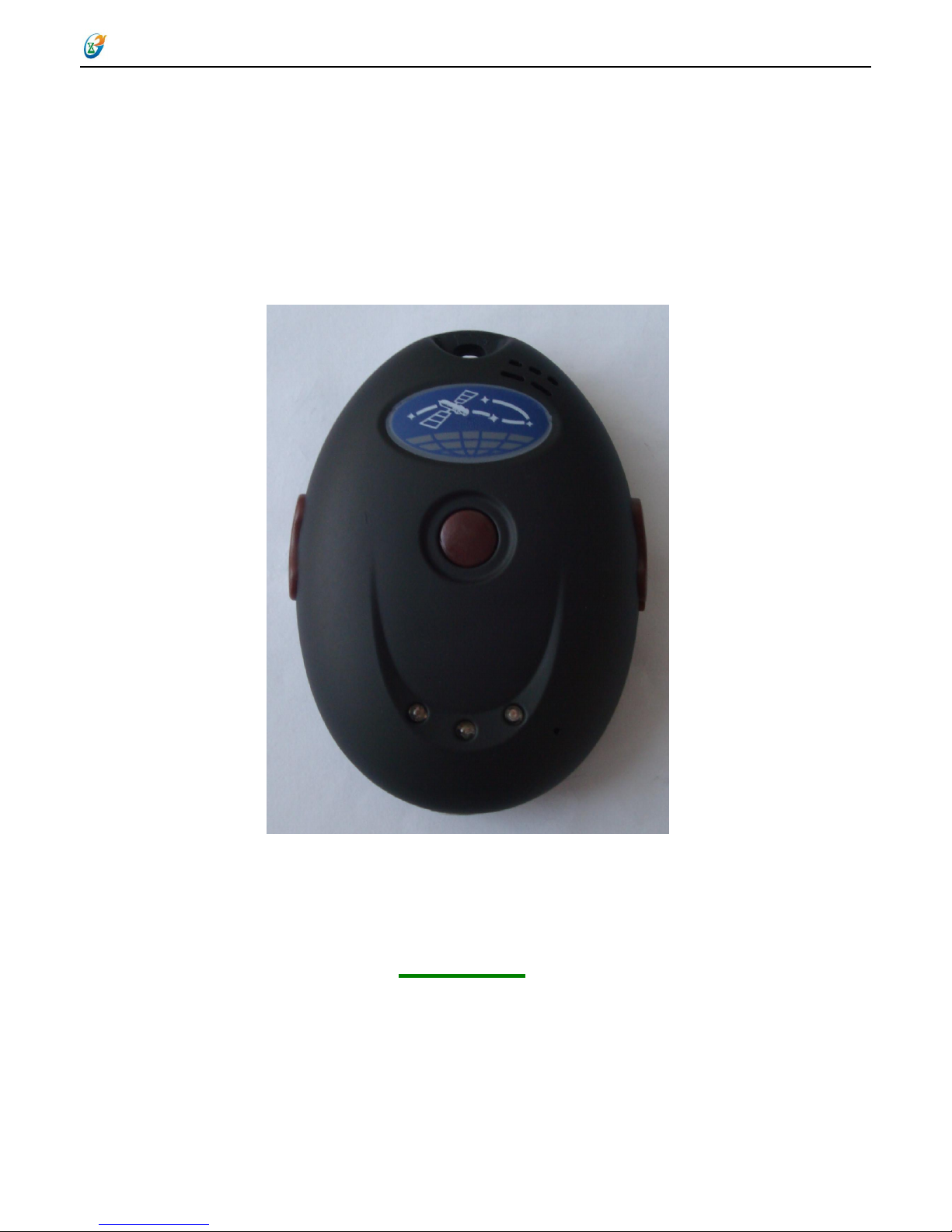

3.1 Front Face
Necklace holder

ZY INTERNATIONAL LIMITED GPSTrackerManual_TK107
4
3.2 Rear Face
1
2
3
4
7
SD Card SIM Card
For call
USB Port,for charging
and upgrade the firmware
Microphone
Speaker
GSM indicator light
Working modes indicator light
GPS indicator light
SOS Button
Battery back cover

ZY INTERNATIONAL LIMITED GPSTrackerManual_TK107
5
3.3 Interior
4 Specs.
Content Specs.
Dim. 80MM*56MM*22MM
Weight 50g
Network GSM/GPRS
Band 850/ 900/1800/1900Mhz
GPS chip SIRF3 chip
GSM/GPRS
module Simcom900
GPS sensitivity -159dBm
GPS accuracy 5m
Time To First Fix
Reacquisition 0.1s
Cold status 45s
Warm status 35s
Hot status 1s
Battery

ZY INTERNATIONAL LIMITED GPSTrackerManual_TK107
6
Battery DC5V input
Battery Chargeable changeable 3.7V 800mAh Li-ion battery
Standby 100hours
Storage Temp. -40°C to +85°C
Operation Temp. -20°C to +55°C
Humidity 5%--95% non-condensing

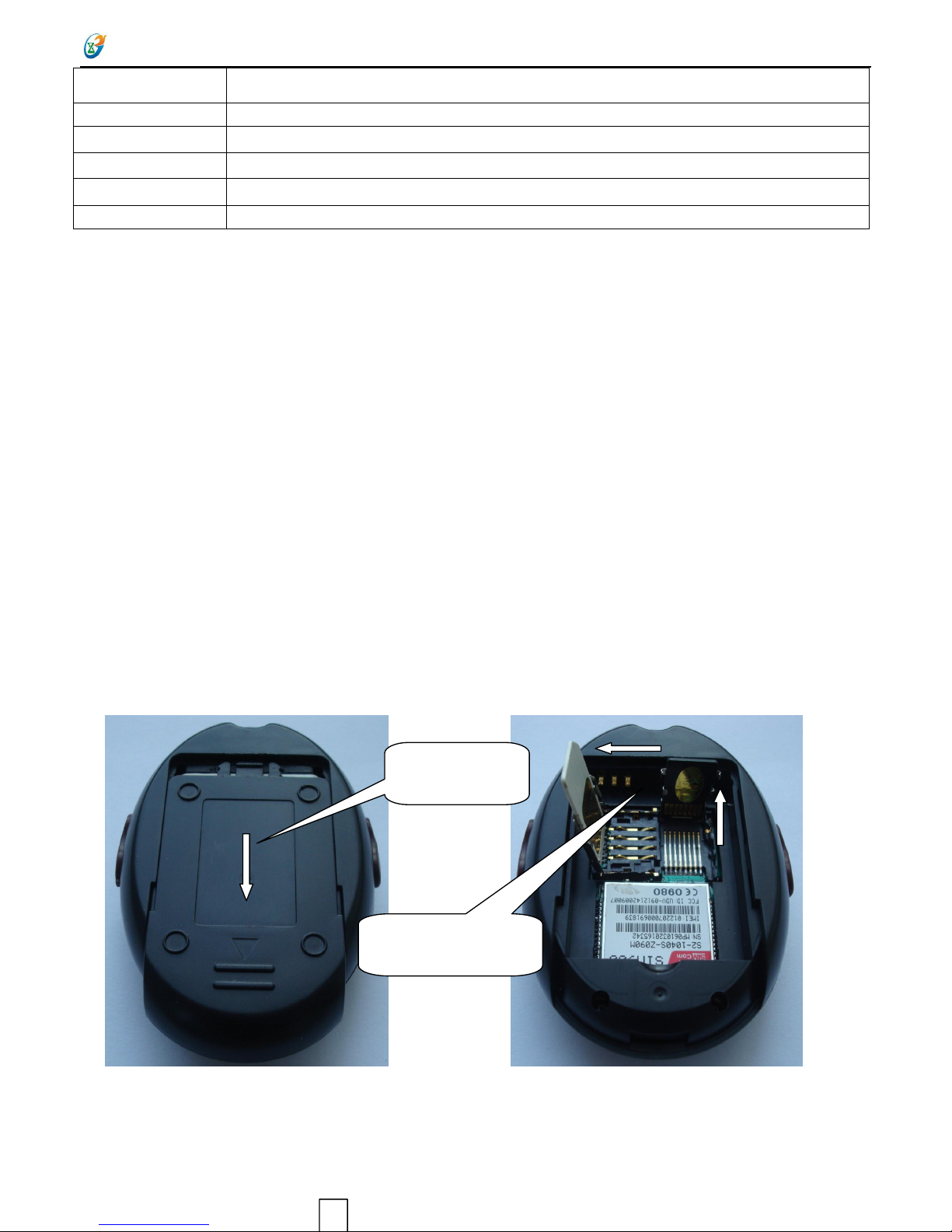

5 SIM card installation
Make sure that there is no call transfer and call display is on, and PIN code off.
Steps
1. Open the Battery back cover
2.Open the SIM card slot and SD card slot,and put one SIM card and one SD card
Pull leftwards and insert
the simcard
Push downwards
to open the cover

ZY INTERNATIONAL LIMITED GPSTrackerManual_TK107
7
6 Startup
 Put the SIM card and SD card in place,install batteries locator will automatically boot.
 After startup middle green quickly ablaze, left GMS yellow colored long bright 2 seconds,
right of GPS blue lights for not bright, and 20-30 seconds in the middle of the green light
will shine out 1 second for 3 seconds left GMS parade every 3 seconds, a shiny for GSM
now working normally.
 about 40 to 90 seconds later, this product will be receiving GPS signals on the right of the
blue lights began bright 1 second destroy 3 seconds, when this product blue when the light
Fasten downwards ,make sure the SD card is mounted
After SD card is mounted，
Fasten the simcard rightwards
Put the battery Fasten the cover
upwards

ZY INTERNATIONAL LIMITED GPSTrackerManual_TK107
8
is you can play the following Settings. (note: blue lights on time with the current GPS
signals about, the current not GPS signals blue lamp will not bright.
7 Usage
The tracker has three working modes: Tracking mode ，Monitor mode , Double-way
Commnication mode , Modes switch between “Tracking ”, “ Monitor ” and “ Double-way
Commnication
”.
When power on the tracker, the default mode is “ Tracking ” mode, you can send
“ monitor+password ” to switch to Monitor mode, or send “ talk+password ” to switch to
Double-way Commnication mode, or “ tracker+password ” back to Tracking mode.
8 Track Modes
8.1 Initialization
Send “begin123456” to the product, it will reply “begin ok” and initialize all the settings.
8.2 Change the Password
Send SMS “password+old password+space+new password” (default password:
123456), it will reply “password ok”
From:13188888888
password ok
TO:13188888888
begin123456
TO:13188888888
password123456 888999
From:13188888888
begin ok

ZY INTERNATIONAL LIMITED GPSTrackerManual_TK107
9
8.3 Authorization
8.3.1 Send SMS “admin+ password+ space+ cell phone number”to set the first
authorized number, it will reply “admin ok”, The other authorized numbers should be set
by the first authorized number.(PS: There are only 5 numbers able to be authorized)
8.3.2 Send SMS noadmin+password+space+authorized number to cancel the
authorized number.
8.3.3 When an authorized number send SMS or dials up the unit, it will reply as below:
Lat: 22.566901 long: 114.051258 speed: 0.00 14/08/09 06.54 F:3.85V,1,Signal:F
imei:354776031555474 05 43.5 460 01 2533 720B
Lat: 22.566901 long: 114.051258 == Coordinate
0.00
=== speed
14/08/09 06.54 == Date&Time
F:3.85V == battery power

ZY INTERNATIONAL LIMITED GPSTrackerManual_TK107
10
1 == charging 0 means no charging
Signal:F ==== Full GPS signal 0 means weak GPS signal
354776031555474 == IMEI号
05=quantity of satellites ( from 3 to 12 )
43.5=Altitude
460 = MCC Mobile Country Code
01 == MNC Mobile Network Code
2533= LAC Location area code
720B= Cell ID
8.4 Auto-Track
This function is using for the user to receive SMS with Geo-info in a certain time.
8.4.1 Set up: Send SMS t030s005n+password to the unit, it will report the Geo-info at
30s intervals for 5 times.(s: second, m: minute, h: hour). You will receive a reply as
“ t030s005n OK” if the setting is successful .The setting must be in 3 digits and at
maximum 255 in value.

ZY INTERNATIONAL LIMITED GPSTrackerManual_TK107
11
8.4.2 Send SMS t030s***n+password to the unit, it will reply SMS heaps of times. You
will receive a reply as “ t030s005n OK” ( t030s***n ok ) if the setting is successful .
8.4.3 Cancel: Send notn+password to delete the “ auto track “,it will reply “notn ok”。
Remark: the interval must not be less than 30s.
8.5 Tlimit Function
8.5.1 Send “tlimit123456 50” (50 to restrict send distance, 1-6000M set), reply “tlimit ok” (note:
this function should coordinate with automatic positioning used together). Set up this function
after locator to get out of setting distance will send a positioning information, such as not
ambulate won't send information, so can "province user information costs.
8.5.2 Send” tlimit123456 0 “for close distance limit function, reply” tlimit ok”.
From:13188888888
Notn ok
From:13188888888
T030s***n ok
TO:13188888888
Notn123456

ZY INTERNATIONAL LIMITED GPSTrackerManual_TK107
12
8.6 GPS-refresh setting
Send SMS “GpsAutoSearch123456 120”，it will reply “GpsAutoSearch ok”. The tracker will
search gps signal in 120s interval after setting this. The refreshing time is between 120-600
seconds(120<interval <600)
(note: Longer standby time for longer refreshing time and shorter standby time for shorter
refreshing time.)
8.7 Reboot remotely
When using the region GPRS signal not, causing GPRS stuck not while sending data can be
sent restart123456,locator received within 3 minutes after the restart a shutdown automatically.
8.8 Geo-fence
Set up a geo-fence for the unit to restrict its movement within a district. The unit will
send message to the authorized numbers when it moves out of this district.
Notes: This function will be invalid if the unit moves outside the district. You need to
re-set it if you want this function again.
8.8.1 Setup:Send SMS stockade+password+space+longitude,latitude; longitude,latitude
to the unit to set the restricted district.
Remark :The first longitude & latitude is coordinate of the top left corner of the
Geo-fence, while the second longitude & latitude is the coordinate of the bottom right
corner. It will reply stockade ok。
TO:13188888888
stockade123456
114.124845e,22.56718
5n;114.777888e,22.55
5666n
From:13188888888
stockade ok

ZY INTERNATIONAL LIMITED GPSTrackerManual_TK107
13
8.8.2 Cancel:Send SMS “nostockade+password” to deactivate this function.It will reply
“nostockade ok”。
This function will be out of effect after the unit moves outside the district.
8.8.3 Response SMS format: stockade!+geo-info. It will alarm one time in each setting.
8.9 Movement Alert
This function is using for the owner to get alarm when the tracker
moves out of a
restricted district.
8.9.1 Setup: Send SMS move+password to the unit to set the movement alert,it will reply
move ok
From:13188888888
lat: 22.566923 long:
114.051331 speed: 0.00
28/11/10 03:33 F:4.32V,0,
Signal:F stockade
imei:359587011016261 05
41.5 460 01 2533 720B
From:13188888888
nostockade ok
TO:13188888888
nostockade123456

ZY INTERNATIONAL LIMITED GPSTrackerManual_TK107
14
8.9.2 Cancel: Send SMS nomove+password to deactivate the movement alert,it will
reply move ok
This function will be invalid after getting one movement alert
Response SMS format: : move!+geo-info. It will alarm one time in each setting.
8.10 Overspeed Alert:
This function is used to control the user’s driving speed.
8.10.1 Setup: Send SMS speed+password+space+ the speed, For example: speed123456
080,it will reply” speed ok”
TO:13188888888
move123456
From:13188888888
move ok
From:13188888888
lat: 22.566923 long:
114.051331 speed: 0.00
28/11/10 03:33 F:4.32V,0,
Signal:F move
imei:359587011016261 05
41.5 460 01 2533 720B

ZY INTERNATIONAL LIMITED GPSTrackerManual_TK107
15
8.10.2 Cancel: Send SMS”nospeed+password “to deactivate the overspeed alert,it will
reply” nospeed ok。”
Response SMS format: speed+080!+Geo-info (suppose the speed is 80km/h).
The tracker will check the speed in 3 minutes interval and alarm if it is overspeed.
]
TO:13188888888
speed123456 080
From:13188888888
speed ok
TO:13188888888
nospeed123456
From:13188888888
nospeed ok
From:13188888888
lat: 22.566923 long:
114.051331 speed: 0.00
28/11/10 03:33 F:4.32V,0,
Signal:F speed
imei:359587011016261 05
41.5 460 01 2533 720B

ZY INTERNATIONAL LIMITED GPSTrackerManual_TK107
16
Remark: It is recommended that the speed alarm is set at not less than 80km/h. in order
to make this function accurate
8.11 IMEI Checking:
Send SMS” imei+password: to the unit,it will reply imei350001122222222 ok.
8.12 Time Zone setting
Send “time zone+password + GMT time ,reply “time zone ok”. (note: if GMT time is positive,
just write the number 1. If time zone is negative, have to write –1)
TO:13188888888
imei23456
From:13188888888
imei35000112222222
2 ok
TO:13188888888
Time zone23456 1
From:13188888888
time zone ok
TO:13188888888
Time zone23456 -1

ZY INTERNATIONAL LIMITED GPSTrackerManual_TK107
17
8.13 SOS Button
Press the SOS for 3 second, it will send “help me !+ Geo-info” to all the authorized
numbers every 3 minutes. It will stop sending such a SMS when one of the authorized
number reply SMS ” help me+password” to the tracker.
(note: the default software only send one SOS alert. Pls contact with our company for the
firmware with several SOS alerts )
8.14 SMS LINK
8.14.1
Send “smslinkone+password”, This product will reply a GOOGLE link to admin number.The
position can be checked directly for one the smartphone
Format ：http://maps.google.com/maps?f=q&hl=en&q=22.567610,114.051227&speed: 0.00
12/11/10 14:36 F:4.22V Signal:F imei:012207000691839
8.14.2
Send “smslink123456”, it will reply “smslink OK” . The tracker will send the following SMS
format always.
http://maps.google.com/maps?f=q&hl=en&q=22.567610,114.051227&speed: 0.00 12/11/10
14:36 F:4.22V Signal:F imei:012207000691839
8.14.3
Send “smstext123456”, it will reply “smstext OK”. The tracker will reply normal SMS format
for this command

ZY INTERNATIONAL LIMITED GPSTrackerManual_TK107
18
8.15 SMS ONE
Send “smsone+password”.The tracker will reply one SMS to admin number or gprs server.
The same function with real-time tracking, but no need to call just send this command
8.16 Low Battery Alert
When the battery inside is less than 3.7 V, it will send low battery alert to admin number
8.17 SMS Center ( or appointed number)
8.17.1 Setup: Send SMS adminsms+password+space+cell phone number to setup the
SMS center.
The tracker will reply Geo-info & authorized number to sms center number even if the
admin numbers call or send command to the tracker
8.17.2 Cancel: Send SMS noadminsms+password to cancel the SMS center.
Response SMS format: authorized number+Geo-info
Note:
◆The SMS message must in Text format, can’t be identified for PDU format.
◆Please use the tracker outside for the first time so that It can get gps signal easily and
quickly
8.18 GSM ID （ this function can be add or delect for customization. ）
GSM ID are in each sms or gprs data. The tracker can be found by GSM ID without
gps signal. But the customers have to ask their GSM operator for data base of the
GSM ID.

ZY INTERNATIONAL LIMITED GPSTrackerManual_TK107
19
8.19 Motion Sensor （ This function is used to protect the vehicel or tracker when it is
touched. ）
8.19.1 Setup: Send shake+password+space+1-10 to the tracker to set up this
function.(1-10 means the level of intensity)
8.19.2 Send SMS shake+password+space+1 is the least sensitivity . Have to shake the
tracker strongly to get the alert.
8.19.3 Send SMS shake+password+space+10 is the most sensitivity . Have to shake the
tracker slightly to get the alert
8.19.4 Cancel: Send SMS shake+password+space+0 to remove this function.
8.20 SD card function
A mini SD card can be put in the tracker’s SD card slot. The GPRS data can be saved in
the SD card if GPRS is off. It will send data to the GPRS server again if when is on.
8.20 .1 Setup: Send SMS sdlog+password+space+1 to activate the sd card-saving
function
Cancel: Send SMS sdlog+password+space+0 to the tracker to deactivate this function
8.20 .2 Setup: Send SMS readsd+password+space+1 to ask the tracker to send data in
the SD card to the GPRS server.
Cancel: Send SMS readsd+password+space+0 to ask the tracker to stop sending data
in the SD card to the server.
8.21 Switch on/off

ZY INTERNATIONAL LIMITED GPSTrackerManual_TK107
20
8.21.1 Switch off
Press TALK button and SOS button for three seconds, the green indicator will
flash quickly until it is off.
8.21.2 Switch on
Press TALK button and SOS button for three seconds, the green indicator will
flash quickly until it is on.
9 Monitoring Mode(voice surveillance mode)
Send SMS monitor+password, the tracker repllies “monitor ok” then the tracker will
get through automatically when you call and listen to it
10 Talking Mode
10.1 Send “talk+password”，it will reply “talk ok”， When authorized numbers call to the
tracker, it will ring several tones and get through automatically to double-communicate
10.2 Send “volume+password+60” ,it will reply “volume ok”
The volume can be set between 0 to 99 to make the volume louder or lower
10.3 Dial authorized numbers automatically
TALK button can be pressed for 3 seconds until it stops flashing quickly to get
help from the authorized numbers in emgency. The tracker can call to the
authorized numberes one by one and you can hear the calling. The tracker will
