111 ABRASIVES AUSTRALIA PIPE-FIX DUO User manual

PIPE-FIX DUO
Operating Instructions
Detailed Schematics
Spare Part List

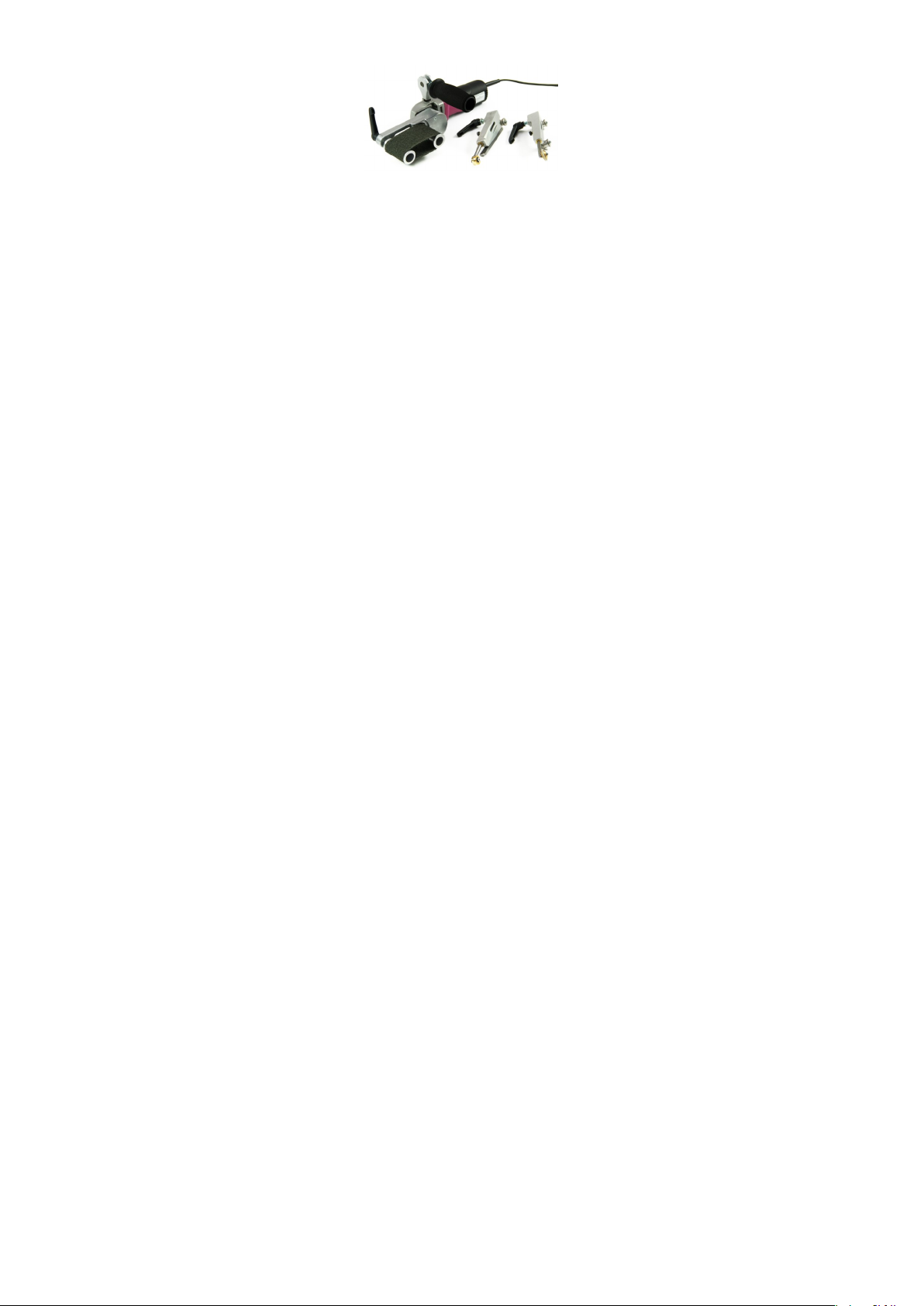

You have made a good choice buying our PIPE-FIX machine with ’two-in-one’ function:
you can use it as a pipe belt grinder as well as a belt-filing machine.
In combination with the corresponding accessory parts, you will obtain a perfect surface on
open and closed pipe constructions.
1. Used as a pipe belt grinder, the small powerful machine is very well suitable for all usual pipe
diameters where you will achieve an optimal result from coarse grinding to mirror-finish polishing.
You can remove welding seams as well as deep scratches and polish up to a mirror-finish within a very short
time. So you will have a homogeneous grinding finish without any transitions, even on very long
balustrades. You can quickly ‘renew’ already worn or damaged handrails.
2. In a few seconds and without any tools, the PIPE-FIX can be changed into a belt filing
machine: simply remove the clip lever (continuously adjustable), take off the front running roll and fix the
belt filing attachment by means of the clip lever. The belt is guided by the corresponding gap in the
drive roll. The grinding belts are automatically tightened through the built-in spring in the front part of the belt
filing attachment.
3. The PIPE-FIX is equipped with an electronics that can be continuously adjusted as required.
An adjustment of the grinding belts is not necessary any more – even in case of a lateral ’shifting’, they will
not slip away.
PIPE-FIX DUO

Speed range:
Simple variable speed control by a small wheel at the back of the
handle. Following speeds can be set through the electronics:
Step A:
Step B:
Step C:
Step D:
Step E:
Step F:
Step G:
900 rpm
1,950 rpm
2,900 rpm
3,350 rpm
4,400 rpm
5,100 rpm
5,400 rpm
Technical data:
850 Watt, 220 - 240 Volt, 50 Hz.
Variable Speed.
Speed range: 900 – 5,400 rpm.
Weight: 2.3 Kg
noise value: Lp: 84.5 dB(A) Lw: 95.5 dB(A) K:3 dB(A)
vibration value:ah: 2.99 m/s2, K: 1.5 m/s2
Warranty:
We grant a 12 months’ warranty from date of invoice on all technical and mechanical parts, provided that
the machine has not been interfered with by a third party.
Spare parts available according to list. Necessary repairs to be made in our works.
PIPE-FIX DUO

PIPE-FIX DUO
850 watts - 230 volts
503
512

Pos. Item-No. Designation Pos. Item-No. Designation
1 52004-3 QUICK-LOCK cable 4,0 m length
2 53102 motor - plastic case 27 51411-1 Spindle M10
3 53103 service case cover 28 53128 crown wheel
4 53104 magnetic field 29 53032 bearing shield
5 53105 armature with pinion 30 53035 spacer ring
6 53106 fan 31 51417 sealer ring
7 53107 ball bearing 32 53038 disc 0.1 mm (when necessary)
8 51110 sealing ring 33 53039 disc 0.2 mm (when necessary)
9 53109 flange 34 53040 disc 0.3 mm (when necessary)
10 53110 carbon brush holder 35 53135 sealing ring
11 53111 switch lever 37 52699 handle with foam
12 53112 lever-rod 38 53138 motor-screw set
13 51417 sealing ring 501 51501 Drive belt
14 53114 bearing cover 502 51502 Lever
15 53115 electronic-unit 506 51506 Rubber O-ring
16 51131 carbon brush 508 51508 Screw
17 53117 switch 509 51509 Case
18 53118 condenser 510 51510 Crown wheel
19 53119 cable connection 528 51528 Drive rubber
21 53121 gear box 529 51529 Blanking cover
22 51402 spindle lock 530 51530 Stud bolt
23 53122 ball bearing 535 51535 Belt filling application
24 51407 sealing disc 536 51505 Guide-roll
25 51408 locking ring 537 51537 Drive-roll
26 53126 disc 802 52710k Angled piece for handle
Date: 24. January 2014 Subject to change!
Model 230 V
PIPE-FIX DUO
850 watts - 230 volts

CE 94 Conformity Declaration
PIPE-FIX DUO 850 W - Manual
