2E OPS-600 User manual

PORTABLE POWER STATION
User Manual
ПОРТАТИВНА ЕЛЕКТРОСТАНЦІЯ
Інструкція з експлуатації
ПОРТАТИВНАЯ ЭЛЕКТРОСТАНЦИЯ
Руководство пользователя
Модель / Model: 2E-OPS-600
AC 600 W / Oure Sine Wave / 576 Wh / 160000 mAh
AC 600 Вт / Чиста синусоїда / 576 Вт·год / 160000 мА·год
AC 600 Вт / Чистая синусоида / 576 Вт·час / 160000 мА·час
EN
RU
UA

EN
2
WARNING
1. Please avoid using the product near high temperature, high
humidity, direct sun environment and fire place.
2. Do not disassemble or modify this product, it will cause
malfunction and fire.
3. Please discard or recycle the product according to the
methods prescribed by local laws.
4. Be careful not to drop the product from a high place and
give the product a strong impact.
5. Keep or use the product in a place out of the reach of
children.
6. Please use our company’s genuine accessories. The
damage caused by the use of non-genuine accessories
cannot be repaired free of charge.
7. Please leave a space of about 30cm away from the side
suction and exhaust ports, so as not to affect the heat
dissipation of the product.
8. When not using this product, please turn off the power and
unplug the power cord. Please avoid storing the product in
a place exposed to direct sunlight with high temperature
and humidity.
9. For long-term storage, please consume power from full
power to no power once every 3 months, and then recharge
to about 50%.
10.Please do not use this product and its accessory cables
and connecting equipment when there is a defect.
Please do not store the product for a long time in extremely
high and low temperature places such as in the car and in the
field warehouse to avoid shortening the battery life.

EN
2 3
CONTENT
Packing List ................................................................................4
Product introduction.......................................................................5
Technical Specication................................................................6
UPS mode ..................................................................................7
Solar panel connection..................................................................8
Car charging...............................................................................9
Warranty Card...........................................................................26

EN
4
Packing List
After opening the package, please check whether the product
appearance is damaged or lack of accessories.
№ITEM QUANTITY
1 Portable Power Station 1
2 98W AC Adapter (with AC Cable) 1
3 Type-C Cable (30 cm Type-C to Type-C) 1
4 Car Cigarette (Female with DC5.5*2.1 connector) 1
5 User Manual 1

EN
4 5
Product introduction
1. DC5.5*2.1 Input Only
2. Cooling Fan
3. 12V Cigar lighter (Female)
4. LED Screen (AC/DC/POWER/Voltage)
5.1. DC On/O Power Button
5.2. Main On/O Power Button
6. PD100W Input/Output
7. PD27W Output Only
8. Dual USB Output
9. 3*DC5.5*2.1 Output
10. 2*VDE(Europe) Socket Output(AC230V/50Hz)
11. AC On/O Power Button
12. LED Torch On/O Power Button
13. LED Torch
1. Type-C1 Input/Output, no need to do any actions, connect your
device, the Power Station will be discharged automatically.
2. Press the Light Button (12) for 3-5 seconds, the lighting will be
turned on, click the light button to switch dierent modes (Weak/
Strong/Blink).
3. The following steps must be turned on the Power Station: Press
Power Button (5.2) for 3-5 seconds.
a
. When the Screen is lighted on, Press the Power button (5.2) again to
switch on the Type-C2+2*USB-A(QC3.0-18W) output.
b. Press the DC button (5.1) (till LED for DC is lighted on), then
3*DC5.5(at the bottom of the screen) and 1*12V Car outlet (at the top
of the screen) can be output.
c. Press the AC Power Button (11) for 3-5seconds,the Screen show
moment Voltage 230V means AC Socket can be output. Press AC
Power Button again for 3-5seconds to cut o the AC Output(the
LED for AC was turned o ).
1. DC5.5*2.1 Input Only
2. Cooling Fan
3. 12V Cigar lighter(Female)
4. LED Screen(AC/DC/POWER/Voltage)
5.1. DC On/Off Power Button
5.2. Main On/Off Power Button
6. PD100W Input/Output
7. PD27W Output Only
8. Dual USB Output
9. 3*DC5.5*2.1 Output
10. 2*VDE(Europe) Socket Output(AC230V/50Hz)
11. AC On/Off Power Button
12. LED Torch On/Off Power Button
13. LED Torch
1.Type-C1 Input/Output, no need to do any actions, connect your device, the Power Station will be
discharged automatically.
2.Press the Light Button(12) for 3-5 seconds, the lighting will be turned on, click the light button to switch
different modes (Weak/Strong/Blink).
3.The following steps must be turned on the Power Station: Press Power Button(5.2) for 3-5 seconds
a.When the Screen is lighted on, Press the Power button(5.2) again to switch on the Type-C2+2*USB-A
(QC3.0-18W) output
b.Press the DC button(5.1) (till LED for DC is lighted on), then 3*DC5.5(at the bottom of the screen) and 1*12V
Car outlet (at the top of the screen) can be output.
c.Press the AC Power Button(11) for 3-5seconds,the Screen show moment Voltage 230V means AC Socket
can be output. Press AC Power Button again for 3-5seconds to cut off the AC Output
(the LED for AC was turned off).
1.It is recommended that the loaded device should not exceed 600W, and the excessive power may cause
output protection or burn out the product.
2.The Cooling Fan will be started when the total output Power >=150W(1pc), Power >=300W(2pcs)
3.USB-A QC3.0-18W have no output when DC Charging Input
4.DC input will be cut off @85% battery level when DC+PD Input same time
5.DC5.5*2.1/Car Outlet have no output when DC5.5*2.1 Input
6.DC Output will be cut off when AC Output reached 500W
Notice:

EN
6
Technical Specification
OUTPUT
AC OUTPUT
Rated Voltage 230 V
Rated Power 600 W/576 Wh
Peak Power 1200 W @1s
Over Load 653 W @10s
Frequency 50 Hz
DC12V OUTPUT
DC5.5*2.1-1/2/3 12 -13 V/10 A(Share)
Car Cigar Lighter 12 -13 V/10 A(Share)
3*DC5.5*2.1 Output and 1 Car Cigar Lighter share 12 -13
V/10 A
TYPE-C OUTPUT Type-C1 PD100W
Type-C2 PD27W
USB-A OUTPUT USB-A1/A2 5 V/2.1 A
LED LIGHT Power 11W(Max.)/8800-1320 Lums Continuous lighting 52H
Lighting (Weak/Strong) / SOS (Quick/Slow Flash)
INPUT
INPUT
DC5.5*2.1: 5-24.5 V/2-5 A, 122.5 W (Max.)
DC5.5*2.1: Solar Attached, 100W (Max.)
Type-C1: PD100W (Max.)
Support Type-C+DC Input 200 W (Max.)
BATTERY
SIZE/N.W
258*212*249 mm/6.1 KG
Notice:
1. It is recommended that the loaded device should not exceed 600W, and the
excessive power may cause output protection or burn out the product.
2. The Cooling Fan will be started when the total output Power >=150W(1pc),
Power >=300W(2pcs)
3. USB-A QC3.0-18W have no output when DC Charging Input
4. DC input will be cut o @85% battery level when DC+PD Input same time
5. DC5.5*2.1/Car Outlet have no output when DC5.5*2.1 Input
6. DC Output will be cut o when AC Output reached 500W

EN
6 7
UPS mode
UPS function
This product has the bypass mode, does not need to pass through the
battery, can directly output from the AC.
In UPS mode, when the AC input power of the mains is cut o due to a
power outage, the AC input power of the mains can be used in about
automatic switch to product battery power within 10 ms to ensure AC
output.
UPS Connections
As shown in the gure below, connect the product between the
socket on the wall and the electrical appliances, and the power of the
product is in the ON state.When you turn on the power of the electrical
appliances, it will directly uses the AC power of the power grid.
In this state, when the power grid is cut o, it will automatically switch
to the product’s internal battery to supply power.

EN
8
Solar panel connection
Our products can be connected to solar panels and can be charged
through solar panels.
Solar panel input can be the most maximum 100W.
• Solar panel charging power, according to the weather and climate conditions.
Connecting Pattern

EN
8 9
Car charging
This product can be charged by the cigarette lighter in the car with an
DC cable or PD Cable.
Connect Car Charger to the cigarette lighter in the car and the DC5.5
port OR Type-C port on the side of the product, turn on the engine of
the car, and the LED of this product will show the input power.
• On-board charging should be carried out with the car engine turned on. If the
engine is not turned on, the battery might run out.

10
UA
УВАГА
1. Уникайте використання продукту поблизу джерел високої
температури, високої вологості, прямого сонячного
проміння та вогню.
2. Не розбирайте та не змінюйте характеристики виробу,
оскільки це призведе до несправності та пожежі.
3. Утилізацію та переробку продукту здійснюйте відповідно до
умов, передбачених місцевим законодавством.
4. Уникайте падіння виробу з висоти і сильних ударів по
ньому.
5. Зберігайте і використовуйте виріб у недоступному для
дітей місці.
6. Використовуйте оригінальні аксесуари нашої компанії.
Пошкодження, спричинені використанням неоригінальних
аксесуарів, не підлягають безкоштовному ремонту.
7. Залиште простір близько 30 см від бічних всмоктувальних
і випускних отворів, щоб не перешкоджати розсіюванню
тепла.
8. Якщо цей продукт не використовується, вимкніть живлення
та від’єднайте кабель живлення. Не зберігайте продукт
у місцях, які піддаються впливу прямих сонячних
променів, з високою температурою та вологістю.
9. Для тривалого зберігання виробу повністю розряджайте
його від повного заряду до повного розряджання 1 раз
на 3 місяці, а потім заряджайте приблизно до 50 %.
10.За наявності дефекту, не використовуйте цей продукт, а
також його додаткові кабелі та сполучне обладнання.
11.Щоб уникнути скорочення терміну служби батареї, не
зберігайте виріб протягом тривалого часу в місцях з
дуже високою та низькою температурою, наприклад у
машині та на польовому складі.

10 11
UA
ЗМІСТ
Комплектація...........................................................................12
Опис продукту ............................................................................13
Технічна специфікація............................................................14
Режим ДБЖ .............................................................................15
Підключення сонячної панелі ..................................................16
Заряджання від автомобіля...................................................17
Гарантійний талон ..................................................................27

12
UA
Комплектація
Після відкриття паковання перевірте наявність усіх аксесуарів, а
також відсутність пошкоджень на корпусі виробу.
№НАЙМЕНУВАННЯ КІЛЬКІСТЬ, шт
1 Портативна Електростанція 1
2Адаптер змінного струму на 98 Вт
(з кабелем змінного струму) 1
3Кабель Type-C (30 cm Type-C to Type-C) 1
4Кабель автомобільної зарядки
(гніздо з роз’ємом DC5.5*2.1) 1
5 Посібник користувача 1

12 13
UA
Опис продукту
1. Вхід DC5.5*2.
2. Вентилятор охолодження
3. Роз’єм автомобільної зарядки (12 В)
4. LED дисплей
5.1. Кнопка живлення постійного струму
5.2. Основна кнопка живлення
6. PD 100 Вт Вхід/Вихід
7. PD 27 Вт Вихід
8. USB Вихід
9. 3 Вихідні роз’єми DC5.5*2.1
10. 2 Розетки VDE(EU) (AC 230 В/50 Гц)
11. Кнопка живлення змінного струму
12. Кнопка живлення LED ліхтарика
13. LED ліхтарик
1. Вихід USB-A і вихід Type-C: не потрібно робити ніяких додат-
кових дій, підключіть пристрій до портативної електростанції,
заряджання почнеться автоматично.
2. На
тисніть кнопку з підсвічуванням (12) та утримуйте її протягом 3-5
секунд, освітлення увімкнеться. Натисніть кнопку підс
вічування,
щоб переключити різні режими (Слабкий/Сильний/Блимання).
3. Для запуску електростанції натисніть кнопку живлення (5.2),
утримуйте її протягом 3-5 секунд та виконайте наступні дії:
a
. Коли екран засвітиться, натисніть кнопку живлення (5.2) ще раз,
щоб увімкнути вихід Type-C2 + 2*USB-A (QC3.0-18 Вт).
b. Натисніть кнопку постійного струму (5.1) (доки світлодіод постій-
ного струму не загориться), тоді можна використовувати роз’єми
3*DC5.5 і 12 В автомобільну розетку.
c. Натисніть кнопку живлення змінного струму (11) та утримуйте її
протягом 3-5 секунд, на екрані з’явится напруга 230 В, що означає
увімкнення розетки змінного струму. Натисніть кнопку живлення
змінного струму ще раз на 3-5 секунд, щоб відключити вихід змінно-
го струму (індикатор змінного струму вимкнено).
1. DC5.5*2.1 Input Only
2. Cooling Fan
3. 12V Cigar lighter(Female)
4. LED Screen(AC/DC/POWER/Voltage)
5.1. DC On/Off Power Button
5.2. Main On/Off Power Button
6. PD100W Input/Output
7. PD27W Output Only
8. Dual USB Output
9. 3*DC5.5*2.1 Output
10. 2*VDE(Europe) Socket Output(AC230V/50Hz)
11. AC On/Off Power Button
12. LED Torch On/Off Power Button
13. LED Torch
1.Type-C1 Input/Output, no need to do any actions, connect your device, the Power Station will be
discharged automatically.
2.Press the Light Button(12) for 3-5 seconds, the lighting will be turned on, click the light button to switch
different modes (Weak/Strong/Blink).
3.The following steps must be turned on the Power Station: Press Power Button(5.2) for 3-5 seconds
a.When the Screen is lighted on, Press the Power button(5.2) again to switch on the Type-C2+2*USB-A
(QC3.0-18W) output
b.Press the DC button(5.1) (till LED for DC is lighted on), then 3*DC5.5(at the bottom of the screen) and 1*12V
Car outlet (at the top of the screen) can be output.
c.Press the AC Power Button(11) for 3-5seconds,the Screen show moment Voltage 230V means AC Socket
can be output. Press AC Power Button again for 3-5seconds to cut off the AC Output
(the LED for AC was turned off).
1.It is recommended that the loaded device should not exceed 600W, and the excessive power may cause
output protection or burn out the product.
2.The Cooling Fan will be started when the total output Power >=150W(1pc), Power >=300W(2pcs)
3.USB-A QC3.0-18W have no output when DC Charging Input
4.DC input will be cut off @85% battery level when DC+PD Input same time
5.DC5.5*2.1/Car Outlet have no output when DC5.5*2.1 Input
6.DC Output will be cut off when AC Output reached 500W
Notice:

14
UA
Технічна специфікація
ВИХІД
Вихід змінного струму
Номінальна напруга 230 В
Номінальна потужність 600 Вт /576 Вт·год
Пікова потужність 1200 Вт @ 1 с
Перевантаження 653 Вт @ 10 с
Частота 50 Гц
DC12V Вихід
DC5.5*2.1-1/2/3 12 – 13 В /10 А
Автомобільний вихід 12 – 13 В /10 А
3*DC5.5*2.1 Виходи та 1 автомобільний вихід 12 -13 В/ 10 A
TYPE-C Вихід Type-C1 PD 100 Вт
Type-C2 PD 27 Вт
USB-A Вихід USB-A1/A2 5 В / 2.1 A
Світлодіодне освітлення
Потужність 11 Вт (макс.) / 8800-1320 лм
Безперервне освітлення 52 год.
Освітлення (слабке/сильне) / SOS (швидкий/повільний спалах
)
ВХІД
Вхід
DC5.5*2.1: 5-24.5 В /2-5 A, 122.5 Вт (Макс.)
DC5.5*2.1: Сонячна панель, 100 Вт (Макс.)
Type-C1: PD 100 Вт (Макс.)
Підтримка Type-C+DC Вхід 200 Вт (Макс.)
БАТАРЕЯ
576 Вт·год / 160000 мА·год @3.6 В або 576 Вт·год /40000 мА·год @14.4 В
ГАБАРИТИ /ВАГА
258*212*249 мм / 6.1 кг
Зверніть увагу:
1. Рекомендується, щоб живлення під’єднаного пристрою не перевищувало 600 Вт,
оскільки надмірна потужність може призвести до спрацювання вихідного захисту
або загоряння продукту.
2. Вентилятор охолодження буде запущено, коли загальна вихідна потужність стано-
вить >=150 Вт (1 шт.) або >= 300 Вт (2 шт.).
3. USB-A QC3.0-18 Вт не працює під час заряджання електростанції від джерела по-
стійного струму.
4. Вхід постійного струму буде відключений на рівні заряду батареї 85%, у разі одно-
часного підключення джерела постійного струму та пристрою PD.
5. DC5.5*2.1 та автомобільна розетка не працюють, у разі одночасного підключення
електростанції до джерела постійного струму 5.5*2.1.
6. Вихід постійного струму вимкнеться, коли вихідна потужність змінного струму
досягне 500 Вт.

14 15
UA
Режим ДБЖ
Функція ДБЖ
Цей продукт має режим обходу, не потребує проходження через
батарею, може виходити безпосередньо від змінного струму.
Для забезпечення виходу змінного струму, у режимі ДБЖ, коли
вхідне живлення змінного струму від мережі припиняється через
відімкнення електроенергії, вхідне живлення змінного струму від
електромережі можна використовувати для автоматичного пере-
микання на живлення від батареї продукту протягом 10 мс.
Підключення ДБЖ
Підключіть пристрій між настінною розеткою та електричним
приладом, як показано на малюнку нижче, і живлення пристрою
буде увімкнено. Коли ви вмикаєте живлення електроприладу,
він безпосередньо використовує живлення змінного струму від
електромережі.

16
UA
Підключення сонячної панелі
Наші продукти можна підключати до сонячних панелей і заряджа-
ти через них.
Вхід сонячної панелі може бути максимум 100 Вт.
• Потужність зарядки сонячної панелі залежить від погодних і кліматичних
умов.
Схема підключення

16 17
UA
Заряджання від автомобіля
Цей продукт можна заряджати від прикурювача в автомобілі за до-
помогою кабелю постійного струму або кабелю PD.
Підключіть автомобільний зарядний пристрій до прикурювача в
автомобілі та порту DC5.5 або порту Type-C збоку виробу, увімкніть
двигун автомобіля, LED дисплей цього продукту показуватиме
вхідну потужність.
• Заряджання «на борту» слід здійснювати при увімкненому двигуні автомобі-
ля. Якщо двигун не увімкнений, акумулятор може розрядитися.

RU
18
ВНИМАНИЕ
1. Избегайте использования продукта вблизи источников
высокой температуры, высокой влажности, прямых
солнечных лучей и огня.
2. Не разбирайте и не изменяйте характеристики изделия,
поскольку это приведет к неисправности и возгоранию.
3. Утилизация и переработка продукта осуществляется в
соответствии с условиями, предусмотренными местным
законодательством.
4. Избегайте падения изделия с высоты и сильных ударов по
нему.
5. Храните и используйте изделие в недоступном для детей
месте.
6. Используйте оригинальные аксессуары нашей компании.
Повреждение, вызванное использованием неоригинальных
аксессуаров, не подлежит бесплатному ремонту.
7. Оставьте пространство около 30 см от боковых
всасывающих и выпускных отверстий, чтобы не
препятствовать рассеиванию тепла.
8. Если этот продукт не используется, выключите питание и
отсоедините шнур питания. Не храните продукт в местах,
подверженных воздействию прямых солнечных лучей, с
высокой температурой и влажностью.
9. Для длительного хранения изделия полностью разряжайте
его от полного заряда до полной разрядки 1 раз в 3
месяца, а затем заряжайте примерно до 50 %.
10.При дефекте не используйте этот продукт, а также
дополнительные кабели и соединительное оборудование.
11.Во избежание сокращения срока службы батареи не
храните изделие в течение длительного времени в местах
с очень высокой и низкой температурой, например в
машине и на полевом складе.

RU
18 19
СОДЕРЖАНИЕ
Комплектация .........................................................................20
Описание продукта ...................................................................21
Техническая спецификация...................................................22
Режим ИБП..............................................................................23
Подключение солнечной панели.............................................24
Зарядка от автомобиля..........................................................25
Гарантийный талон ................................................................28

RU
20
Комплектация
После открытия упаковки проверьте наличие всех аксессуаров, а
также отсутствие повреждений на корпусе изделия.
№НАИМЕНОВАНИЕ КОЛИЧЕСТВО,
шт
1 Портативная электростанция 1
2Адаптер переменного тока на 98 Вт
(с кабелем переменного тока) 1
3Кабель Type-C (30 cm Type-C to Type-C) 1
4Кабель автомобильной зарядки
(гнездо с разъемом DC5.5*2.1) 1
5 Руководство пользователя 1
Table of contents
Languages:
Popular Portable Generator manuals by other brands

GENERGY
GENERGY RENT-LIGERA Series Instructions for use

Ingersoll-Rand
Ingersoll-Rand ARO 20 Series Operator's manual

Matsusada Precision
Matsusada Precision PSS2SRJ instruction manual

Sincro
Sincro ER Series Use and maintenance manual

Fabco Power
Fabco Power HYDRO 300XR instruction manual

Atlas Copco
Atlas Copco QAS 275-325 instruction manual

Champion Global Power Equipment
Champion Global Power Equipment 201242 quick start guide

Toyama

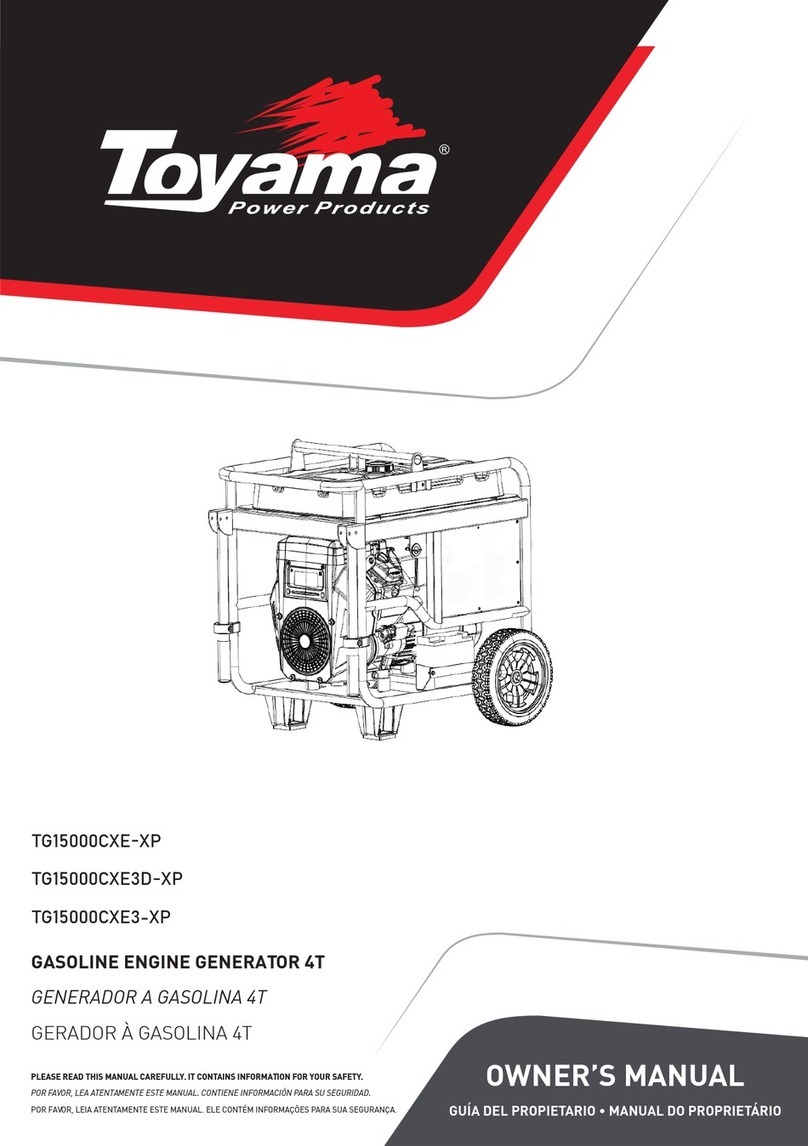

Toyama TG15000CXE owner's manual

Champion
Champion 100199 Operator's manual

Rainier
Rainier HYBRID DUAL FUEL R4400DF manual

catec
catec ZOGLAB HG6000 user manual

Champion Global Power Equipment
Champion Global Power Equipment 201230 Operator's manual
