2seeU 2CU-NVS424 User manual

MODEL:
2CU-NVS424
FEATURES
25FPS (PAL) / 30FPS (NTSC) each channel recording
H.264 dual-stream video compression
Support 255 channels CMS free
Support 2.0 USB memory (USB flash Disk, USB HDD, USB CD/DVD Burner, etc.)
Easy backup method: network download to remote client
Support 10M/100M Network Interface
Web setting, playback and review, NVR status check and video storage.
Fast and convenient shortcut operation: copy & paste for the same settings
User Friendly GUI, remote control and mouse
Support 16CH Alarm In, 4CH Alarm Out
Support free DDNS server: Admin Vision DDNS
Networking method: PPPoE, NTP, DDNS, FTP, etc.
Support 4 SATA port (Max. 4T)
Support main mobile remote monitoring (Windows Mobile / Symbian / iPhone /
iPad/ Android/BlackBerry, etc.)
Support VGA & HDMI (Max. 1920*1080) video output
Support monitor and 1TV output
CAUTION
1.Do not attempt to disassemble the NVR device.
2.Handle the NVR with care.
3.The installation should be made by qualified service personnel or system installers.
4.Do not use strong or abrasive detergents when cleaning the NVR surface.
5.Clean the NVR surface with care.
6.Never face the NVR towards the sun.
7.Use the NVR at temperatures within –10 °C to +50 °C, and humidity below 90 %
RH and the storage temperatures should be within –20 °C to +60 °C and humidity
below 20% to 80 % RH.
8.Please operate the NVR within the specified power source ratings. Avoid connections
during a lightning storm. Otherwise, an electric shock may be caused.
Thank you for your purchase of this product.
Before attempting to connect or operate this
product, please read these instructions completely.
The above drawing is for reference only.
!
DO NOT OPEN
RISK OF ELECTRIC SHOCK
CAUTION
DO NOT REMOVE COVER (OR BACK),NO
USER SERVICEABLE PARTS INSIDE.
REFER SERVICING TO QUALIFIED SERVICE
PERSONNEL.
TO REDUCE THE RISK OF ELECTRIC SHOCK,
CAUTION !
The lightning flash with arrowhead
symbol, within an equilateral
triangle, is intended to alert the user
to the presence of uninsulated
dangerous voltage within the
product’s enclosure that may be
sufficient magnitude to constitute a
risk of electric shock to a person.
The exclamation point within an equilateral triangle is intended to alert the
user to the presence of important operating and maintenance (servicing)
instructions in literature accompanying the appliance.
SHIFT PLAY RECHDD ALARM
POWER
MAIN MENU
Set Recording Parameters, including Record Configuration, Playback and
Backup.
1. Power Cable.......................................................................................................1PCS.
2. Power Adaptor...................................................................................................1PCS.
3. Remote Control..................................................................................................1PCS.
4. Operating Manual...............................................................................................1PCS.
5. Mouse ...............................................................................................................1PCS.
6. 8 Pin Wafer ........................................................................................................4PCS.
7. Screws ............................................................................................................20PCS.
PACKAGE CONTENTS
Note: Factory default U Password: No Passwordser: Admin,
Main Menu
Record Alarm System
Advanced Info Logout
Display system statistics:Storage status; current online
users; recording bitrate.
Cancel
Set Alarm Parameters, including Motion Detect, Blind Detect, Video Loss
Detect, Exterior Alarm Detect and Output, and Abnormal Parameter Setup.
Set System Parameters, including General Configuration, Network, Network
Service, GUI Display, RS 485 Device, RS 232, Tour and Digital channel
parameter settings.
Set System Tools, including Storage, Account, Online User, Output Adjust,
Auto Maintain, Restore, Upgrade, Device Information, Import/Export.
Display System Information, including HDD Info, BPS, Log Information and
Version.
Logout the OSD menu or reset/restart the system.
Record Config: configure the recording time. Choose the recording
channel; set the time length of video files and prerecord time; three types
of record mode can be selected (Schedule, Manual & Stop).
Playback: search for and playback video files. Choose the channel and
date to playback videos. Through the control bar, user can control the play
pace, choose the frame and files, and edit & backup video files.
Backup: Backup the recorded files to local storage device. User can burn
the selected device or erase data for storage device.
Motion Detect: by analyzing video, when system detects sensitive
moving signal, it will start motion detect alarm. User can configure all
video detection parameters including channel, active area, sensitivity
levels, alarm output, etc.
Video Blind: when someone viciously masks lens, the system can alert
you to guarantee video continuity. User can set parameters including
channel, active area, sensitivity levels, alarm output, etc.
Video Loss: when video loss happens, the system will give user the video
loss alarm. User can set parameters including channel, active area, alarm
output, etc.
Alarm Input: user can set parameters including channel, period, type,
alarm output, etc.
Alarm Output: three modes of alarm output including Configuration,
Manual and Stop.
Abnormality: choose event type and alarm way. When the event happens,
alarm occurs.
OPERATING OF MAIN MENU
Record
Alarm
OPERATING
INSTRUCTIONS

0230-00419 Print V1.0
Video Parameter
Video Compression
Video Standard
Audio parameter
Audio Compression
Audio Input (RCA)
Audio Output (RCA)
Intercom Support
Interface
2CU-NVS424
H.264 Main Profile
PAL: 625 Line, 50f/s;
NTSC: 525 Line, 60f/s
TECHNICAL SPECIFICATIONS
Operation
CMS
IE Browser
Snapshot
Zoom
Mobile Monitor
Function
Backup
Alarm Mode
Alarm Handling
Split Mode
Event Log
Search Mode
DDNS
ONVIF
Network Service
DST Time
Others
Model Number
Video Format
Recording
Playback
Video Output
NTSC/PAL
24*1080P
4*1080P
VGA & HDMI (Max. 1920*1080)
G711a
1CH
RJ-45 (10M/100M)
Support
4 SATA port (Max. 4T)
USB (2.0)
Network
RS485
Alarm Input
Alarm Output
16 CH
4 CH
1* RS485
IR Remote
HDD Port
2
Support
Support
Support
Support
Support
USB HDD Network, ,
MD VB VL AI AO, , , ,
Message Email Buzzer FTP, , ,
1, 4, 9, 16, 24, 32
Support
By Time By Event Type,
Support (Admin Vision)
Support
PPPoE NTP DDNS FTP, , ,
Support
NVR Mode
Operating System
Main Processor
Application
GUI
Mobile Software
Multi-Language
Working Temperature
Size(mm)
Weight(kg)
24*1080P; 16*1080P; 8*1080P;
32*960P; 16*720P; 16*3M; 8*5M
Embedded Linux
Hi3535
XP, Vista, Win7
Support
Iphone, Ipad, Windows mobile, Android, Symbian, Blackberry, etc.
Support
0 - 55°C
L440*W360*H60
≤8 (Without HDD)
1CH

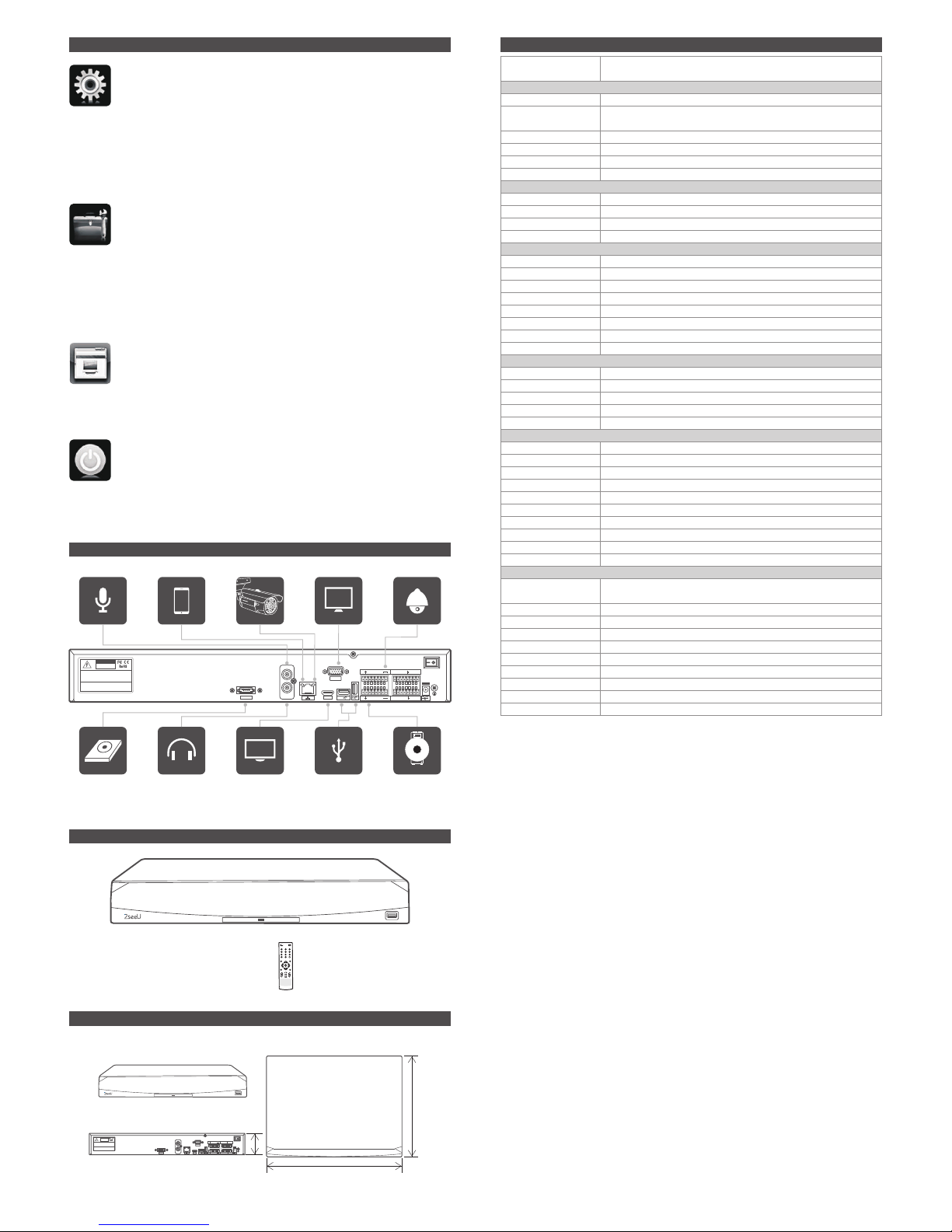

General: configure time, language and remote control address.
Network: it includes IP address, subnet mask, etc.
Net service: it includes DDNS, SMTP, PPPOE, etc.
GUI Display: set for GUI and monitoring parameters.
RS 485 Device: configure PTZ parameters.
RS 232: set for serial port function and baud rate.
Tour: set for touring parameters.
Digital: set channel mode and digital channel parameters.
Storage: HDD data management.
Account: user management.
Online User: display online users.
Output Adjust: Adjust the position and color of the video output.
Automaintain: set automatic maintenance tasks.
Restore: restore system parameters to the factory default.
Upgrade: upgrade software for this device.
Device Info: configure the device hardware information.
Import/Export: Export current log settings. Import the new settings.
HDD Info: it displays hard disk type, capacity, left capacity and status.
BPS: it displays current video data stream (KB/s) and occupied hard disk
storage.
Log: it displays system log file.
Version: it displays system hardware’s feature, software version, issue
date, etc.
Logout: exit menu, and you need to provide password again when
entering the menu next time.
Shut down: logout system, turn off power.
Reboot: system begins rebooting.
System
Advanced
Info
Logout
OPERATING OF MAIN MENU
440 mm
360 mm
SHIFT PLAY RECHDD ALARM
POWER
DIMENSIONS
Unit: mm
The above mentioned technical drawings are for reference only.
FRONT PANEL
IR Port
REAR PANEL
123
456
78 9
0
Esc
ADD FN
SHIFT PLAY RECHDD ALARM
POWER
60 mm
A16 C3 N03 C4N04
RS485
A B
A9A10A11A12 A13A14A15
A8 C1 N01C2 N02
RS232
PX TX
A1 A2 A3 A4 A5 A6 A7
DC12V
H-DMI
SS
VGA
A-IN
A-OUT
ESATA
CAUTION:TO REDUCE THE RISK OF ELECTRIC SHOCK, DO
NO T OP EN COV ER S. N O US ER SER VI CEA BL E
PA RT S I N S I D E . R E F E R S E R V I C I N G T O
QUALIFIED SERVICE PERSONNEL.
RISK OF ELECTRIC SHOCK
DO NOT OPEN
CAUTION
WARNING:TO PREVENT FIRE OR SHOCK HAZARD. DO NOT
EXP OS E UN IT S NO T SP EC IFI CA LLY D ES IGN ED
FOR OUTDOOR USE TO RAIN OR MOISTURE.
A16 C3 N03C4 N04
RS485
A B
A9A10A11A12 A13A14A15
A8 C1 N01C2 N02
RS232
PX TX
A1 A2 A3 A4 A5 A6 A7
DC12V
H-DMI
SS
VGA
A-IN
A-OUT
ESATA
CAUTION:TO REDUCE THE RISK OF ELECTRIC SHOCK, DO
NOT OPEN CO VE RS . NO USER SE RV IC EABL E
PAR T S I N S I D E. R E F ER S E R V I C IN G T O
QUALIFIED SERVICE PERSONNEL.
RISK OF ELECTRIC SHOCK
DO NOT OPEN
CAUTION
WARNING:TO PREVENT FIRE OR SHOCK HAZARD. DO NOT
EXPOSE UN ITS NOT SP ECIF IC AL LY DE SI GNED
FOR OUTDOOR USE TO RAIN OR MOISTURE.
07:00
ALARM SENSOR
USB HDDHDMIA-OUTSATA
VGA OUTNETWORK IP CAMERA
AUDIO IN PTZ CAMERA
ESATA Support
