D-Link ShareCenter DNS-343 User manual

ShareCenter™ 4-BAY
NETWORK STORAGE
Quick Installation Guide+
Руководство по быстрой установке+
Guía de Instalación Rápida+
Guia de Instalação Rápida+
快速安裝指南+
Petunjuk Pemasangan Cepat+
DNS-343







4D-Link DNS-343 Quick Install Guide
System Requirements / Package Contents

• 1GHz Processor / 512MB RAM
• 200MB available space
• CD-ROM drive
• Internet Explorer 6.0 or Mozilla Firefox 1.0 and above
• Windows® 7, Vista® or XP (Service Pack 2)
For best results, the following system requirements are
recommended:

If any of the above items are missing, please contact your reseller.
Note: Using a power supply with a different voltage than the one
included with the DNS-343 will cause damage and void the warranty
for this product.
• D-Link DNS-343 ShareCenterTM 4-Bay Network Storage
• CD-ROM with Manual and Software
• Quick Installation Guide
• Power Adapter (19V 4.74A)
• Power Cable Clip
• CAT5 Ethernet Cable
The DNS-343 requires installation of a hard drive before it
can be used. The hard disk must be a 3.5” SATA Hard Drive of any
capacity.

5 D-Link DNS-343 Quick Install Guide
Hardware Overview


Use this button to switch the device on or off. To switch on the device
press the button once. To switch off the device hold the button down
for 5 seconds.

This screen displays System Information, HD Status, and Server
Status.

Use this button to display the System Information (system state), HD
Status (hard drive state) and Server Status (server status state) on
the OLED. Press the button once to alternate between the different
Status screens.

 


6D-Link DNS-343 Quick Install Guide
Hardware Overview










7 D-Link DNS-343 Quick Install Guide
Conguration
The DNS-343 ShareCenter™ 4-Bay Network Storage features an
OLED that enables the administrator to easily view information about
the DNS-343. The OLED screen displays information about the
network connection status and the number of hard drives installed
and the bay ID’s they are installed in. The OLED has three different
screens:
 - This screen shows the following information:
• The hostname of the DNS-343
• The rmware version
• The IP address of the DNS-343
• The operating temperature
 - This screen shows the following information:
• The percentage of space used on the hard drives
 - This screen shows the following information:
• Whether a printer is connected to the unit
• The status of the UPNP server
• The status of the iTunes server
• The status of the FTP Server
Press the  button once to alternate between the different Status
screens


8D-Link DNS-343 Quick Install Guide
Hardware Installation


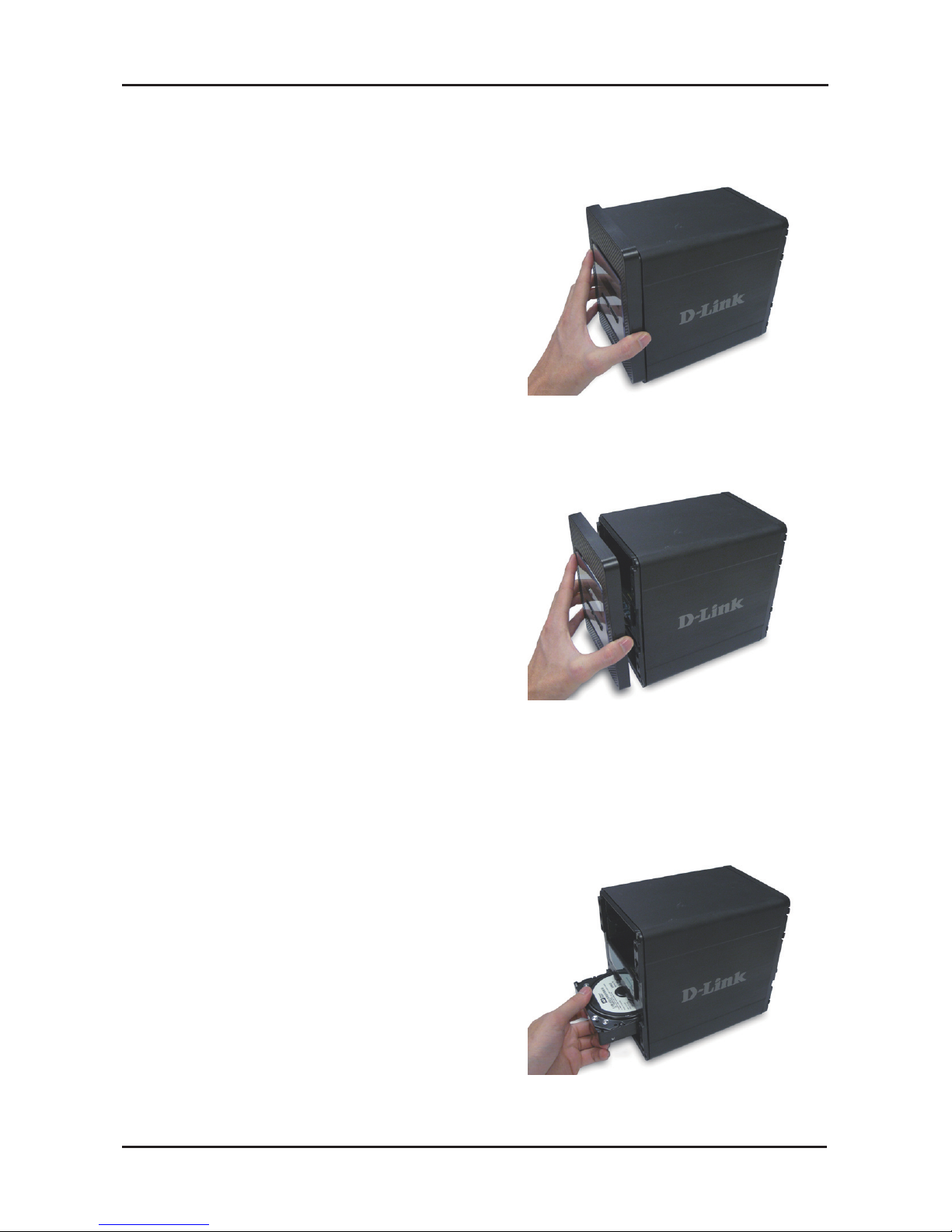

1. Access the drive bays by sliding
the faceplate up until it unlatches
from the device.
2. Once the faceplate is unlatched,
pull it off of the device, exposing
the drive bays.
3. Insert a 3.5” SATA hard drive
into an available drive bay. Make
sure to align the drive connector
to the endpoint in the DNS-343.
Gently push the drive in until it
connects.

9 D-Link DNS-343 Quick Install Guide
Hardware Installation

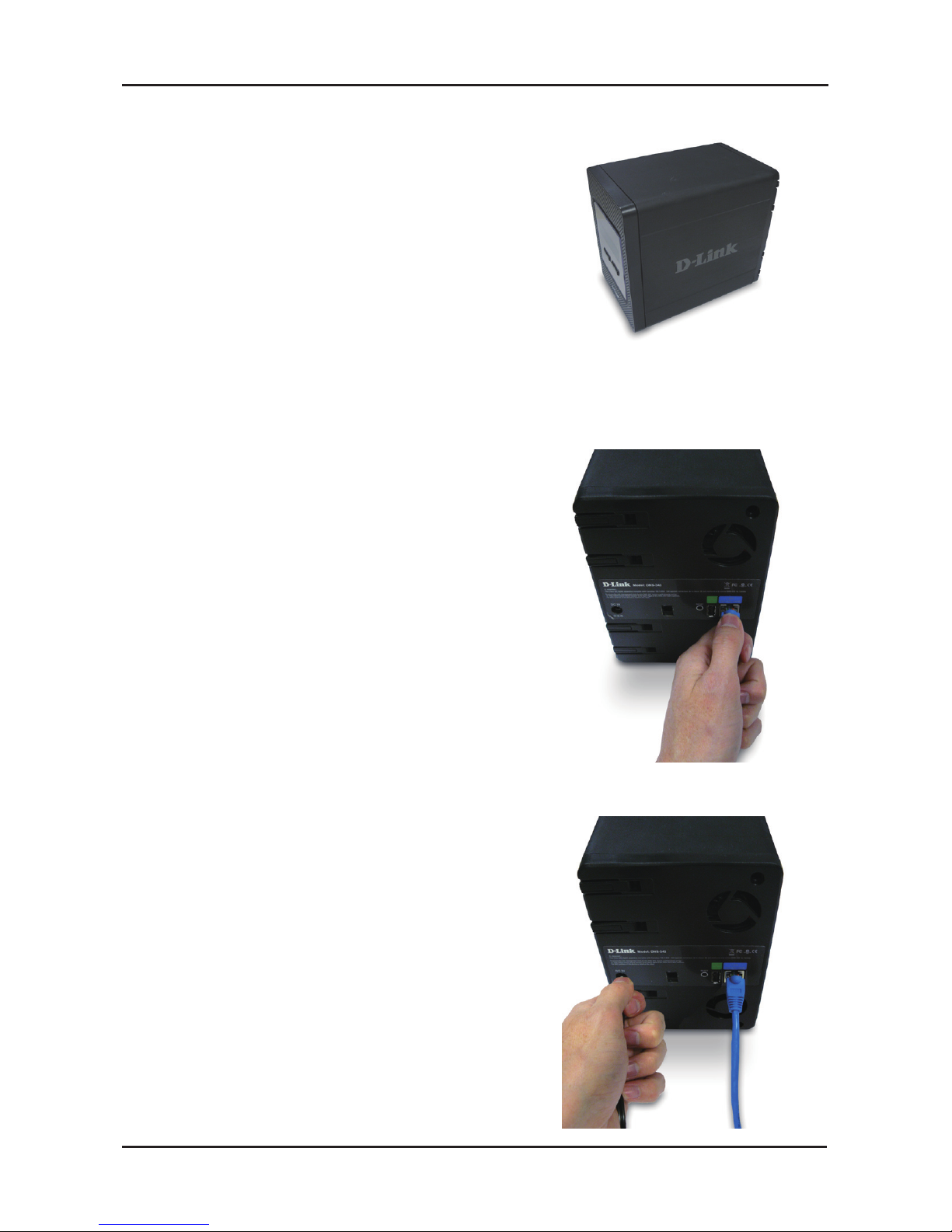

4. Attach the faceplate to the front
of the device.
5. Connect an Ethernet cable into
the available Ethernet port.
This cable should connect the
DNS-343 to your local network
or directly to a computer for
conguration.
6. Finally, connect the supplied
power adapter to the power
receptacle on the back of the
device.

10D-Link DNS-343 Quick Install Guide

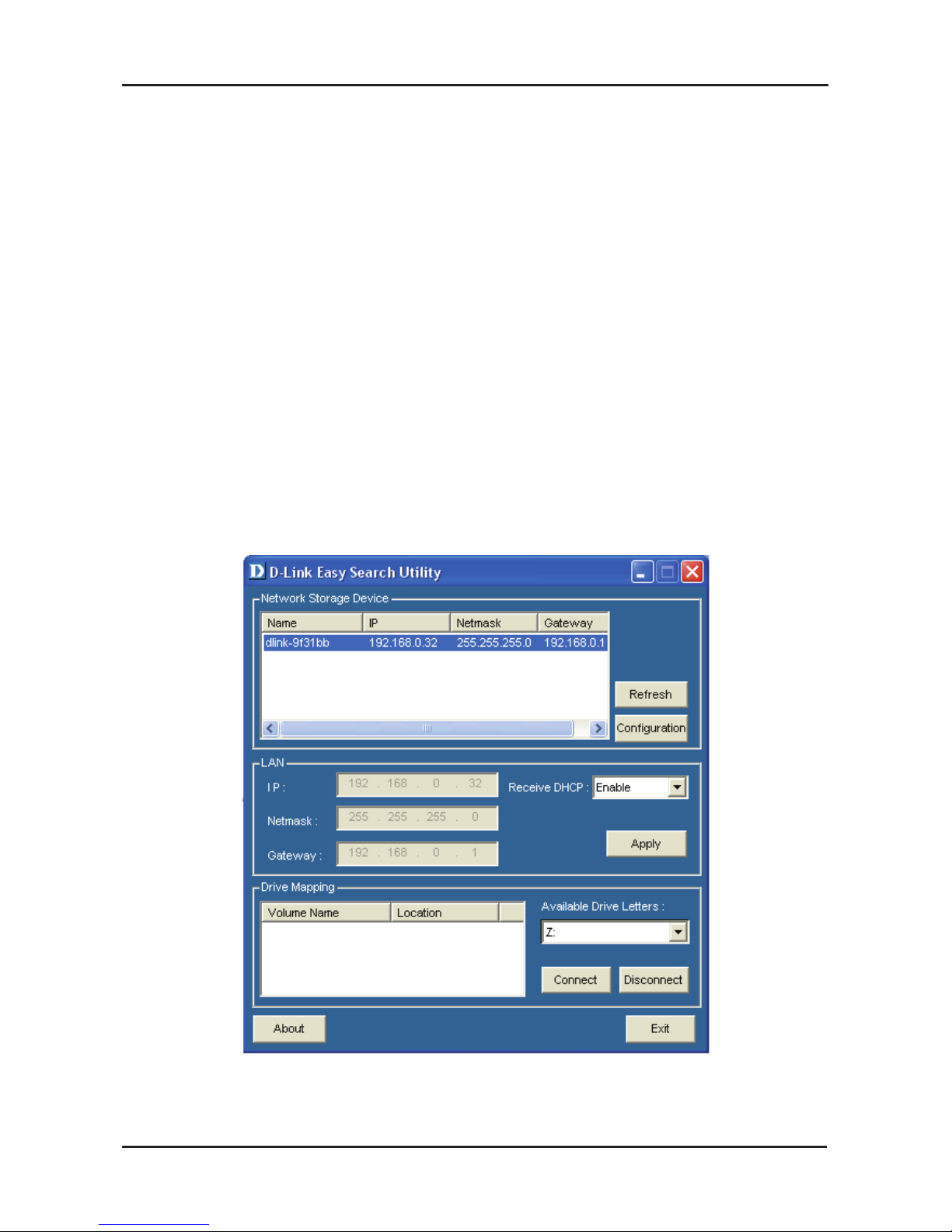

Easy Search Utility

When rst powered on, during the initial boot sequence, the
DNS-343 will wait to be assigned an IP address via DHCP. If it does
not receive a DHCP assigned IP address, by default it will boot up
with a self-assigned IP address of 192.168.0.32.
The Easy Search Utility provided on the DNS-343 CD-ROM makes
it simple to nd any DNS-343 devices on your network, and it is
recommended to use the Easy Search Utility when accessing and
conguring the DNS-343 for the rst time. Each DNS-343 will have
a unique name of dlink-xxxxxx where ‘xxxxxx’ is the last six digits of
its MAC address.

11 D-Link DNS-343 Quick Install Guide
Conguration
When logging into the DNS-343 for the rst time, you will be asked
to choose a drive conguration type and format the drives. There are
four basic conguration options; Standard, JBOD, RAID 0, RAID 1,
and RAID 5.
Highlight an available DNS-343
and click  to
access the web-based utility.
At the login screen, type
 for the user name
and leave the password eld
blank. Click .

From the DNS-343 CD,
select .

12D-Link DNS-343 Quick Install Guide
Conguration
A message appears warning
that when the drives are
formatted all data will be
erased. Click  to continue.
When formatting is complete,
the results will display. Click
 to continue.
A message informing you
that the DNS-343 will restart
appears. Click .
The Web UI will appear. Your DNS-343 setup is now complete.
Select a type of hard
drive conguration, and
click .
After the DNS-343 restarts,
type  for the user name
and leave the password eld
blank. Click .

13 D-Link DNS-343 Quick Install Guide
Mapping a Drive

Select an available
DNS-343.
Available volumes will
be displayed under Drive
Mapping. Highlight the
drive you want to map.
Select an available drive letter
from the drop-down menu and
click .
The Easy Search Utility makes it simple to map drives to your
computer. To get started, insert the DNS-343 CD into your CD-ROM
and launch the Easy Search Utility.
Once connected, your mapped drives(s) will appear in My Computer
as network drives.

14D-Link DNS-343 Quick Install Guide

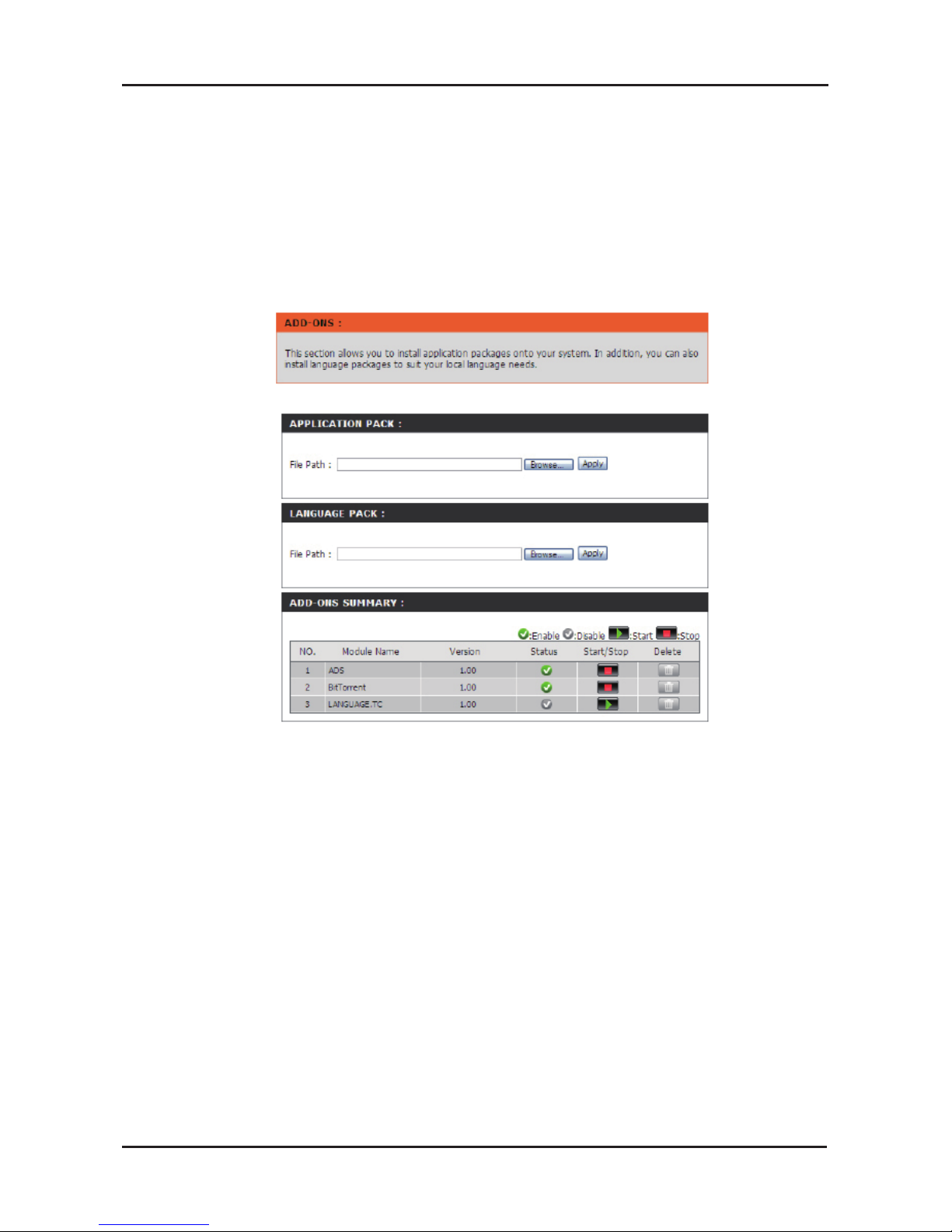

Add-ons
Install application and language packs to further enhance the
functionality of your DNS-343. This powerful new feature on the
DNS-343 allows users to customize the interface and usability of
this unit. Adding features to the unit now only requires an Add-on
installation as soon as new features are available.
Click on  to search for the specic application pack
you want to install. After selecting the application pack, then
click  to install.
Click on  to search for the specic language pack
you want to install. After selecting the language pack, then
click  to install.
In this section you can see a summary of the application/
language pack(s) you have installed. Under the Status
column, you can see if a specic pack is currently enabled
or disabled. Under the Start/Stop column, click the 
icon to enable the specied pack.
Application
Pack:
Language
Pack:
Add-Ons
Summary:
Add-ons

15 D-Link DNS-343 Quick Install Guide
Add-ons
Add-ons Click on the  icon to disable the specied pack. Under the Delete
column, click the  icon to uninstall the specied pack
The two Add-ons listed here are  and
.
Note: Keep a keen lookout on D-Link’s local website for new Add-on
releases.


