3nStar Nustar 5sx User manual

Portable Data Collector
USER MANUAL
Nustar 5sx

1
Contents
Contents ........................................................................................................ 1
Statement.......................................................................................................... 2
Chapter 1: Product Introduction......................................................................... 3
1.1 Background......................................................................................... 3
1.2 Precautions before Using the Battery .................................................. 4
1.3 Charger ............................................................................................... 5
Chapter 2 Installation instructions...................................................................... 6
2.1 Appearance.............................................................................................. 6
2.2 Install Micro SD and SIM cards................................................................ 7
2.3 Battery Charging...................................................................................... 8
2.4 Buttons and Function Area Display.......................................................... 8
Chapter 3: Call Function.................................................................................... 9
3.1 Calling Numbers ...................................................................................... 9
3.2 Contacts................................................................................................... 9
3.3 SMS and MMS......................................................................................... 9
Chapter 4: Barcode Reader-Writer.................................................................. 10
Chapter 5: RFID Reader.................................................................................. 12
5.1 NFC ....................................................................................................... 12
Chapter 6: Other functions .............................................................................. 13
6.1 PING Tool.............................................................................................. 13
6.2 Bluetooth................................................................................................ 14
6.3 GPS....................................................................................................... 15
6.4 Volume Setup ........................................................................................ 16
6.5 Sensor ................................................................................................... 17
6.6 Keyboard ............................................................................................... 18
6.7 Network.................................................................................................. 19
Chapter 7: Device Characteristics ................................................................... 20

2
Statement
2020 by 3nStar, Inc. All rights reserved.
No part of this publication may be reproduced or used in any form, or by any electrical or
mechanical means, without permission written from 3nStar. This includes electronic or
mechanical means, such as photocopying, recording, or information storage and retrieval
systems. The material in this manual is subject to change without notice.
The software is provided strictly on an “as-is” basis. All software, including firmware, furnished
to the user is on a licensed basis. 3nStar grants to the user a non-transferable and non-
exclusive license to use each software or firmware program delivered hereunder (licensed
program). Except as noted below, such license may not be assigned, sublicensed, or otherwise
transferred by the user without prior written consent of 3nStar. No right to copy a licensed
program in whole or in part is granted, except as permitted under copyright law. The user shall
not modify, merge, or incorporate any form or portion of a licensed program with other program
material, create a derivative work from a licensed program, or use a licensed program in a
network without written permission from 3nStar.
3nStar reserves the right to make changes to any software or product to improve reliability,
function, or design.
3nStar does not assume any product liability arising out of, or in connection with, the
application or use of any product, circuit, or application described herein.
No license is granted, either expressly or by implication, estoppel, or otherwise under any
3nStar intellectual property rights. An implied license only exists for equipment, circuits, and
subsystems contained in 3nStar products.

3
Chapter 1: Product Introduction
1.1 Background
Nustar 5sx is an industrial-grade smart handheld terminal that has been designed and
manufactured by 3nStar, Inc. It’s based on AndroidTM 9, which runs fast and has a long
battery life. To meet the needs of multi-industry applications like logistics express, warehouse
inventory, manufacturing, retail, etc. It can help customers to quickly access information and
improve the efficiency of outbound storage inventory.

4
1.2 Precautions before Using the Battery
•Do not leave battery unused for long period of time, no matter if it is in
the device or the storage inventory. If the battery has been used for 6
months already, it should be checked for charging ability or it should be
disposed of as required.
•The lifespan of Li-ion battery is around 2 to 3 years. It can be
repeatedly charged 300 to 500 times. (One full battery charge period
means completely charged and used until completely discharged.)
•When Li-ion battery is not in use, it will continue discharge slowly.
Therefore, battery charging status should be checked frequently and
take reference of the related battery charging information on the
manuals.
•Observe and record the information for new unused and non-fully
charged batteries to prolong battery life. Plan on the longer operating
time of a new battery compared with a battery that has been used for
long time. According to product configuration and application use, the
operating time of a used battery would be different.
•Check battery charging status at regular intervals.
•When battery operating time drops below about 80%, charging time will
be increased remarkably.
•If a battery is stored or otherwise unused for an extended period, be
sure to follow the storage instructions in this document. If you do not
follow the instructions, and the battery has no charge remaining when
you check it, consider it to be damaged. Do not attempt to recharge it
or to use it. Replace it with a new battery.
•Store the battery at temperatures between 5 °C and 20 °C (41 °F and
68 °F).

5
1.3 Charger
The charger output voltage/current is 5V/2A.
Notes:
Note:
Using the incorrect type battery causes risk of explosion.
Please dispose the used battery according to instructions.
Note:
Due to the used enclosure material, the product shall only be
connected to a USB 2.0 Interface or higher. The connection to so-
called power USB is not to be used.
Note:
The adapter shall be installed near the equipment and shall be easily
accessible.
Note:
The suitable temperature for the product and accessories is -10℃to
50℃.
Note:
CAUTION - RISK OF EXPLOSION IF BATTERY IS REPLACED BY
AN INCORRECT BATTERY TYPE. DISPOSE OF USED
BATTERIES ACCORDING TO THE INSTRUCTIONS.

6
Note:
SAR Max. Value: 0.26W/kg(10g) for Head; 0.60 W/kg (10g) for body.
Chapter 2 Installation instructions
2.1 Appearance
Nustar 5sx back and front appearances are showing as follows:

7
Buttons instruction
Button
Description
Side
button
1. Power
Locate on right side, press to ON/OFF device.
2. PTT key
Locate on right side, its function can be defined by software.
3.SCAN
Scanning button located on both sides. There are two scanning
buttons.
4. Volume +/-
Volume up and down
2.2 Install Micro SD and SIM cards
The cards sockets are showing as follows:

8
2.3 Battery Charging
By using the USB Type-C contact, the original adaptor should be used for
charging the device. Make sure not to use other adaptors to charge the device.
2.4 Buttons and Function Area Display
Nustar 5sx has 6 side buttons, and a 2D scanning module located on the top.
An HD camera and flashlight located on the back. NFC identification surrounds
the camera.

9
Chapter 3: Call Function
3.1 Calling Numbers
1. Click icon .
2. Click number key to input phone numbers.
3. Click icon to call.
4. Click icon to end call.
3.2 Contacts
1. Click “contacts”to open the contacts list.
2. Click icon to add new contacts.
3. Click icon to import/export contacts.
3.3 SMS and MMS
1. Click to open the message window.
2. Click to input the message receiver and contents.
3. Click to send out messages.
4. Click to add attachment pictures and videos.

10
Chapter 4: Barcode Reader-Writer
1. In the App Center, click to open the 2D barcode scan test.
2. Press the “SCAN”button or click scan key to start scanning. The
parameter “Auto interval”can be adjusted.
Caution: Please scan codes in correct orientation otherwise scanning will
fail.
2D code:

11
Max. radiant power: 0.6mW
Wave length: 655nM
IEC 60825-1 (Ed.2.0).
21CFR 1040.10 and 1040.11 standard.

12
Chapter 5: RFID Reader
5.1 NFC
Click the App Center, open “NFC”to read and write tag information.

13
Chapter 6: Other functions
6.1 PING Tool

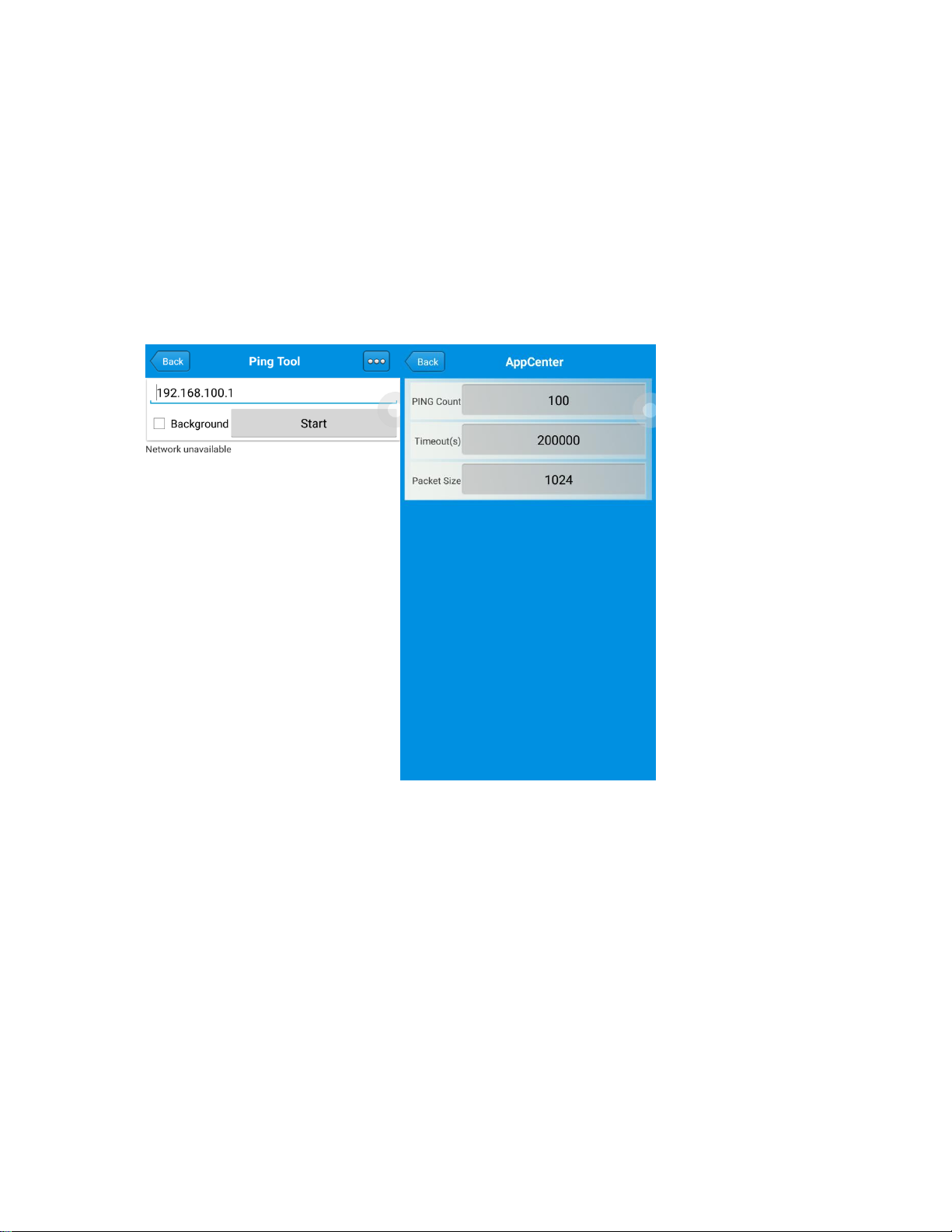

1. Open “PING”in the App Center.
2. Setup PING parameter and select external/internal address.

14
6.2 Bluetooth
1. Open “BT Printer”in the App Center.
2. In the list of detected devices, click the device that you want to pair.
3. Select printer and click “Print”to start printing contents.

15
6.3 GPS
1. Click “GPS”in the App Center to open the GPS test.
2. Setup GPS parameters to access GPS information.

16
6.4 Volume Setup
1. Click “Volume”in the App Center.
2. Setup volume as needed.

17
6.5 Sensor
1. Click “Sensor”in the App Center.
2. Setup the sensor as required.

18
6.6 Keyboard
1. Click “Keyboard”in the App Center.
2. Setup and test the main value of the device.

19
6.7 Network
1. Click “Network”in the App Center.
2. Test WIFI/Mobile signal as required.
