5
INTENDED USE
The 4X4 TOUGH® 100L Air Compressor is intended to inate and deate tyres.
This product should only be used for private recreational purposes and is not designed for
professional, trade or commercial purposes.
CONTENTS
1 x 100L Air Compressor
1 x Carry Bag
1 x 2M 12V Electrical Cord with Battery Clamps
1 x 8M Hose
SPECIFICATIONS
Motor 12 Volt DC
Inline Fuse 50 Amps
Maximum re-start pressure 150 PSI
Designed for use on a 12 Volt Battery
1 x Ination pack
1 x Instruction Manual
1 x Warranty Card

6
GENERAL OPERATING WARNINGS
• This unit is designed to supply continuous ow of air. Never dead end the hose or use
accessories that stop the free ow of air. Damage to the unit can occur.
• Only use the air compressor in an upright position.
• This product should never be left unattended during use.
• Never allow children to operate this compressor.
• This compressor may become HOT during operation.
• Do not touch the compressor with bare hands other than the battery clamps or the
On/O switch during and immediately after use.
• Do not use this product near open ames or ammable fumes.
• Use only in a well ventilated area.
• Always wear approved safety glasses with side shields when operating the
compressor; particulate matter, such as sand and bulldust, can be “stirred up” by
compressed air, and may gain entry to the eye, and cause a medical problem
• Risk of Burns: the compressor will become hot during operation; gloves should be
worn to prevent burns.
• Risk to Breathing: the compressor is not designed as a source of breathable air, and
should never be used as a source of breathable air.
• Risk of Electrical Shock: the compressor is designed for use in dry conditions only.
• Risk of Falling: the compressor will vibrate during use; ensure it is operated at
ground level on at level surface, to prevent the possibility of the compressor falling
during operation.
• Risk of Fire: the unit will become hot during use; allow to cool before storage
• Risk of Bursting: do not exceed the tyre manufacturer’s maximum air pressure,
which can be found on the side wall of the tyre being inated.
• DO NOT modify: never drill, modify or attempt repair of the unit; there are not
serviceable parts inside.
• Safe handling: carry the compressor by its handle; do not attempt to carry be either
the air delivery hose of the power supply cables and battery clamps.
Please read instructions carefully before use. Unless directions are followed
physical injury or property damage may result. Save these instructions for
future reference.

7
COMPRESSOR OPERATING INSTRUCTIONS
• The air compressor must only be operated with the operator in attendance; do not
leave the air compressor unattended.
• Before using, rst check the unit and air hose for any visible signs of damage; if no
damage visible, proceed as indicated below.
• Attach air hose to compressor by way of quick coupler, as shown in Fig. 1.
• Ensure the on/o switch is in the o position.
• Connect the red alligator battery clamp to the positive [red] battery terminal, connect
the black alligator battery clamp clip to the negative [black] battery terminal.
• Ensure the electrical cord is fully extended; no part should remain coiled up as this
will lead to unwanted and potentially damaging heat build up.
• Important to leave the engine running during the period the compressor is running
to avoid the possibility of attening the vehicle battery.
• Activate the on switch and ensure air is being supplied.
• Attach the air delivery hose the tyre valve stem with the compressor running.
The attachment mechanism allows air to escape whilst the nozzle is being attached;
nger tighten only.
FIG. 1
SAFETY PRECAUTIONS
• Manufacturer’s speed rating on tyres is only applicable when tyres are inated to
manufacturer’s specication. In an o road situation, tyres are frequently deated to
cope with challenging conditions. In these situations, the tyre speed rating is no longer
applicable and the vehicle should be driven with caution. Driving with excessive speed
on a partially deated tyre could cause the tyre to dislodge from the wheel rim.
• Important the tyre be correctly inated when returning to the black top, before
resuming normal driving speed.
• Never make sharp turns whilst driving with reduced tyre pressure.
• Only use the supplied heat resistant pressure extension hose. If a replacement is
required, contact the customer service team on 1300 883104.

8
• Pump to the desired pressure; if above the desired pressure, push the deator collar
towards the valve stem, which will allow air to escape.
• Remove the air hose, check with an independent pressure gauge to ensure the
correct pressure has been attained.
• Repeat this process for all remaining tyres which require ination.
• At the completion of the ination process, activate the o switch on the air
compressor [the compressor will stop] and remove the alligator clips from the
battery terminals.
• Allow the compressor to cool.

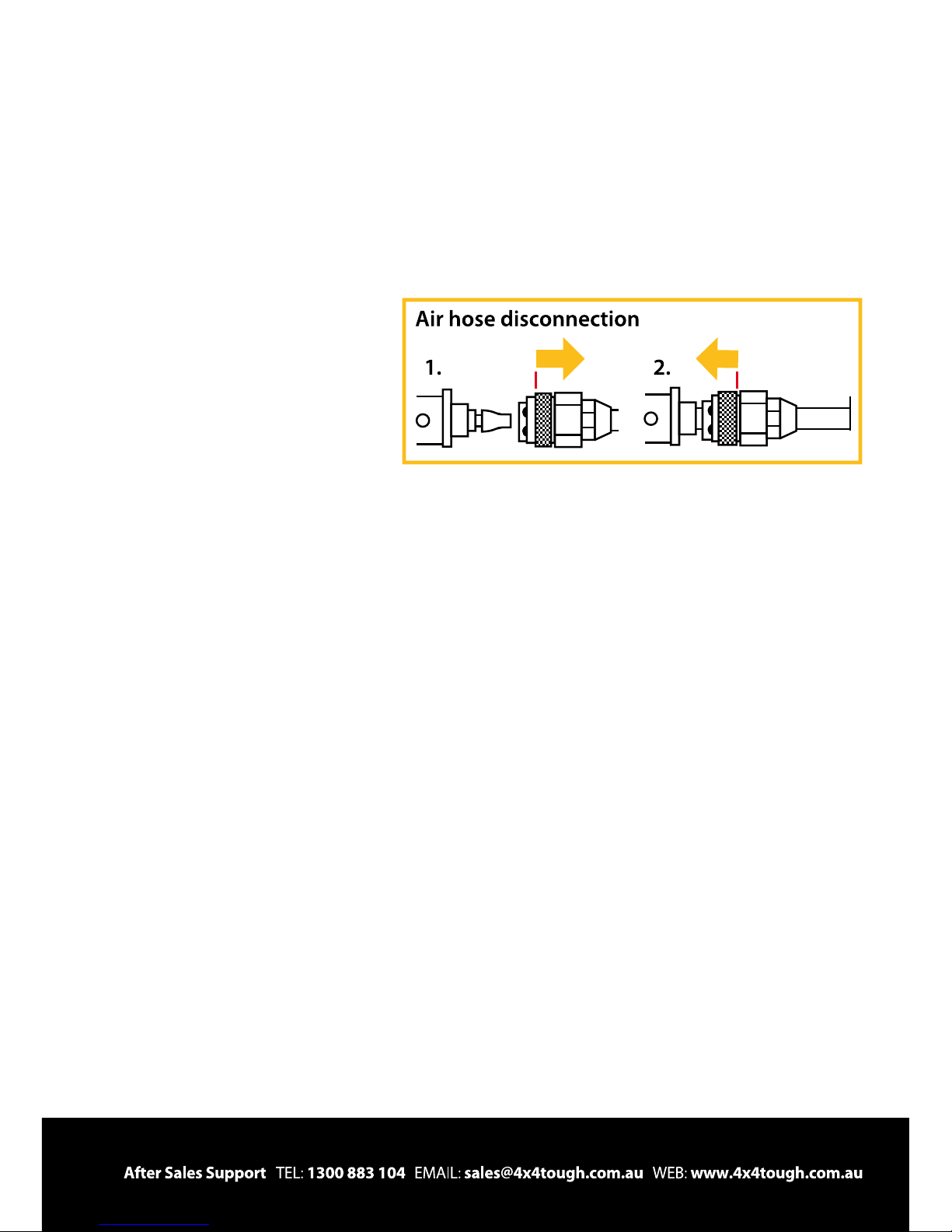

• Remove the air delivery hose
from the compressor [as
shown in Fig. 2], being careful
when engaging the quick
release collar as the collar will
become hot during normal
operation of the compressor.
• Only when satised the compressor has cooled suciently, pack in the storage bag,
and resume your journey.
CARE AND MAINTENANCE
We recommend that only qualied persons perform maintenance and servicing on the
air compressor.
• Note: Always unplug or shut down your compressor before attempting any type of
maintenance. Wait for compressor to cool before servicing.
Ensure the unit has been switched o and has cooled down completely
before cleaning.
• Never immerse this unit in water.
• Simply wipe down with a soft cloth.
DISPOSAL
Please consider when disposing of electronic products such as an air compressor
that some components can be recycled and recovered for re-use. DO NOT attempt to
dissemble any electronic product unless you are a trained electronics technician.
Many councils hold e-waste (electronic waste) collections. Contact your nearest council to
enquire about the best method of disposal in your area.
FIG. 2
