909 909210TS User manual

INSTRUCTION MANUAL
909210TS
12 0 0 W
210mm (8" )
Table saW

2
Warranty Power Tools
For full details please visit us at www.909.com
CONTeNTs
Description of symbols 3
Specifications 3
General safety instructions 4
Safety rules for laser lights 5
Additional safety rules for mitre saws 6
Accessories 7

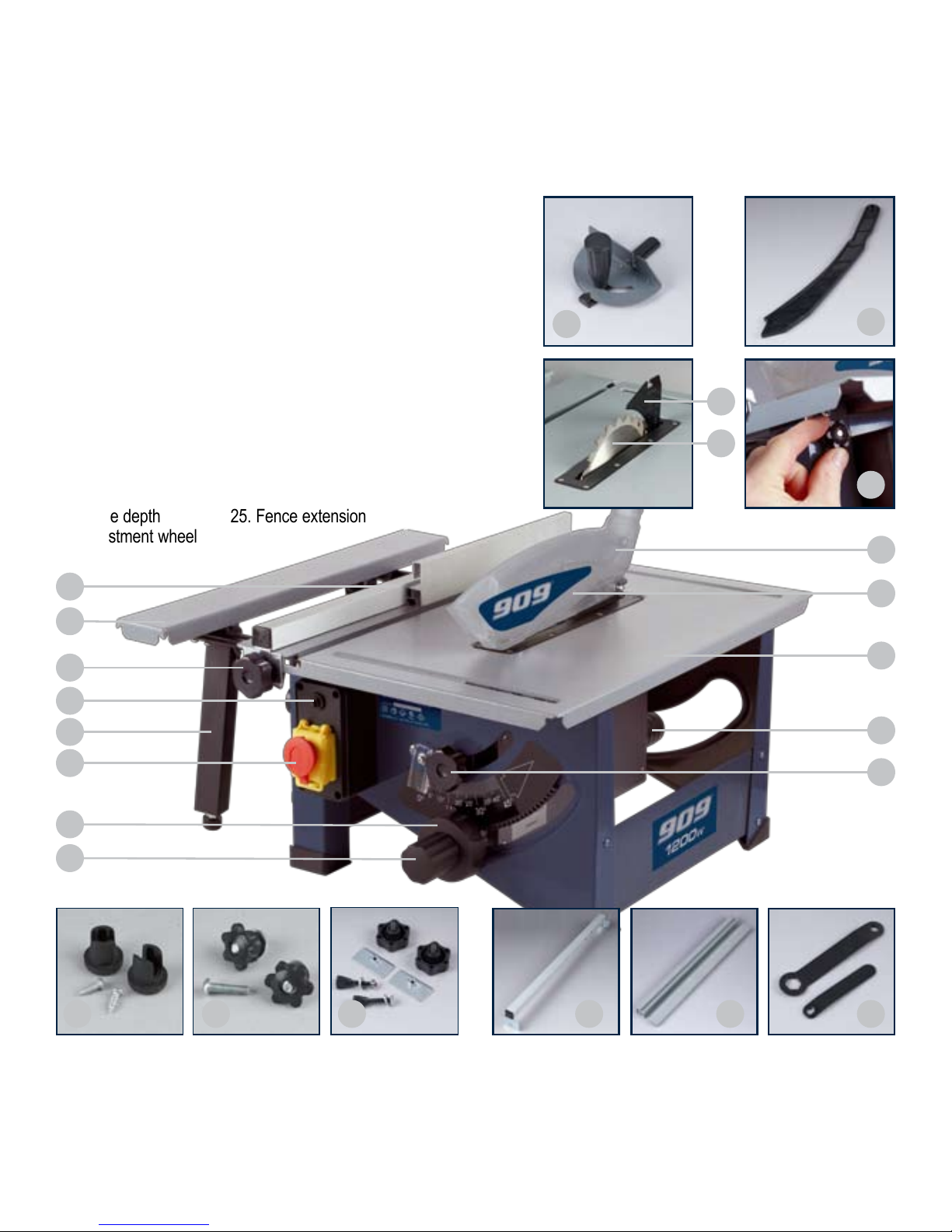

Know your product 8
Unpacking 10
Transportation 10
Bench mounting 10
Release knob 10
Mitre table lock 11
Bevel lock 11
Bevel adjuster 11
Clamp assembly 11
Spindle lock button 12
Rotating lower blade guard 12
Dust bag 12

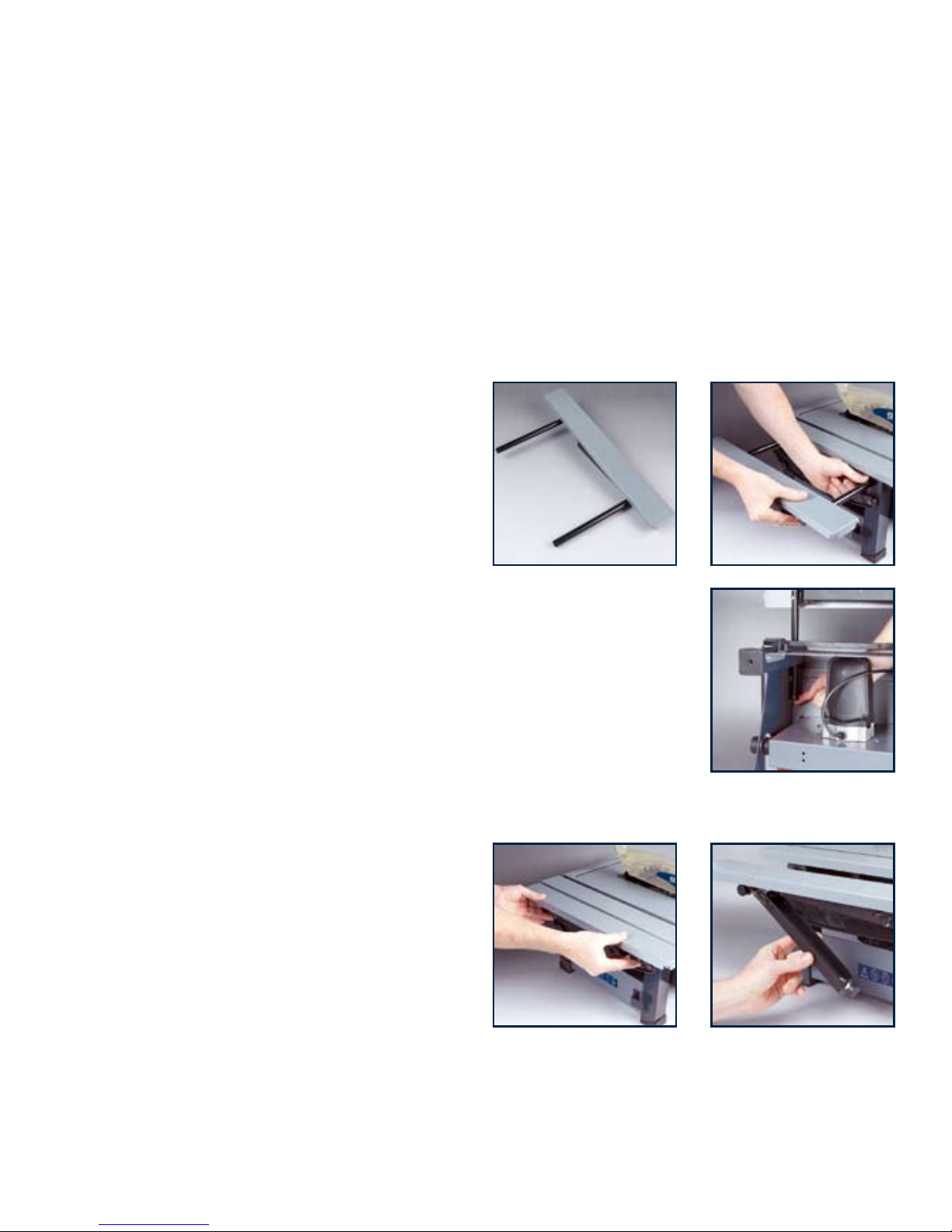

Attaching the side bars 12
Turning on and off 12
Turning on the laser line generator 12

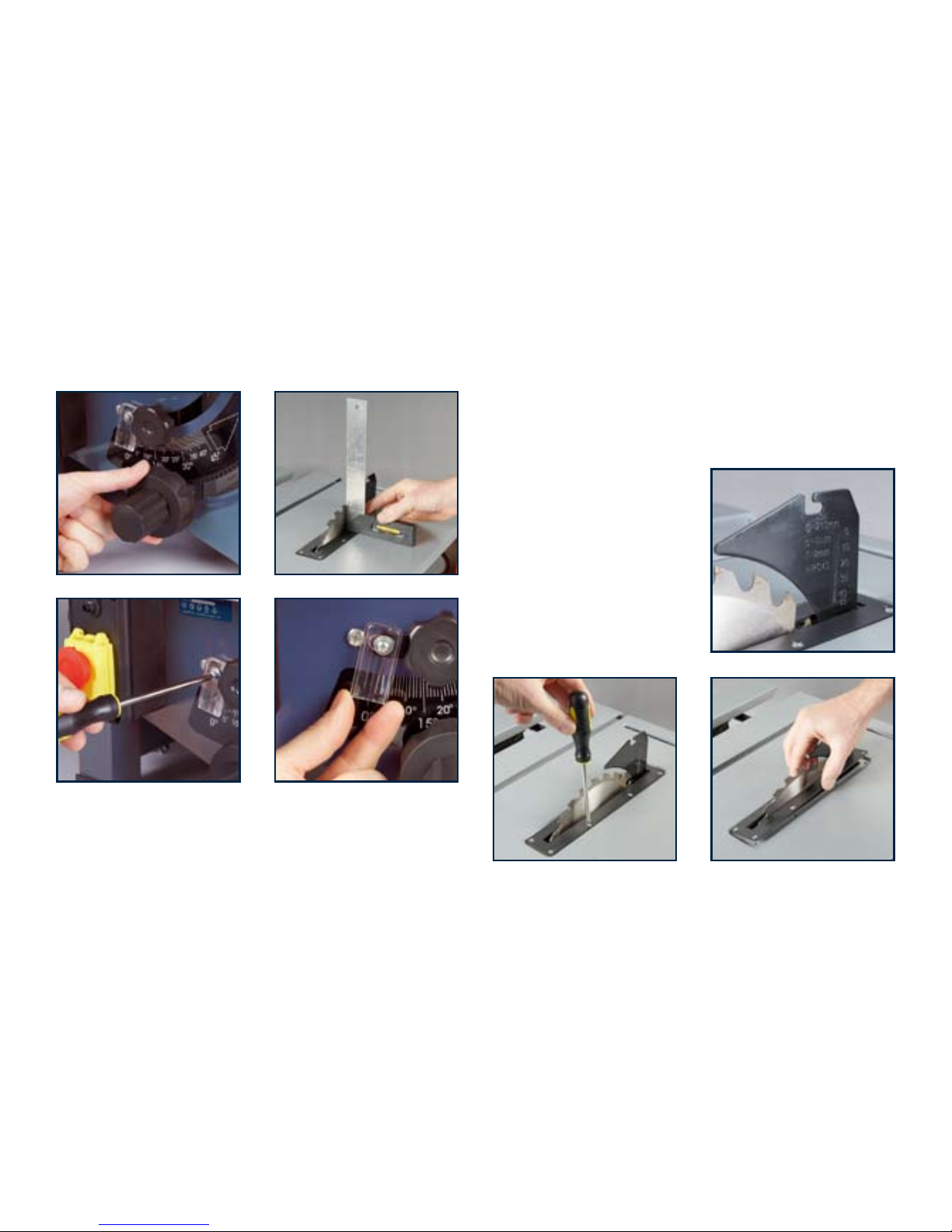

Setting the table square with the blade 13

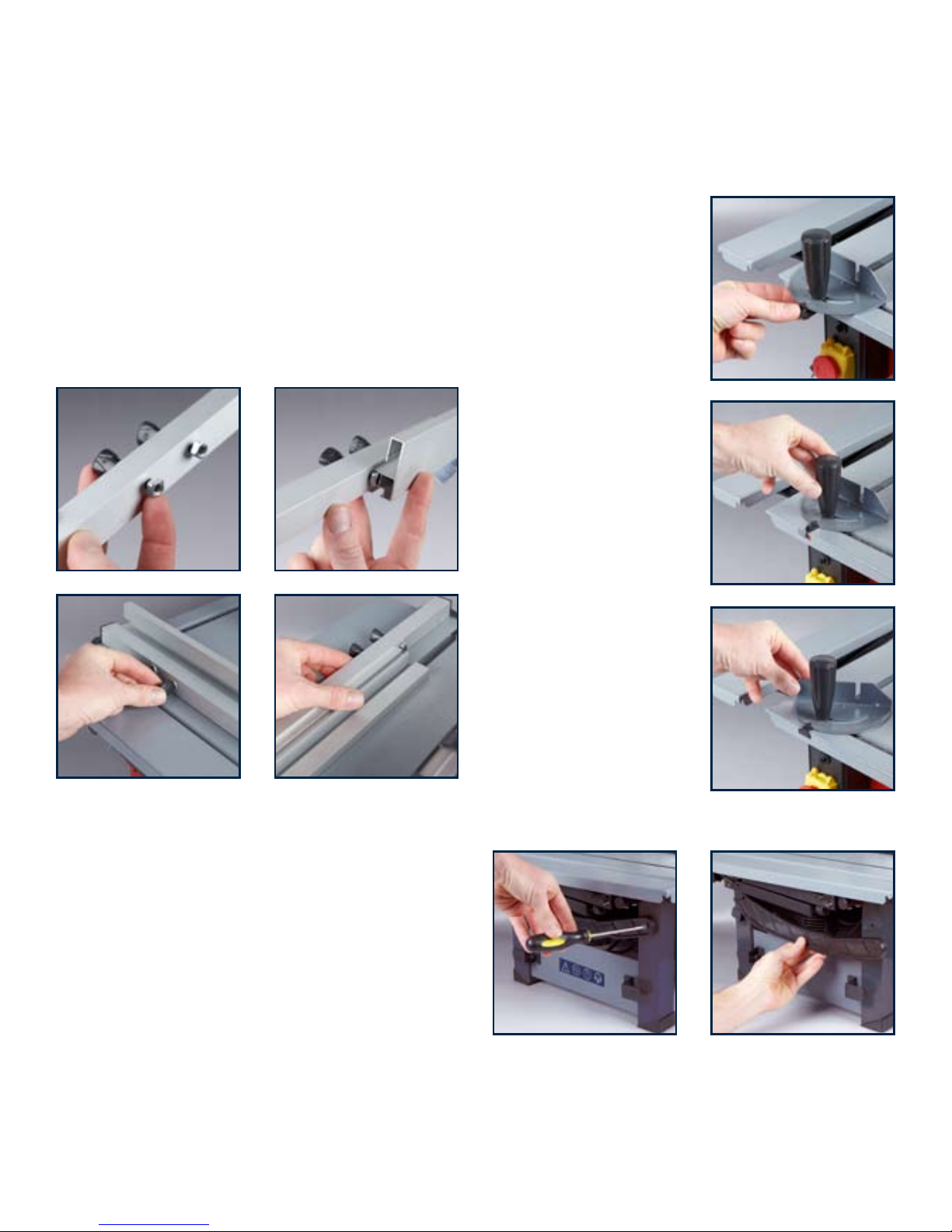

Setting the fence square with the table 14
Changing a blade 14

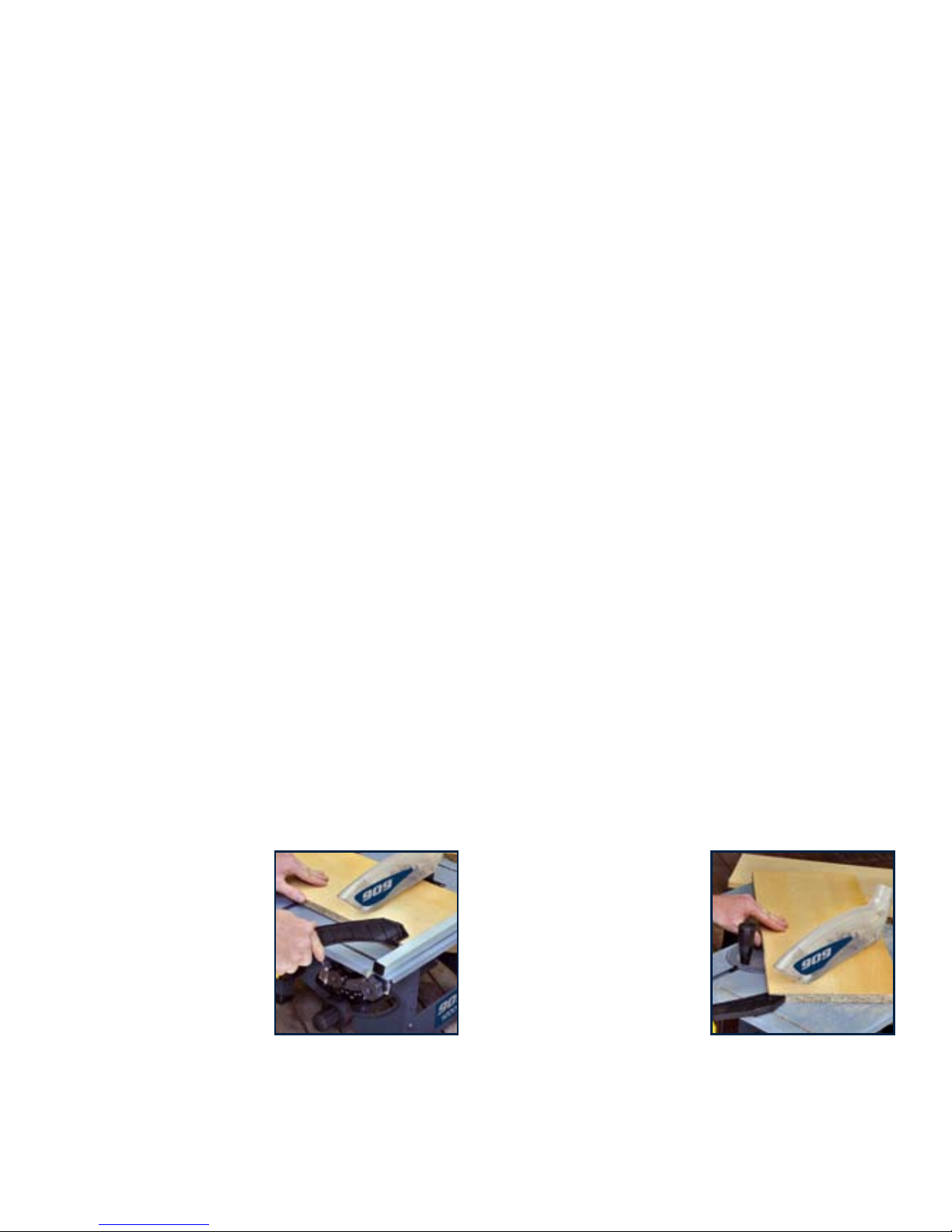

Cross-cutting 15
Bevel cut 16
Compound mitre cut 17
Adjusting the laser line 17
Using the laser line generator 18
Maintenance 18
Power cord maintenance 18
Cleaning 18
General inspection 18

3
Description of symbols
The rating plate on your tool may show symbols.
These represent important information about the
product or instructions on its use.
Wear hearing protection.
Wear eye protection.
Wear breathing protection.
Double insulated for additional protection.
Conforms to relevant standards
for electromagnetic compatibility.
For safe operation read instruction manual.
Specifications
Voltage: 230 – 240Vac ~ 50Hz
Power Rating: 1200W
No Load Speed: 4800RPM
Maximum Cutting Depth at 90°: 48mm
Maximum Cutting Depth at 45°: 45mm
Saw Blade: Ø210mm x Ø16mm bore x 2.6mm
Saw Blade Type: TCT (Tungsten Carbide Tipped)
Bevel Capacity: 0 – 45°
Dust Extraction Port: Ø36mm
Table Size: Without Extension Tables:
525mm x 400mm
With Extension Tables:
525mm x 620mm
Net Weight: 14kg
Note. Do not use a blade that is thinner than the riving
knife. Do not use a blade that is thicker than 3.5mm.
Introduction
Your new 909 power tool will more than satisfy
your expectations. It has been manufactured under
stringent 909 Quality Standards to meet superior
performance criteria.
You will find your new tool easy and safe to operate,
and, with proper care, it will give you many years
of dependable service.
CAUTION. Carefully read through this entire Instruction
Manual before using your new 909 Power Tool. Take
special care to heed the Cautions and Warnings.
Your 909 power tool has many features that will make
your job faster and easier. Safety, performance, and
dependability have been given top priority in the
development of this tool, making it easy to maintain
and operate.
Environmental protection
Recycle unwanted materials instead
of disposing of them as waste. All tools,
hoses and packaging should be sorted,
taken to the local recycling centre and
disposed of in an environmentally safe way.
WARNINGS
It may be more difficult to see the laser line in conditions of
bright sunshine and on certain surfaces.

4
General safety rules
WARNING. Read all safety warnings and all instructions.
Failure to follow the warnings and instructions may result in
electric shock, fire and/or serious injury.
Save all warnings and instructions for future reference.
The term “power tool” in the warnings refers to your mains-
operated (corded) power tool or battery-operated (cordless)
power tool.
1) Work area safety
a) Keep work area clean and well lit. Cluttered or dark
areas invite accidents.
b) Do not operate power tools in explosive
atmospheres, such as in the presence of flammable
liquids, gases or dust. Power tools create sparks which
may ignite the dust or fumes.
c) Keep children and bystanders away while operating a
power tool. Distractions can cause you to lose control.
2) Electrical safety
a) Power tool plugs must match the outlet. Never modify
the plug in any way. Do not use any adapter plugs with
earthed (grounded) power tools. Unmodified plugs and
matching outlets will reduce risk of electric shock.
b) Avoid body contact with earthed or grounded
surfaces, such as pipes, radiators, ranges and
refrigerators. There is an increased risk of electric
shock if your body is earthed or grounded.
c) Do not expose power tools to rain or wet conditions.
Water entering a power tool will increase the risk of
electric shock.
d) Do not abuse the cord. Never use the cord for
carrying, pulling or unplugging the power tool.
Keep cord away from heat, oil, sharp edges or
moving parts. Damaged or entangled cords increase
the risk of electric shock.
e) When operating a power tool outdoors, use an
extension cord suitable for outdoor use. Use of a cord
suitable for outdoor use reduces the risk of electric shock.
f) To reduce the risk of electric shock, the manufacturer
recommends the use of a residual current device
with a rated residual current of 30mA or less at
all times.
3) Personal safety
a) Stay alert, watch what you are doing and use
common sense when operating a power tool. Do not
use a power tool while you are tired or under the
influence of drugs, alcohol or medication. A moment
of inattention while operating power tools may result in
serious personal injury.
b) Use personal protective equipment. Always wear eye
protection. Protective equipment such as dust mask,
non-skid safety shoes, hard hat, or hearing protection used
for appropriate conditions will reduce personal injuries.
c) Prevent unintentional starting. Ensure the switch
is in the off-position before connecting to power
source and/or battery pack, picking up or carrying
the tool. Carrying power tools with your finger on the
switch or energising power tools that have the switch
on invites accidents.
d) Remove any adjusting key or wrench before
turning the power tool on. A wrench or a key left
attached to a rotating part of the power tool may result
in personal injury.
e) Do not overreach. Keep proper footing and balance
at all times. This enables better control of the power tool
in unexpected situations.
f ) Dress properly. Do not wear loose clothing or
jewellery. Keep your hair, clothing and gloves away
from moving parts. Loose clothes, jewellery or long hair
can be caught in moving parts.
g) If devices are provided for the connection of dust
extraction and collection facilities, ensure these are
connected and properly used. Use of dust collection
can reduce dust-related hazards.

5
4) Power tool use and care
a) Do not force the power tool. Use the correct power
tool for your application. The correct power tool will
do the job better and safer at the rate for which it was
designed.
b) Do not use the power tool if the switch does not turn
it on and off. Any power tool that cannot be controlled
with the switch is dangerous and must be repaired.
c) Disconnect the plug from the power source and/or
the battery pack from the power tool before making
any adjustments, changing accessories, or storing
power tools. Such preventive safety measures reduce
the risk of starting the power tool accidentally.
d) Store idle power tools out of the reach of children
and do not allow persons unfamiliar with the power
tool or these instructions to operate the power tool.
Power tools are dangerous in the hands of untrained users.
e) Maintain power tools. Check for misalignment or
binding of moving parts, breakage of parts and any
other condition that may affect the power tool’s
operation. If damaged, have the power tool repaired
before use. Many accidents are caused by poorly
maintained power tools.
f ) Keep cutting tools sharp and clean. Properly
maintained cutting tools with sharp cutting edges are
less likely to bind and are easier to control.
g) Use the power tool, accessories and tool bits etc.
in accordance with these instructions, taking into
account the working conditions and the work to be
performed. Use of the power tool for operations different
from those intended could result in a hazardous situation.
h) This appliance is not intended for use by persons
(including children) with reduced physical, sensory
or mental capabilities, or lack of experience and
knowledge, unless they have been given supervision or
instruction concerning use of the appliance by a person
responsible for their safety.
i) Children should be supervised to ensure that they do
not play with the appliance.
5) Service
a) Have your power tool serviced by a qualified repair
person using only identical replacement parts. This
will ensure that the safety of the power tool is maintained.
Additional safety rules for table saws
WARNING. The use of an accessory or attachment, other
than those recommended in this Instruction Manual, may
present a risk of personal injury.
The tool must be used only for its prescribed purpose.
Any use other than those mentioned in this Manual will
be considered a case of misuse. The user and not the
manufacturer shall be liable for any damage or injury
resulting from such cases of misuse.
The manufacturer shall not be liable for any changes made
to the tool nor for any damage resulting from such changes.
Even when the tool is used as prescribed it is not possible
to eliminate all residual risk factors. The following hazards
may arise in connection with the tool’s construction and
design:
• Contact with the saw blade in the uncovered saw zone.
• Reaching into the running saw blade (cut injuries).
• Kickback of work pieces and parts of work pieces.
• Saw blade fracturing.
• Catapulting of faulty carbide tips from the saw blade.
• Damage to hearing if effective earmuffs are not worn.
• Harmful emissions of wood dust when the machine is
used in closed rooms.
• Do not use saw blades, which are deformed or cracked.
• Do not use saw blades made of High Speed Steel (HSS).
• Do not use any abrasive wheel unless the machine is
designed for that purpose.
• Do not use saw blades that do not comply with the
characteristics specified in this instruction manual.
