a-gear OPM HOPM-PON-S User manual

OPM HOPM-PON-S
PON Optical Power Meter users manual

Content
1. Overview 3
1.1. Features: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
2. Technical Specication 3
2.1. PON module: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
2.2. Normal Optical Power Meter Module: . . . . . . . . . . . . . . . . . . . . . . . . . . 4
3. Standard Conguration 5
4. Function Explantion 6
4.1. OPM HOPM-PON-S Front Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
4.2. Key Function. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
4.3. Operation instruction:. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
5. Data Communication 13
6. Operation Instruction and Notes 16
6.1. Instruction for PON power meter. . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
6.2. Instructions for Normal Optical Power Meter Function . . . . . . . . . . . . . . 17
7. Troubleshooting 19
8. Maintenance 19
9. Warranty and Servicing 19
a-gear.net
Раge 2 of 20
OPM HOPM-PON-S
datasheet
A-GEAR World Wide Manufacturing

1. Overview
OPM HOPM-PON-S – PON Optical Power Meter target at the FTTx application and
maintenance.
This power meter is able to simultaneously test and estimate the signals of the voice,
data and video. It is an essential and ideal tool for the construction and maintenance
of the PON projects.
1.1. Features:
• Providing simultaneous measurement at BPON/EPON/GPON for all three
wavelengths on the ber (1490nm, 1550nm,1310nm )
• Used in Burst mode measurement of 1310nm upstream
• Use the software connect with PC, setting the threshold, data transfer, and
calibration the wavelength
• CW light power measurement is available with wavelengths of 850, 1300, 1310,
1490, 1550, 1625nm.
• USB communication port enables data transfer to a PC
• 1000 measurement items can be saved in PON power meter or computer for data
review.
• Oers up to 10 dierent threshold sets in total; Three status LEDs represent
dierent optical signal conditions of Pass, Warn and Fail respectively.
• User self-calibration can be performed and «Factory Default» mode can be
retrieved in computer through the software.
• PON SC standard connector, easy to test, other type connector port can be
required on customer requests.
• Backlight LCD display supports night operation.
• 10 minutes Auto-o function can be activated or deactivated with keypad
operation.
a-gear.net
Раge 3 of 20
A-GEAR World Wide Manufacturing
OPM HOPM-PON-S
datasheet

2. Technical Specification
2.1. PON module:
Model OPM HOPM-PON-S
1310 upstream measurement
Pass Zone(nm) 1260~1360
lsolation@1490/1550(dB) >40
Measurement Range(dBm) -40~+10
1490 downstream measurement
Pass Zone(nm) 1470~1505
Isolation @ 1550nm(dB) >30
Isolation® 1310nm(dB) >40
Measurement Range(dBm) -40~+10
1550 downstream measurement
Pass Zone(nm) 1535~1570
Isolation at 1490nm(dB) >40
Isolation at 1310nm(dB) >40
Measurement Range(dBm) -40~+20
Measurement Accuracy
Connatural uncertainty(dB) ±0.5
Linearity(dB) ±0.1
Passing through insertion Loss(dB) <1.5
General Information
Detector Type InGaAs
Optical Connector FC/SC Interchangeable
Fiber Type 9/125um
Display LCD:128*64
Measurement Unit dB/dBm/xW
Resolution (dB) 0.01
Operation Voltage(V) DC 3.3-5.5
Power Supply 3 AA1.5V battery
Continuously Operation time (h) PON Power Meter Mode: 90h
Normal Optical Power Meter Mode: 100h
Operation Temperature(C) -10-60
Storage temperature(C) -25-70
Weight(kg) 0.6
a-gear.net
Раge 4 of 20
OPM HOPM-PON-S
datasheet
A-GEAR World Wide Manufacturing

Note:
The operation time of the battery are all for the instrument that do not turn on backlight, if the backlight
turn on the operation time will be shorted.
2.2. Normal Optical Power Meter Module:
Model OPM HOPM-PON-S
Measurement Accuracy
Connatural uncertainty(dB) ±0. 25
Linearity(dB) ±0. 1
Measurement Range(dBm) -70~+6 (optional)
General Information
Measurement Unit dB/dBm
Resolution (dB) 0.01
Calibration Wavelength(nm) 850, 1300, 1310, 1490, 1550, 1625
Detector Type InGaAs
Optical Connector FC/SC/ST Interchangeable/2. 5 universal adapter
Fiber Type 9/125um
3. Standard Configuration
No. Name Quantity
1OPM HOPM-PON-S 1
2User Manual 1
3USB Cable 1
4CD 1
5Cotton Swabs 1
6Soft Carrying case 1
a-gear.net
Раge 5 of 20
A-GEAR World Wide Manufacturing
OPM HOPM-PON-S
datasheet

4. Function Explantion
4.1. OPM HOPM-PON-S Front Panel
a-gear.net
Раge 6 of 20
OPM HOPM-PON-S
datasheet
A-GEAR World Wide Manufacturing

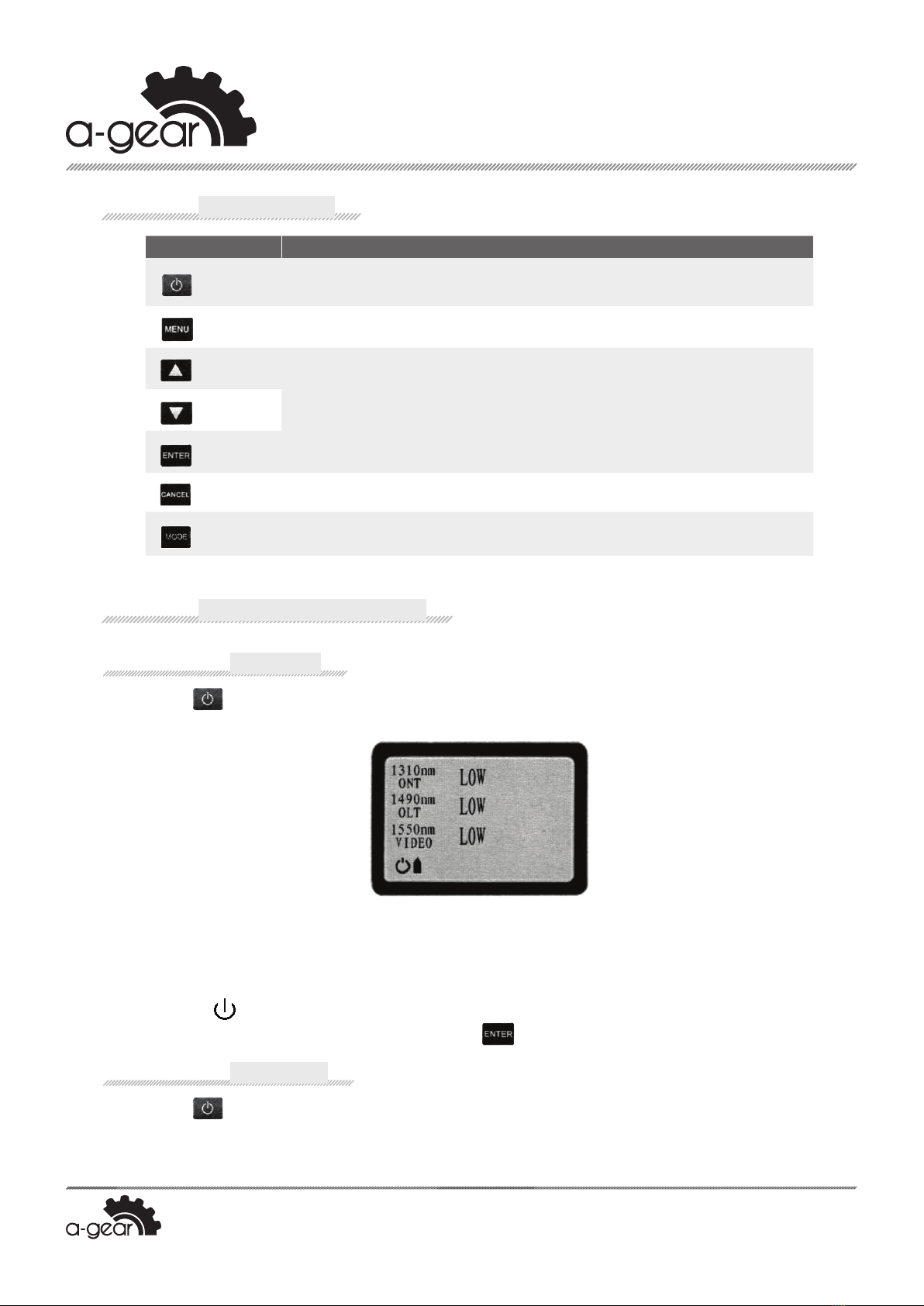

4.2. Key Function
Key Function
Turns unit on (Press for one second); Controls 10 minutes Auto power off
function (press for half second); Turns unit off (Press for one second)
PON/CW Power meter module Option
Function Option, value adjustment
Confirmation the function selection and saving the data
Function cancel
Shit the CW wavelength to the modulation (Hz) wavelength
4.3. Operation instruction:
4.3.1. Power ON
Press for about one second to make the until power on, Enter into the PON
power meter function, the unit displays as shown in below gure:
As shown in above gure, the LCD will display simultaneously three wavelengths of
1310nm upstream measurement and 1490nm,1550nm downstream measurements.
When optical signal is present under test, the optical channel will display power levels
in dBm, when optical signal is not available, then the optical channel will display
«LOW». « » indicates 10 minutes auto-o function is activated. The unit will turn
itself o after 10 minutes of idle time. Press to close 10 minutes auto-o.
4.3.2. Power OFF
Press for about one second, to turn o the unit.
a-gear.net
Раge 7 of 20
A-GEAR World Wide Manufacturing
OPM HOPM-PON-S
datasheet

4.3.3. Function Setting
4.3.3.1. PON Power Meter module and OPM module selection:
After open the instrument, Press to enter into menu operation, Press «CANCEL»
to exit.
Press or to choose the following settings, and press to choose the
function:
4.3.4. PON power meter Setting
Press for the PON power meter function:
4.3.5. Relative output power measurement:
As per requirements of measurement to select the dierent wavelengths and Ref
settings, relative power=testing value-Ref value. Press or to select the
dierent wavelengths, Press to change the Ref value as shown in below gure:
4.3.6. Threshold Selection
OPM HOPM-PON-S PON power meter oers up to 10 dierent threshold sets in total.
a-gear.net
Раge 8 of 20
OPM HOPM-PON-S
datasheet
A-GEAR World Wide Manufacturing

There are three status LEDs in the front panel and each light indicator has three
conditions of colors which represent dierent signal status as below:
Green --------------- Represents Pass
Yellow --------------- Represents Warning
Red --------------- Represents Fail
Behind “Thresh Sel» displays selected threshold setting order number from 1~10, and
behind «Name»displays selected threshold name, press or to select the
corresponding shresholds. With using PON POWER METER.exe software to modify
the values range and names of thresholds (Details as explained in term 5 – Data
Communication.)
4.3.7. Switches of measurements units
Measure the output power of the ber use dBm or Xw, Press with or to
choose the measurements units, press to exit and cancel the current operation as
shown in below gure.
4.3.8. Switches of language
There are two language English and Chinese to Choose, Press and to
select «Language» option, Press to exit and cancel the current operation.
a-gear.net
Раge 9 of 20
A-GEAR World Wide Manufacturing
OPM HOPM-PON-S
datasheet

4.3.9. Time setting
In item 5 have» Time Setting» Press and to select the «Time Set» option, and
press to change year-month-date-time respectively as shown in below gure, use
and to change the digits. After setting, press to conrm. Press to
exit and cancel the current operation.
4.3.10. History Data
This option is designed to review and delete saved measurements data. Press “Menu”
to enter into menu operation, using with and to highlight «History Data»
option. There are three options in History data:
Data view -------------- To view the history data
Del Cur -------------- To delete the current data
Del All -------------- To delete all history data
Use and to change the options.

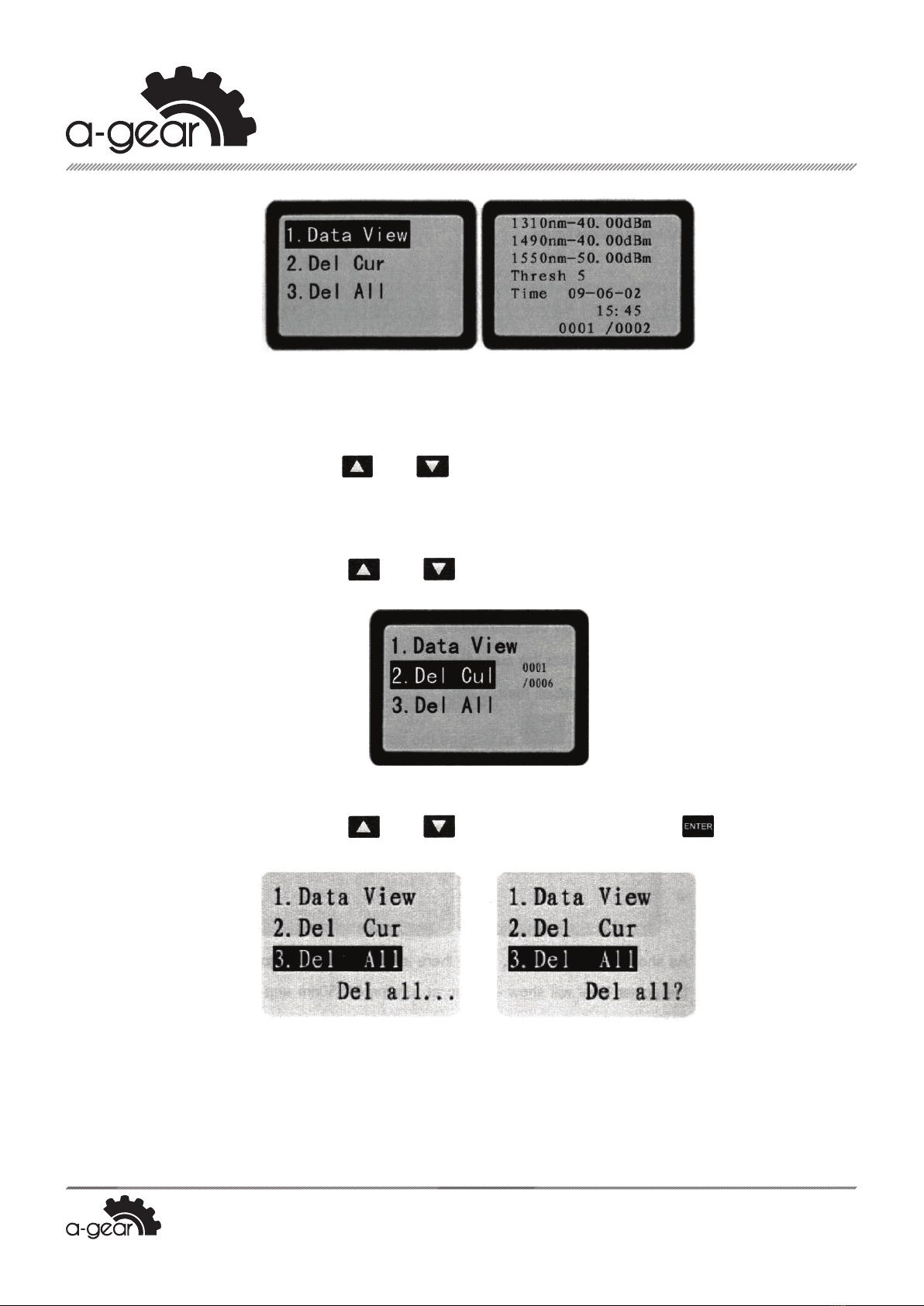

4.3.10.1. «Data View»
Under «History data», use and to highlight «Data View», press to
conrm and view the history data as shown in to exit.
a-gear.net
Раge 10 of 20
OPM HOPM-PON-S
datasheet
A-GEAR World Wide Manufacturing

As shown in above gure, when there is no optical signal to be tested, the power level
will show -40dBm at 1310nm&1550nm and -50dBm at 1550nm, when the optical
signal is present, the unit will display the corresponding tested value. «Thresh Sel
5» is the name of current viewed data, 0002 here means the total quantity of saved
measurements data. Use and to choose or change the dierent saved
gistory data. If there is no measurements is saved in the unit, it will display «No
Record».
4.3.10.2. «Del Cur»
Under «History data», use and to highlight «Del Cur», press to conrm to
delete the current data as shown in below gure.
4.3.10.3. «Del All»
Under «History data», use and to highlight «Del All», press to conrm
to delete all the saved history data as shown in below gure.
a-gear.net
Раge 11 of 20
A-GEAR World Wide Manufacturing
OPM HOPM-PON-S
datasheet

4.3.11. CW Power Meter:
Press , enter into CW power meter function (normal optical power meter)
Choose the wavelength and reference value based on the requirement. OPM HOPM-
PON-S provide the six CW wavelength measurement: 850nm, 1300nm, 1310nm,
490nm, 1550nm, 1625nm, Press and to choose the wavelength, press
setting/ change the reference value. Relative value=absolute value-reference value. It
will display the output power value once there got the optic signal, and it will display
-70.00dBm when no signal comes in.
a-gear.net
Раge 12 of 20
OPM HOPM-PON-S
datasheet
A-GEAR World Wide Manufacturing

5. Data Communication
5. 1. Connect OPM HOPM-PON-S PON power meter to the computer’s port
using the provided USB cable. If you still do not install the software of USB
driver, then please nd «CP210X_VCP_Win_XP_S2K3 _Vista_7.exe» in the CD
as shown in below gure and install it.
5. 2. Open the software PON POWER METER.EXE
5. 2. 1. Upload the data
• Open the OPM HOPM-PON-S PON power meter, rst of all click , connect OPM
HOPM-PON-S PON power meter to the computer (Click «English» to set the
language of the operation interface to be English)
• Choose «Upload Data», click «Upload history data» sign, the saved data can be
read on the computer, and saved as a le format
• Click the button «Del Cur» or «Del All» to delete the data. Please refer to
below gure for better understanding.
a-gear.net
Раge 13 of 20
A-GEAR World Wide Manufacturing
OPM HOPM-PON-S
datasheet

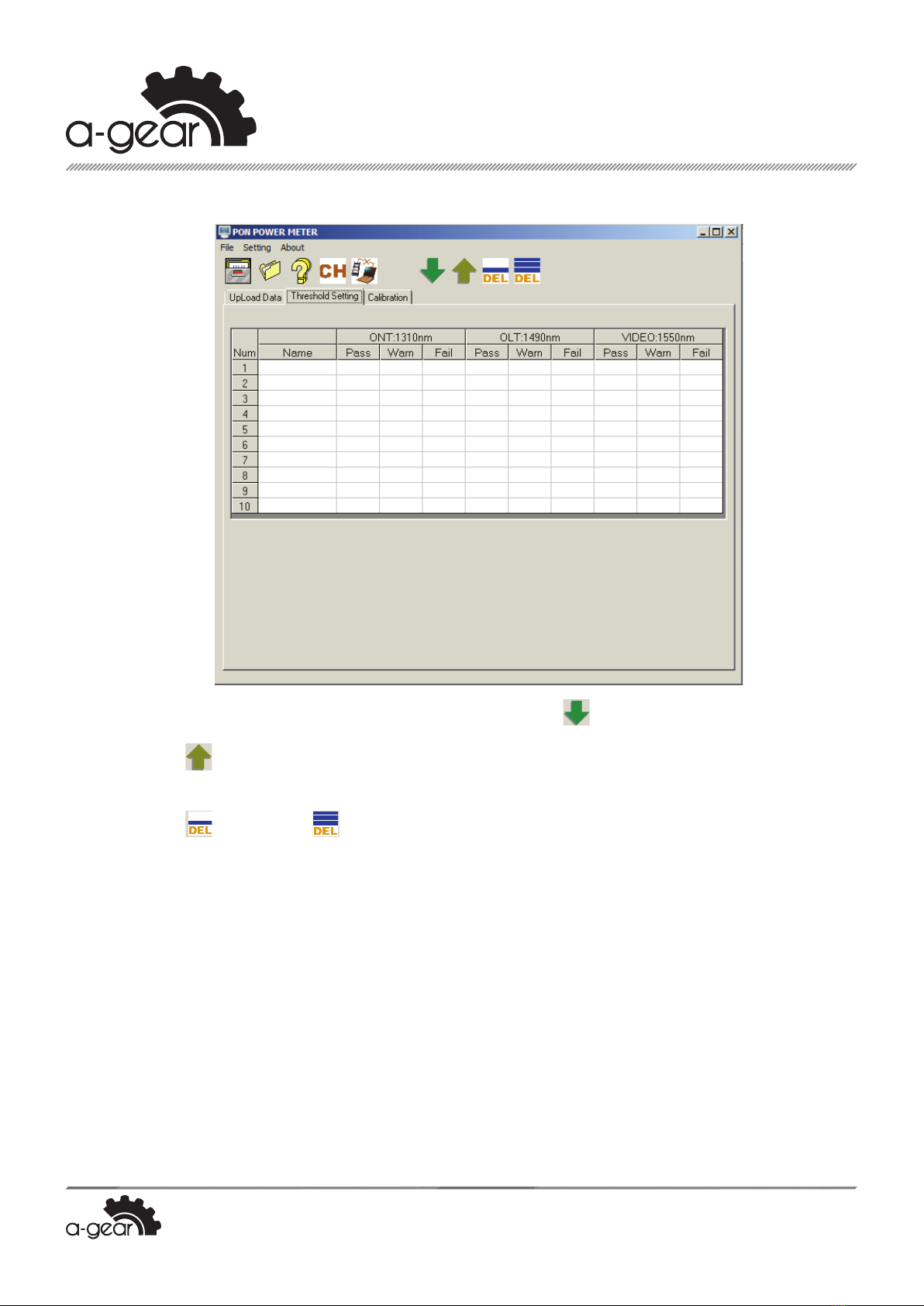

5. 2. 2. Threshold Setting
From the toolbar, select «Threshold Setting», and click «Threshold Setting» icon to
type or modify the threshold value.
Click «Upload threshold value» icon to read the threshold set. For the used testing
threshold values will be displayed as blue front, for the non-used threshold values will
be displayed as black front.
Click «Del Cur» or «Del All» to delete the values.
a-gear.net
Раge 14 of 20
OPM HOPM-PON-S
datasheet
A-GEAR World Wide Manufacturing

5. 2. 3. Calibration
Choose «Calibration» tab, the user can perform user self-calibration operation also can
choose «Factory Default» mode. For example, the current optical power at 1310nm is
-10dBm, type -10dBm in the text box of input standard power, and click Calibration
tab, then nished the calibration operation at 1310nm wavelength. However, if the
user made some mistakes during the calibration, then click «factory default» to return
to factory mode which set by manufacturer.
a-gear.net
Раge 15 of 20
A-GEAR World Wide Manufacturing
OPM HOPM-PON-S
datasheet

6. Operation Instruction and Notes
6.1. Instruction for PON power meter
6.1.1.
Press open the instrument, enter into the PON power meter function, short press
choose ten minutes auto-o function.
Press choose the function.
Again press to choose the PON power meter function setting, use or
for threshold option, for the setting
Use or to choose the required threshold value, (The thresholds rang and
name have already set in the software, and also download to the instrument, please
check with the user manual of Chapter 6 data communication).
Press back to the testing menu.
a-gear.net
Раge 16 of 20
OPM HOPM-PON-S
datasheet
A-GEAR World Wide Manufacturing

6.1.2. Connect with the tested optic fiber
Clean the tested optic cable, connect with OLT/VIDEO port and ONT port, (SC type
connector), noted with the optic adaptor type, the optical adaptor will be break, and
the tested value will be faulty if the un-matched adaptor connected
1310nm ,upstream, 1490nm, 1550nm downstream, and 3 wavelength measurement
at the same time.
Eg.: The selected threshold name is «test1»(+3dBm,-20dBm,-30dBm). The measured
result displayed: -10dBm (Optical power) at 1310nm upstream measurement as shown
in above gure, as it is within +3dBm (Pass threshold)~-20dBm(Warning threshold),
therefore, it means the optical signal in Pass status and the LED at 1310nm will light up
with green color: If the measured result is between -20~-30dBm, it means the optical
signal in Warn status and the LED at 1310nm will light up with yellow color which
means the optical signal may got problems but still can be used; If the measured result
is out of the range of thresholds, i.e greater than +3dBm or smaller than -30dBm, then
it means the optical signal got problems, the LED at 1310nm will light up with red
color. The same process be used at 1490 and 1550nm wavelengths.
6.1.3. Saving the testing record:
Press «Enter», there will displaying saving on the screen, check with the upper pic. The
data recording series No. is 001. press « Enter» saving, and « Cancel» for cancel, and the
saving recording can be checked in the «data view» under «historical data» Menu.
6.1.4.
After nish the testing work, keep the connect port clean, so cover the dusty-cap once
nish the work.
a-gear.net
Раge 17 of 20
A-GEAR World Wide Manufacturing
OPM HOPM-PON-S
datasheet

6.2. Instructions for Normal Optical Power Meter Function
6.2.1.
Press button to open the instrument, use button and , to choose
the Optical Power Meter measurement, then press to enter into the selected
function. or Button in this case, is to choose the wavelength. Take 1310nm
measurement for example:
6.2.2. Connect with the tested optic fiber
Clean the optic Fiber end-face, and connect with the PIN port on the instrument (SC/
FC/ST adaptor), noted with the type of the optic ber adaptor, the non-matched
connecting will make the damage of the connector on the instrument and also make
the faulty of the measurement result.
E.g.: 1310nm measurement, after connect with the optic ber, it will displaying
-20dBm, press , set the -20dBm as the reference value, and it will also display
relative value (dB), see as following:

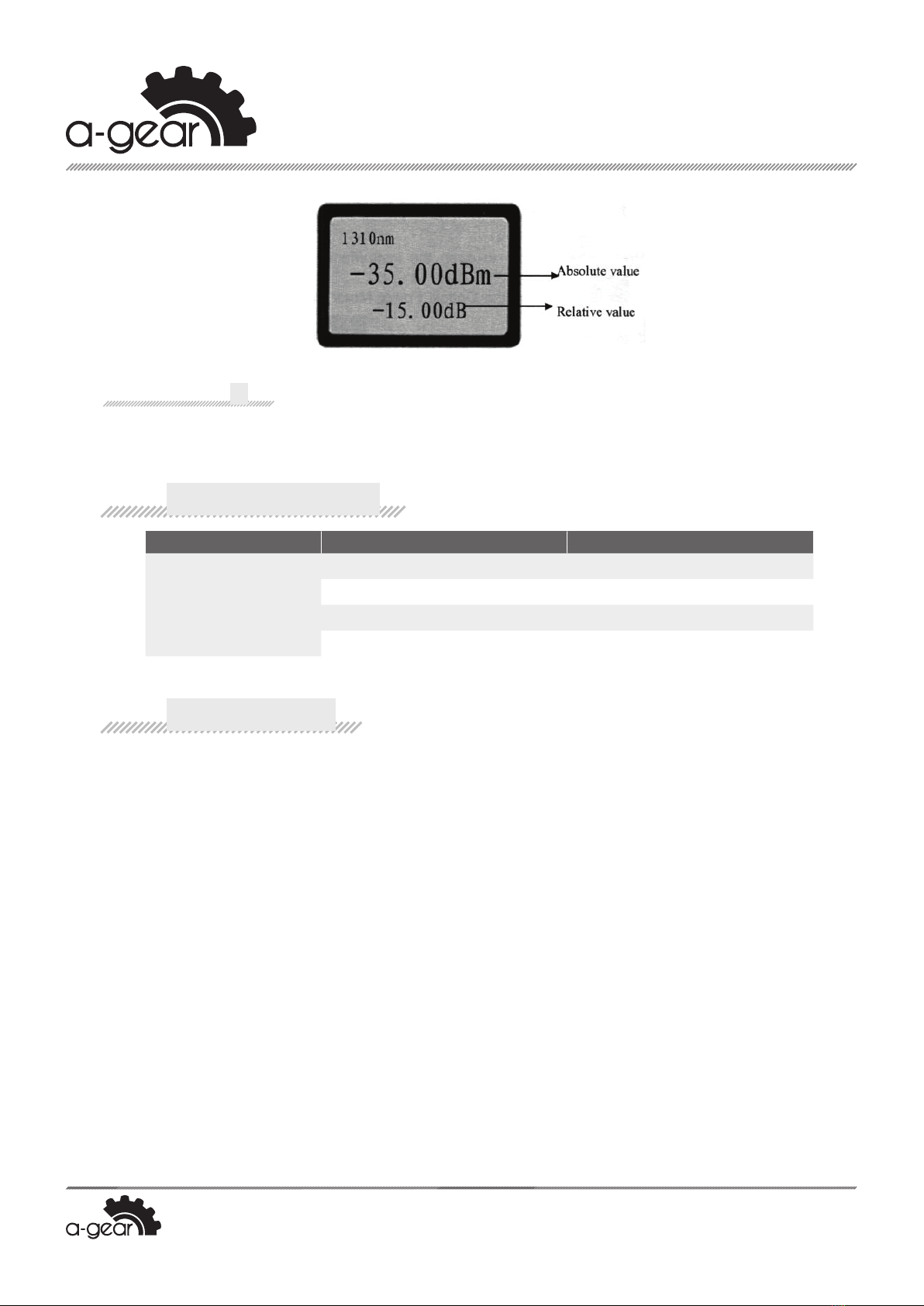

In order to get the loss between the two measurements, do another time
testing under the rst relative output power. The relative value will be calculated
automatically. For example the second time testing of 1310nm output power is
-35dBm, the relative output power will be -15dBm. (relative output power=absolute
output power-reference value -15dBm=-35.00dBm- (-20.00dBm) see as following:
a-gear.net
Раge 18 of 20
OPM HOPM-PON-S
datasheet
A-GEAR World Wide Manufacturing

6.2.3.
After nishing testing, cover the dusty cap to keep the optical connector port to be
clean.
7. Troubleshooting
Problem Possible Cause Solution
No display on the LCD 1. Power Off 1. Press to turn on
2. Lower Battery 2. Change the battery
Inaccurate
measurements
1 .Optical interface is not clean 1. Clean the fiber optic interface
2. Improper fiber connection 2. Reconnect the fiber
8. Maintenance
To help ensure long, trouble-free operation:
• Always keep clean ber-optic connectors before using, keep the unit free from oil
and dust.
• Do not use unclean, non-standard ber-optic connector adapter, do not insert to
bad ber-optic connector interface which may cause the system out of the work.
• Try to use one type ber optic connector adapter.
• After nish the testing or when the unit is unused, please cover the dust-proof cap
to ensure the optical interface is clean and to avoid measurements errors caused
by dust.
• Push/pull the ber-optic connectors carefully to avoid the scratches on the
interface.
• Clean optical connectors regularly with cleaning cotton swabs.
a-gear.net
Раge 19 of 20
A-GEAR World Wide Manufacturing
OPM HOPM-PON-S
datasheet

9. Warranty and Servicing
Details of warranty terms and conditions are given as below:
• Company warrants that OPM HOPM-PON-S will be free from defects in material
and workmanship for a period of 18 months. The date will be started from the date
of goods receiving by original customer.
• If any defectives happened due to quality problems of the product during the
rst month (from the date of goods receiving) of warranty period, Company
undertakes at its own cost (including all the freight costs and import taxes ) to
repair or replace or return the faulty product.
• If any defectives happened due to quality problems of the product during the 2nd
month to 18th month of warranty period, Company promises to repair or replace
free of charge. But the freight cost and related taxes will be shared by both parties.
Company will pay the shipping cost from customer side to Company and pay
the import taxes in China. Customer will pay the shipping cost from Company to
customer side and its local import taxes accordingly.
• This warranty is limited to defects in workmanship and materials and does not
cover damages from accident, acts of god, neglect, wrong usage or abnormal
conditions of operation.
• Company will charge corresponding fees for the cost of materials, repair and
shipping in conditions of below:
- Defects occurred under normal use and service but out of the warranty period.
- Failures and damages occurred do not because of defects in material and
workmanship of products.
- Failures and damages occurred because of failing to comply with the Operation
Instruction and necessary attention.
- abnormal conditions of operation or handling:
Such as articial damage, or operating in abnormal conditions of like high
temperature, high voltage, humidity and etc., Company will charge depend on the
actual failure rating.
a-gear.net
Раge 20 of 20
OPM HOPM-PON-S
datasheet
A-GEAR World Wide Manufacturing
