Test Products International SP565 User manual

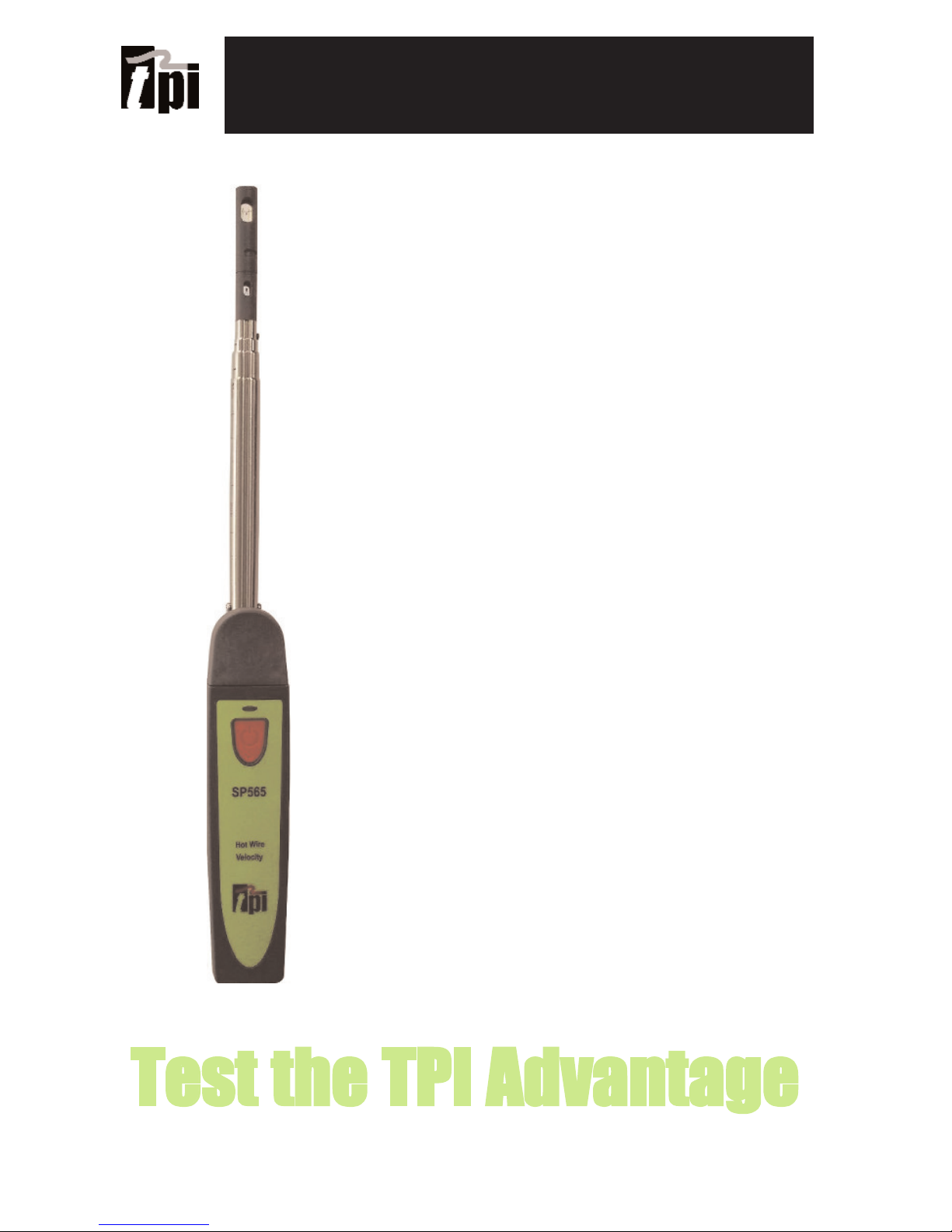

SP565 Hot Wire Air Velocity
Smart Probe
Test Products International, Inc.
Uses hot wire sensor for accurate
air velocity measurements.
Test the TPI Advantage
Visit www.testproductsintl.com
Measures Air Velocity and Temperature;
calculates Air Flow (Volume)
Connects to mobile device and uses the
TPI Smart Probe App
Perform average air velocity and air vol-
ume tests
Up to 6 SP565 smart probes can connect
to a single mobile device (most devices)
3 Year Limited Warranty

TABLE OF CONTENTS
A. Introduction........................................................................ 1
B. Safety Considerations......................................................... 1
C. Specifications..................................................................... 1
D. Instrument Overview.......................................................... 2
E. Taking a Measurement........................................................ 3
F. Additional App Features...................................................... 4
G. Drop Down Menu................................................................ 5
H. Entering Company and Customer Information.................... 6
I. Performing Air Volume (Flow) Tests.................................... 6 & 7
J. Air Volume Measurement - Traversing Horizontal Ducts..... 8 ~ 14
K. Air Volume Measurement - Traversing Round Ducts...........15 & 16
L. Maintenance........................................................................ 17
M. Trouble Shooting................................................................ 17
N. Accessories......................................................................... 17
O. Warranty.............................................................................. 18

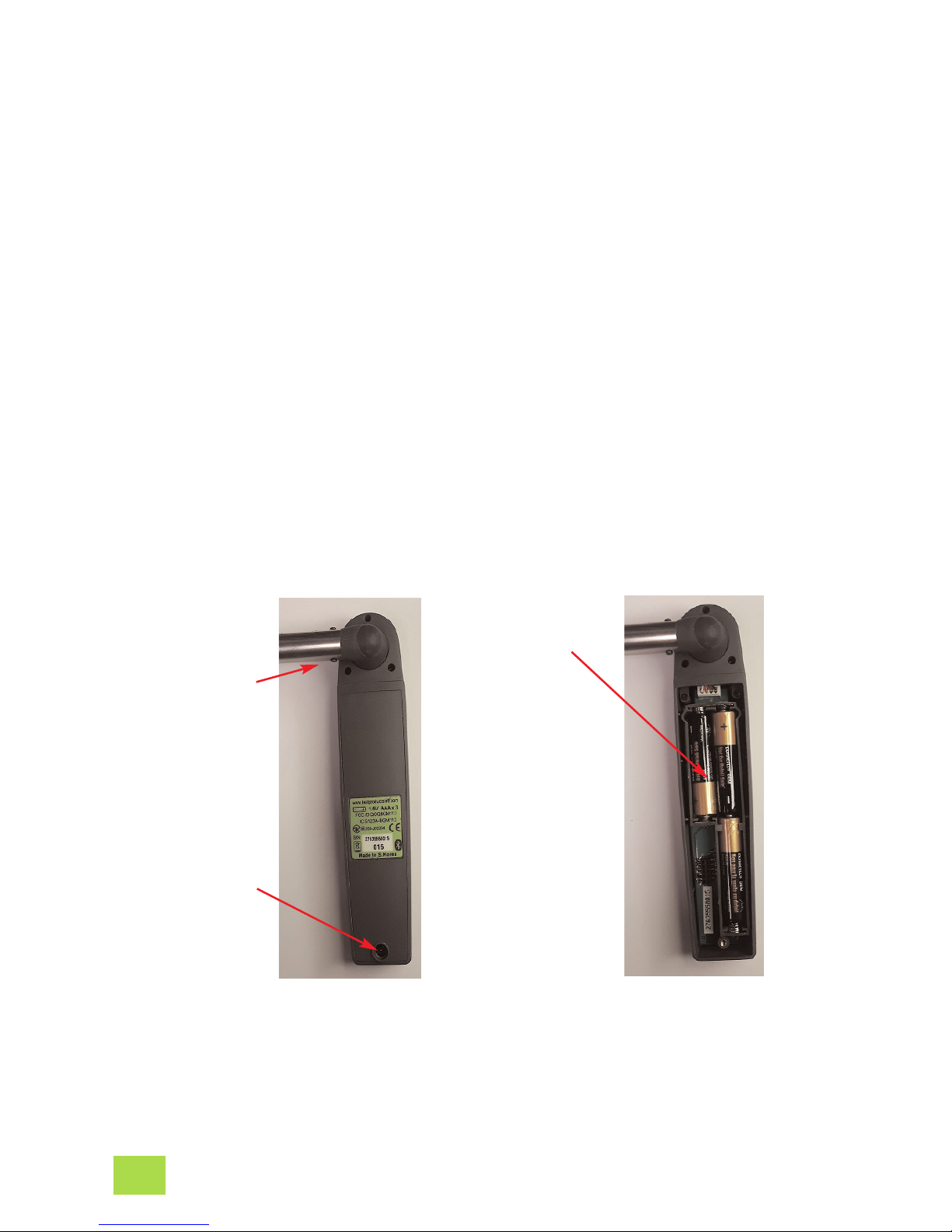

P. Replacing Batteries............................................................... 18

A. INTRODUCTION
1. Congratulations: Thank you for purchasing TPI products. The SP565 is
easy to use and built to last. It is backed by a 3 year limited warranty.
2. Product Description: The SP565 is a hot wire air velocity “Smart
Probe”. It connects to your mobile device and uses the TPI Smart
Probe App to display temperature readings. Data can be exported to a
CSV file as well.
B. SAFETY CONSIDERATIONS
1. Never insert the sensor into hot air.
2. Never allow a foreign object into the sensor cage. The sensor may be
damaged.
3. Do not expose the unit to damp environments for extended periods of
time.

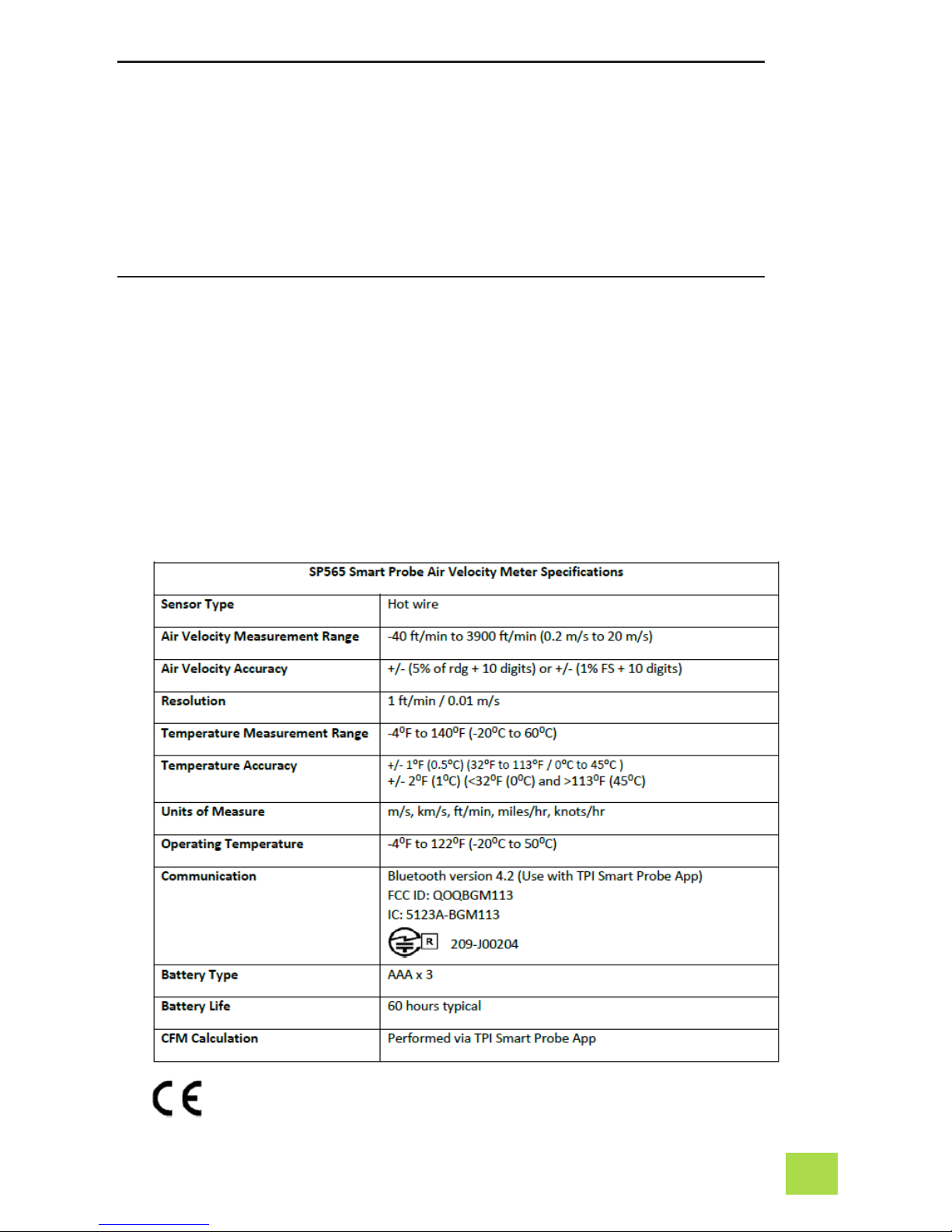

C. SPECIFICATIONS
1

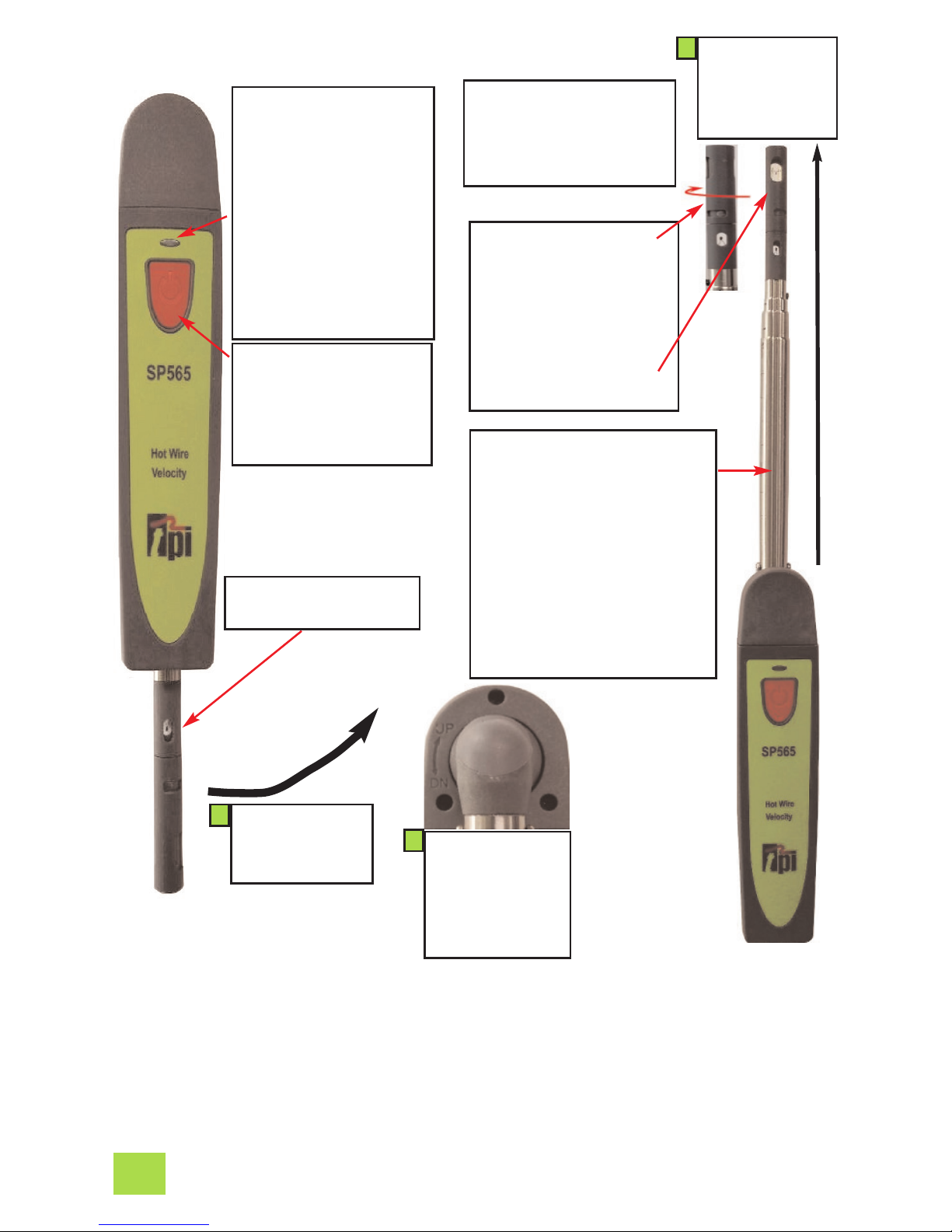

D. INSTRUMENT OVERVIEW
SP341 status LED indi-
cator.
Orange and blinking =
Bluetooth not connected
Green and blinking =
Bluetooth connected
Blinking Red with either
of the above = Low bat-
tery
Using the Rotating Hotwire Probe
1. Take the hotwire probe and rotate it to the “UP” position (see A above).
The back of the SP565 is marked to indicate the rotation direction for”UP”
and “DOWN” (see B above).
2. The hotwire probe can then be extended like an antenna. Pull up on the
sensor housing to extend the probe (see C above).
3. Reverse these steps when storing the SP565.
2
Power Key. Press and
hold to turn the instru-
ment on. Press and
hold to turn the instru-
ment off.
Hot Wire probe in stor-
age position.
SP341 hot wire probe rotated
into measurement position.
The probe can be extended to
reach into ducts and vents.
The probe is laser etched with
measuring marks to indicate
how far into a duct the sensor
is.
Hot wire sensor cage.
Rotate the cage closed to
protect the sensor when
in storage.
Rotate to the open posi-
tion to take measure-
ments.
Rotate the probe
until it is in the
“UP” position.
A
The back of the
SP565 is marked
“UP” and “DN”
indicating rota-
tion direction.
Pull up on the
sensor housing
to extend the
hotwire probe.
B
C
Hot wire sensor is on
top.
Temperature sensor is on
the bottom.

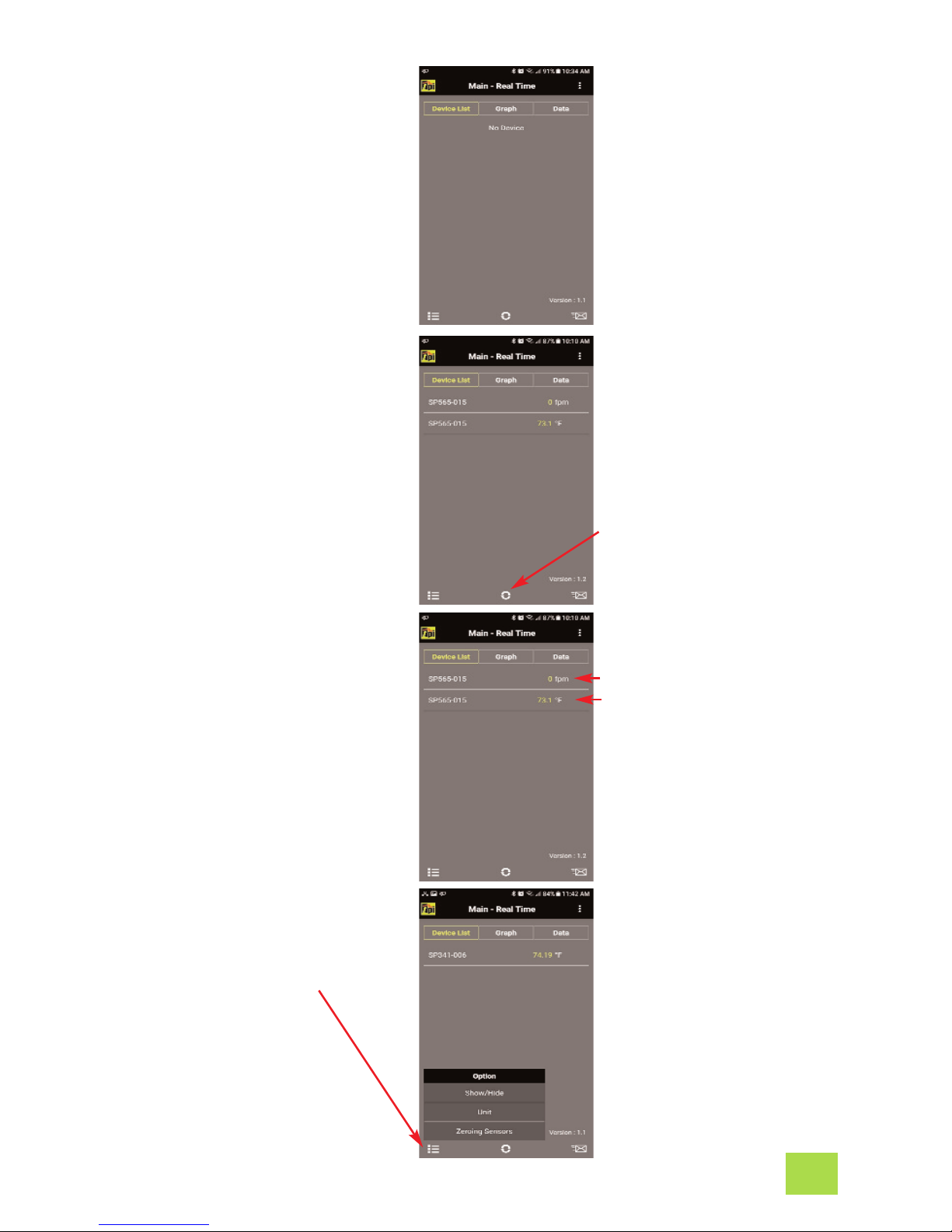

E. TAKING AMEASUREMENT
1. Download and install the TPI
Smart Probe App onto your
mobile device. Run the App. The
“Main-Real Time” screen will be
displayed.
The App will say “No Devices”
until a smart probe has been
connected.
2. Press and hold the SP565 On/Off
key down until it turns on. The
LED indicator will initially be
orange and blink.
The SP565 will auto connect to
your mobile device. The LED
indicator will turn Green and
blink to indicate a link has been
established. The App will display
the model and ID number of the
smart probe connected.
If the SP565 does not auto con-
nect tap refresh on the App.
Rotate the SP565 probe into the
“UP” position. Turn the cage
cover so the sensor is exposed.
The air velocity and temperature
will be displayed.
Refresh
This also clears any data
accumulated.
Displays the measured air
velocity and temperature.
3. Tapping the list icon allows
optional functions to be
accessed. These include
Show/Hide, Unit, and Zeroing
Sensors.
Show/Hide : Allows a device
to be seen or hidden. Useful
when multiple devices are
connected.
Unit : Switch between °C
and °F and the unit of veloc-
ity.
Zeroing Sensors: This func-
tion is not used with this
model.
3

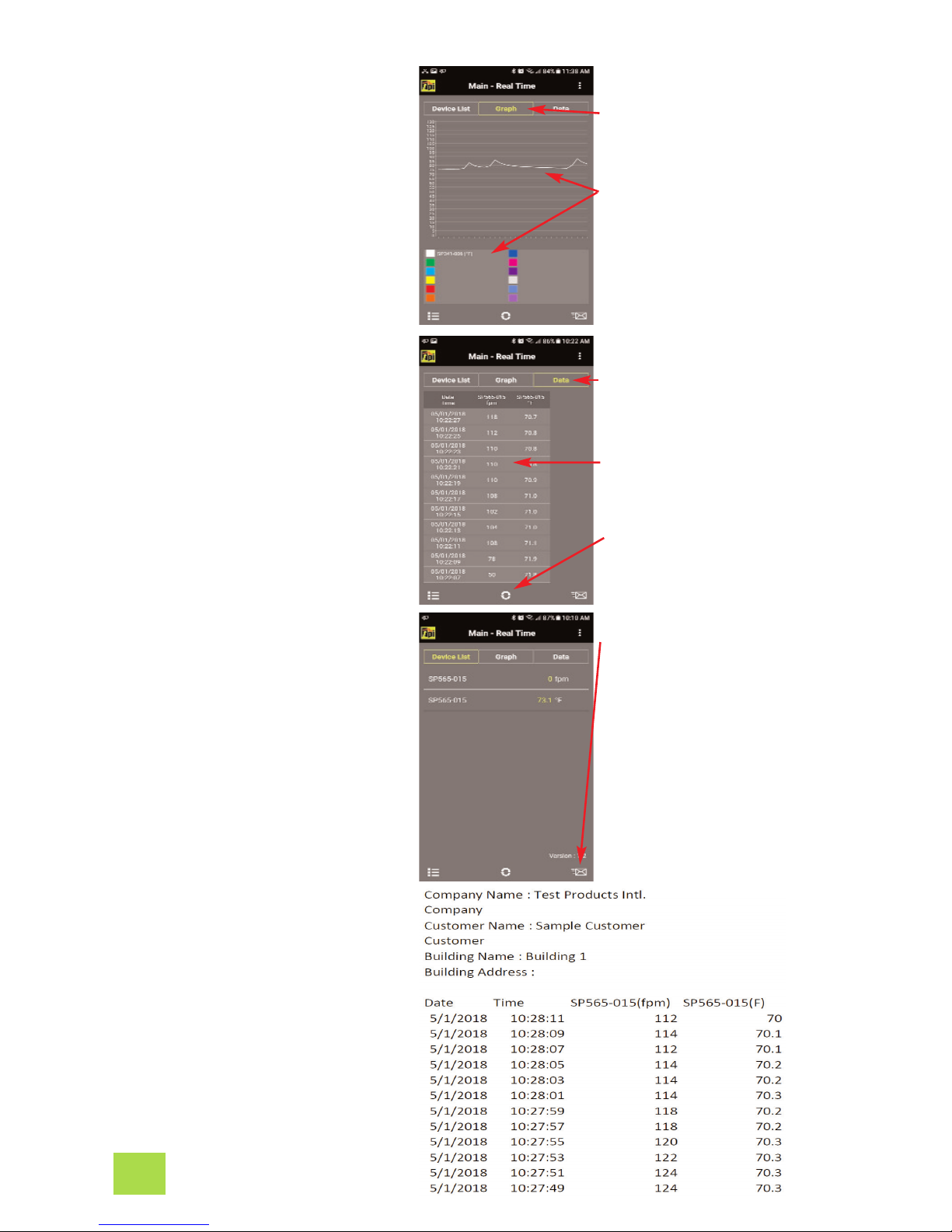

F. ADDITIONAL APP FEATURES
1. Tapping “Graph” switches the
display to graph mode. The tem-
perature will be displayed as a
line graph.
If multiple SP565’s are being
used, each will have a different
color in the App.
2. Tapping “Data” switches the dis-
play to show the measured data
in a list format.
Each reading in the list will be
dated and time stamped.
Tap “Data”.
The measurement data is
shown in a list with a date
and time stamp.
Tapping the Refresh icon
clears this data.
Tap the mail icon.
Test data will be exported in
a CSV file via email.
4. Exported data in the CSV file dis-
play with the date and time
stamp.
If a company and customer name
has been entered they will be
exported too. See page 5 for set-
ting up the customer and compa-
ny name.
Tap “Graph”.
Each SP565 is displayed in a
different color in the line
graph.
3. Tapping the mail icon enables
test data to be exported in a CSV
file via email.
4

G. DROP DOWN MENU
1. Tap the Drop Down Menu icon to access additional features.
Main - Real Time: Tapping this returns you to the main screen.
Select Application: Tapping this pulls up sub applications for
variious smart probes. These include Temperature differential
(SP341), Air Volume Calulation (SP565), and Tightness Test
(SP620). Note: There are no sub applications for the SP1000.
Company Info: Allows you to enter your information to show up
on the CSV file report. You can enter your company name,
address, and email.
Customer Info: Allows you to enter the information of the cus-
tomer the tests are being performed for. You can enter the cus-
tomer name, address, and email. You can also enter the building
information in cases where the tests are being performed some-
where off-site from the customer.
Exit: Closes the Smart Probe App.
The Smart Probe App has a Drop Down menu allowing access to additional app features.
5

H. ENTERING COMPANY AND CUSTOMER INFORMATION
1. Tap the Drop Down Menu icon to access additional features.
2. Select “Company Info” to enter your information to show up on
the CSV file report. You can enter your company name, address,
and email.
3. Select “Customer Info” to enter the information of the customer
the tests are being performed for. You can enter the customer
name, address, and email. You can also enter the building infor-
mation in cases where the tests are being performed some-
where off-site from the customer.
The Smart Probe App allows you to enter your company information and the customer
information who the test is being performed for. This information will be exported in the
CSV file (see page 4).
I. PERFORMING AIR VOLUME (FLOW) TEST
1. Tap the Drop
Down Menu icon
to access addi-
tional features.
The Smart Probe App allows you to perform air volume measurements.
2. Tap “Select
Application”.
3. Select “Volume
Flow”.
Note: The other
applications shown
are for different
model smart probes
and do not work
with the SP565.
4. Tap on the list
icon to pull
up the option
menu.
Tap on
“Volume Flow
Setting”.
6

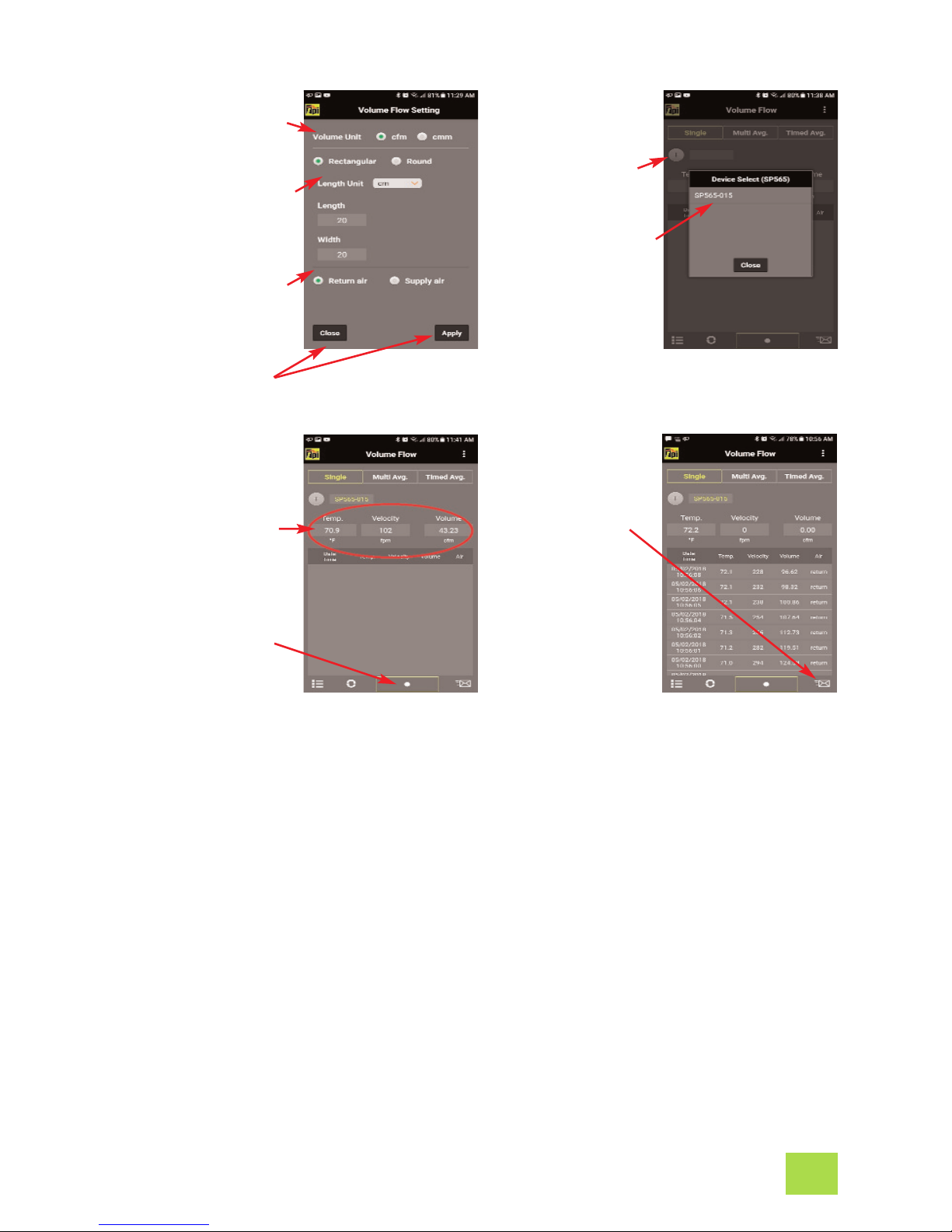

PERFORMING AIR VOLUME (FLOW) TEST (cont)
5. From this screen the
unit of volume can
is selected.
The type of duct and
the unit of measure
for the duct is
selected.
The size of the duct
and whether it is a
return or supply air
duct is set.
Tap “Apply” and
“Close”
6. Tap the + icon to
select the SP565
to use for the air
flow measure-
ment.
Tap on the SP565
to be used and tap
on “Close”.
7. The Temperature,
Air Velocity, and Air
Volume will be dis-
played. These are
live readings.
8. Tapping the “Point”
record icon stores a
reading with date
and time stamp.
Repeatedly tapping
this icon stores a
reading each time.
9. The test data can
be exported in a
CSV file vial email
by tapping on the
email icon.
10. Use the drop-
down menu to
return to normal
operation by tap-
ping on “Main-
Real Time”.
7

8
Preparing to Traverse a Rectangular Duct
To do a proper airflow measurement (CFM) you should do traverse readings to obtain the
true average airflow through the duct. It is recommended to do at least 12 points of
measurement. There are two ways to perform this test using the SP565, Time Based
Traverse and Spot Based Traverse. Time based is typically easier but both are explained in
the next sections.

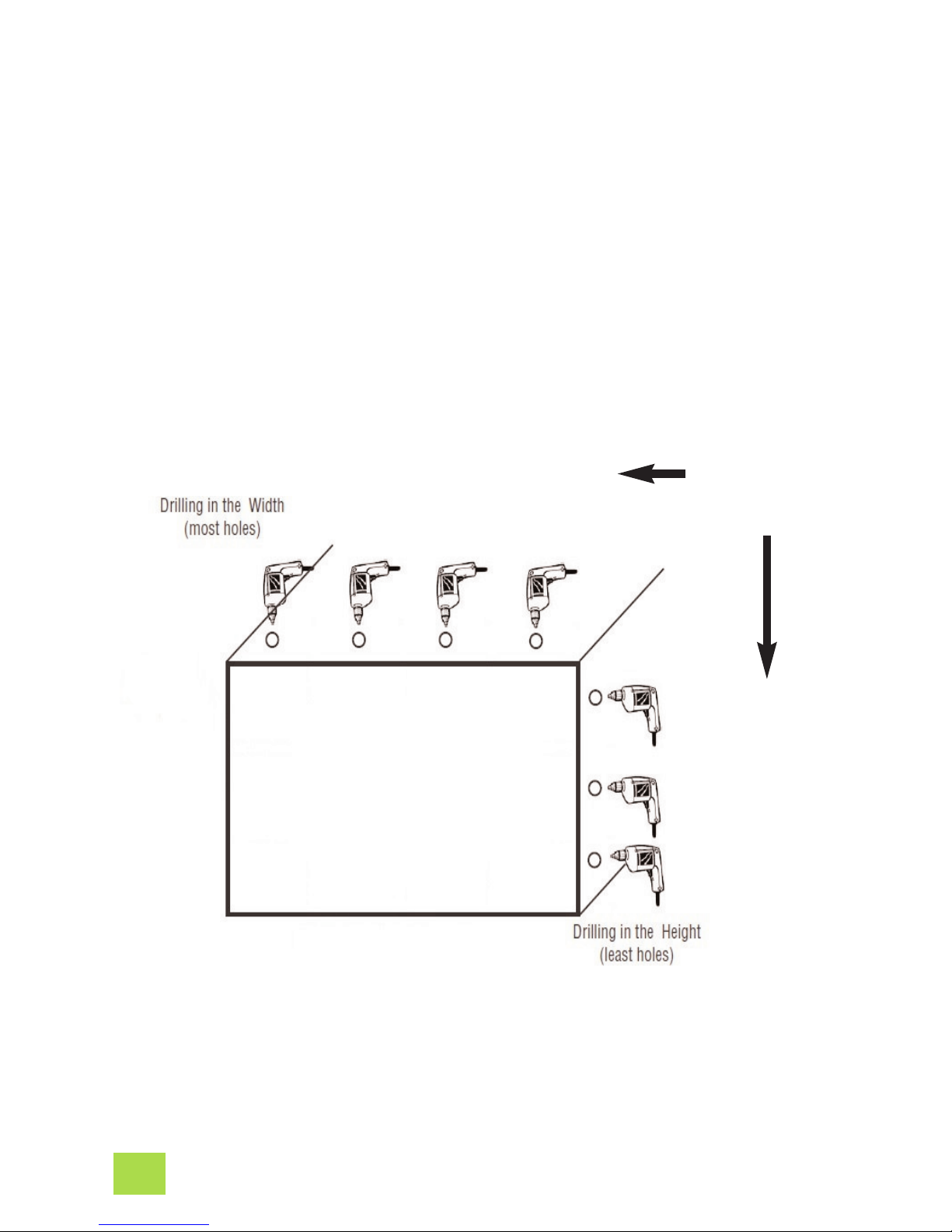

1. You will need to determine the easiest access to take your readings. Normally it is best
to enter from the side (Height) of the duct since you will have to drill less holes, but you
may have to drill from the bottom (Width) of the duct. See below.
Ideal side to
enter the duct.
Not the ideal side to enter the duct
but may be necessary
Choose one
side to enter
the duct.
J. AIR VOLUME MEASUREMENT - TRAVERSING RECTANGULAR DUCTS

TIME BASED TRAVERSE - RECTANGULAR DUCT
1. Prepare the duct as outlined on page 7 and connect the SP565 to the App as outlined
on page 3.
2. Set the App up to measure Air Flow and enter the duct type and size as outlined in sec-
tion H.
3. Insert the hotwire probe all the way into the duct at the first hole. Make sure the open
area of the sensor isf acing into the air flow. HINT: If you turn the probe you will see
the readings change up or down, when the reading is at the highest you are in the
proper position.
4. Select “Timed Avg.”.
5. Tap the “Play” icon to
begin the test
process.
9

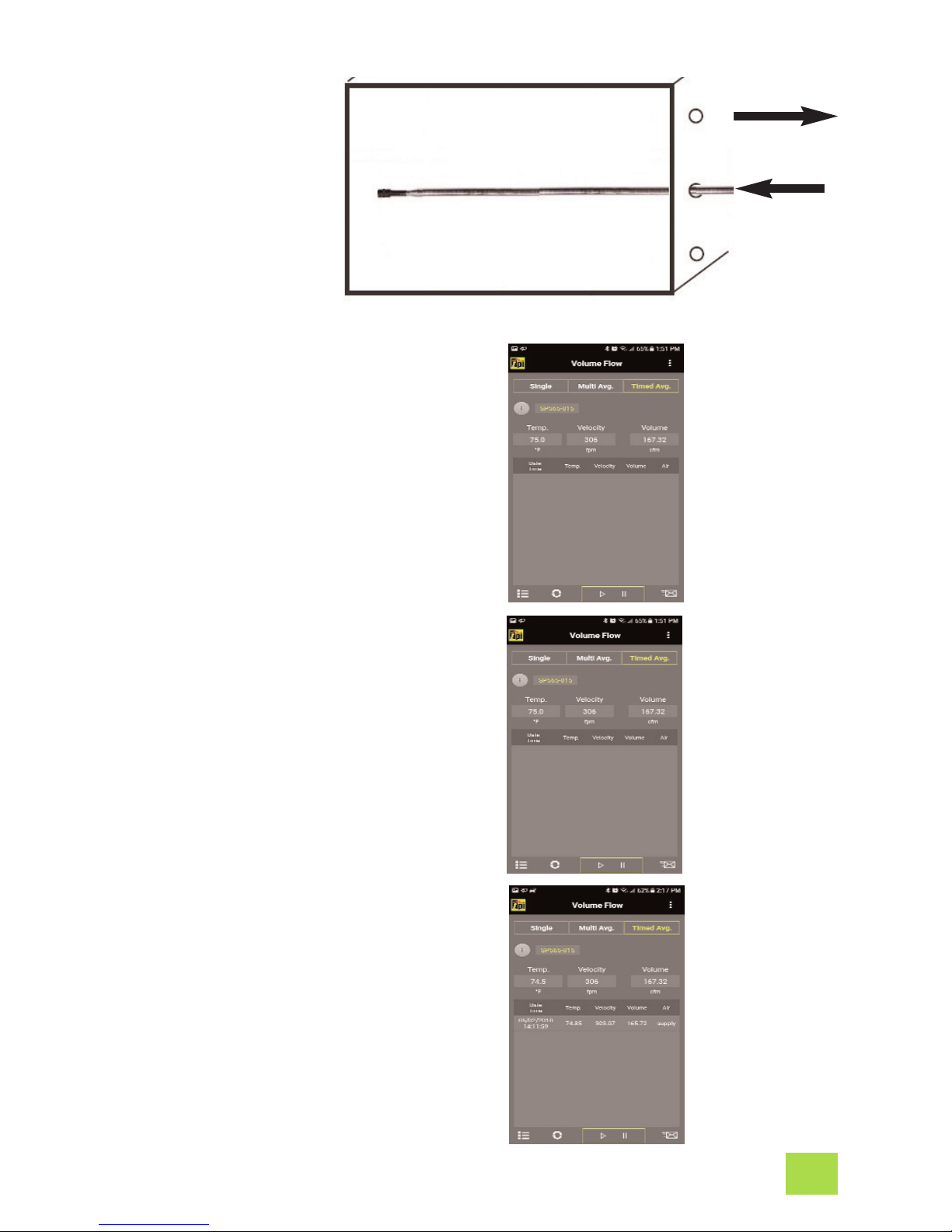

TIME BASED TRAVERSE - RECTANGULAR DUCT (Continued)
6. Slowly pull the probe towards the entrance point of the duct.
Start with the probe all
the way into the duct.
Press the key.
Slowly pull the probe
to the entrance hole.
Before removing the
probe see step 8.
8. Stop at the last measurement
point prior to pulling the probe
out of the duct. Press the
“Pause” icon to pause the
recording.
10

TIME BASED TRAVERSE - RECTANGULAR DUCT (Continued)
.
9. Pull the probe out and
insert it into the next test
hole all the way into the
duct.
10. Press the “Pause” icon to begin
recording. Repeat these steps for all test
holes.
11. When the duct has been completely tra-
versed and prior to pulling the probe
out of the last test hole, press the
“Stop” icon.
12. The stored reading is the average
Temperature, Velocity, and Volume dur-
ing the timed test.
This data can be sent in a CSV file for-
mat vial email by tapping the Email
icon.
13. Return to normal operation using the
drop down menu to select “Main-Real
Time”.
11

POINT BASED TRAVERSE - HORIZONTAL DUCT
1. Prepare the duct as outlined on page 7 and connect the SP565 to the App as outlined
on page 3.
2. Set the App up to measure Air Flow and enter the duct type and size as outlined in sec-
tion H.

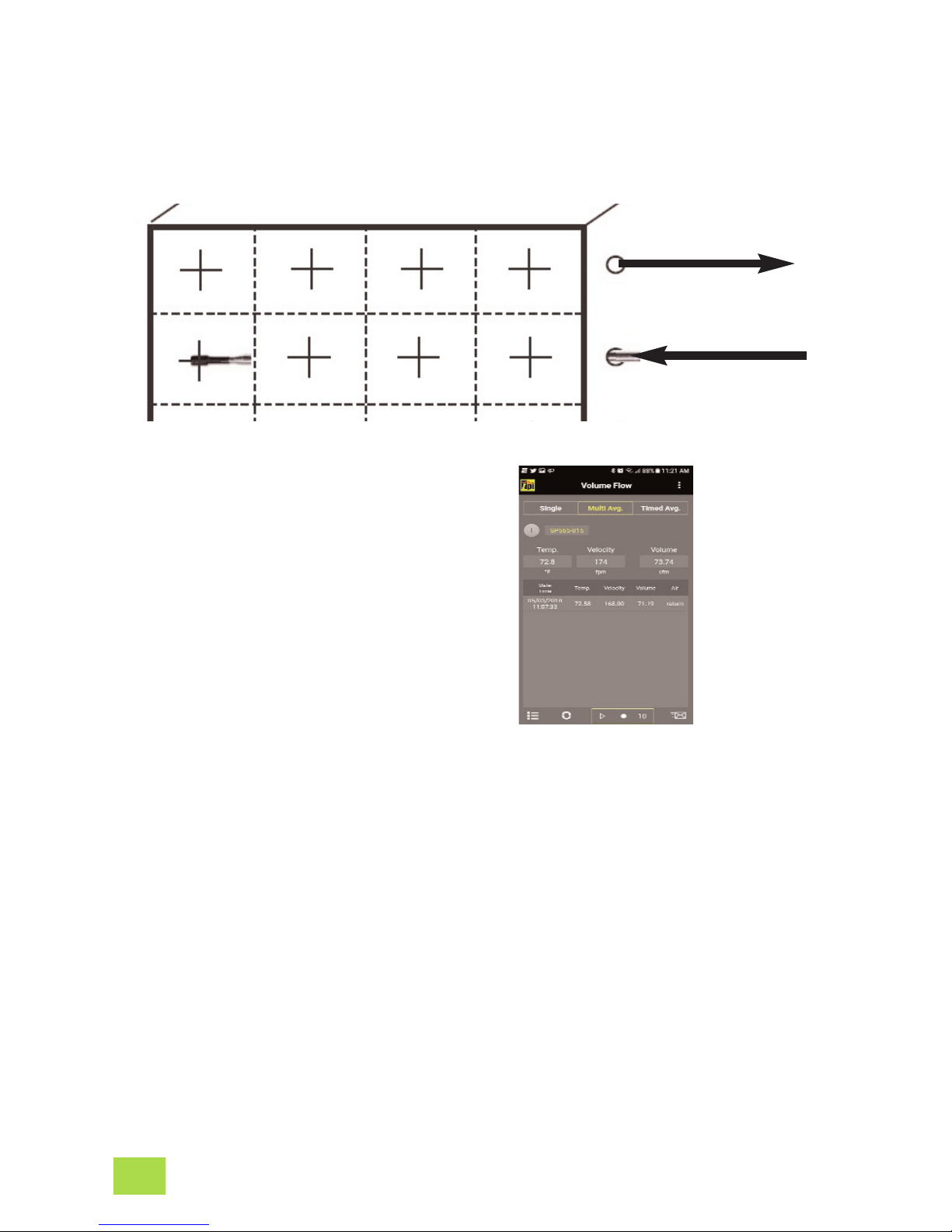

3. Divide the duct into at least 12 equal boxes, you will need to take the reading in the
center of each box. Be sure that the sample points are no more than 4 inches apart
from center to center. If needed you can add more sample points (boxes) to cover
larger duct sizes. Insert the hotwire probe all the way into the duct at the first hole.
Make sure the sensor is facing the air flow.
5. Tap the “Play”
icon.
4. Select “Multi
Avg.”.
12

POINT BASED TRAVERSE - HORIZONTAL DUCT (continued)

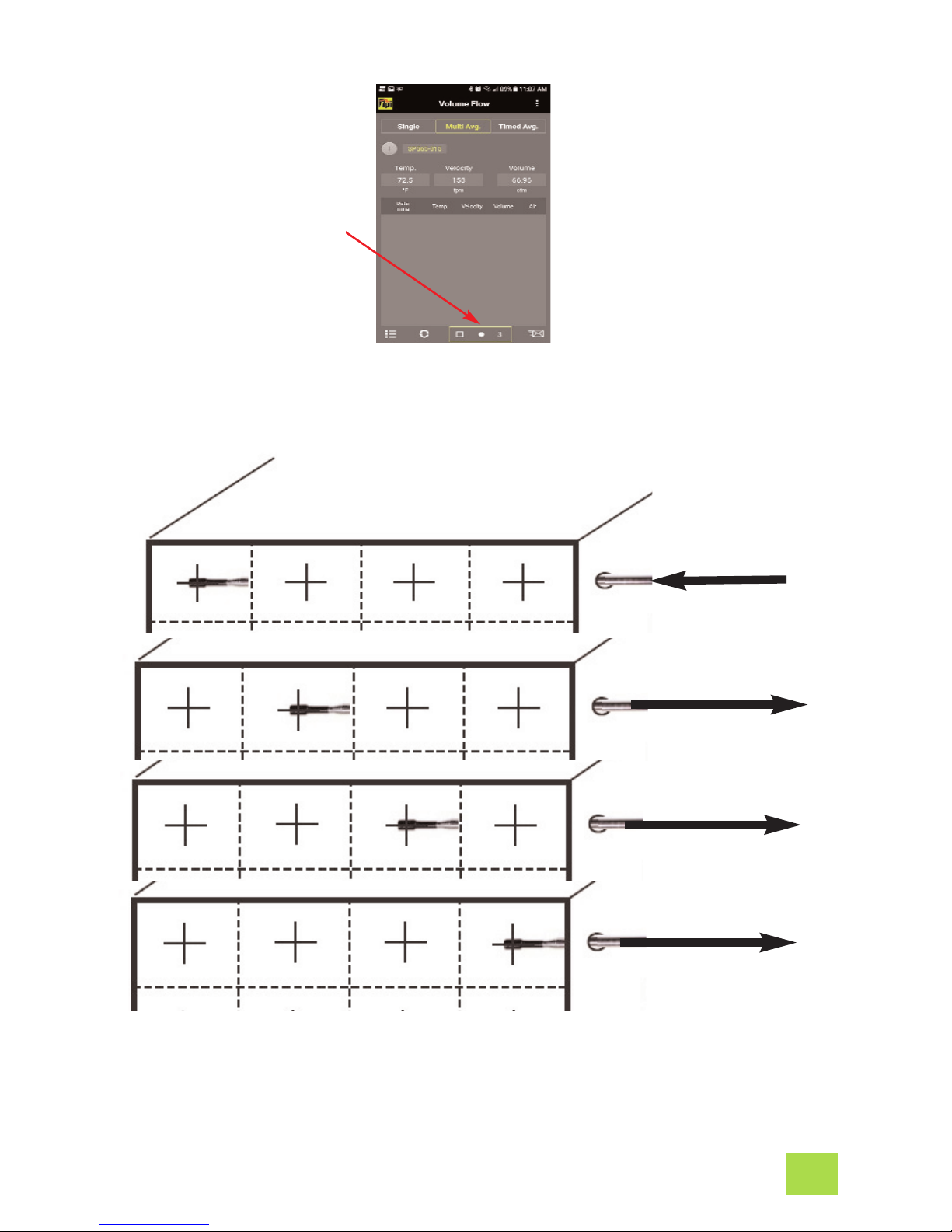

6. Press the “Point” icon to
record the reading. The
number of readings will
increase by one (next to
the point icon).
7. Slowly pull the probe towards the entrance point of the duct. Stop at each point and
press the “Point” icon to record the reading.
13

8. Pull the probe out and insert it into the next test hole all the way into the duct. Repeat
this process until the duct is completely traversed.
POINT BASED TRAVERSE - HORIZONTAL DUCT (continued)
8. When the duct has been completely tra-
versed tap the “Stop” icon to store the
readings.
The stored reading is the average
Temperature, Velocity, and Volume dur-
ing the timed test.
This data can be sent in a CSV file for-
mat vial email by tapping the Email icon.
9. Return to normal operation using the drop
down menu to select “Main-Real Time”.
14

Traversing a round duct is very similar to traversing a horizontal duct. The preparation of
the duct is slightly different. When traversing a round duct the traverse must be made
vertically and horizontally.
K. AIR VOLUME MEASUREMENT - TRAVERSING ROUND DUCTS
Preparing the Duct
You will need to drill 2 holes at 90 degrees to each other, similar to the drawing below.
15

Time Based Traverse
1. Prepare the duct as outlined on page 14.
2. Traverse the duct both horizontally and vertically (see below). Use the instructions on
pages 8 through 10 substituting a round duct for the horizontal duct.
Point Based Traverse
1. Prepare the duct as outlined on page 14.
2. Traverse the duct both horizontally and vertically (see below). Use the instructions on
pages 11 through 13 substituting a round duct for the horizontal duct.
TRAVERSING AROUND DUCT (continued)
Traverse horizontally
Traverse vertically
Traverse vertically
Traverse horizontally
16

17
L. MAINTENANCE
1. Clean the surface of the instrument with a damp cloth.
2. Replace the three AAA batteries when the low battery indicator appears.
M. TROUBLE SHOOTING
Symptom Probable Cause
Temperature seems inaccurate. •Low battery.
•Non K-Type probe being used.
•Ensure connection with phone is
working.
SP565 does not turn on. •Dead or low batteries.
•Not holding down power switch
until unit turns on.
•Defective POWER ON switch.
Air velocity readings seem low •Dead or low batteries.
•Protective hood not open all the
way.
•Sensor not turned completely
into the air stream.
N. ACCESSORIES
Included Accessories
Part Number Description
A565SP Soft pouch
Optional Accessories
Part Number Description
A925 Carrying case for 4 smart
probes
A926 Carrying case for 1 or 2
smart probes

This product is warranted to the purchaser against defects in material and workmanship for three years from the
date of purchase.
Covered by Warranty: Repair parts and labor; or replacement of the product at company’s option. Normal trans-
portation charges to the purchaser are also covered.
Not Covered by Warranty: Damages to the product which are the result of abuse, improper use or maintenance are
not covered. Any other expense, consequential damages, incidental damages, or incidental expenses including dam-
ages to property are not covered. Transportation expenses to the company are not covered.
Some states do not allow the exclusion or limitation of incidental or consequential damages, so the above limita-
tions or exclusions may not apply to you.
To Obtain Warranty Performance: Include with the product: your name, address, phone number, written descrip-
tion of the problem and proof of purchase date. Carefully package and return to:
TPI, Inc. TPI Canada TPI, Europe Ltd..
9615 SW Allen Blvd. 342 Bronte Rd. S., Unit 6 Longley House, International Drive
Beaverton, OR 97005 Milton, Ontario L9T 5B7 Southgate Crawley
USA Canada West Sussex RH10 6AQ England
503-520-9197 905-693-8558 44(0) 1293 530196
www.testproductsintl.com www.tpicanada.com www.tpieurope.com
Implied Warranties: Any implied warranties including implied warranties of merchantability and fitness for a par-
ticular purpose, are limited in duration to three years from date of purchase. To the extent any provision of this war-
ranty is prohibited by federal or state law and cannot be preempted, it shall not be applicable. This warranty gives
you specific legal rights, and you may also have other rights which vary from state to state.
18
P. REPLACING BATTERIES
1. Adjust the air
probe so it is
out of the way
of the battery
compartment.
Turn the battery
compartment
screw counter
clockwise until
it is just above
the compart-
ment door. Lift
on the screw to
open the com-
partment.
2. Replace the three
AAA batteries.
3. Re-install the battery cover and tighten the
screw by turning it clockwise.
O. WARRANTY
