A-Star LTV-27HBG User manual

Dear ASTAR Customer,
Congratulations on your new ASTAR 27''HDTV High Definition LCD
Television purchase.
Thank you for your support. For maximum benefit of your set, please
read these instructions before making any adjustments, and retain
them for future reference. We hope you will experience years of
enjoyment from your new ASTAR 27''HDTV High Definition
Television.
For assistance, please call 1
To purchase or inquire about accessories and installation services for
your ASTAR LCD TV, please visit our website at
1
We recommend you register your ASTAR 27'' HDTV either at
our website
Write down your Serial Number located on the back of your 27''HDTV.
S/N:
Purchase Date
-877-851-2528.
-877-851-2528.www.astarelectronics.com or call
www.astarelectronics.com or fill in your registration
card and mail it in. For peace of mind and to protect your
investment beyond the standard warranty, ASTAR offers on-site
extended warranty service plans. These plans give you additional
coverage during the standard warranty period. Visit our website
or call us to purchase a plan.
D
D
D
D
www.astarelectronics.com
1

This product isdesigned and manufacturedto operate withindefined design limits,and misuse mayresult
in electric shockor fire. Toprevent the productfrom being damaged,the following rulesshould be
observed for theinstallation, use andmaintenance of theproduct. Read thefollowing safety instructions
before operating thedisplay. Keep these instructionsin a safeplace for futurereference.
* To avoid therisk of electricshock or componentdamage, switch off the power beforeconnecting other components to
the LCD TV.
*Unplug the powercord before cleaning the LCD TV. Adamp cloth is sufficient for cleaningthe LCD TV. Do notuse a
liquid or aspray cleaner for cleaning the product. Do not useabrasive cleaner.
*Always use theaccessories recommended by ASTARto insure compatibility.
*When moving theLCD TV froman area oflow temperature to an area of high temperature, condensationmay form on
the housing. Donot turn on the LCD TVimmediately after this to avoid causing fire, electric shockor component damage.
*Do not placethe LCD TVon an unstablecart, stand, or table. If the LCD TV falls,it can injurea person and cause serious
damage to theappliance.
* Adistance of atleast 3 feetshould be maintained between the LCD TV and anyheat source, i.e. radiator, heater,
oven, amplifier etc.Do not install the product close to smoke. Operatingthe product close to smoke or moisture may
cause fire orelectric shock.
*Slots and openingsin the back and bottom of the cabinet areprovided for ventilation. Toensure reliable operation of the
LCD TV andto protect itfrom overheating, be sure the opening are not blocked or covered. Dono place the LCD TV ina
bookcase or cabinetunless proper ventilation is provided.
*Never push anyobject into the slot on the LCD TV cabinet.Do not place any objects onthe top of the product. It could
short circuit partscausing a fire or electric shock. Never spill liquidson the LCD TV.
*The LCD TVshould be operatedonly from thetype of power source indicated on the label. Ifyou are not sure of the type
of power suppliedto your home, consult your local power company.
*The power cablemust be replaced when using differentvoltage from that specified in the User Manual. Formore
information, contact ASTAR.
*The LCD TVis equipped witha three-pronged groundedplug, a plug with a third (grounding) pin. This plug willfit only
into a groundedpower outlet as a safety feature. If your outletdoes not accommodate the three-wire plug, have an
electrician install thecorrect outlet, or use an adapter to ground theappliance safely. Do not defeatthe safety purpose
of the groundedplug.
*Do not overloadpower strips and extension cords. Overloading can result infore or electricshock.
*The wall socketshould be installed near the equipment and should beeasily accessible.
*Do not touchthe power cord during lightning. Toavoid electric shock, avoid handling the power cord duringelectrical
storms.
*Unplug the unitduring a lightening storm or when it will notbe used for long period of time. This willprotect the LCD TV
from damage dueto power surges.
*Do not attemptto repair or service the product yourself. Opening orremoving the back cover may expose you to high
voltages, the riskof electric shock, and other hazards. If repair isrequired, please contact ASTAR and refer all servicing
to qualified servicepersonnel.
*Keep the productaway from moisture. Do not expose this appliance torain or moisture. If water penetrates into the
product, unplug thepower cord and contact ASTAR. Continuous usein this case may result in fire or electricshock.
*Do not usethe product if any abnormality occurs. IF any smokeor odor becomes apparent, unplug the power cord and
contact ASTAR immediately.Do not tryto repair the product yourself.
*Avoid using droppedor damaged appliances. If the productis dropped and the housing is damaged, the internal
components may functionabnormally. Unplug the power cordimmediately and contact ASTARfor repair. Continued use
of the productmay cause fire or electric shock.
*Do not installthe product in an area with heavy dust orhigh humidity. Operating the productin environments with heavy
dust or highhumidity may cause fire or electric shock.
*Hold the powerconnector when removing the power cable. Pulling the powercable itself maydamage the wires inside
the cable andcause fire or electric shock. When the product willnot be used for an extended period of time,unplug the
power connector.
*Toavoid risk of electric shock, do not touch theconnector with wet hands.
*Insert batteries inaccordance with instructions while using the remote control. Incorrectpolarities may causedamage
and leakage ofthe batteries, operator injury and contamination of the remotecontrol.
*If any ofthe following occurs, please contact ASTAR:
*The power connectorfails or fray.
*Liquid sprays orany object drops into the LCD TV.
*The Display isexposed to rain or other moisture.
*The Display isdropped or damaged in any way.
*The performance ofthe Display changes substantially.
*Operating environment: Temperature:40°F~95°F,Humidity:10% to 90% non-condensing, Altitude:0~10.000ft.
THIS PRODUCT HAS BEEN TESTED AND FOUND TO COMPLY WITH REGULATORY SAFETY CERTIFICATIONS.
www.astarelectronics.com
2

Note: In some countriesor regions, theshape of thepower plug andpower outlet maysometimes differ
from that shown in the explanatory drawings. However, the method of connecting and operating the unit
is the same.
If an outside antenna/satellite or cable system is to be connected to the LCD TV, make sure that the
antenna/satellite or cable system is electrically grounded to provide some protection against voltage
surges and staticcharges.
For added protection of your LCD TV during a lightning storm or when it is left unattended or unused for
long periods of time, unplug the LCD TV from the wall outlet and disconnect the antenna/satellite or cable
system.
Do not locate the antenna near overhead light or power circuits, or where it could fall into such power lines
or circuits.
Television Antenna Connection Protection
Article 810 of the National Electrical Code, ANSI/NFPSA 70, provides information with regard to proper
grounding of themast and supportingstructure, grounding ofthe lead-in wireto an antennadischarge unit,
size of thegrounding conductors, locationof antenna dischargeunit, connection togrounding electrodes,
and requirements of the grounding electrode.
External Television Antenna Grounding
Lightning Protection
Power Lines
GROUND CLAMP
ELECTRIC SERVICE EQUIPMENT
GROUND CLAMPS
ANTENNA LEAD-IN WIRE
ANTENNA DISCHARGE UNIT(NEC SECTION 810-21)
POWER SERVICE GROUNDING
ELECTRODE SYSTEM (NEC ART 250,PARTH)
GROUNDING CONDUCTOR(NEC SECTION 810-21)
www.astarelectronics.com
3

Opening the package
Your ASTAR 27''HDTV is packaged in a carton together with other standard accessories. Any
optional accessories would be packed separately in another carton.
The weight ofthe LCD displayis approximately 53lbs. Due tothe size andweight of the product, it is
suggested that itbe handled bya minimum of2 persons.
Since the glass can be easily scratched or broken, please handle the product gently. Never place the unit
on a surface with the glass facing downwards unless it is on protective padding.
When opening the carton, check that the product is in good condition and that all standard accessories
and items are included.
IMPORTANT: Save the original box and all the packing material for future shipping needs.
ASTAR 27''HDTV
ASTAR Remote Control byUniversal Electronics
Power Cord
User's Guide
Quick Setup Guide
Warranty Card
Note: Optional components sold separately.
Package Contents
www.astarelectronics.com
4

Please read theuser manual carefullybefore performing the installation.
The power consumptionof the display is approximately 200 W, please use thepower cord designated
for the product.When an extensioncord is required,use one withthe correct powerrating. The cord must
be the groundedand the groundingfeature must not be defeated.
The product should be installed on a flat surface to avoid tipping. Spaceshould be maintainedbetween
the back ofthe product andthe wall forproper ventilation. Ifyou would liketo mount theTV to the wall,
please see" Preparingthe LCD for Wall Mounting" below for additional information.
Please ensure theproduct is installed with the screen in landscape orientation. Any 90°clockwise or
counter clockwise installation may induce poor ventilation and excessive component damage.
ASTAR offers professional installation services. Pleasecontact ASTAR for more information on these
services at
Avoid installing
the product in the kitchen, bathroom or other places with high humidity, dust or smoke, to not shorten the
service life ofthe electronic components.
1-877-851-2528 or www.astarelectronics.com.
Installation Preparation
The ASTAR 27''HDTV can either be kept on the stand base or mounted to the wall for viewing.
If you choose to mount the 27''HDTV to the wall, please follow the instructions below for removing
the stand/base.
Preparing Your LCD TV FOR Wall Mounting
www.astarelectronics.com
5

Removing the stand/base:
Tofind the perfectwall mount for the ASTAR 27''HDTV,
browse ASTAR's certified mount selection at
www.astarelectronics.com or call directly at 1-877-851-2528.
www.astarelectronics.com
6
1.Unplug all thecables and cordsfrom your LCD TV.
2.Place the LCD TV face down on a soft and flat surface
(blanket, foam, cloth,etc) to prevent any damage
to the display.
3.Remove the 2 screws on the back panel of the TV located near
the bottom so that the base stand can be removed.
4.Gently pull thestand away fromthe display by grasping firmly to
the base.
5.Now the display can fit securely to a mount(sold separately) by
utilizing the mounting holes on the center or the back panel of the
display. Please make sure to read the directions of your specific
wall mount to properly hang the 27''HDTV. Make sure the wall
mount is rated to support at least 65 Ibs.
WallWall

Table of Contents
www.astarelectronics.com
7
Chapter 1- Basic Controls and Connections
Chapter 2- Connecting Equipment
Chapter 3-Setting Up to Watch TV and DTV
Chapter 4-Maintenance and Troubleshooting
Specifications
Glossary-Standard Definitions
1.1-Front Panel Controls....................................................................................................
1.2-Rear Panel Connections.............................................................................................

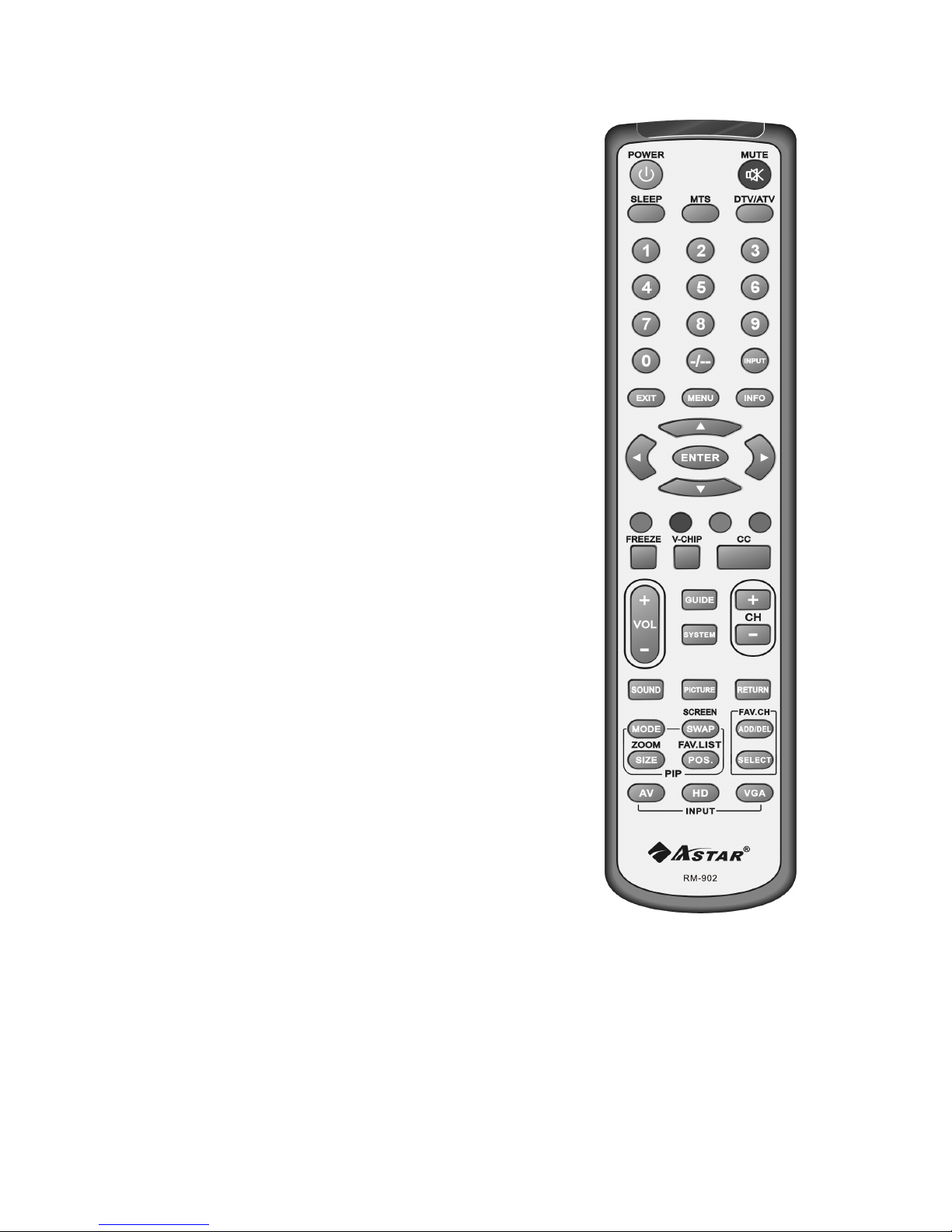

1.3-ASTAR Remote Control ButtonDescription........................................... ...................... .
1.3.1-Insertion of Batteriesin the RemoteControl....................................................
1.3.2-Remote Control Range.................................................................................
1.3.3-Precautions for theASTAR Remote Control.....................................................
2.1-Which Video Connection Should IUse?.......................................................................
2.2-Connecting your DVDPlayer.......................................................................................
2.2.1-Using HDMI(Digital HD)................................................................................
2.2.2-Using Component(Analog HD)Video...................................................... ... ...
2.2.3-Using S-Video..............................................................................................
2.2.4-Using Composite(AV)Video..........................................................................
2.3-Connecting Your HDTV Set-Top Box............................................................................
2.3.1-Using HDMI (DigitalHD)...............................................................................
2.3.2-Using VGA Video..........................................................................................
2.4-Connecting Your VCR orVideo Camera........................................................................
2.5-Connecting Coaxial(RF)............................................................................................
2.5.1-Using Your Antennaor Cable for DTV.............................................................
2.5.2-Using Your Antennaor Cable for TV................................................................
2.5.3-Using theAntenna or Cable through Your VCR...............................................
2.6-Connecting anAmplifier or Speakers...........................................................................
2.7-Connecting a Computer..............................................................................................
3.1-Basic LCD TV Start Up................................................................................................
3.2-Watching a TV Program..............................................................................................
3.3-Adjusting Basic LCDTV Settings.................................................................................
3.4-General....................................................................................................................
3.4.1-Parental Controls forDTV.............................................................................
3.4.2-DTV Channel Information..............................................................................
3.4.3-Program Information.....................................................................................
3.4.4-Setting a Password......................................................................................
3.5-Using the OnScreen Display(OSD).............................................................................
3.5.1-OSD Menu Operations..................................................................................
3.5.2-Video..........................................................................................................
3.5.3-Setup..........................................................................................................
3.5.4-V-Chip forTV...............................................................................................
3.5.5-TV...............................................................................................................
3.5.6-Audio..........................................................................................................
3.5.7-Geometric...................................................................................................
3.5.8-Temperature................................................................................................
3.5.9-Understanding Viewing Features...................................................................
3.5.10-Viewing Modes...........................................................................................
3.5.11-Picture-in-Picture(PIP)/Picture-by-Picture(POP) Mode.......................... .......
3.5.12-Adjusting Basic PIP/POPSettings................................................................
3.5.13-Using the V-Chip........................................................................................
3.5.14-Setting the SleepTimer...............................................................................
4.1-Maintenance.............................................................................................................
4.2-Troubleshooting Guide...............................................................................................
4.3-Telephoneand Technical Support................................................................................
4.4-Compliance.......................................................................................................... ....
4.5-FCC Class BRadio Frequency InterferenceStatement..................................................
......................................................................................................................
.......................................................................................
8
9
10
12
12
12
13
14
14
16
17
18
19
19
21
22
23
23
23
24
25
26
27
28
28
29
34
36
37
38
39
39
40
40
41
41
41
42
42
43
43
44
44
45
46
47
47
49
50
51
52
50

Chapter 1 -Basic Controls and Connections
1.1 - Front Panel Controls
1.CH(+/-)- . When the OSD is active, these buttons are used
to select OSDoptions.
2.VOL(+/-)- These buttons increase or decrease volume. When the OSD is active, these buttons adjust the
OSD options.
3.MENU - This button opens the TV OSD menu.
4.INPUT-This button switches between the available input sources in the sequence: AV, S-Video
YPbPr1,YPbPr2,VGA, HDMI, ATV and DTV, Press the button repeatedly to cycle through the available
options.
5.Power Button( )-Switch the LCD TV on by pressing the button once. Press the button again to turn the
LCD TV off.
6.Remote Control Sensor-This is the window that passes all of the remote control signals to the TV.Point
the remote control directly at this window for the best response to the remote signal.
7.Power Indicator Light - If the light is solid red, then your LCD TV is turned off. If the light is solid green,
then your LCD TV is turned on. If the light is not lit, there is no AC powerdetected and the power cord may
not be connected properly. When turning the LCD TV on or off, wait three seconds before pressing the
power button again.
These buttons selecting channel up and down
www.astarelectronics.com
8

1.2 - Rear Panel Connections
1.RS232 - This custom communication port is for factory service only.
AC IN- Power Input.
2.CABLE /AIR IN - Connect to an antenna, or cable service.
3.VIDEO OUT - Connect theVideo and Audio fromthe LCD TV to an extra service, such as PVR, DVR or TV.
4.HDMI IN - Connect a DVD multimedia player, or set-top box and the audio through this connection.
For users who want to connect a DVI enabled device, use an HDMI-DVI cable (available for purchase
from or by calling
.VGA IN - Connect the video and the audio from a computer or set-top box here.
6.Y-Pb/Cb-Pr/Cr-with Audio L/R - Connect the primary source for component video, such as a DVD
player or set-topbox here, Fromleft to right,use the greenfor Y, blue forPb(or Cb), redfor Pr(or Cr),white
for left audio and red for right audio inputs.
7.VIDEO IN -Connect the primary source for composite devices, such as a VCR or video game console. Use
the white and red connectors to connect the external audio from the same source.
8.S-VIDEO IN - Connect the primary source for S-Video devices, such as a VCR or video game console. Use
the white and red connectors to connect the external audio from the same source.
9.DIGITALAUDIO OUT- When the DTV input is selected for viewing, the digital audio associated with
Digital programming willbe available onthis output for connection toyour home theatersystem.
www.astarelectronics.com 1-877-851-2528)and use the Analog Audio output of the
device connected to the L+R Audiohere.
5
www.astarelectronics.com
9
AB
C
A
B
C
RS232 AC IN
1
26
5
4
79
8
VIDEO OUT LR
AUDIO OUT
AV OUT
3
IN
Y-2 Pb/Cb-2 Pr/Cr-2 L-2 R-2
AUDIO
Y-1 Pb/Cb-1 Pr/Cr-1 L-1 R-1
AUDIO
VIDEO IN L-3 R-3 AUDIO
S-VIDEO IN L-4 R-4
AUDIO
AV DIGITAL
AUDIO
OUT
L
R
AUDIO
IN
HDMI-IN VGA IN
AIR IN CABLE IN
DIGITAL HD
SCALE 1.000

1.3-ASTAR Remote Control Button Description
•POWER- Press this key to turn the TV on from standby
mode. Press it again to return to the standby mode.
•MUTE-This button turns the sound on and off.
•SLEEP-This button allows the user to select the sleep
options by adjusting the timer in15 minute increments up
to120 minutes.
•MTS-This button will select the MTS options in the ATV
mode. Options include: Stereo, SAP or Mono;
Additionally changing the audio language in DTV mode.
•DTV/ATV-This button is used to select the input source DTV
or ATV .
•Number Button Pad-Use these buttons to select a channel
or enter a password.
•INPUT-This button allows the user to cycle through the
input sources.
•EXIT-This button exits the OSD menus.
•MENU-This button is used to turn the OSD on.
•INFO-This button displays the image and system
information display.
•ENTER-This button works to select your chosen option in
On-Screen Display(OSD) menu.
• These buttons navigate the On-Screen
Display(OSD) menu.
•RED/GREEN/YELLOW/BLUE button-These are short-cut
buttons, using them with the hint OSD menu.
•FREEZE-Press this key to "Freeze-Frame" the current
screen, Users may press this key again to continue playing.
Note: normal viewing will resume automatically after one
minute.
•V-CHIP- Press to popup a pin-code dialog box to set
the viewing rating.
•CC-This button will select the Closed Caption menu in
the TV mode.
•VOL(+or-)-These buttons turn volume up or down.
•GUIDE-This button displays program information.
Note: this button is only functional for DTV.
• SYSTEM-Press repeatedly to select tuner mode: Air/Cable.
•CH(+or-)-These buttons change the channels up or down.
www.astarelectronics.com
10

•SOUND-Press repeatedly to select sound mode: Normal,
News, Cinema, Concert, User.
•PICTURE-Press repeatedly for different picture modes
select user/cinema/normal/vivid/Hi-bright.
•RETURN-Press it to return to the previous channel in TV mode.
•MODE- User this button to activate the PIP mode and select
the mode by pressing repeatedly.
•SWAP/SCREEN-Used to swap the inputs from the main
screen and the sub-screen while in the PIP mode, Additionally
press repeatedly to select the viewing mode:4:3/full/panoramic.
•SIZE/ZOOM-Press this button to select the size of the PIP
screen from one of the following: small, medium or large
in PIP mode. Additionally press it to zoom the image from
max 8 times to 1/8 times.
•POS/FAV.LIST-Press this button to change the PIP window
position in PIP mode. Additionally press it to show the
favourite program list.
•ADD/DEL-Press this button to add/delete current channel
to/from the list of favorite programs.
•SELECT- Press it to select the program directly from the
list of favorite channel you preset.
•AV-Repeated pressing of this button will cycle through AV,
and S-Video inputs.
•HD-Repeated pressing of this button will switch between
the YPbPr1/YPbPr2 input and HDMI mode.
•VGA-This button selects a connected VGAinput.
www.astarelectronics.com
11

1.3.1-Insertion of Batteries in the Remote Control
Insert two AAA batteries into the remote control. Make sure that you match the (+) and (-) symbols on the
batteries with the (+)and (-) symbols inside the battery compartment. Re-attach the battery cover.
•Only use thespecified AAAbatteries.
•Do not mixnew and oldbatteries. This may result in cracking or
leakage that maypose a firerisk or leadto personal injury.
•Inserting the batteries incorrectly may also resultin cracking or
leakage that maypose a firerisk or leadto personal injury.
•Dispose of thebatteries in accordancewith local lawsand
regulations.
•Keep the batteriesaway from childrenand pets.
Precaution Tips for inserting the batteries
1.3.2-Remote Control Range
•Point the remote control at the remote control sensor to transmit the commands.
•Do not place any obstacles between the remote control and the receiver window.
•The effective range of the remote control is approximately 32 feet(10 meters) from the front of
the receiver window, 30° to the left and right, 20° up and down.
1.3.3-Precautions for the ASTAR Remote Control
•The remote controlshould be kept dry and away from heat sources. Avoid humidity.
• If thedisplay responds erratically to the remote control or does not respond at all, check thebatteries. If
the batteries arelow or exhausted, replace them with fresh batteries.
• When notusing the remote control for a long period of time, remove the batteries.
• Do nottake apart the batteries, heat them, or throw them intoa fire.
• Do notsubject the remote control to undue physical stress, such as striking or dropping it.
• Do notattempt to clean the remote control with avolatile solvent. Wipe it with a clean, damp cloth.
www.astarelectronics.com
12

Chapter 2 - Connecting Equipment
2.1- Which Video Connection Should I Use?
The ASTAR 27'' HDTV has six different ways to connect your video equipment from a basic
connection to themost advanced fordigital displays.
Digital HD(HDMI-High-Definition
Multime-dia Interface)- Itis the first and
only industry-supported, uncompressed,
all-digital audio/video interface.HDMI
provides an interfacebetween any
audio/video source, suchas a set-top
box, DVD player, orA/V receiver and an
audio and/or videomonitor, suchas a
digital television(DTV),over asingle
cable.
DTV RF comesfrom AIR or CABLE. When
used for MPEG2encoded bit streams from
ATSC broadcast programming, thisinput
takes advantage ofthe High Definition content.
Analog VGA(RGB)-This videoinput has
separate red, greenand blue color
components. The signal carries
horizontal and verticalsync information
on the greensignal. This is most
commonly used forPC input.
Analog HD1/HD2(Component)-The
video signal isseparated into three
signals, one containingthe black-and-
white information andthe other two
containing the colorinformation. This
enhancement over S-Video takes
advantage of thesuperior picture
provided by progressivescan DVD
players and HDTVformats.
S-Video-The video signal is separatedinto
two signals onecontaining the black-and-white
information and theother containing the color
information. Separating thecolor in this way
avoid "cross color"effects where closely spaced
black and whitelines are erroneouslydisplayed
in color.It also enablestext to be displayed more
sharply.
AV- The complete video signal is carried through
this single pinconnector. This is the most
commonly used videoconnection.
TV coaxial (RF)comes from AIR or CABLE.
This is theconnection for standardNTSC TV
using antenna orcable. If youhave a VCR,
you can connectyour antenna/cable tothe
VCR RF Outputto this connector.
Best
(digital)
Best
(digital)
Better
(analog)
Better
(analog)
Good
(analog)
Good
(analog)
Good
(analog)
Connection
Quality
(type)
Connector Description
www.astarelectronics.com
13

2.2 - Connecting Your DVD Player
You have several connections for the DVD players to be connected to your new27''HDTV-HDMI(Digital HD),
Component (Analog HD), S-Video, and Composite (AV) inputs. Based on your home theater configuration,
you decide which option is the right one for you.
2.2 .1- Using HDMI (Digital HD)
DVD players that have a digital interface such as HDMI (High-Definition Multimedia Interface) should be
connected to theHDMI input ofthe ASTAR 27''HDTV for optimal results.
Note: To maintain the display, use a ASTAR certified HDMI cable available up to 10 meters
or less. See www.astarelectronics.com or call 1-877-851-2528
Connecting DVD Player(Best):
1.Turn off the power to the LCD TV and DVD player.
2.Connect a HDMI cable to the HDMI output of your DVD player and the other end to the HDMI input in
the rear ofyour LCD TV.
3.Turn on the power to the LCD TV and your DVD player.
4.Select HDMI using the INPUT button on the front of the LCD TV or directly by pressing the HD button
on the Remote Control.
Note: Refer to your DVD player user manual for more information about the video output
requirements of the product.
www.astarelectronics.com
14
IN
Y-2 Pb/Cb-2 Pr/Cr-2 L-2 R-2
AUDIO
Y-1 Pb/Cb-1 Pr/Cr-1 L-1 R-1
AUDIO
VIDEO IN L-3 R-3 AUDIO
S-VIDEO IN L-4 R-4
AUDIO
AV DIGITAL
AUDIO
OUT
L
R
AUDIO
IN
HDMI-IN VGA IN
AIR IN CABLE IN
DIGITAL HD

For DVD Players with DVI:
1.Turn off the power to the LCD TV and DVD player.
2.Using a HDMI-DVI cable, connect the DVI end to your DVD Player and the HDMI end to the HDMI input
in the rearof your LCDTV.
3. Using anaudio cable(white andred connectors), connectcable to theaudio output connecters
associated with the DVI output on the rear of your DVD Player, and connect the other end to the audio
connectors associated withthe HDMI inputin the rearof your LCDTV.
4. Turn on the power to the LCD TV and your DVD Player.
5. Select HDMI using the INPUT button on the remote control or the front of the LCD TV, or directly by
pressing the HD button on the remote control.
www.astarelectronics.com
15
WR
WR
IN
Y-2 Pb/Cb-2 Pr/Cr-2 L-2 R-2
AUDIO
Y-1 Pb/Cb-1 Pr/Cr-1 L-1 R-1
AUDIO
VIDEO IN L-3 R-3 AUDIO
S-VIDEO IN L-4 R-4
AUDIO
AV DIGITAL
AUDIO
OUT
L
R
AUDIO
IN
HDMI-IN VGA IN
AIR IN CABLE IN
DIGITAL HD

2.2.2 - Using Component (Analog HD) Video
Connecting DVD Player(Better):
1.Turn off the power to the LCD TV and DVD player.
2.Connect the Y (green color) connector onthe rear ofyour DVD playerto the corresponding Y-1 (green color)
connect or inthe rear of your LCD TV.
3.Connect the Pb(bluecolor) connector onthe rear ofyour DVD playerto the corresponding Pb/Cb-1
(blue color) connectorin the rearof your LCDTV.
4.Connect the Pr(redcolor) connector onthe rear ofyour DVD playerto the corresponding Pr/Cr-1
(red color) connectorin rear ofyour LCD TV.
5.Connect the R(redcolor) and L(whitecolor) audio connectorson the rearof your DVDplayer to the R-1
(red color) andL-1(White color) audioinput connectors inthe rear ofyour LCD TV.
6.
7.Select YPbPr1 using the INPUT button on the remote control or front of the LCD TV or directly by
pressing the HD button on the Remote Control.
Turn on the Power Button of the LCD TV and the DVD player.
Note:
a) If you are already using the YPbPr1input for another component, or you do not want to use the
Component AnalogYPbPr1 input for the DVD player, you can connectthe DVD player to the YPbPr2
connections.
b) Refer to your DVD player user manual for more information about the video output requirements of
the product.
Y1 Pb1 Pr1 W R
VIDEO EQUIPMENT
with terminal
R
W
Y
W
R
To video
inputs
To audio
inputs
www.astarelectronics.com
16
IN
Y-2 Pb/Cb-2 Pr/Cr-2 L-2 R-2
AUDIO
Y-1 Pb/Cb-1 Pr/Cr-1 L-1 R-1
AUDIO
VIDEO IN L-3 R-3 AUDIO
S-VIDEO IN L-4 R-4
AUDIO
AV DIGITAL
AUDIO
OUT
L
R
AUDIO
IN
HDMI-IN VGA IN
AIR IN CABLE IN
DIGITAL HD

Note: Refer to your DVD player user manual for more information about the video output requirements of
the product.
1.
2.Connect the S-Video jack onthe rear of your DVD player to the S-Video jack inthe rear of your LCD TV.
3.Connect the R(red color) and L(white color) audio connectors on the rear of your DVD player to the R-4
(red color) andL-4(White color) audioinput connectors inthe rear ofyour LCD TV.
4.Turn on the power to the LCD TV and DVD player.
5.Select S-Video using the INPUT button on the remote control or front of the LCD TV or directly by pressing
the AV button on the Remote Control.
Turn off the power button of the LCD TV and the DVD player
2.2.3 - Using S-Video
Connecting DVD Player (Good):
VIDEO EQUIPMENT
with terminal
ToS-VIDEO
inputs
WR
WR
To audio
inputs
www.astarelectronics.com
17
IN
Y-2 Pb/Cb-2 Pr/Cr-2 L-2 R-2
AUDIO
Y-1 Pb/Cb-1 Pr/Cr-1 L-1 R-1
AUDIO
VIDEO IN L-3 R-3 AUDIO
S-VIDEO IN L-4 R-4
AUDIO
AV DIGITAL
AUDIO
OUT
L
R
AUDIO
IN
HDMI-IN VGA IN
AIR IN CABLE IN
DIGITAL HD

2.2.4 - Using Composite (AV) Video
Connecting DVD Player (Good):
1.Turn offthe power tothe LCD TV and DVD player.
2.Connect the Video(yellow color) connectoron the rear of your DVD player to the Video connector in the
AV (yellow color) inthe rear ofyour LCD TV.
3.Connect the R(redcolor) and L(whitecolor) audio connectorson the rearof your DVDplayer to theR-3
(red color) andL-3(White color) audioinput connectors inthe rear ofyour LCD TV.
4.Turn on the power to the LCD TV and DVD player.
5.Select AV using the INPUT button on the Remote Control or the front of your LCD TV, or directlyby
pressing theAV button on theRemote Control.
Note:
Refer to yourDVD player usermanual for moreinformation about thevideo output requirements
of the product.
VIDEO EQUIPMENT
with terminal
ToVIDEO input
WR
WR
To audio
inputs
Y
Y
www.astarelectronics.com
18
IN
Y-2 Pb/Cb-2 Pr/Cr-2 L-2 R-2
AUDIO
Y-1 Pb/Cb-1 Pr/Cr-1 L-1 R-1
AUDIO
VIDEO IN L-3 R-3 AUDIO
S-VIDEO IN L-4 R-4
AUDIO
AV DIGITAL
AUDIO
OUT
L
R
AUDIO
IN
HDMI-IN VGA IN
AIR IN CABLE IN
DIGITAL HD

2.3 - Connecting Your HDTV Set-Top Box
1.Turn offthe power tothe LCD TV and HDTV Set -Top Box.
2.Connect a HDMIcable to theHDMI output ofyour HDTV Set-Top Box and the other endto the HDMIinput
in the rearof your LCDTV.
3.Turn on the power to the LCD TV and yourHDTV Set-Top Box.
5.Select HDMI usingthe INPUT button on thefront of the LCD TV or directly by pressing the HD button on
the Remote Control.
Note:
a) The HDMI input onyour LCD TV supports High-banwidth Digital ContentProtection(HDCP).
HDCP encrypts the transmission between the video source and the digital display for added
security and protection.
b) Refer to your HDTV Set-Top Box user manual for more information about the video output
requirements of the product or consult your satellite or cable operator.
You have several options for connecting your HDTV Set-Top Box toyour new 27''HDTV:HDMI(Digital HD)
and VGAinputs. Based onyour home theaterconfiguration, you can decide which option is the right one
for you.
HDTV Set-Top Boxes thathave a digital interface such as HDMI (High-Definition Multimedia Interface)
should be connectedto the HDMIinput of theASTAR 27''HDTV for optimal results.
2.3.1 - Using HDMI (Digital HD)
Note: To maintain the display quality, use aASTAR certified HDMI cable that is 10meters or less.
See www.astarelectronics.com or call 1-877-851-2528 for details.
Connecting Set-Top Box (Best):
HDTV Set-Top Box
www.astarelectronics.com
19
IN
Y-2 Pb/Cb-2 Pr/Cr-2 L-2 R-2
AUDIO
Y-1 Pb/Cb-1 Pr/Cr-1 L-1 R-1
AUDIO
VIDEO IN L-3 R-3 AUDIO
S-VIDEO IN L-4 R-4
AUDIO
AV DIGITAL
AUDIO
OUT
L
R
AUDIO
IN
HDMI-IN VGA IN
AIR IN CABLE IN
DIGITAL HD

For HDTV Set- Top Boxes with DVI:
1.Turn offthe power tothe LCD TV and HDTV Set -Top Box.
2.Using a HDMI-DVIcable, connect theDVI end toyour HDTV Set-Top Box andthe HDMI endto the HDMI
input in therear of yourLCD TV.
3.Using an audiocable (white andred connectors), connectcable to the audio output connectors
associated with theDVI output onthe rear ofyour HDTV Set-Top Box, and connect the otherend to the
audio connectors associatedwith the HDMIinput in therear of your LCD TV.
4.Turn on the power to the LCD TV and yourHDTV Set-Top Box.
5.Select HDMI usingthe INPUT button on theRemote control orfront of the LCD TV or directly by pressing
the HD buttonon the RemoteControl.
HDTV Set-Top Box
www.astarelectronics.com
20
WR
WR
IN
Y-2 Pb/Cb-2 Pr/Cr-2 L-2 R-2
AUDIO
Y-1 Pb/Cb-1 Pr/Cr-1 L-1 R-1
AUDIO
VIDEO IN L-3 R-3 AUDIO
S-VIDEO IN L-4 R-4
AUDIO
AV DIGITAL
AUDIO
OUT
L
R
AUDIO
IN
HDMI-IN VGA IN
AIR IN CABLE IN
DIGITAL HD
