RoadPatrol
Instruction Manual

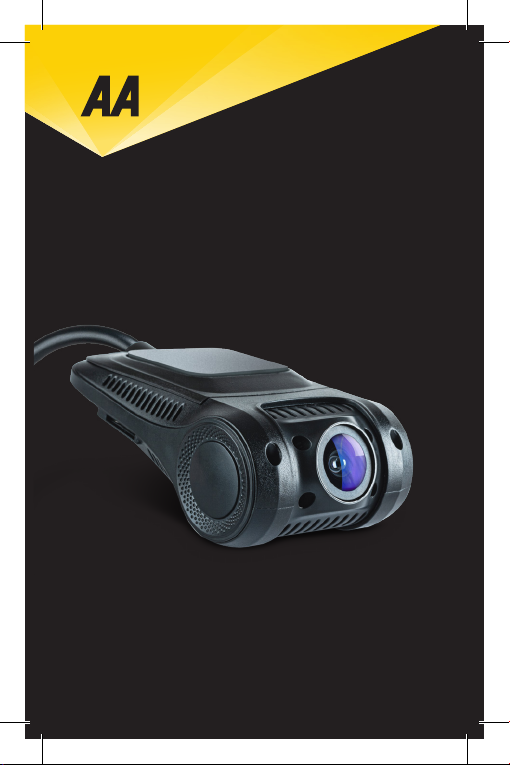

1080p Wide-Angle Dash Camera
Item No: 3823

Precautions
Please read this manual carefully before operation and
keep it for future reference. It will be helpful should
you encounter any operational problems.
WARNING:
Do not expose this product to rain, moisture or water under
any circumstances, doing so may result in the risk of electric
shock or re.
CAUTION:
Do not perform any servicing, open or dismantle this Dash
Cam, doing so may void any warranties that may be applicable
to the product.
WEEE:
Disposal of Waste Electrical and Electronic Equipment and/
or Batteries by users in private households in the European
Union. This symbol on the product or on the packaging
indicates that this cannot be disposed of as household waste.
You must dispose of your waste equipment and/or battery via
a local recycling centre. For more information please contact
your local household waste disposal ofce.
CHOKING HAZARD:
Some Products may contain components that are small
enough to be swallowed. Please keep out of reach of children.
1 2
Table of Contents
PRECAUTIONS
CAUTIONS ON USING THIS PRODUCT
PRODUCT WARNINGS
CAMERA LEGAL REQUIREMENTS
TECHNICAL SPECIFICATIONS / PRODUCT CONTENTS
CAMERA PARTS AND FUNCTIONS
VEHICLE INSTALLATION
VEHICLE INSTALLATION - POSITION & POWER
NOTES ON POSITIONING THE DASH CAM
APP INSTALLATION
APP FUNCTIONS
DASH CAM SETTINGS
PC CONNECTION
FREQUENTLY ASKED QUESTIONS
WARRANTY INFORMATION
02
03
04
05
06
07
09
11
12
13
15
17
21
23
25

Cautions on Using this Product
3 4
1. Ensure that the windscreen is free of dirt & grease before
placing the Dash Cam upon it.
2. Do not obscure the view of the road ahead or block the
deployment of any air-bags.
3. When not in use, please disconnect the car adaptor from
both the 12/24V outlet in your vehicle and the Dash Cam.
4. Only clean the device with a soft dry cloth.
5. Avoid making contact with the lens as damage may be
caused.
7. The video recordings made by this Dash Cam are intended
for personal use only.
10. Do not adjust the controls of your device whilst driving.
11. Before using the device on your windscreen, check the
local laws where you drive. Some laws prohibit or restrict
the placement of objects on the windscreen of a vehicle.
IT IS THE USER’S RESPONSIBILITY TO MOUNT THE
DEVICE IN COMPLIANCE WITH ALL APPLICABLE LAWS
AND ORDINANCES.
Always mount your Dash Cam in a location that does not
obstruct the driver’s view of the road. The AA & DSL Group
does not assume any responsibility for any nes, penalties,
or damages of your RoadPatrol device. The AA & DSL Group
accepts no responsibility for any damage or injury caused
when the dash cam is in use.
Product Warnings
Failure to heed the following warnings could result in an
accident or collision resulting in death or serious injury.
Distraction Warning:
This device is intended to enhance the situational awareness
when used properly. If used improperly, you could become
distracted whilst driving, which could lead to an accident
causing serious personal injury or death. DO NOT seek to
access the information stored on the device or change the
device settings whilst driving. Information stored on the
device should be reviewed only when your vehicle is
stationary, and you are parked in a safe place in compliance
with local laws.
Vehicle Installation Warnings:
When installing the device in a vehicle, do not place the device
where it obstructs the driver’s view of the road or interferes
with vehicle operating controls Do not place unsecured on the
vehicle dashboard. Do not place the device near any air-bags.
Battery Warnings:
Do not disassemble, modify, or damage the device or battery.
Do not remove the non-user replaceable battery.
Do not expose the device to re, excess heat, or other hazards.
Do not expose the device to rain or water.
Failure in following these battery warnings may result in a
shortened life span or may present a risk of damage to the
device, re and/or injury.

5 6
Camera Legal Requirements
In some jurisdictions it could be considered an invasion of
privacy to take or publicly display photographs or videos of
people or their vehicles whilst using this product.
It is your responsibility to know and comply with applicable
laws and rights to privacy in your jurisdiction and in any
jurisdiction in which you may use this device.
Video recordings made by this Dash Cam should be for
personal use only.
Sharing recordings on YouTube, the Internet or by other means
is subject to the Data Protection Act and the requirements
thereof must be adhered to. Such data protection legislation
may prohibit the use and dissemination by you of Dash Cam
footage or may impose restrictions on it – we recommend that
you check the legal requirements with your legal advisor before
disseminating any Dash Cam footage.
If the Dash Cam is to be used within a UK commercial
environment, i.e.. truck use, then the CCTV
regulations apply in addition to the Data Protection Act
regulations. This includes labelling to identify the
use of CCTV is taking place, the omission of Audio recording
and informing the relevant authorities of who controls the data.
Technical Specications
Product Contents
Please check the contents of your RoadPatrol Dash Cam and
ensure it includes the following:
• AA RoadPatrol Dash Cam
• 12/24V Car Power Cable
• User Manual

7 8
Camera Parts and Functions
See below for the parts and functions of your Dash Cam
1
Camera Lens
Adjustable 120° Lens rotates up & down
1
Mounting Point
Adheres to your vehicles windscreen
2
Power Cable
Built-in power cable with 12/24v connection point
3
Micro-SD Card Slot
Insert Micro-SD card here, ensuring the gold contacts
are facing towards the rear of the Dash Cam. A class
10 Micro-SD Card or above is recommended.
4
3
4
2
5
Vent Holes
Allows heat to escape and keeps Dash Cam cool
5
Dash Cam Body
Outer chassis of the Dash Cam
6
6

Vehicle Installation
Please follow the instructions below for rst-time
installation of the Dash Cam
1. Insert Micro-SD Card
Insert a suitable Micro-SD card in to the Dash Cam, taking
care that the gold contacts are facing towards the Mounting
Point side of the Dash Cam. Push the memory card until it
clicks into place. Use a small object to push the Micro-SD
card into place if required. A second push inwards will release
the memory card. A class 10 Micro-SD Card or above is
recommended.
NOTE: For information on formatting the Micro-SD card,
please turn to Page 20.
Do not remove or insert the Micro-SD card when the Dash
Cam is on as this may corrupt the card or damage les.
1
9 10
2. Remove Adhesive Cover on Mounting Point
3. Adjust Lens & Attach Dash Cam to Windscreen
Peel back to expose the adhesive surface, ready to mount on
your windscreen.
Adjust the lens on the Dash Cam to suit your windscreen.
When you are satised with the position, rmly place the Dash
Cam on the windscreen. (for position advice see next page)
2
3

Vehicle Installation - Position & Power Notes On Positioning the Dash Cam
4. Positioning & Powering the Dash Cam
12/24V dc
Plug the power cable into the 12-24V dc outlet of your vehicle.
The Dash Cam will automatically power on and start recording
once power is available. In some vehicles this will be when
connections are made, for others the Dash Cam will power
on once the ignition has been turned on.
Route the power cable around the windshield to the 12-24V dc
outlet, ensuring that your view is not obstructed, and that the
cable is not a distraction.
Positioning the Dash Cam behind the rear view mirror as per
the illustration is recommended.
Do NOT mount the Dash Cam in front of the driver, as
depicted by the red area in the illustration.
4• When installing the Dash Cam , always place the device
securely against the windscreen and where possible,
conceal the power cable under trim to avoid distractions.
• Ensure the Dash Cam power cable does not interfere with
the drivers operating controls, such as the steering wheel,
pedals or gear levers.
• Do NOT mount the Dash Cam in front of an air-bag
deployment zone or in a position which obstructs any
mirrors.
• Do NOT operate the Dash Cam whilst driving. The Dash Cam
automatically begins recording when the vehicle’s ignition is
switched on and turns off when the vehicle’s ignition is
switched off.
1211
• Adjust any settings or review recordings whilst stationary,
not whilst driving.

App Installation
AA RoadPatrol: App Installation and Viewing Footage
The AA RoadPatrol App is used to view footage captured
by your Dash Cam and to change the settings. In order for
this function to work, you must have the AA RoadPatrol App
installed, a valid mobile data plan and access to a Wi-Fi
connection.

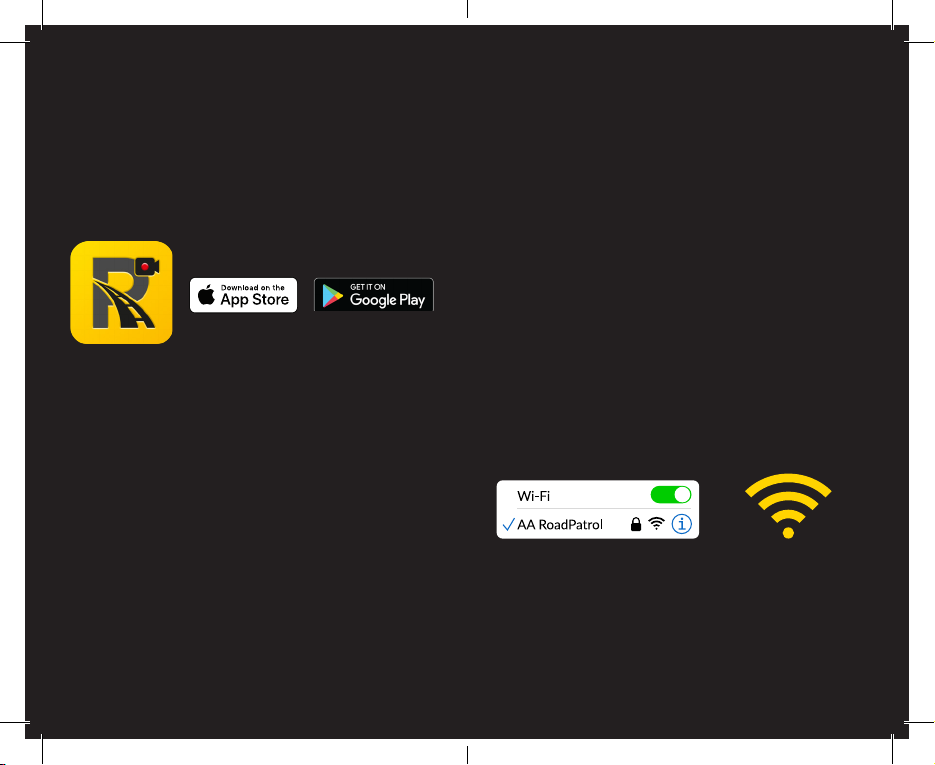

Installing the AA RoadPatrol App on Your Smartphone
On iOS (Apple) devices go to the Apple App Store and search
“AA RoadPatrol” and select “Get” then install the App as per
the instructions from the App Store.
On Android devices go to the Google Play Store and search
“AA RoadPatrol” and select “Install” and install the App as per
the instructions from the Google Play Store.
AA RoadPatrol
1. App Download
2. Linking the Dash Cam and Smartphone
Once the AA RoadPatrol App has nished installing, open it.
Once the App loads you will be prompted with the
AA RoadPatrol connection screen. Ensure your Dash Cam is
plugged in, powered on and has a Micro-SD Card inserted
(sold separately) at this point and select “ Connect to Camera”
to connect to the Dash Cam.
1413
3. Wi-Fi Settings
iOS Devices
Android Devices
You may be prompted with a message which says
“RoadPatrol Dash Cam Not Found. Please connect to Dash
Cam First.” On iOS click ok and then go to the Wi-Fi Settings
on your phone, select “AA RoadPatrol” on the list of available
networks, and enter “12345678” as the passcode and select
“Join”.
You will be prompted with a message which says
“RoadPatrol Dash Cam Not Found. Please connect to Dash
Cam First.” On Android you will be automatically sent to the
Wi-Fi settings screen, if not then go to your Wi-Fi settings and
select the “AA RoadPatrol” network and enter “12345678” as
the passcode and select “Connect”.
Once you have connected to the “AA Roadpatrol” Wi-Fi
network, go back to the AA RoadPatrol App and select
“Connect to Camera” again. You should now be connected to
the Dash Cam and your phone will now display the Dash Cam
recording in real time.
To connect your Smartphone App to the AA RoadPatrol
Dash Cam, they need to be paired via Wi-Fi. To do this, ensure
your Smartphone has Wi-Fi connectivity turned on, then you
will need to join the dedicated AA RoadPatrol Wi-Fi network
in order to establish a connection. Follow the steps below for
your chosen device.

App Functions
AA RoadPatrol: App Functions
This main screen is home to your Dash Cam footage and
real-time recording. It is also home to the “Files” menu in the
top left of the screen. This is where footage can be viewed
from your Dash Cam.
Note: You may be prompted to allow access to your photos
on your device to view this footage. Click “Allow” to enable
this feature.
You can also view and change the settings of the
AA RoadPatrol Dash Cam via the settings menu located in the
top right corner of the screen. You can change settings such
as Resolution (automatically set to 1080 Full HD at 30 Frames
per Second) depending on the quality desired and the storage
capacity of your Micro-SD Card.
You can also adjust and enable settings such as Loop
Recording Intervals, Motion Detection, Parking Mode,
G Sensor, Recording Audio and Time and Date Stamping.
More info on Dash Cam settings on Page: 17.
To change from video recording to camera mode, simply
press the camera icon in the bottom right of the screen, this
will switch the Dash Cam from video recording to standard
camera mode for taking photos. Use the camera button to
take a snapshot of your surroundings.
File Storage
• Recording
• Mute Status
Battery Status
Dash Cam
Footage
Disconnect
Dash Cam
Record Photo / Video
Mode
• Video Quality
• Time Recording
Mute/Unmute Settings
1615

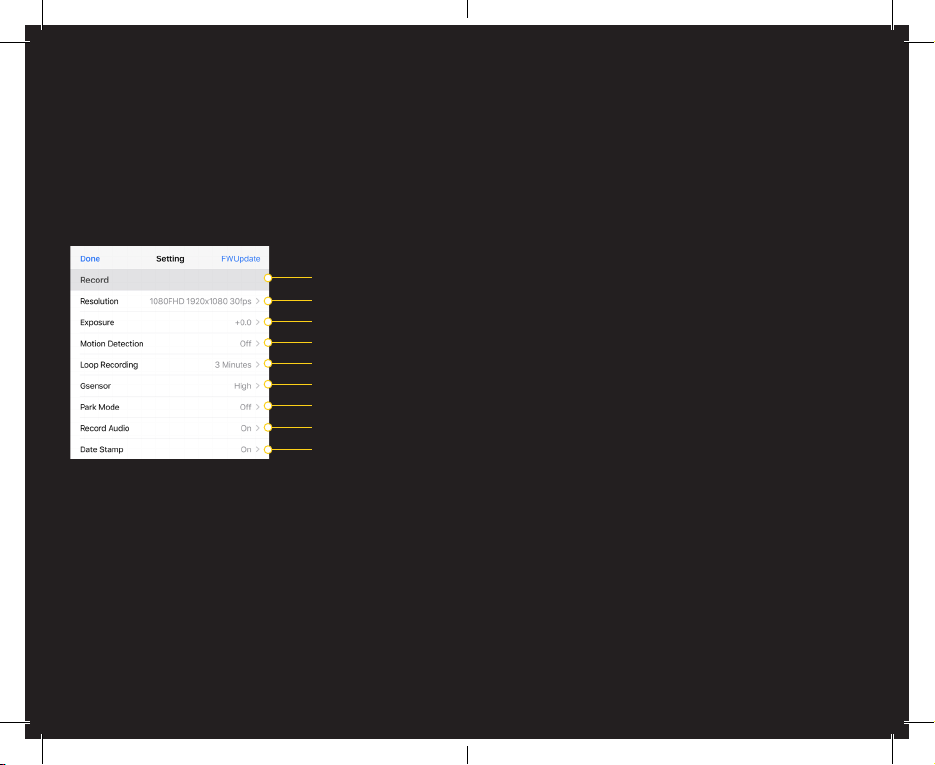

Dash Cam Settings
AA RoadPatrol: Dash Cam Settings Explained
The settings for your AA RoadPatrol Dash Cam can be
changed to suit your preferences. Below are the settings and
their features explained.
Resolution
Video Mode Settings
Exposure
Motion Detection
Loop Recording
G-Sensor
Park Mode
Record Audio
Date Stamp
1817
• Exposure - Adjusts the exposure (brightness compensation)
of your recording. This may need to be higher in darker
situations such as during winter months. Choosing a +
exposure will make the scene brighter, choosing a - exposure
will make the scene darker.
• Motion Detection - When the Motion Detection feature is
turned on , the Dash Cam will only record for a few seconds
when motion in front of the camera is detected. The Camera
will not record if no motion is detected.
• Loop Recording - The Dash Cam automatically records in
looped intervals. The duration of these intervals can be in
1/2/3 & 5 minute clips.
• G-Sensor - The G-Sensor is the sensitivity of the cameras
internal sensor. In the event of a collision, this setting will
trigger and lock the current footage captured and will store it
under a “LOCK” le-name. Preventing this footage from
being overwritten by a looped recording. You can choose
from Low/ Medium & High sensitivity settings.
• Park Mode - This feature records motion when your vehicle
has been parked and the vehicle is turned off. The camera
will continue to draw power from your 12/24V dc outlet so
ensure your vehicle is compatible with this feature and the
12/24V dc outlet does not switch off after you have exited
and locked your vehicle.
• Record Audio - Turns audio recording on or off for videos.
• Date Stamp - Displays a time & date stamp on your footage.
Video Mode Settings
• Resolution - Change the video recording quality. Resolution
is automatically set to 1080 Full HD at 30 frames per second.
This can be changed depending on the quality desired and
the storage capacity of your Micro SD Card. Quality options
available are: 1080FHD / 1080p / 720p / WVGA & VGA.

Dash Cam Settings - Cont.
2019
Photo Mode Settings
System Settings
Wi-Fi Settings
• Resolution - Change the photo resolution quality (clarity).
Automatically set to 3 Megapixels. You can adjust the
resolution depending on the quality desired and the storage
capacity of your Micro SD Card. Quality options range from
1.3 - 12 Megapixels.
• Exposure - Adjusts the exposure (brightness compensation)
of your photos. This may need to be higher in darker
situations such as during winter months. Choosing a +
exposure will make the scene brighter, choosing a - exposure
will make the scene darker.
• Date Stamp - Displays a time & date stamp on your photos.
• White Balance - This setting adjusts the white balance
compensation of your images. e.g. in warmer weather a warm
(orange) hue may be present on screen and this setting
adjusts the image so that the footage captured is always
neutral (whites appear as white). We recommend keeping
this setting set to “Auto” as lighting and the environment can
change all the time.
• Frequency - Measured in Hertz, different frequencies are
used for different countries depending on equipment used.
Europe and the UK utilise 50hz, whereas the USA uses 60hz.
We recommend to keep the setting at 50Hz as standard.
• Date/Time Format - Determines the Date and Time format
displayed. This can be changed depending on your
preference.
• Format Memory - Use this option to format the
Micro-SD Card inserted into the Dash Cam. Please ensure
any important videos are transferred to a PC or storage disk
prior to formatting.
• Default Setting- Use this setting to revert the Dash Cam
back to default factory settings.
• Version- Displays the latest rmware version installed.
• Wi-Fi Name - Change the name of the Wi-Fi network
• Password - Set a different password for the Wi-Fi network
System Settings
Photo Mode Settings
Wi-Fi Settings
Frequency
Resolution
Wi-Fi Name
Date/Time Format
Exposure
Wi-Fi Password
Format Memory
Date Stamp
Default Setting
White Balance
Firmware Version

PC Connection
21

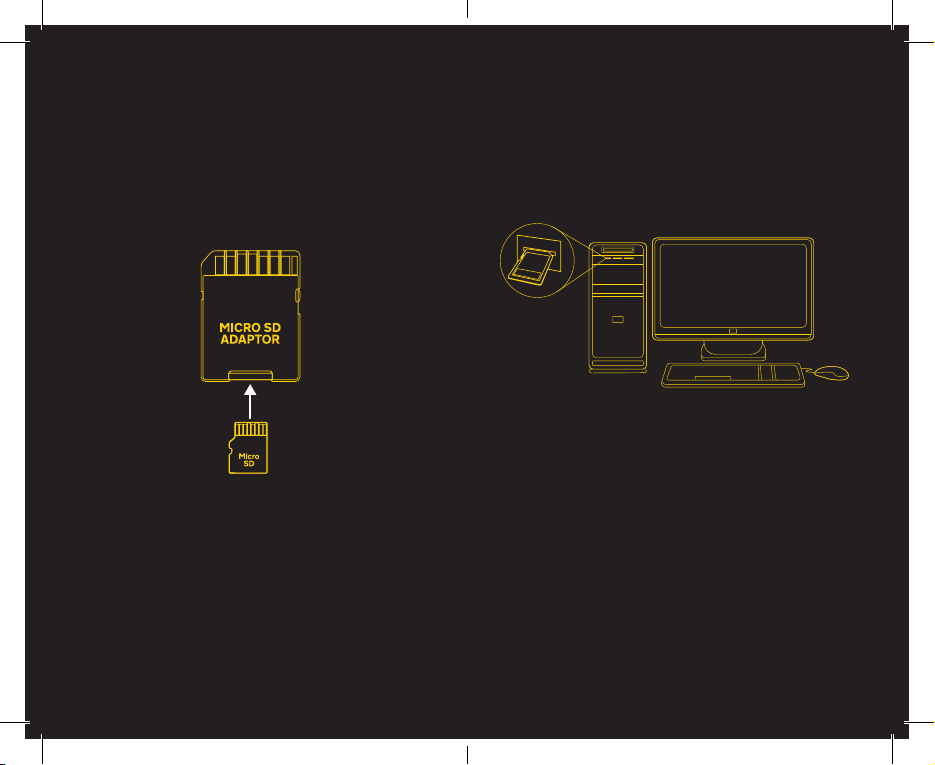

Connecting the Micro-SD Card with your PC Insert the Micro-SD Card Adaptor into the PC
Accessing Files
Micro-SD Card Adaptor
In order to view footage taken with your Dash Cam on your PC,
you must rst remove the Micro-SD card from the Dash Cam,
ensuring it has been powered off before doing so.
Once you have inserted the Micro-SD card into the adaptor,
you can now insert this into your PC’s SD card slot if it has one.
If you do not have an SD card slot you may need to use an SD
card reader (sold separately)
Once the Micro-SD card adaptor has been inserted into your
PC’s slot, it should now recognise the card and you may be
prompted to open the les. If you are not prompted to open
the les, simply go to “My Computer / This PC” on your
computer and locate the SD card in the list of Devices and
Drives.
Open this and you will now have access to the les to play
them back.
NOTE: You may require a media player to be installed in
order to watch videos on your PC.
As PC’s cannot mount a Micro-SD card directly, you must
insert the Micro-SD card into an adaptor. You may have
received one of these when you purchased your
Micro-SD card.
Ensure the card is fully inserted into the adaptor and the
“Lock” tab on the side of the adaptor is “unlocked”. This
enables you to access the card and view les.
22

Frequently Asked Questions
23
Video Image is blurred.
Video has no sound.
My Dash Cam shuts down by itself when vehicle is off.
I cannot insert the Micro-SD card.
I cannot remove the Micro-SD card.
How do I view videos on my computer?
Remove the protective lens cover, clean the lens, make sure
the windshield is clean and clear of grease, dirt, and debris.
Ensure the audio setting is turned on, and the camera is not
muted.
The battery within the Dash Cam is designed to operate only
when the vehicle is switched on.
Micro-SD cards are very small and require delicate use. Ensure
the card is inserted the correct way and insert the card until
you feel a slight spring resistance. You now need to push the
card, using your nger nail or something small until you hear
and feel a small click.
With the card installed, using your nger nail, you now need to
push the card further inwards slightly, until you hear and feel a
small click. If you are having difculty, use the edge of a small
object. Release pressure and the Micro-SD card will spring out
far enough for you to take a hold of it.
To view the video les on your computer, you rst need to
remove the Micro-SD card, then you will need a
Micro-SD Card adaptor (a larger SD card with a slot to insert
the Micro-SD card into) This is then inserted into a SD card
slot on your PC or inserted into a SD card reader so you can
upload and view the les.
24
My Dash Cam has no power.
I cant connect to the App.
The Micro-SD card gets full too fast, how do I x this?
My Dash Cam feels warm when operating
Ensure a stable connection from your 12/24V dc outlet and
the Dash Cam is made. Check all connections and if needed,
check the fuse of your 12/24V dc outlet in your vehicle.
If you nd you are having difculties connecting to the App,
try disconnecting from all Wi-Fi networks you are using on
your smartphone. Then reconnect to the Dash Cam’s Wi-Fi
connection. Reboot the App and connect to your smartphone.
If this does not work, try closing the App and turning the
Dash Cam off and on again. It may take a couple of attempts
depending on the Wi-Fi connection quality.
If your Micro-SD card runs out of storage space quickly, try
formatting it and then reduce the length of looped recording
intervals to a smaller size and reduce the resolution of the
video recording quality. If you are recording at 1080 Full HD
with 5 minute intervals, this will ll up the storage space a lot
faster than recording at 720p with 2 minute intervals.
It is normal for the Dash Cam to feel warm during operation,
especially when it is recording or operating via Wi-Fi.

Warranty
DSL warrants its products against defects in materials and
workmanship for a period of one year. DSL will
repair or replace this product if, due to defective parts or
workmanship, it does not perform as specied.
This warranty covers only repair or replacement of the product
itself. This warranty is extended to the original consumer
purchaser only. In no event does this warranty extend to
instances where the product is damaged through uses for
which it was not intended, misuse, mishandling, removal and
or/re-installation, neglect, accidental damage or tampering.
This warranty does not cover normal wear and tear, or damage
to any other product used in connection with this product.
Any representations or promises inconsistent or in addition to
this warranty are unauthorised and shall not be binding upon
DSL.
Conditions of Warranty:
a: The consumer must retain proof of purchase for
the warranty period.
b: The warranty period is valid from the original date
of purchase of the product.
c: This warranty extends only to the defects in
material or workmanship occurring under normal
use of the product
d: The consumer must return the product, original
packaging (if possible) and proof of purchase to make a
claim against this warranty. if a replacement product is
supplied, it is warranted for the remainder of the warranty
period, from the original date of purchase.
25
This warranty does not cover:
a: Goods that are damaged as a result of misuse by the
customer.
b: Good that are damaged as a result of other third party
products.
c: Any misrepresentations given that are not covered in this
warranty.
If you have any questions about this product or would like any
further assistance, please contact us on:
Email: customer[email protected]
Phone: [phone]
Business hours: Monday - Friday 9:00am to 4:30pm
DSL Group NOTTM Ltd.
Concord House
1 Malton Road
New Basford
Nottingham
NG5 1EG
www.dslgroup.co.uk
26

ITEM NO: 3823
