ROVE M3 User manual

Streaming Mirror Car DashCam
MODEL: M3
USER MANUAL www.rovedashcam.com
Copyright (C) 2019, All rights reserved
TRUTH BE TOLD
TM

Scan the QR Code to Email US Scan the QR Code to Text US
Just Scan the QR Code with your iPhone or Android’s
Camera to get in touch with us.
Response in just 6 hours
[email protected]
For faster response text us
1 (401) 484-ROVE(7683)
Item NOT as described?
Damaged or defective?
Missing items?
Any issues what so ever?
STOP
WE WILL HELP YOU RESOLVE ANY ISSUES ASAP.
CONTACT US BEFORE RETURNING THE ITEM
CUSTOMER SERVICE
EXPERIENCING
PROBLEMS
Hours: Mon - Fri 9am-5pm PST

HOW TO VIDEOS
Visit our website
www.rovedashcam.com/pages/videos
Understanding ROVE M3 Rear Cam
Watch HOW-TO VIDEOS to learn & understand all the
features so you can get the maximum benefit out of it.

4
CONTENT GUIDE
5
5
5
8
9
10
12
13
15
20
22
23
25
27
35
39
41
44
44
USER AGREEMENT
PRECAUTION
USER WARNING
DISCLAIMER
OUT OF THE BOX INSTRUCTIONS
TECHNICAL SPECIFICATION
PACKAGE CONTENTS
PRODUCT DIAGRAM
INSTALLATION
INSERTING / REMOVING A MICRO SD CARD
POWERING ON/OFF THE DASH CAM
UNDERSTANDING ICONS
PLAYBACK INTERFACE
UNDERSTANDING SYSTEM SETTINGS
BATTERY INFORMATION
DISCLAIMER OF WARRANTY/LIMITATIONS
FAQ/ TROUBLESHOOTING
USER MANUAL DESCLAIMER
NOTICE

5
USER MANUAL
Do not expose this product to rain, moisture or water under any
circumstances or it will result in external or internal damage.
Do not put the unit in a damp environment. This device is not
designed to be damp proof.
Do not try to open the cover or try to repair it yourself. If the
accessories for this device have any problem, please contact the
seller for assistance.
By purchasing ROVE Dash cam, it is assumed that by default you
agree with precautions, user warnings and all the terms &
conditions of warranty. If for any reason you do not agree with any
of the terms mentioned in this manual, then you may return the
product in its original packaging unused within its return window
for a full refund.
USER AGREEMENT
Please read this manual very carefully before using the camera for
proper installation and keep it safe for future reference. It will be
helpful if you have any questions or encounter any operational
problems.
PRE-CAUTIONS
WARNINGS
Failure to comply with safety warnings and regulations can result
in serious injury or death.
Please read and understand all instructions before using this
product. If any damage is caused by failure to follow the instruc-
tions, the warranty will be voided.

6
This camera is intended to use inside motor vehicle. Don’t install
it where it will block the driver’s view of the road including
mirrors or the deployment of airbags.
The reverse camera is designed to be used for reference only.
Please drive and use the actual judgement based on road and
driving condition.
Do not place the camera loose on top of the dashboard or
in-front of the air bags.
Do not mount the camera where it can be a distraction if it
became loose and fall off the windshield while driving.
Do not expose this device to an excessive heat, dust or use any
chemical substance or cleaning solvent to clean this device.
Instead use soft moist cloth for cleaning.
Pay careful attention when cleaning the lens surface. Use a soft,
moist cloth to clean the lens to avoid compromising video
quality.
Removing the camera from the vehicle when not in use is
recommended. This pre vents likelihood of theft or exposure to
excessive heat to prevent damage to unit.
Do not operate or install the camera while driving, or attempt to
change any setting etc. Pull off the road first and only do so
when it is safe.
Do not drop, puncture or disassemble this product or dispose it
on fire. It contains Li-ion Battery and can explode if improperly
handled.
Do not use the charger if the cord is broken or damaged. Keep
out of reach of children.

7
USER MANUAL
Some countries or USA states prohibit drivers from mounting anything
on windshield or prohibit mounting on certain area of the windshield. It
is owner/operator’s responsibility to mount or use of this device
incompliance with local laws.
The company is NOT responsible for the loss of any data or your
content during operation or in any circumstance.
Do not leave the camera in the direct sunlight for a long period
of time or where temperature could go above 140°F (60°C).
The camera is designed to be used for normal daily commute
recording. It is not made to continuously record 24/7 365 days.

8
ROVE M3 Streaming Mirror Dash Camera is designed to be use as
a driver’s assistant. Although this is healpful in visual aid, it dose
NOT remove the responsibility of driving the vehicle from the
driver. The legal responsibility and safe driving practice always
remains with the driver. You agree to use this product and under-
stand that this is to be use as aid only. We highly recommend that
you have this product professionally installed to ensure that it will
provide the function it is set out to perform. In case of you change
your mind or return of this product, company is NOT responsible in
anyway for the holes or installation modifications made to your
vehicle.
DISCLAIMER

9
USER MANUAL
Make sure to always keep the camera plugged into the power,
because camera’s internal battery is NOT meant to last more
than 3-5 minutes depending on the video resolution you choose.
You will need to insert a memory card before you can start
recording. Please insert only SAMSUNG Class-10, U3 or higher
speed Micro SD card up to 512GB max for reliable operation.
(NOT included in the packaging)
Before first time use, you MUST format your memory card in
the camera to prevent any errors and for smooth operation.
(See Page 20)
ROVE M3 Rear Cam is programmed to turn ON and START
RECORDING automatically when it receives the power, and
STOPS RECORDING and turns OFF automatically within 4-5
seconds when the power is disconnected. (i.e. when you start
/stop your car)
Setting Date & Time: Please set the correct date and time by
going into the Settings Menu.
How to transfer videos to PC/MAC?
Insert memory card directly to your PC/MAC to view or
download them.
You can also connect your camera to your PC/MAC by
included short USB data cable. Then go to Settings Menu >
USB Storage > Select Connect as a Flash Drive.
We recommend VLC Media Player to view your videos. You
can get it free at www.videolan.org (See Page 25)
Note: Do NOT use Windows Media Player. It is NOT made to
play high beat-rate videos.
1
2
3
4
5
6
OUT OF THE BOX INSTRUCTIONS

10
TECHNICAL SPECIFICATION
Rove M3
9.66-inch IPS Touch Screen
MS8339
Streaming video, LDWS
External
Front：(-20℃~ 60℃)
Rear：(-10℃~ 70℃)
Front：(-30°C ~ 70°C)
Rear：(-20℃~ 75℃)
260*70.5*15mm
337g (Front camera only)
6m
Built In
10%-70%RH
12-24V
700 ma
Support
Support
Support
Support
Support
MOV
Support
Class 10, U3 Speed,
Up to 512GB
Model
Screen size
Chipset
Advance function
GPS
Operating Temperature
Storage Temperature
Product Dimensions
Weight
Rear cam cable length
MIC/Speaker
Working Humidity
Voltage
Built-in Battery
G-Sensor
WDR
Day and Night use
Inbuilt microphone
Manual emergency recording
Video format
Loop recording
Memory Card
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-

11
USER MANUAL
Specifications are subject to change without prior notice
Rear Camera
Front View Camera
Image Sensor
Sensor resolution
Video resolution
Max frames
Lens
Aperture
Image Sensor
Sensor resolution
Video resolution
Max frames
Lens
Aperture
-
-
-
-
-
-
-
-
-
-
-
-
SC2363, 1/2.9 inch
2MP
1080P
30fps
6G+IR
F/1.8
SC2363, 1/2.9 inch
2MP
1080P
30fps
6G+IR
F/1.8

12
Streaming Mirror Car DashCam
MODEL: M3
USER MANUAL
www.rovedashcam.com
Copyright (C) 2019, All rights reserved
TRUTH BE TOLD
TM

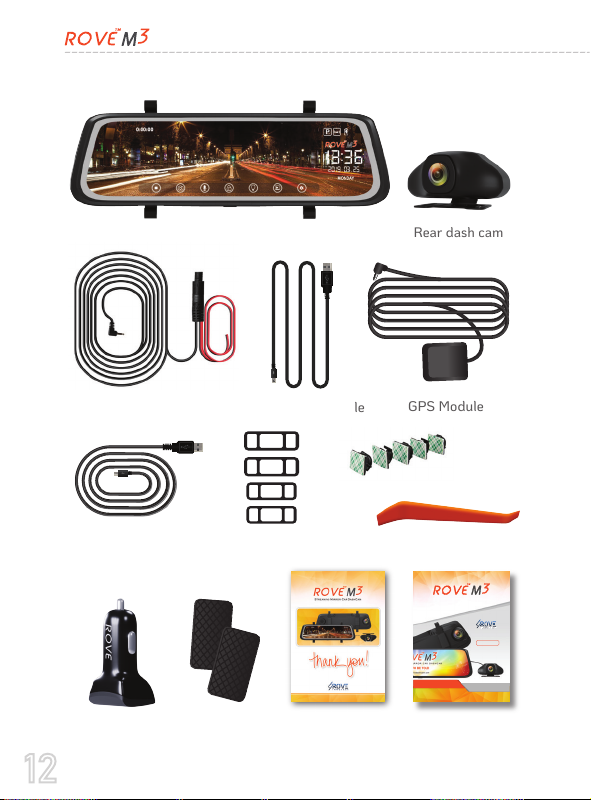

PACKAGE CONTENTS
Rear dash cam
USB car charger
6M rear cam cable
User manualThank you card
12 ft USB Power Cable
2.5 ft USB data cable GPS Module
4 Rubber fasteners
Rove M3 mirror dash cam
5X Cable Clips
EVA Pads
Wire Trim Tool

13
USER MANUAL
PRODUCT DIAGRAM
6
11
9
123
4
10
www.rovedashcam.com
MODEL: M3
SN # M3546001245
TRUTH BE TOLD
TM
STREAMINGMIRROR
CARDASH CAM
MINI USB Port
Rear Cam Input
Memory Card Slot
GPS
Front Camera
IPS Touch Screen
Reset
Speaker
Power Key
Mic
Rear Camera
1
2
3
4
5
6
7
8
9
10
11
6
87
5

14
MINI USB Port
Rear Cam Input
Memory Card Slot
Front Camera
Screen
Reset
Speaker
Power Key
Mic
Rear Camera
Ref. Component Description
-Connect to MINI USB cable & charge
battery.
-Connect to PC for data from (SD card)
transmission.
Connect to the Rear Camera.
Support MicroSD max to 512 GB, Class
10, U3 Speed
Check your route when you playback
the videos Via CAR DV Player.
Records front side
9.66 Inch Touch Screen.
Press ‘RESET’ to reboot when device is
Not Responding.
Built in Speaker
-Short Press to turn on device.
-Long Press 3 seconds to turn off
device.
-Short Press to turn off/on screen.
Records Audio
Records rear side
GPS

15
USER MANUAL
Loop the rubber fasteners over the top faster clips.
There are 2 types of fasteners; please use which ever suits your
car. The longer fasteners are for the bulky pre-installed rear
view mirrors.
Add EVA PADS in case the mirror is loose to provide more
stability.
Put the M3 mirror dash cam in position on the front face of
your existing rear view mirror ensuring the camera lens clears
the edge of your rear view mirror.
Loop the bottom rubber fasteners over the mirror and attached
to the bottom fastener clip.
Once the M3 Mirror dash cam is securely installed onto your
vehicles rear view mirror, plug the 12V DC charger into your
vehicle's cigarette lighter adapter or power source.
Run the cable along your vehicles console and windscreen and
plug it into the Mirror DVR port marked with the USB icon.
You Can use your iPhone or Android Phone’s Charger to power
up the camera also. Just mark sure to NOT exceed 3.1 amps.
Connecting the camera to power
INSTALLING THE ROVE M3 MIRROR DASH CAM
Only use the supplied charger to power and charge the Rove M3
Mirror dash cam.

16
Front camera wiring diagram
Make sure that the camera’s view is not obstructed by any
window tint or any other objects.
If your vehicle has side curtain airbags please be very careful
when running any cables along your vehicle windows. Ensure
you are not running cable past any of the airbags as this can
prevent the airbags from deploying.
Note:

17
USER MANUAL
Select a flat and centered location near the number plate lamp
at the rear of the vehicle to mount camera.
Attach tape to the bracket of the camera to hold the camera in
position while installing, and drill two small holes, one for the
first screw, the second to run the reverse camera cable through.
Us e a screw driver to fix the first screw, leaving the screw loose
enough to adjust the camera.
Insert the camera wire through the intended drilled hole check-
ing the installation position.
Installing The Rear camera
1.
2.
3.
4.

18
Mark the position suitable for the second screw and drill a small
hole for it.
5.
Fix the second screw and securely tighten both screws
6.
NOTE :
Do NOT plug the rear camera into the front camera while it is
turned ON. Only od so when it is turned OFF.

19
USER MANUAL
Rear camera wiring diagram
Wiring at a glance
GPS
To Reversing Light ( +12V Red ) Rear Cam
Car Cigarette Lighter
GPS
Here are three examples of where to guide rear camera’s wire.
Plug the rear camera cable into the
AV input socket of front camera.
Install Rear Ramera
Connect the red wire
of the camera to the
reversing light.
3
1
2

20
INSERTING / REMOVING A MICRO SD CARD
Must use only Brand Name, Class-10, U3 or higher speed
Micro-SD Card. Max support 512GB
We Recommend SAMSUNG Class 10, U3 Speed Micro-SD
Card. You can purchase it from Amazon here:
TO INSTALL
-Make sure the ROVE M3 is turned OFF.
-Insert the Micro-SD Card half way in ( GOLD Contacts - Facing the
Back/Lens Side)
- Now gently push the card in until it clicks & looks in place.
1. Do not remove or insert MicroSD card when the camera is
powered on which may damage the memory card.
2. You MUST Format the MEMORY Card in camera before first time
use.
3. Memory Card is NOT Included.
1
TO REMOVE
-To remove the MicroSD card, gently push its top edge inward until
it clicks, and then pops out, then simply pull it out of the slot.
2
http://a.co/2tXJzIL
MOST IMPORTANT about Memory CARD
LCD/Mirror Side
