A&S S100 User manual


Please read the user’s manual carefully before using and retain it for future use.
Please use the original Adapter.
Please do not washing the main machine or soak the main body in water.
A&S S100 Handy Cordless
Vacuum Cleaner

Contents
Contents
Important Safeguard
Technical Specifications
A&S S100 Product Components
A&S S100 Product Installation Instruction

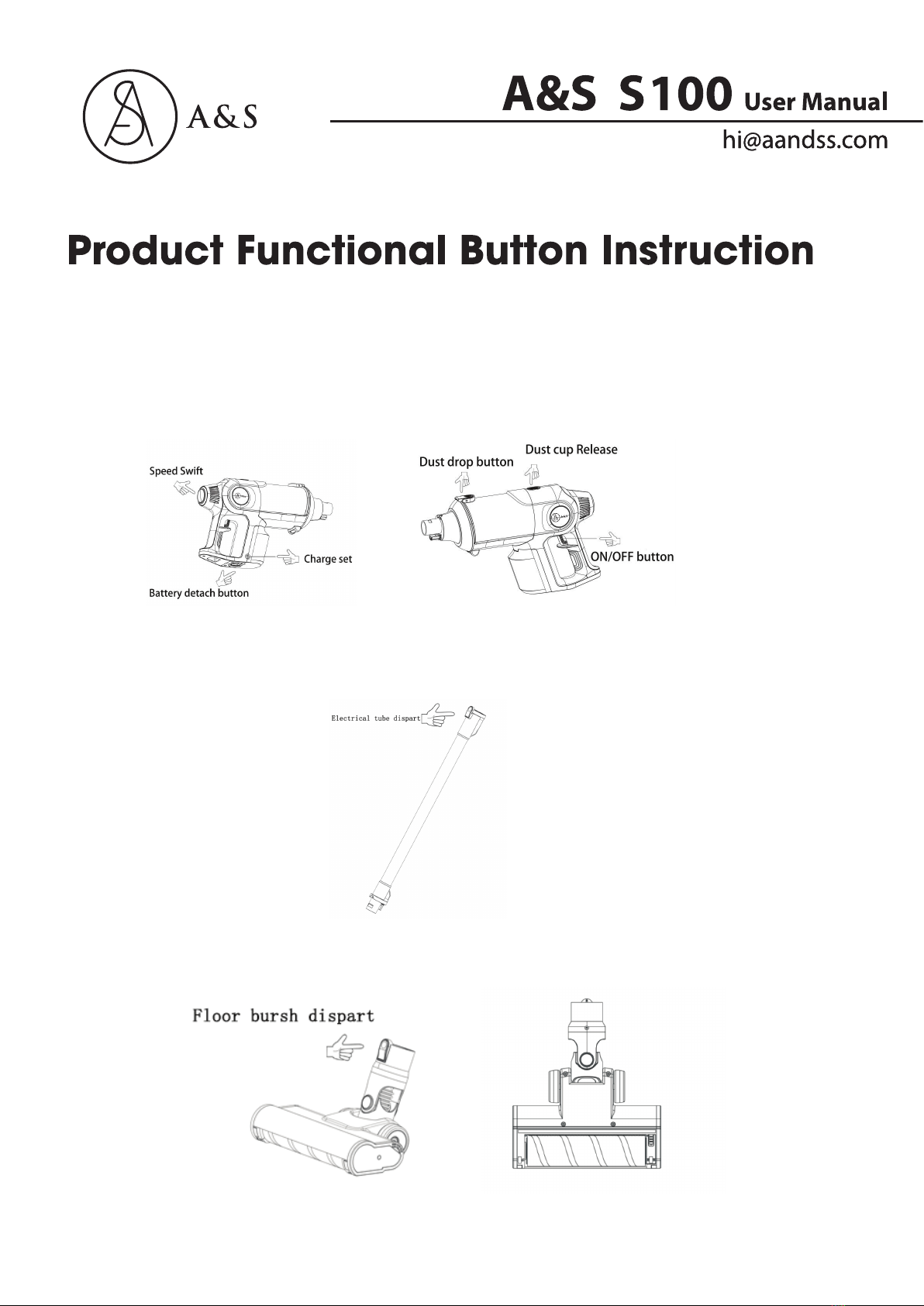

Product Functional Button Instruction

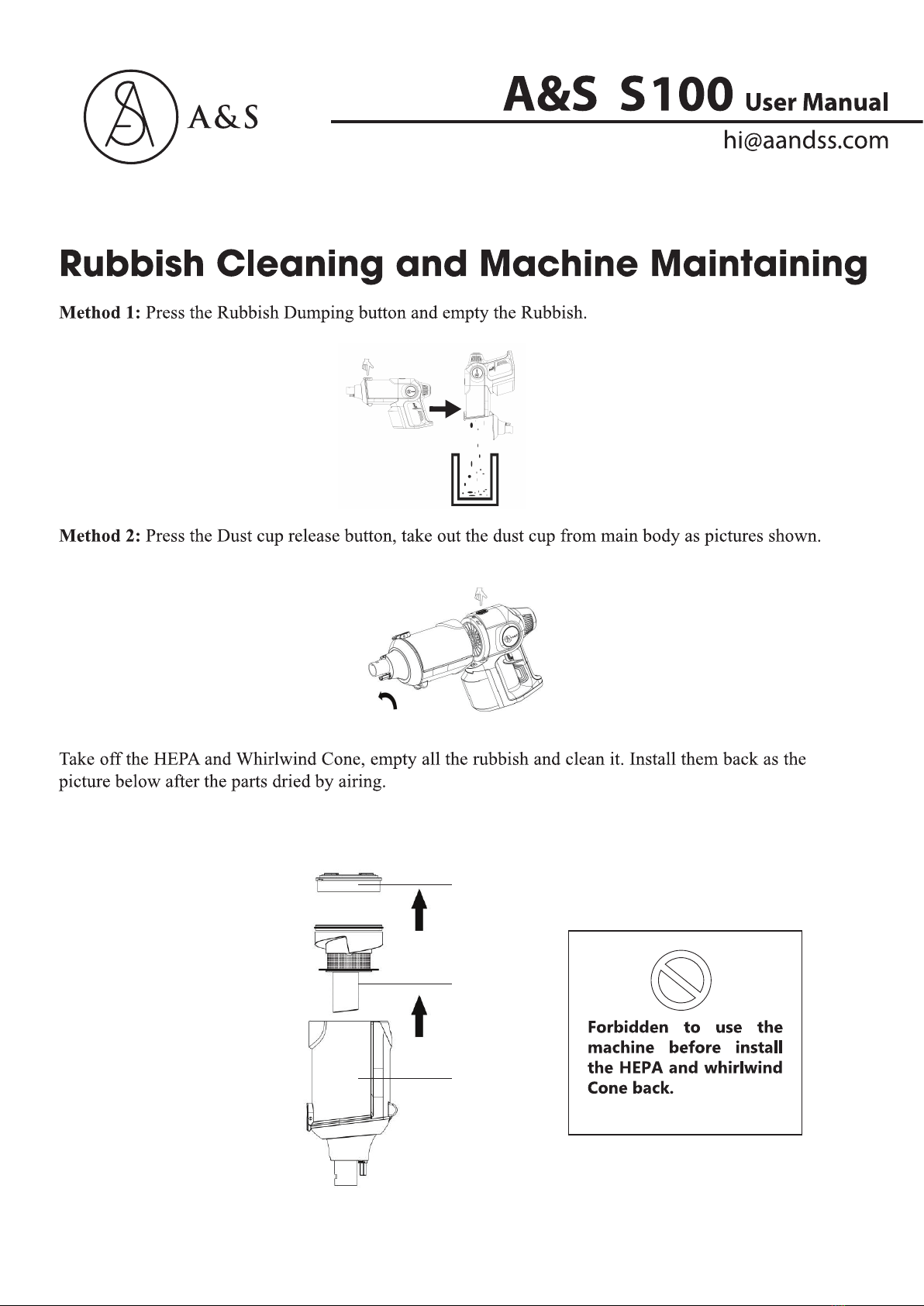

Rubbish Cleaning and Machine Maintaining
Q&A
A&S S100 Product Installation Instruction
After Sale Service and Warranty
1
1
2
3
4
5
6
7
9
11
13

Important Safeguard
To reduce the risk of fire, electric shock or injury to persons or property, the following basic
safety precautions should always be followed.
Never use this appliance with a damaged cord, plug or other damaged parts.
Check if the voltage indicated on the label corresponds with the local mains voltage
before you connect the appliance.
Always ensure the charging connector, cord and plug are dry. Never immerse the
appliance into the water and any other liquid, no rinse it under the tap except the dust
cup, the HEPA and the roll brush parts.
Always ensure that your hands are dry before removing the plug from the mains outlet.
Never pull the plug out of the mains outlet by its cord.
Children should always be supervised to ensure that they do not play with this appliance.
The appliance should not be used by adults or children who lack of experience,
product knowledge or disability might cause a hazard, unless they have been correctly
instructed.
Always keep the battery pack far from the fire and easy burning things.
Never use this appliance to suck water, other liquid, glass, metal fragments and
burning things as ashes, butt, match and so on.
Always ensure the dust cup and the battery pack be installed before using.
If the cord, plug, and any other parts damaged or the appliance fell into the the water,
please stop working and contact the dealer or our products service center. Don’t
disassemble the main body, repair and replace any parts by yourself.
2

Specifications:
Lithium Battery:2500mAh
Adaptor Voltage:100~240V
Adaptor Output:35V500mA
Charging Time:4 - 5hours
Item size: 390 x 227 x 108 mm (Stand Mode)
Item weight: 1.42 KG (Main machine)
*Above data all from lab
Voltage: 29.6V
Power: 300W
Service time: 40 mins
Noise: 70dB
Packing Details:
Adapter
Hanger
Technical Specifications
It is very important to use original parts. We will take no responsibility if any parts
replaced by the user
3

Motor
Dust Cup
Cyclone Cone
HEPA
Lithium
Battery
Straight
Tube
Big Role Floor
Electric Brush
A&S S100 Product Components
4

The appliance are packed by parts, you need to do simple installation before using as
following :
1. Insert the battery pack into main body as picture shows.
2. Connect the tube to the main body.
3. Connect the floor brush to the tube.
A&S S100 Product Installation Instruction
5

6

Dust Cup
Cyclone
Cone
HEPA
7

Floor brush cleaning and maintain
Step 1 : Press the roll brush release button.
Step 2 : Take the roll brush out.
Step 3 : Wash the roll brush and dry it. Fix it back as the pictures below.
Step 4 : Reset the roll brush release button to the lock position.
Machine storage
Please put the machine into the storage base when finish working.
About the machine heating
The new machine turns hot with a slight plastic smell after the motor runs
at high speed for several minutes. It is a normal phenomenon. Please do not
worry as the machine is strictly tested.
8

Q&A
Possible causes Resolutions
Non-working No power
Brush protected
Charging
Restart the machine
Weak suction
Dust cup is full of
rubbish
HEPA is full of dust
Floor Brush or Electrical
Tube been Clogged by
hair or large pieces
rubbish
Clean the dust cup’s rubbish
Clean or change the HEPA
Clean the floor brush or
electrical tube’s inside
rubbish
No Led lights
show when
Charging
Battery pack no install in
right position
The adapter’s connector
not inserted the charging
hole
Install the battery pack in right
position
Push the adaptor’s connector in
to the charging hole in right
position
Non-full
battery after
charging
Charging time not
enough
Battery is aging
Charging enough time as
instructed
The battery have life limited
change it by official supplier
9

Floor brush No
working
Sucked too big size
things
Blanket resistant strength
too hard and protected it
self.
The brush roll is being
Entangled death by hair
or wire some thing.
Clean the floor brush and restart
the machine.
.
Turn off the machine, and take
the floor brush a little high of the
blankets leave some space
between floor brush and blankets
and restart the machine .
Clean the brush’s hair or wire or
some other things.
10

A&S S100 Product Installation Instruction
Lithium Battery Charging
Attn : Please use original charger otherwise the lithium battery can be damaged.
It is supply power by Lithium battery. The battery needs to be charged when
the indicator lights twinkling. It keeps twinkling when in charging and turns
green when full charged.
11

Start/stop working and swift speed
Press the ON/OFF button, the machine starts work. Press the touch panel to
change speeds, the Blue lights means the highest speed and the Green lights
shows the Eco speed. Press again the On/Off button, the appliance stops working.
12

After-sale services and Warranty
Thank you for purchasing our product. If any quality problem is found,
please contact the dealer or our product center. Please don’t disassemble
the contact of the dealer or our product service center. Please don’t
disassemble the machine and repair yourself. Otherwise means you quit the
free repair rights. If you overdue the warranty period, you can also enjoy the
after-sale services and repair paid by yourself.
13
1. Go to http://ewarranty.aandss.com
2. Sign up and account and log in.
3. Fill up the Product Registration Form and submit.
Distributed by A&S Distribution Sdn Bhd
E-WARRANTY
