User Manual
3.5” TFT LCD CCTV Service Viewer with Wristband
LCD35SV
LCD35SV is a type of product that summarizes views of first-line safety engineers and it is
developed specially for technical personnel to debug the front camera conveniently. It has some
functions, like on-site access to camera images and providing temporary 12V DC power supply
for the camera. The product is built with 18650 lithium battery, providing powerful and reliable
power supply for the device, along with the function that it will shut down automatically
without video signal for 3 minutes. All the master controls use ultra low power decoder chips
and MCU, providing eight hours of long working time. LCD35SV is a practical tool for security
project commissioning and maintenance technicians.
Features ..
•PAL / NTSC standard automatic detection
•Display format RGB 320 x 240
•6 hours operation time
•Provide power to 12V DC / 300mA camera
•Audio and video input
•USB universal charging interface
•Battery save sleep mode: 2~3 minutes
•Battery over-charge protection
•Lithium Battery: 3.7V DC, 2200mA
It can proved the 12V DC power to camera for easy trouble shoot.

2
Disposal of Old Electrical & Electronic Equipment (Applicable in the European
Union and other European countries with separate collection systems).
This symbol on the product or on its packaging indicates that this product shall not be treated
as household waste. Instead it shall be handed over to the applicable collection point for the
recycling of electrical and electronic equipment. By ensuring this product is disposed of
correctly, you will help prevent potential negative consequences for the environment and
human health, which could otherwise be caused by inappropriate waste handling of this
product. The recycling of materials will help to conserve natural resources. For more detailed
information about recycling of this product, please contact your local city office, your
household waste disposal service or the shop where you purchased the product.
Caution ..
1. Handle this product with care
Avoid any shock or bumping of the product. Improper handling could damage the product. Do
not handle the unit with wet hands. Provide proper ventilation and air circulation and do not
use near water.
2. Requires a proper operating environment
This product is not waterproof and is designed for indoor use. The allowable temperature
range for operation of this product is between 5°C ~ 50°C / 41°F ~ 122°F.
3. Check the power source voltage
The power source voltage should be within the specified range. (Product must meet the
specifications).
4. Objects and liquid entry
Never push objects of any kind into this product as this may touch dangerous voltage points of
short out parts that could result in a fire or electric shock. Never spill any kind of liquid on the
product.
5. Cleaning
Do not use liquid or aerosol cleaners to clean this unit. Always unplug the power to the device
before cleaning.
Please read the Manual before attempting to use this product.
Specifications and appearance are subject to change without notice.

3
6. Servicing
Do not attempt to service this product by yourself as opening or removing covers may expose
you to dangerous voltage or other hazards. Refer all service to qualified servicing personnel.
Package Contents ..
1. One (1) CCTV Service Viewer w/ Wristband
2. One (1) RCA to BNC
3. One (1) Audio & Video Cable w/ BNC Connector
4. One (1) 12V DC Connector for Powering The Camera
5. One (1) Unit Charger Kit
6. One (1) Carry Bag
7. One (1) User Manual
5. 6. 7.
*The above Unit Charger Kit components are for U.S.A. type power plug. European type also
available and it includes 4 Multi-plugs that are changeable. When an order is placed without
indicating which type of power plug is required, the default plug will be U.S.A. type.
For any returns, please include all components listed above with original packaging in Resalable
Condition. Absolutely No Returns will be accepted if any component is missing/damaged.
1. 2. 3. 4.
Power Adapter
U.S.A.
EU
UK
AU

4
Parts & Functions ..

5
Operation ..
Boot up:
Switch the System Reset Switch to the ON position. Press the Power “On” & “Off” Push Button
for 1 second. The power LED indicator will be on and boot into the main menu.
When there is no video input, it will enter the blue screen mode or standby mode. When there
is video input, the video will be shown on the screen.
Shutdown:
Hold the Power “On” & “Off” Push Button for 1 second. The message “GOODBYE” will appear
and it will shut down. When there is no video input for 3 minutes, it will power off automatically.
Audio and Video Input:
Use the Video & Audio Cable w/ BNC Connector and plug into the USB-A port, RCA video and
audio connection. Audio is detected and automatically turns on when the cable is connected. It
turns off when the cable is disconnected.

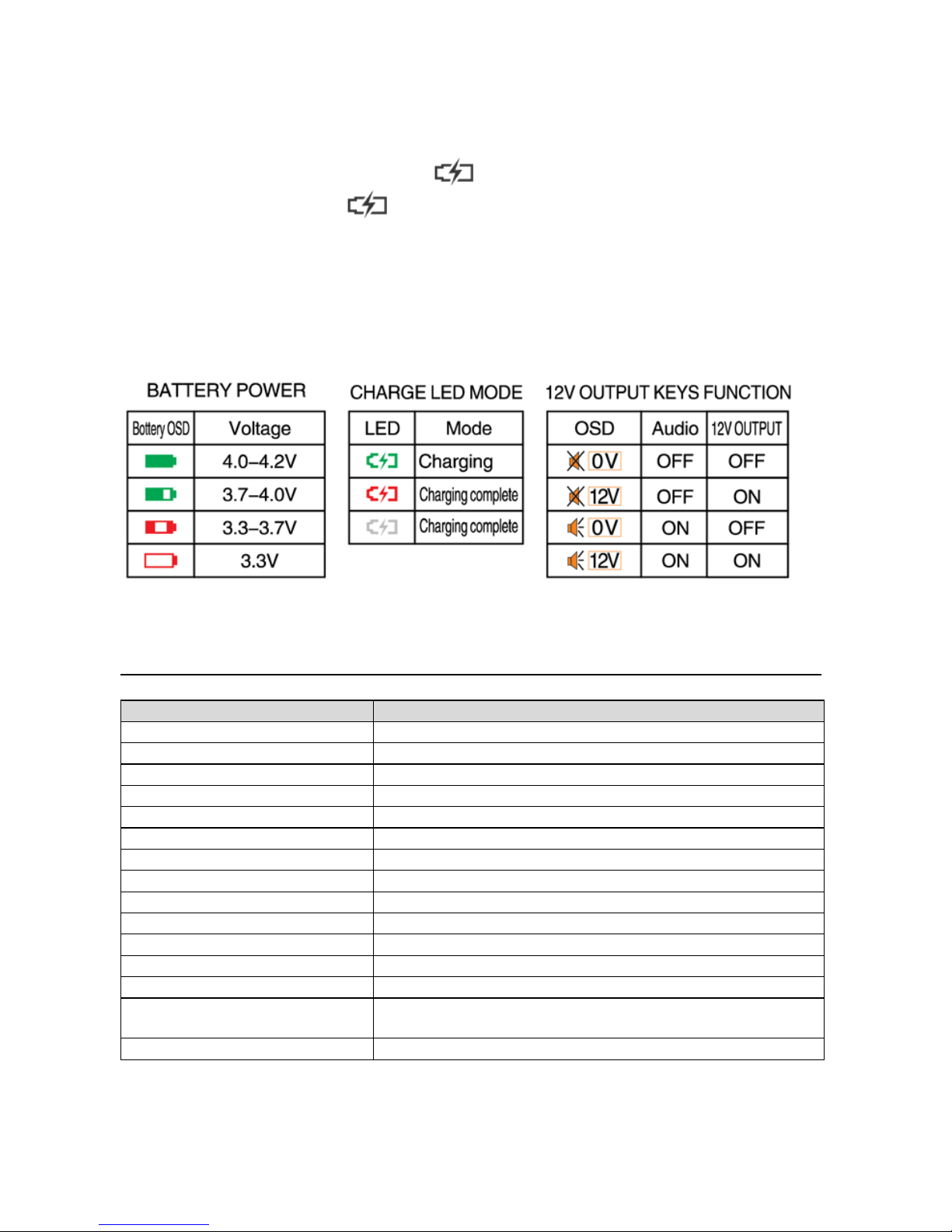

Emergency 12V Output:
Use the Audio & Video Cable w/ BNC Connector and plug the DC line you want to take the first
insertion device. Press the function key.
The 12V Multi-function LED red light will turn on. 12V maximum output current is 800mA. It has
output over-voltage and over-current protection.
NOTE: The maximum output current is 12V DC 800mA. The output has over-current, over
voltage and short circuit protection functions. Do not use high power IR cameras because it
will overload and damage the power module.
