AAVIX A12101 User manual

WARNING : To reduce the risk of injury, user must read this manual before assembling, operang
and maintaining this unit. You are responsible for operang the product properly & safely.
Version: V1.20171222
AAVIX OUTDOORS
FOR SERVICE CALL: (USA)1-866-591-8921/(CANADA)1-514-885-0916
3 GALLON PANCAKE AIR COMPRESSOR OIL FREE

2
WARNING!
Read and understand this manual thoroughly before operating your
compressor. Failure to follow instructions could result in electric shock,
fire,serious injury or death !
Save all warnings and instructions for future reference. Please familiarize
yourself with the following information to prevent damage to your compressor
and injury to the operator.
TABLE OF CONTENTS
Safety rules………….…………………………………………………………2
Glossary………….………….………………………………………………….10
Specifications………….………….……….…………………………………11

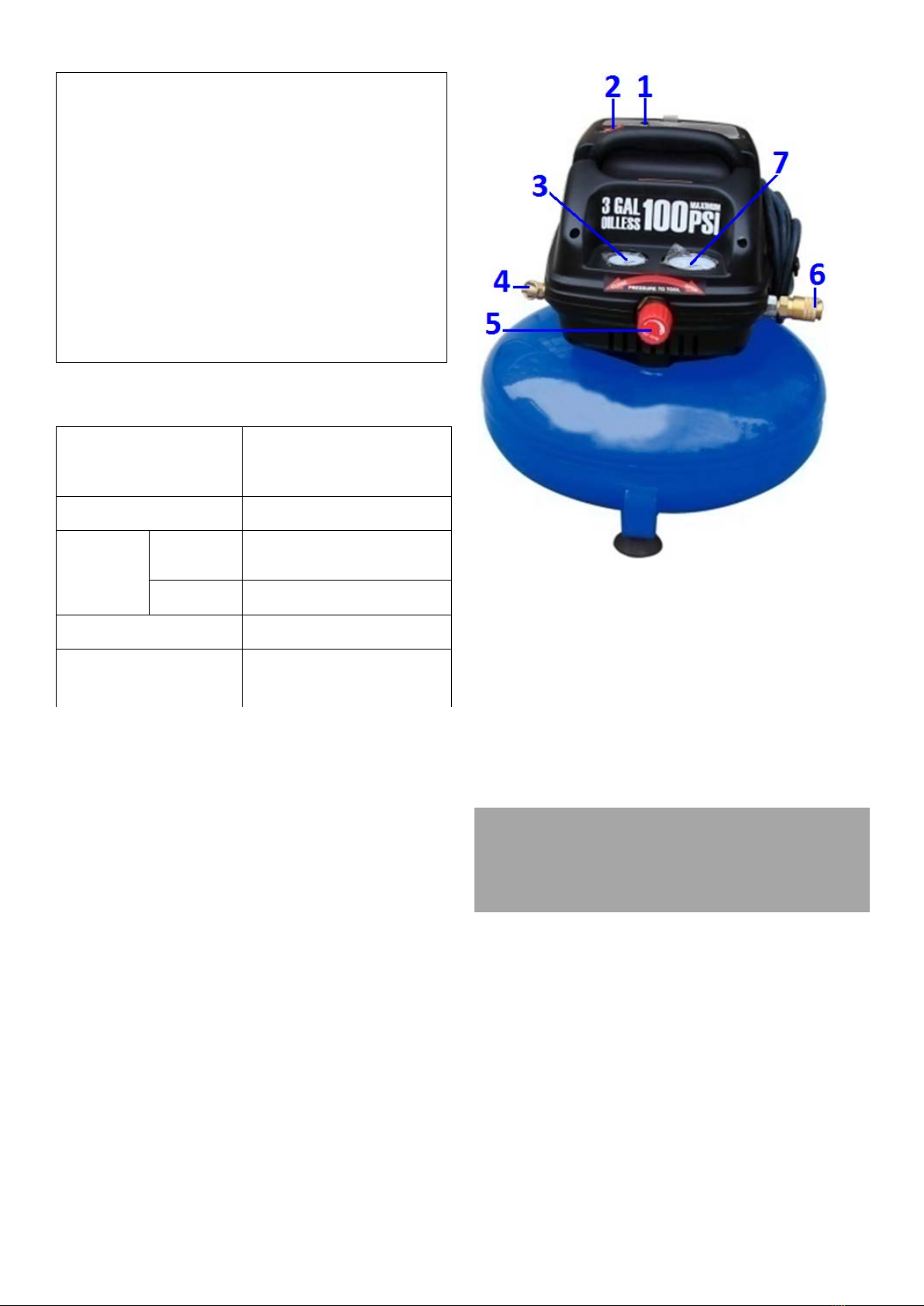

Know your compressor…………………………………………………..11
Installation..…………………………..………………………………………12
Oparation.………………………….…..……………………………………..17
Maintenance……………….…………………………………………………19
Storage……………….………………………………………………………….23
Troubleshooting …………………….………………………………………24
Part list…………………………………………………………………………..29
Exploded view …..…………………………………………………………..30
SAFETY RULES
The warnings, precautions, and
instructions discussed in this
instruction manual cannot cover all
possible conditions and situations that
may occur. It must be understood by
the operator that common sense and
caution are factors which cannot be
built into this product, but must be
supplied by the operator.
Work area safety
1. Keep work area clean and well lit.
Cluttered or dark areas invite
accidents.
2. Do not operate the compressor in
explosive atmospheres, such as in
the presence of flammable liquids,
gases or dust.
Compressor motors produce sparks
which may ignite the dust or fumes.
3. Keep children and bystanders
away from an operating compressor.

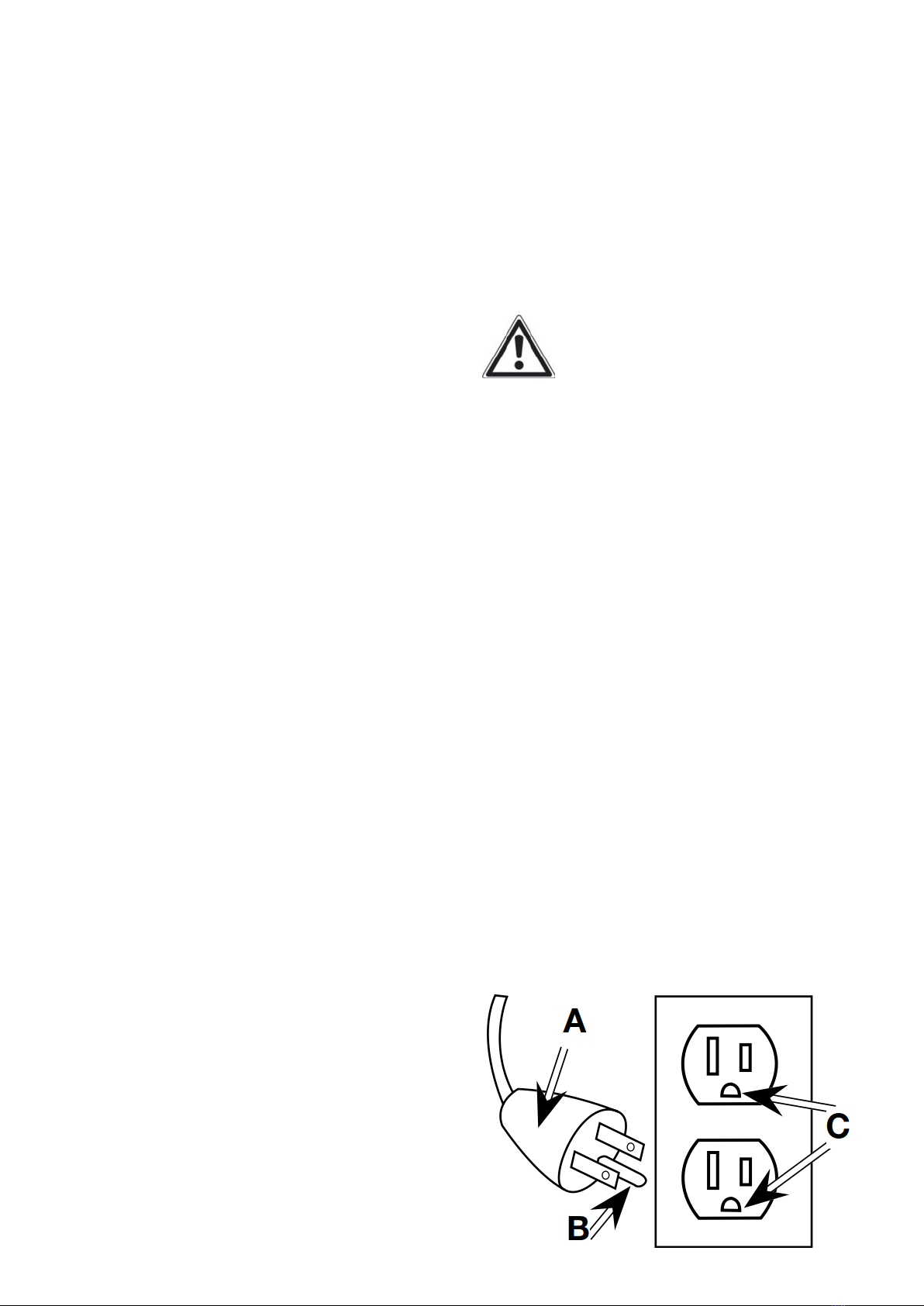

Electrical safety
a. Compressor plugs must match the
outlet. Never modify the plug in any
way.Do not use an adapter to
connect this compressor to a
different outlet.
Standard plugs and matching outlets
will reduce risk of electric shock.
b. Do not expose compressor to rain

3
or wet conditions. Water entering a
compressor will increase the risk of
electric shock.
c. Do not abuse the cord. Never use
the cord for unplugging the
compressor.Keep cord away from
heat, oil, sharp edges or moving
parts. Damaged or entangled cords
increase the risk of electric shock.
Personal safety
a. Stay alert, watch what you are
doing and use common sense when
operating this compressor. Do not
use this compressor while you are
tired or under the influence of drugs,
alcohol or medication. A moment of
inattention while operating a
compressor may result in serious
personal injury.
b.Use personal protective equipment.
Always wear ANSI-approved eye.
Protection during setup and use.
c. Prevent unintentional starting.
Ensure the power Switch is in the
off-position before connecting to
power source or moving the
compressor.
d.Always wear safety glasses or
goggles when using compressed
air.It is not practical or possible to
warn you about all of the hazards
associated with operating or
maintaining this equipment. You
must use your own good
judgement.
Compressor use and care
a. Do not use the compressor if the
power Switch does not turn it on
and off. Any compressor that cannot
be controlled with the power Switch
is dangerous and must be repaired.
b. Disconnect the plug from the
power source before making any
adjustments, changing accessories,
or storing the compressor.
Such preventive safety measures
reduce the risk of starting the
compressor accidentally.
c. Store an idle compressor out of
the reach of children and do not
allow persons unfamiliar with the
compressor or these instructions to
operate it. A compressor is
dangerous in the hands of untrained
users.
d. Maintain the compressor. Keep
the compressor clean for better and
safer performance. Follow
instructions for lubricating and
changing accessories.
Keep dry, clean and free from oil
and grease. check for misalignment
or binding of moving parts, breakage
of parts and any other condition
that may affect the compressor's
operation. If damaged, have the
compressor repaired before use.
Many accidents are caused by a
poorly maintained compressor.
e. Use the compressor in accordance
with these instructions, taking into
account the working conditions and
the work to be performed. Use of
the compressor for operations
different from those intended could

4
result in a hazardous situation.
Service
Have your compressor serviced by a
qualified repair person using only
identical replacement parts. This will
ensure that the safety of the
compressor is maintained.
AIR COMPRESSOR SAFETY
WARNINGS
1. Risk of bursting - do not adjust
regulator higher than marked
maximum pressure of attachment.
2. Risk of injury - do not direct air
stream at people or animals.
3. Keep compressor well-ventilated.
Do not cover compressor during
use.
4. Drain tank daily and after use.
Internal rust causes tank failure and
explosion.
5. Do not remove the valve cover or
adjust internal components.
6. Do not use the air hose to move the
compressor.
7. Release the pressure in the storage
tank before moving.
8. The use of accessories or
attachments not recommended by
the manufacturer may result in a risk
of injury to persons.
9. All air line components, including
hoses, pipe, connectors, filters, etc.,
must be rated for a minimum
working pressure of 150 PSI, or 150%
of the maximum system pressure,
whichever is greater.
10.Industrial applications must follow
OSHA guidelines.
11. Maintain labels and nameplates on
the compressor. These carry important
safety information. If unreadable or
missing, contact our customer service
center for a replacement.
12. This product is not a toy.
Keep it out of reach of children.
13. People with pacemakers should
consult their physician(s) before use.
Electromagnetic fields in close
proximity to heart pacemaker could
cause pacemaker interference or
pacemaker failure.
14. People with pacemakers should
consult their physician(s) before use.
Electromagnetic fields in close
proximity to heart pacemaker could
cause pacemaker interference or
pacemaker failure.
15. DANGER: Risk
Of Fire Or Explosion
1) WHAT CAN HAPPEN: It is normal for
electrical contacts within the motor
and pressure switch to spark.
HOW TO PREVENT IT: Always operate
the compressor in a well ventilated
area free of combustible materials,
gasoline, or solvent vapors.
2) WHAT CAN HAPPEN:If electrical
sparks from compressor come into
contact with flammable vapors, they
may ignite, causing fire or explosion.
HOW TO PREVENT IT:
Do not spray flammable liquid in a
confined area or towards a hot
surface. Spray area must be

5
well-ventilated.
Do not smoke while spraying or spray
where spark or flame is present.
Keep compressor at least 20 feet
away from explosive vapors, such as
when spraying with a spray gun.
If spraying flammable materials,
locate compressor at least 20’ (6.1m)
away from spray area. An additional
length of air hose may be required.
Store flammable materials in a
secure location away from
compressor.
3) WHAT CAN HAPPEN:Restricting any of
the compressor ventilation openings
will cause serious overheating and
could cause fire.
HOW TO PREVENT IT:
Never place objects against or on top
of compressor.
Operate compressor in an open area
at least 12" (30.5 cm) away from any
wall or obstruction that would
restrict the flow of fresh air to the
ventilation openings.
Operate compressor in a clean, dry
well ventilated area. Do not operate
unit in any confined area. Store
indoors.
4) WHAT CAN HAPPEN: Unattended
operation of this product could result
in personal injury or property
damage.To reduce the risk of fire, do
not allow the compressor to operate
unattended.
HOW TO PREVENT IT:
Always remain in attendance with
the product when it is operating.
Always turn off and unplug unit when
not in use.Do not leave compressor
unattended for an extended period
while plugged in.
16. DANGER: Risk To
Breathing
WARNING: Compressed air
from the unit may contain hazardous
fumes. Air produced by this
compressor is not suitable for
breathing purposes. Never use air
obtained directly from the compressor
to supply air for human consumption.
The compressor is not equipped with
suitable filters and in-line safety
equipment for human consumption.
Always use a respirator when spraying
paint or chemicals, or when
sandblasting.
1) The compressed air directly from
your compressor is not safe for
breathing. The air stream may contain
carbon monoxide, toxic vapors, or
solid particles from the air tank.
Breathing these contaminants can
cause serious injury or death.
2) Never use air obtained directly
from the compressor to supply air for
human consumption. The compressor
is not equipped with suitable filters
and in-line safety equipment for
human consumption.
3) Exposure to chemicals in dust
created by power sanding, sawing,
grinding, drilling, and other

6
construction activities may be harmful
Sprayed materials such as paint, paint
solvents, paint remover, insecticides,
weed killers, may contain harmful
vapors and poisons.
4) Work in an area with good cross
ventilation. Read and follow the
safety instructions provided on the
label or safety data sheets for the
materials you are spraying. Always
use certified safety equipment:
NIOSH/OSHA respiratory protection
or properly fitting face mask designed
for use with your specific application.
17. DANGER: Risk Of
Rursting
Air Tank: compressor tank safety:
Air compressor receiver tanks do not
have an infinite life. Tank life is
dependent upon several factors, some
of which include operating conditions,
ambient conditions, proper
installations, field modifications, and
the level of maintenance. The exact
effect of these factors on air receiver
life is difficult to predict.
If proper maintenance procedures are
not followed, internal corrosion to
the inner wall of the air receiver tank
can cause the air tank to
unexpectedly rupture allowing
pressurized air to suddenly and
forcefully escape, posing risk of injury
to consumers.
Your compressor air tank must be
removed from service by the end of
the year shown on your tank warning
label.
The following conditions could lead to
a weakening of the air tank, and result
in a violent air tank explosion:
1) WHAT CAN HAPPEN: Failure to
properly drain condensed water from
air tank, causing rust and thinning of
the steel air tank
HOW TO PREVENT IT: Drain air tank daily
or after each use. If air tank develops a
leak, replace it immediately with a new
air tank or replace the entire
compressor.
2) WHAT CAN HAPPEN: Modifications or
attempted repairs to the air tank.
HOW TO PREVENT IT: Never drill into,
weld, or make any modifications to the
air tank or its attachments. Never
attempt to repair a damaged or
leaking air tank. Replace with a new air
tank.
3) WHAT CAN HAPPEN: Unauthorized
modifications to the safety valve or
any other components which control
air tank pressure.
HOW TO PREVENT IT: The air tank is
designed to withstand specific
operating pressures. Never make
adjustments or parts substitutions to
alter the factory set operating
pressures.
18. Attachments&accessories:
WHAT CAN HAPPEN: Exceeding the
pressure rating of air tools, spray guns,
air operated accessories, tires, and
other inflatables can cause them to
explode or fly apart, and could result

7
in serious injury.
HOW TO PREVENT IT: Follow the
equipment manufacturers
recommendation and never exceed
the maximum allowable pressure
rating of attachments. Never use
compressor to inflate small low
pressure objects such as children’s
toys, footballs, basketballs, etc.
19. Tires:
WHAT CAN HAPPEN:
Over inflation of tires could result in
serious injury and property damage.
HOW TO PREVENT IT: Use a tire pressure
gauge to check the tires pressure
before each use and while inflating
tires; see the tire sidewall for the
correct tire pressure.
NOTE: Air tanks, compressors and
similar equipment used to inflate tires
can fill small tires very rapidly. Adjust
pressure regulator on air supply to no
more than the rating of the tire
pressure. Add air in small increments
and frequently use the tire gauge to
prevent over inflation.
20. RISK OF ELECTRICAL
SHOCK
1) WHAT CAN HAPPEN: Your compressor
is powered by electricity. Like any
other electrically powered device, if it
is not used properly it may cause
electric shock.
HOW TO PREVENT IT: Never operate the
compressor outdoors when it is
raining or in wet conditions.
Never operate compressor with
protective covers removed or
damaged.
2) WHAT CAN HAPPEN: Repairs
attempted by unqualified personnel
can result in serious injury or death
by electrocution.
HOW TO PREVENT IT: Any electrical
wiring or repairs required on this
product should be performed by
authorized service center personnel in
accordance with national and local
electrical codes.
3) WHAT CAN HAPPEN: Electrical
Grounding: Failure to provide
adequate grounding to this product
could result in serious injury or death
from electrocution. Refer to
Grounding Instructions paragraph in
the Installation section.
HOW TO PREVENT IT: Make certain that
the electrical circuit to which the
compressor is connected provides
proper electrical grounding, correct
voltage and adequate fuse protection.
21. RISK FROM FLYING
OBJECTS
WHAT CAN HAPPEN: The compressed air
stream can cause soft tissue damage
to exposed skin and can propel dirt,
chips, loose particles, and small
objects at high speed, resulting in
property damage or personal injury.
HOW TO PREVENT IT: Always wear
certified safety equipment: ANSI Z87.1
eye protection (CAN/CSA Z94.3) with

8
side shields when using the
compressor .
Never point any nozzle or sprayer
toward any part of the body or at
other people or animals.
Always turn the compressor off and
bleed pressure from the air hose and
air tank before attempting
maintenance, attaching tools or
accessories.
22. RISK OF HOT
SURFACES
WHAT CAN HAPPEN: Touching exposed
metal such as the compressor head,
engine head, engine exhaust or outlet
tubes, can result in serious burns.
HOW TO PREVENT IT: Never touch any
exposed metal parts on compressor
during or immediately after operation.
Compressor will remain hot for several
minutes after operation.
Do not reach around protective
shrouds or attempt maintenance until
unit has been allowed to cool.
Compressor head gets hot during
operation.Do not touch it or allow
children nearby during or immediately
following operation.
23. RISK FROM
MOVING PARTS
1) WHAT CAN HAPPEN: Moving parts
such as the pulley, flywheel, and belt
can cause serious injury if they come
into contact with you or your
clothing.
HOW TO PREVENT IT:Never operate the
compressor with guards or covers
which are damaged or removed.
Keep your hair, clothing, and gloves
away from moving parts. Loose
clothes, jewelry, or long hair can be
caught in moving parts.
Air vents may cover moving parts and
should be avoided as well.
2) WHAT CAN HAPPEN: Attempting to
operate compressor with damaged
or missing parts or attempting to
repair compressor with protective
shrouds removed can expose you to
moving parts and can result in
serious injury.
HOW TO PREVENT IT: Any repairs
required on this product should be
performed by authorized service
center personnel.
24. RISK OF UNSAFE
OPERATION
WHAT CAN HAPPEN: Unsafe operation of
your compressor could lead to serious
injury or death to you or others.
HOW TO PREVENT IT:
Review and understand all
instructions and warnings in this
manual.
Become familiar with the operation
and controls of the air compressor.
Keep operating area clear of all
persons, pets, and obstacles.

9
Keep children away from the air
compressor at all times.
Do not operate the product when
fatigued or under the influence of
alcohol or drugs. Stay alert at all
times.
Never defeat the safety features of
this product.
Equip area of operation with a fire
extinguisher.
Do not operate machine with
missing, broken, or unauthorized
parts.
Never stand on the compressor
25. RISK OF FALLING
WHAT CAN HAPPEN: A portable
compressor can fall from a table,
workbench, or roof causing damage to
the compressor and could result in
serious injury or death to the
operator.
HOW TO PREVENT IT:Always operate
compressor in a stable secure position
to prevent accidental movement of
the unit. Never operate compressor on
a roof or other elevated position. Use
additional air hose to reach high
locations.
26. RISK FROM NOISE
WHAT CAN HAPPEN: Under some
conditions and duration of use, noise
from this product may contribute to
hearing loss.
HOW TO PREVENT IT:Always wear
proper hearing protection during use.
27. AIR RECEIVER
Over pressurizing the air receiver
could cause personal injury or material
damage. To protect from over
pressurizing, a factory pre-set safety
valve is installed.
WARNING:
NEVER WELD,
DRILL, OR CHANGE THE AIR
RECEIVER IN ANY WAY.
Any replacement parts should be
purchased with the same
specifications as the original
equipment. Please contact the
authorized dealer for replacement
parts or specifications.
28. SAFETY VALVE
This valve is factory installed to
prevent over pressurizing of the air
receiver.
It is factory set at a specific limit for
your particular model, and should
never be tampered with.
Adjustment by user will
automatically void the warranty.
WARNING: DO NOT
REMOVER, MAKE
ADJUSTMENTS TO OR SUBSTITUTE
THIS VALVE!
EXTENSION CORDS
THE USE OF EXTENSION CORDS IS
NOT RECOMMENDED. If the use of an
extension cord is unavoidable, be sure

10
it is:
Minimum gauge for extension cords
Volts Total length of cord in feet
120V 25 50 100 150
Ampere
rating more
than-not
more than
AWG
0-6 18 16 16 14
6-10 18 16
DO NOT USE
10-12 16 16
12-16 14 14
Table A
a. Make sure your extension cord is in
good condition.
b. Use only 3-wire extension cords
that have 3-prong grounding plugs
and 3-pole receptacles that accept the
compressor’s plug on the product in
good condition. No longer than 50
feet (15.2 m).
c. Be sure to use an extension cord
which is heavy enough to carry the
current your product will draw. An
undersized cord will cause a drop in
line voltage resulting in loss of power
and overheating. Table A shows the
correct size to use depending on cord
length and nameplate ampere rating.
If in doubt, use the next heavier
gauge. The smaller the gauge
number, the heavier the cord.
NOTE: Risk of Property Damage. The
use of an undersized extension cord
will cause voltage to drop resulting in
power loss to the motor and
overheating. Instead of using an
extension cord, increase the working
reach of the air hose by attaching
another length of hose to its end.
Attach additional lengths of hose as
needed.
GLOSSARY
PSI
Pounds per square inch of
pressure
CFM Cubic Feet per Minute flow
SCFM
Cubic Feet per Minute flow at
standard conditions
NPT National pipe thread, tapered
NPS National pipe thread, straight
Double Insulated
Cut-In Pressure:While the motor is
off, air tank pressure drops as you
continue to use your accessory. When
the tank pressure drops to a certain
lower level the motor will restart
automatically. The low pressure at
which the motor automatically
restarts is called "cut-in" pressure.
Cut-Out Pressure: When an air
compressor is turned on and begins
to run, air pressure in the air tank
begins to build. It builds to a certain
high pressure before the motor
automatically shuts off, protecting
your air tank from pressure higher
than its capacity. The high pres
sure at
which the motor shuts off is called
"cut-out" pressure.
Branch Circuit: Circuit carrying
electricity from electrical panel to
outlet.

11
DUTY CYCLE:This air compressor
pump is capable of running
continuously. However, to prolong
the life of your air compressor, it is
recommended that a 50%-75%
average duty cycle be maintained;
that is, the air compressor pump
should not run more than 30-45
minutes in any given hour.
SPECIFICATIONS
Electrical Rating
120V〜/ 60Hz /
2.5Amp
Air Outlet Size
1/4”-18NPT
Air
Pressure
Shut-off
100 PSI
Restart
85 PSI
Air Tank Capacity
3 Gallons
Air Flow Capacity
0.6 SCFM @ 90 PSI
1 SCFM @ 40 PSI
KNOW YOUR AIR
COMPRESSOR
READ THIS OWNER’S MANUAL AND
SAFETY RULES BEFORE OPERATING
YOUR UNIT. Compare the illustrations
with your unit to familiarize yourself
with the location of various controls
and adjustments. Save this manual for
future reference.
1. Power
Switch
2. Reset Button
3 Tank Air Pressure Gauge
4. Safety Valve
5. Regulator Knob
6. Air Outlet
7. Output Air Pressure Gauge
The diagrams and pictograms
herewith enclosed in this manual are
are a guide but not necessarily an
exact copy of the actual product.
Become familiar with these controls
before operating the unit.
On(I)/Off(O) Power Switch: Place
this switch in the On (I) position to
provide automatic power to the
pressure switch and Off (O) to remove
power at the end of each use.
Pressure Switch (not shown): The
pressure switch automatically starts
the motor when the air tank pressure

12
drops below the factory set "cut-in"
pressure. It stops the motor when the
air tank pressure reaches the factory
set "cut-out" pressure.
Safety Valve : If the pressure switch
does not shut off the air compressor at
its "cutout" pressure setting, the safety
valve will protect against high pressure
by "popping out" at its factory set
pressure (slightly higher than the
pressure switch "cut-out" setting).
Tank Pressure Gauge: The tank
pressure gauge indicates the reserve
air pressure in the tank.
Outlet Pressure Gauge:The outlet
pressure gauge indicates the air
pressure available at the outlet side
of the regulator. This pressure is
controlled by the regulator and is
always less than or equal to the tank
pressure.
Regulator Knob: Controls the air
pressure shown on the outlet
pressure gauge. Turn regulator knob
clockwise to increase pressure and
counterclockwise to decrease
pressure.
Cooling System (not shown): This
compressor contains an advanced
design cooling system. At the heart of
this cooling system is an engineered
fan. It is perfectly normal for this fan
to blow air through the vent holes in
large amounts. You know that the
cooling system is working when air is
being expelled.
Air Compressor Pump (not
shown): Compresses air into the air
tank. Working air is not available until
the compressor has raised the air
tank pressure above that required at
the air outlet.
Drain Valve : The drain valve is
located at the base of the air tank and
is used to drain condensation at the
end of each use.
Check Valve: When the air
compressor is operating, the check
valve is "open", allowing compressed
air to enter the air tank. When the air
compressor reaches "cut-out"
pressure, the check valve "closes",
allowing air pressure to remain inside
the air tank.
INSTALLATION
UNPACKING
When unpacking, make sure that the
product is intact and undamaged. If
any parts are missing or broken,
please call our customer service center
as soon as possible.
WARNING:
Read the ENTIRE IMPORTANT SAFETY
INFORMATION section at the
beginning of this manual including all
text under subheadings therein
before set up or use of this product.
TO PREVENT SERIOUS INJURY FROM
ACCIDENTAL OPERATION:
Turn the Power Switch “OFF” and
unplug the Air compressor from its
electrical outlet before assembling or
making any adjustments to the

13
compressor.
NOTE: Proper care and maintenance
ensure longevity. Do not over tighten
foot bolts as excessive vibration may
occur. Use only in a clean, dry, and
well-ventilated area. The compressor
has heat dissipation fins for proper
cooling. Keep the fins and other parts
that collect dust clean. Do not place
rags or other materials on top of the
compressor, as this obstructs cooling
and can be a fire hazard.
COMPRESSOR AREA SET UP
Read the ENTIRE IMPORTANT SAFETY
INFORMATION section at the
beginning of this manual before set
up or use of this product.
1. Locate the air compressor in a clean,
dry and well ventilated area.The
work area must not allow access by
children or pets to prevent injury.
2. Location of the Air Compressor:
Locate the Compressor on a flat level
surface to ensure proper pump
lubrication and to prevent damage to
the unit.
The air compressor should be located
at least 12" (30.5 cm) away from the
wall or other obstructions that will
interfere with the flow of air.
The air compressor pump and shroud
are designed to allow for proper
cooling. The ventilation openings on
the compressor are necessary to
maintain proper operating
temperature. Do not place rags or
other containers on or near these
openings.
Route the power cord from the
compressor to the grounded wall
outlet, along a safe path without
creating a tripping hazard or
exposing the power cord to possible
damage.
GROUNDING INSTRUCTIONS
WARNING: TO PREVENT
ELECTRIC SHOCK AND DEATH
FROM INCORRECT GROUNDING
WIRE CONNECTION:
This air compressor must be properly
grounded.
The portable air compressor is
equipped with a cord having a
grounding wire with an appropriate
grounding plug (A).
1. The cord set and plug (A) with this
unit contains a grounding pin (B).
This plug MUST be used with a
grounded outlet (C).
IMPORTANT: The outlet must be
properly installed and grounded in
accordance with all codes and
ordinances.
110-120 VAC Grounded
Compressors: Compressors with
Three Prong Plugs

14
125 V~ 3-Prong Plug and Outlet (for
up to 125 V~ and up to 15 A)
2. Make sure the outlet being used
has the same configuration as the
grounded plug. DO NOT USE AN
ADAPTER.
3. Inspect the plug and cord before
each use. Do not use if there are
signs of damage.
4. Check with a qualified electrician,
if you are in doubt as to whether
the outlet is properly grounded. Do
not modify the power cord plug
provided with the compressor.
5. Never remove the grounding
prong from the plug. Do not use the
compressor if the power cord or plug
is damaged. If damaged, have it
repaired by a service facility before
use. If the plug will not fit the outlet,
have a proper outlet installed by a
qualified electrician.
6. In the event of a malfunction or
breakdown, grounding provides a
path of least resistance for electric
current to reduce the risk of electric
shock. This compressor is equipped
with an electric cord having an
equipment-grounding conductor and
a grounding plug. The plug must be
plugged into a matching outlet that
is properly installed and grounded in
accordance with all local codes and
ordinances.Do not modify the plug
provided -if it will not fit the outlet,
have the proper outlet installed by a
qualified electrician.
7. Improper connection of the
equipment-grounding conductor can
result in a risk of electric shock.
8. The conductor with insulation
having an outer surface that is green
with or without yellow stripes is the
equipment-grounding conductor.If
repair or replacement of the electric
cord or plug is necessary, do not
connect the equipment- grounding
conductor to a live terminal.
9. Repair or replace damaged or
worn cord immediately.
Repairs to the cord set or plug MUST
be made by a qualified electrician.
Break-in the Compressor
Break in the new Air Compressor as
follows:
a) Turn the Power Switch OFF and
unplug the unit. Insert a male coupler
(not provided)into the female Quick
Coupler and fully open all regulators
and valves.
b) Plug in the Power Cord.
c) Turn the Power Switch ON.
d) Let the unit run for 30 minutes.
Air will expel freely through the
Coupler.
e) Turn the Power Switch OFF.
Unplug the Power Cord and remove
the male coupler.
Air Connection Setup
1. Connect a regulator valve, an inline
shut off valve and a 1/4" NPT air hose
to the Quick Coupler (all not
provided ). The air hose must be long
enough to reach the work area with
enough extra length to allow free

15
movement while working.
NOTE: An in-line shutoff ball valve is
an important safety device because
it controls the air supply even if the
air hose is ruptured. The shutoff
valve should be a ball valve because
it can be closed quickly.
2. Depending on the tool which you
will be using with this compressor,
you may need to incorporate
additional components, such as an
in-line oiler, a filter, or a dryer (all not
provided), as shown on Figure A and
Figure B. Consult your air tool’s
manual for needed accessories.

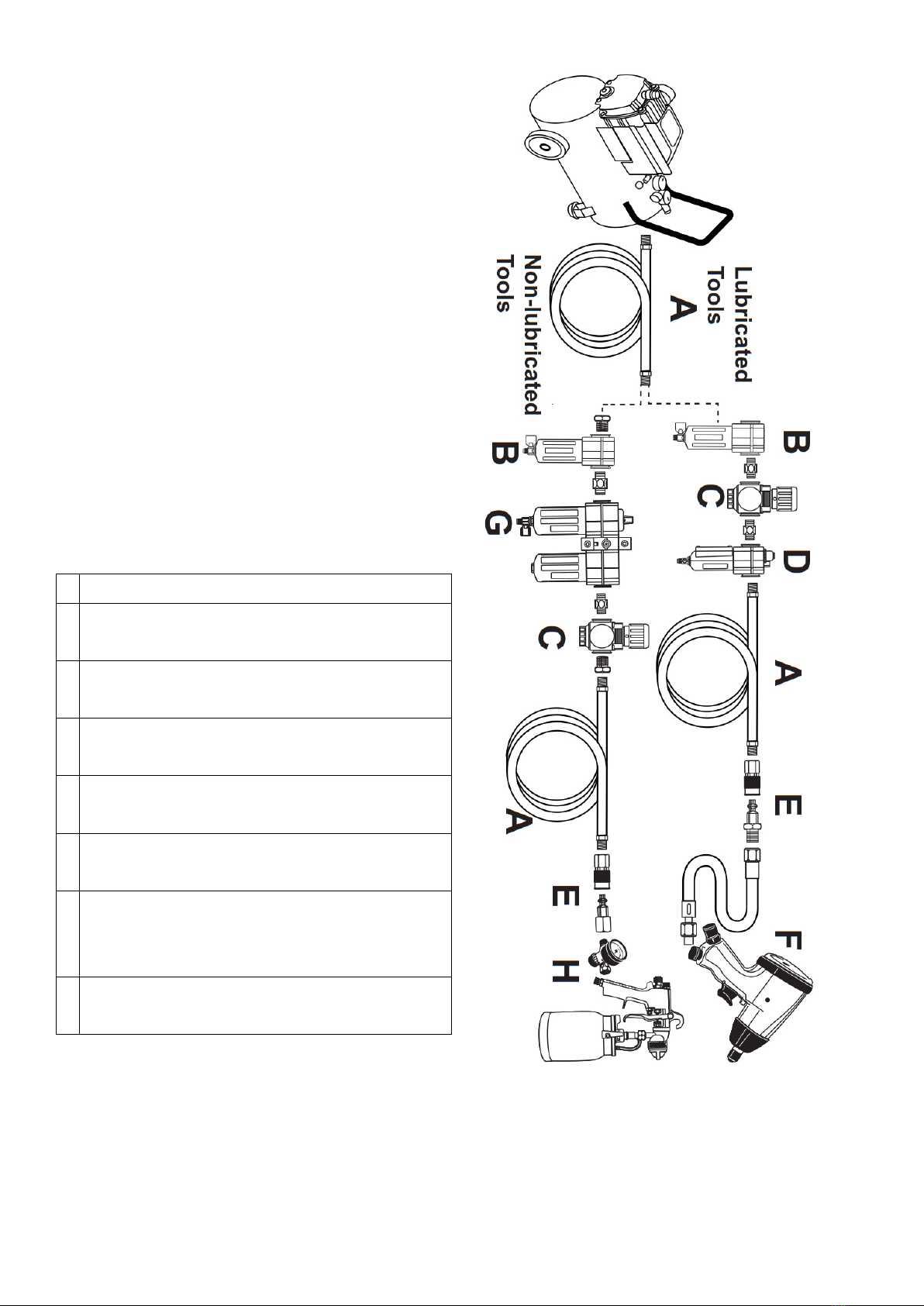

A: Portable Air Supply Setup
A
Air Hose: Connects air to tool
B
Filter: Prevents dirt and condensation
from damaging tool or workpiece
C
Regulator: Adjusts air pressure to
tool
D
Lubricator (optional): For air tool
lubrication
E
Coupler and Plug: Provides quick
connection and release
F
Leader Hose (optional): Increases
coupler life
G
Air Cleaner/ Dryer (optional):
Prevents water vapor from
damaging workpiece
H
AirAdiustina Valve (optional):
For fine tunina airflow at tool

16

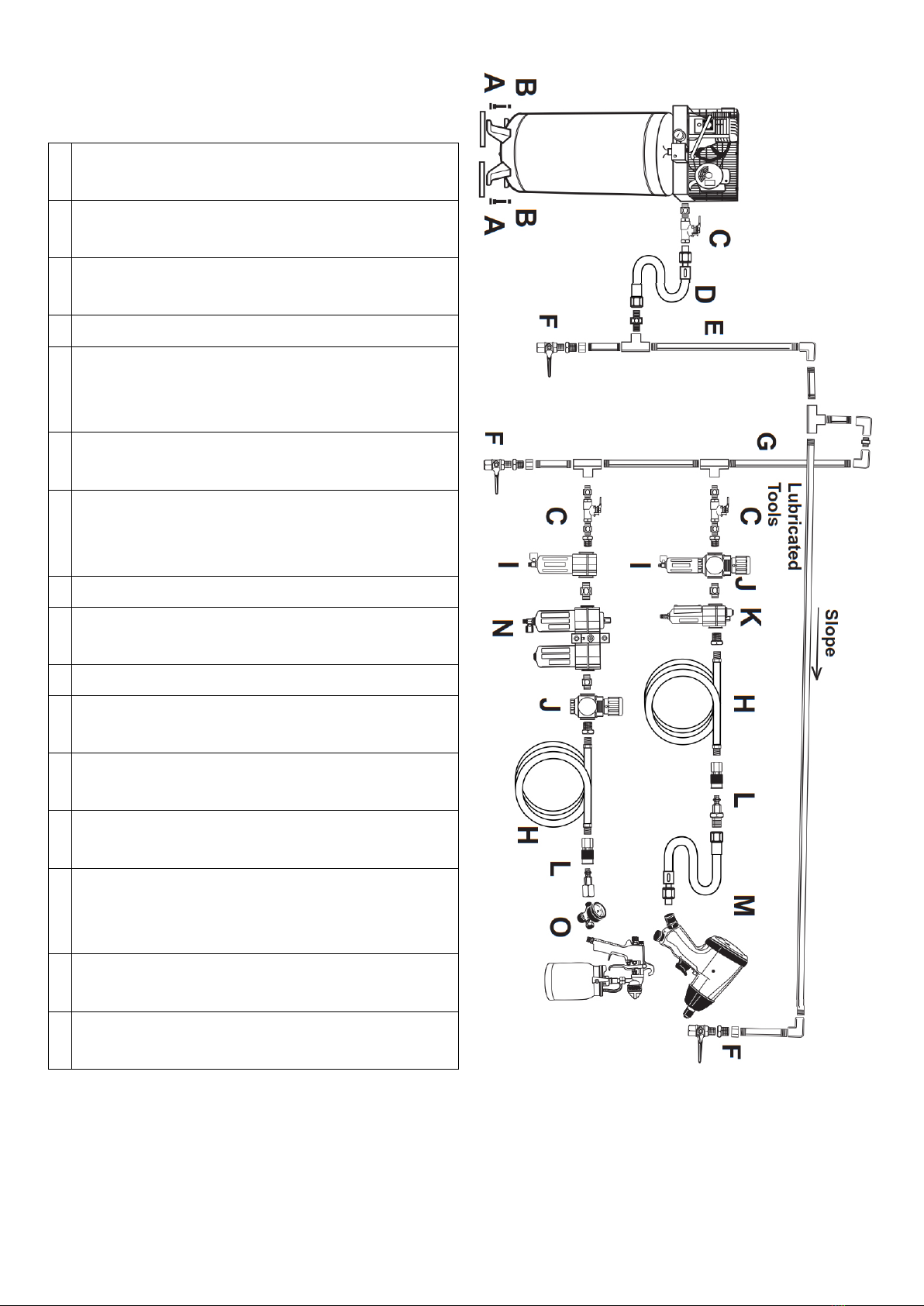

B: Stationary Air Supply
Setup
A
Vibration Pads: For noise and
vibration reduction
B
Anchor Bolts: Secures air compressor
in place
C
Ball Valve: Isolates sections of system
for maintenance
D
Isolation Hose: For vibration reduction
E
Main Air Line - 3/4" minimum
recommended: Distributes air to
branch lines
F
Ball Valve: To drain moisture from
system
G
Branch Air Line -1/2” minimum
recommended: Brinas air to point of
use
H
Air Hose: Connects air to tool
I
Filter: Prevents dirt and condensation
from damaging tool or workpiece
J
Regulator: Adjusts air pressure to tool
K
Lubricator (optional): For air tool
lubrication
L
Coupler and Plug: Provides quick
connection and release
M
Leader Hose (optional): Increases
coupler life
N
Air Cleaner/ Dryer (optional):
Prevents water vapor from damaging
workpiece
L
AirAdiustina Valve (optional): For fine
tunina airflow at tool
O
Air Adjusting Valve (optional):For fine
tunina airflow at tool
Thread seal tape is recommended for
all threaded connections.
Use of an extension cord is not
recommended.

17
OPARATION
WARNING:Do not operate
this unit until you read this
instruction manual for safety,
operation and maintenance
instructions.
Check Before Each Starting
Before operating the air compressor,
please check the following carefully:
1. Check to see that nuts and bolts are
all snug.
2. If the intake filters are dirty, they
should be replaced or cleaned. Check
unit for any damage.
WARNING: EXTRA CARE
SHOULD BE TAKEN TO AVOID
PERSONAL INJURIES WITH
AUTOMATICALLY CONTROLLED
COMPRESSORS
WARNING: Risk of unsafe
operation. Firmly grasp air hose in
hand when installing or disconnecting
to prevent hose whip.
WARNING: Risk of unsafe
operation. Do not use damaged or
worn accessories.
WARNING: Risk of Bursting.
Too much air pressure causes a
hazardous risk of bursting. Check the
manufacturer's maximum pressure
rating for air tools and accessories.
The regulator outlet pressure must
never exceed the maximum pressure
rating.
NOTE: Risk of property
damage. Compressed air from the unit
may contain water condensation and
oil mist. Do not spray unfiltered air at
an item that could be damaged by
moisture. Some air tools and
accessories may require filtered air.
Read the instructions for the air tools
and accessories.
Oparation Steps:
1. IMPORTANT:First, set the On/Off
Power Switch to "OFF" position.This
releases tank pressure and allows the
motor to start freely, without
tripping the Circuit Breaker.
2. Turn regulator knob
counterclockwise to set the outlet
pressure to zero.
3. Close the moisture Drain Valve at
the bottom of the Tank.
4. Close the in-line Shutoff Valve
between the compressor and the air
hose.
5. Plug the Air Compressor Power
Cord into a grounded 120 V〜
electrical outlet. (Refer to “Voltage
and Circuit Protection” paragraph in
the Installation section of this
manual.)
6. Turn the Power Switch to “ON”
position.
If Compressor does NOT start:
a) Turn the Power Switch OFF position.

18
b) Press reset button.
c) Turn the Power Switch ON position.
7. Allow the Air Compressor to build
up pressure until it cycles off.
Motor will stop when tank pressure
reaches "cut-out" pressure.
Electric motor should now start and fill
air receiver(s) with compressed air
until cut-out pressure is reached.
Compressor should stop and remain
stopped until air receiver pressure
reaches the cut-in pressure. The unit
will continue to cycle in this automatic
operation until the pressure switch is
turned to the "OFF" position.
NOTE: At the beginning of the day’s
first use of the Air Compressor, check
for air leaks by applying soapy water to
connections while the Air Compressor
is pumping and after pressure cut-out.
Look for air bubbles. If air bubbles are
present at connections, tighten
connections. Do not use the Air
Compressor unless all connections are
air tight, the extra air leaking out will
cause the compressor to operate too
often, increasing wear on the
compressor.
NOTE: As long as the Power Switch
is ON, the operation of the Air
Compressor is automatic, controlled
by an internal pressure switch. The
Compressor will turn on
automatically when the air pressure
drops to 85 PSI, and will turn off
automatically when the air pressure
reaches 100 PSI.
WARNING
:TO PREVENT
SERIOUS
INJURY AND
DEATH FROM EXPLOSION:
Do not adjust the internal pressure
switch. Any change to the automatic
pressure levels may cause excess
pressure to accumulate, causing a
hazardous situation.
8. Turn regulator knob clockwise to
increase pressure and stop when
desired pressure is reached.
WARNING: Risk of unsafe
operation. If any unusual noise or
vibration is noticed, stop the
compressor immediately and have it
checked by a trained service
technician.
AFTER the compressor builds up
enough pressure and shuts off, adjust
the Air Compressor's Regulator Knob
so that the air output is enough to
properly power the tool, but the
output will not exceed the tool's
maximum air pressure at any time.
Turn the knob clockwise to increase
the pressure and counter-clockwise to
decrease pressure. Adjust the pressure
gradually, while checking the air
output gauge to set the pressure.
The compressor is ready for use.
9. Make sure the air tool’s throttle or
switch is in the off position. Connect
the air tool to the air hose.
10. Open the in-line Shutoff Valve.
NOTE:
Allow adequate time when filling tires.

19
The larger the tire, the more time to
fill is needed.
NOTE: This product is designed for
inflation, stapling, brad nailing and
air brushing.
11. Use the air tool as needed.
12. After the job is complete, turn the
compressor Power Switch “OFF”.
Note: Turn the Power Switch off
before unplugging the compressor.
13. Unplug the Air Compressor.
14. Close the in-line Shutoff Valve.
15. Bleed air by pulling ring on safety
valve, to bleed from the tool then
disconnect the tool.
16. Turn the Drain Valve, at the bottom
of the tank, two turns to release any
built-up moisture and the internal
tank pressure.Close the valve after
moisture has drained out. Do not
remove the Drain Valve.
17. Clean, then store the Air
Compressor indoors.
Emergency Depressurization
If it is necessary to quickly
depressurize the compressor, turn the
Power Switch OFF. Then, pull on the
ring on the Safety Valve to quickly
release stored air pressure.
Motor Overload Protector
(Automatic Shut Off System not
shown): The motor has a thermal
overload protector. If the motor
overheats for any reason, the overload
protector will shut off the motor. The
motor must be allowed to cool down
before restarting. If the compressor
automatically shuts off before reaching
its normal cutoff pressure.
1. To restart:
a) Shut off all tools.
b)Allow the motor to cool (about 10
minutes).
c) If the unit does not start up again
on its own,press the Reset Button to
start the compressor
d)Resume operation.
2. Possible causes of repeated
automatic shut off of the compressor
are:
a)Using an extension cord that is too
long or narrow.
b)An air leak or open hose causing the
compressor to cycle too often and
build up heat.
3. Correct any issues before further
use to avoid damage to the
compressor.
MAINTENANCE
PROCEDURES NOT SPECIFICALLY
EXPLAINED IN THIS MANUAL MUST BE
PERFORMED ONLY BY A QUALIFIED
TECHNICIAN.
Before doing any maintenance or
adjustments to your air compressor, the
following safety precautions should be
taken:
WARNING:
TO PREVENT SERIOUS
INJURY FROM ACCIDENTAL
OPERATION:

20
TURN THE POWER SWITCH
“OFF” AND UNPLUG POWER
CORDbefore performing any
inspection, maintenance, or cleaning
procedures.
WARNING: Risk of unsafe
operation. Unit cycles automatically
when power is on.
When performing maintenance, you
may be exposed to voltage sources，
compressed air, or moving parts.
Personal injuries can occur. Before
performing any maintenance or
repair, disconnect power source from
the compressor and bleed off all air
pressure and allow the air
compressor to cool.
NOTE: See Operation section for
the location of controls.
DRAIN AIR RECEIVER AND
AIR LINES OF AIR PRESSURE
TO PREVENT SERIOUS
INJURY FROM COMPRESSOR
FAILURE:
Do not use damaged equipment. If
abnormal noise or vibration occurs,
have the problem corrected before
further use.
Maintenance Schedule
Following are general guidelines for
maintenance checks of the Air
Compressor.
NOTE:The environment in which the
compressor is used, and the frequency
of use can affect how often you will
need to check the Air Compressor
components and perform
maintenance procedures.
DAILY OR BEFORE EACH USE
Inspect the general condition of the air
compressor.Check for:
a. Safety Valve.
b. Drain moisture from air tank.
c. Loose hardware, make sure all nuts
and bolts are tight.
d. Misalignment or binding of moving
parts.
e. Cracked or broken parts.
f. Damaged electrical wiring, and
g. Any other condition that may affect
its safe operation.
h. Check for abnormal noise or
vibration.
i. Check for air leaks.*
j. Wipe off any oil or dirt from the
compressor .**
* To check for air leaks, apply soapy
water to joints while the Air
Compressor is pressurized. Look for air
bubbles.
** To clean the compressor surface,
wipe with a damp cloth, using a mild
detergent or mild solvent.
WARNING:If the supply
cord of this compressor is damaged, it
must be replaced only by a qualified
service technician.
AFTER EACH USE
1. Drain Tank.
2. Wipe external surfaces of the
