ab CryptoBox 750HD User manual

SPDIF
OPTICAL
OUTPUT
1x
LAN
100MBit
ETHERNET
1x
UNIVERSAL
SERIALPORT
2x
USB
SMARTCARD
READER
1x
CA
COMMON
INTERFACE
1x
CI
VFD
DISPLAY
Display
Flash
NEWFLASHMEMORY
16MB
RAM
NEWDDRIIIMEMORY
256MB
NEWCORE
1GHz
CPU
Media
Player
FullHD
1080p H265 codec DLNA PVR
TimeShift
Auto
FastScan Auto DiSEqC Android iOSapp Eco friendly
HD Digital Satellite Receiver
Usermanual
(EN)

1
Content
Safety Precaution .....................................................................3
1. Reference ·········································································4!
1.1 General Features··························································4!
1.2 Accessories································································5!
2. Product Overview································································6!
2.1 Front Panel ································································6!
2.2 Rear Panel ·································································7!
2.2 Remote Control Unit (RCU)············································8!
3. Installation ······································································ 10!
3.1 Powering On ···························································· 10!
3.2 Antenna Settings ······················································· 10!
3.3 Fast scan ·································································15!
3.4 Factory Default ························································· 16!
3.5 USALS Setup ··························································· 16!
4. Channel Manager ······························································ 17!
4.1 Edit Channel ···························································· 17!
4.2 Edit Favorite ···························································· 18!
4.3 Sort Channels ··························································· 19!
4.4 User Channel List ······················································ 19!
5. Settings·········································································· 20!
5.1 System Settings························································· 20!
5.2 OSD Setup ······························································ 21!
5.3 Parental control ························································· 21!
5.4 Times ···································································· 22!
5.5 CA Menu ································································ 24!
5.6Connecting to the LAN ················································ 24!
5.7 USB Update····························································· 25!
5.8 Network Update ························································ 25!
5.9About STB ······························································· 25!

2
6. X-tras ············································································ 26!
6.1 Calendar ·································································26!
6.2 Games···································································· 26!
6.3 Network Apps ·························································· 26!
7. Multimedia ····································································· 28!
7.1 USB ······································································ 28!
7.2 Setting ··································································· 29!
7.3 Play Files ································································ 30!
8. Basic Operation ································································ 34!
8.1 Audio ···································································· 34!
8.2 Satellite List····························································· 34!
8.3 EPG ······································································ 34!
8.4 Subtitle··································································· 35!
8.5 Teletext ·································································· 35!
8.6 Find channel ···························································· 35!
8.7 Program Information··················································· 36!
9. Channel List ···································································· 37!
9.1 OK List ·································································· 37!
9.2 Favorite List····························································· 37!
10. USB Control ·································································· 39!
10.1 Recording and Timeshift ············································ 39!
10.2 PVR List ······························································· 40!
11. Additional Information ······················································ 41!
11.1 Trouble Shooting ····················································· 41!
11.2 Technical Specification ·············································· 42!
11.3 Glossary································································ 43!

3
!Safety Precaution
This STB has been designed and manufactured to satisfy the international
safety standards. Please read the following safety precautions carefully before
operating this receiver.
4Main Supply:
Before operating, please check the units operating voltage is 90~250V AC
50/60Hz.
4Overload:
Do not overload a wall outlet, extension cord or adapter, neither use damaged
power cord or touch it with wet hand as this may result in electric shock.
4Liquid:
The receiver shall not be exposed to dripping or splashing water, and that no
objects filled with liquids, such as base, shall be placed on the apparatus.
4Ventilation:
Keep the slots on top of the receiver uncover to allow sufficient airflow to the unit.
Do not put the receiver on soft furnishings or carpets. Do not expose the
receiver to direct light or do not place it near a heater or in humid conditions. Do
not stack other electronic equipments on top of the receiver.
4Cleaning:
Plug out the receiver from the wall outlet before cleaning. Clean the receiver by
a soft cloth or mild solution of washing-up liquid (no solvents).
4Connection:
Disconnect the receiver from the mains when you connect it to satellite LNB or
disconnect it from LNB. Failure would possibly cause damage to the LNB.
4Location:
Put the receiver indoor in order to avoid lightening, raining or sunlight.
4Uncover:
Do not remove the cover, to reduce the risk of electric shock. Contact qualified

4
and licensed service personnel to repair the receiver, or contact your dealer.
1. Reference
1.1 General Features
DVB-S/DVB-S2 Satellite Compliant (MPEG-II/ MPEG-IV/ H.264)
SCPC & MCPC receivable from Ku and C band satellites
Universal, Single, Single S & C Band Wideband LNB
Sensitive Tuner with Loop-Through
DiSEqC1.0/1.1/1.2/1.3 (USALS)
Unicable Supported
Blind search supported
Auto DiSEqC Search
PAL/NTSC Conversion
True full Color (32 bits) on screen display (OSD)
Storing memory: 100 satellite, 4000 transponders and 6100 channels
26 favorite group and parental lock supported
Multi-language menu supported
Multi-language audio supported
Multi-language DVB Subtitle output
7 days Electronic Program Guide (EPG)
Teletext output through VBI and OSD
USB 2.0 Interface
CI module Supported
Support many network functions
Manufactured under license from Dolby Laboratories.
Dolby, Dolby Audio, and the double-D symbol are trademarks of
Dolby Laboratories.

5
1.2 Accessories
l Users manual
l Remote Control Unit
l Batteries
Figure
1.Accessories

6
2. Product Overview
2.1 Front Panel
Figure 2. Front Panel
1. Power LED
Power indicator.
2. Signal LED
Signal indicator.（delete）
2. Display
It displays channel information. In standby mode it displays local time.
3. Power button
Switch between operation and standby modes.
4. CH+/CH Change channel in viewing mode and move the cursor up/down in
menu mode.

7
2.2 Rear Panel
Figure 3. Rear Panel
1. LOOP OUT
Connect another receiver.
2. LNB IN
Connect the satellite antenna cable.
3. USB2.0
One USB 2.0 Host Port.
4. SPDIF
Digital Audio output (Optical).
5. LAN
Connect to the internet using an Ethernet cable.
6. RS232
Connect to the computer using a serial line.
7. HDMI
Connect to the TV using an HDMI cable.
8. TV SCART
Connect to the TV using a Scart cable.
9. ON/OFF
Power on/off.

8
2.2 Remote Control Unit (RCU)
You can control this receiver by this remote controller with full function.
1. STANDBY: Switch between operation and standby modes.
2. F1: Accessorial function.
3. SHIFT: Enable/Disable timeshift.
4. MUTE: Mute audio.
5. I I : Pause/Time shift.
6. ◄◄: Fast rewind.
7. ►►:Fast forward.
8. ●: Record.SLEEP: Set sleep time.
9. ►: Play.
10. ■：stop recording and playing.
11. MENU: Activate main menu.
12. EXIT: Exit current menu step by step.
13. ▲/ ▼/◄/►:Navigates through the Menus
14. OK: Confirm
15. RELOAD: Move to the previous viewed
channel.
16. EPG (Electronic Program Guide): Display
the program
guide.
17. V+/V- : Change volume in viewing mode.
18. CH+/ch-: Change program.
19. INFO: Display the program information.
20. FAV: Display favorite channel list you set
before.
21. NUMERIC KEY (0~9): Enter a TV/radio
channel number
or menu option number
22. PAGE-/PAGE+: Page up/down on menu or channel list.

9
23. MEDIA : Access to the USB menu.
24. SAT: Show the scanned satellite list.
25. SUB: Display the subtitle language list.
26. TV/RAD: Switch between TV and RADIO.
27. FIND: Quickly find channels which you want.
28. V-FORMAT: Set the screen mode.
29. TXT: Display the teletext.
30. AUDIO: Display the audio list

10
3. Installation
You should install the receiver when powering on your product for the first time
after
purchase.
Tip: The default password is 0000 . If you have forgotten your password,
please
contact your local product distributor.
3.1 Powering On
1. Connect the power cord of the product to a wall outlet.
2. Ensure the ON/OFF switch at the rear of the product is switched to ON.
3. Power on by pressing the STANDBY button on the remote control or the
STANDBY button at the front of the product.

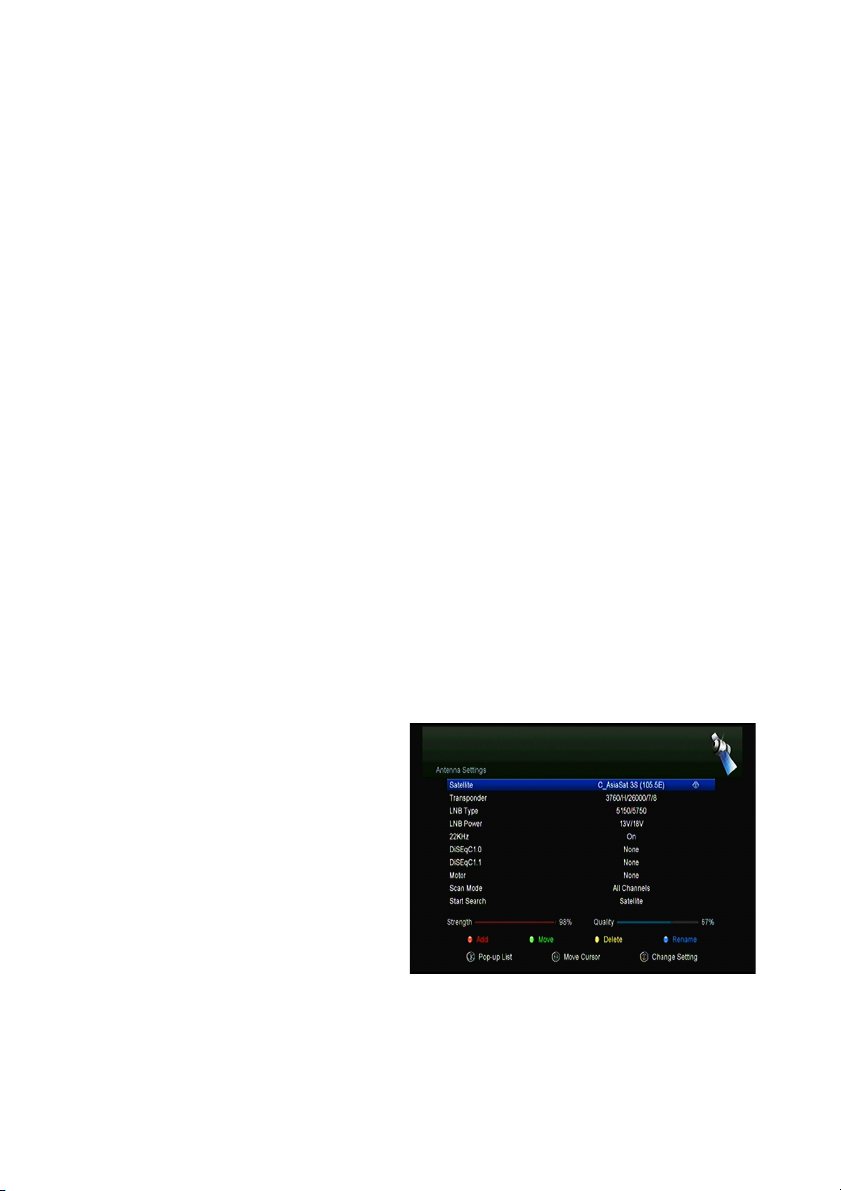

3.2 Antenna Settings
Antenna Settings allows you to configure the antenna setting parameters.
Menu->INTALLATION->Antenna Settings
1. Satellite: Highlight the satellite you want to search.
2. Transponder (TP for
short):Press the ◄/►button to
change the TP.
3. LNB Type: Press the ◄/►button
to change the LNB frequency.
4. LNB Power: Press the
◄/►button to select the required
LNB power.
5. 22kHz: Press the ◄/►button to
select ON, OFF or Auto .
6. DiSEqC 1.0: Press the ◄/►button to select the required DiSEqC1.0 input.

11
7. DiSEqC 1.1: Press the ◄/►button to select the required DiSEqC1.1 input.
8. Motor: Press the ◄/►button to select DiSEqC1.2 or USALS.
9. Scan Mode: Press the ◄/►button to select scan mode.
10. Start search: Press the ◄/►button to select Satellite & Multi-Sat & Blind
scan & Transponder & Multi-Transponder which you want to start search.
3.1.1 Antenna Settings for Satellite
Press the ◄/►or OK button you can see the pre-stored Satellite list, in this
menu, you can execute select, Add, Move, Delete, Rename Satellites.
ØSelect
In this menu, you can press the ▲/▼ keys choose the satellite which you want
to use, and then press the OK to confirm the setting.
ØAdd
Press RED button to add a new
satellite. Here you can input
new
Satellite angle, Satellite
Direction (East, West), Band
(Ku, C). OK to
confirm the setting and this new satellite will be added to the end of the Satellite
list.
ØMove
In this menu, you can Select
the satellite that you want to
move from the satellite list
by pressing the GREEN button,
then press OK, you will be
asked to move the
satellite to put where, input the
destination number and press
OK. Then you can

12
move one satellite from one position to another.
ØDelete
You can delete the user satellite. Select the satellite that you want to delete from
the satellite list. Then press the YELLOW button. You will be asked to confirm
whether delete the satellite or not. If you select YES, all the channels and
transponders in the selected satellite will be deleted. And the selected satellite
will disappear.
ØRename
You can press the BLUE button to change the satellite name. When the
keyboard popup, you can select the character which you want to edit the name.
3.1.2 Antenna Settings for Transponder
If you change the satellite, the transponder will be changed automatically. You
will find the transponder list of selected satellite here. In this menu, Press the
◄/►or OK button you can see the pre-stored Transponder list, and you can
execute Select, Add, Delete, Edit Transponders.
ØSelect
In this menu, you can press the ▲/▼keys choose the Transponder which
you want to use, then press OK to
confirm the setting.
ØAdd
You can press the RED button to add a transponder. Here you can input new
Transponder frequency, choose polarization (Ver, Hor), input new symbol rate,
and BLUE choose FEC (1/2, 2/3, 3/4, 6/5, 7/8, Auto). OK to confirm the settings,
and this new Transponder will be added to the TP list in ascend order sorted by
frequency.
ØDelete
You can delete the Transponder of the satellite. Select the Transponder that you
want to delete from the TP list. Then press the GREEN button. You will be
asked to confirm whether delete the satellite or not. If you select YES, all the
channels in the selected Transponder will be deleted, and the selected

13
Transponder will disappear.
ØEdit
Press yellow button to edit. Here you can set the Transponder frequency,
polarization, symbol rate and FEC.
ØDelete All
Press the button. You can delete all the channels and Transponder in the
selected satellite will be deleted.
3.1.3 Search Channels from Satellite
A: Satellite Search
1. Highlight the Satellite and press the OK button to enter satellite list. And
then
select one satellite you want to search.
2. Complete the antenna settings of this satellite.
3. Highlight the Start Search and select satellite then press the OK button
to
confirm.
B: Multi Satellites Search
1. Highlight the Start Search and select Multi satellites then press the OK
button.
2. Highlight the satellites in the satellite list, but make sure they are all
configured to
your DiSEqC Switch before press the OK to mark them.
3. Press Exit will start searching programs of the satellites you have marked.
C: Blind Search
1. Highlight the Satellite and press the OK button to enter satellite list. And
then
select one satellite you want to search.
2. Complete the antenna settings of this satellite.
3. Highlight the Start Search and select Blind Search then press the OK

14
button to
confirm.
D: TP Search
1. Highlight the Satellite and press the OK button to enter satellite list. And
then
select one satellite you want to search.
2. Complete the antenna setting of this satellite.
3. Highlight the Transponder and press the OK button to enter TP list. And
then
select one transponder you want search.
4. Highlight the Start Search and select Transponder then press the OK
button to
confirm.
E: Multi TP Search
1. Highlight the Satellite and press the OK button to enter satellite list. And
then
select one satellite you want to search.
2. Complete the antenna setting of this satellite.
3. Highlight the Start Search and select TP Search then press the OK
button to
confirm.
4. Highlight the transponders in the
TP list press the OK to mark them.
5. Press Exit will start searching
programs of the transponders you
have marked.
3.1.4 Antenna Settings for
Motor
Menu-> INTALLATION ->Antenna Settings->Motor
1. Motor Mode:

15
Select DiSEqC 1.2 or USALS using the ◄/►button. DiSEqC 1.2: General
motor antenna using DiSEqC 1.2. USALS: Motor antenna using USALS.
ØMove Auto[W/E]
Press ◄/►button, the dish will be motorized to East/West continuously, it will
stop until it find the best signal.
ØMove west-east
Press ◄/►button, the dish will be motorized to East/West step by step, until
you find the best signal showed on the signal bar.
ØFine Tuning(1)
Input digital button to set the moving step
ØStore Position
Save the current position you searched.
ØGo to Position
Press OK button to move the dish to the position which you saved.
ØGo to Reference
Press OK button to move the dish to 0 position.
ØSet West Limit
You can set the maximum motor limit for both West to prevent damage to the
antenna.
ØSet East Limit
You can set the maximum motor limit for both East to prevent damage to the
antenna.
ØDisable Limit
Disable West limit and East limit.
ØGo to X.X
Press OK button to move the dish to the USALS Setup.
Tip: Before you use USALS , you should go to Main Menu →
INSTALLATION→ USALS Setup to set you local position firstly.
3.3 Fast scan
To fast search channels by different providers base on Astra (19.2) satellite and

16
the 12515 transponders.
3.4 Factory Default
You can restore the product to the factory default and you can also setup it
according to the wizard.
Warning: Please note that once you perform Factory Default all , all data
and
settings will be deleted.
1. Menu->INSTALLTION -> Factory Default
2. Input the password.
3. Highlight the option you want and press the OK button to execute it.
Tip: If you select “yes”, all data and setting will be lost. Then waiting a moment,
you will view the OSD language menu where you can select the language
according your mind.
1) All: All data and settings will be deleted.
2) Channel List Only: All channels data will be deleted.
3) Radio Channel Only: All radio channels data will be deleted.
4) Scramble Channel Only: All scramble channels data will be deleted.
5) TP Channel Only: All the channels data in the selected Transponder will be
deleted.
6) SAT Channel Only: All the channels data in the selected satellite will be
deleted.
3.5 USALS Setup
Menu-> INSTALLATION ->USALS Setup
If you set the Motor Mode to USALS, you need set the longitude and the
latitude in USALS Setup.

17
4. Channel Manager
Tip: You can press the Sat button to choose different satellite according to the
help information, press OK to confirm, then all the channels of this sat will be
display.
4.1 Edit Channel
Menu->EDIT CHANNEL->TV Channels / Radio Channels
Edit Channels enables you to move, delete, rename, lock/unlock, swap
the channels in the channel list conveniently.
Tip: Radio Channels
operation similar to the TV
Channels.
1. Move Channels
1) Press RED button to enter
move mode.
2) Highlight the channel you
want to move and press OK to
select the channel.
3) Press the ▲/▼button to the destination in the channel list and
press the OK button.
1.1 Move Group Channels
1) Highlight the channel you want to group move. Then press the BLUE
button to sign the channel.
2) Press the ▲/▼ or ◄/►button to highlight other channels you want to group
move.
Then press the BLUE button to sign the channel one by one.
3) Press the ▲/▼to the destination in the channel list and press OK to confirm.
2. Delete Channels

18
1) Highlight the Delete function using ◄/►button or press GREEN button
directly.
2) Press the ▲/▼ to highlight the channel you want to delete, press the OK
button to sign the channel.
3) Press the EXIT button, here, select Yes will delete the chosen channels.
3. Lock/unlock Channels
1) Highlight the Lock function using ◄/►button or press YELLOW button
directly.
2) Highlight the channel you want to lock, press the OK button to confirm.
3) Input the password to lock the channel. If you want to lock another channel,
you will not be asked to Input the password again until you press EXIT.
Note: If the highlighted channel is locked, press the OK button is switched into
Unlock.
4. Rename Channels
1) Highlight the Rename function using ◄/►button or press BLUE button
directly.
2) Highlight the channel you want to rename, press the OK button.
3) Enter a channel name directly using the keyboard displayed on the screen
and press the BLUE button to complete.
4.2 Edit Favorite
Menu->EDIT CHANNEL->Favorites
You can add or remove channels from the favorite groups.
1. Highlight the channels you want to add or remove from the favorite channel
list.
2. Press the ◄/►button to change the favorite group and press the OK button
to mark the channel as selected favorite group. And you also can press the color
button directly to add the channel to the corresponding favorite group.
3. Press the EXIT button to exit the menu and save it.
Note:
