Abbriata M100 Series Manual

07/04/2016
USE AND
MAINTENANCE
HANDBOOK
ROUND BALER
M100 / M120 / M150
FROM SERIAL NUMBER:
ZGE0009_0G0000084 (M100 SUPER – M100 MAGNUM)
ZGE000F_0_0000001 (M100 SUPER/L – M100 MAGNUM/L)
ZGE0008_0G0000194 (M120 COMPACT/PLUS – M120 COMPACT MAGNUM/PLUS)
ZGE0005_0G0001008 (M120 SUPER/PLUS – M120 MAGNUM/PLUS)
ZGE0006_0F0000400 (M150 SUPER/PLUS – M150 MAGNUM/PLUS)
ABBRIATA S.R.L.
MACCHINE AGRICOLE
Via F.lli Rosselli, 2 - 15079 SEZZADIO - Alessandria (ITALY)
tel. [phone] - fax [phone] - www.abbriata.com - [e-mail]

CONTENTS
WARRANTY...................................................................................................................................................... 5
INTRODUCTION............................................................................................................................................... 5
MARKING AND IDENTIFICATION................................................................................................................... 5
SAFETY............................................................................................................................................................. 6
START-UP....................................................................................................................................................... 13
INSTRUCTIONS FOR USE............................................................................................................................. 14
SAFETY MECHANISM FOR OVERLOADING AND FOREIGN BODIES ..................................................... 17
MAINTENANCE, LUBRICATION AMD GREASING...................................................................................... 17
BINDING SYSTEM.......................................................................................................................................... 19
HYDRAULIC SYSTEM.................................................................................................................................... 18
ELECTRIC SYSTEM....................................................................................................................................... 19
CONNECTING WIRES TO ROUND BALER PLUG AND TRACTOR SOCKET TO ACTIVATE LIGHTS AND
ELECTRIC MOTORS………………………………………………………………………………………………….22
HOISTING THE MACHINE ............................................................................................................................. 24
TROUBLESHOOTING.................................................................................................................................... 24
END OF SEASON STORAGE........................................................................................................................ 25
PREPARATION FOR THE NEW SEASON.................................................................................................... 25
CHARACTERISTICS ...................................................................................................................................... 26

Use and maintenance handbook – ed_07/04/2016
Round baler – M100 / M120 / M150
5
ENGLISH
WARRANTY
The machine built by the company is guaranteed for 12 consecutive months from the date of purchase, provided that it is
used according to the instructions contained in the Use and Maintenance manual and operates under normal working
conditions. It is only under these conditions that the manufacturer agrees to supply spare parts, at no charge, for those
components which, in the opinion of the manufacturer, have production or material defects; or, in its unquestionable opinion,
to make repairs directly or by using authorized personnel.
The buyer will pay for any labor and transportation costs relative to this warranty.
The warranty expires if the equipment was used without complying with the instructions contained in the Use and
Maintenance manual, or it is was repaired, disassembled or modified by unauthorized workshops.
Spare parts replaced under the warranty must be returned to the manufacturer.
The warranty will not be valid for cases involving poor maintenance and abnormal use of the machine. Any disputes will be
under the competence of the judicial authorities of Alessandria - Italy.
INTRODUCTION
Read this manual carefully before using the machine.
This handbook conforms with EEC Machine Directive 89/392 and subsequent amendments.
The manufacturer reserves the right to make changes, without prior notice and without any sanctions, without affecting the
main technical and safety data.
The symbol WARNING calls the reader’s attention to indicate that non-compliance may lead to personal injuries or
death of the operator.
This publication is divided into chapters which discuss the relative machine use and maintenance operations.
Please follow these instructions to ensure the best machine operating efficiency.
It is recommended to use only original spare parts (consult the Spare Parts catalogue).
•This manual indicates the standards that will guarantee regular machine maintenance and use, thus avoiding problems
which might damage the machine and reduce its operating performance.
•Despite the fact that technical service is available at any time, the manufacturer is not responsible for any non-
compliance with the standards contained in this handbook.
•This machine was built for operations only for the agricultural sector and therefore the owner will be personally
responsible for any improper use of the round baler. Any other use is considered to be improper.
•In case of any breakdown the machine must be repaired by personnel with knowledge of safety conditions so as to
respect the accident prevention regulations and rules regarding technical safety, circulation on public thoroughfares and
first aid.
•When the machine is delivered, ascertain that it has undergone no damage in shipment and that it is complete with any
accessories. Claims can only be accepted if received in writing within eight days of delivery.
MARKING AND IDENTIFICATION
Upon receipt of the machine check the marking on the frame of the machine (fig.1).
Fig.1
(EXAMPLE OF MAKE-UP OF
IDENTIFICATION PLATE)
Each individual machine is provided with a CE
identification plate and a CE certificate of
conformity pursuant to EEC directive 89/392
and subsequent modifications.

Use and maintenance handbook – ed_07/04/2016
Round baler – M100 / M120 / M150
6
ENGLISH
SAFETY
SAFETY LABELS
Before starting any operation
make sure you have read and
understood this manual. All
interventions of maintenance or
modification must be made
according to the descriptions
given in this manual. Failure to
observe these instructions can
cause accidents or breakage of
the machine.
When it is necessary to perform
maintenance or controls with the
rear door open, apply the
special safety stops on both
hydraulic jacks.
Do not approach the universal
joint with the machine in motion.
When unloading the bale there
must not be anyone behind the
machine.
It is obligatory to close the
casings before starting the
machine.
Warning: when the machine is
detached from the tractor, use
the supplementary wedges.
Introduce or adjust the binding
twine or adjust the transmission,
only after having removed the
protections with motor off.
If the tractor does not have a
soundproofed cab, wear
earplugs.
Indication of maximum vertical
load on the towing eye.
When closing the rear chamber,
do not insert the hands between
the casings.
Do not approach the swinging
door on the round baler while
the tractor is in motion.
Turn off the tractor before
performing pick-up operations.

Use and maintenance handbook – ed_07/04/2016
Round baler – M100 / M120 / M150
7
ENGLISH
When the rear door is open
nobody should stand behind the
machine.
Label located near the lever 7 of
Figure 16/A.
Stay at a safe distance from the
machine.
If the machine is parked on very
soft soil, it is obligatory to
provide an extra support for the
foot.
Maximum rotation of the
universal joint.

Use and maintenance handbook – ed_07/04/2016
Round baler – M100 / M120 / M150
8
ENGLISH

Use and maintenance handbook – ed_07/04/2016
Round baler – M100 / M120 / M150
9
ENGLISH

Use and maintenance handbook – ed_07/04/2016
Round baler – M100 / M120 / M150
10
ENGLISH
WARNING!
•Do not leave the machine unattended when there are moving parts.
•Do not carry out any maintenance, lubrication, adjustment, cleaning, or any other operation when there are moving
parts.
•All operations must be done with the machine stationary and with the tractor's engine switched off.
•Do not use the machine without guards.
•Whenever the operator has to get off the tractor, be has to disconnect the P.T.O., switch off the engine, pull on the
parking brake and wait for all the tools to stop completely before getting off. Getting back into the driver's seat, the
operator needs to make sure that earth or mud do not make the controls difficult for him
•The machine can only be used if carried by a suitable tractor and controlled by a suitable cardan shaft, which takes its
motion from the tractors P.T.O.; all other uses are strictly forbidden.
•Other persons in addition to the operator are not allowed on board the tractor.
•It is not allowed to carry persons or objects on the equipment.
•During normal work keep people out the range of action of the machine.
•When working on slopes, keep to the tractor manufacturer's instructions to avoid turning over. In any case reduce your
speed and handle with care.
•Before unhooking the equipment from the tractor, lean it on the ground and stabilize it with the stabilizer.
•After unhooking, check the stability of the equipment.
•Do not push the product into the collection apparatus using your hands or feet.
•When transporting the machine it is necessary to use the customary signals.
•The firm declines all responsibility should the above instructions not be observed.

Use and maintenance handbook – ed_07/04/2016
Round baler – M100 / M120 / M150
11
ENGLISH
BASIC RULES
For safety purposes and to ensure correct machine operation, before starting the equipment it is recommended to check the
operation of both the machine and the tractor.
GENERAL SAFETY STANDARDS:
USE CONDITIONS AND LIMITS
WARNING!
•The manufacturer of the ball joint or cardan shaft is responsible for such components.
•For the cardan shaft or ball joint, the manufacturer of the universal joint will issue the prescribed EEC conformity
declaration, together with the machine.
•Become familiar with the controls, the correct use of the machine and learn how to turn off the motor quickly. Do not
remain in the work area.
•It is important to keep animals and other persons away from the machine. Do not allow the machine to be used by
children or unskilled persons.
•During operation, it is recommended to wear suitable clothing and heavy shoes (loose-fitting clothes are prohibited).
•Make sure that you have mounted the guards, safety devices and protection systems in accordance with the prescribed
standards.
•Have defective or damaged parts repaired or replaced.
•Work during the day or with adequate artificial light.
•Stop the machine before crossing streets, paths or gravel-covered roads.
•If you collide with a heavy object or if the machine vibrates excessively stop the motor, check for damage and have
skilled personnel make all the necessary repairs before re-starting the machine.
•When you decide to leave the tractor, turn off the motor and remove the ignition key from the instrument panel.
Before getting close to the machine, wait for all moving parts to stop turning.
•Do not place hands and feet close to moving machine parts.
•Always keep in mind the use accident-prevention standards. Therefore, to ensure correct use, it is absolute essential to
refer to the warning signals.
•Before starting any type of operation, the operator should become familiar with the machine, its parts and the relative
functions and, especially, when driving on the road, must respect the current traffic rules and regulations.
•Always check that the machine is perfectly clean to avoid dangerous accidents.
•While working, never transport other persons on the machine.
•If the picker becomes jammed, clean it only when the motor is turned off.
•Be extremely careful when unloading and closing the binding chamber.
•Do not use the machine near other persons.
•The machine should be cleaned with the motor off and the machine stopped.
•Do not tamper with the controls and the safety systems.
•The machine must be assembled in accordance with the instructions.
•Use the necessary caution during machine assembly and disassembly operations or when disconnecting the machine
from the tractor. Always check the loads per axle, the overall weights and dimensions allowed for transiting.
•Make sure that lighting, warning signal and protection devices have been installed and install them if they are missing.
•The machine running speed must be compatible with the environmental conditions and avoid any brusque steering
movements while moving uphill or downhill. Do not work on very steep slopes.
•The machine can be started only when the relative protection devices have been installed.
•It is absolutely prohibited to remain in the work area and in the vicinity of the machine while it is operating and moving.
•Make sure that there are no persons near the machine during operations which may involve tilting hydraulic parts. The
parts driven by external forces have sharp and pointed ends.
•If brakes and stop devices are not activated, it is absolutely prohibited to remain between the machine and the tractor.
•Do not operate the machine in closed rooms.
•The machine is equipped with wheel blocking wedges which must be used immediately each time the machine is
disconnected from the tractor. These wedges are kept inside the container that houses the string roll.

Use and maintenance handbook – ed_07/04/2016
Round baler – M100 / M120 / M150
12
ENGLISH
WARNING!
•During operation, persons or animals should not get closer than 40 meters from the machine!
•Therefore, stay far away from the rear mobile chamber of the machine which expels the bales, thus creating a dangerous
situation.
•Driver seat noise level: Leq. = 79,5 dBA. It is recommended to use protective earphones when using the tractor without a
sound-proof cab (only if the noise exceeds about 85 dBA).
•When the machine is not working, it must be fitted the supplemental support foot, if the machine is left on soft ground
(see safety labels pag.5).
•The machine described in this use and maintenance handbook should be repaired or disassembled, only by
manufacturer authorized workshops.
POWER TAKEOFF
WARNING!
•Only EC marked universal joints can be used with the machine and the user must follow the instructions contained in the
“use and maintenance” handbook issued by the universal joint manufacturer.
•The protection bar and the universal joint protection hopper, as well as the power takeoff guard must be installed in the
proper position.
•The cardan shaft can be mounted and removed only if the power takeoff is disconnected, the motor is off and only if the
ignition keys are not inserted in the instrument panel.
•Make sure that the cardan shaft is installed properly and correctly install the protection bar and the relative protection
hopper.
•Before engaging the PTO, check that the rpm of the machine is the same as that of the tractor PTO (540 rpm) and that
the direction of rotation of the PTO is counter-clockwise. Make sure that there is nobody in the danger zone surrounding
the machine
•It is prohibited to insert the power takeoff when the motor is on.
•During work operations with the power takeoff it is prohibited to remain in the vicinity of the cardan shaft or the power
takeoff and the power takeoff must be disconnected if the angles are too high.
•Even when the P.T.O. is disconnected, do not get close to it.
•To clean, lubricate or perform any maintenance, always turn off the engine, disconnect the P.T.O. and remove the keys
from the ignition.
•With the P.T.O. disconnected, the universal joint must be held by the special support so as not to strike the ground and
be damaged or soiled.
•It is always necessary to block the universal joint when not in use, hooking it onto its chain C (Fig. 1/a).
•The P.T.O. protection hood on the tractor must always overlap the universal joint protection hood by at least 50 mm.

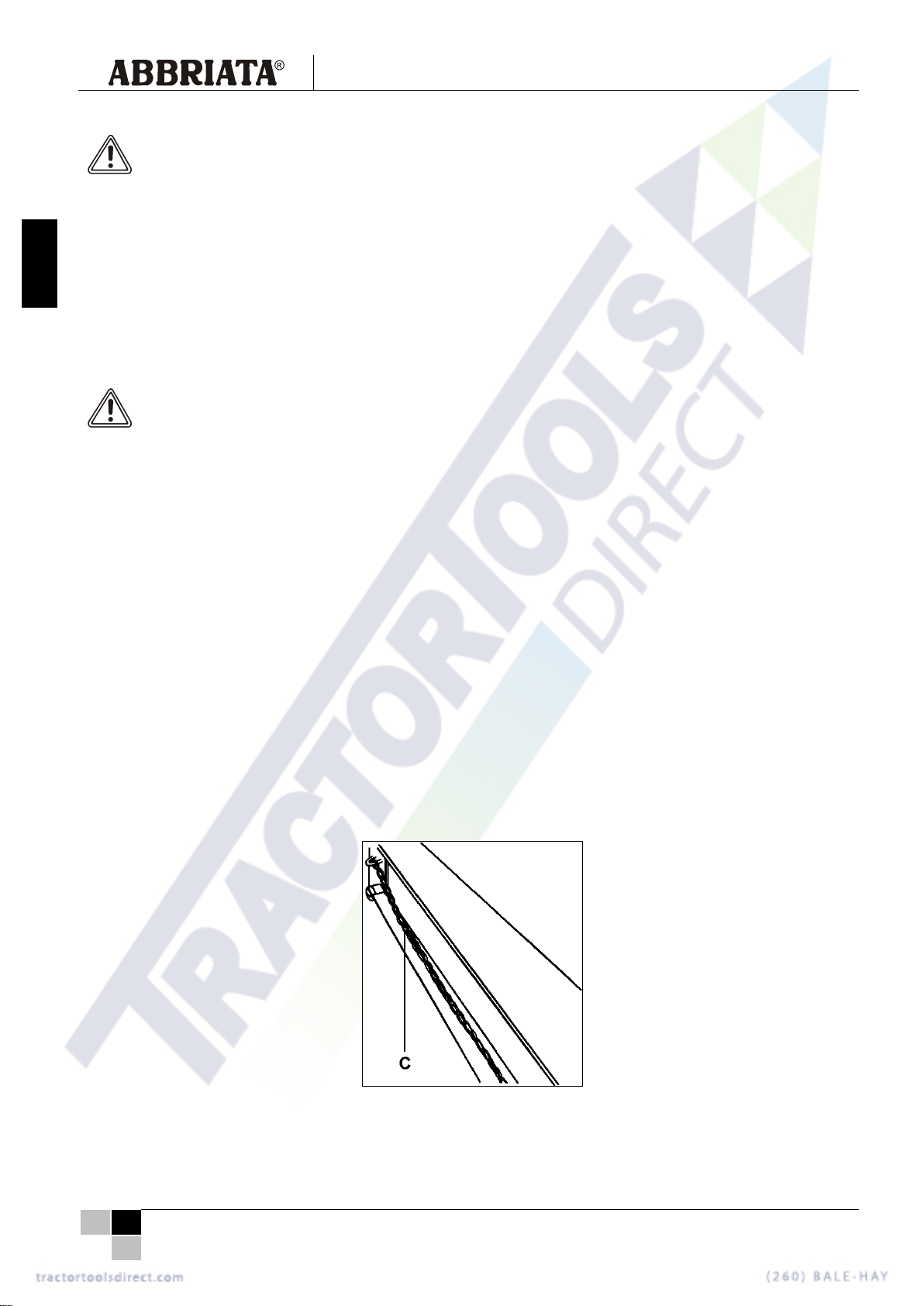

Fig. 1/a

Use and maintenance handbook – ed_07/04/2016
Round baler – M100 / M120 / M150
13
ENGLISH
START-UP
Position the machine on a horizontal surface using the
stopper foot (the height of the P.T.O. should be from
86 to 90 centimeters from the ground
–
fig. 1/bis).
Position the pick
-up rake in the hole A to bale long
-
medium crop or hole B to
bale short crop (Fig.3).
Adjust screw 1 and 2 so that the rake tips are approx.
6 cm far from the ground of packer device and approx.
4 cm far from the chain bars (Fig.3) Hook the machine
with the tractor in reverse, positioning the towing eye at
the desired height (also adjusting, if necessary, the
height of the hitch of the tractor) ensuring that it is
securely fastened. The round baler is correctly
positioned when its frame is parallel to the ground or
slightly inclined upwards at the front (fig.1/bis)
.
Now raise the stopper foot placing it in the working
position.
1.
Check all the lubrication and greasing points.
Ascertain that none of the nuts and bolts are loose,
and tighten them if necessary.
Check the main chain and tighten it if necessary as
shown in fig.2.
Check the slack at the point indicated in Fig. 3,
which should be about 1 cm with the machine at full
load.
2.
Mount the cardan shaft and make sure it is perfectly
locked onto the P.T.O. and that there is no
possibility of the shaft detaching itself or jamming.
Make sure that the protection for the cardan shaft is
fixed by its security chain to the fixed frame of the
machine and follow all instruction detailed in the
cardan shaft security booklet.
3.

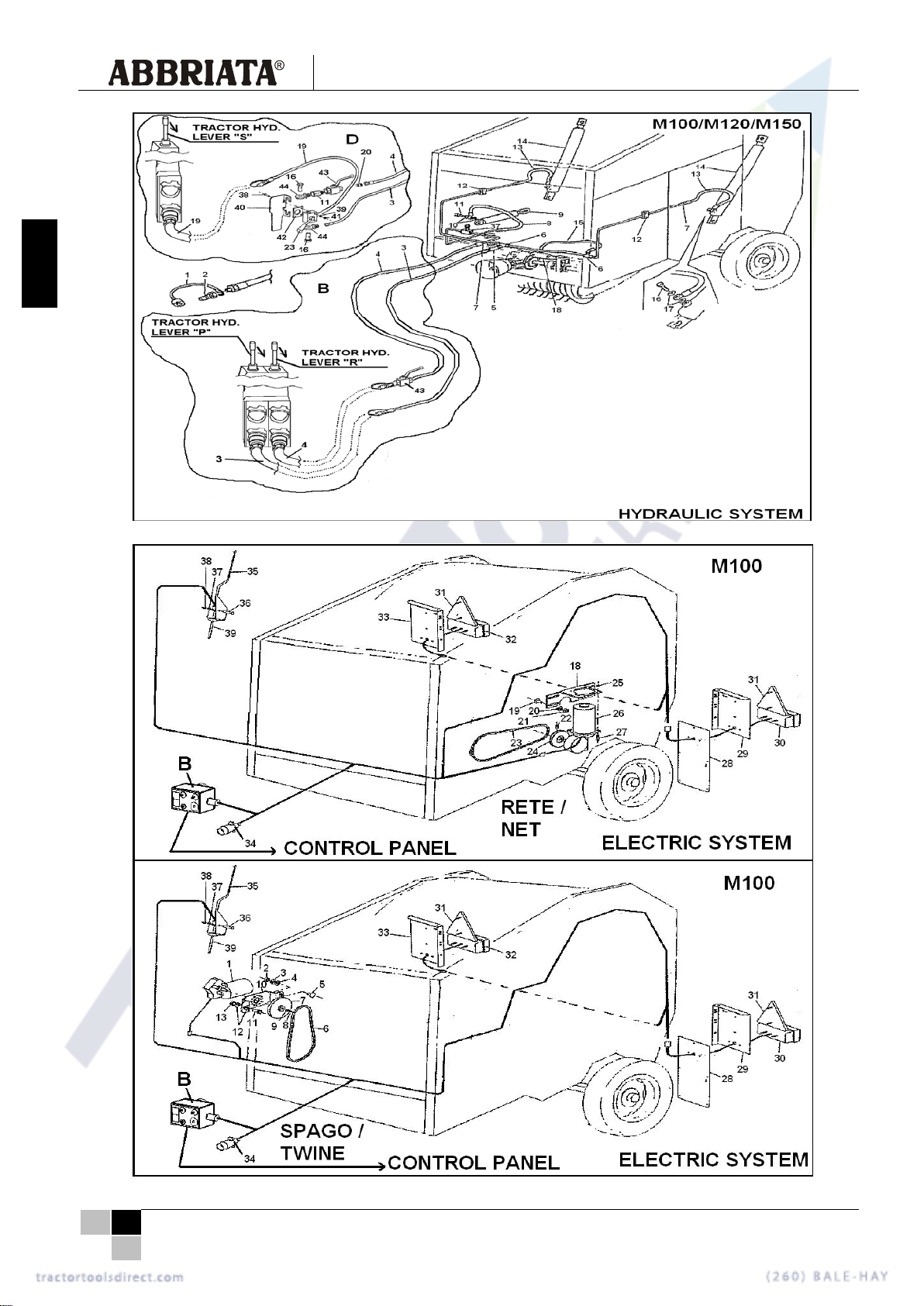

Fit the two hoses (n° 3, 4 Fig. 16/A) with rapid
conn
ectors (n°2 Fig. 16/A) of the hydraulic system
of the round baler to the tractor. In this case the
tractor must be equipped with a distributor with two
independent hydraulic levers. By means of lever P
connected with hose 3 fig. 16/A, it is possible to
co
ntrol the rear door: by means of lever R
connected with hose 4 fig.16/A, it is possible to
control the pick-up (see fig.16/A insert B).
If the tractor is equipped with only one hydraulic
lever, fit only one hose (19 Fig. 16/A) of the
hydraulic system of t
he round baler to the tractor. In
this case, by means of the lever S of the tractor
connected with hose 19 fig.16/A through switch 23
fig.16/A, it is possible to control both the rear door
and the pick-up.
4.
Open and close the rear door of the machine 3 or
4
times by means of lever P or S of fig.16/A
. With the
P.T.O. on, let it spin at 400/500 rpm for a few
minutes.
5.
Check that the rear door (chamber) closes properly.
ATTENTION!
The chains must be properly tightened.
Verify the distance between the spring turns which
must be 1.5 ÷ 2 mm, by means of the appropriate disc;
if necessary,
adjust the screw and counter nut
D
(fig.2).
WARNING!
Fig. 1/bis
Fig. 2
Fig. 3
The guards must always be closed before starting the machine and can be opened only after stopping the machine, turning
off the tractor engine and removing the keys from the ignition.

Use and maintenance handbook – ed_07/04/2016
Round baler – M100 / M120 / M150
14
ENGLISH
INSTRUCTIONS FOR USE
1. Connect plug 34 of Fig. 16/C to the
electric device of the tractor and open
switch no. 43 of Fig. 16/A so that it is
possible to control
the position of the
pick-
up by means of a hydraulic lever
on the tractor.
2.
Release the pick-up safety chain,
if
present, position the pick-up
at the
correct height off the ground by
adjusting the pick-
up wheel (1 fig.A
pag.24), if necessary, and then rea
ttach
the chain and insert the P.T.O.
3.
Position the machine centrally on the
line and start loading after starting
engine of the tractor, putting it into gear
and bringing the P.T.O. to 540 r.p.m.

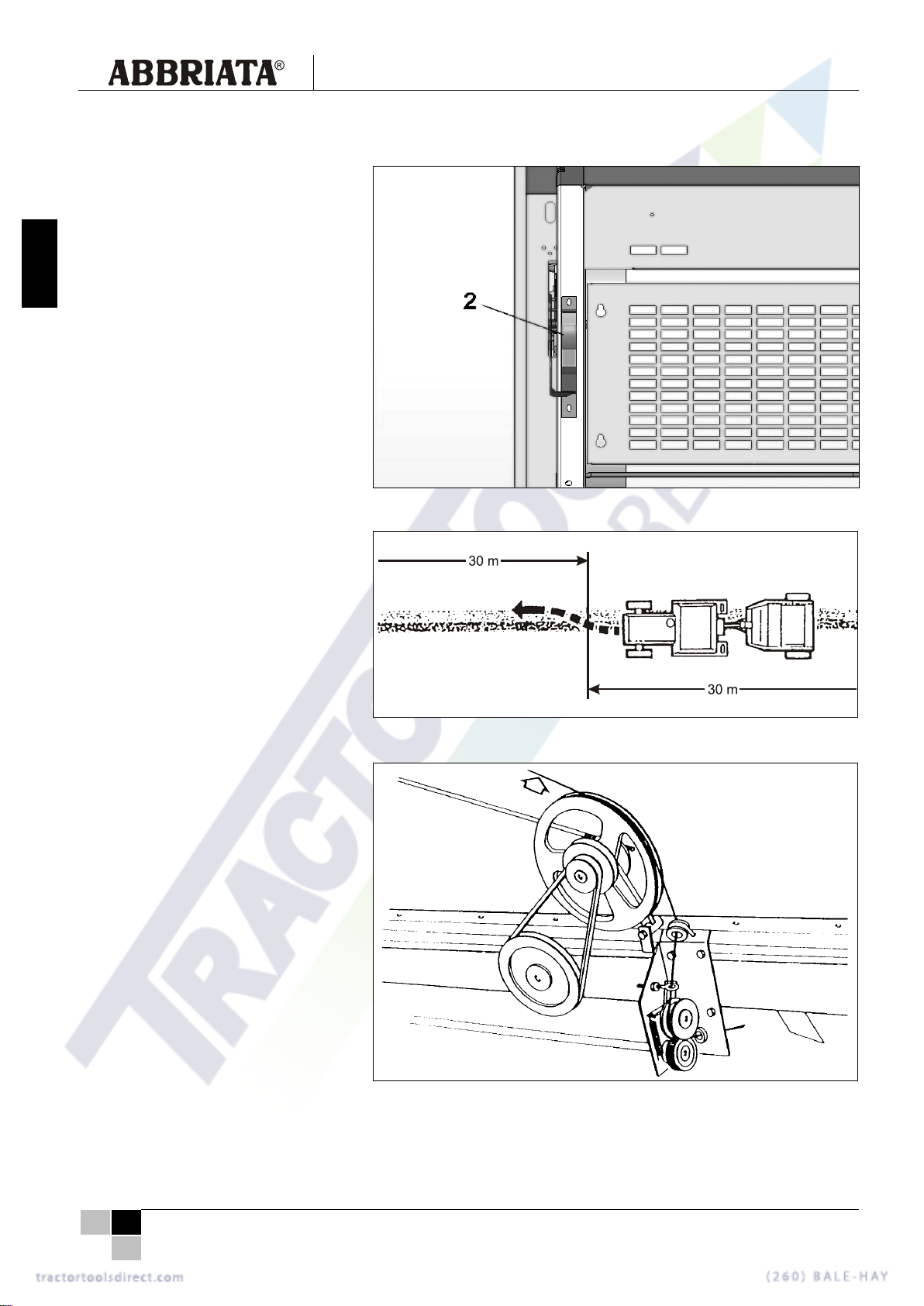

Note: The line should be even and not too
wide.
In case of
a too
narrow line, alternate from
side to side every 30 m. so as to form a
uniform bale (Fig. 5).
The speed of harvesting can vary
depending on the product to be loaded and
the size of the line, but must be roughly
between 6 km/h and 20 km/h at all times.
Note: Depending on the characteristics of
the product harvested, you can select a
higher or a lower pressure.
Refer to the indicator (no. 2 Fig.4) for this
and see p.16 item 9.
4.
A few seconds before reaching the
desired pressure, (when the buzzer
star
ts) make sure some crop is on the
pick-
up, and start the binding device
using the electric button C of the control
panel (fig. 16/E) brought onto the tractor
cabin.
When the twine (or the net) is
“caught” by the bale and starts winding
up, block the tracto
r advancement
immediately, letting the power takeoff
turn.
In doing so, the twine (or net) is
fastened to the bale and when the bale
is completely bound, it is automatically
cut
so that the binding system is ready
for a new cycle.
Fig. 4
Fig. 5
Fig. 6

Use and maintenance handbook – ed_07/04/2016
Round baler – M100 / M120 / M150
15
ENGLISH
5. For short products it is advisable to use
the double binding option. To do this, pull
the cutter cord (Fig. 7) which disables the
cutter and enables the twine to go around
the bale twice.
6.
When the binding cycle is finished
(in the
case of twine
binding this is indicated by
the stop in the rotation of the pulley in fig.
6), proceed as follows:
a) stop the P.T.O.*;
b) move the tractor 5 – 6 m. back;
c)
open the rear chamber door (see p.13
item 3 and p.19);
d) re-
connect the P.T.O., and drive it
slowly so that
the rotation of the rollers
ejects the bale.
7.
Close the rear door by means of the
hydraulic lever on the tractor
WARNING!
Be careful when performing the bale unload
door opening and door closing operations.
Perform this operation on a flat surface. The
area has to be large enough to allow for this
operation. Make sure the bale is not able to
roll downhill (no gradient allowed). Also,
make sure no persons or animals are to be
found close to the machine when performing
this operation. Always make sure the round
bale produced is safely on the ground before
taking the machine on the road.
8.
A special mechanism / chain front joint
block (Fig. 8) allows to interrupt the
movement of the main chain when
opening the rear door. It is advisable to
grease this mechan
ism every 10 working
hours (every day).
Fig. 6
Fig. 7
Fig. 8
*It is possible to open and then close the rear door without stopping the P.T.O., taking care of lessening the number of
P.T.O. rears when the rear door is closing in order to avoid excessive stress on the chain front joint block (fig.8).

Use and maintenance handbook – ed_07/04/2016
Round baler – M100 / M120 / M150
16
ENGLISH

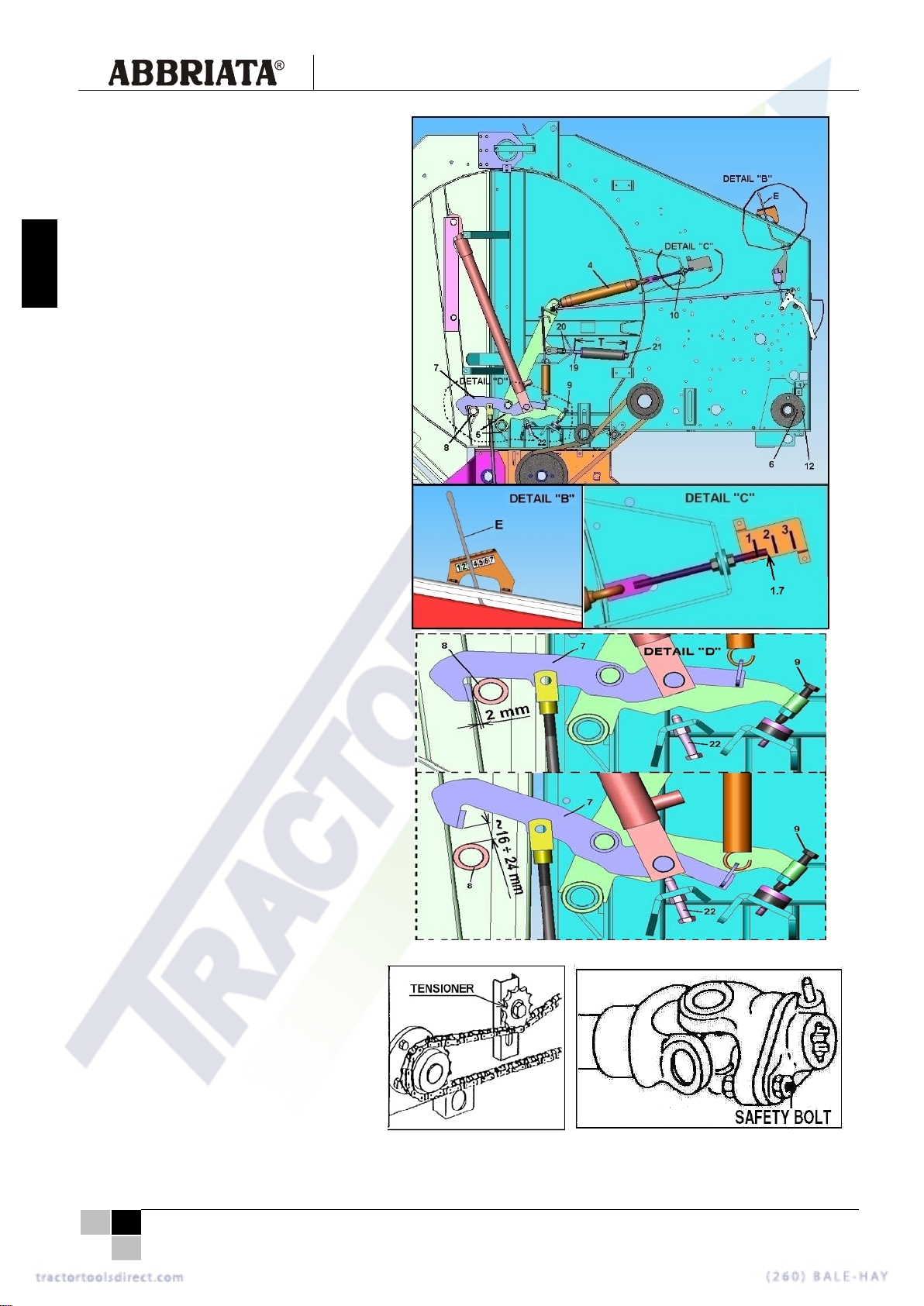

9. To adjust the pressure of the bale,
position lever E (fig. 8/A , detail B) from 1
(min. density) to 7 (max. density).
For further adjustment of the pressure of the
bale, shorten or lengthen spring no. 4 Fig.
8/A within the limits from 1 to 3 (Fig. 8/A -
detail “C”) using rod 10 with its nuts.
ATTENTION!
Very important! Be sure spring 4 is
lengthened at the same level on both left
and right sides.
In general we suggest that you bale (E.G.
dry hay) mainly with lever E (fig.8/A, detail B)
in position 3
or 4 and with
spring 4
lengthened to the factory setting position of
1.7
(fig.8/A detail C).
The above is valid for all types of “M100”
and “M120”.
For “M150” in general
we suggest that you
bale (E.G. dry hay) mainly with lever E (fig.
8/A detail B) in position 3
or 4
, spring 4
lengthened to the factory
setting position of
1.7
(fig.8/A detail C) and the length T of rod
21 fig. 8/A set to 261 mm as in the factory.
ATTENTIO
N!
•
Before starting to work, check that the
rear door is completely closed, be it the
hooking lever
(n. 7 Fig. 8/A) is completely
closed. It means it is in contact with its
pivot 8 fig. 8/A.
In the above mentioned conditions the
clearance between the inner
part of the
hook no.7 Fig.8/A and the pivot n. 8 must
be about 2 mm. (see fig.8/A detail D).
Please find this clearance adjusting the
position of hook 7 Fig. 8/A by means of
bolt 9 Fig. 8/A.
•
When the rear door is opening, make
sure that the minimum distan
ce between
the tip of hook 7 fig.8/A and pivot 8 fig.8/A
is from 16 to 20 mm (see fig.8/A detail D).
Pls find this clearance adjusting the
position of hook 7 fig.8/A by means of bolt
22 fig.8/A.
•

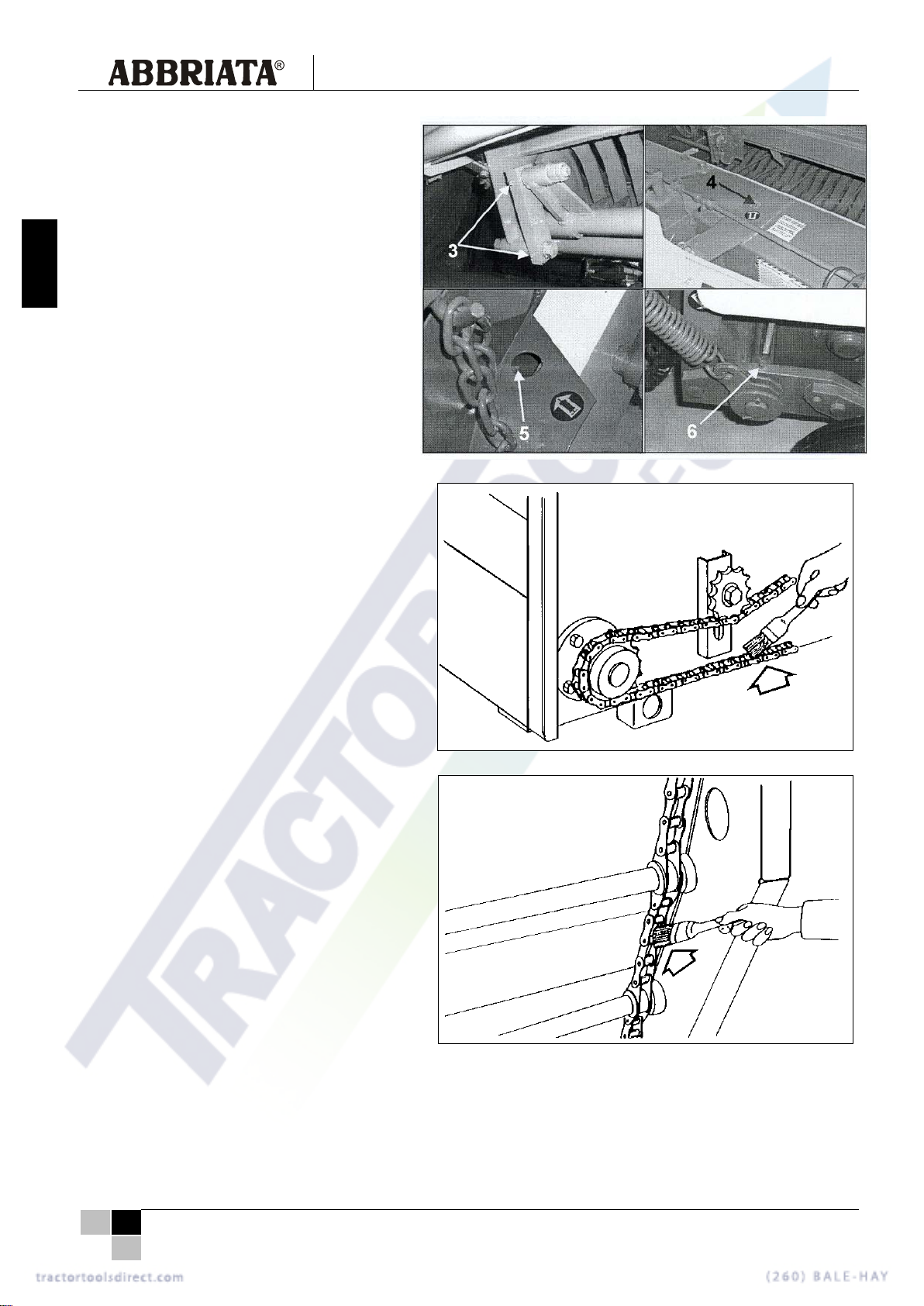

Lubricate through greasers n. 5 Fig. 8/A
(right and left)
the relevant bushes, once
a working day.
•
Adjust the tension of the
transmission chains, by using
the
special tensioners (fig. 9).
ATTENTION!
The round balers are tested and the
necessary adjustments are made by the
manufacturer. It is important, however, for a
general check, to run the machine on empty
for a few minutes. The machine should be
considered in the break
-
in period for the first
100 bales, then all the adjustments should
be checked again: above all chain tension
then tightness of screws, lubrication, closure
of hooks, binders, etc.
Fig. 8/A
Fig. 9 Fig. 10

Use and maintenance handbook – ed_07/04/2016
Round baler – M100 / M120 / M150
17
ENGLISH
SAFETY MECHANISM FOR OVERLOADING AND FOREIGN BODIES
1. The round baler is provided with a
cardan drive shaft
with torque limiter: in
case of overload, it shears off the
safety bolt preventing any parts from
breaking (Fig. 10).
2.
A second system similar to the first, is
located on the primary transmission,
which is equipped with a safety
bolt M7 x 50 – class 8.8 - R
= 80
kg/mm2(no. 12 Fig. 8/A).
This device works when rocks or other
foreign bodies get into the pick-
up /
packer device, or when there is any
abnormal resistance to rotation of the
lower rollers. Mainly it is due to the
intrusion of foreign bodies or to
too high
pressure in the compression chamber.
Fig. 8/A
WARNING!
Only replace with safety bolts identical to the original one. The bolts M7 x 50 – class 8.8 - R = 80 kg/mm² are provided (12
pcs.)
Fig. 12 Fig. 12/A
MAINTENANCE, LUBRICATION AND GREASING
WARNING!
•Before performing any maintenance or lubrication, put the safety mechanisms of the round baler (Fig. 12) into operation
and proceed only after turning off the engine.
•Turn off the engine, remove the keys from the ignition and disconnect the machine before proceeding with operations of
maintenance, cleaning and repairs.
•Always use the blocking or locking devices before performing any maintenance or repairs.
•Wear gloves and use the proper tools when replacing any parts. Also, for the stability of the machine, it is advisable to
perform all operations on a solid support.
•Replace any protection mechanisms that are not adequate and remove any oil or grease at once.
•It is very important to clean the machine at the end of every working days by using a pistol of an air compressor
giving particular attention to the area between the back of the pick-up and the frame of the packer device and
also the side frame of the round baler (see fig. 12/A).
•If it is necessary to do any electrical welding on the machine-tractor unit, remember to detach both the generator cable
and the battery.
•Make sure the replacement parts are original, that is, the ones used by the manufacturer, and check before using them
that all the screws are tight so that they won’t come loose.

Use and maintenance handbook – ed_07/04/2016
Round baler – M100 / M120 / M150
18
ENGLISH
For lubrication and greasing, pls follow the
instructions detailed below:
a)
The round baler is equipped with a reducer unit
(Fig. 8) that contains 1.3 lt. of S
AE 90 oil that
should be replaced after the first 400 hours of use
and then at the start of every harvest season.
b)
There are six greasing points:
1.
greasing points 5 fig.8/A for hook and spring
lever rotation bushings right and left, to be
greased once a day.
2.
greasing point 6 fig.8/A for shear bolt flange, to
be greased once a day.
3.
greasing point 3 fig.13 for packer device
connecting rod; to be greased once a day.
Of
course the above isen’t valid if you find two
sealed bearings in position 3 / fig.13.
4. greas
ing point 4 fig.13 for chain front joint block
to be greased every 10 working hours, if
possible, when the rear door is open;
5. greasing point 5 fig.13 for pick-
up cam to be
greased every 40 working hours;
6. greasing point 6 fig.13 for pick-up
wheel lever
rig
ht and left. To be greased every 40 working
hours.
None of the other bearings require greasing as they
are all sealed.
Every 200 hours it is advisable to remove all the
casings around all the transmission chains and check
the correct tension. Use a paintbrush to grease them
(Fig. 14) by using oil mixed with naphta.
In the same way, by using oil mixed with naphta
lubricate the main chain (Fig. 15).
Be careful! Don’t lubricate too much this main chain..
BINDING SYSTEM
"Abbriata
®" round balers are provided, a
s standard
equipment, with one twine binding device, and can
be equipped with a “net binding device” or “double
twine binding device” or “double binder” on request.*
The threading system of the twine is shown on the
adhesive label applied on the inner front of the
machine (see also drawing of page 8,9,10).
One twine binder has two pulleys (Fig. 16) that
advance the twine carrier at two speeds depending
on the following cases:
1.
rapid, for very long products (when the twine is
wrapped around the big diameter pulley);
2.
slow, for normal or short products (when the twine
is wrapped around the low diameter pulley).
The diagrams (drawing) of the net binding system is
shown on an adhesive label applied on the inner
front of the machine (see also the drawing page 8).
T
he diagrams of “double binder” and “double twine
binding device” are shown on an adhesive label
Fig. 13
Fig. 14
Fig. 15
applied on the inner front of the machine (see also drawings of page 9 and 10).
To feed net or twine in the baler to start binding cycle, pls see p.14 item 4.
*”Double binder” isen’t available for “M100” and “M120 Compact”

Use and maintenance handbook – ed_07/04/2016
Round baler – M100 / M120 / M150
19
ENGLISH
Fig. 16
HYDRAULIC SYSTEM
The connection of the hydraulic net of the round baler with the tractor allows to control the following operations:
1. opening and closing the rear door;
2. raising and lowering the pick-up.
The above is possible through the following devices:
•door opener control hose 3 to be connected with the outlet of lever P of the tractor (insert B fig, 16/A);
•raise pick-up control hose 4 to be connected with the outlet of lever R of the tractor (insert B fig. 16/A);
•deviator / switch attached to hose 19 to be connected, on tractor side, with the outlet of lever S of the tractor (insert D
fig. 16/A);
•deviator / switch 23 to select alternatively, the pick-up or the rear door movement (insert D fig.16/A).
ABBRIATA®round balers can be connected to the tractor with a set of two hydraulic hoses no. 3 - 4 (insert B fig.16/A) or
with one hydraulic hose 19 and switch 23 (insert D fig. 16/A).
When the tractor is equipped with at least two independent hydraulic levers P and R, connect hydraulic hoses 3 and 4 (insert
B fig.16/A) to the corresponding hydraulic outlets of the tractor. By means of the above mentioned levers, it is possible to
drive directly, without selecting switch, the pick up and the rear door movement (see insert B fig. 16/A).
When the tractor is equipped with only one hydraulic lever S, connect hydraulic hose 19 (insert D fig.16/A) to the
corresponding hydraulic outlet of the tractor. By means of the above mentioned lever, it is possible to drive the pick up or
alternatively the rear door depending on the previously selected position of the lever of switch 23 fig.16/A (see insert D
fig.16/A).
WARNING!
The hydraulic hoses can break. It is therefore important to pay attention to any leakage of hot oil under pressure.
The hoses and the hydraulic components conform to prEN 982.
Maximum working pressure: 330 bar - bursting pressure: 1450 bar.
Hydraulic hoses must be replaced every 5 years from the date printed on them.
ELECTRIC SYSTEM
The green light (G fig. 16/E) signals that the control panel (B fig. 16/C – fig. 16/D and fig.16/E) is powered up.
The horn (K fig. 16/E) acoustically advises that the previously selected pressure of the bale has been reached.
The red light (I fig. 16/E) contemporarily signals, together with the horn above, that the previously selected pressure of the
bale has been reached.
The switch (H fig. 16/E) allows to deactivate and activate the horn.
The deviator (F. fig 16/E) active on the M120/M150 round balers which can be equipped with both Twine and Net binders,
allows to choose whether to use the Twine or Net binding.
The “START” button (C fig. 16/E) commands the start of the Twine or Net binding previously selected.
Connect the tractor’s electrical system to the 7 polarity plug (n°.34 fig. 16/C – fig. 16/D) to activate all the lights and gear
motors of the twine and/or net binder.
Try to operate the round baler’s electrical system before driving on the road or before starting to bale the product – to set up
tractor socket see pag. 22 / 23.

Use and maintenance handbook – ed_07/04/2016
Round baler – M100 / M120 / M150
20
ENGLISH
Fig. 16/A
Fig. 16/C
