Abel SPORT DV User manual

GPS
SPORT DV
Users Manual

INDEX
CONTENTS---------------------------
INTRODUCE--------------------------
INSTALLATION----------------------
API Install--------------------------
API Information-------------------
USER GUIDE-------------------------
TROUBLE SHOOTING-------------
01
03
04
06
08
12
14

SD Card Adaptor
4.
5.
6.
7.
8.
9.
(Please insert Micro SD into the SD Card
Adaptor for reading)

Mount
roller bearing with angle
(for Belt only)
Bracket
Mount of Handlebars
with roller bearing and screw
Belt
with roller bearing and screw
02
※Notice: roller bearing with angle only work for belt.
screw

Introduce
03
A. Battery Container
B. GPS Signal Light (Blue)
C. Video Recorder Light (Red)
D. Low Battery Light (Green)
E. Veneer
F. Micro SD card slot
(open the cover by rotating 180 w/ anticlockwise)
G. Buzzer Area
H. Mic
I. Power On / Off Button
J. Mirror
K. Camera
A
BCD
J
K
I
E
H
GF
。

Installation
Step 1: Put the GPS DV into the Bracket Step 2: Put the screw on the top of belt.
Then push the roller bearing into the bracket
hardly and rotating the screw with clockwise.
Step 3: Open the belt through into the side of helmet then pull it tightly.
Mount on the Helmet (please refer to the following photo)
04

05
Step 4: Put the roller bearing into the handlebars mount, and put the screw then rotating it
tight with clockwise.
Step 5: Put the screw of bracket and push the other side of roller bearing to bracket hardly
then rotating it tight with clockwise. (the bracket installed please refer to step 1 & 2.)
Step 6: (1) Hook one of three partition (depends the thickness of handlebars)
(2) Fix the handlebars and put the ring then rotating the screw tight with clockwise.
Ring
Screw
Mount on the Bike (please refer to the following photo)

API Installation
Click the API software then start to install:
06

07

1
12
13
14
15
16
2
17
18
19
20
21
22
24
23
3 4 5 6 8 9
25
08
27
26
28

API icon information:
Open it to load video files
Last video
Backward
Play
Forward
Next video
Stop
Pause
Setup
Cycle
Volume
The status of video file:
you can load many videos to list.
Speed
Distance
Time
Longitude
Latitude
Altitude
Compass
A Starting point
Biker icon
Google map active area
Zoom In / out the map
Route
Multiple languages
Time Zone
SBAS
Disable Warning
1
13
8
7
6
5
4
3
2
12
11
10
9
14
27
21
20
19
18
17
16
15
26
25
24
23
22
28
09

Multiple languages (English; Japanese; Traditional Chinese; Simplified Chinese ) :
It can be changed manual on the right above corner.
Time Zone: Insert the SD card to your PC and click setup first, then it can use the
correct time zone.
click the setup icon
26
25
※Please insert the SD card first for the item - :
26 28
10

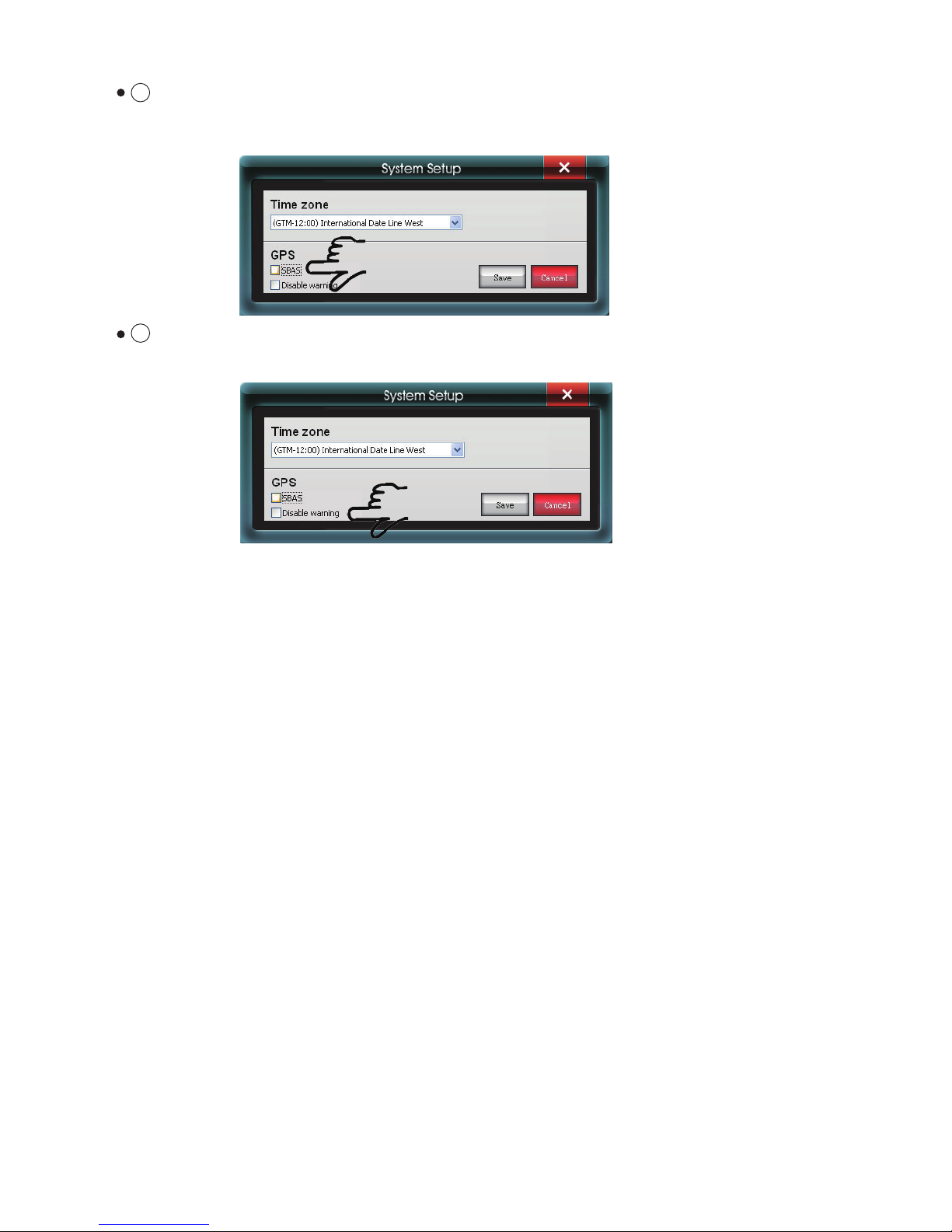

SBAS (GPS assisted-Geo Augmented Navigation)
Notice:Suitable for the user locates in Japan and the U.S., strengthening the GPS
system can assist.
Disable Warning: If you click that option, the warning(3 times short beep sound)
of low power and full memory card will be canceled.
27
28
11

User Guide
Before start to use this product, make sure your Micro SD card
have set up the time zone and warning selection on API.
(please refer to page.10-11, Micro SD card setting.)
Outdoor
(1) Please insert the Micro SD card with words up into the slot.
(2) Power on the device 1 second then the product will short beep once.
(the light flash once, followed by after power on.)
(3) The Product start searching GPS signal. the GPS signal light will flash in blue.( )
(4) Get the GPS signal with short beep twice then start recording automatically.
the GPS light(blue ) and record light(red ) will keep flashing.
* It takes 1 to 1.5 minutes to searching the GPS signal first time.
After that, It takes 5 seconds to get it only.
(5) Power OFF: Press the power key to keep 3 seconds , and hear a short beep;
then a long beep to power off.
12

Indoor
(1) Press the power button, but the device can’t search the GPS signal.
Blue light will keep flash and try to get the GPS signal, usually,
indoor environment can’t catch the GPS signal.
(2) Press the power button again to force start recording without GPS Signal.
(the blue light and red light will keep flash.)
Notice
(1) Indoor environment can force recording, but the video will playback without GPS map.
(2) When the product catch the GPS signal, it will switch to record with GPS.
(3) When almost Full Memory (Micro SD card): it will keep short beeps three times
(beep beep beep)and blinking red light every two minutes for the final 10 minutes .
(4) When Low Battery : it will keep reminded with short beeps three times (beep beep beep )
and blinking green light every two minutes until the volt under 2.0V will shut down directly.
13

Trouble Shooting
What should I pay attention before I use this product?
Please Note: the micro SD card at least have to be level Class 6.
Please insert the micro SD card into your computer and set up the function
with API before your start record. (refer pape.10-11)
We recommend using the alkaline or rechargeable battery for the product to extend
the battery life
Micro SD card: we suggest user use reliable MSD, the brand is universally known.
Please install and setting the software before working with Google map.
Check if the product has searched the GPS signal when recording.
Please do not cover the above of the antenna when it is searching the
GPS signal. Please put the side (as following photo) upward.
Check if your computer has been link with the internet.
Why the product spend more than 1.5 min to searching
GPS signal?
For the first time, the product will spend more time (more than 3 min) to searching
GPS signal. The reason is this device have to update all history data.
For the second time and after, the product can get the GPS signal within the regular time
(1.5 min) in the open sight. 14

15
The memory card can’t storage the video.
The MS card can not be overwrote. so the product will power off automatically
with beep sound when the memory card is filled.
Why can’t the video work with the Google map?
(1) It doesn’t link with internet.
(2) The product didn’t catch the GPS signal.
Why can’t I power on the product?
please help to check as follows situation:
(1) Check if the GPS or Record light is on. “Light” means the power is on
(2) Check if the battery is dead. Dead batteries can’t power on the product.
(3) Check if the product has been plugged into the MS card.It can’t be powered
without plugging the MS card.
(4) Check if the storage of MS card is full. Filled MS card can’t make
the product power on.

ABEL Industrial International CO.,LTD
email: [email protected]
website: www.abeltech.com.tw
203,Cheng-Gon 6th St,Chupei City,Hsinchu,Taiwan,R.O.C
