Abit SG-95 User manual

Introduction
Hardware Setup
BIOS Setup Driver & Utility CD Appendix
SG-95
Motherboard
Socket 775
Intel Pentium D / Pentium 4 /
Celeron / Celeron D / Core 2 Duo
User’s Manual
 LGA775 mATX Motherboard
 SiS 662/SiS 966L
 800MHz FSB
 DDR2 667/533
 Integrated SiS Mirage 1
Graphics GPU
 2x SATA 1.5Gb/s RAID 0/1
 7.1 HD Audio

SG-95
User’s Manual
English, 1st Edition
August, 2006
Copyright and Warranty Notice
The information in this document is subject to change without notice and does not represent a
commitment on part of the vendor, who assumes no liability or responsibility for any errors that may
appear in this manual.
No warranty or representation, either expressed or implied, is made with respect to the quality,
accuracy or fitness for any particular part of this document. In no event shall the manufacturer be
liable for direct, indirect, special, incidental or consequential damages arising from any defect or
error in this manual or product.
Product names appearing in this manual are for identification purpose only and trademarks and
product names or brand names appearing in this document are the property of their respective
owners.
This document contains materials protected under International Copyright Laws. All rights reserved.
No part of this manual may be reproduced, transmitted or transcribed without the expressed written
permission of the manufacturer and authors of this manual.
If you do not properly set the motherboard settings, causing the motherboard to malfunction or fail,
we cannot guarantee any responsibility.
ii SG-95

Introduction
Contents
1. Introduction..................................................................... 1-1
Hardware Setup
BIOS Setup Driver & Utility CD Appendix
1.1 Features & Specifications .............................................................1-1
1.2 Motherboard Layout.....................................................................1-3
2. Hardware Setup ............................................................... 2-1
2.1 Choosing a Computer Chassis.......................................................2-1
2.2 Installing Motherboard .................................................................2-1
2.3 Checking Jumper Settings ............................................................2-2

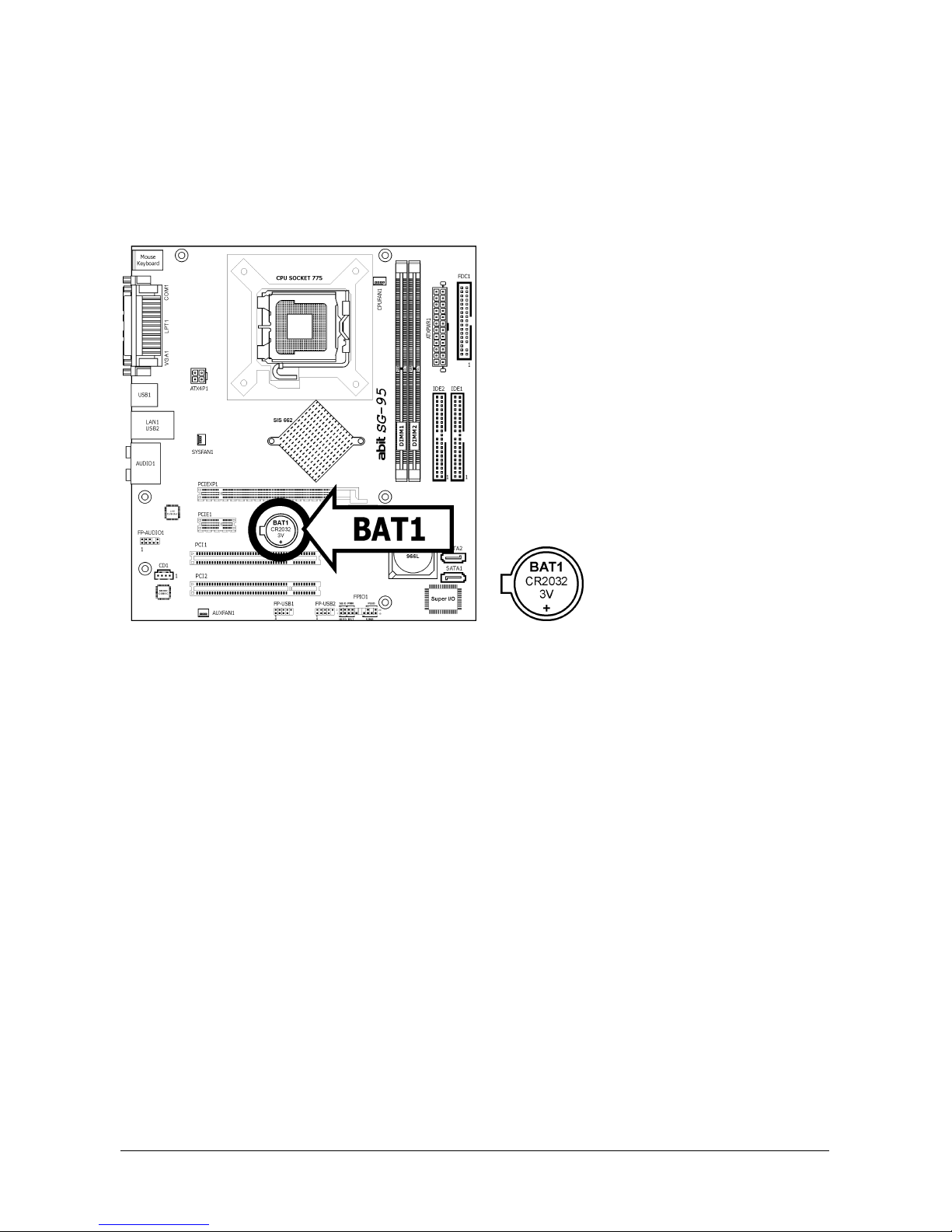

2.3.1 CMOS Memory Clearing Header and Backup Battery ..............2-3
2.4 Connecting Chassis Components...................................................2-5

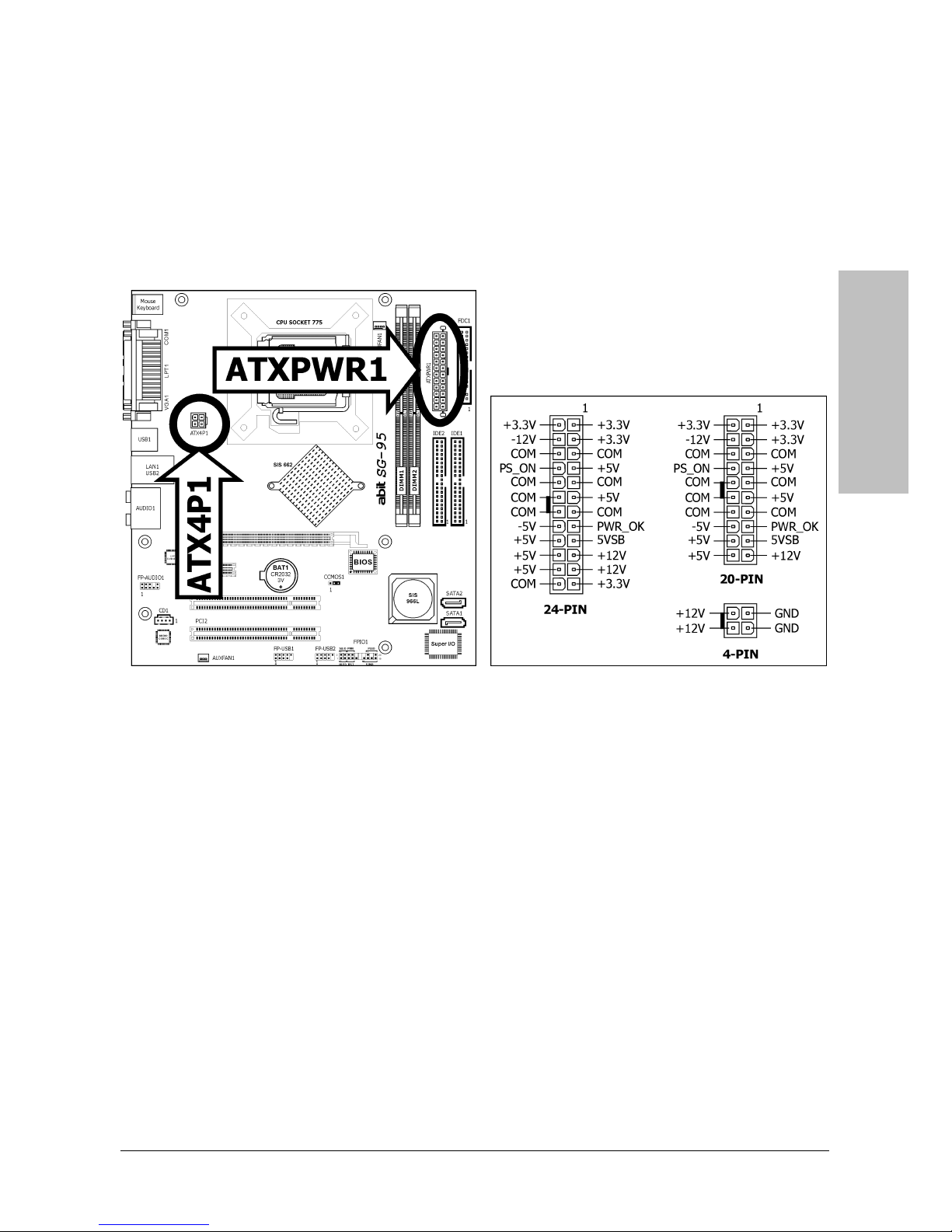

2.4.1 ATX Power Connectors ........................................................2-5

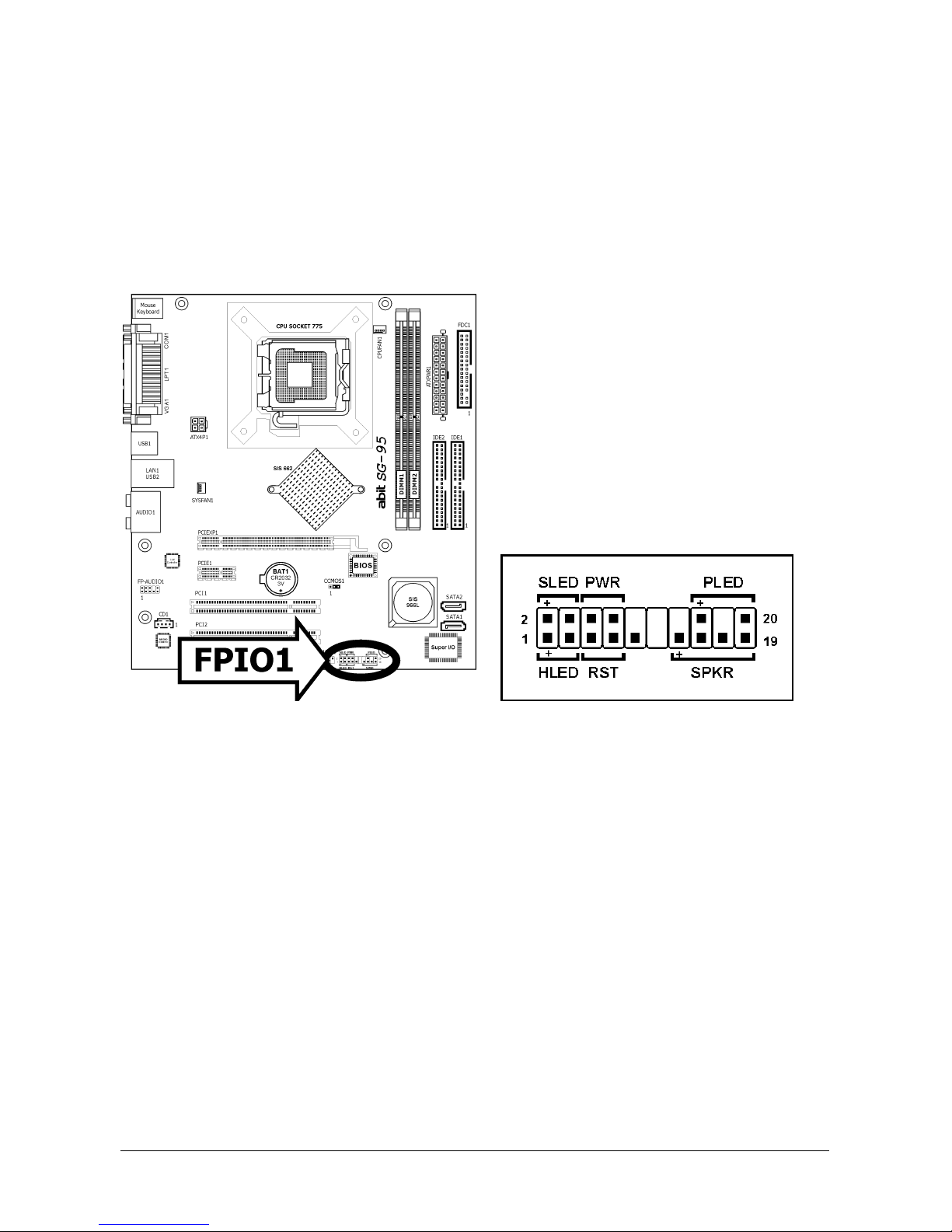

2.4.2 Front Panel Switches & Indicators Headers............................2-6
2.4.3 FAN Power Connectors ........................................................2-7
2.5 Installing Hardware......................................................................2-8

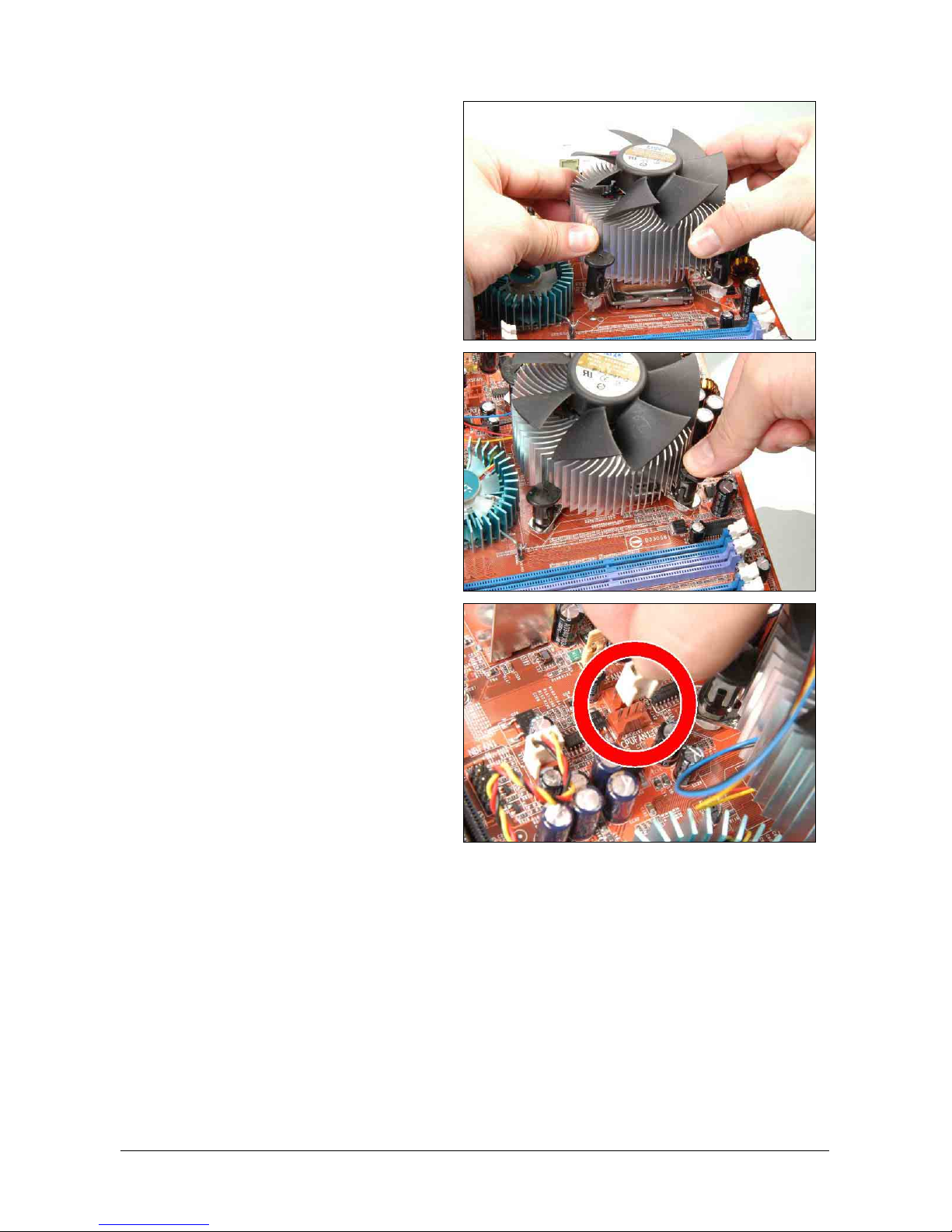

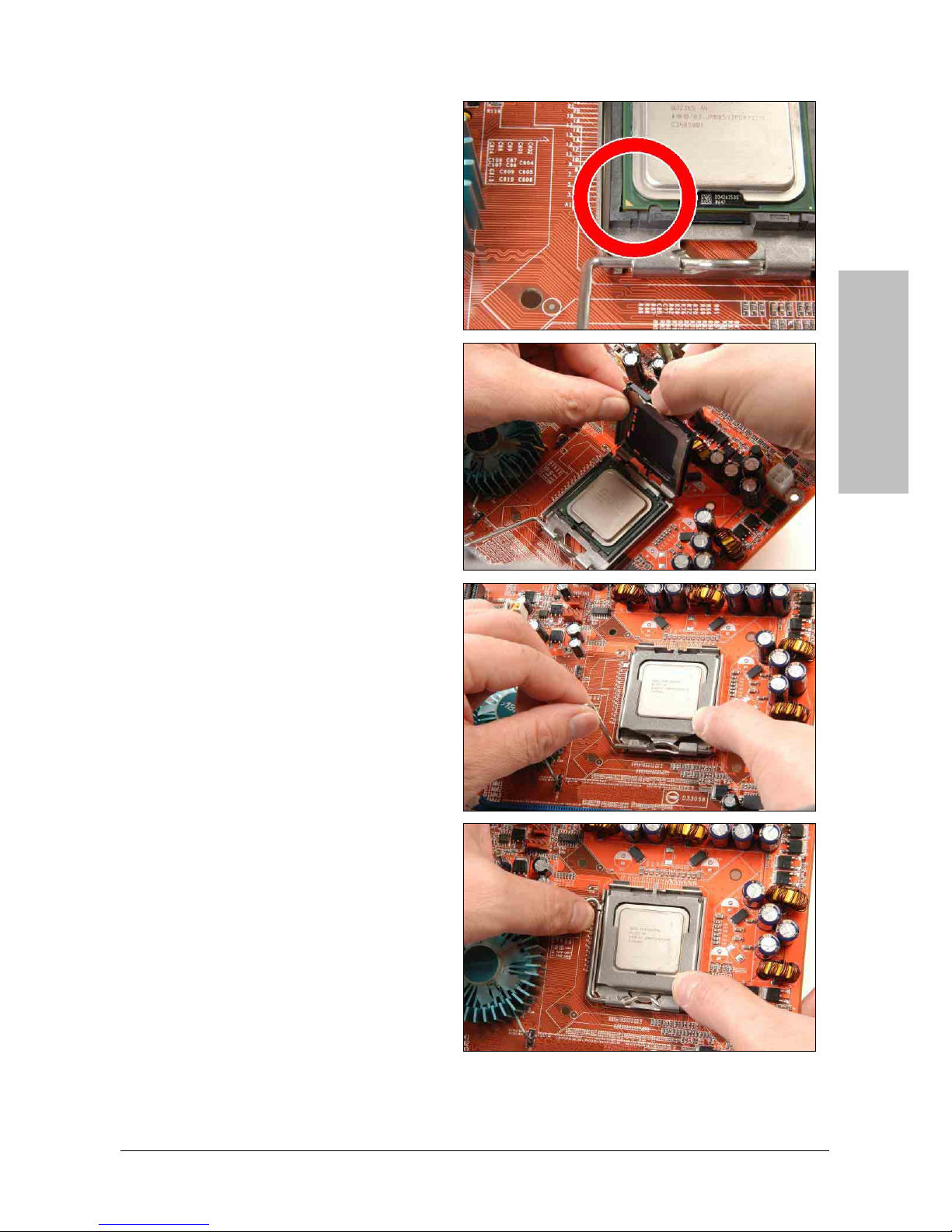

2.5.1 CPU Socket 775 ..................................................................2-8

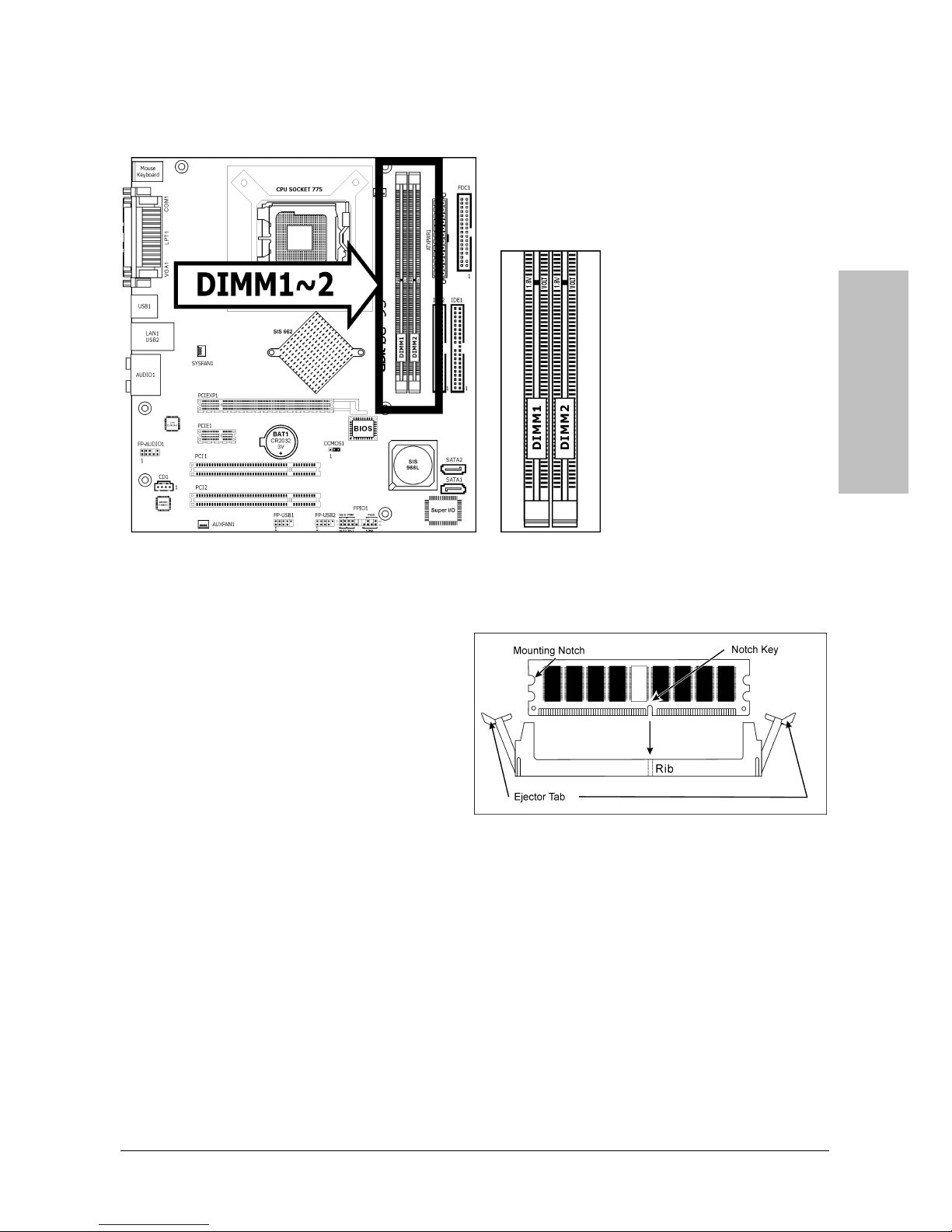

2.5.2 DDR2 Memory Slots ..........................................................2-11
2.6 Connecting Peripheral Devices ....................................................2-12
2.6.1 Floppy and IDE Disk Drive Connectors ................................ 2-12
2.6.2 Serial ATA Connectors .......................................................2-13
2.6.3 Additional USB 2.0 Port Headers.........................................2-14
2.6.4 Internal Audio Connectors..................................................2-15
2.6.5 Front Panel Audio Connection Header .................................2-15
2.6.6 PCI and PCI Express X16, X1 Slots ..................................... 2-17
2.7 Connecting I/O Devices.............................................................. 2-18
3. BIOS Setup....................................................................... 3-1
4. Driver & Utility CD............................................................ 4-1
4.1 SiS VGA Driver.............................................................................4-2
4.2 Realtek HD Audio Driver...............................................................4-3
4.3 SiS LAN Driver .............................................................................4-4
4.4 USB 2.0 Driver.............................................................................4-4
4.5 SiS Raid Driver Disk .....................................................................4-5
4.6 AMI BIOS Flash ...........................................................................4-6
SG-95 iii

5. Appendix .......................................................................... 5-1
5.1 Troubleshooting (How to Get Technical Support?)..........................5-1
5.1.1 Q & A.................................................................................5-1
5.1.2 Technical Support Form ......................................................5-4
5.1.3 Universal ABIT Contact Information......................................5-5
iv SG-95

Introduction
1. Introduction
1.1 Features & Specifications
CPU
• Designed for Intel Pentium 4 LGA775 processor with 800MHz FSB
• Supports Intel Pentium D, Pentium 4, Celeron, Celeron D, Core 2 Duo(Single Core)
Processors
• Supports Enhanced Intel Speedstep Technology (EIST)
• Supports Intel Extended Memory 64 Technology (EM64T)
• Supports Intel Hyper-Threading Technology
Chipset
• NB: SiS 662
• SB: SiS 966L
Memory
• 2x 240-pin DIMM slots support maximum memory capacity up to 2GB
• Supports Single Channel (64bit mode) DDR2 667/533 Un-buffered Non-ECC
memory
Graphics
• Integrated SIS Mirage™1 Graphics GPU high performance 256-bit 3D engine and
2D Accelerator
LAN
• Onboard 10/100Mb LAN
Serial ATA
• Supports 2 ports SATA 1.5Gb/s RAID 0/1/JBOD
Audio
• Onboard 7.1-CH HD Audio
Expansion Slots
• 1x PCI Express X16 slot
• 1x PCI Express X1 slot
• 2x PCI slots
Internal I/O Connectors
• 1x Floppy port
• 2x ATA 133/100/66/33 IDE connectors
• 2x SATA 1.5Gb/s connectors
• 2x USB 2.0 headers
• 1x FP-Audio header
SG-95 1-1

• 1x CD-In connector
Rear Panel I/O
• 1x PS/2 Keyboard connector
• 1x PS/2 Mouse connector
• 1x COM port
• 1x Parallel port
• 1x VGA port
• 1x 7.1 HD Audio Connector (Surround-Left / Surround-Right, Rear-Left / Rear-Right,
Center / Subwoofer, Mic-In, Line-In, Line-Out)
• 1x RJ-45 LAN port
• 4x USB 2.0 ports
RoHS Compliancy
• 100% Lead-free process and RoHS compliancy
Miscellaneous
• Micro ATX form factor (224mm x 245mm)
※ Specifications and information contained herein are subject to change without
notice.
1-2 SG-95

Introduction
1.2 Motherboard Layout
SG-95 1-3

1-4 SG-95

Hardware Setup
SG-95 2-1
2. Hardware Setup
In this chapter we will elaborate all the information you need upon installing this motherboard
to your computer system.
※ Always power off the computer and unplug the AC power cord before adding or
removing any peripheral or component. Failing to so may cause severe damage
to your motherboard and/or peripherals. Plug in the AC power cord only after
you have carefully checked everything.
2.1 Choosing a Computer Chassis
• This motherboard carries a Micro ATX form factor of 224 x 245 mm. Choose a chassis big
enough to install this motherboard.
• As some features for this motherboard are implemented by cabling connectors on the
motherboard to indicators and switches or buttons on the chassis, make sure your chassis
supports all the features required.
• If there is possibility of adopting some more hard drives, make sure your chassis has
sufficient power and space for them.
• Most chassis have alternatives for I/O shield located at the rear panel. Make sure the I/O
shield of the chassis matches the I/O port configuration of this motherboard. You can find
an I/O shield specifically designed for this motherboard in its package.
2.2 Installing Motherboard
Most computer chassis have a base with
many mounting holes to allow the
motherboard to be securely attached, and at
the same time, protected the system from
short circuits. There are two ways to attach
the motherboard to the chassis base:
1. with studs,
2. or with spacers
In principle, the best way to attach the board
is with studs. Only if you are unable to do
this should you attach the board with spacers.
Line up the holes on the board with the mounting holes on the chassis. If the holes line up and
there are screw holes, you can attach the board with studs. If the holes line up and there are
only slots, you can only attach with spacers. Take the tip of the spacers and insert them into
the slots. After doing this to all the slots, you can slide the board into position aligned with slots.
After the board has been positioned, check to make sure everything is OK before putting the
chassis back on.

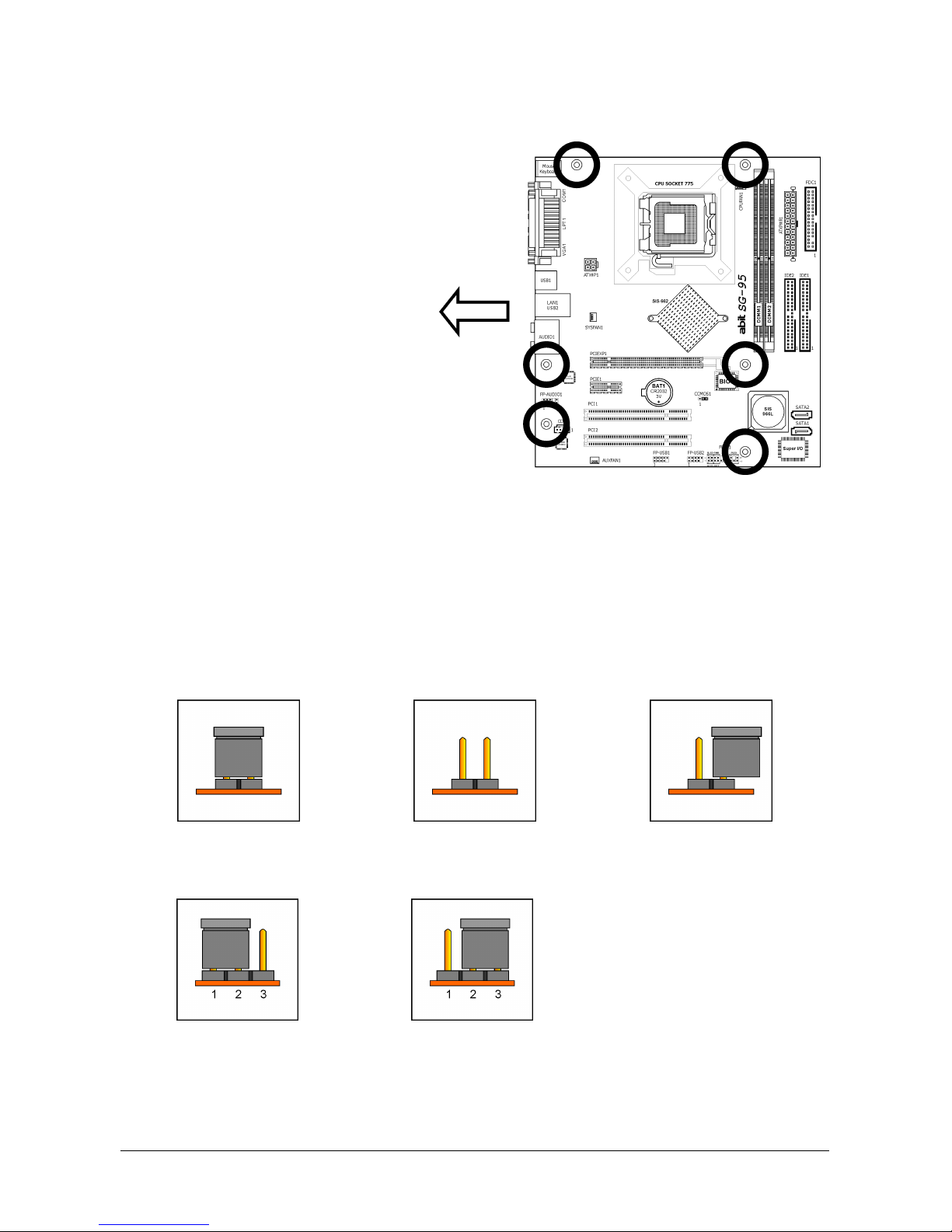

To install this motherboard:
1. Locate all the screw holes on
the motherboard and the
chassis base.
2. Place all the studs or spacers
needed on the chassis base
and have them tightened.
3. Face the motherboard’s I/O
ports toward the chassis’s rear
panel.
4. Line up all the motherboard’s
screw holes with those studs o
r
spacers on the chassis.
5. Install the motherboard with
screws and have them
tightened.
Face the chassis’s rear panel.
※ To prevent shorting the PCB circuit, please REMOVE the metal studs or spacers if
they are already fastened on the chassis base and are without mounting-holes
on the motherboard to align with.
2.3 Checking Jumper Settings
For a 2-pin jumper, plug the jumper cap on both pins will make it CLOSE (SHORT). Remove the
jumper cap, or plug it on either pin (reserved for future use) will leave it at OPEN position.
SHORT OPEN OPEN
For 3-pin jumper, pin 1~2 or pin 2~3 can be shorted by plugging the jumper cap in.
Pin 1~2 SHORT Pin 2~3 SHORT
2-2 SG-95
