Abit IP35V User manual

Hardware Setup BIOS Setup Driver & Utility Multilingual QIG Appendix
IP35V
Motherboard
Socket 775
User’s Manual
About this Manual:
This user’s manual contains all the information you may
need for setting up this motherboard. To read the user’s
manual of PDF format (readable by Adobe Reader), place
the “Driver & Utility CD” into the CD-ROM drive in your
system. The auto-run screen will appear, click the
“
Manual” tab to enter its submenu. If not, browse the
root directory of the CD-ROM via the File Manager, and
double click the “AUTORUN” file.
 Chipsets: Intel P35 / ICH7
 FSB 1333 MHz
 Dual Channel DDR2 1066
 Gigabit LAN
 SATA 3Gb/s
 USB 2.0
 7.1-Channel HD Audio
 External CMOS Clearing
Switch
 Vista HW Ready

ii IP35V
Copyright and Warranty Notice
The information in this document is subject to change without notice and does not represent a commitment on part of
the vendor, who assumes no liability or responsibility for any errors that may appear in this manual.
No warranty or representation, either expressed or implied, is made with respect to the quality, accuracy or fitness for
any particular part of this document. In no event shall the manufacturer be liable for direct, indirect, special,
incidental or consequential damages arising from any defect or error in this manual or product.
Product names appearing in this manual are for identification purpose only and trademarks and product names or
brand names appearing in this document are the property of their respective owners.
This document contains materials protected under International Copyright Laws. All rights reserved. No part of this
manual may be reproduced, transmitted or transcribed without the expressed written permission of the manufacturer
and authors of this manual.
If you do not properly set the motherboard settings, causing the motherboard to malfunction or fail, we cannot
guarantee any responsibility.
Directive 2002/96/EC on Waste Electrical and Electronic Equipment (WEEE): (The mark and
information are applicable for EU-member states only.)
The use of the symbol indicates that this product may not be treated as household waste. By Ensurin
g
this product is disposed of correctly, you will help prevent potential ne
g
ative consequences for the
environment and human health, which could otherwise be cause by inappropriate waste handlin
g
of this
product. For more detailed information about recycling of this product, please contact your local city
office, your household waste disposal service or the shop where you purchased the product.
Best Management Practices for Perchlorate Materials:
Perchlorate Material – special handling may apply. See www.dtsc.ca.gov/hazardouswaste/perchlorate/.
环保使用期限标识说明 (The mark and information are applicable for People's Republic of China only.)
环保使用期限标识是根据<电子信息产品污染控制管理办法>以及<电子信息产品污染控制标识要
求>(SJ/T11364-2006) ，<电子信息产品环保使用期限通则>制定的，适用于中国境内销售的电子
信息产品的标识。
只要按照安全及使用说明内容在正常使用电子信息产品情况下、从生产月期算起，在此期限内产
品中含有的有毒有害物质不致发生外泄或突变、不致对环境造成严重污染或对其人身、财产造成
严重损害。产品正常使用后，要废弃在环保使用年限内或者刚到年限的产品，请根据国家标准采
取适当的方法进行处置。另外，此期限不同于质量/功能的保证期限。
有毒有害物质含有表 (This information is applicable for People's Republic of China only.)
产品中有毒有害物质或元素的名称及含量
有毒有害物质或元素
部件名称 铅(Pb) 汞(Hg) 镉(Cd) 六价铬(Cr(VI)) 多溴联苯(PBB) 多溴二苯醚
(PBDE)
PCB 板○○○○○○
结构件 ○○○○○○
芯片及其他主动件 ×○○○○○
连接器 ×○○○○○
被动电子元器件 ×○○○○○
焊接金属 ○○○○○○
线材 ○○○○○○
光盘 ○○○○○○
助焊剂、散热膏、标签及
其他耗材 ○○○○○○
○:表示该有毒有害物质在该部件所有均质材料中的含量均在 SJ/T11363-2006 标准规定的限量要求以下。
×:表示该有毒有害物质至少在该部件的某一均质材料中的含量超出 SJ/T11363-2006 标准规定的限量要求。

Hardware Setup BIOS Setup Driver & Utility Multilingual QIG Appendix
IP35V iii
Contents
1. Hardware Setup ............................................................... 1-1
1.1 Specifications............................................................................... 1-1
1.2 Motherboard Layout ..................................................................... 1-2
1.3 Choosing a Computer Chassis ....................................................... 1-3
1.4 Installing Motherboard ................................................................. 1-3
1.5 Checking Jumper Settings............................................................. 1-4
1.5.1 CMOS Memory Clearing Header and Backup Battery .............. 1-4
1.6 Connecting Chassis Components ................................................... 1-6

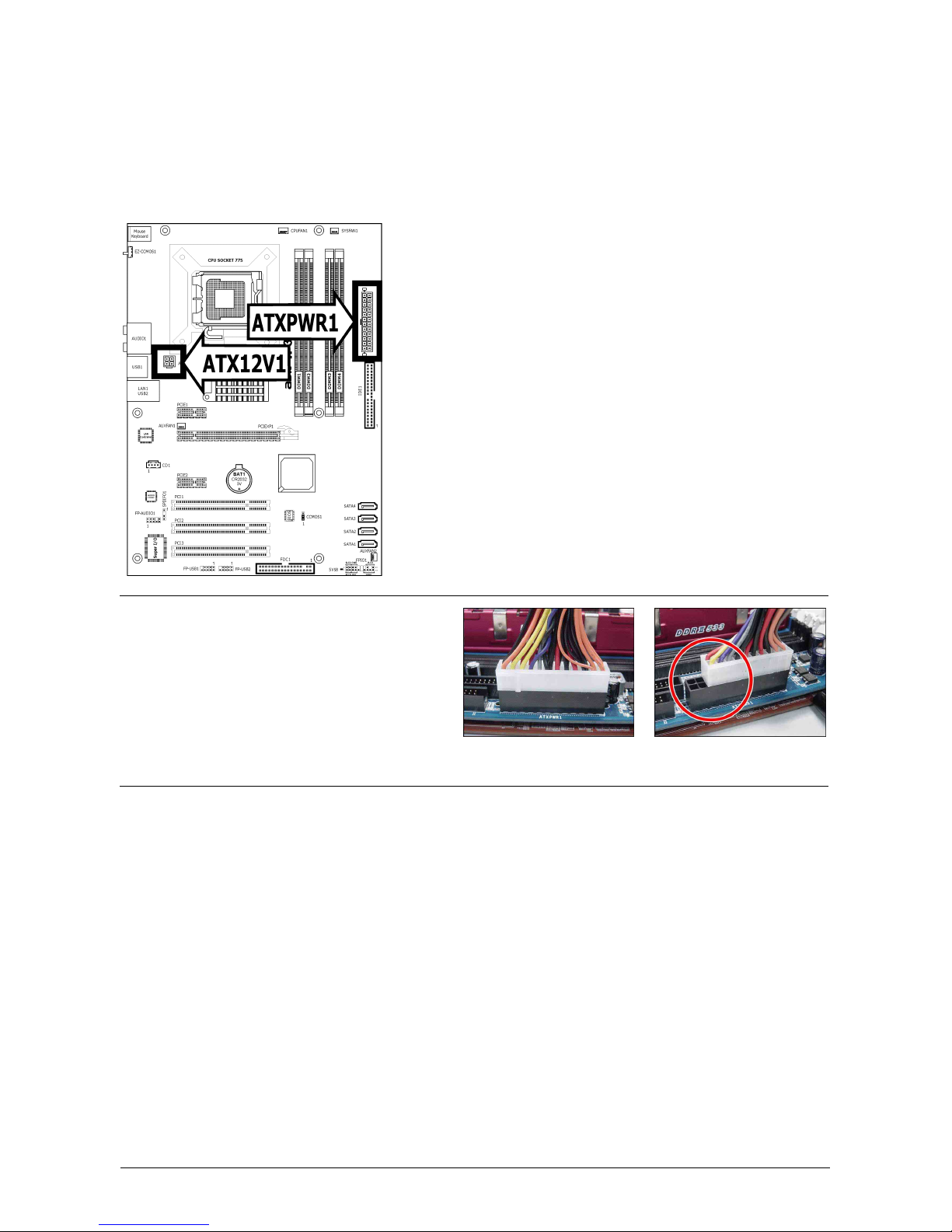

1.6.1 ATX Power Connectors......................................................... 1-6
1.6.2 Front Panel Switches & Indicators Headers ........................... 1-7

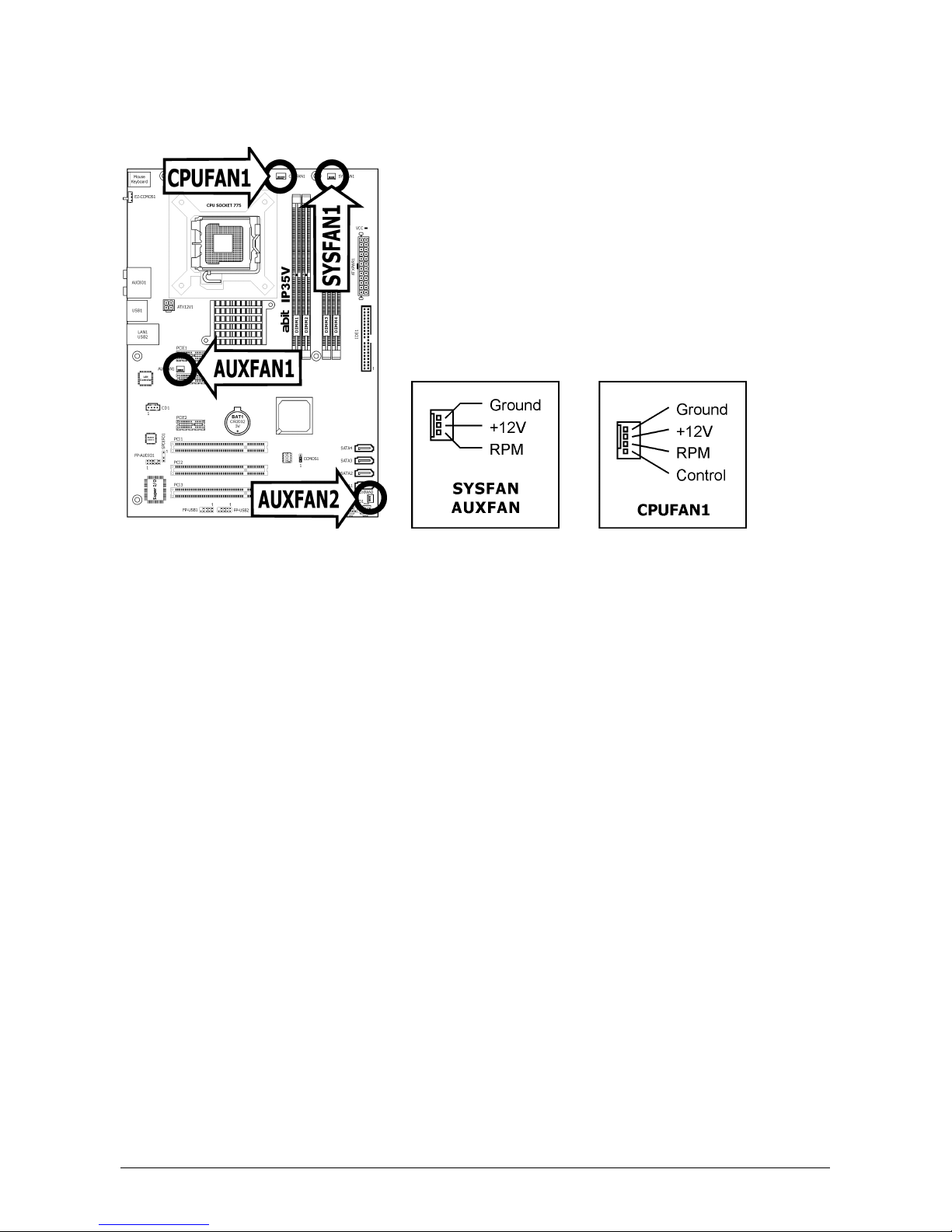

1.6.3 FAN Power Connectors ........................................................ 1-8
1.7 Installing Hardware...................................................................... 1-9

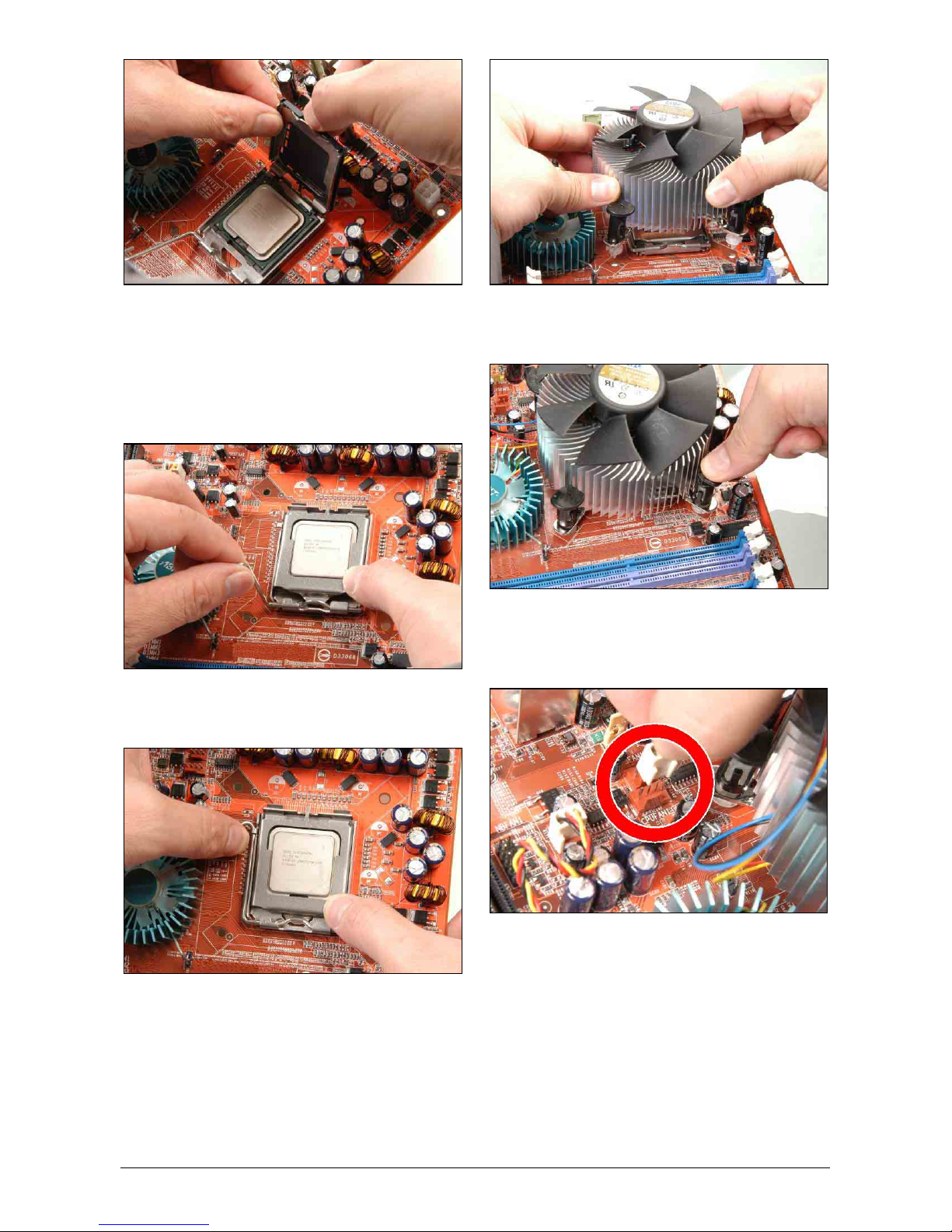

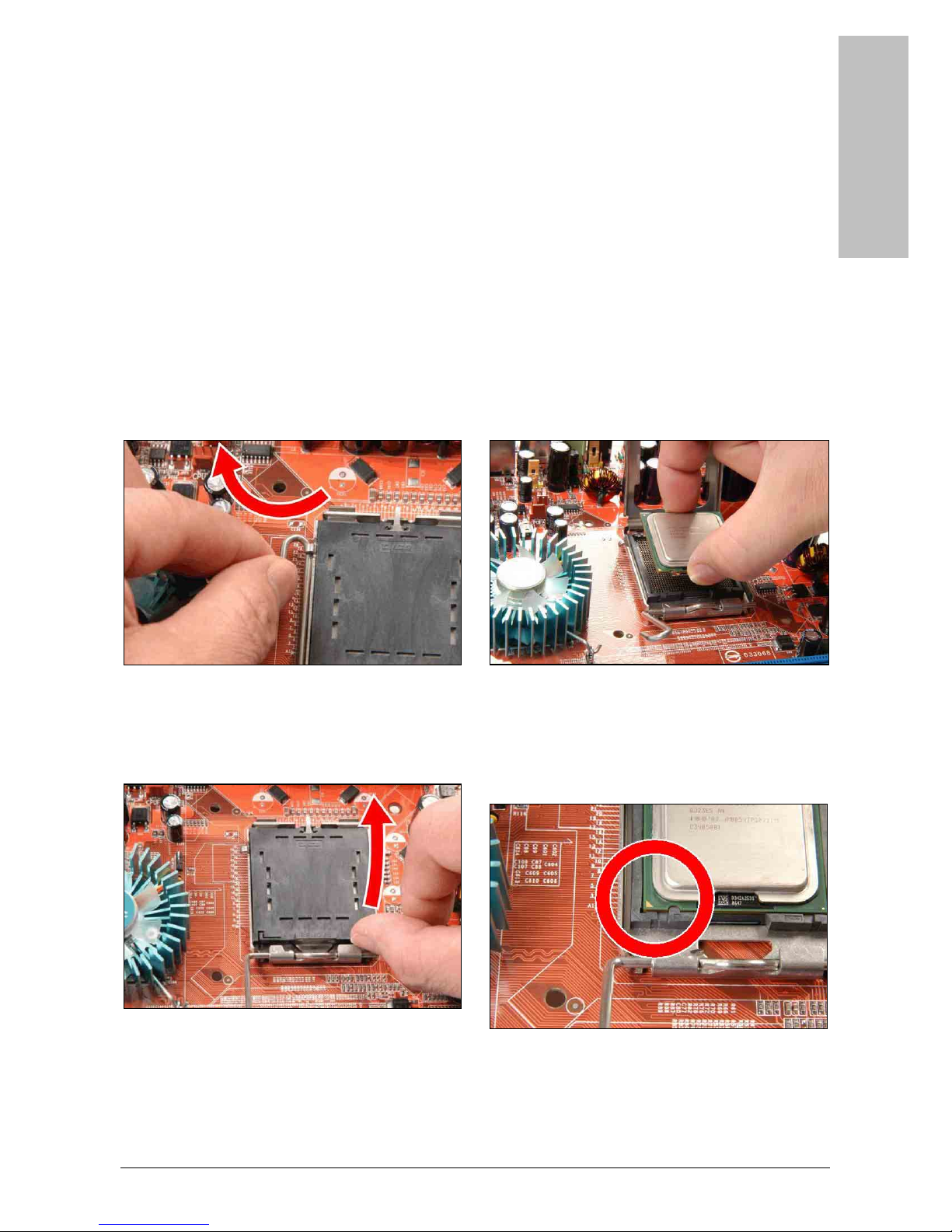

1.7.1 CPU Socket 775................................................................... 1-9
1.7.2 DDR2 Memory Slots........................................................... 1-11
1.8 Connecting Peripheral Devices .................................................... 1-12

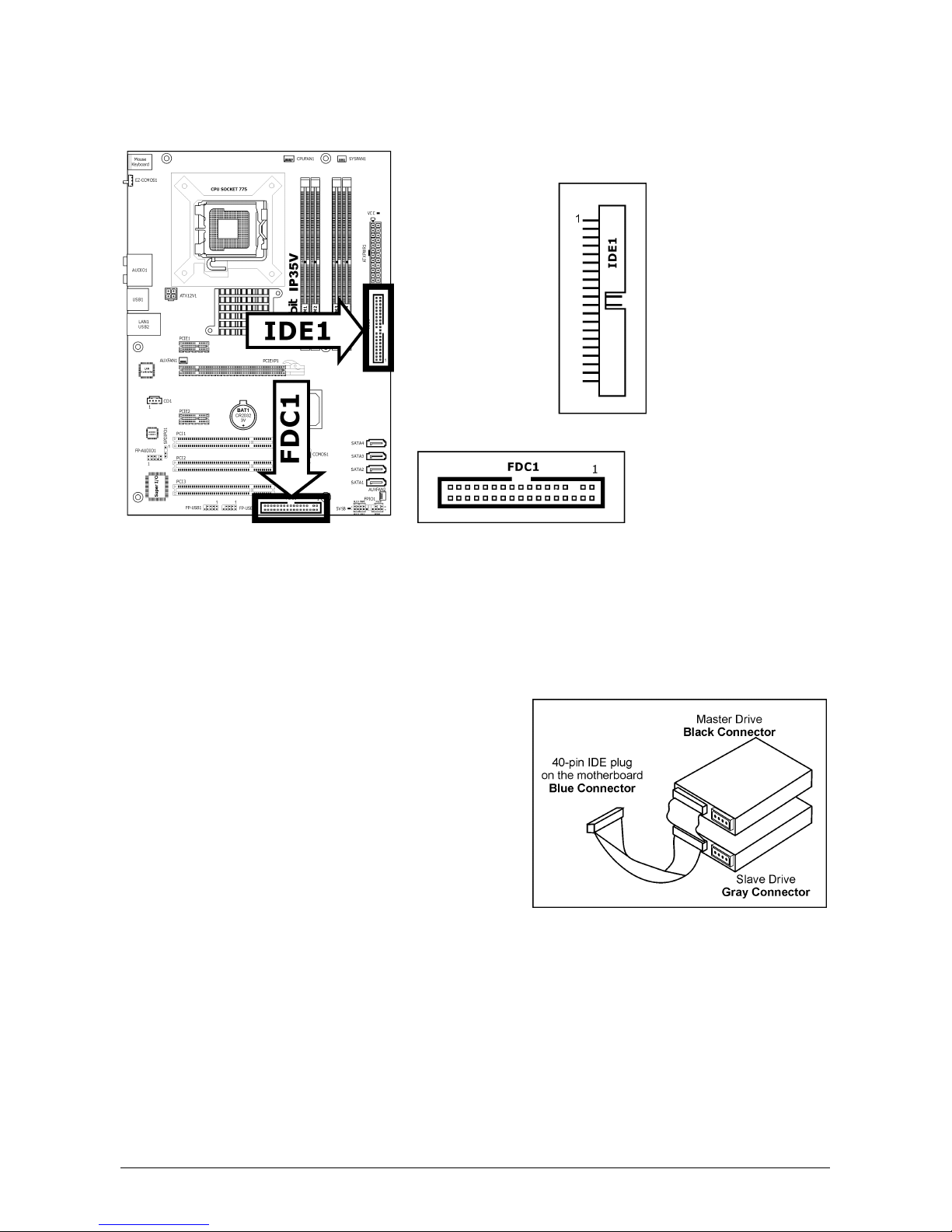

1.8.1 Floppy and IDE Disk Drive Connectors ................................ 1-12
1.8.2 Serial ATA Connectors ....................................................... 1-13
1.8.3 Additional USB 2.0 Port Headers......................................... 1-14
1.8.4 Internal Audio Connectors.................................................. 1-15
1.8.5 Front Panel Audio Connection Header ................................. 1-15

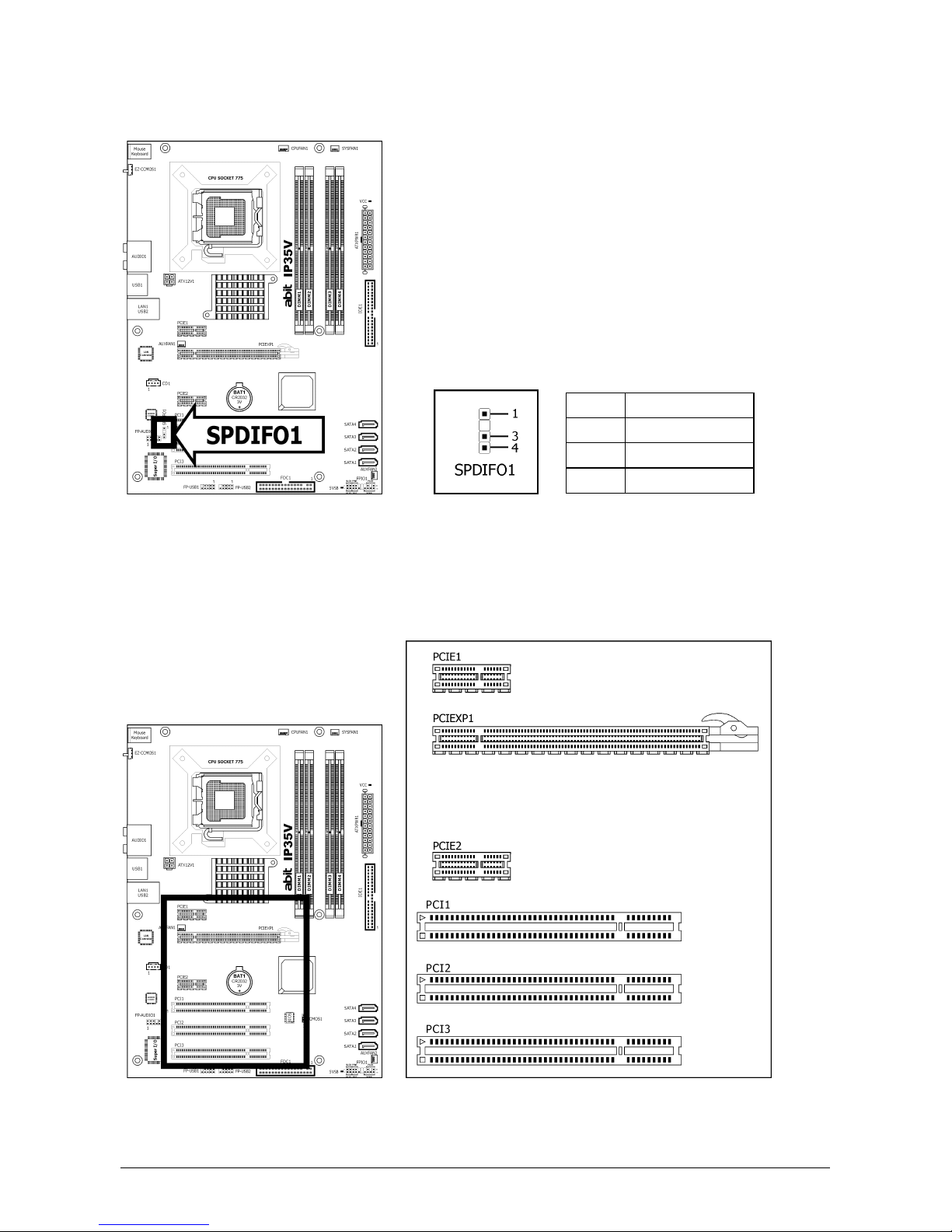

1.8.6 S/PDIF Output Connection Header...................................... 1-16
1.8.7 PCI and PCI Express X16, X1 Slots ..................................... 1-16
1.9 Onboard Indicators .................................................................... 1-17
1.10 Connecting Rear Panel I/O Devices ........................................... 1-18
2. BIOS Setup....................................................................... 2-1
2.1 SoftMenu Setup ........................................................................... 2-2
2.2 Standard CMOS Features.............................................................. 2-4
2.3 Advanced BIOS Features .............................................................. 2-7
2.4 Advanced Chipset Features......................................................... 2-11
2.5 Integrated Peripherals................................................................ 2-13
2.6 Power Management Setup .......................................................... 2-16
2.7 PnP/PCI Configurations .............................................................. 2-18
2.8 PC Health Status ........................................................................ 2-19
2.9 Load Fail-Safe Defaults............................................................... 2-22
2.10 Load Optimized Defaults........................................................... 2-22
2.11 Set Password ........................................................................... 2-22
2.12 Save & Exit Setup..................................................................... 2-22
2.13 Exit Without Saving .................................................................. 2-22
3. Driver & Utility ................................................................. 3-1
3.1 CD-ROM AUTORUN ...................................................................... 3-1

iv IP35V
3.2 Q-Install ...................................................................................... 3-2
3.3 Intel Chipset Software Installation Utility ....................................... 3-2
3.4 Audio Driver ................................................................................ 3-3
3.5 LAN Driver................................................................................... 3-4
3.6 USB 2.0 Driver ............................................................................. 3-4
3.7 Acrobat Reader 8.0 ...................................................................... 3-5
3.8 abitEQ......................................................................................... 3-6
3.9 FlashMenu (BIOS Update Utility) ................................................... 3-7
4. Multilingual Quick Installation Guide .............................. 4-1
4.1 Français//Guide d'Installation Rapide............................................. 4-1
4.2 Deutsch//Kurze Installationsanleitung............................................ 4-2
4.3 Italiano//Guida all’installazione rapida ........................................... 4-3
4.4 Español//Guía rápida de instalación............................................... 4-4
4.5 Português//Guia de instalação rápida ............................................ 4-5
4.6 Русский//Краткое руководство по установке .............................. 4-6
4.7 Eesti//Kiirpaigaldusjuhend ............................................................ 4-7
4.8 Latviski//Ātrās instalēšanas instrukcija........................................... 4-8
4.9 Lietuvių//Trumpas instaliavimo vadovas ........................................ 4-9
4.10 Polski//Instrukcja szybkiej instalacji........................................... 4-10
4.11 Magyar//Gyorstelepítési útmutató.............................................. 4-11
4.12 Türkçe//HızlıKurulum Kılavuzu.................................................. 4-12
4.13 اللغة العربية//دليل التركيب السريع....................... 4-13
4.14 فارسی// راﻩنمای نصب سریع............................................... 4-14
4.15 日本語//クイックインストールガイド ...................................... 4-15
4.16 한국어//빠른 설치 가이드 ....................................................... 4-16
4.17 Bahasa Malaysia//Panduan Pemasangan Ringkas ....................... 4-17
4.18 ไทย//คู่มือการติดตั้งอย่างย่อ ........................................................ 4-18
4.19 繁體中文................................................................................. 4-19
4.19.1 規格............................................................................... 4-19
4.19.2 快速安裝略說.................................................................. 4-20
4.20 简体中文................................................................................. 4-21
4.20.1 规格 ............................................................................... 4-21
4.20.2 快速安装略说.................................................................. 4-22
5. Appendix .......................................................................... 5-1
5.1 Troubleshooting (How to Get Technical Support?).......................... 5-1
5.1.1 Q & A ................................................................................. 5-1
5.1.2 Technical Support Form....................................................... 5-4
5.1.3 Contact Information............................................................. 5-5

Hardware Setup
IP35V 1-1
1. Hardware Setup
1.1 Specifications
CPU
• Designed for Intel Socket 775 Processor
with 1333/1066/800MHz FSB.
• Support Intel processor of:
Core 2 Quad / Core 2 Duo, & Pentium
Dual Core / Pentium D.
Chipset
• Intel P35 / ICH7
Memory
• 4x 240-pin DIMM slots support
maximum memory capacity up to 8GB.
• Supports Dual Channel DDR2
1066/800/667 Un-buffered Non-ECC
memory.
LAN
• Onboard Gigabit LAN Controller
Audio
• Onboard 7.1-Ch HD Audio Codec
• HDMI Audio Header Ready
Serial ATA
• 4x SATA 3Gb/s connectors
Expansion Slots
• 1x PCI-E X16 Slot
• 2x PCI-E X1 Slots
• 3x PCI Slots
Internal I/O Connectors
• 1x Floppy Port
• 1x Ultra ATA 100 IDE Connector
• 4x SATA 3Gb/s Connectors
• 2x USB 2.0 Headers
• 1x FP-Audio Header
• 1x CD-In Connector
• 1x S/PDIF Out Header
Rear Panel I/O
• 1x PS/2 Keyboard Connector
• 1x PS/2 Mouse Connector
• 1x External CMOS Clearing Switch
• 1x 7.1-Ch Audio Connector
• 4x USB 2.0 Connectors
• 1x RJ-45 Gigabit LAN Connector
abit Engineered
• External CMOS Clearing Switch
RoHS
• 100% Lead-free Process and RoHS
Compliant
Miscellaneous
• ATX Form Factor (305mm x 220mm)
• Vista HW Ready
※ Specifications and information contained herein are subject to change without
notice.
