Ablerex AB-ESS3000LV User manual

AB-ESS3000LV
INVERTER / CHARGER
Version: 1.2 EN
User Manual

1
Table of Contents
ABOUT THIS MANUAL .......................................................................................................................... 2
Purpose ................................................................................................................................................2
Scope ...................................................................................................................................................2
SAFETY INSTRUCTIONS....................................................................................................................... 2
INTRODUCTION ................................................................................................................................... 3
Features ...............................................................................................................................................3
Basic System Architecture ......................................................................................................................3
Product Overview ..................................................................................................................................4
INSTALLATION ..................................................................................................................................... 5
Unpacking and Inspection ......................................................................................................................5
Preparation ...........................................................................................................................................5
Mounting the Unit..................................................................................................................................5
Battery Connection ................................................................................................................................5
AC Input/Output Connection ..................................................................................................................7
PV Connection .......................................................................................................................................9
Final Assembly .................................................................................................................................... 10
Communication Connection .................................................................................................................. 10
Dry Contact Signal ............................................................................................................................... 10
OPERATION ........................................................................................................................................ 11
Power ON/OFF .................................................................................................................................... 11
Operation and Display Panel................................................................................................................. 11
LCD Display Icons................................................................................................................................ 12
LCD Setting ......................................................................................................................................... 14
Display Setting .................................................................................................................................... 19
Operating Mode Description ................................................................................................................. 22
Fault Reference Code........................................................................................................................... 23
Warning Indicator................................................................................................................................ 24
SPECIFICATIONS ............................................................................................................................... 25
Table 1: Line Mode Specifications ......................................................................................................... 25
Table 2: Inverter Mode Specifications ................................................................................................... 26
Table 3: Charging Mode Specifications .................................................................................................. 27
Table 4 General Specifications .............................................................................................................. 28
TROUBLESHOOTING .......................................................................................................................... 28
Appendix I: Approximate Back- up Time Table................................................................................. 29
Appendix II: Parallel function ........................................................................................................... 30

2
ABOUT THIS MANUAL
Purpose
This manual describes the assembly, installation, operation and troubleshooting of this unit. Please read
this manual carefully before installations and operations. Keep this manual for future reference.
Scope
This manual provides safety and installation guidelines as well as information on tools and wiring.
SAFETY INSTRUCTIONS
WARNING: This chapter contains important safety and operating instructions. Read and
keep this manual for future reference.
1. Before using the unit, read all instructions and warnings marked on the unit, the batteries and all
appropriate sections of this manual.
2. CAUTION --To reduce risk of injury, charge it with only deep-cycle lead acid type rechargeable
batteries. It might cause burst or result in physical injury and damage if you charge it with other types
of the batteries.
3. Do not disassemble the unit at will. For servicing or repairs, it’s advised to take it to an authorized service
center. Incorrect re-assembly may result in a risk of electric shock or fire.
4. To reduce the risk of electric shock, unplug all wirings from the wall outlet before any maintenance or
cleaning. Turning off the unit will not reduce this risk.
5. CAUTION –Only qualified personnel can install this device with battery.
6. NEVER charge a frozen battery.
7. For optimum operation of this inverter/charger, please follow required spec to select appropriate cable
size. It’s very important to correctly operate this inverter/charger.
8. Be very cautious when working with metal tools on or around the batteries. A potential risk exists when
you drop tools on or around the batteries. Spark, short circuited batteries or other electrical parts might
cause an explosion.
9. Please strictly follow installation procedure when you want to disconnect AC or DC terminals. Please
refer to the INSTALLATION section of this manual for the details.
10. Fuses are provided for over-current protection of the battery supply.
11. GROUNDING INSTRUCTIONS -This inverter/charger should be connected to a permanent grounded
wiring system. Be sure to comply with local requirements and regulation to install this inverter.
12. NEVER cause AC output and DC input short circuited. Do NOT connect to the mains when DC input short
circuits.
13. Warning!! Only qualified service staffs are able to operate this device. If errors still persist after
following the troubleshooting table, please send this inverter/charger back to the local dealer or service
center for maintenance.

3
INTRODUCTION
This is a multi-functional inverter/charger, combining the functions of inverter, PWM/MPPT solar charger and
battery charger to offer uninterruptible power support with portability. Its comprehensive LCD display offers
user-configurable and easy-accessible button operation such as battery charging current, priority setting for
AC/solar charger, and acceptable input voltage setting to suit different applications.
Features
Pure sine wave inverter
Built-in PWM/MPPT solar charge controller
Configurable input voltage range for home appliances and personal computers via LCD setting
Configurable battery charging current to suit different applications via LCD setting
Configurable priority of AC/Solar Charger via LCD setting
Compatible to mains voltage or generator power
Automatic restart while AC is recovering
Overload/ Over temperature/ short circuit protection
Smart battery charger design to optimize battery performance
Cold start function

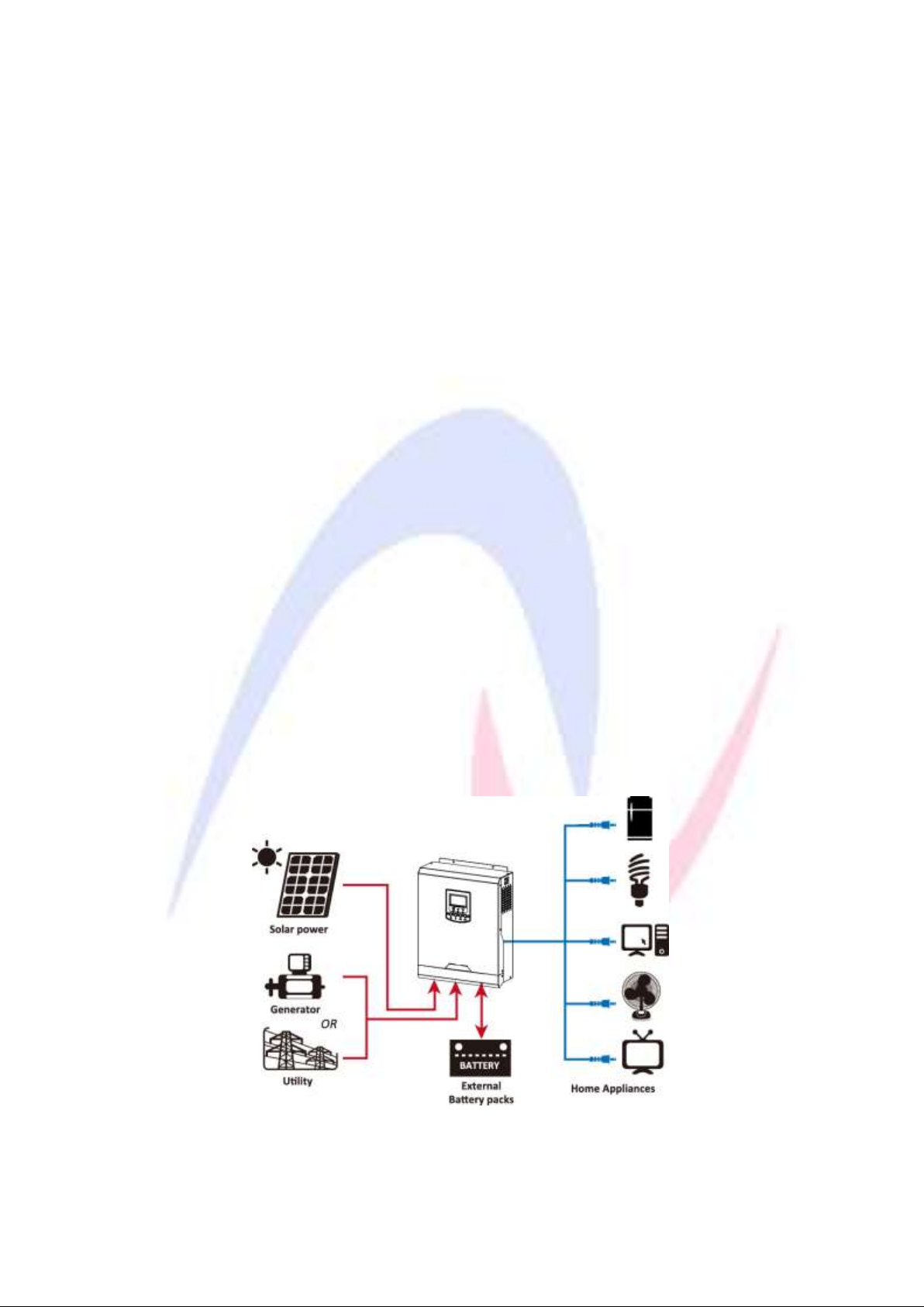

Basic System Architecture
The following illustration shows basic application of this inverter/charger. It also includes the following devices
to complete the whole running system:
Generator or Utility.
PV modules
Consult your system integrator for other possible system architectures depending on your requirements.
This inverter can power all kinds of appliances at home or in the office, including motor-type appliances such as
tube light, fan, refrigerator and air conditioner.
Figure 1 Hybrid Power System

4

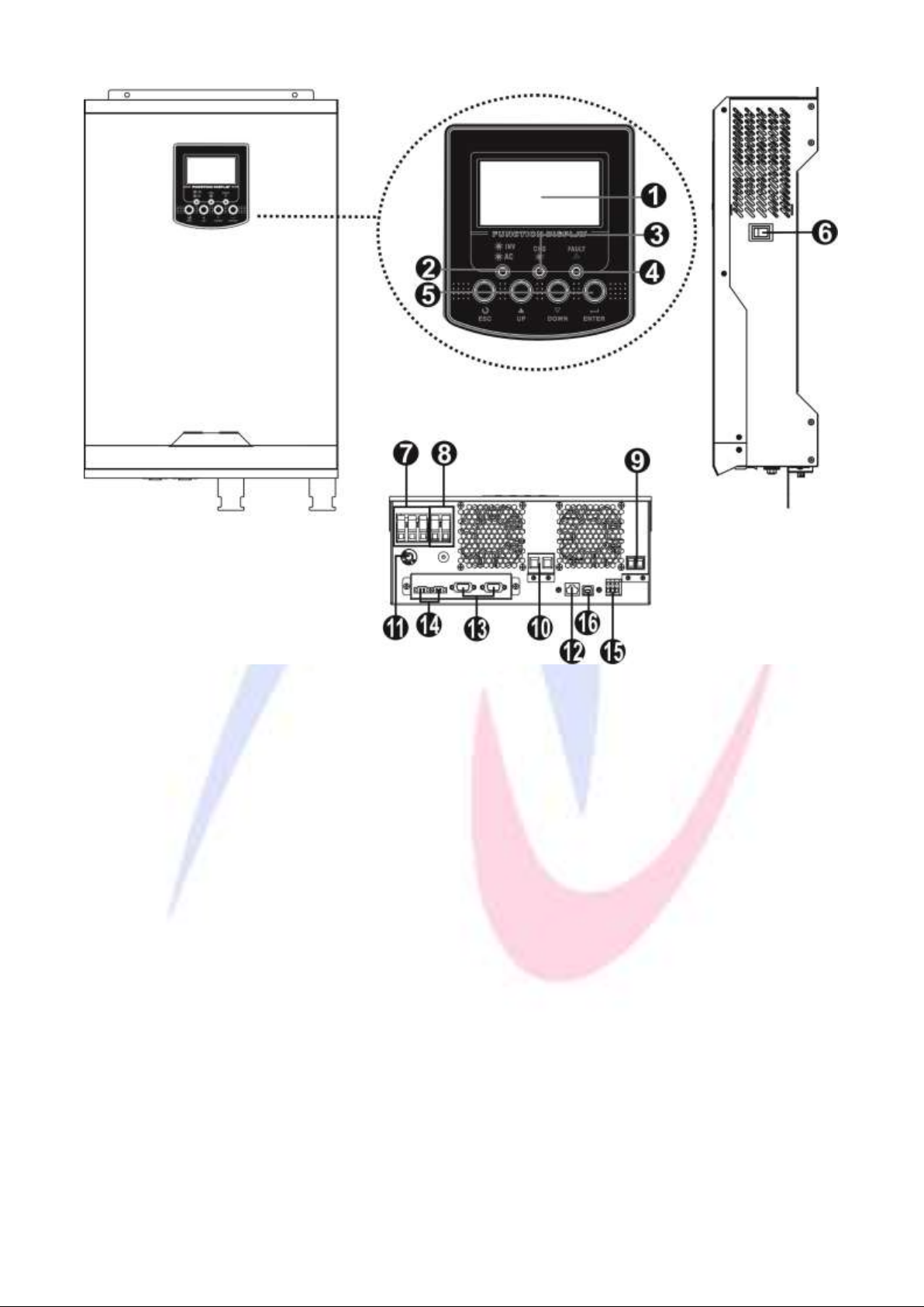

Product Overview
1. LCD display
2. Status indicator
3. Charging indicator
4. Fault indicator
5. Function buttons
6. Power on/off switch
7. AC input
8. AC output
9. PV input
10. Battery input
11. Circuit breaker
12. RS232 communication port
13. Parallel communication port (only for parallel model)
14. Current sharing port (only for parallel model)
15. Dry contact
16. USB communication port

5
INSTALLATION
Unpacking and Inspection
Before installation, please inspect the unit. Be sure that nothing inside the package is damaged. You should
have received the following items inside the package:
The unit x 1
User manual x 1
Communication cable x 1
Software CD x 1
Preparation
Before connecting all wirings, please take off the cover of the bottom by removing the two screws as shown
below.
Mounting the Unit
Consider the following points before selecting where to install:
⚫Do not mount the inverter on any flammable construction materials.
⚫Mount this inverter on a solid surface
⚫Install this inverter at eye level in order to read the LCD display at all
times.
⚫The ambient temperature should be between 0°C and 55°C to
ensure optimal operation.
⚫The inverter should be adhered to the wall vertically.
⚫Be sure to keep other objects away and leave the space in a minimum
as shown in the right diagram to guarantee sufficient heat dissipation and enough space for replacing wires.
SUITABLE FOR MOUNTING ON CONCRETE OR OTHER NON-COMBUSTIBLE SURFACE ONLY.
Install the unit by screwing two screws as shown in the diagram.
It’s recommended to use M4 or M5 screws.
Battery Connection
CAUTION: For safety operation and regulation compliance, it’s requested to install a

6
separate DC over-current protector or disconnect the device between battery and inverter. It may not be
necessary to disconnect the device for some applications, however, it’s requested to have over-current
protection installed. Please refer to the typical amperage in the table below as required fuse or size of the
breaker.
WARNING! All wiring must be performed by a qualified personnel.
WARNING! It's very important for system safety and efficient operation to use appropriate cable for battery
connection. To reduce risk of injury, please use proper cables and suitable size of terminal recommended below.
Recommended battery cables and size of terminal:
Model
Typical Amperage
Battery Capacity
Wire Size
Torque Value
3KVA 24V
100A
100AH/200AH
1*4AWG
2~ 3 Nm
Please follow the steps below to implement the battery connection:
1. Remove insulation sleeve 18 mm for positive and negative conductors.
2. Suggest to put bootlace ferr ules on the end of positive and negative wires
with a proper crimping tool.
3. Fix strain relief plate to the inverter by supplied screws as shown in below
chart.
4. Connect all battery packs as below chart.
5. Insert the battery wires flatly into battery connectors of inverter and make sure the bolts are tightened with
torque of 2 Nm in clockwise direction. Make sure polarity at both the battery and the inverter/charge is
correctly connected and conductors are tightly screwed into the battery terminals.
Recommended tool: #2 Pozi Screwdriver

7
6. To firmly secure wire connection, you may fix the wires to strain relief with cable tie.
WARNING: Shock Hazard
Installation must be performed with care due to high battery voltage in series.
CAUTION!! Do not place anything between the flat part of the inverter terminal and the ring
terminal. Otherwise, overheating may occur.
CAUTION!! Do not apply any anti-oxidant substance on the terminals before the terminals are
connected tightly.
CAUTION!! Before making the final DC connection or closing DC breaker/disconnector, be sure
positive (+) must be connected to positive (+) and negative (-) must be connected to negative (-).
AC Input/Output Connection
CAUTION!! Before connecting to AC input power source, please install a separate AC breaker between
inverter and AC input power source. This will ensure the inverter can be securely disconnected during
maintenance and fully protected from over current of AC input. The recommended spec of AC breaker is 40A for
3KVA.
CAUTION!! There are two terminal blocks with “IN” and “OUT” markings. Please do NOT mis-connect input and
output connectors.
WARNING! All wiring must be performed by the qualified personnel.
WARNING! It's very important for system safety and efficient operation to use appropriate cable for AC input
connection. To reduce risk of injury, please use the recommended cable size as below.
Suggested cable requirement for AC wires
Gauge
Torque Value
8 AWG
1.4~ 1.6Nm
Please follow below steps to implement AC input/output connection:
1. Before making AC input/output connection, be sure to open DC protector or disconnector first.

8

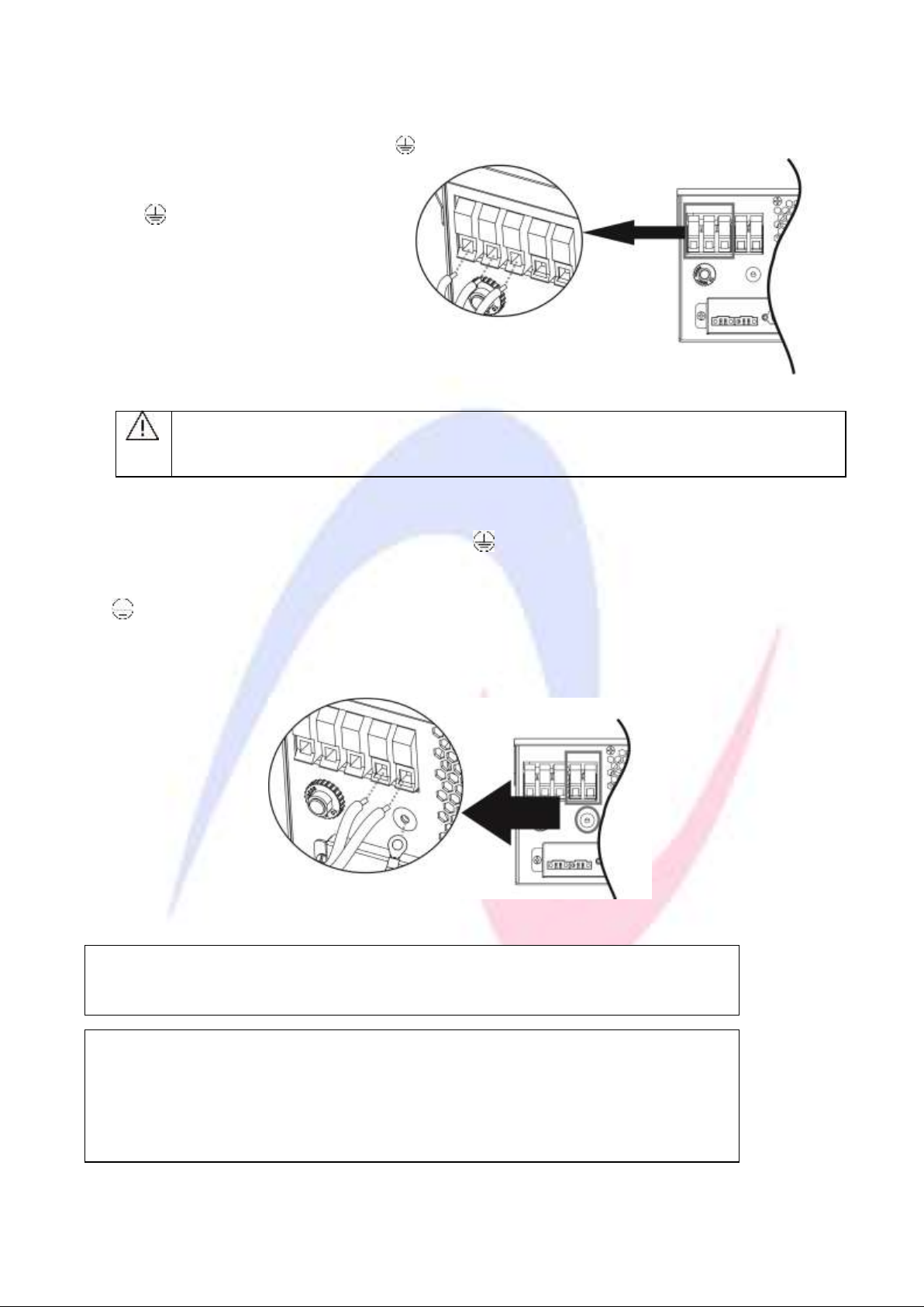

2. Remove insulation sleeve 10mm from the six conductors. And short-circuit phase L and neutral conductor N
3 mm.
3. Insert AC input wires according to polarities indicated on terminal block and tighten the terminal screws. Be
sure to connect PE protective conductor ( ) first.
→Ground (yellow-green)
L→LINE (brown or black)
N→Neutral (blue)
WARNING:
Be sure that AC power source is disconnected before attempting to hardwire it to the unit.
4. Then, insert AC output wires according to polarities indicated on terminal block and fasten the terminal
screws. Be sure to connect PE protective conductor ( ) first.
5.
→Ground (yellow-green)
L→LINE (brown or black)
N→Neutral (blue)
6. Make sure the wires are securely connected.
CAUTION: Important
Be sure to connect AC wires with correct polarity. If L and N wires are connected
reversely, it may cause utility short-circuited when these inverters are worked in
parallel operation.
CAUTION: Appliances such as air conditioner are required at least 2~3 minutes to restart
because it’s required to have enough time to balance refrigerant gas inside of circuits. If a
power shortage occurs and recovers in a short time, it will cause damage to your connected
appliances. To prevent this kind of damage, please check with the manufacturer of the air
conditioner if it’s equipped with time-delay function before installation. Otherwise, this
inverter/charger will cause overload fault and cut off the output to protect your appliance but
sometimes it still causes internal damage to the air conditioner.

9
PV Connection
CAUTION: Before connecting to PV modules, please install separately a DC circuit breaker between inverter
and PV modules.
WARNING! All wiring must be performed by a qualified personnel.
WARNING! It's very important for system safety and efficient operation to use appropriate cable for PV module
connection. To reduce risk of injury, please use the recommended cable size as below.
Model
Typical Amperage
Cable Size
Torque
Model with PWM
50A
8 AWG
1.4~1.6 Nm
Model with MPPT
80A
6 AWG
1.4~1.6 Nm
PV Module Selection:
When selecting proper PV modules, please be sure to consider the parameters below:
1. Open circuit Voltage (Voc) of PV modules can’t exceed the maximum voltage of the PV array open circuit of
the inverter.
2. Open circuit Voltage (Voc) of PV modules should be higher than the minimum voltage of the battery.
Please follow the steps below to implement PV module connection:
1. Remove insulation sleeve 10 mm from positive and negative conductors.
2. Check the correct polarity of connected cable from PV modules and PV input
connectors. Then, connect positive pole (+) of connection cable to positive
pole (+) of PV input connector. Connect negative pole (-) of connection
cable to negative pole (-) of PV input connector.
3. Make sure the wires are securely connected.
Solar Charging Mode
Solar Charger Type
PWM
MPPT
Max. PV Array Open Circuit Voltage
80Vdc
145Vdc
PV Array MPPT Voltage Range
N/A
30~80Vdc
Operating Voltage Range
30~40Vdc
N/A
Min. battery voltage for PV charge
17Vdc
17Vdc

10
Final Assembly
After connecting all wirings, please put the bottom cover back by fixing two screws as shown below.
Communication Connection
Please use supplied communication cable to connect to inverter and PC. Insert bundled CD into a computer and
follow the on-screen instructions to install the monitoring software. For the detailed software operations, please
check user manual of software inside the CD.
Dry Contact Signal
There is one dry contact (3A/120VAC) available on the rear panel. It could be used to deliver signal to external
device when battery voltage reaches warning level.
Unit
Status
Condition
Dry contact port:
NC & C
NO & C
Power Off
Unit is off and no output is powered.
Close
Open
Power On
Output is powered from Utility.
Close
Open
Output is
powered
from Battery
or Solar.
Program
01 set as
Utility
Battery voltage < Low DC warning
voltage
Open
Close
Battery voltage > Setting value in
Program 13 or battery charging
reaches floating stage
Close
Open
Program
01 is set
as SBU or
Solar first
Battery voltage < Setting value in
Program 12
Open
Close
Battery voltage > Setting value in
Program 13 or the battery
charging reaches the floating
stage
Close
Open

11
OPERATION
Power ON/OFF
Once the unit has been properly installed and the batteries are connected well, simply press On/Off switch
(located on the right corner of the rear panel) to turn on the unit.
Operation and Display Panel
The operation and display panel, as shown in the chart below, are on the front panel of the inverter. It
includes three indicators, four function keys and an LCD display, indicating the operating status and
input/output power information.
LED Indicator
LED Indicator
Messages
Green
Solid On
Output is powered by utility in Line mode.
Flashing
Output is powered by battery or PV in battery mode.
Green
Solid On
Battery is fully charged.
Flashing
Battery is charging.
Red
Solid On
Fault occurs in the inverter.
Flashing
Warning occurs in the inverter.
Function Keys
Function Key
Description
ESC
To exit setting mode
UP
To go to previous selection
DOWN
To go to next selection
ENTER
To confirm the selection in setting mode or enter setting mode
LCD display
LED
indicators
Function
keys

12
LCD Display Icons
Icon
Function description
Input Source Information
Indicates the AC input.
Indicates the PV input
Indicates input voltage, input frequency, PV voltage, battery voltage and
charger current.
Configuration Program and Fault Information
Indicates the setting programs.
Indicates the warning and fault codes.
Warning: flashing with warning code.
Fault: lighting with fault code
Output Information
Indicate output voltage, output frequency, load percent, load in VA, load in
Watt and discharging current.
Battery Information
Indicates battery level by 0-24%, 25-49%, 50-74% and 75-100% in battery
mode and charging status in line mode.
In AC mode, it will present battery charging status.
Status
Battery voltage
LCD Display
Constant
Current mode /
Constant
Voltage mode
<2V/cell
4 bars will flash in turns.
2 ~ 2.083V/cell
Bottom bar will be on and the other three
bars will flash in turns.
2.083 ~ 2.167V/cell
Bottom two bars will be on and the other
two bars will flash in turns.
> 2.167 V/cell
Bottom three bars will be on and the top
bar will flash.

13
In floating mode, batteries are fully charged.
4 bars will be on.
In battery mode, it will present battery capacity.
Load Percentage
Battery Voltage
LCD Display
Load >50%
< 1.717V/cell
1.717V/cell ~ 1.8V/cell
1.8 ~ 1.883V/cell
> 1.883 V/cell
50%> Load > 20%
< 1.817V/cell
1.817V/cell ~ 1.9V/cell
1.9 ~ 1.983V/cell
> 1.983
Load < 20%
< 1.867V/cell
1.867V/cell ~ 1.95V/cell
1.95 ~ 2.033V/cell
> 2.033
Load Information
Indicates overload.
Indicates the load level by 0-24%, 25-50%, 50-74% and 75-100%.
0%~25%
25%~50%
50%~75%
75%~100%
Mode Operation Information
Indicates unit connects to the mains.
Indicates unit connects to the PV panel.
Indicates load is supplied by utility power.

14
Indicates the utility charger circuit is working.
Indicates the DC/AC inverter circuit is working.
Mute Operation
Indicates the alarm is disabled.
LCD Setting
After pressing and holding the ENTER button for 3 seconds, the unit will enter setting mode. Press “UP” or
“DOWN” button to select setting programs. And then, press “ENTER”button to confirm the selection or ESC
button to exit.
Setting Programs:
Program
Description
Selectable option
00
Exit setting mode
Escape
01
Output source priority:
To configure load power
source priority
Solar first
Solar energy provides power to the
loads as first priority. If solar energy is
not sufficient to power all connected
loads, battery energy will supply
power to the loads at the same time.
Utility provides power to the loads
only when any one condition stated
below happens:- Solar energy is not
available- Battery voltage drops to
either low DC warning voltage or the
setting point in program 12.
Utility first (default)
Utility will provide power to the loads
as first priority. Solar and battery
energy will provide power to the loads
only when utility power is not
available.
SBU priority
Solar energy provides power to the
loads as first priority.If solar energy is
not sufficient to power all connected
loads, battery energy will supply
power to the loads at the same time.
Utility provides power to the loads
only when battery voltage drops to
either low DC warning voltage or the
setting point in program 12.

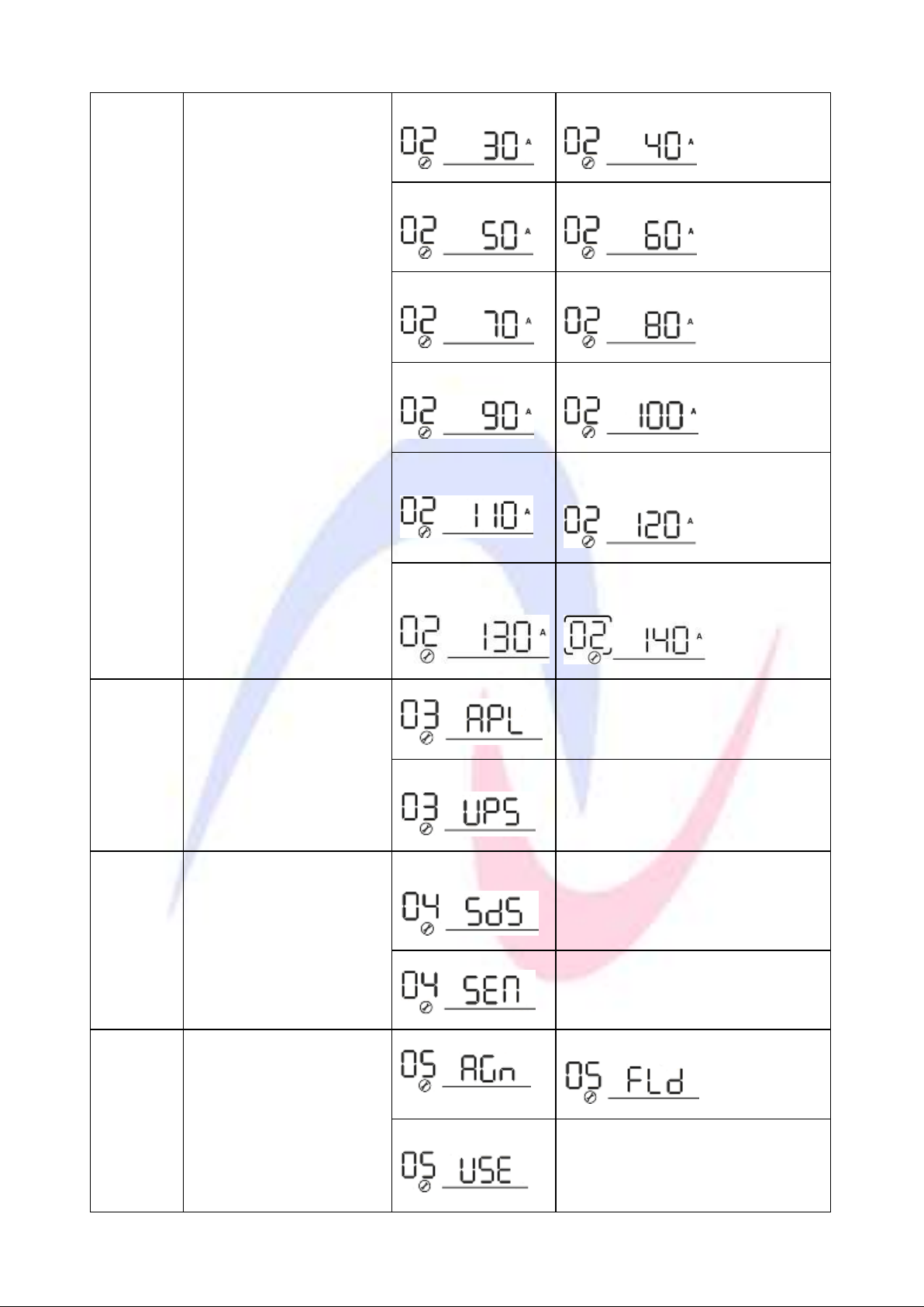

02
Maximum charging current:
To configure the total
charging current for solar
and utility chargers.
(Max. charging current =
utility charging current +
solar charging current)
10A
20A

15
02
Maximum charging current:
To configure the total
charging current for solar
and utility chargers.
(Max. charging current =
utility charging current +
solar charging current)
30A
40A
50A
60A (default)
70A
80A
90A
100A
110A
120A (only for 3KVA with MPPT
models)
130A (only for 3KVA
with MPPT models)
140A (only for 3KVA with MPPT
models)
03
AC input voltage range
Appliances (default)
If selected, acceptable AC input
voltage range will be within
90-280VAC.
UPS
If selected, acceptable AC input
voltage range will be within
170-280VAC.
04
Power saving mode
enable/disable
Saving mode disable
(default)
If disabled, no matter connected load
is low or high, the on/off status of
inverter output will not be effected.
Saving mode enable
If enabled, the output of inverter will
be off when connected load is pretty
low or not detected.
05
Battery type
AGM (default)
Flooded
User-Defined
If “User-Defined” is selected, battery
charge voltage and low DC cut-off
voltage can be set up in program 26,
27 and 29.

16
06
Automatically restart when
overload occurs
Restart disable
(default)
Restart enable
07
Automatically restart when
over temperature occurs
Restart disable
(default)
Restart enable
08
Output voltage
110V
120V (default)
09
Output frequency
50Hz (default)
60Hz
11
Maximum utility charging
current
2A
10A
20A
30A (default)
40A
50A
60A
12
Setting voltage point back
to utility source when
selecting “SBU priority” or
“Solar first”in program 01.
22.0V
22.5V
23.0V (default)
23.5V
24.0V
24.5V
25.0V
25.5V

17
13
Setting voltage point back
to battery mode when
selecting “SBU priority”or
“Solar first”in program 01.
Battery fully charged
24V
24.5V
25V
25.5V
26V
26.5V
27V (default)
27.5V
28V
28.5V
29V
16
Charger source priority:
To configure the priority of
charger source
If this inverter/charger is working in Line, Standby or Fault
mode, charger source can be programmed as below:
Solar first
Solar energy will charge battery as
first priority.
Utility will charge battery only when
solar energy is not available.
Utility first
Utility will charge battery as first
priority.
Solar energy will charge battery only
when utility power is not available.
Solar and Utility
Solar energy and utility will charge
battery at the same time.
Only Solar
Solar energy will be the only charger
source no matter utility is available or
not.
If this inverter/charger is working in Battery mode or Power
saving mode, only solar energy can charge battery. Solar
energy will charge battery if it's available and sufficient.

18

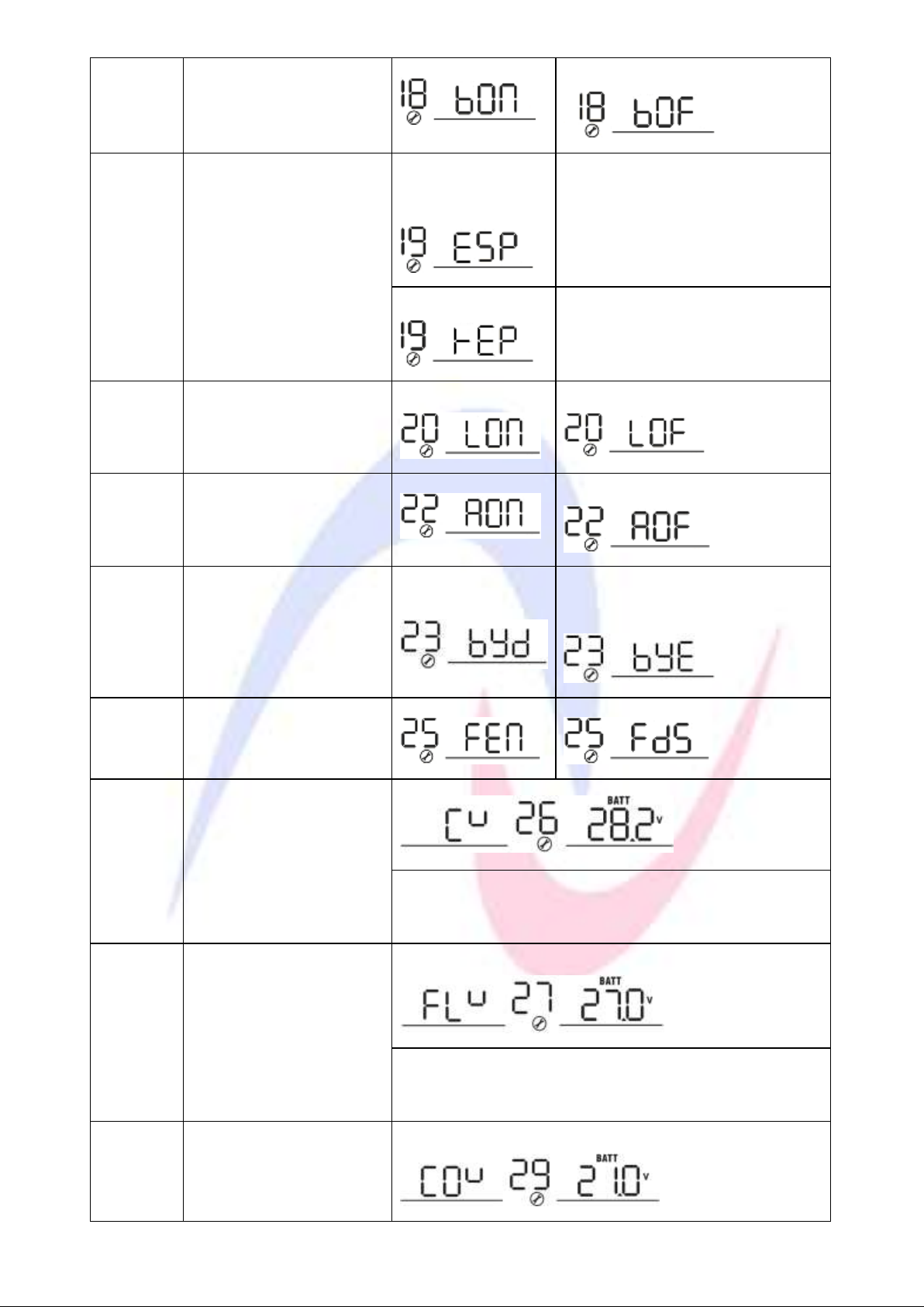

18
Alarm control
Alarm on (default)
Alarm off
19
Automatically return to
default display screen
Return to default
display screen
(default)
If selected, no matter how users
switch display screen, it will
automatically return to default display
screen (Input voltage /output voltage)
after no button is pressed for 1
minute.
Stay at latest screen
If selected, the display screen will stay
at the latest screen user finally
switches.
20
Backlight control
Backlight on (default)
Backlight off
22
Beeps while primary source
is interrupted
Alarm on (default)
Alarm off
23
Overload bypass:
When enabled, the unit will
transfer to line mode if
overload occurs in battery
mode.
Bypass disable
(default)
Bypass enable
25
Record Fault code
Record enable
Record disable (default)
26
Bulk charging voltage
(C.V voltage)
default setting: 28.2V
If self-defined is selected in program 5, this program can be set
up. Setting range is from 24.0V to 29.2V. Increment of each
click is 0.1V.
27
Floating charging voltage
default setting: 27.0V
If self-defined is selected in program 5, this program can be set
up. Setting range is from 24.0V to 29.2V. Increment of each
click is 0.1V.
29
Low DC cut-off voltage
default setting: 21.0V

19
If self-defined is selected in program 5, this program can be set
up. Setting range is from 20.0V to 24.0V. Increment of each
click is 0.1V. Low DC cut-off voltage will be fixed to setting
value no matter what percentage of load is connected.
31

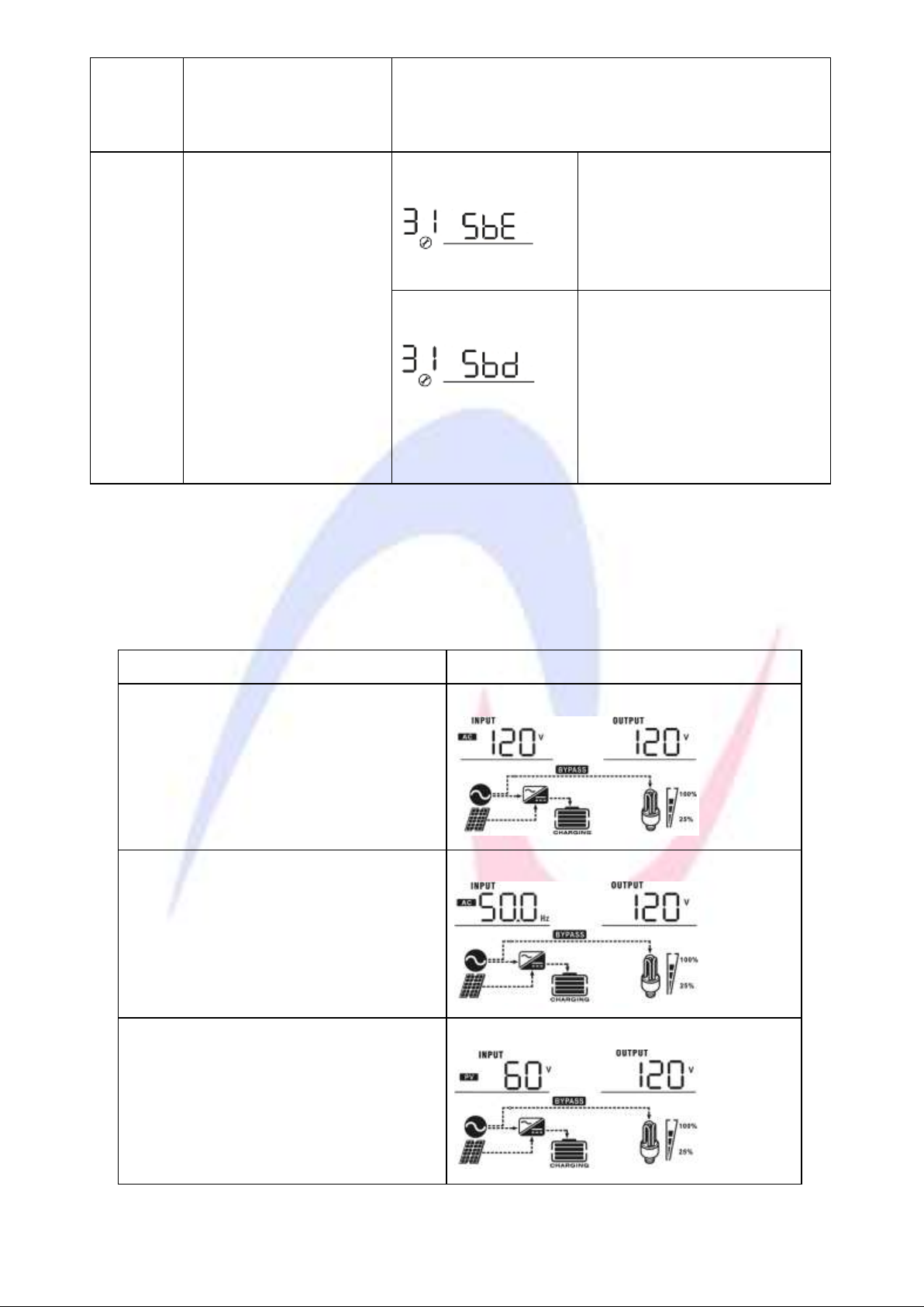

Solar power balance:
When enabled, solar input
power will be automatically
adjusted according to the
connected load power.
Solar power balance
enable (Default):
If selected, solar input power will
be automatically adjusted
according to the following formula:
Max. input solar power = Max.
battery charging power +
Connected load power.
Solar power balance
disable:
If selected, the solar input power
will be the same as max. battery
charging power no matter how
many loads are connected. The
max. battery charging power will
be based on the setting current in
program 02.
(Max. solar power = Max. battery
charging power)
Display Setting
The LCD display information will be switched in turns by pressing “UP” or “DOWN” key. The selectable
information is switched as below order: input voltage, input frequency, PV voltage, MPPT charging
current, MPPT charging power, battery voltage, output voltage, output frequency, load percentage,
load in VA, load in Watt, DC discharging current, main CPU Version and second CPU Version.
Selectable information
LCD display
Input voltage/Output voltage
(Default Display Screen)
Input Voltage=120V, output voltage=120V
Input frequency
Input frequency=50Hz
PV voltage
PV voltage=60V
