Abode Chao AB4044 User manual

Important Technical Data
Minimum operating pressure 1.5 bar* (Bath), 1.0 bar* (Shower)
Maximum operating pressure 5.0 bar*
Maximum hot water temperature 70°C*
ecommended hot water temperature 46°C
Note: If these temperatures or pressures are exceeded, even for
short periods, damage can result. In these instances a
thermostatic mixing or pressure reducing valve should be
installed.
For manual mixing products we recommend the installation of a
separate TMV2 product to reduce the risk of accidental scalding.
All thermostatic products should be tested and cleaned at least
once a year.
Hot and cold supply pressures should be as closely balanced as
possible for best results. Supply pipes should maintain the
maximum diameter until immediately before the fitting. The
differential between the hot and cold water supply temperatures
should be sufficient to allow correct mixing function.
Manufacturers Product Reference
©Abode
09/2017
All Abode taps are either W AS approved or
manufactured in accordance with recognised European
standards. Please ensure that your Abode product is
fitted in accordance with Local Water Byelaws.
Where hot and cold water mix within any product, then
suitable non return valves should be installed to the hot
and cold supplies to prevent backflow.
Whilst assembling this product take care not to
accidentally loosen any screwed assemblies. PTFE tape
can be used to ensure watertight joins on threaded
connections, do not over tighten connections or allow
pipes to be twisted or folded.
The installation should be periodically checked for
damage, if the property is left unattended for a prolonged
period we recommend isolating water supplies.
All errors and omissions excepted.
Unit L, Zenith Park, Whaley oad, Barnsley, S75 1HT.
Tel: [phone] Fax: [phone] www.abodedesigns.co.uk
All errors and omissions excepted.
AB4044
Chao Wall Mounted Bath Shower Mixer
5 Year warranty
Terms and Conditions
In the unlikely event that you should experience any
defect in the materials or workmanship of your new
Abode tap within FIVE years of purchase, the
purchaser’s sole remedy shall be the replacement
(at the manufacturer’s discretion) of all or any part of
the product that is defective. All working parts and
valves are guaranteed for a period of FIVE years
from purchase. Decorative surface finishes and O-
rings are guaranteed for ONE year from the date of
purchase provided that our advice concerning care
has been observed and no scouring agents have
been used.
This is provided that the tap has been used for
normal domestic purposes in the UK and that the
care, installation and maintenance instructions have
been observed. The warranty extends to the original
purchaser only. You should retain a copy of your
dated invoice as proof of purchase to validate any
claims under this guarantee.
Marks, scuffs and scratches caused by improper
installation or accidental damage are not covered by
this guarantee. Neither are shade variations or any
damage or defect caused by incorrect installation or
abuse of the fitting.
As we are continuously improving and developing
our range of products, finishes & colours, in the
event of a valid claim, we may not be able to provide
an identical replacement for the defective product
throughout the guarantee period. Where an identical
product is no longer available, we will supply the
nearest equivalent from our then current product
range. In assessing your claim, we must be given
the opportunity to inspect the product as installed
prior to removal. Any product returns must be
packaged as received and complete.
No other warranties, express or implied, are made,
including merchantability or fitness for a particular
purpose. Under no circumstances shall the
manufacturer be liable for any loss or damage
arising from the purchase, use or inability to use this
product, or for any special, indirect, incidental or
consequential damages. No liability is accepted for
consequential damage to other household fixtures,
fittings or furnishings arising from this claim, even if
attached to the product. No installer, dealer, agent or
employee of Abode has the authority to modify the
obligations or limitations of this warranty.
Care Instructions for your Bath Mixer
To maintain the appearance of this tap, ensure that it is regularly cleaned only using a clean, soft damp cloth. A
solution of warm water and a mild liquid detergent may be used where necessary, and then the fitting rinsed
thoroughly and wiped dry. Any other cleaning action or cleaning products will invalidate your warranty.
If the product has a removable spout diffuser it can be unscrewed and cleaned periodically in warm water to maintain
flow.
Abrasive cleaners, scouring cleaners, limescale cleaners and acidic cleaners must not be used under any
circumstances. Avoid contact with all solvents (including chlorinated solvents, ketones or acetones as these may
result in surface deterioration or etching). Also avoid contact with any harsh household chemicals such as bleach
cleaners, drain cleaners, rust removers, paint strippers and toilet bowl cleaners, toothpaste, mouthwash, bar keepers
friend or Brasso.
Please leave these instructions for your customer

Preparation
All parts should be removed from their packaging and inspected for any transport damage and completeness prior to
installation; you should read these instructions throughout before commencing installation.
We do not accept responsibility for problems that may occur through improper installation. Always ensure you have
sufficient hot and cold water pressure available to allow correct function before specifying or installing this product.
Before installing the new mixer it is essential that you thoroughly flush through the supply pipes in order to remove
any remaining solder, swarf or impurities from your system. Failure to carry out this simple procedure could cause
problems or damage to the workings of the product.
We strongly recommend installing particle filters and isolation valves to both the hot and cold feed pipes in an
accessible position. This will help to prevent premature failure of the valves and ease any future maintenance.
All serviceable parts should be given suitable access to allow easy future maintenance.
Shut off your water heating system and ensure that your mains stopcock is closed. Ensure both the hot and cold
water supplies are isolated before commencing installation.
1. Open the wall out to the required width and depth for the product and plumbing connections. If the rear
wall surface is uneven then mount a level wood back board to the wall to ease installation. The rear of the
mixer body must be parallel with the finished wall surface.
• All serviceable parts should be given suitable access to allow easy future maintenance.
• When preparing the piping run to this mixer, arrange the hot and cold pipes to be received to
the bottom hand inlets when viewed from the front as shown below, and the cold inlet to the
right side as shown.
• You should ensure that both the product and required fittings will fit into the depth and area of
the mounting surface available before installation. oughly assemble the product and
plumbing connections to establish the required sizes ‘A-C’.
‘A’ Mixer body height = 68mm ‘B’ Mixer body plate length =
345mm
‘C’ Distance between hot and cold
inlets = 35mm apx
• Mark out location of the mixer body and pencil in the locations for the wall fittings as shown
Note: Use a spirit level to ensure that the mixer body is parallel
• Once parallel drill the holes for the wall fittings to fix mixer body to the wall.
Note: Fittings depth required is 64-75 (mm)
Service Instructions
Cleaning the aerator
1. Unscrew aerator using aerator
key which is supplied
2. Turn water flow on and clean
aerator
3. Once clean of debris screw
back onto spout as shown.
eplacing the valve cartridge

After installation
Once you have visually checked the installation of the new tap and all connections, ensure that all other fittings are closed
except the tap which should be left open.
Turn on your water heating system and ensure that your mains stopcock is open. econnect both the hot and cold water
supplies to this fitting.
Check the function of flow and function of hot, cold and mixed water.
Turn off the tap and check carefully for any leaks around all connections on the fitting and adjoining plumbing.
If possible return to the installation after a longer period to double check for slower leaks. If pressure testing equipment is
available check the installation to the maximum recommended pressure.
Clean the tap to remove any marks created during installation as instructed then place a bag over the product to protect the
tap until it is ready for use.
1. Once fitted turn water system on to
flush system through, and check if the
connections are water tight.
2. Finish the tiling to the final aperture size.
3. Discard plastic covers and brass water blockers as shown. Note: Do not discard 4 x bolts

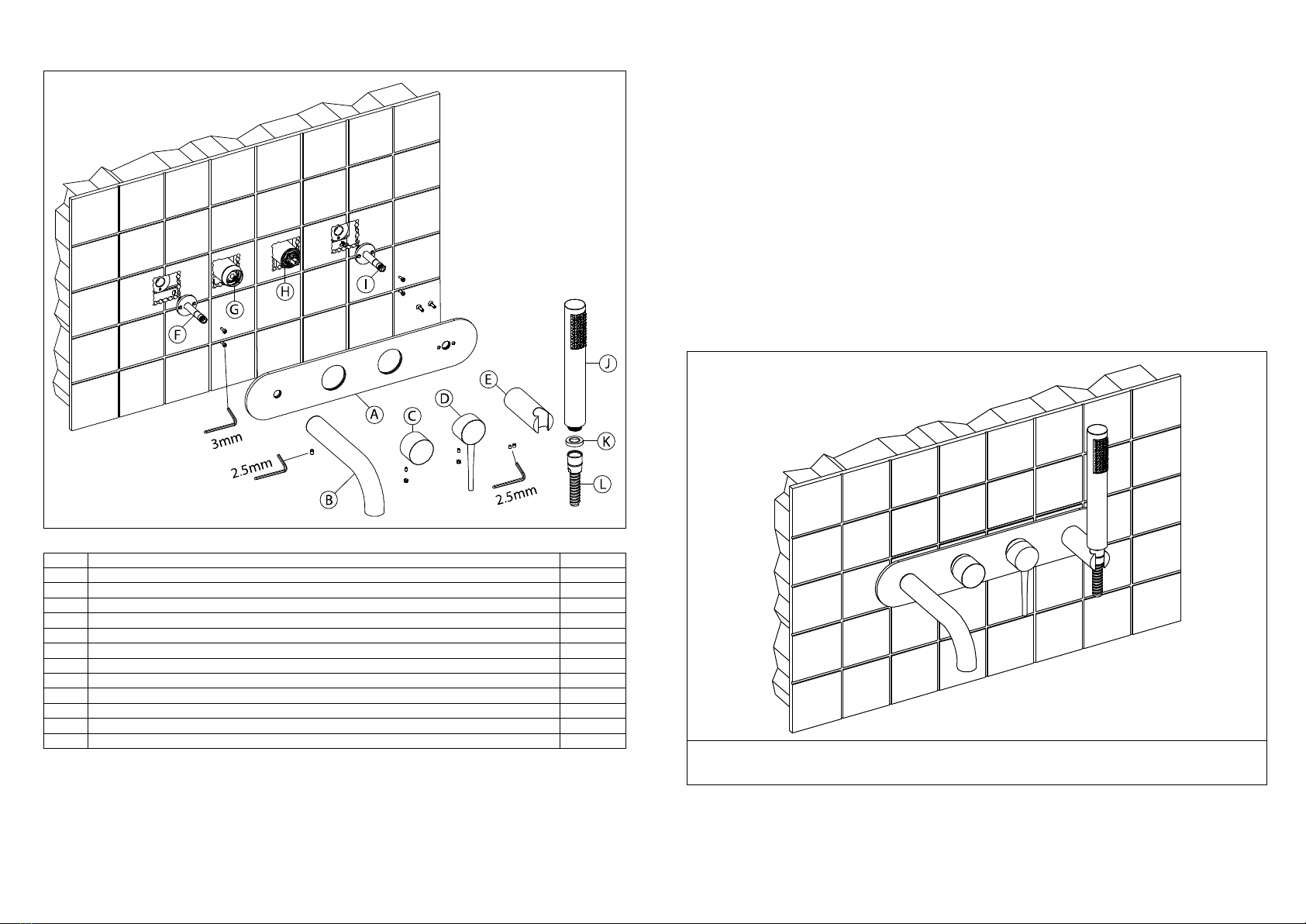

Parts and Contents
Key
Description
QTY
A Decorative cover plate 1
B Spout 1
C Diverter handle 1
D Single Lever handle 1
E Hand shower holder 1
F Spout connector 1
G Diverter valve housing 1
H Single lever valve housing 1
I Hand shower holder connector 1
J Hand shower 1
K ubber seal 1
L Shower hose 1
Installation Instructions:
1. Connect spout connector (F) to back body as shown using 2 x bolts supplied using a 3mm allen key.
2. Connect hand shower holder connector (I) to back body as shown using 2 x bolts supplied using a 3mm
allen key.
3. Connect hand shower holder (E) to decorative cover plate (A) as shown using 2 x screws supplied.
4. Slot decorative cover (A) over parts (F, G, H and I) flush against the finished wall surface.
5. Push spout (B) onto spout connector (F) flush against decorative cover (A) and fix by tightening the grub
screw using a 2.5mm allen key.
6. Fix hand shower holder (E) to connector (I) by tightening grub screws using a 2.5mm allen key.
7. Fix diverter handle (C) to valve (G) by tightening grub screw using a 2.5mm allen key.
Note: Make sure diverter valve is in the central position before fitting the handle
8. Fix single lever handle (D) onto valve (H) by tightening grub screw using 2.5mm allen key.
9. Connect Hand shower (J) to shower hose (L) ensuring rubber seal (K) is in place.
10. Apply clear silicone bead around the rear perimeter of the back plate (A).
