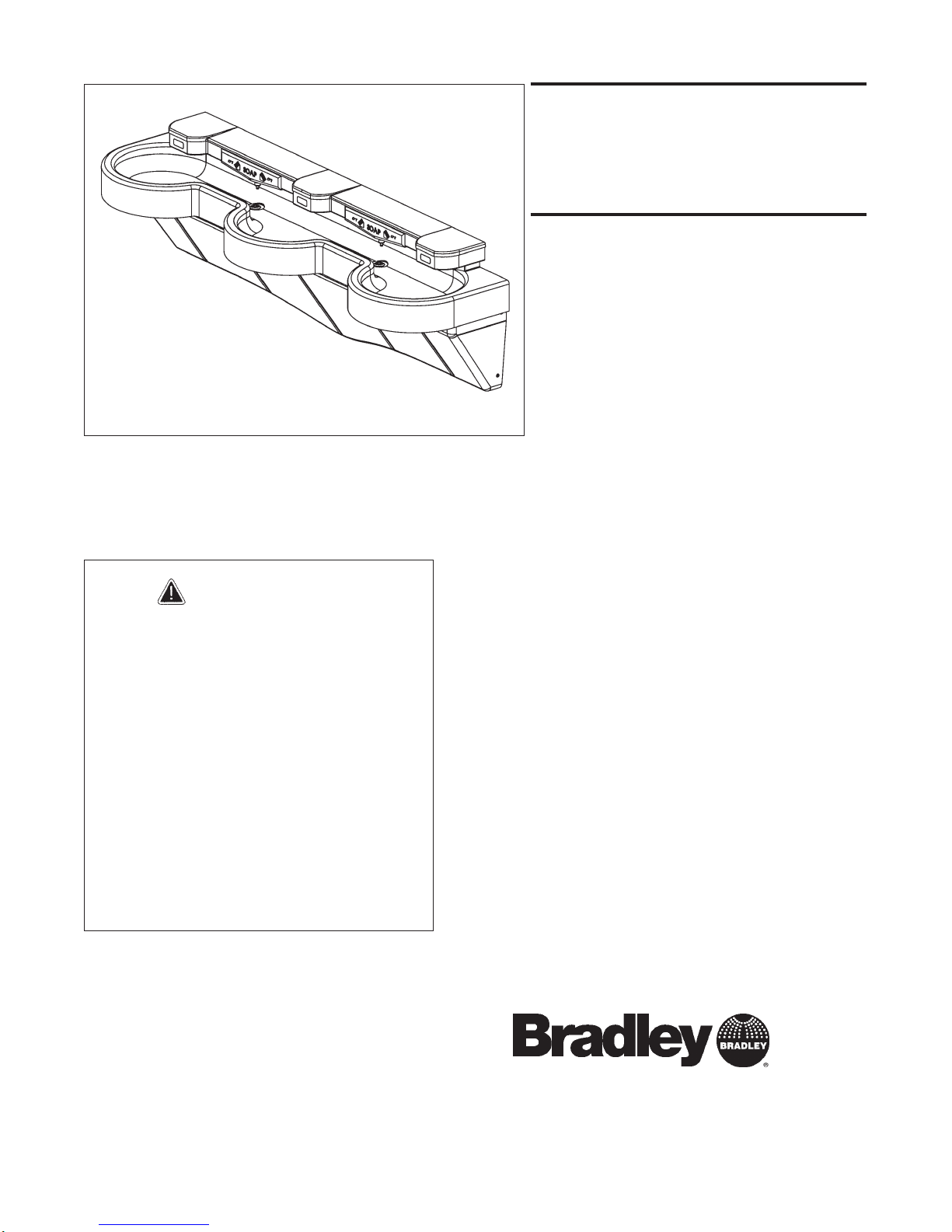

Bradley Express SS Series User manual

IMPORTANT
Read this entire installation manual
to ensure proper installation, then
file the manual with the owner or
maintenance department.
Flush all the water supply lines
before making connections.
Wall anchors used must have a
minimum pull-out rating of 1,000
lbs.
Product warranties may be found
under "Product Information" on
our web site at
www.bradleycorp.com.
P.O. Box 309, Menomonee Falls, WI 53052-0309
TEL. 1-800-BRADLEY FAX [phone]
http://www.bradleycorp.com
Table of Contents
Pre-Installation Information . . . . . . . . . . . . . . . .2
Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . .3-4
Installation Instructions . . . . . . . . . . . . . . . . 5-10
Wiring Diagram . . . . . . . . . . . . . . . . . . . . . . . .10
Cleaning and Maintenance . . . . . . . . . . . . . . . .11
Soap Dispenser Maintenance . . . . . . . . . . . .2-13
Assembly of Components . . . . . . . . . . . . . . .3-14

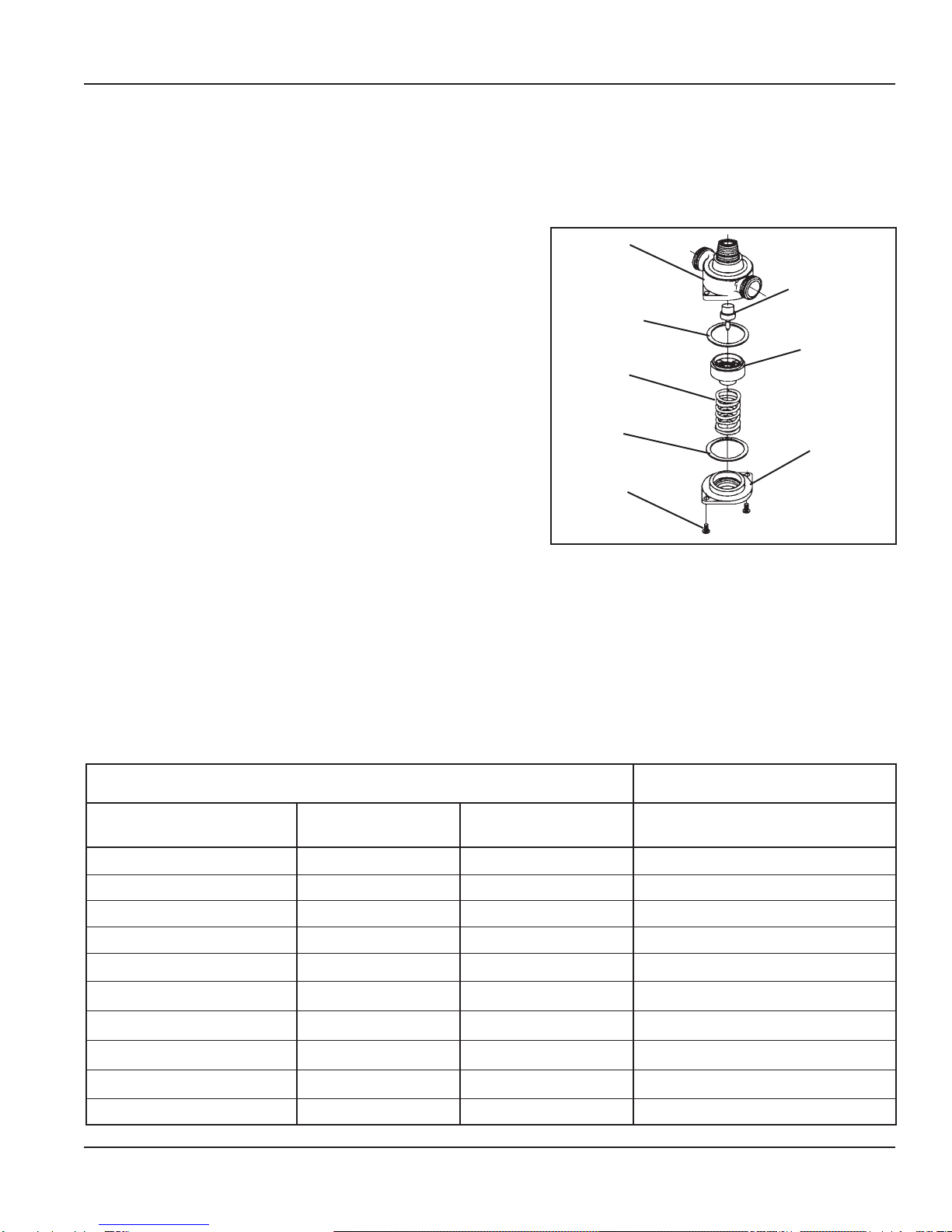

Check Valve Troublshooting . . . . . . . . . . . . . .15

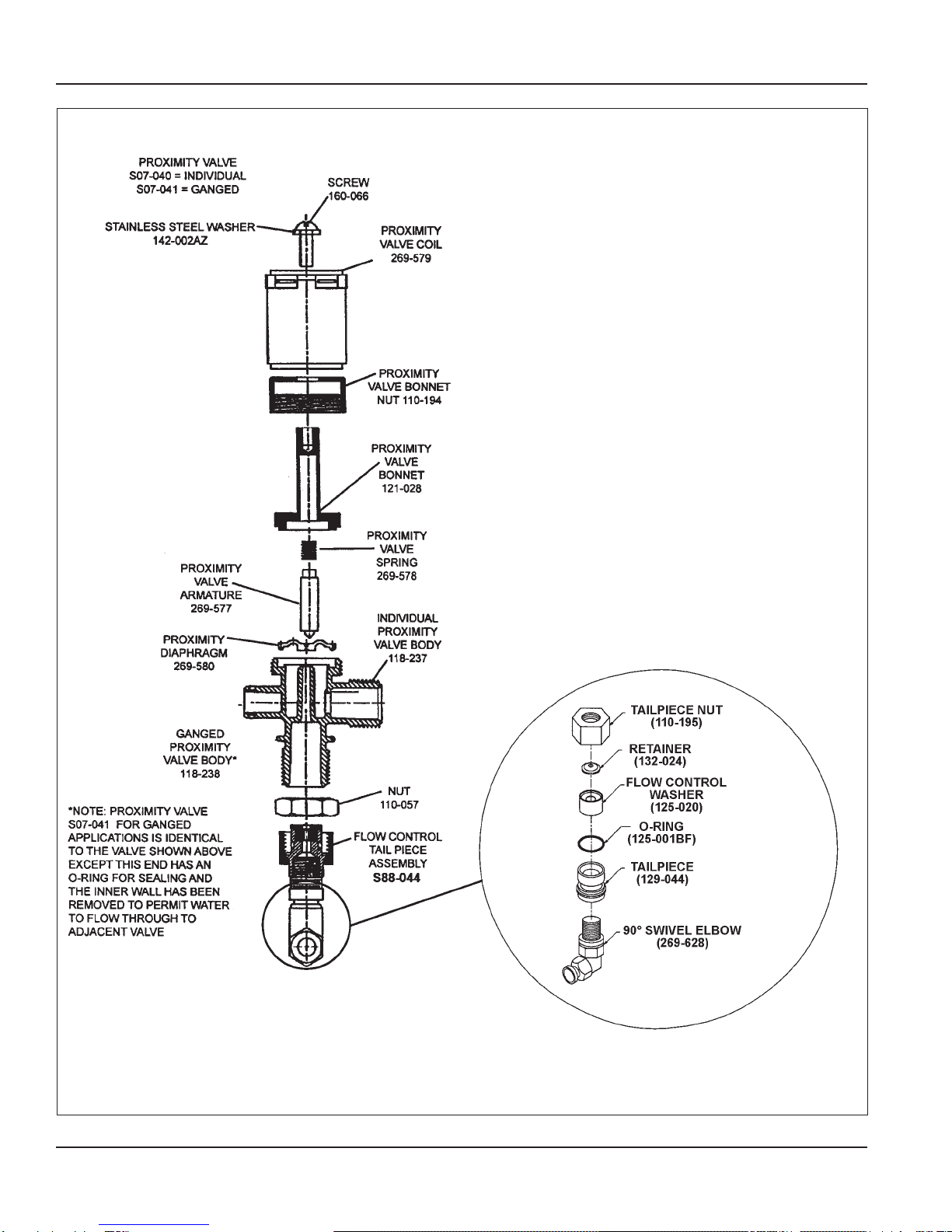

Solenoid Valve Troubleshooting . . . . . . . . . .5-16
Vernatherm™ Mixing Valve . . . . . . . . . . . . . . .17
SS-3/AZ/WH97TAS
Express® Lavatory
System SS-Series
Complies with Texas Accessibility
Standards (TAS) for Juvenile Height
applications.
215-1175 Rev. H; EN 08-805
© 2008 Bradley Corporation
Page 1 of 17 4/24/08
Installation
Instructions
OBSOLETE

Express® Lavatory System SS-Series
SS-3/AZ/WH97TAS Installation - Obsolete
2 4/24/08 Bradley Corporation • 215-1175 Rev. H; EN 08-805
Pre-Installation Information
Texas Accessibility Standards compliant:
The SS-3/AZ/WH97TAS Express® Lavatory System meets Texas Accessibility (TAS) requirements
for barrier-free clearances, reaches and controls. Always check local codes and ordinances for
compliance.
Infrared sensor and solenoid
Each sprayhead is controlled by a separate sensor and solenoid valve, enabling each user to activate a
single flow of water. Each valve uses less than half the maximum of hot water allowed by the
ANSI/ASHRAE/IES 90A-1980 Standard.
Supplies required for installation:
• (10) 3/8" wall anchors, bolts and washers to mount frame and bowl to wall
(minimum pull-out rating of 1,000 lbs.)
• 1/2" NPT tempered supply piping
• 1-1/2" NPT drain piping
• 110 volt electrical outlet for 110/24 VAC plug-in transformer
(supplied)

Express® Lavatory System SS-Series
Installation - Obsolete SS-3/AZ/WH97TAS
3Bradley Corporation • 215-1175 Rev. H; EN 08-805 4/24/08
SS-3/AZ/WH97TAS Express® Lavatory System Dimensions

Express® Lavatory System SS-Series
SS-3/AZ/WH97TAS Installation - Obsolete
4 4/24/08 Bradley Corporation • 215-1175 Rev. H; EN 08-805
Dimensions continued . . .

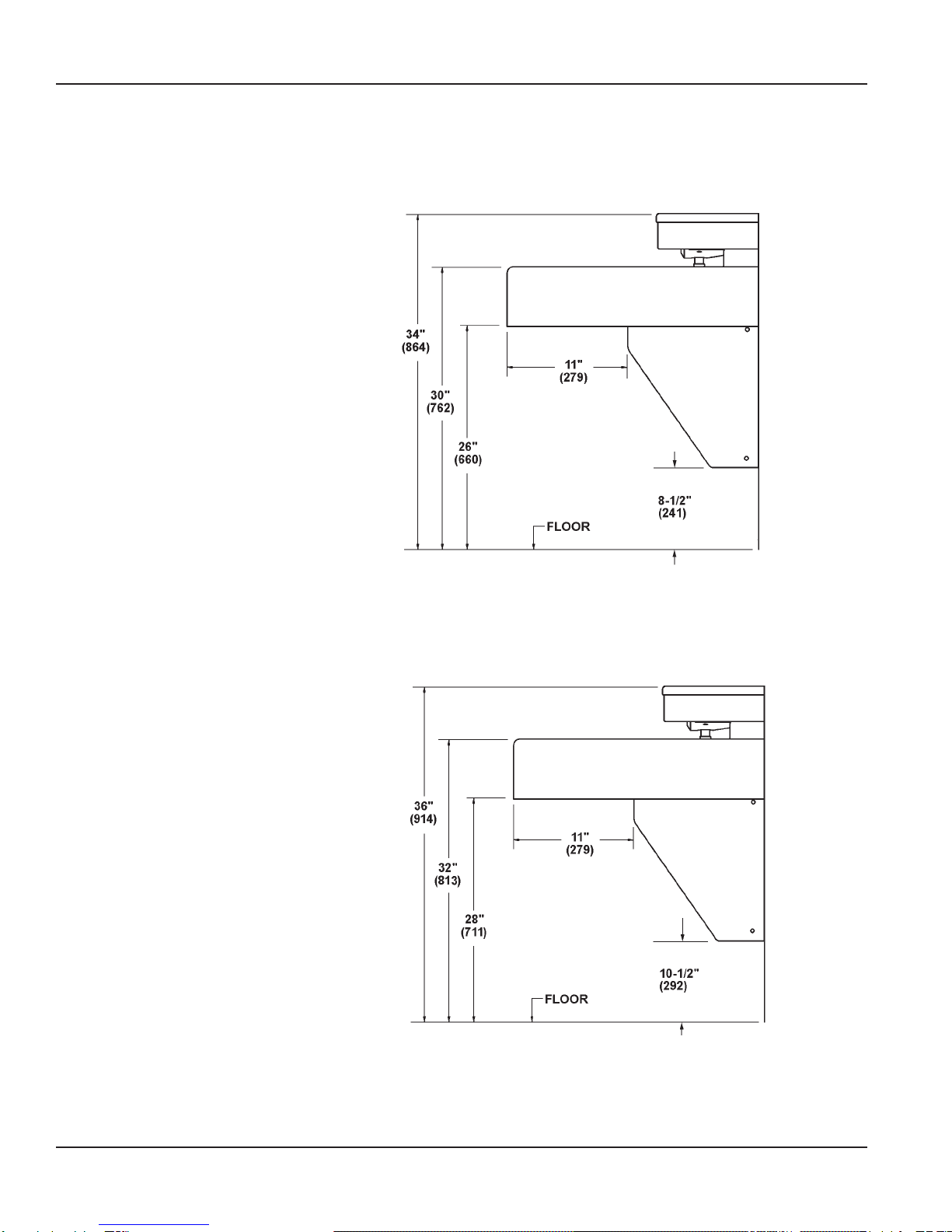

Juvenile Height
SS-3/AZ/WH97TAS
Grades 6 thru 8 or 9
Juvenile Height
SS-3/AZ/WH97TAS
Grades Pre-K thru 5 or 6

Express® Lavatory System SS-Series
Installation - Obsolete SS-3/AZ/WH97TAS
5Bradley Corporation • 215-1175 Rev. H; EN 08-805 4/24/08
Installation Instructions
Step 1: Rough in
Note: See Figure 1 (below), and Figures 1A and 2 (on page 6) when roughing in the Express®.
IMPORTANT: Flush the supply lines before making connections. Debris in supply
lines will cause the valves to malfunction.
IMPORTANT: Dimensions shown in Figure 1 are for Juvenile Height (grades Pre-K
thru 5 or 6) and in Figure 1A for Juvenile Height (grades 6 thru 8 or 9)
IMPORTANT: Turn OFF electrical power to the outlet when installing the Express®.
1. Rough in 1/2" NPT hot and cold supply lines through wall at dimensions shown below.
2. Rough in 1-1/2" NPT drain waste connection through wall at dimensions shown below.
3. Install the 110 volt GFCI electrical outlet per local code at the location shown in Figure 2 on page 6.
4. Install (10) 3/8" wall anchors with a minimum pull-out rating of 1,000 lbs. (supplied by installer)
at the locations shown in Figure 1 and 1a on pages 5- 6.
NOTE: The anchors will be used to mount the Express® bowl and frame to the wall.
Step 1: Rough-in continues...
Figure 1
Juvenile Height SS-3/AZ/WH97TAS Express® Lavatory System
(grades Pre-K thru 5 or 6)

Express® Lavatory System SS-Series
SS-3/AZ/WH97TAS Installation - Obsolete
6 4/24/08 Bradley Corporation • 215-1175 Rev. H; EN 08-805
Figure 2
Figure 1a
Juvenile Height SS-3/AZ/WH97TAS Express® Lavatory System
(grades 6 thru 8 or 9)

Express® Lavatory System SS-Series
Installation - Obsolete SS-3/AZ/WH97TAS
7Bradley Corporation • 215-1175 Rev. H; EN 08-805 4/24/08
Installation Instructions continued . . .

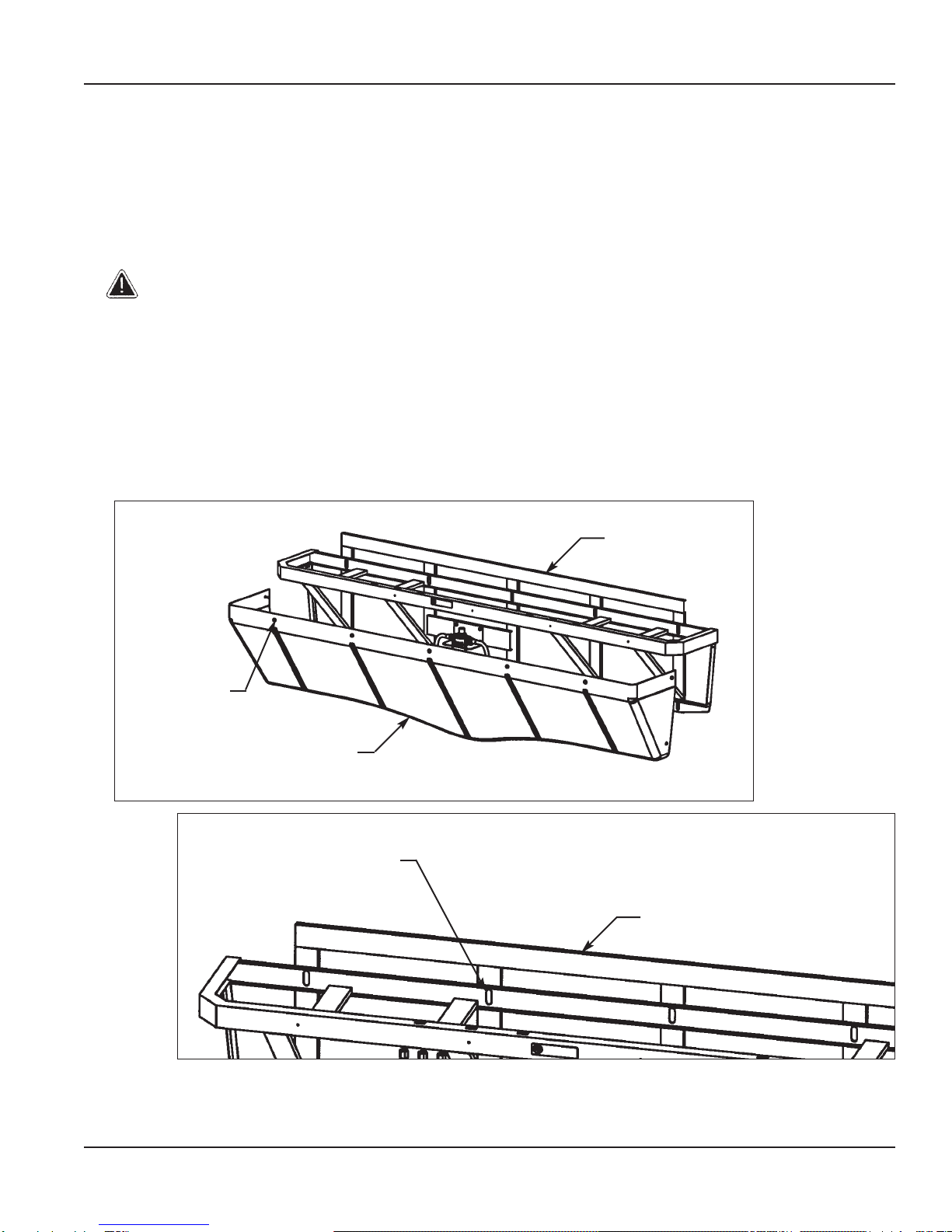

Step 2: Mount frame to wall
1. Remove the nine Torx-head screws securing the panel to the frame and remove the panel (see
Figure 3).
2. Position the frame against the wall, ensuring that it is level.
IMPORTANT: Anchoring the frame to a wall that is not flat may cause the frame to
bend. If necessary, install shims to compensate for wall distortion.
3. Ensure that the back of the frame is flat against the wall. If wall is not flat, insert shims behind
the frame to ensure that it will not bend when anchored.
4. Once you have positioned the frame such that it is level and flat against the wall or shimmed, use
the 3/8" bolts and washers to mount the frame to the wall (see Figure 4).
Installation Instructions continue...
Figure 4
Figure 3
(9) TORX-HEAD
SCREW
FRAME
PANEL
(10) 3/8" BOLTS
AND WASHERS
FRAME

Express® Lavatory System SS-Series
SS-3/AZ/WH97TAS Installation - Obsolete
8 4/24/08 Bradley Corporation • 215-1175 Rev. H; EN 08-805
Installation Instructions continued . . .
Step 3: Install bowl assembly
IMPORTANT: Moving and positioning the bowl will require more than one person.
Note: Refer to Figure 5 below when installing the bowl assembly.
1. With someone to assist you, place the bowl assembly squarely onto the frame.
2. Attach the front of the bowl assembly to the frame using the four 1/4"-20 x 3/8" pan-head
screws and washers provided. Do not tighten screws at this time.
IMPORTANT: When bolting the bowl assembly to the frame and wall, do not overtight-
en the bolts. Overtightening bolts can damage the Terreon® material.
3. After the bowl assembly is attached to the frame, use two 3/8" bolts and washers (supplied by
the installer) to bolt the bowl to the wall anchors.
4. Tighten the screws installed in procedure #2 above to secure the bowl assembly to the frame.
Do not overtighten.
Installation Instructions continue...
Figure 5
BACK VIEW

Express® Lavatory System SS-Series
Installation - Obsolete SS-3/AZ/WH97TAS
9Bradley Corporation • 215-1175 Rev. H; EN 08-805 4/24/08
Installation Instructions continued . . .
Step 4: Connecting supply, drain, and electrical
1. FOR HOT AND COLD SUPPLIES: Connect the flexible hoses installed to the Vernatherm™
Mixing Valve to the hot and cold water supply piping from the wall (see Figure 6a).
Note: The red marking on Vernatherm™ Mixing Valve indicates hot water supply inlet.
FOR SINGLE TEMPERED SUPPLY: Attach the stop/strainer/check valve to the 1/2" tempered
supply line. Attach the 3/8" tube from the sprayhead to the 90° elbow located on the
stop/check/strainer (see Figure 6b).

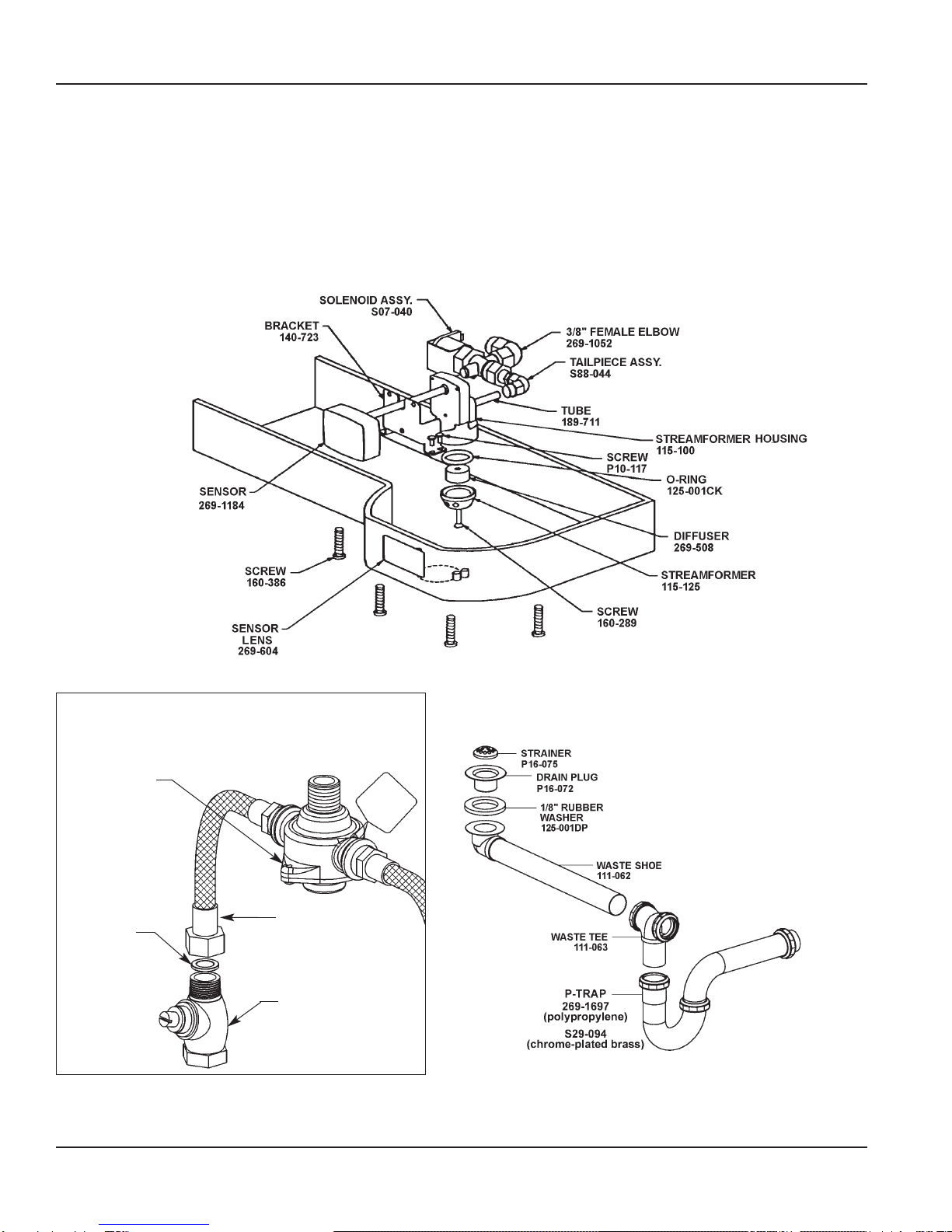

2. Insert the plastic tubing from the bowl assembly into the Vernatherm™ Mixing Valve.
3. Assemble the P-trap (supplied) and make drain connections.
IMPORTANT: The Express® must be connected to the 24 VAC Class II plug-in
transformer provided. Connection to 110 VAC can result in damage
to the electronics and cause personal injury.
4. Plug in the 24 VAC Class II transformer (supplied) into the 110 volt electrical outlet.
STOP/STRAINER/CHECK
VALVE
ELBOW 90°,
3/8" TUBE
ELBOW
Figure 6b
Figure 6a
PLASTIC
TUBING VERNATHERM™
THERMOSTATIC
MIXING VALVE
FLEXIBLE
SUPPLY
HOSE
CONNECT
TO 1/2"
NPT COLD
WATER
SUPPLY
CONNECT
TO 1/2" NPT
HOT WATER
SUPPLY
3/8" FEMALE
CONNECTOR
FLEXIBLE
SUPPLY
HOSE

Express® Lavatory System SS-Series
SS-3/AZ/WH97TAS Installation - Obsolete
10 4/24/08 Bradley Corporation • 215-1175 Rev. H; EN 08-805
Wiring Diagram
Installation Instructions continued . . .
Step 5: Completing installation
1. Turn on the water supply to the Express® and check for leaks.
2. Turn on the electrical power to the electrical outlet and pass your hand in front of each station’s
sensor until all the air is purged from the lines and water is flowing smoothly.
3. After testing is complete, reinstall panel to frame. Fasten panel with the ten Torx-head screws
provided (see Figure 3 on page 7).
4. START-UP NOTE: This unit is equipped with adaptive infrared control. It may take up to eight
minutes to properly adjust to the environment when power is turned on or if power is interrupted
for more than fifteen seconds.
Note: For Express® units with optional soap dispensers, see pages 12-13 for soap dispenser
maintenance instructions.

Express® Lavatory System SS-Series
Installation - Obsolete SS-3/AZ/WH97TAS
11Bradley Corporation • 215-1175 Rev. H; EN 08-805 4/24/08
Cleaning and Maintenance Instructions
IMPORTANT: Strong alkaline or acid-based chemicals and cleansers should not be used
to clean Terreon®. If these chemicals come in contact with the Terreon® surface, wipe off
the surface immediately and flush with soapy water.
Terreon® and panel maintenance
The bowl, sprayhead and pedestal end caps are constructed of Terreon®, a densified solid surface
material composed of an acrylic modified polyester resin. Terreon® is resistant to chemicals, stains,
burns and impact. Surface damage can be easily repaired with everyday cleaners or fine grit abra-
sives. The panel and sprayhead are made of an acrylic/ABS laminate, and will not chip, peel or flake.
With regular cleaning, your Terreon® fixture will provide years of dependable service.
Cleaning
• Daily Cleaning: Wipe the surface with a damp cloth and wipe dry.
• Weekly Cleaning: Wipe the surface with a damp cloth and a household liquid detergent.
Stubborn stains can be removed as follows:
1. Using a #7448 Scotch-Brite® pad, scrub with an abrasive cleanser such as Ajax®,
Comet® or Soft Scrub® and water.
2. Clean thoroughly with soapy water and allow to dry.
• Scorch Marks: Although Terreon® will not burn, a lit cigarette in contact with Terreon® could
leave a scorch mark. Scorch marks can be removed by buffing with a #7448 Scotch-Brite pad or
with an abrasive cleaner.
•Repair kit: In the unlikely event your Terreon® surface becomes damaged, it can easily and
expensively be repaired. Contact your Bradley representative to order a repair kit and be sure to
specify color when ordering.
Panel cleaning
IMPORTANT: Do not use abrasive cleansers to clean the panel or sprayhead. Abrasive
cleaners can mar the surface.
•Graffiti/Vandalism: If vandals create markings on the panel, Bradley recommends using
Motsenbocker’s LIFT OFF® to remove ink and spray paint. Remover #3 is for ink and markers, and
Remover #4 is for spray paint. Motsenbocker’s LIFT OFF® can be ordered through Sanitary
Maintenance Service Inc. (call 1-800-451-5523 x 425 or visit
www.santitarymaintenance.com/product.htm for ordering information). After cleaning with LIFT
OFF®, give the panel a final thorough cleaning with a liquid tub and tile cleaner to remove soil
and maintain the glossy finish.
NOTE: Use of brand names is intended only to indicate a type of cleaner. This does not constitute an
endorsement, nor does the omission of any brand name cleaner imply its inadequacy. Many products
named are regional in distribution and can be found in local supermarkets, department and hardware
stores or through your cleaning service. It is emphasized that all products should be used in strict accor-
dance with package instructions.

Express® Lavatory System SS-Series
SS-3/AZ/WH97TAS Installation - Obsolete
12 4/24/08 Bradley Corporation • 215-1175 Rev. H; EN 08-805
Soap Dispenser Maintenance
Step 1: Fill soap dispensers
The two soap valves will dispense vegetable/coconut oil liquid soaps, synthetic detergents, viscous
lotion soaps, and antiseptic solutions. A 10-15% concentration is recommended for vegetable or
coconut oil liquid soaps. Synthetic detergents, lotion soaps, and antiseptic soaps require no dilution.
1. Using two screwdrivers (or similar tool), push up on the release tabs located beneath each soap
dispenser and pull out the soap tanks from the sprayhead (see Figure 7a).
2. To remove packing dust, rinse out each soap tank with hot water. Shake water out thoroughly
and allow to dry.
3. Pour the soap into each soap tank's filler hole (see Figure 7b).
4. After each soap tank is filled, position the soap tanks into the sprayhead openings and push into
place.
Step 2: Change soap type
1. Pour out all of the soap from
the dispenser.
2. Rinse the soap dispenser with
hot water several times until
all of the residue is removed,
and pump the valve until
clean water appears.
3. Rinse the dispenser with ethyl
alcohol and allow to air dry.
4. After the dispenser is dry,
pour the new soap into the
soap dispenser.
Figure 7a
Figure 7b
ACTIVATION LABEL
204-476
(one above each activation zone)
SOAP DISPENSER VALVE
S09-007
qty. (2)
SOAP TANK
133-107 (GRAY)
133-131 (PUTTY)
133-131A (COAL)
FILLER HOLE

Express® Lavatory System SS-Series
Installation - Obsolete SS-3/AZ/WH97TAS
13Bradley Corporation • 215-1175 Rev. H; EN 08-805 4/24/08
Soap Dispenser Maintenance continued . . .
Step 3: Cleaning Instructions
Regular cleaning of the soap dispenser is recommended to ensure optimum performance and maximum
service life. Cleaning the soap dispenser monthly to remove soap residue, dirt, and other accumulations
should become a regular part of your washroom cleaning routine and general maintenance program.
IMPORTANT: Do not use abrasive cleansers to clean the soap tank. Abrasive
cleaners can mar the surface.
Clean exterior: Use warm water and soap to clean the exterior of the soap dispenser. Dry with a
soft cloth.
Clean interior: Inspect the interior of the soap tank for residue or coagulation of soap. If necessary,
clean the soap tank according to the following procedure:
1. Pour out any remaining soap in the tank.
2. Fill the tank half-full of hot water and shake the tank to dislodge the soap residue.
3. Empty the water from the container and repeat steps 1 and 2 until the soap container is clean.
NOTE: If rinsing alone does not remove the soap residue, place a small chain (24 inches long) into
the soap tank with hot water and shake the container until the chain dislodges the residue. Then
remove the chain and rinse out the soap tank.
Clean internal components: To clean the internal components of the soap dispenser, pump hot
water through the soap dispenser until a clean flow of water comes out of the valve.
Assembly of Components Optional Stop/Strainer/Check
Valve
STOP/STRAINER/CHECK VALVE
S60-003
ELBOW 90°, 3/8" TUBE
269-959
ELBOW
169-639

Express® Lavatory System SS-Series
SS-3/AZ/WH97TAS Installation - Obsolete
14 4/24/08 Bradley Corporation • 215-1175 Rev. H; EN 08-805
Assembly of Components continued . . .
Sensor assembly and solenoid valve
To access solenoids and sensors: Remove the twelve Phillips-head screws located in the bottom of
the sprayhead body and lift the cover/shelf off.
To reinstall sprayhead cover/shelf: Position the cover/shelf on the sprayhead body and secure it to
the sprayhead body using the twelve screws provided.
Drain Assembly
Vernatherm™ Thermostatic Mixing Valve
Assembly S67-571
FLEX HOSE WITH
SWIVEL END
269-653
STOP/CHECK
VALVE
S27-102
FILTER
WASHER
269-1188
VERNATHERM
VALVE
(S01-116B)

Express® Lavatory System SS-Series
Installation - Obsolete SS-3/AZ/WH97TAS
15Bradley Corporation • 215-1175 Rev. H; EN 08-805 4/24/08
Check Valve Troubleshooting
If water just dribbles or does not flow from sprayhead:
1. Close the stops and check the valves that supply water to the lavatory system.
2 Inspect the stop/check valves for proper installation.
3. Remove the flexible hoses from the stop/check valves and clean the strainers, if necessary.
If water sprayhead delivers all hot or cold water:
1. Close the stops and check the valves that supply water to the lavatory system.
2. Inspect the stop/check valves for proper installation.
3. Remove the flexible hoses from the stop/check valves and clean the strainers, if necessary.
4. Inspect mixing valve for proper installation (see Vernatherm valve on page 17).
• A red marking indicates the hot inlet.
Solenoid Valve Troubleshooting
CAUTION: Turn off electrical and water supplies to unit before troubleshooting.
Problem: An individual operating station fails to shut off and drips.
Cause: There is debris trapped between the diaphragm and the valve seat.
Solution: Remove debris between diaphragm and the valve seat.
1. Using a small wrench, loosen the bonnet nut, unscrewing counterclockwise, and gently tip for-
ward to remove from the valve body. Be careful not to lose the armature or spring.
2. Remove the diaphragm. Remove any particles that have been trapped between the diaphragm
and the valve seat. Rinse off the diaphragm and inspect for damage. Make sure both orifices are
open.
3. Reassemble in reverse order. Do not overtighten the bonnet nut or you may crack the plastic
valve body. Hand tight plus 1/8 turn is sufficient.
4. Reconnect the wiring per diagram on page 10.
Problem: An individual operating station fails to turn on.
Cause: A failed coil for the valve, or loose electrical connection to the terminal.
Solution: Test the station to determine cause.
1. Disconnect the wires from the coil (269-579) of an adjacent valve. Disconnect the wires from
the problem valve and reconnect to the adjacent valve.
2. Turn on electrical and water supplies to the unit. Pass your hand in front of the sensor of the
problem station, and the adjacent station should operate.
If the adjacent station operates and cycles normally, replace the coil on the problem valve.
If the adjacent valve fails to turn on, inspect the wires from the sensor cable and do the following:
• make sure there are no breaks and that the fully insulated disconnect terminals are firmly
crimped in place;
• turn off electrical and water supplies;
• reconnect to the adjacent valve and turn on electrical and water supplies to the unit;
• pass your hand in front of the sensor. If the station still fails to turn on, replace the sensor
(see page 14).

Express® Lavatory System SS-Series
SS-3/AZ/WH97TAS Installation - Obsolete
16 4/24/08 Bradley Corporation • 215-1175 Rev. H; EN 08-805
Figure 12

Express® Lavatory System SS-Series
Installation - Obsolete SS-3/AZ/WH97TAS
17Bradley Corporation • 215-1175 Rev. H; EN 08-805 4/24/08
THEN
Valve Position is Hot Supply Cold Supply Valve Delivers
Correct Hot Cold Mixed 107°
Correct Hot No Water Valve shuts off or drips
Correct No Water Cold Valve shuts off or drips
Correct Hot Hot Hot
Correct Cold Cold Cold
Reversed Hot Cold Cold/below 107° Hot/above 107°
Reversed Hot No Water Hot
Reversed No Water Cold Cold
Reversed Hot Hot Hot
Reversed Cold Cold Cold
Vernatherm™ Mixing Valve Maintenance and Service
*Repair kit S45-049 is pre-packaged and includes O-Ring, Flip Ring, Power Element and Spring.
Maintenance Instructions
1. Disassemble the Vernatherm™ Valve as shown,
being careful not to damage the power element.
Replace the element, if necessary.
2. If necessary, remove the old flip ring and replace
with a new ring.
NOTE: An old or worn flip ring may cause temperature
fluctuation and/or water chatter.
3. Reassemble the power element and valve body.
Apply grease to the main valve slide and gently ease
into position, rotating so that grease is applied to the
flip ring. Do not force the slide as this may push the
flip ring from its position. To test, rotate the slide; a
slight drag should be felt when correctly installed.
4. Reassemble the valve.
Service Suggestions
When servicing the valve, make sure it is installed in the correct position. The most common error
occurs when the valve is installed in the reversed position, that is, the hot line is connected to the cold
line and the cold is connected to the hot.
NOTE: A red marking indicates the hot side of the valve.
The table below lists conditions that occur when the valve is installed correctly, and when it is in the
reversed position.
Flip Ring*
125-015
Power Element*
S27-019
Valve Slide
S01-039
Spring*
135-008
O-Ring*
125-001CH
Screw
160-175
Body
S73-027
Body (chrome)
S73-028
Cover
107-261B
IF
