Abode AVSC4001 User manual

Model No: AVSC4001
For Customer Services & Spare Parts please call 0845 209 7461
Opening times: Monday - Friday 8am –6pm & Saturday 9am –1pm or visit
us at www.productcareuk.com
IMPORTANT: RETAIN FOR FUTURE
REFERENCE
Vac & Steam 2 in 1
Hard floor Cleaner
User Guide

Contents
2
Page
Safety instructions
…………………………….………
3-7
Vac and Steam overview
………………………………....…
8
Assembly
……………………………….……
9
Mode controls
…………………………………….
10
Vacuum
mode
…………………………………….
11-13
Steam
mode
…………………………………….
14-16
Cleaning
and care
…………………………………….
17-18
Guarantee
…………………………………….
19
Customer
support
…………………………………….
20
Spare parts
…………………………………….
21
Connection to the mains supply
…………………………………….
22-23
For Customer Services & Spare Parts please call 0845 209 7461
Opening times: Monday - Friday 8am –6pm & Saturday 9am –1pm or visit
us at www.productcareuk.com
Thank you for purchasing your Abode Vac & Steam.
Convert from Vac to Steam Mop in seconds.
With a swivel head for flexible cleaning and an ergonomic handle for
comfort, cleaning your hard floors has never been so easy.
What’s more, you can rest assured in the knowledge that the detergent
free sanitisation kills most known household germs whilst also being
good for the environment.
To get the best from your new cleaner, please take a few moments to
read these instructions, and keep them in a safe place for future
reference.
Should you require any further assistance, our friendly Product Care
team will be happy to help.

Safety instructions
3
IMPORTANT SAFETY INSTRUCTIONS
READ CAREFULLY AND KEEP FOR FUTURE REFERENCE
WARNING: It is hazardous for anyone other than a competent
person to carry out any service or repair operation that
involves the removal of a cover which gives protection against
exposure to electrical parts.
If the supply cord is damaged, it must be replaced by the
manufacturer, its service agent or similarly qualified persons
in order to avoid a hazard.
This product is intended for household use only.
Do not use outdoors.
WARNING: This appliance can be used by children aged from 8
years and above and persons with reduced physical, sensory
or mental capabilities or lack of experience and knowledge if
they have been given supervision or instruction concerning
use of the appliance in a safe way and understand the hazards
involved. Children shall not play with the appliance. Cleaning
and user maintenance shall not be made by children unless
they are older than 8 and supervised. Keep the appliance and
its cord out of reach of children less than 8 years.
WARNING: Do not operate this appliance for anything other
than its intended use. This product is intended for household
use only. Do not use outdoors.
WARNING: Do not immerse in water or other liquids for
cleaning.

Safety instructions
4
•Do not direct steam at people, animals, electrical outlets,
or equipment containing electrical components.
•Unplug from outlet when not in use . Do not leave the
cleaner unattended while plugged in.
•Do not use with damaged cord or plug.
•Do not use the cleaner if it has been dropped, damaged,
left outdoors or dropped into water.
•Keep the cleaner away from water; do not allow it to get
wet. If unit is wet, do not plug unit into wall socket or turn
unit on.
•Do not pull or carry by cord, use cord as a handle, close
door on cord, pull cord around sharp corners or edges, or
expose cord to heated surfaces.
•Do not unplug by pulling on cord.
•To protect against electrical shock do not immerse cord,
plug, or appliance in water or other liquid. Never operate
the cleaner with wet hands.
•Unplug from the mains outlet when not in use, before
putting on and taking off parts, and before cleaning.
•The use of accessory attachments not recommended by
the appliance manufacturer may cause fire, electric shock
or injury. Only use the accessories supplied by the
manufacturer.
•Do not let the cord hang over the edge of the worktop, or
touch hot surfaces.
•Never remove parts from the appliance such as the screws
and so on.

Safety instructions
5
•Do not use cleaner in an enclosed space filled with vapor
given off by oil-based paint, paint thinner, some moth
proofing substances, flammable dust, or other explosive or
toxic vapors.
•Do not use on leather, wax polished furniture or floors,
synthetic fabrics, velvet or other delicate, steam-sensitive
materials.
•Do not immerse unit in water or other liquids.
•Never put descaling, aromatic, alcoholic or detergent-based
products into the cleaner, as this may damage the unit.
•Close attention is necessary when used near children.
•Do not store with a wet mop pad still attached.
•Using distilled or demineralized water will maximize the
performance of your steam mop.
•Do not use on carpets.
•Do not use steam for space heating purposes; household
use only.
•Use on waxed or some unwaxed floors may diminish
glossiness. Do not use on unsealed wood floors. Test in an
inconspicuous area or check the care instructions from your
flooring manufacturer.
•Never use this cleaner outdoors. This cleaner is only
intended for internal use.
•Do not use the vacuum to pick up water or any other
liquids.
•Do not use the vacuum to pick up combustible substances
or hot/burning objects.

Safety instructions
6
•The filling aperture must not be opened during use.
•This cleaner is intended for household use only. Do not use
the cleaner for purposes other than it’s intended use.
•This cleaner should not be used by children. Ensure that
children do not play with the cleaner.
•Only ever use the cleaner when it is fully assembled.
•Never place your fingers or other objects into any part of
the cleaner. Be aware that loose clothing or hair may
become trapped in the cleaner if improperly used.
•Never leave the cleaner unattended when switched on.
•Before use ensure that all of the air vents of the cleaner are
clear and there is no restriction of air flow.
•When in use, ensure the power cord does not become
trapped, pulled over or is left in close proximity to a strong
heat source. Do not run over or pull the power cord
around sharp edges.
•Do not use this cleaner for cleaning the stairs.
•Caution: Exhaust air discharged from the sides of this
cleaner may extinguish a gas fire, pilot light or disturb
ashes in an open fire. Always avoid directing the cleaner
towards naked flames.
•Important: This cleaner has a thermal safety device which
automatically cuts off the power supply in the case of over
heating. If the safety device has switched the cleaner off,
unplug from the mains and allow the cleaner to cool down.
Once the cleaner has completely cooled down, plug it back
into the mains supply and switch on.

Safety instructions
7
Symbol IEC 60417-5597 (2002-10) is used on the unit to
indicate the following:
•This unit operates with hot water vapour (steam), to avoid
scalding and burns take extra care when in use.

Vac and Steam overview
8
6
9
1
2
1
Handle
4
On/off dial
7
Mop pad
2
Cord storage
5
Exhaust filter
8
Steam
base attachment
3
Water tank
6
Filling
cup
9
Dust cup
10
Power
cord
3
5
4
8
10
7
Before you use your steam mop
Remove all the packaging and lay out the separate components.

Assembly
9

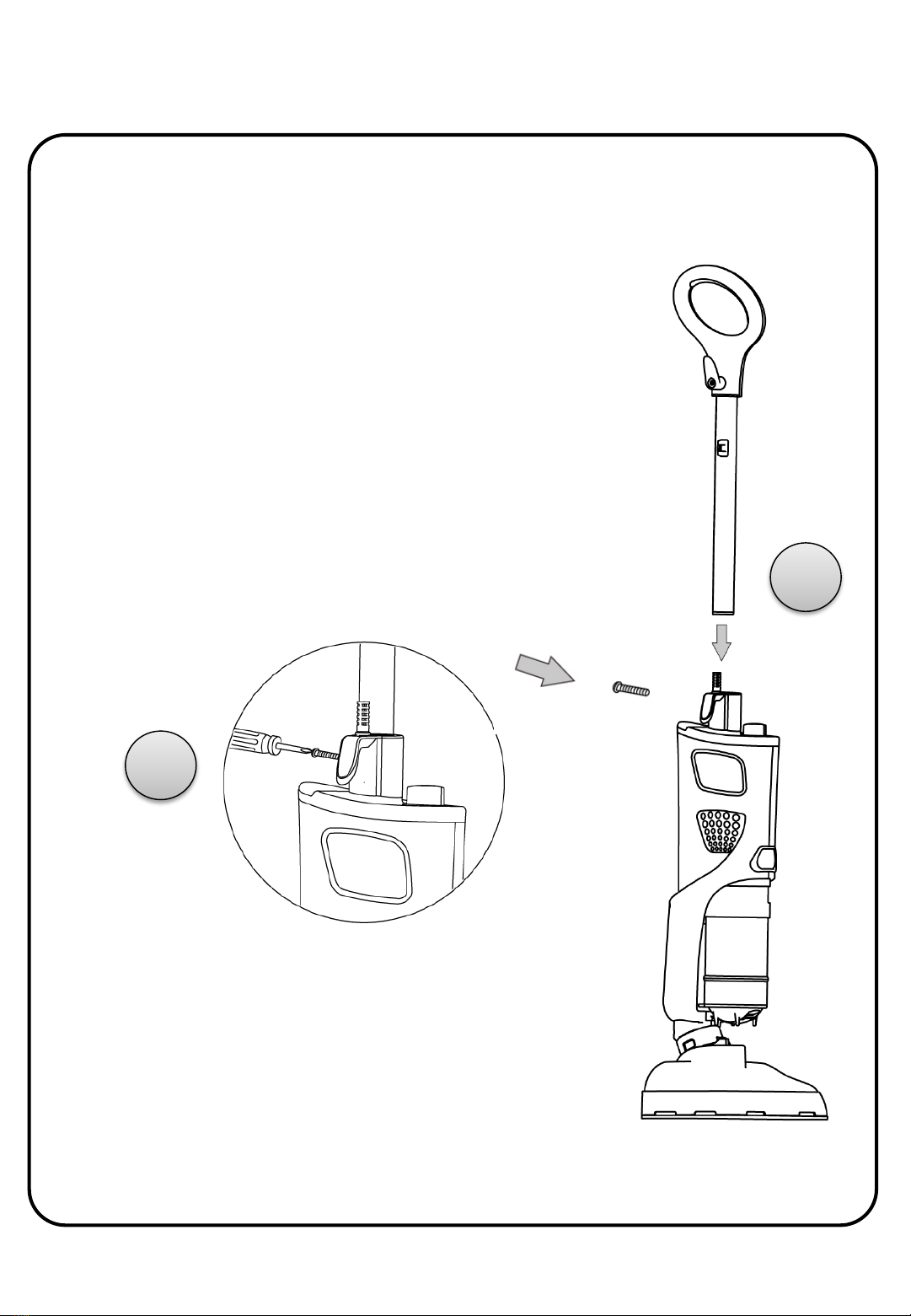

1. Slot the aluminium handle into the opening
on the top of the main body.
Check the cleaner after unpacking for any visual damage
such as:
Misaligned or damaged parts
Damage to the main body and separate
Components
Damage to the plug or cable
If you can see any damage do not use the steam
mop and follow the return instructions on the
Guarantee page (19).
2. Tighten the supplied screw in to the back
of the main body, using a screwdriver.
A screwdriver is not supplied with the
product.
IMPORTANT: Ensure the screw is fully tight,
but do not over tighten.
1
2

Mode controls
10

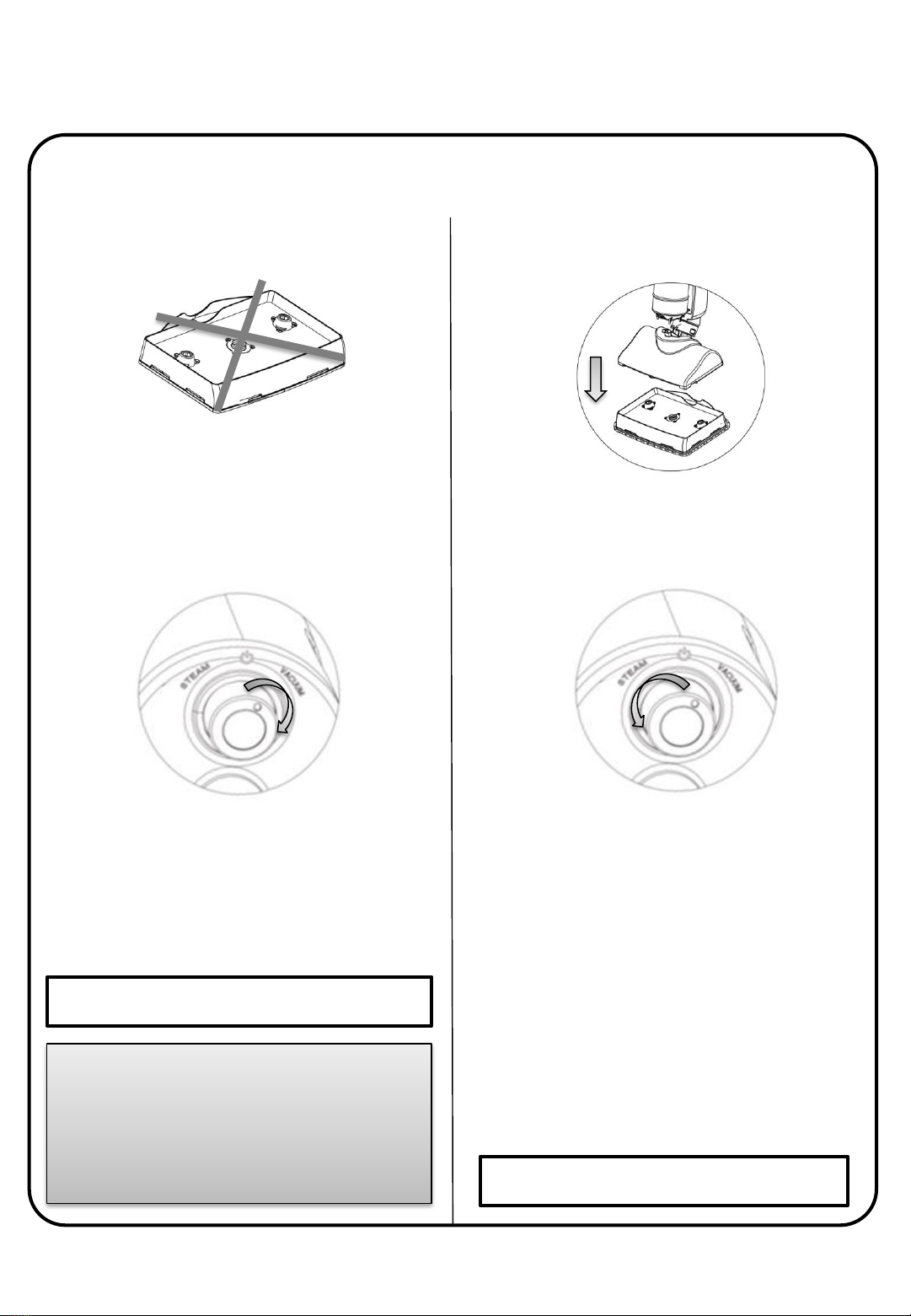

The Abode Vac and Steam has two operating modes:
Vacuum Mode Steam Mode
Note: do not use mop
pad/steam base attachment
in vacuum mode.
Remove if attached.
Move the black marker from
the central ‘off’ position,
twisting the dial clockwise
for vacuum function.
See page 11 for instructions
Attach steam pad and base.
Fill the water tank.
Move the black marker from
the central ‘off’ position,
twisting the dial
anticlockwise for steam
function.
See page 14 for instructions
Allow the unit to heat up for
20 seconds whilst the water
heats, then tilt handle back
to activate steam pump.
WARNING: This product is a
hard floor cleaner only.
It is not designed for use on
carpets.

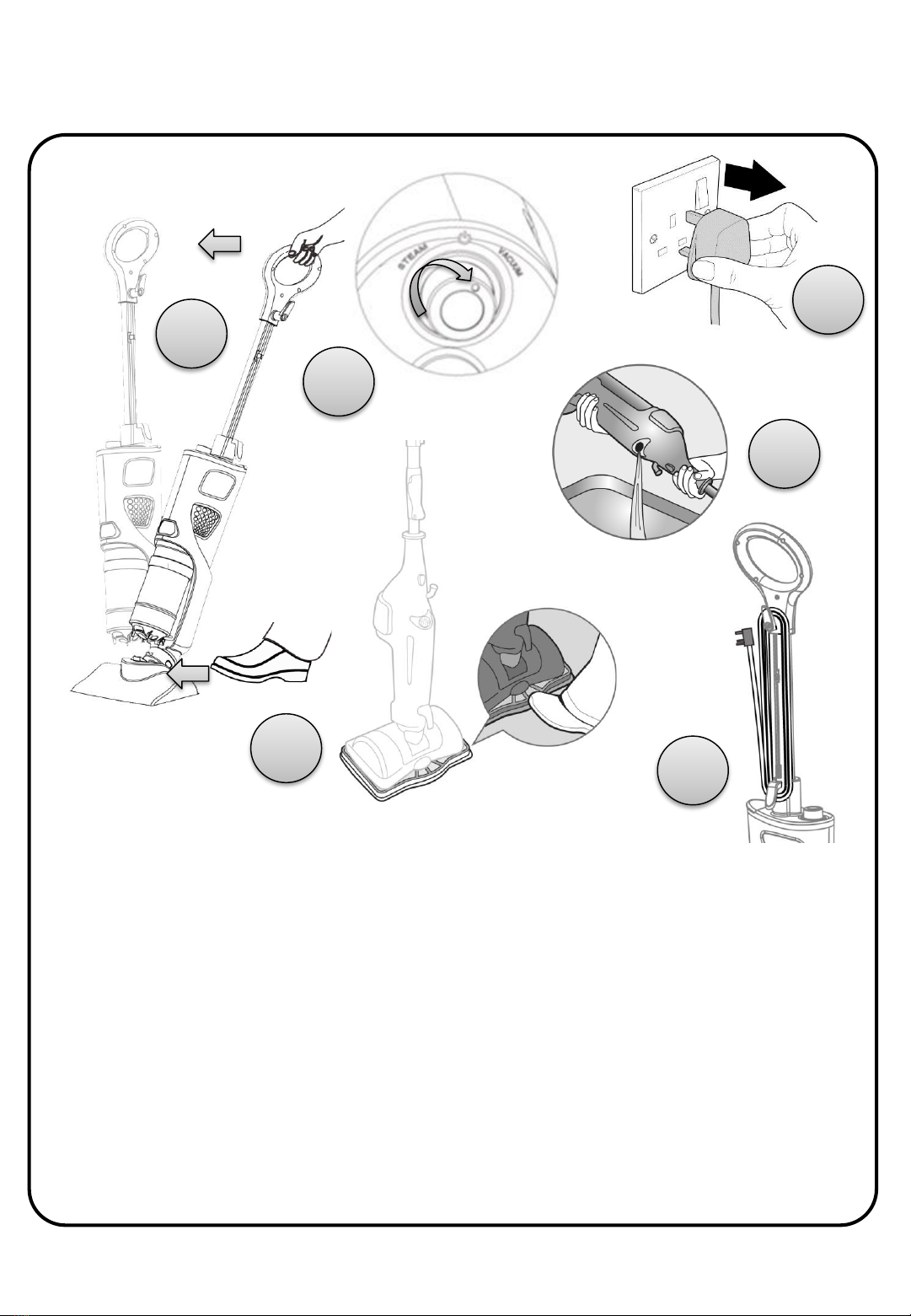

11
Vacuum Mode
Your Vac & Steam is vacuum-ready.
To begin vacuuming hard floors, place
your foot lightly on the top of the unit
base and tilt it back.

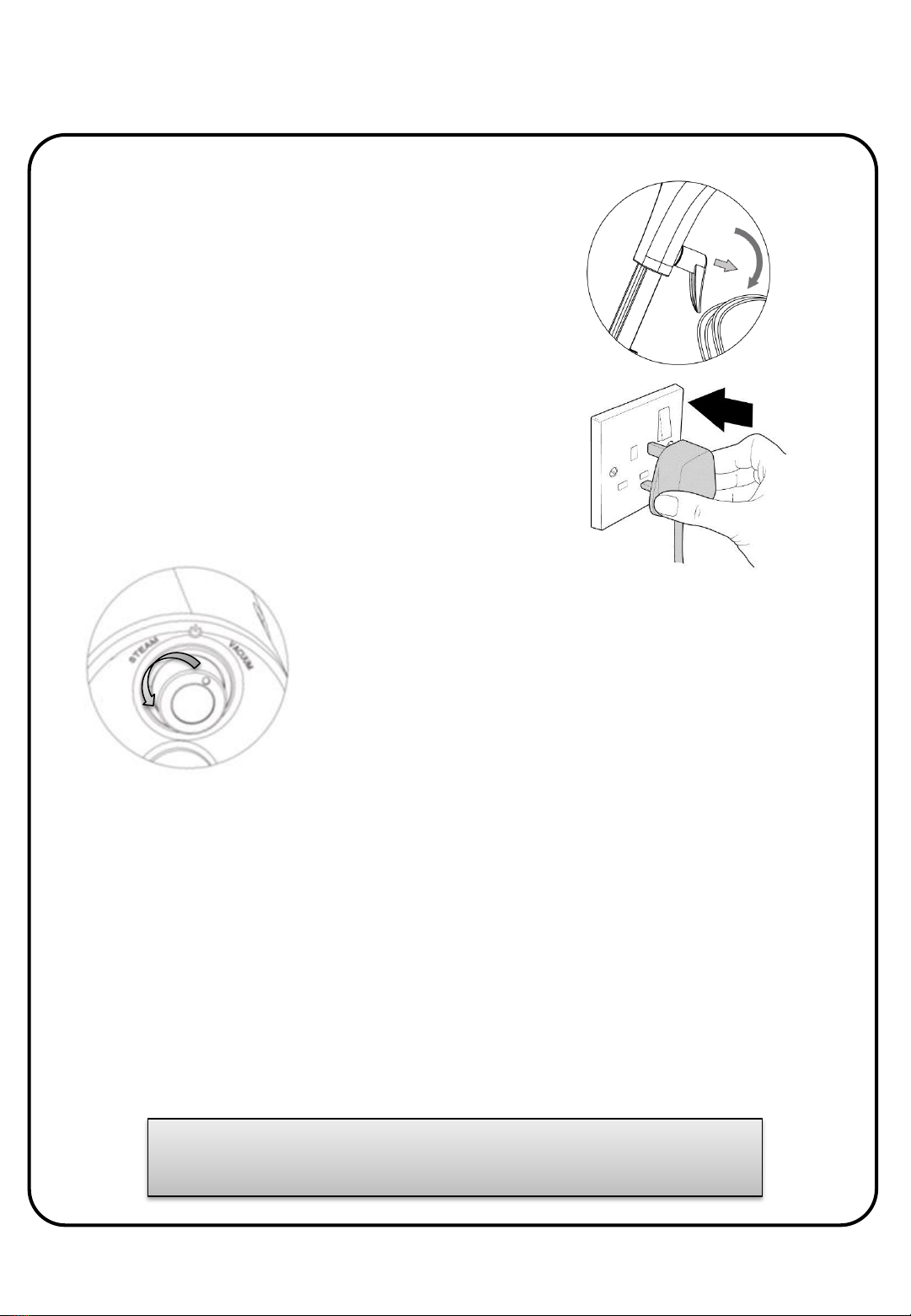

Once the handle is assembled,
pull and twist the cord holder
to unwrap the cord. Plug the
unit into a mains socket and
turn the power on.
Move the black marker from
the central ‘off’ position,
twisting the dial clockwise for
vacuum function.
Note:
•DO NOT use vacuum function if frame and
pad are attached to base of cleaning unit.
•Only use on non-carpeted and sealed
surfaces.
•Vacuum surfaces before steam-cleaning to
avoid a build-up of condensation in the
room –DO NOT steam clean first.
•Before moving on to another room, wait 10
minutes for the condensation to clear
before vacuuming again.

STORAGE
1. Lightly place your foot on the top of the unit base.
Tilt the unit forward to the upright position.
2. Move the black marker from the vacuum position to
the central ‘off’ position, twisting the dial
anticlockwise.
3. Unplug from the mains socket.
4. Tidy away the cord, wrapping it around the cord
holders. Store the unit upright.
12
Vacuum Mode
1
2
3
4
Note: Carry the unit by the main body, not the handle.

13
Vacuum Mode
1
2
3
4

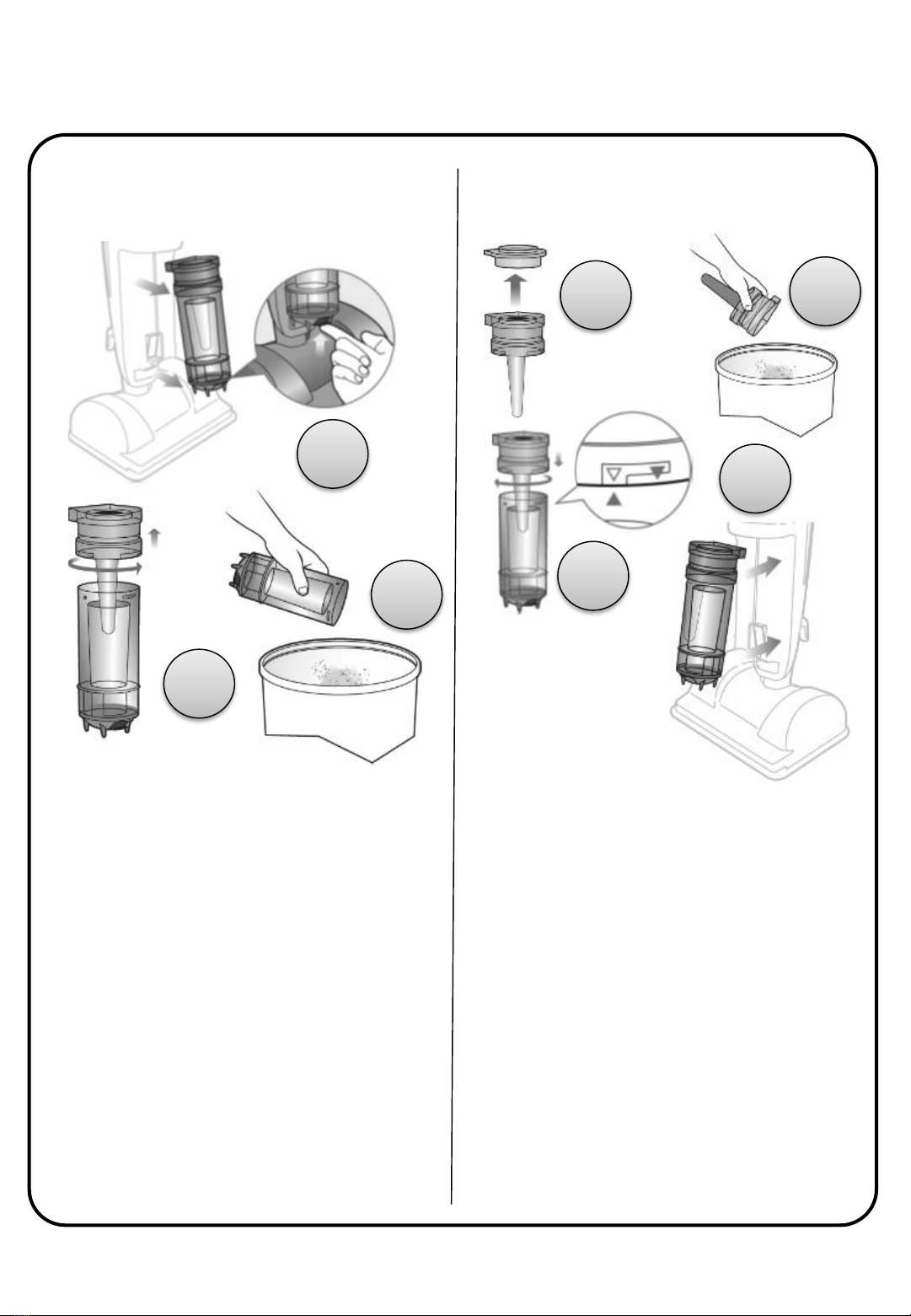

Emptying the dust cup Emptying the cone filter
12
3
1. Press the clip at the
bottom of the canister
upwards. Pull the dust cup
out and down.
2. Twist dust cup cover
anticlockwise to open.
3. Tip canister over bin and
tap the side to empty.
1. Lift the filter frame out from
the top of the dust cup and
remove the two filter layers.
2. Tip canister over bin and tap
the side to empty.
Reattaching
3. Align indicators on rear of cup.
Twist the cover clockwise and
ensure the solid arrows are
aligned before reinserting.
4. Reinsert the dust cup by gently
pushing it up and back in, until it
clicks.
For optimal
suction
performance,
clean filter often.

14
Steam Mode

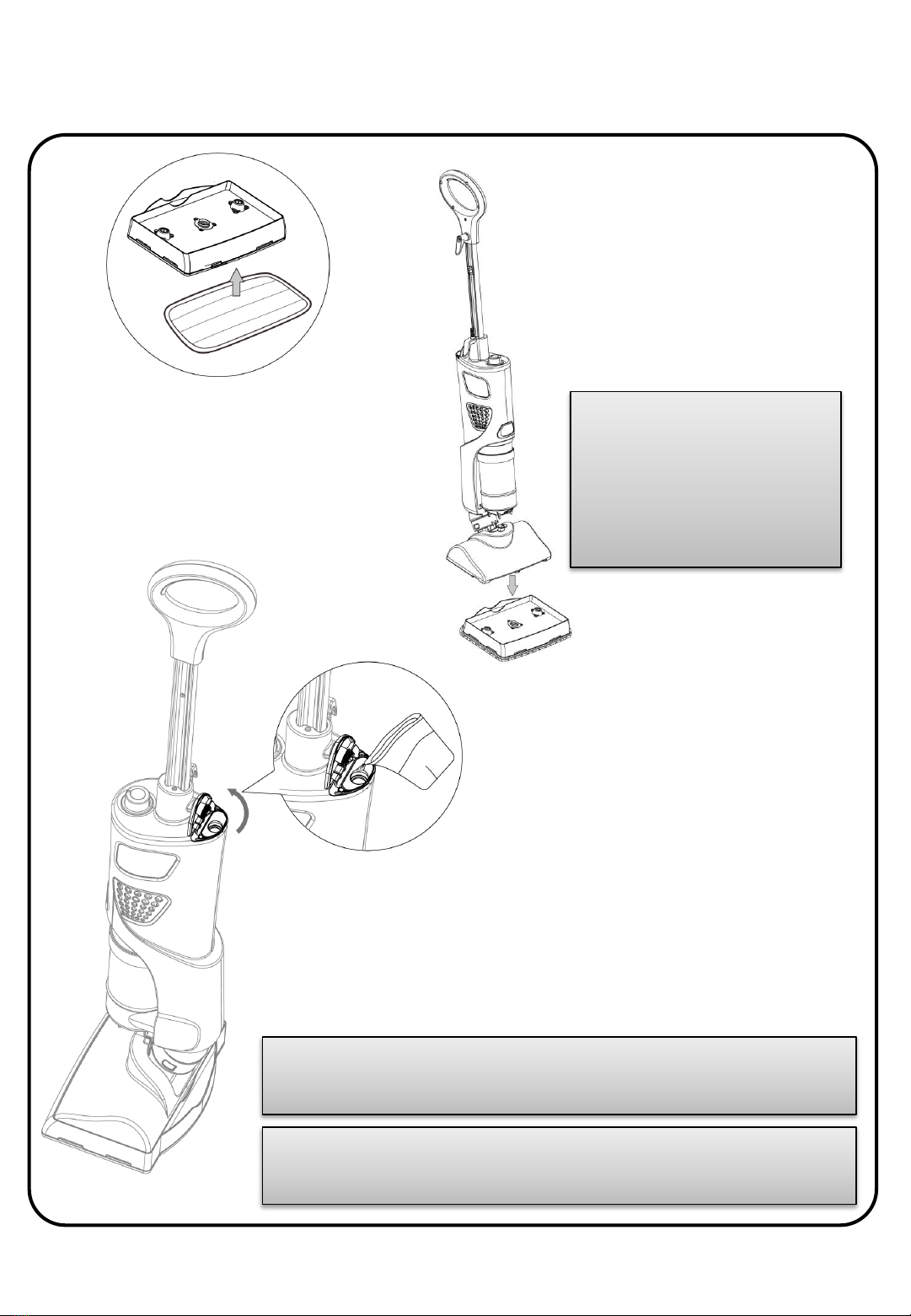

Place the microfibre
pad onto the base of
the unit, lining up
the velcro to secure.
Place the cleaner in
an upright position
into the steam
frame and secure.
Ensure the unit is in an upright
position and lift the flap.
Add water to the filling cup
but do not overfill.
Pour cup contents into the
tank without overfilling.
Close the flap by pushing it
down until it clicks.
Do not use chemicals or detergent cleaners in your
Vac & Steam. Water is sufficient.
If you live in a hard water area, we recommend
using distilled water in your Vac & Steam.
You must attach the
steam frame and pad
to the cleaner when
using the steam
function.

Steam Mode
15
Move the black marker from the
central ‘off’ position, twisting the
dial anticlockwise for steam
function.
Once the handle is inserted, steam
pad attached and water filled, pull
and twist the cord holder to unwrap
the cord.
Plug the unit into a mains socket
and turn the power on.
Do not use the unit for 20 seconds whilst the water heats, then
tilt handle back to activate steam pump.
Use the steam cleaner.
The Vac & Steam features automatic shut off in the upright
position.
To stop steam, gently push the handle forwards to stand the unit
upright.
Note: regularly check the water level and fill anytime
throughout cleaning to maintain optimal steam.

16
Steam Mode
Storage
1. Lightly place your foot on the top of the unit base.
Tilt the unit to the upright position.
2. Move the black marker from the steam position to the
central ‘off’ position, twisting the dial clockwise.
3. Unplug from the mains socket.
4. Press foot on the steam frame and separate from mop pad.
5. Lift the water tank flap and empty water tank.
6. Tidy away the cord, wrapping it around the cord holders.
Store the unit upright.
1
2
3
4
5
6

17
Cleaning and Care
To clean the exterior of the device, use a damp, soft cloth and
mild detergent.
NEVER IMMERSE THE CLEANER IN WATER
When wiping off the main body, do not allow moisture in the
area around the power dial.
If the steam mop is damaged, contact the customer service
helpline.

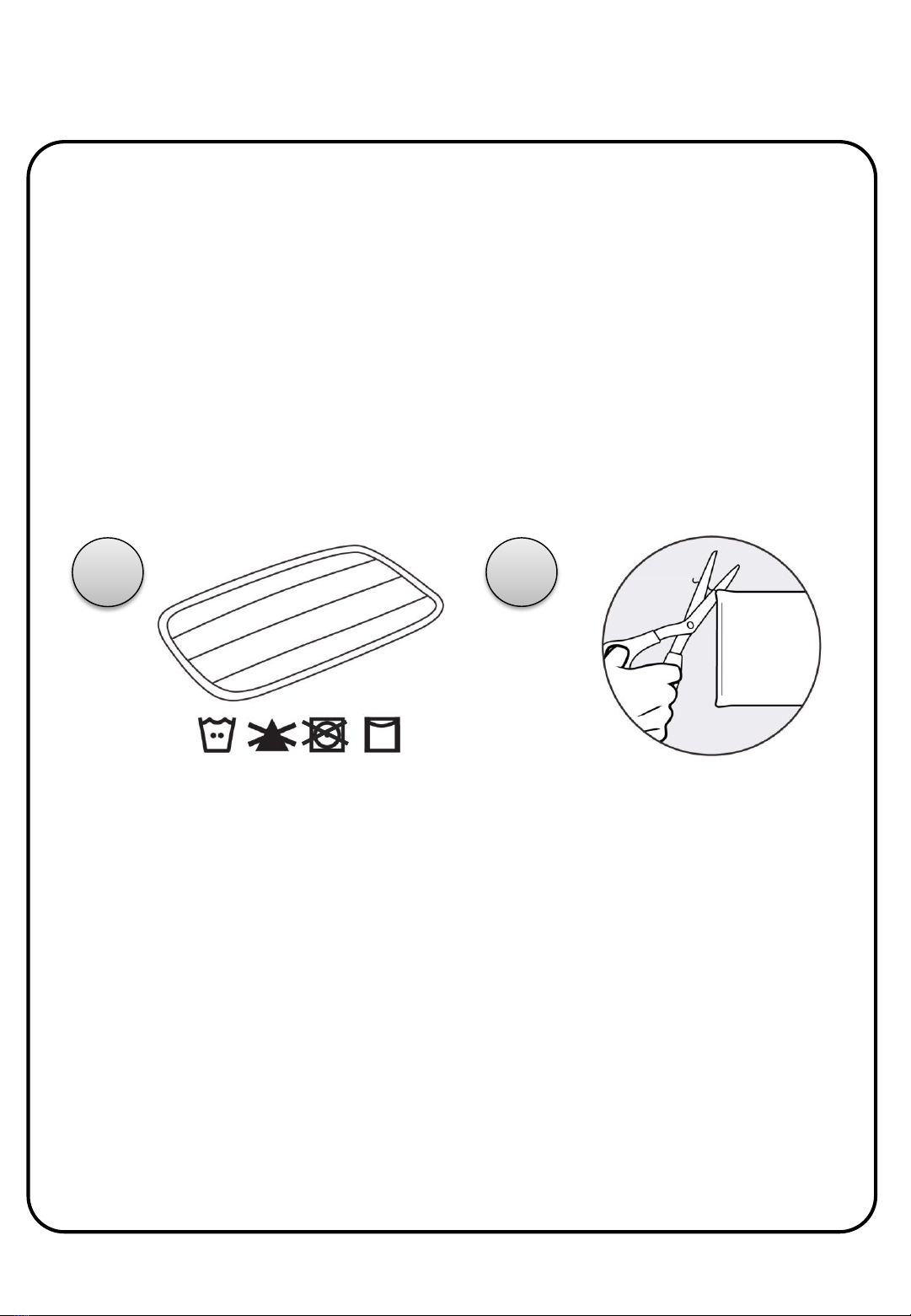

Care of your microfibre cleaning pads
1. Machine wash pads in warm water, no more than 40
degrees. Wash separately. Do not use fabric softener and
do not tumble dry. Dry on a line.
2. Should there be any loose threads on the microfibre pad,
carefully cut the threads with scissors.
Do not try to pull any threads or cut at the base.
12

Care of your dust cup filters
1. Ensure the unit is unplugged and the power dial is centred.
Once the dust cup is removed, lift the filter frame out of the
top and remove the two filter layers from the frame filter.
2. Rinse the two filters thoroughly in lukewarm water.
Any excess water should be squeezed out.
Let the filters air dry for 24 hours before reusing.
3. Insert a dry filter set into the filter frame.
Note: ensure that the thick filter is on the bottom and thin
filter is on top as this will impact on dust cup performance.
Replace the frame with the filter set into the top of the dust
cup.
18
Cleaning and Care
1 2
Tips: Using water alone, rinse filters thoroughly every 3
months and allow to dry for 24 hours.
It is recommended to replace your filter set once a year.
Increased care may be required if the unit is used excessively.
3

19
Guarantee
After registration, this product is guaranteed for 3 years from the date
of the original purchase. If any defect arises due to faulty materials or
workmanship the faulty product must be returned to the place of
purchase.
Register your product at www.productcareuk.com.
Refund or replacement is at the discretion of the store.
The following conditions apply:
•The product must be returned to the retailer with the original
proof of purchase.
•The product must be installed and used in accordance with the
instructions contained in this instruction guide and any other
instructions for use which has been supplied.
•It must be used for domestic purposes only and for its intended
use.
•This guarantee does not cover wear and tear, damage, misuse or
consumable parts.
This does not affect your statutory rights.
For Customer Services & Spare Parts please call 0845 209 7461
Opening times: Monday - Friday 8am –6pm & Saturday 9am –1pm or visit
us at www.productcareuk.com

This symbol is known as the 'Crossed-out wheelie bin Symbol'.
When this symbol is marked on a product/batteries, it means that
the product/batteries should not be disposed of with your general
household waste. Only discard electrical/electronic/battery items
in separate collection schemes, which cater for the recovery and
recycling of materials contained within. Your co-operation is vital to
make sure the success of these schemes and for the protection of
the environment. For your nearest disposal facility, visit
www.recycle-more.co.uk or ask in store for details.
We reserve the right due to possible changes to design to alter the
instruction manual without prior notice.
Disposal information
For Customer Services & Spare Parts
please call 0845 209 7461
Opening times: Monday - Friday
8am –6pm & Saturday 9am –1pm or
visit us at www.productcareuk.com
Customer support
Produced for:
G2S ltd
Bolton
BL6 5HY
20
