1. Introduction
2. General Information
2.1 Requirements
2.2 Supported units
2.3 Additional licenses required for completing the job
2.4 Additional Important Information
2.5 Frequently Asked Questions (FAQ)
3. Hardware
4. Using the software
5. Connection and diagrams
5.1 Connection diagrams

www.abrites.com 5
List of revisions
Date Chapter Description Revision
Abrites RH850/V850 Programmer User Manual
2023
20.04.2023 1.0ALL Document created.
29.06.2023 ALL Many general details added
Connection diagrams removed 1.1
11.09.2023 1.2
ALL Revision of all sections; 2.5
added

www.abrites.com 6
Abrites RH850/V850 Programmer User Manual
2023
1. Introduction
Congratulations on choosing our wonderful product!
Our new Abrites RH850/V850 programmer is a powerful tool that can read RH850 processors and read/
write V850 processors, making it a versatile solution for professionals. As a professional, you know the
importance of having the right tools to get the job done right.
In this user manual, we’ll walk you through the process of connecting both AVDI and RH850/V850 pro-
grammer to your PC, using the software and making the right connections to the electronic units you are
working on.
ABRITES is a trade mark of Abrites Ltd

www.abrites.com 7
Abrites RH850/V850 Programmer User Manual
2023
2.1 Requirements
Minimum system requirements – Windows 10 or later, USB port with supply 100 mA / 5V +/- 5%
You should use the device only with the supplied cables and adapters - this is crucial for the proper ex-
ploitation and function of the programmer. Please do not use external power supply, especially one that
exceeds 5V, as this may result to a damage to the programmer.
2. General Information

www.abrites.com 8
Abrites RH850/V850 Programmer User Manual
2023
2.2 Supported units
The supported units for reading (electronic units equipped with RH850/V850 processors) and writing
(electronic units equipped with V850 processor) is dynamic and constantly updated, as we are adding
mode and more units to the supported list. You are able to check if your dashboard is supported in the

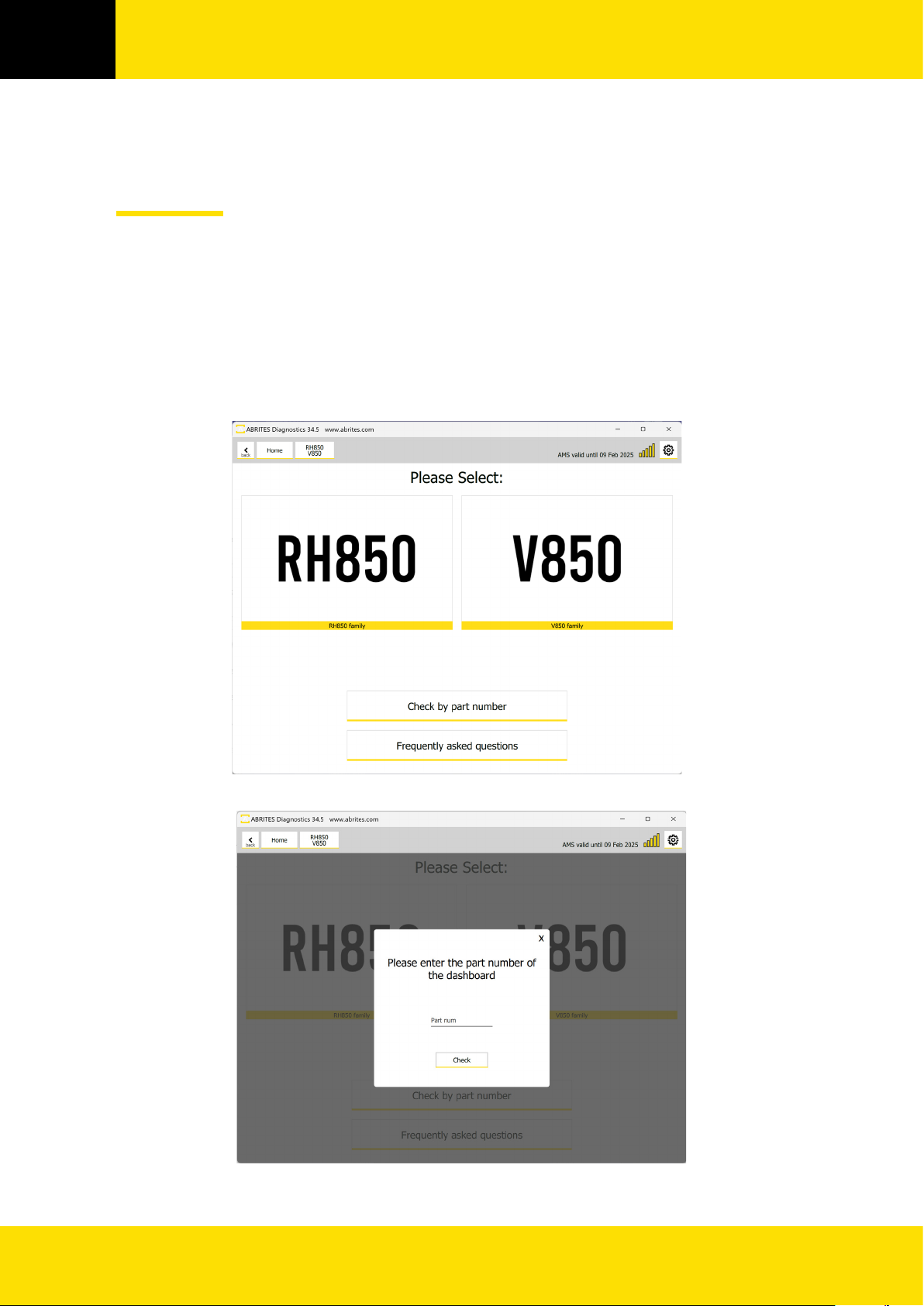

software by part number. Once you open the software, on the main screen you will see a button “Check
by Part Number”, you can type the part number and you will get the needed information.

www.abrites.com 9
Abrites RH850/V850 Programmer User Manual
2023
2.3 Additional licenses required for completing the job
•• Mileage recalibration procedures for VAG vehicles with V850 processors require the VN007 license.
•• Key programming procedures for VAG vehicles with V850 processors require the VN009 license.
•• Key programming procedures for VAG vehicles with RH850 processors require the VN021 license.
•• All Keys Lost key programming procedures for Renault vehicles equipped with a HFM/BCM module
require the RR026 license.
•• All Keys Lost key programming procedures for Nissan vehicles equipped with a HFM/BCM module
require the NN010 license.

www.abrites.com 10
Abrites RH850/V850 Programmer User Manual
2023
2.4 Additional Important Information
It is very important to note the following situation for VAG RH850/V850 dashboards:
Please do not turn any VAG Dashboard ON while it is still disassembled, and most important, while the
fan is not ON. Only turn the dashboard ON when it is fully assembled. Otherwise, the dashboard will set
a DTC “Control Module Faulty” and there is no way to fix it.
It is very important to keep all the cables and wires in its original state and not put any extensions to any
of the wires when soldering.

www.abrites.com 11
Abrites RH850/V850 Programmer User Manual
2023
2.5 Frequently Asked Questions (FAQ)

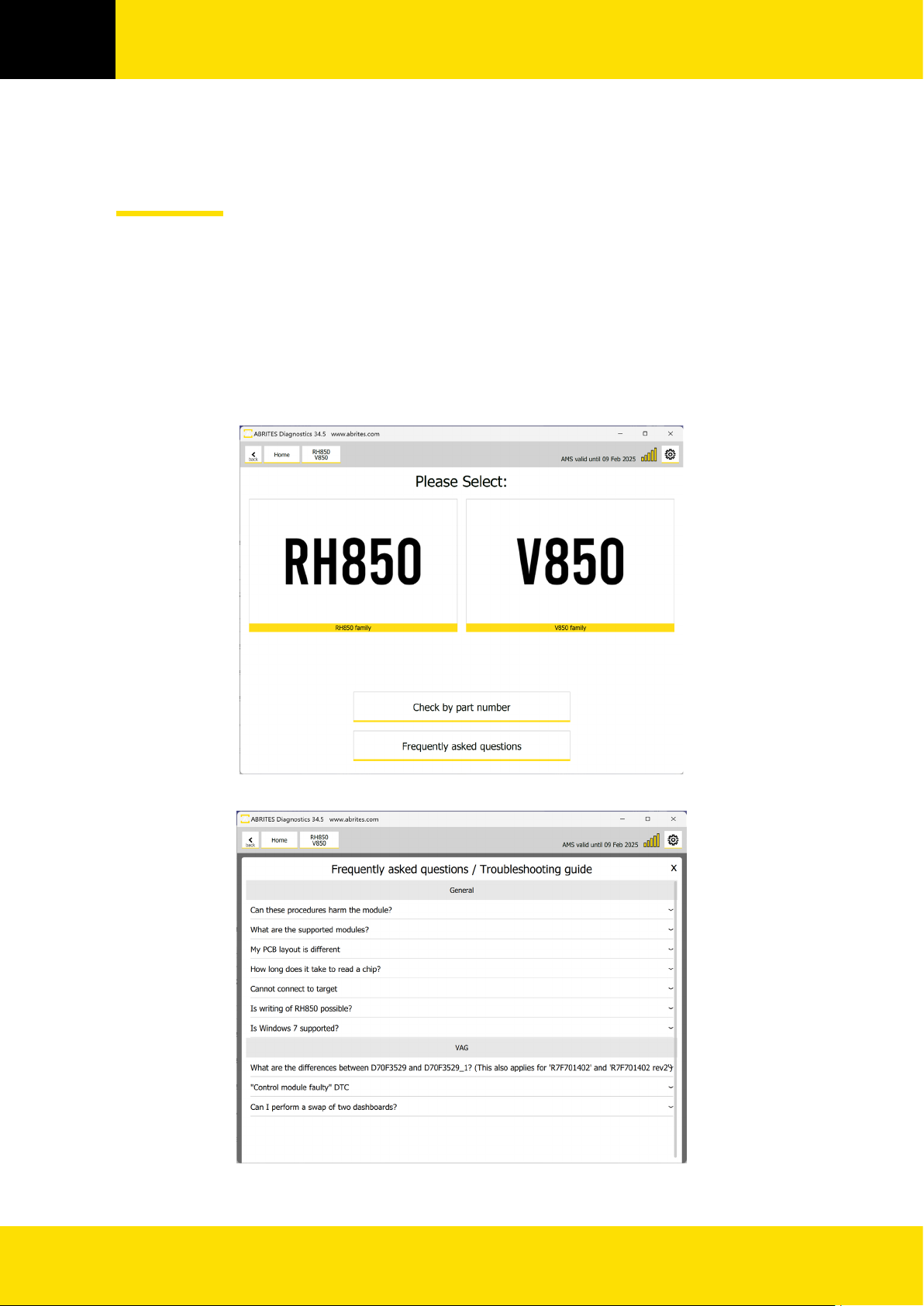

On the main screen of the software you will see the 2 types of MCUs - V850 and RH850, as well as 2
buttons - “Check by part number” and “Frequently asked questions”
By pressing the “Frequently asked questions” button you will be able to see answers to important topics
that concern many of our customers:

www.abrites.com 12
Abrites RH850/V850 Programmer User Manual
2023
3. Hardware
The set consists of:
•• ZN085 Abrites programmer for RH850/V850,
•• 5V/1A power adapter,
•• USB-C to USB-A cable
•• CB501 - RH850/V850 connection cable- intended for establishing a connection with the electronic
units by soldering. (CB501 is also sold separately)
•• A set of 3.3 Ohm resistors
You should use the device only with the supplied cables and adapters - this is crucial for the proper ex-
ploitation and function of the programmer. Please do not use external power supply, especially one that
exceeds 5V, as this may result to a damage to the programmer.
N.B: For the optimal performance of the Abrites RH850/V850 programmer we strongly recommend using
the USB-C to USB-A and power adapter supplied by Abrites only. We have tested our software thorough-
ly with this specific cable and adapter and can guarantee its compatibility with our product.
If other cables or adapters are used, there may be unexpected behavior of the software, which could lead
to errors. Therefore, we advise against using any other cables or adapters to connect our programmer to
your PC.

www.abrites.com 13
Abrites RH850/V850 Programmer User Manual
2023
4. Using the software

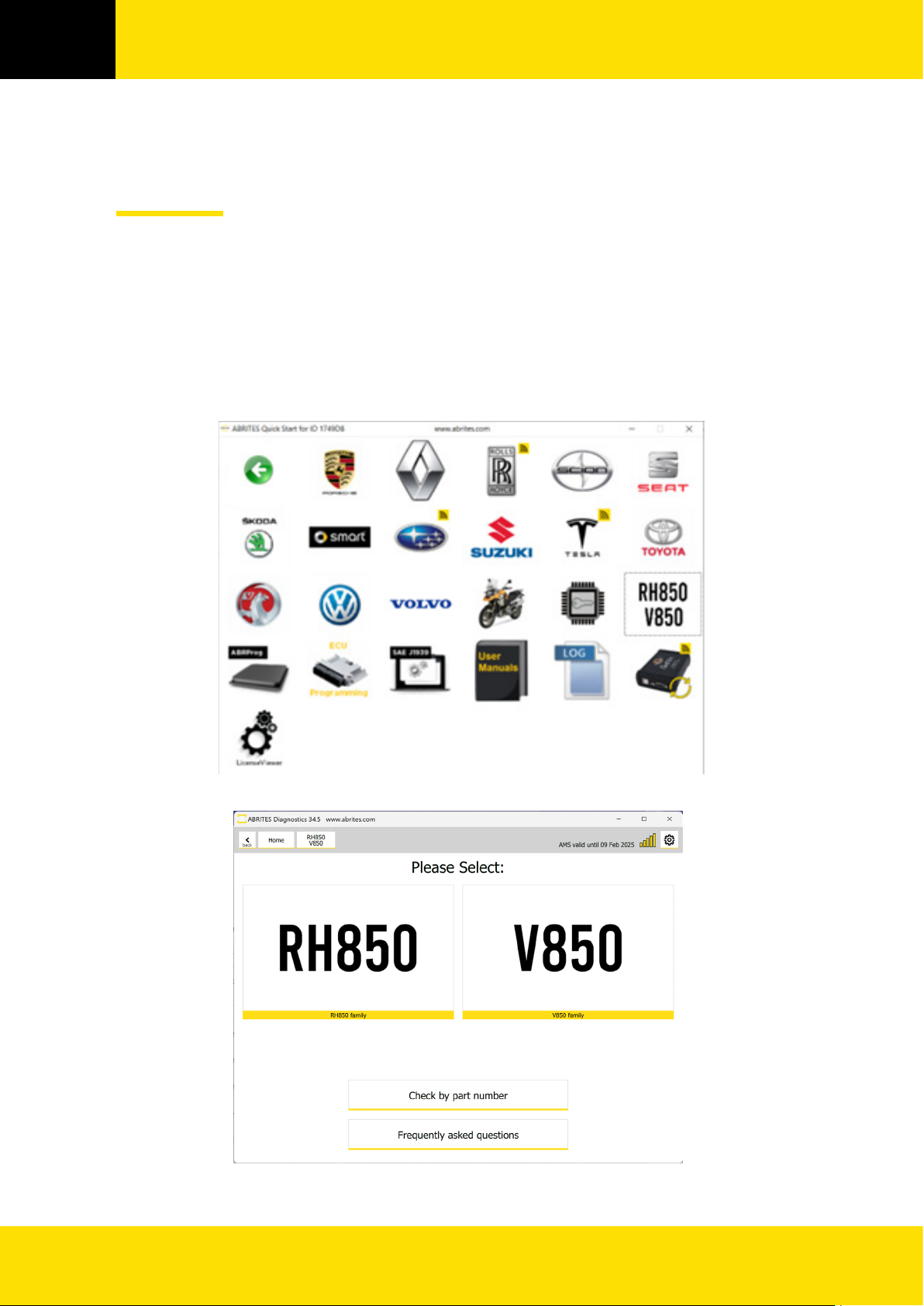

After connecting both the Abrites programmer for RH850/V850 and AVDI to the PC via USB ports,
launch the Abrites Quick Start Menu and click on the “RH850/V850” option. Once you open the soft-
ware you will have the option ti choose the MCU type you are working with - RH850 or V850. Please
select the icon of your choice.

www.abrites.com 14
Abrites RH850/V850 Programmer User Manual
2023
Next screen will show you the available units with the chosed MCU type, and you need to make your
selection. In the example below we use Renault HFM. Once the unit is selected, you will see the main
screen, which gives you the option to read to see the connection diagram, read the MCU, or load a file.

www.abrites.com 15
Abrites RH850/V850 Programmer User Manual
2023
The button “Wiring” will give you everything that is needed for connection to the selected unit.

www.abrites.com 16
Abrites RH850/V850 Programmer User Manual
2023
Once ready with the connections you can proceed to reading the unit by pressing the “Read MCU” but-

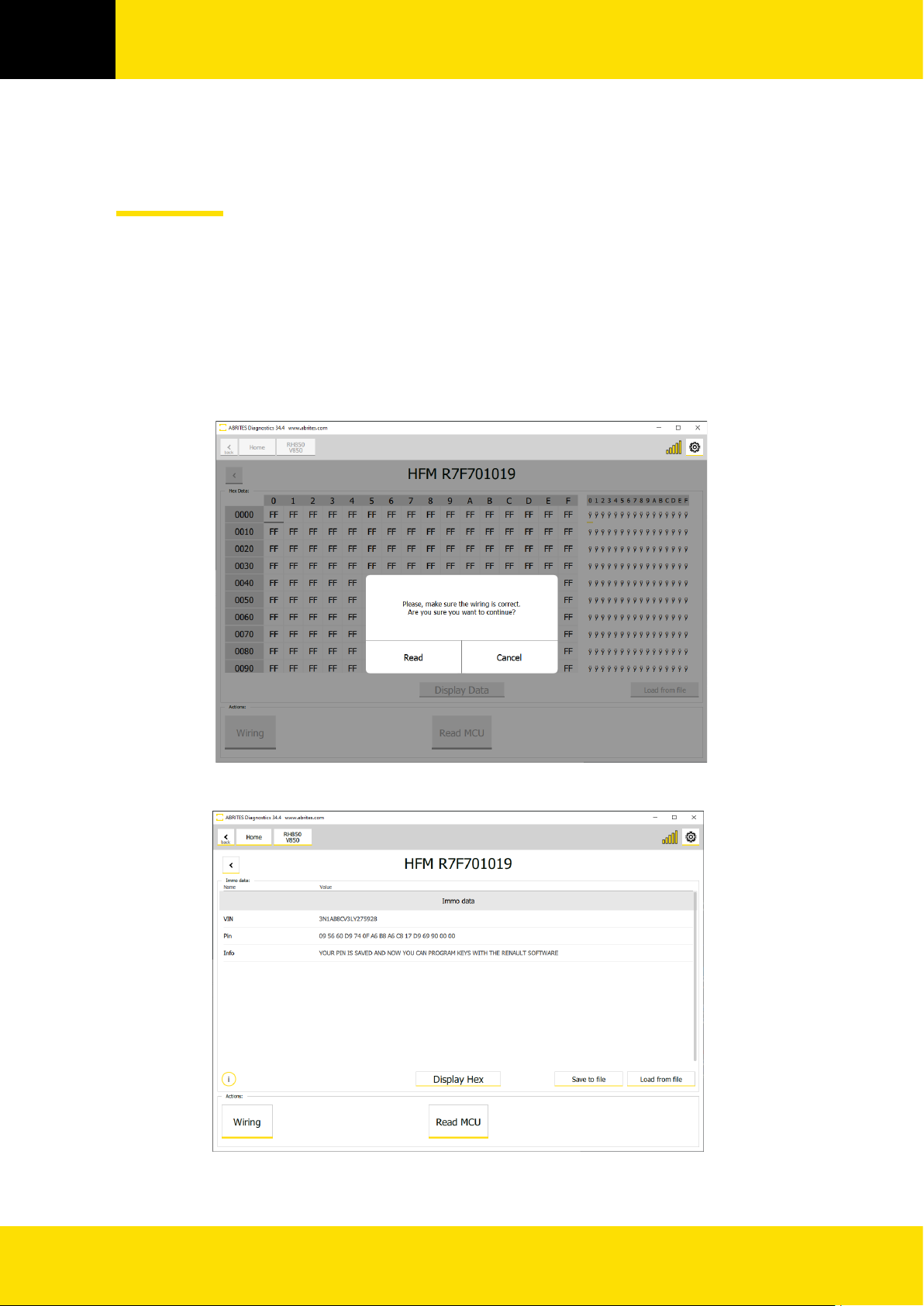

ton. Once the unit is read, the software will display the available information and you will see a screen like
the one below (note that in this case we are using Renault HFM; VAG dashboards will display different
information)

www.abrites.com 17
Abrites RH850/V850 Programmer User Manual
2023
Below you may see example of a VAG dashboard read with the programmer.

www.abrites.com 18
Abrites RH850/V850 Programmer User Manual
2023
5. Connection and diagrams
When connecting to the unit, it is crucial to adhere strictly to the connection diagrams provided in the
software. Additionally, please take note of the following important statements:
1. It is strongly recommended to verify your connections using a multimeter, specifically checking for
any short circuits to ground at the connection point of the gray cable.
2. Exercise caution to avoid inadvertently shorting the capacitors when returning them to their original
soldering positions.
3. We recommend connecting the devices directly to a laptop whenever possible. If a direct connection
is not feasible, then it is advisable to use a powered USB hub. Standard USB hubs may not have the
necessary power capacity to support all the required devices (AVDI, Protag, ZN085 programmer),
which could lead to program malfunctions and damage to units.
Please ensure that you carefully follow these guidelines to ensure proper and safe operation.

www.abrites.com 19
Abrites RH850/V850 Programmer User Manual
2023
5.1 Connection diagrams
Connection diagram for each supported unit can be found in the software, as mentioned in the previous
section of this user manual. In order to access a diagram you should follow the steps below:
• Open the software
• Select the type of MCU - RH850 or V850
• Select the unit you are working with
• Click on the “Wiring” button
This will open a new window where you will be able to see all required details: wiring diagram, front and
back side of the unit itself, and both sides of the PCB.
