DFI LANParty UT ICFX3200-T2R/G User manual

System Board
User’s Manual
935-CF32T1-000G
93500642

Copyright
This publication contains information that is protected by copyright.
No part of it may be reproduced in any form or by any means or
used to make any transformation/adaptation without the prior
written permission from the copyright holders.
This publication is provided for informational purposes only. The
manufacturer makes no representations or warranties with respect to
the contents or use of this manual and specifically disclaims any
express or implied warranties of merchantability or fitness for any
particular purpose.The user will assume the entire risk of the use or
the results of the use of this document. Further, the manufacturer
reserves the right to revise this publication and make changes to its
contents at any time, without obligation to notify any person or
entity of such revisions or changes.
© 2006. All Rights Reserved.
Trademarks
Product names or trademarks appearing in this manual are for
identification purpose only and are the properties of the respective
owners.

FCC and DOC Statement on Class B
This equipment has been tested and found to comply with the limits
for a Class B digital device, pursuant to Part 15 of the FCC rules.
These limits are designed to provide reasonable protection against
harmful interference when the equipment is operated in a residential
installation. This equipment generates, uses and can radiate radio
frequency energy and, if not installed and used in accordance with
the instruction manual, may cause harmful interference to radio
communications. However, there is no guarantee that interference
will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of the
following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and the receiver.
• Connect the equipment into an outlet on a circuit different from
that to which the receiver is connected.
• Consult the dealer or an experienced radio TV technician for
help.
Notice:
1. The changes or modifications not expressly approved by the
party responsible for compliance could void the user's authority
to operate the equipment.
2. Shielded interface cables must be used in order to comply with
the emission limits.

Table of Contents
About this Manual................................................................................
Warranty.................................................................................................
Registering the Product.......................................................................
Static Electricity Precaution................................................................
Safety Measures.....................................................................................
About the Package...............................................................................
Before Using the System Board.........................................................
Chapter 1 - Introduction....................................................................
Specifications...................................................................................................................................
Features..............................................................................................................................................
Français................................................................................................................................................
Deutsch...............................................................................................................................................
Español................................................................................................................................................
Ðóññêèé ÿçûê.........................................................................................................................
Japanese.............................................................................................................................................
Chapter 2 - Hardware Installation....................................................
System Board Layout ..........................................................................................................
System Memory..........................................................................................................................
CPU.......................................................................................................................................................
Jumper Settings............................................................................................................................
Rear Panel I/O Ports.............................................................................................................
Internal I/O Connectors.....................................................................................................
Chapter 3 - BIOS Setup......................................................................
Award BIOS Setup Utility.................................................................................................
RAID BIOS.....................................................................................................................................
Updating the BIOS..................................................................................................................
Chapter 4 - Supported Softwares.....................................................
Chapter 5 - RAID.................................................................................
Chapter 6 - ATI CrossFire Technology.............................................
Appendix A - Enabling Hyper-Threading Technology...................
Appendix B - System Error Message...............................................
Appendix C - Troubleshooting..........................................................
5
5
6
8
8
9
9
10
10
12
17
19
21
23
25
27
27
29
33
39
47
58
76
76
134
135
137
160
165
175
178
180

About this Manual
An electronic file of this manual is included in the CD. To view the
user’s manual, insert the CD into a CD-ROM drive. The autorun
screen (Mainboard Utility CD) will appear. Click the “TOOLS” icon
then click “Manual” on the main menu.
Warranty
1. Warranty does not cover damages or failures that arised from
misuse of the product, inability to use the product, unauthorized
replacement or alteration of components and product
specifications.
2. The warranty is void if the product has been subjected to
physical abuse, improper installation, modification, accidents or
unauthorized repair of the product.
3. Unless otherwise instructed in this user’s manual, the user may
not, under any circumstances, attempt to perform service,
adjustments or repairs on the product, whether in or out of
warranty. It must be returned to the purchase point, factory or
authorized service agency for all such work.
4. We will not be liable for any indirect, special, incidental or
consequencial damages to the product that has been modified
or altered.

Introduction
1
6
Registering the Product
We encourage you to register your DFI product online. DFI’s product
registration service entitles you to notifications about product
updates, special discounts and/or promotional offers; and puts your
licensing information on file so that we may efficiently assist you if in
any case needed. Please follow the steps below to access the
product registration page.

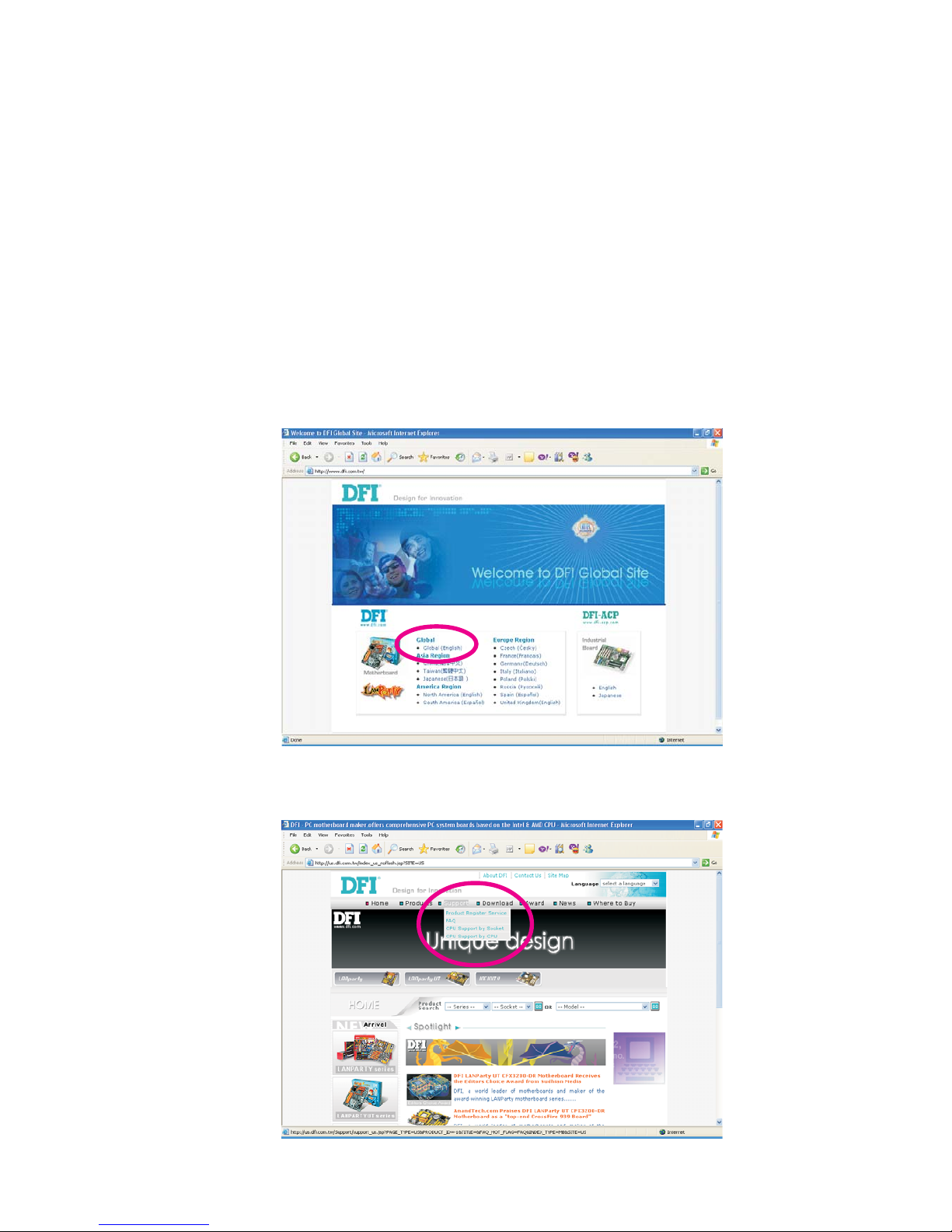

1. Run Internet Explorer then type www.dfi.com.tw in the Address bar.
On DFI’s homepage, click Global or the language of your choice.
2. Click the Support menu then select Product Register Service.

1
Introduction
7
3. The DFI Product Registration page will appear. Click Next to
continue.
4. Select or fill in the necessary information to complete the
registration.
5. Thank you for registering your DFI product.

Introduction
1
8
Static Electricity Precautions
It is quite easy to inadvertently damage your PC, system board,
components or devices even before installing them in your system
unit. Static electrical discharge can damage computer components
without causing any signs of physical damage. You must take extra
care in handling them to ensure against electrostatic build-up.
1. To prevent electrostatic build-up, leave the system board in its
anti-static bag until you are ready to install it.
2. Wear an antistatic wrist strap.
3. Do all preparation work on a static-free surface.
4. Hold the device only by its edges. Be careful not to touch any of
the components, contacts or connections.
5. Avoid touching the pins or contacts on all modules and
connectors. Hold modules or connectors by their ends.
Important:
Electrostatic discharge (ESD) can damage your processor, disk
drive and other components. Perform the upgrade instruction
procedures described at an ESD workstation only. If such a
station is not available, you can provide some ESD protection
by wearing an antistatic wrist strap and attaching it to a metal
part of the system chassis. If a wrist strap is unavailable,
establish and maintain contact with the system chassis
throughout any procedures requiring ESD protection.
Safety Measures
To avoid damage to the system:
• Use the correct AC input voltage range.....
To reduce the risk of electric shock:
• Unplug the power cord before removing the system chassis
cover for installation or servicing. After installation or servicing,
cover the system chassis before plugging the power cord.
Battery:
• Danger of explosion if battery incorrectly replaced.
• Replace only with the same or equivalent type recommend by
the manufacturer.
• Dispose of used batteries according to the battery
manufacturer’s instructions.

1
Introduction
9
About the Package
The system board package contains the following items. If any of
these items are missing or damaged, please contact your dealer or
sales representative for assistance.
;One system board
;One Karajan audio module
;One IDE round cable
;One floppy round cable
;Four Serial ATA data cables
;Two Serial ATA power cables
;One I/O shield
;One RAID driver diskette
;One “Mainboard Utility” CD
;One user’s manual
;One Quick Installation Guide
The system board and accessories in the package may not come
similar to the information listed above.This may differ in accordance
to the sales region or models in which it was sold. For more
information about the standard package in your region, please
contact your dealer or sales representative.
Before Using the System Board
Before using the system board, prepare basic system components.
If you are installing the system board in a new system, you will need
at least the following internal components.
•A CPU
•Memory module
•Storage devices such as hard disk drive, CD-ROM, etc.
You will also need external system peripherals you intend to use
which will normally include at least a keyboard, a mouse and a video
display monitor.

Introduction
1
10
Chapter 1 - Introduction
Specifications
Processor
Chipset
System Memory
Expansion Slots
ATI CrossFire and
ATI Physics
BIOS
Power Management
Hardware Monitor
LAN
• LGA 775 socket for:
- Intel®CoreTM2 Quad, Intel®CoreTM2 Extreme, Intel®CoreTM2
Duo, Intel®Pentium®D or Intel®Pentium®4
• Supports Intel Enhanced Memory 64 Technology (EMT64T)
• Supports Enhanced Intel SpeedStep Technology (EIST)
• Supports Intel Hyper-Threading Technology
• Supports 1066/800MHz FSB
• ATI chipset
- Northbridge: ATI RD600
- Southbridge: ATI SB600
• Four 240-pin DDR2 DIMM sockets
• Supports DDR2 667 and DDR2 800 DIMMs
• Supports dual channel (128-bit wide) memory interface
• Supports up to 8GB system memory
• Supports unbuffered non-ECC x8 and x16 DIMMs
• 3 PCI Express x16 slots for ATI CrossFire and ATI Physics
• 3 PCI slots
• 2+1 Configuration (2 Graphics + 1 Physics)
- 2 ATI CrossFire graphics cards (each operates at x8 band-
width).
- 1 ATI Physics graphics card operates at x2 bandwidth.
• Award BIOS
• CMOS Reloaded
• CPU/DRAM overclocking
• CPU/DRAM/Chipset overvoltage
• 8Mbit flash memory
• ACPI and OS Directed Power Management
• ACPI STR (Suspend to RAM) function
• Wake-On-PS/2 Keyboard/Mouse
• Wake-On-USB Keyboard/Mouse
• Wake-On-Ring
• Wake-On-LAN
• RTC timer to power-on the system
• AC power failure recovery
• Monitors CPU/system/chipset temperature
• Monitors 12V/5V/3.3V/Vcore/Vbat/5Vsb/Vdimm/Vchip voltages
• Monitors the speed of the cooling fans
• CPU Overheat Protection function monitors CPU temperature
during system boot-up
• Marvell 88E8052 and Marvell 88E8053 Gigabit PCIE LAN
• Fully compliant to IEEE 802.3 (10BASE-T), 802.3u (100BASE-
TX) and 802.3ab (1000BASE-T) standards

1
Introduction
11
Audio
IDE
Serial ATA with
RAID
IEEE 1394
Rear Panel I/O
Internal I/O
PCB
• Karajan audio module
- Realtek ALC885 8-channel High Definition Audio CODEC
- 6 audio jacks
- 1 CD-in connector
- 1 front audio connector
• DAC SNR/ADC SNR of 106dB/101dB
• Full-rate lossless content protection technology
• S/PDIF-in/out interface
• Supports one IDE connector that allows connecting up to two
UltraDMA 133Mbps hard drives
• Four Serial ATA ports supported by ATI SB600
- SATA speed up to 3Gb/s
- RAID 0, RAID 1 and RAID 0+1
• Four Serial ATA ports supported by Promise PDC40719
(LP UT ICFX3200-T2R/G only)
- SATA speed up to 3Gb/s
- RAID 0, RAID 1, RAID 0+1 and RAID 5
• VIA VT6307
• Supports two 100/200/400 Mb/sec ports
• 1 mini-DIN-6 PS/2 mouse port
• 1 mini-DIN-6 PS/2 keyboard port
• 2 S/PDIF RCA jacks (S/PDIF-in and S/PDIF-out)
• Karajan audio module (6 audio jacks)
• 1 IEEE 1394 port
• 2 RJ45 LAN ports
• 6 USB 2.0/1.1 ports
• 2 connectors for 4 additional external USB 2.0/1.1 ports
• 1 connector for 1 external IEEE 1394 port
• 1 connector for 1 external serial port
• 1 connector for the Karajan audio module
• 1 front audio connector for external line-out and mic-in jacks
(on the Karajan audio module)
• 1 CD-in internal audio connector (on the Karajan audio module)
• 1 S/PDIF connector for optical cable connection
• 1 IrDA connector
• 1 CIR connector
• 8 Serial ATA connectors (LP UT ICFX3200-T2R/G only)
4 Serial ATA connectors (LP UT ICFX3200-T2/G only)
• 1 IDE connector
•1 90
ofloppy connector
• 1 24-pin ATX power connector
• 1 8-pin ATX 12V power connector
• 2 4-pin 5V/12V power connectors (FDD type)
• 1 front panel connector
• 6 fan connectors
• 1 diagnostic LED
• EZ touch switches (power switch and reset switch)
• ATX form factor
• 24cm (9.45") x 30.5cm (12")

Introduction
1
12
Features
The system board supports Intel proces-
sors with Hyper-Threading Technology. Ena-
bling the functionality of Hyper-Threading
Technology for your computer system requires ALL of the following
platforms.
Components:
• CPU - an Intel®Pentium®4 Processor with HT Technology
• Chipset - an Intel®chipset that supports HT Technology
• BIOS - a BIOS that supports HT Technology and has it enabled
• OS - an operating system that includes optimizations for HT
Technology
For more information on Hyper-Threading Technology, go to:
www.intel.com/info/hyperthreading.
ATI’s CrossFireTM technology drives your
PC to a new peak of performance by
combining multiple GPUs in a single sys-
tem. By connecting a Radeon CrossFire Edition graphics card and a
standard PCI Express graphics card, the power of the dual GPUs
(Graphics Processing Units) within the system will accelerate your
gaming performance and improve image quality.
Aside from dual GPU for 3D rendering, CrossFire’s new feature -
asymmetric processing technology, allows adding another dedicated
GPU for physics processing.The 3 GPUs simultaneously handle Data
Parallel Processing (DPP) computing tasks such as game rendering
and physics in a single system. This provides more realistic cutting
edge 3D graphics to run at high resolutions.
hyper-threading
technology

1
Introduction
13
PCI Express is a high bandwidth I/O infrastructure
that possesses the ability to scale speeds by forming
multiple lanes. The system board currently supports
the physical layer of x16 lane widths. The x16 PCI Express lane
supports transfer rate of 4 Gigabytes per second.
CPU Overheat Protection has the capability of moni-
toring the CPU’s temperature during system boot up.
Once the CPU’s temperature exceeded the tempera-
ture limit pre-defined by the CPU, the system will automatically shut-
down.This preventive measure has been added to protect the CPU
from damage and insure a safe computing environment.
DDR2 is a higher performance DDR technology whose
data transfer rate delivers bandwidth of 4.3 GB per sec-
ond and beyond.That is twice the speed of the conven-
tional DDR without increasing its power consumption.
DDR2 SDRAM modules work at 1.8V supply compared to 2.6V
memory voltage for DDR modules. DDR2 also incorporates new
innovations such as the On-Die Termination (ODT) as well as larger
4-bit pre-fetch against DDR which fetches 2 bits per clock cycle.
CMOS Reloaded is a technology that allows storing
multiple user-defined BIOS settings by using the
BIOS utility to save, load and name the settings.This
is especially useful to overclockers who require sav-
ing a variety of overclocked settings and being able
to conveniently switch between these settings simul-
taneously.
The Karajan audio module at the rear I/O panel has 6
audio jacks that provide 8-channel audio output for ad-
vanced 7.1-channel super surround sound audio system.
It is also equipped with a CD-in and front audio connec-
tor.
CPU
Overheat
Protection

Introduction
1
14
S/PDIF is a standard audio file transfer format that trans-
fers digital audio signals to a device without having to be
converted first to an analog format. This prevents the
quality of the audio signal from degrading whenever it is
converted to analog. S/PDIF is usually found on digital audio equip-
ment such as a DAT machine or audio processing device. The
S/PDIF connector on the system board sends surround sound and
3D audio signal outputs to amplifiers and speakers and to digital
recording devices like CD recorders.
Serial ATA is a storage interface that is compli-
ant with SATA 1.0 specification. ATI SB600 and
Promise PDC40719 both support speed of up to 3Gb/s. Serial
ATA improves hard drive performance faster than the standard par-
allel ATA whose data transfer rate is 100MB/s.
The ATI SB600 chip allows configuring RAID on 4 Serial
ATA drives. It supports RAID 0, RAID 1 and RAID 0+1.
The Promise PDC40719 chip (LP UT ICFX3200-T2R/G
only) allows configuring RAID on another 4 Serial ATA
ports. It supports RAID 0, RAID 1, RAID 0+1 and RAID
5.
The Marvell 88E8052 and Marvell 88E8053 Gigabit PCI
Express LAN support up to 1Gbps.
IEEE 1394 is fully compliant with the 1394 OHCI (Open
Host Controller Interface) 1.1 specification. It supports up
to 63 devices that can run simultaneously on a system.
1394 is a fast external bus standard that supports data
transfer rates of up to 400Mbps. In addition to its high speed, it
also supports isochronous data transfer which is ideal for video de-
vices that need to transfer high levels of data in real-time. 1394
supports both Plug-and-Play and hot plugging.

1
Introduction
15
The system board is equipped with an IrDA connector
for wireless connectivity between your computer and
peripheral devices.The IRDA (Infrared Data Association) specification
supports data transfers of 115K baud at a distance of 1 meter.
The system board supports USB 2.0 and USB 1.1
ports. USB 1.1 supports 12Mb/second bandwidth
while USB 2.0 supports 480Mb/second bandwidth
providing a marked improvement in device transfer
speeds between your computer and a wide range of simultaneously
accessible external Plug and Play peripherals.
This feature allows the system that is in the
Suspend mode or Soft Power Off mode to
wake-up/power-on to respond to calls coming from an external mo-
dem or respond to calls from a modem PCI card that uses the PCI
PME (Power Management Event) signal to remotely wake up the
PC.
Important:
If you are using a modem add-in card, the 5VSB power source
of your power supply must support a minimum of ≥ 720mA.
This feature allows the network to remotely
wake up a Soft Power Down (Soft-Off) PC.
It is supported via the onboard LAN port or via a PCI LAN card
that uses the PCI PME (Power Management Event) signal. However,
if your system is in the Suspend mode, you can power-on the system
only through an IRQ or DMA interrupt.
Important:
The 5VSB power source of your power supply must support
≥ 720mA.
This function allows you to use the PS/2 key-
board or PS/2 mouse to power-on the sys-
tem.
Important:
The 5VSB power source of your power supply must support
≥ 720mA.
Wake-On-LAN
Wake-On-PS/2
Wake-On-ring
IrDA

Introduction
1
16
This function allows you to use a USB key-
board or USB mouse to wake up a system
from the S3 (STR - Suspend To RAM) state.
Important:
If you are using the Wake-On-USB Keyboard/Mouse function for
2 USB ports, the 5VSB power source of your power supply
must support ≥ 1.5A. For 3 or more USB ports, the 5VSB
power source of your power supply must support ≥ 2A.
The system board is designed to meet the ACPI (Ad-
vanced Configuration and Power Interface) specification.
ACPI has energy saving features that enables PCs to implement
Power Management and Plug-and-Play with operating systems that
support OS Direct Power Management. Currently, only Windows®®
®®
®
2000/XP supports the ACPI function. ACPI when enabled in the
Power Management Setup will allow you to use the Suspend to
RAM function.
With the Suspend to RAM function enabled, you can power-off the
system at once by pressing the power button or selecting “Standby”
when you shut down Windows®®
®®
®2000/XP without having to go
through the sometimes tiresome process of closing files, applications
and operating system. This is because the system is capable of
storing all programs and data files during the entire operating session
into RAM (Random Access Memory) when it powers-off. The
operating session will resume exactly where you left off the next time
you power-on the system.
Important:
The 5VSB power source of your power supply must support
≥ 1A.
Wake-On-USB
ACPI

1
Introduction
17
Français
Processeur
Chipset
Mémoire Système
Logements
d’Extension
ATI CrossFire et
ATI Physique
BIOS
Gestion de
Puissance
Fonctions de
Moniteur de
Matériel
• LGA 775 socket pour:
- Intel®CoreTM2 Quad, Intel®CoreTM2 Extreme, Intel®CoreTM2
Duo, Intel®Pentium®D ou Intel®Pentium®4
• Les Appuis Intel Ont augmenté La Technologie De la Mémoire
64 (EMT64T)
• Les Appuis Ont augmenté La Technologie D’Intel SpeedStep
(EIST)
• Appuis Intel Hyper-Filetant La Technologie (Intel Hyper-Threading)
• Soutient 1066/800MHz FSB
•ATI
®chipset
- Pont nord: ATI RD600
- Pont sud: ATI SB600
• 4 sockets DIMM DDR2 240-pin
• Supporte les modules DIMM DDR2 667 et DDR2 800
• Supporte l’interface de mémoire deux canaux (128-bit)
• Supporte jusqu’à 8GB de mémoire système
• Supporte non-tamponnés DIMM non-ECC x8 et x16
• 3 slots PCI Express x16 pour ATI CrossFire et ATI Physique
• 3 slots PCI
• 2+1 Configuration (2 Graphiques +1 Physique)
- Carte de deux d’ATI Graphiques De CrossFire (Chaque slot
fonctionne à la bande passante x8).
- Une Carte de Graphiques de Physique d’ATI fonctionne à la
bande passante x2.
• Compatible avec Award BIOS
• CMOS Reloaded
• Overclocking de CPU/DRAM
• Contrôle du voltage de CPU/DRAM/Chipset
• Mémoire Flash 8Mbit
• ACPI et OS Directed Power Management
• ACPI STR (Suspend to RAM) fonction
• Réveil-Sur-PS/2 Clavier/Souris
• Réveil-Sur-USB Clavier/Souris
• Eveil Sonnerie
• Réveil Par Le Réseau
• Minuterie RTC pour allumer le système
• Récupération après Défaillance d’Alimentation CA
• Gère l’alarme de température et de surchauffe de CPU/
système/chipset
• Gère l’alarme de voltage et d’échec de 12V/5V/3.3V/Vcore/
Vbat/5Vsb/Vdimm/Vchip
• Gère la vitesse de ventilateur du ventilateur
• Protection du CPU - supporte la mise hors circuit automatique
en cas de surchauffage du système
Caractéristiques et Spécifications

Introduction
1
18
Audio
LAN
IDE
Serial ATA avec
RAID
IEEE 1394
Panneau Arrière I/O
Interne I/O
PCB
• Karajan carte audio
- Realtek ALC885 8-canaux Définition Élevée audio CODEC
- 6 prises audio
- 1 connecteur CD-in
- 1 connecteur audio de l’avant
• DAC SNR/ADC SNR de 106dB/101dB
• Technologie protection de contente lossless à toute vitesse
• Interface entrée/sortie S/PDIF
• Deux Gigabit LAN - Marvell 88E8052 et Marvell 88E8053
Gigabit PCIE LAN
• Supporte IEEE 802.3 (10BASE-T), 802.3u (100BASE-TX) et
802.3ab (1000BASE-T)
• Supporte des disques durs jusqu’à UltraDMA 133Mbps
• 4 ports de Série ATA gérés avec la puce ATI SB600
- Vitesse SATA jusqu’à 3Gb/s
- RAID 0, RAID 1 et RAID 0+1
• 4 ports de Série ATA gérés par Promise PDC40719
(LP UT ICFX3200-T2R/G seulement)
- Vitesse SATA jusqu’à 3Gb/s
- RAID 0, RAID 1, RAID 0+1 et RAID 5
• VIA VT6307
• Supporte 2 100/200/400 Mb/sec ports
• 1 port souris PS/2 et 1 port clavier PS/2
• 2 S/PDIF RCA prises (S/PDIF-in et S/PDIF-out)
• 1 carte Karajan (6 prises audio)
• 1 port IEEE 1394
• 2 ports RJ45 LAN
• 6 ports USB 2.0/1.1
•2 connecteurs pour 4 ports USB 2.0/1.1 supplémentaires
• 1 connecteur pour 1 IEEE 1394
• 1 connecteur pour 1 série
• 1 connecteur pour module audio Karajan
• 1 connecteur audio frontal pour les jacks de sortie externe et
d’entrée micro (sur le module audio Karajan)
•1 connecteur CD-in audio internes (sur le module audio
Karajan)
• 1 S/PDIF l’assemblage pour l’adjonction de câble optique
• 1 connecteur IR et 1 connecteur CIR
•8 connecteurs Serial ATA (LP UT ICFX3200-T2R/G)
4 connecteurs Serial ATA (LP UT ICFX3200-T2/G)
• 1 connecteur IDE et 1 connecteur de 90o FDD
• 1 connecteur d’alimentation 24-pin ATX
• 1 connecteur d’alimentation 8-pin 12V ATX
• 2 prises d’alimentation 4-broches 5V/12V (type-FDD)
• 1 connecteur devant panneau et 6 connecteurs de ventilateurs
• 1 indicateur diagnostiques
• EZ interrupteurs (bouton de power et reset)
• Facteur de forme de ATX
• 24cm (9.45") x 30.5cm (12")

1
Introduction
19
Deutsch
Prozessor
Chipset
Systemspeicher
Expansion Schlitz
ATI CrossFire und
ATI Physics
BIOS
Energie
Management
Kleinteilmonitor
• LGA 775 CPU Einfaßung für:
- Intel®CoreTM2 Quad, Intel®CoreTM2 Extreme, Intel®CoreTM2
Duo, Intel®Pentium®D oder Intel®Pentium®4
• Unterstützungen Intel Erhöhten Technologie Des Gedächtnis-64
(EMT64T)
• Unterstützungen Erhöhten Intel SpeedStep Technologie (EIST)
• Unterstützungen Intel, das Technologie Hyper-Verlegt (Intel
Hyper-Threading)
• Stützt 1066/800MHz FSB
• ATI chipset
- Nordbrücke: ATI RD600
- Südbrücke: ATI SB600
• 4 240-pin-Steckplätze DDR2 DIMM
• Unterhält die Moduln DDR2 667 und DDR2 800 DIMMs
• Unterhält 128-bit – Speiher mit den zwei Kanälen
• Unterhält bis zum 8GB-Systemspeicher
• Unterhält nur DIMMs ohne Dämpfer non-ECC x8 und x16 DIMMs
• 3 PCI Express x16-Einbauplätzen für ATI CrossFire und ATI Physik
• 3 PCI-Einbauplätzen
• 2+1 Konfiguration (2 Graphiken + 1 Physik)
- 2 ATI CrossFire-Graphikkarten (jeder Schlitz läuft mit x8-
Bandbreite)
- 1 ATI Physik-Graphikkarten läuft mit x2-Bandbreite
• Kompatibilität mit Award BIOS, Flash-Speicher (8Mbit)
• CMOS Reloaded
• Die Frequenzerhöhung CPU/DRAM
• Spannungserhöhung CPU/DRAM/Chipset
• ACPI und OS Directed Power Management
• ACPI STR (Suspend to RAM) funktion
• Wecken bei Betätigung der PS/2 Tastatur/Maus
• Wecken bei USB-Tastatur/Maus
• Wecken bei Klingeln
• Wecken des Systems durch das Netzwerk
• RTC-Taktgeber zum Einschalten des Systems
• Wiederherstellung der Wechselstromversorgung nach einem
Ausfall
•Überwachung der Temperatur des CPU / Systems /
Nordbrücke sowie Warnsignal bei Überhitzung
• Überwachung der Spannungen des 12V/5V/3.3V/Vcore/Vbat/
5Vsb/Vdimm/Vchip
• Überwachung der Geschwindigkeit des Ventilators
• Prozessor-Shutz - Die Ausschaltung bei der Überhitzung – die
automatische Ausschaltung des Computers bei der Überhitzung
Leistungsmerkmale und Technische Daten

Introduction
1
20
Audio
LAN
IDE
Serial ATA mit RAID
IEEE 1394
Porte an der
Rückwand
Internes I/O
PCB
• Karajan-platine
- Realtek ALC885 8-Kanal-Hohe-Definition-audio-CODEC
- 6 Audio-Anschlußbuchsen
- 1 interne Audioanschlüsse (CD-in)
- 1 Frontaudioanschluß
• DAC SNR/ADC SNR von 106dB/101dB
• Lossless zufriedene Schutzvollwegtechnologie
• S/PDIF-In/Aus-Schnittstelle
• Marvell 88E8052 und Marvell 88E8053 Gigabit PCIE LAN
• Unterstützt IEEE 802.3 (10BASE-T), 802.3u (100BASE-TX) und
802.3ab (1000BASE-T)
• Unterstützung der Festplatten bis zum UltraDMA 133Mbps
• 4 serielle Serielle ATA-Ports, unterstützt von einem ATI SB600
- SATA bis zu 3Gb/s schnell
- RAID 0, RAID 1 und RAID 0+1
• 4 Serielle ATA-Ports, unterstützt von Promise PDC40719
(Nur LP UT ICFX3200-T2R/G)
- SATA bis zu 3Gb/s schnell
- RAID 0, RAID 1, RAID 0+1 und RAID 5
• VIA VT6307
• Unterstützt 2 100/200/400 Mb/sec porte
• 1 Mini-DIN-6-Anschluß für eine PS/2-Maus
• 1 Mini-DIN-6-Anschluß für eine PS/2-Tastatur
• 2 S/PDIF RCA-Anschlüsse (S/PDIF-in und S/PDIF-out)
• Karajan-platine (6 Audio-Anschlußbuchsen)
• 1 IEEE 1394-Anschlüsse
• 2 RJ45 LAN-Anschlüsse
• 6 USB 2.0/1.1-Anschlüsse
•2
Anschlußfassung für 4 zusätzliche externe USB 2.0/1.1-Anschlüsse
• 1 Anschluß für eine externe IEEE 1394 Schnittstelle
• 1 Anschluß für eine externe serieller DB-9-Anschluß
• 1 Anschluß für eine Karajan Audiomodul
• 1 Front-Audioanschluss für externe Mikrofon-Ein- und –
Ausgänge (im Karajan Audiomodul)
• 1 CD-in interne Audioanschlüsse (im Karajan Audiomodul)
• 1 S/PDIF Anschluß für die Verbindung des optischen Kabel
• 1 Anschluß für die IR-Schnittstelle und 1 CIR-Schnittstelle
• 8 Serial ATA-Anschlüsse (LP UT ICFX3200-T2R/G)
4 Serial ATA-Anschlüsse (LP UT ICFX3200-T2/G)
• 1 IDE-Anschlüsse und 1 90o Floppy-Anschlüsse
• 1 24-polige Anschlußstecker für das ATX-Netzgerät
• 1 8-polige 12V Anschlußstecker für das ATX-Netzgerät
• 2 4-polige 5V/12V Netzstecker (für FDD)
• 1 Vorderseite Füllung Anschlüsse
• 6-ventilator-Anschlüsse
• 1 diagnostischen Außenindikatoren
• EZ Umschaltern (der Knopf der Speisung und des Auslasses)
• ATX Formfaktor
• 24cm (9.45") x 30.5cm (12")
