ABSCO SHEDS ADPATIO6030 User manual

Absco Industries Assembly Instruction Manual
ABSCO SIGNATURE PATIO
MODEL: ADPATIO6030
6.12m W x 3.11m D x up to 3.18m H
Model: ADPATIO6030 21/09/23 1.0 1
AU: 1800 029 701
N Z: 0800 466 444
[email protected]
www.abscosheds.com.au
For construction in non-cyclonic areas
Wind rating: N3 as per AS4055-2021.
If you require a higher wind rating please contact
us: [email protected] or 1800 029 701
NOTE 1 - A good building knowledge is required
to complete this structure.
If you are not capable it is recommended you hire
a professional.
NOTE 2 - The existing structure should be
checked for its capacity to support and tie down
this structure prior to construction by a suitably
qualified engineer.
NOTE 3 - The existing structure is assumed to
be stable in its own right and capable of carrying
the loads imposed by this structure. This must be
checked by a suitably qualified person prior to
construction.
NOTE 4 - Concrete slab must be a minimum of
100mm thick, 20 MPa concrete reinforced with
SL72 mesh and extend for the full area covered by
the structure.
5862 mm
2985 mm
3180 mm
MAX
Trim posts to suit
existing structure.
6120 mm
3110 mm

Absco Industries Assembly Instruction Manual
ABSCO SIGNATURE PATIO
MODEL: ADPATIO6030
6.12m W x 3.11m D x up to 3.18m H
Model: ADPATIO6030 21/09/23 1.0 2
IMPORTANT INFO - READ BEFORE CONSTRUCTION BEGINS
understanding of assembly
methods and associated details.
4. Unpack and carefully identify
and check off all the parts
against the parts described and
illustrated on “Components
List” page.
If you are missing anything do
not begin, contact Absco.
5. The structure shall be
erected on top of suitable
foundations and anchored down
appropriately.
The site for the structure must
be level. An uneven surface may
result in misalignment of parts.
6. Region specific: If required,
you have approval for the
structure. If unsure, seek advice
from relevant local authorities.
7. Some parts may have sharp
edges. It is recommended to
wear gloves when handling
items and safety glasses when
drilling holes. Sensible shoes
are highly recommended.
Minimum two people are
required to easily lift and align
assemblies.
8. Consider the weather and do
not build in windy conditions.
If the structure must be left for
a period of time uncompleted
it must be made safe to prevent
damage.
TOOLS REQUIRED
Use as a guide, other tools/equipment may be suitable. Safely work within your ability.
Please wear recommended
PPE for any tool used during
construction
!
1. Awnings are typically
attached to a fascia board
(beneath the gutter), or to a
wall.
The space required on the
existing structure for receiver
channel is 90 mm x 6125 mm
Max attachment height is 3180
mm - measured from foundation
to top of receiver channel
2. Fixing method is dependent
on material type and location.
This kit contains typical fasteners
for timber and steel fascia as
well as brick walls.
3. Information provided in this
manual regarding “existing
structure” is to be used as a guide
only, it is your responsibility that
connection detail is compliant
with applicable building codes.
Read through these instructions
in detail to gain a thorough
• 4mm drill bit
• 5/16” & 3/8” nut setter
• 12mm masonry drill bit
• Chuck drill
• Impact drill driver
• Hammer drill
• 8m tape measure (2 required)
• Caulking gun
• 16mm socket
• 1.8m ladder (2 required)
• Plumb bob
• Visegrips or clamps
• Pop riveter
• Stanley knife
• Masking tape
• Spirit level
• Angle grinder
• Marker
• Ruler
• Square
• String line
• 70mm hole saw
• Tin snips

Absco Industries Assembly Instruction Manual
ABSCO SIGNATURE PATIO
MODEL: ADPATIO6030
6.12m W x 3.11m D x up to 3.18m H
Model: ADPATIO6030 21/09/23 1.0 3
90 x 90
Post
Post
bracket
Beam End
Cap
Gutter
Gutter
Stop end
Dropper 80 to
90 mm
Adapter
Clip
Check off all components, parts shown are not to scale.
FASTENER PACKS
COMPONENT LIST
AD1 6
QTY CHECK SB2 1
QTY CHECK
2
QTY CHECK
TR36 2
QTY CHECK
TR38 2
QTY CHECK
TR35 7
QTY CHECK
BK5
3020 mm
3105 mm
Downpipe
80 mm
RWG
21 1
QTY CHECK
2925 mm
5680 mm
3045 mm
3140 mm
3052 mm
1
QTY CHECK
TU
2
QTY CHECK
BK3
1
QTY CHECK
2
QTY CHECK
1
QTY CHECK
2
QTY CHECK
2
QTY CHECK
100
QTY CHECK
FAST100 200
QTY CHECK
FAST101 200
QTY CHECK
FAST102
14
QTY CHECK
14
QTY CHECK
7
QTY CHECK
10
QTY CHECK
2
QTY CHECK
FAST103 24
QTY CHECK
FAST104
RWG
23
RWG
22
RWG
24
RWG
29 1
QTY CHECK
RWG
27
RWG
25
Gutter
Bracket
7
QTY CHECK
RWG
26
2
QTY CHECK
3000 mm
PT5
Receiver
Channel
Side
Flashing
Touch-up
Paint
Water proof
Sealant
Insulated
panel
Z Flashing
Rafter
Bracket
2
QTY CHECK
BK4
Hex Bolts M10 x 25mm Hex Bolts M10 x 75mm
14G 14 x 45 Tapcon
Type 17 12 x 50mm
FAST105
FAST108
FAST107FAST106
Beam

Absco Industries Assembly Instruction Manual
ABSCO SIGNATURE PATIO
MODEL: ADPATIO6030
6.12m W x 3.11m D x up to 3.18m H
Model: ADPATIO6030 21/09/23 1.0 4
Existing Soffit
Existing Soffit
Gutter Gutter
Existing Timber Fascia
Existing Steel Fascia
RECEIVER CHANNEL 0. Refer to points 1 to 3 on page 2 before
beginning this step.
1. Mount the first receiver channel TR38 to the
existing structure using the correct fixing method
below.
Make sure the receiver channel is oriented with
the longer side to the top.
A. Brickwork
Fix 14 x 45mm Tapcon screw every 450mm (not
suitable for structures with no eaves or two story
with blueboard over brick). Ensure a minimum of
5 courses above the receiver channel.
B. Timber fascia
Fix the receiver channel TR38 every 600mm to
the timber fascia with 12 x 50 Type 17 timber
screws.
C. Steel Fascia
NOTE: This will require roofing to be removed to
access to rafter.
At every 900mm fit a supplied rafter bracket BK5
to existing rafter.
Fix this to receiver channel TR38 with a self
drilling tek or bolt.
Brickwork
Rafter
Existing
Truss
Rafter bracket
Roofing
Roofing
TR38
TR38
TR38
BK5

Absco Industries Assembly Instruction Manual
ABSCO SIGNATURE PATIO
MODEL: ADPATIO6030
6.12m W x 3.11m D x up to 3.18m H
Model: ADPATIO6030 21/09/23 1.0 5
RECEIVER CHANNEL
2. Mount the second receiver channel TR38
using the correct fixing method.
Make sure it is flush against the first and it’s
straight.
3. Mark out the anchoring position for the posts
next.
4. Place the two post bracket BK4 centred over
these marks.
Drill the hole for the anchor using the post
baseplate as a template.
Use a hammer drill with a 12mm diameter
masonry drill bit drill to a depth of 100mm
Fasten to foundations with a concrete screw
FAST103 per bracket using a 16mm socket or
spanner.
6104
90
ANCHORING
BK4
5771
CRIT 170
2939
Existing structure
Receiver channels
Anchoring positions

Absco Industries Assembly Instruction Manual
ABSCO SIGNATURE PATIO
MODEL: ADPATIO6030
6.12m W x 3.11m D x up to 3.18m H
Model: ADPATIO6030 21/09/23 1.0 6
POSTS
1. Now work out the height of the posts for the
standard 2 degree fall.
Take a measurement from foundation up to the
underside of the mounted receiver channel, let’s
call this dimension ‘x’. Then subtract 90 mm to
determine finished post height.
NOTE:
If height to underside of receiver channel is at
the maximum height, 3090 mm, do not trim
post. Instead go to step 3.
2. Take a post PT5 and mark all faces then safely
cut post to length. Consider sealing cut with
supplied paint.
3. Take a BK3 bracket and orientate as shown
and align so it’s flush with the end and side of
the post.
4. Fasten with five FAST100 tek screws and
5/16” nut setter.
Make sure screws are inset 20 mm from the
edges of bracket for beam clearance.
To keep the parts aligned while fastening use a
clamp or visegrips.
This completes the left post
5. Make the right post by repeating these steps
but aligning and fixing the BK3 bracket as shown
below.
This completes the right post.
BK3
PT5
L = ‘x’ - 90 mm
Offcut

Absco Industries Assembly Instruction Manual
ABSCO SIGNATURE PATIO
MODEL: ADPATIO6030
6.12m W x 3.11m D x up to 3.18m H
Model: ADPATIO6030 21/09/23 1.0 7
POSTS
6. Take the left post and place over the anchored
post bracket.
Make sure the post is orientated so the top
bracket is as shown.
7. Use a spirit level check the post is vertical and
fasten with four FAST100 tek screws and 5/16”
nut setter.
8. Repeat for the right post.
9. Consider bracing the posts to keep them
vertical during the next step.
Use ropes, straps or timber. Be careful to not
scratch the powdercoated posts.
5681
CRIT

Absco Industries Assembly Instruction Manual
ABSCO SIGNATURE PATIO
MODEL: ADPATIO6030
6.12m W x 3.11m D x up to 3.18m H
Model: ADPATIO6030 21/09/23 1.0 8
FITTING THE SHURELOCK BEAM
NOTE: Beam orientation is important to prevent
water entry.
Orientate the beam so the exterior face has the
overlap to the top.
1. Remove the protective plastic coating from
the outside of the beam.
2. Safely lift and place a SB2 beam inside the
post brackets BK3 as shown.
Overlap to
top
Overlap to
bottom
INTERIOR
EXTERIOR
CL
2. Make sure the ends of the beam are all the
way into the brackets and fasten each end with
four FAST100 tek screws.
These are visible screws so take time to position
them on the centreline of the BK3 bracket and
space accordingly.
*Fit this tek below the gutter after it is attached
later.
*

Absco Industries Assembly Instruction Manual
ABSCO SIGNATURE PATIO
MODEL: ADPATIO6030
6.12m W x 3.11m D x up to 3.18m H
Model: ADPATIO6030 21/09/23 1.0 9
FRONT VIEW - Aligning the first roof panel
Preparing the AD1 panels using a tool before
inserting into receiver channel.
ROOF PANEL
FLUSH
1
Beam
Beam
Receiver channel
Post
Post
2
FLUSH
UNDERSIDE VIEW
Bottom skin
150
300
3
4
15o
C
The end with ‘top skin’ overhang & sticker must
go to the front.
The other end goes into the receiver channel and
requires some preparation.
A. Check the foam core is flush with the top and
bottom skins. If it bulges out, safely trim flush with
a Stanley knife.
B. Check if the steel ‘Bottom skin’ corner is bent
down below the bottom face. Bend it up with
pliers.
C. To increase weather protection turn up the
pans 15 degrees with a turn up/down tool or
equivalent as shown
Familiarize yourself with the weight and orientation
of the AD1 panel before lifting.
The ‘bottom skin’ has a protective plastic coating,
this can be peeled off just before lifting.
Remember to lift and place do not slide, this can
scratch the panel.
1. Safely position the first panel on top of the
beam and insert into the receiver channel - all the
way to the right.
The steel ‘top skin’ edge will be flush with right
end of the receiver channel as shown.
2. Check the beam for alignment, the roof panel
bottom skin is to be flush with the exterior side of
the beam as shown.
3. For now fix the AD1 panel to the receiver panel
from below with two 4mm pop rivets FAST102.
Inset 150 mm from the right and another 300 mm
further along.
4. Fasten the front edge of the roof panel to
beam with a tek 14 x 125 mm FAST104 through
the centre-most rib.
Don’t over-tighten and crush the panel.
For further screw position detail see page 11.

Absco Industries Assembly Instruction Manual
ABSCO SIGNATURE PATIO
MODEL: ADPATIO6030
6.12m W x 3.11m D x up to 3.18m H
Model: ADPATIO6030 21/09/23 1.0 10
ROOF PANELS

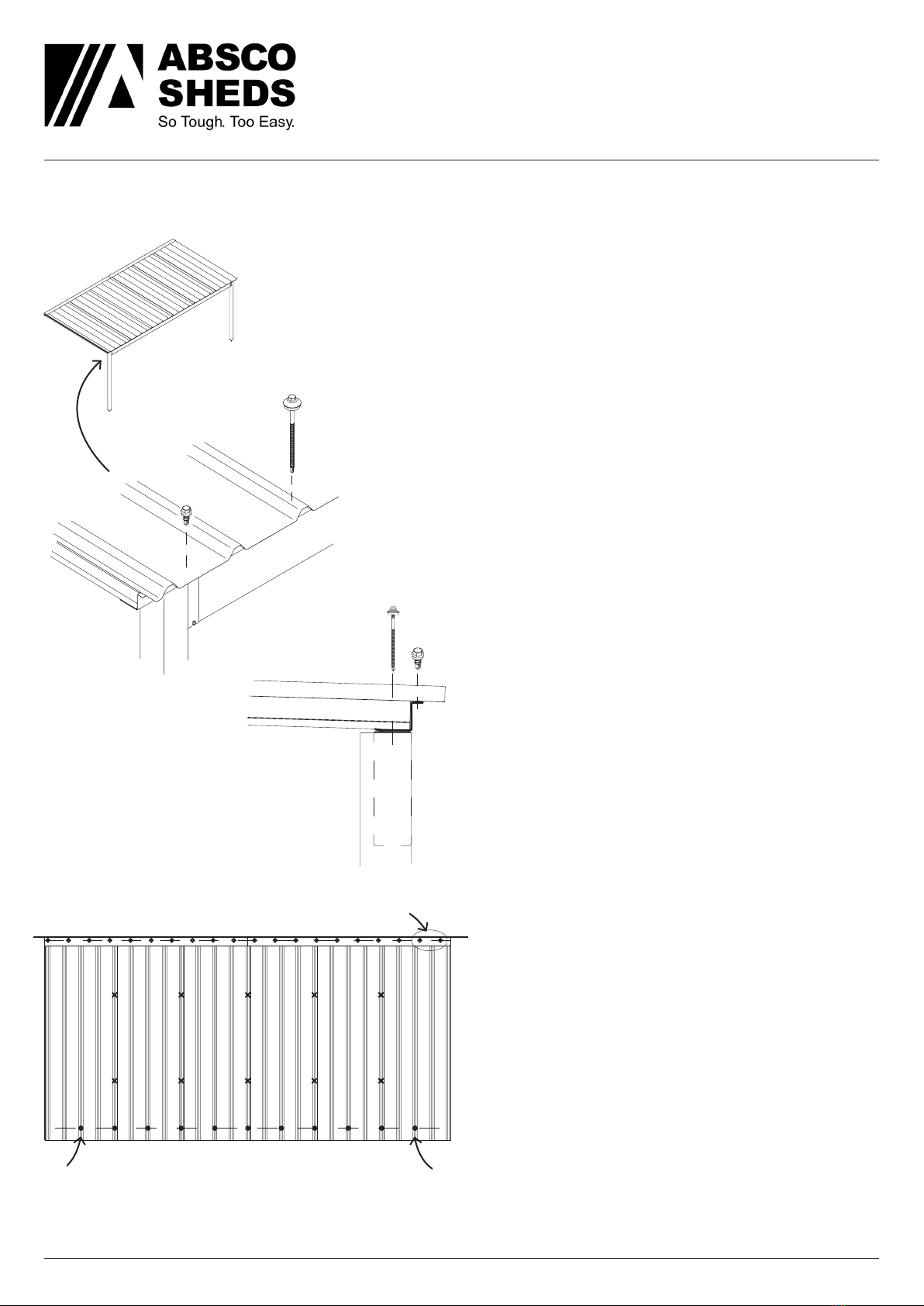

5. Safely place and mate the next AD1 panel.
Please note the bottom skin male and female
features.
6. Carefully push the panel up so it goes all the
way into the receiver channel and is flush along
the front beam - Just like the 1st panel.
7. As before fix the panel to the receiver channel
from below with 4mm pop rivets FAST102 at 300
mm spacings.
8. Lay the rest of the panels in this same manner.
Fixed panel
A. Overlap rib
B. Press here
Next panel
‘Bottom skin’ male &
female features align
Panels mated

Absco Industries Assembly Instruction Manual
ABSCO SIGNATURE PATIO
MODEL: ADPATIO6030
6.12m W x 3.11m D x up to 3.18m H
Model: ADPATIO6030 21/09/23 1.0 11
ATTACH Z FLASHING
9. Starting at the left side, place a Z flashing TR35
in between the beam and the panel as pictured.
Align to be flush with:
• The left edge of the panel.
• Exterior of beam.
10. At the centre-most rib, Fasten through the
panel and flashing and into the beam with a tek
14 x 125 mm FAST104
11. Every second pan, fasten with tek screws with
neoprene washers FAST101
12. Carefully remove the tek 14 x 125 mm FAST104
from step 4and insert the other Z flashing TR35.
Trim to length so it finishes flush with the edge of
the rightmost panel.
Refit screw through flashing and into original hole.
13. Next fit off the rest of the fixings.
NOTE: 3, 4& 10 are the fixings done earlier.
• Fasten roof panels to beam with tek 14 x 125
mm FAST104 at the remaining positions.
• Use shorter tek screws with neoprene washers
FAST101 at the locations marked with ‘x’
where the top skins overlap.
• Check there is a pop rivet every 300 mm along
the underside of the receiver channel
• Check there is a tek screw with neoprene
washer FAST101 every second pan holding
the TR35 to the top skin
FLUSH
10
11
FLUSH
10
11
First
panel
Last
panel
10 4
3
Front
Structure

Absco Industries Assembly Instruction Manual
ABSCO SIGNATURE PATIO
MODEL: ADPATIO6030
6.12m W x 3.11m D x up to 3.18m H
Model: ADPATIO6030 21/09/23 1.0 12
SIDE FLASHING
0. TR36 flashing may overhang roof panel at the
front and we’ll need to trim to make the gutter fit
later.
NOTE: If the flashing is the same length as the
roof panel you don’t need to trim the top.
1. Mark off where ‘top skin’ end is against the top
side of the flashing.
Then continue 30mm down the side.
2. Mark off where the ‘Z’ flashing is against the
bottom side of the flashing.
Then continue 40mm up the side.
3. On the side mark a line to join these points as
shown.
4. Take the flashing down off the roof and trim
using tinsnips (offcut shown in grey).
RIGHT UNDERSIDE VIEW - beam not shown.
12
30
40
0
5. Refit and fasten using pop rivets FAST102 at
the locations shown.
Only on top, use teks with neoprene washers
FAST101.
6. Repeat these steps for the other side flashing.
Just remember to make the mirrored version.

Absco Industries Assembly Instruction Manual
ABSCO SIGNATURE PATIO
MODEL: ADPATIO6030
6.12m W x 3.11m D x up to 3.18m H
Model: ADPATIO6030 21/09/23 1.0 13
0. Remove protective plastic coating from
guttering components.

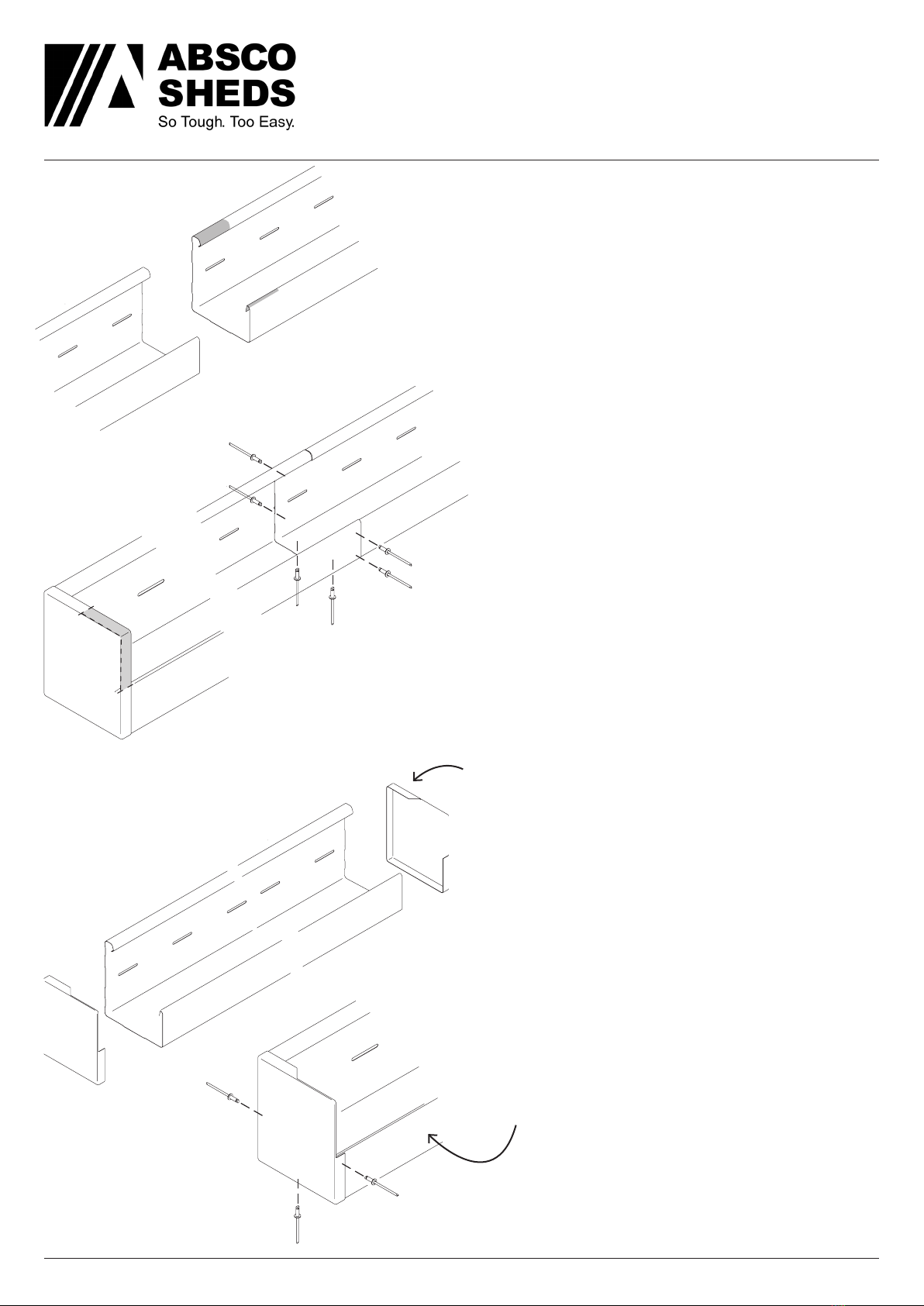

1. Next join both lengths of gutter RWG24, to
match the overall finished width of the structure.
Notch out the rolled edges (shown in grey) to
allow one to slide inside the other.
Consider which way you want the water to fall
before notching. Make sure the ‘uphill’ gutter is
notched and inside the other.
2. Put silicone in the joint and then use two rivets
FAST102 per side.
3. Take a gutter end stop RWG25 and test fit it
over an end of the gutter. Mark off the following.
A. Midpoint along the top
B. Face of gutter shown
4. Trim away area shown in grey with tinsnips
5. Repeat steps at the other end to make the
other end stop.
6. Attach end caps with a rivet FAST102 through
the front back and bottom. Joints may be sealed
using silicone.
7. Test fit the assembly
• Side flashings go inside end caps.
• Roof panel ‘top skin’ sits under top face of
end caps.
• This face will be against the rear beam.
GUTTERING
A
B
4
3
1
5
2

Absco Industries Assembly Instruction Manual
ABSCO SIGNATURE PATIO
MODEL: ADPATIO6030
6.12m W x 3.11m D x up to 3.18m H
Model: ADPATIO6030 21/09/23 1.0 14
GUTTERING
8. The gutter needs fall to drive water to a specific
end. At the end you’d like the downpipe, mark
the underside of the gutter onto the rear beam.
This will be used as a reference when mounting
the gutter brackets RWG24.
Take the gutter down for now.
9. At the other end measure up another 10mm
from this reference line and make another mark
onto the rear beam at the point shown.
10. Take a string line and make a line from the
high to low point.
11. Align the bottom of the gutter bracket with
the marks and fasten to rear beam using rivets
FAST102.
• Place middle bracket at centre panel join.
• From there align with every 4th pan as shown.
12. Lift the gutter assembly and placed the rolled
top edge over the gutter bracket in the orientation
shown.
Roll the gutter around, make sure the side
flashings go inside.
13. Lift so the bottom sits on the lower part of the
bracket.
Fold the tabs down by hand then rivet from below
as shown.
14. Rivet the gutter end stop to the side flashing.
FRONT VIEW - NOTE: Gutter falls to left for illustrative purposes only.
13
14
12
8 9
10

Absco Industries Assembly Instruction Manual
ABSCO SIGNATURE PATIO
MODEL: ADPATIO6030
6.12m W x 3.11m D x up to 3.18m H
Model: ADPATIO6030 21/09/23 1.0 15
DOWNPIPE
NOTE: The method shown is to mount a simple
full height straight downpipe RWG21. An 80 to
90 mm adapter RWG29 is supplied if you wish to
join into existing system instead.
1. Fit both downpipe clips RWG23 to the
centreline of the post at the positions shown.
2. Fasten the clips to the posts using tek screws
FAST100 (no neoprene washer).
Be careful not to over-tighten and damage.
Predrilling may be helpful.
3. Cut the downpipe to length.
4. Place the dropper RWG22 into the top of the
downpipe and fasten and seal, press into clips
and slide up until it touches the underside of the
gutter.
5. Straighten and then mark the four fastening
holes and the centre.
6. Cut out the centre hole with a 70 mm hole saw.
7. Seal the dropper to the underside of the gutter
and rivet at all corners.
8. Secure downpipe to clips using two tek screws
FAST100 (no neoprene washer). Be careful not to
over-tighten and damage.
CL
1
2
Add this tek as
per page 8
Immediate maintenance required!
Check and clean swarf from surfaces. Swarf will rust and if not cleaned away can permanently
discolour the structure.

Absco Industries Assembly Instruction Manual
ABSCO SIGNATURE PATIO
MODEL: ADPATIO6030
6.12m W x 3.11m D x up to 3.18m H
Model: ADPATIO6030 21/09/23 1.0 16
Information in this manual has been designed in
accordance with the following Australian and New
Zealand Standards.
– National Construction Code of Australia 2022
– Specification S4C2—Design of Building in
Cyclonic Areas NCC2022 VOL 1
– Part H1D7 Sheet Roofing of NCC 2022 Vol 2
– AS 1163:1991 Structural Steel Hollow Sections
– AS/NZS 1170.0:2002 Structural Design Actions
Part 0— General Principles
– AS/NZS 1170.1:2002 Structural Design Actions
Part 1— Permanent, Imposed & Other Actions
– AS/NZS 1170.2:2021 Structural Design Actions
Part 2— Wind Actions
– AS/NZS 1170.3:2003 Design Actions Part 3—
Snow and Ice Actions
– AS/NZS 1554.1:2004 Structural Steel Welding—
Welding of Steel Structures
– AS1562.1: 2018 Design and installation of sheet
roof and wall cladding Part 1: Metal
– AS/NZS 1664.1:1997 Aluminium structures—
Limit state design
– AS 1684.2:2021 Residential Timber Framed
Construction
– AS 3566.1:2002 Self Drilling Screws
– AS 3600:2018 Concrete Structures
– AS 4055:2021 Wind Loads for Housing
– AS 4100:2020 Steel Structures Code
– AS/NZS 4600:2018 Cold Formed Steel Structures
Referenced Standards
