Treasure Garden AKZP13 Installation instructions

AKZP13/AKZPRT
13’
OC /10’x13’ RT
Cantilever
Assembly and Operation Guide
www.treasuregarden.com
©2017 Treasure Garden, Inc. - All Rights Reserved. 3/17

Thank you for purchasing Treasure Garden’s AKZP Cantilever Umbrella.
Please remove all contents from the package, inspect and review checklist.
CAUTION: To reduce personal injury and damage to your umbrella, read and follow this
assembly and operation guide. We recommend a two-person team for assembly and
disassembly. Save information for future reference.
101
E
H
I
D
L
J
Loop Lock
Spring Loaded
Rib End Cap (8)
AB
G
F
C
A - 360° Rotating Hub G - Tilt Degree Scale
B - Base Pedal H - Canopy Support Beam
C- Crank Lift Handle I - Canopy - Single or Double Wind Vent
D - ain Frame Stand J - Light Adapter (light sold separately)
E- Tilt Lever K - Valance (optional, not shown)
F - ain Frame Grip L - Spring Loaded Rib End Cap
CHECKLIST
WARRAN Y:
Treasure Garden warrants this product
(in residential use) to be free from
defects in original materials and
workmanship for a period of 2 year from
the date of purchase. If a defect in the
original material or workmanship
appears during the warranty period;
Treasure Garden will (at its option) repair
or replace the product without charge.
Simply contact your original authorized
Treasure Garden dealer with a
description of the defect. The dealer will
verify the defect and work closely with
Treasure Garden to obtain the necessary
service. In many cases, simple problems
can be solved with a replacement part
that can be shipped directly to the dealer
for professional installation / repair.
In the event that warranted factory
service is required, Treasure Garden will
assume the responsibility of the return
freight charges on warranted product for
the first year only.
Returned product that (upon receipt and
inspection) is deemed to be “not
covered” under our warranty, will be
shipped / billed at your expense.
This warranty gives you specific legal
rights, and you may have other rights
which vary from state to state.
RUS : Rust is a natural part of the
aging process of steel or iron based
materials, and is therefore NOT
considered a defect.
NO E: Failure caused by unreasonable
or abusive use, or failure caused by
neglect of reasonable and necessary
care are not covered by this warranty.
Additionally, acts of nature (including but
not limited to wind, hurricanes,
tornadoes, and storms) are not covered
by this warranty.

29
CAU ION: Fully assembled, the umbrella weighs over 500 lb .
oving the umbrella fully assembled will increase the risk of damage to your umbrella
and/or can cause serious injury. We recommend a two-per on team for a embly
and di a embly.
IMPOR AN :
Prior to assembly it is important to decide on the location of the umbrella.
• Allow ample height to avoid damage to your umbrella during assembly and usage.
• Choose a location that is level and sturdy.
• Avoid any sloping or soft ground.
• Consider a location that will maximize the umbrella’s rotating swivel function. Placing
the umbrella between two entertaining areas is ideal.
Storage:
• P ope ly sto e umb ella when not in use. Close umb ella, tie st ing a ound
canopy and cove umb ella with p ovided p otective cove .
NO E: Some parts may be included in the styrofoam packaging.
DO NOT discard any packaging or box until assembly is complete.
1 AKZP Main Frame 1
2 Crank Lift Handle 1
3 HubBolts 5
4 Washers 5
5 8mm Hexagon Wrench 1
6 6mm Hexagon Wrench 1
7 2.5mm Hexagon Wrench 1

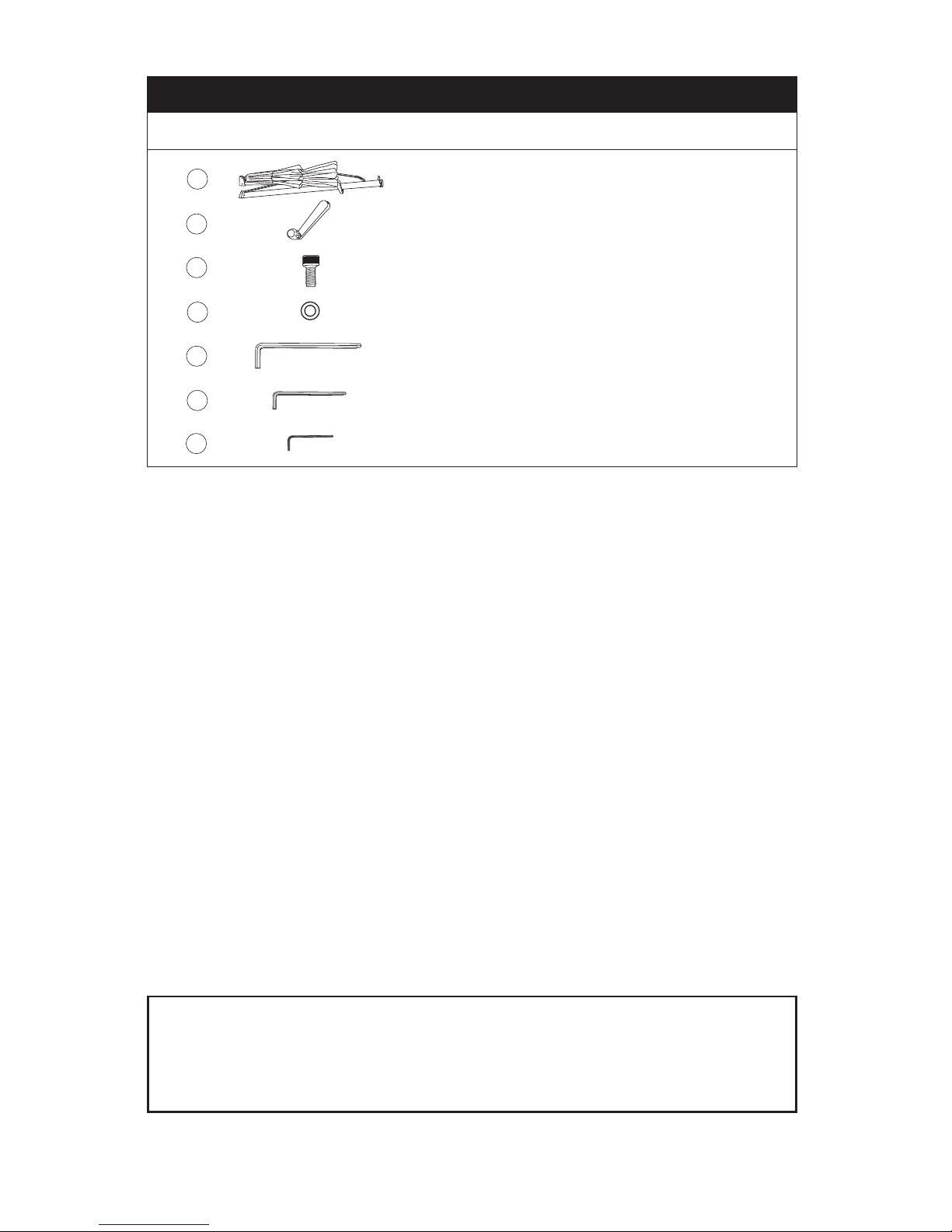

AKZP PART LIST
Part Description Qty.
SAFETY PRECAUTIONS:
• Close the umbrella in windy conditions or when a storm approaches.
Never allow the umbrella to flap in the wind; this could damage the canopy.
• Properly store umbrella when not in use. Close umbrella, tie string around canopy and
cover umbrella with provided protective cover.
• Do not leave open umbrella unattended. If damage occurs, this is not covered
by the warranty.
• When adjusting the umbrella, make sure that no person(s) or item(s) are close to the
umbrella. This is important to prevent injury or material damage.
CARE AND MAINTENANCE:
• When not in use, close and cover umbrella with a protective cover.
• If necessary, clean the fabric with lukewarm water, mild detergent, and a sponge.
• Allow a wet canopy to dry slightly opened, but do not leave unattended.
• Wipe sliding marks on the aluminum poles with a damp cloth.
Winter Storage:
• Store in a dry place.
After the Winter:
• Check the condition and function of the umbrella. Any defects must be repaired by a
professional.

83

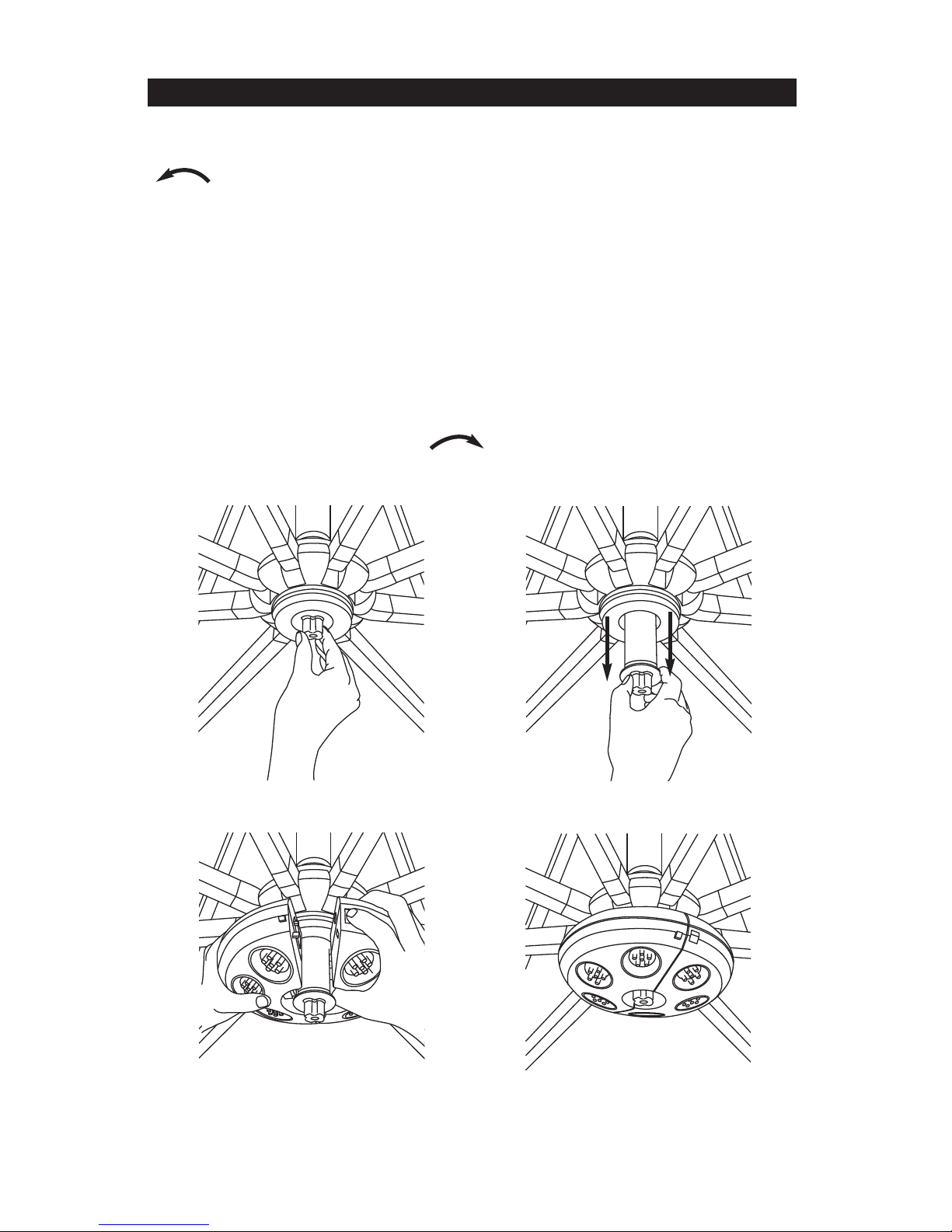

To ATTACH Umbrella Light: (sold se arately)
Loosen the light adapter built into the umbrella runner by turning counter-clockwise
(Fig. 20). After loosening, pull down light adapter post (Fig. 21) to attach the
umbrella light (sold separately).
To OPEN and ATTACH Light:
Open the Treasure Garden umbrella light by holding firmly with one hand and then depress
the clamp release button with the other hand to release the clamp lock. Open up the light
and clasp around the light adapter post (Fig. 22). Snap to close (Fig. 23).
To REMOVE Light and CLOSE ada ter:
Hold the umbrella light, depress the clamp release button to release the clamp lock.
Remove umbrella light and gently push up the light adapter post back into umbrella runner
and tighten turning clockwise (Fig. 20). NO E: It is not necessary to remove light
to close umbrella.
(Fig. 20) (Fig. 21)
(Fig. 22) (Fig. 23)
Features
NO E: REFER O SEPARA E BASE-13 OR MOUN KI MANUAL
FOR BASE ASSEMBLY PRIOR O PROCEEDING.
6mm
Hexagon
Wrench
2.5mm
Hexagon
Wrench
(Fig. 1)
(Fig. 2)
(Fig. 3)

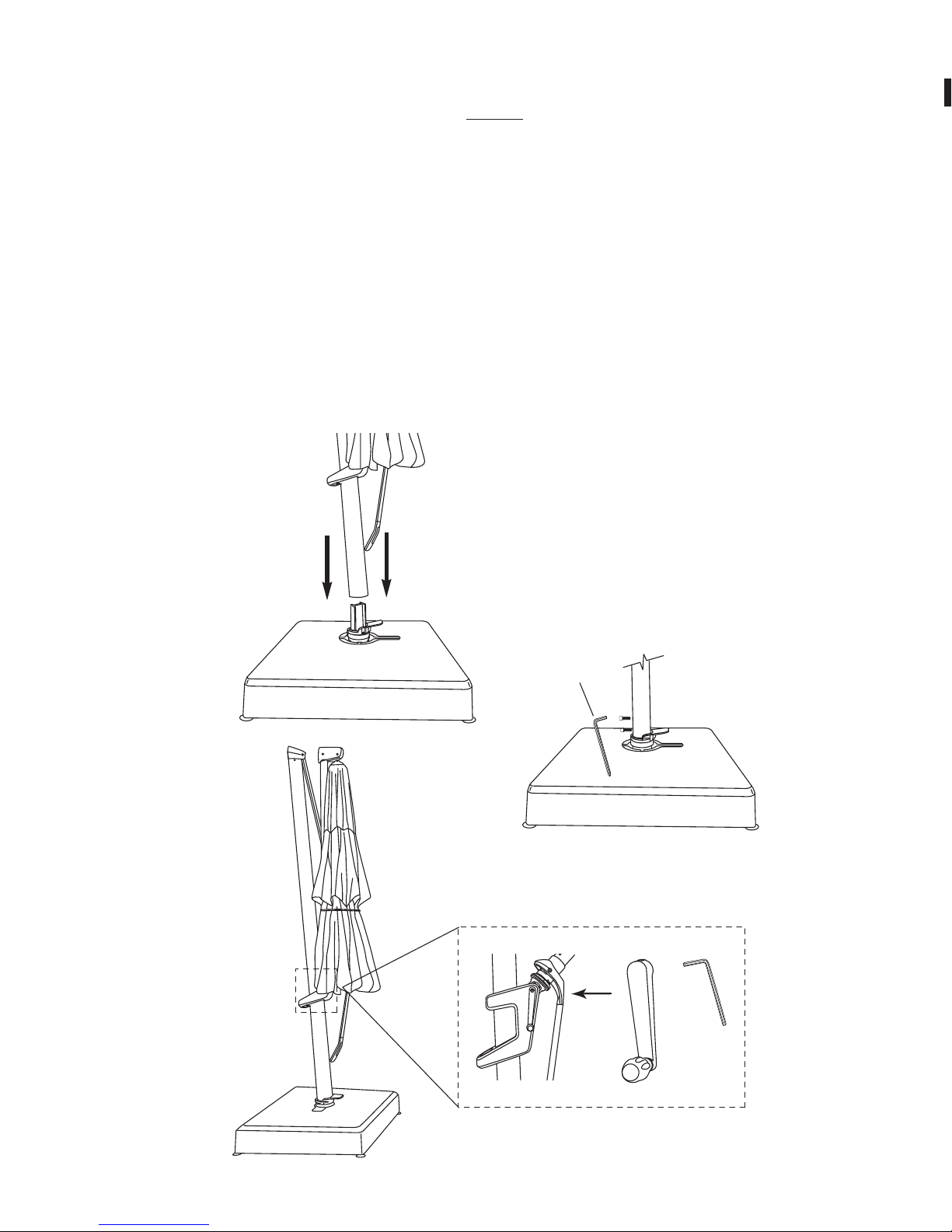

S T E P 1 Umbrella Assembly
Two-persons recommended for team lift and to complete assembly.
With base cover in place or mount kit installed, insert the main frame onto the installed
rotating hub (Fig. 1) {align tilt lever with foot pedal}. Assembled in upright position, insert the
(2) bolts and (2) washers and tighten using 6mm hexagon wrench provided (Fig. 2). Install
the crank lift handle onto the mid-area of the main frame. Use the 2.5mm hexagon wrench
provided to lock in the small screw (Fig. 3).
REMOVE ALL PLAS IC PACKAGING MA ERIAL FROM ALL PAR S PRIOR O
OPENING UMBRELLA. CHECK UNDER CANOPY FOR PACKAGING AROUND RIBS.
Your umbrella i now ready to operate!

47
(Fig. 17)
(Fig. 18)
(Fig. 19)

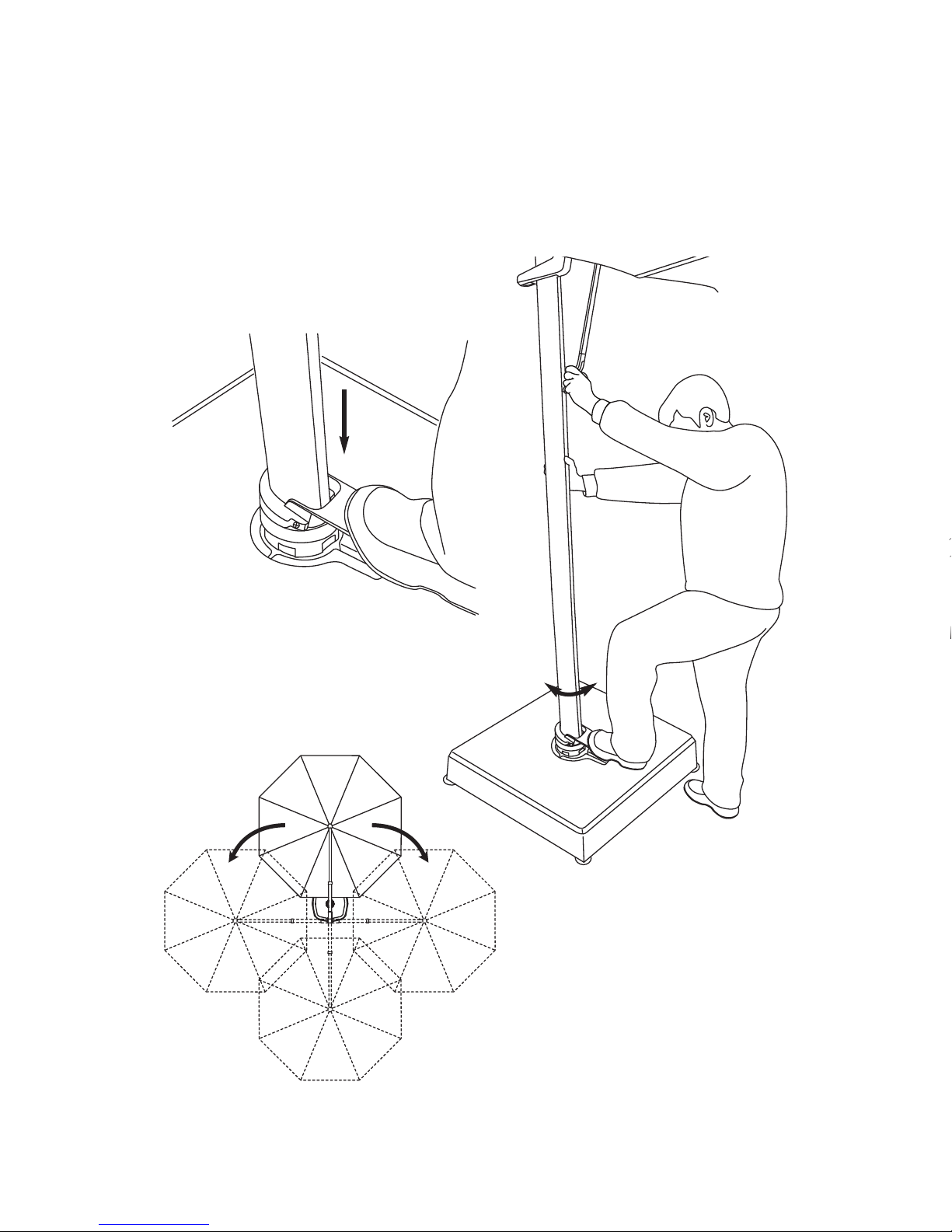

o OPERA E the 360° Rotating Hub Swivel:
Place your foot on the foot pedal of the rotating hub and tep-on the base pedal
to release rotating lock (Fig. 17). Place one hand on the main frame and one hand on the
tilt lever (Fig. 18), swivel the umbrella frame in either direction until desired position is
reached (Fig. 19). Step off the foot pedal to engage rotating lock and lock position (you will
hear the pedal click, as it reaches the next available lock position).
(Fig. 4)
(Fig. 7)
S T E P 2 O eration
o Open Canopy:
Position yourself behind umbrella. Squeeze the main frame grip handle and slide handle
midway up main frame (Fig. 4). Release grip handle to lock into place. Slowly turn the
crank lift handle clockwise to open the umbrella (Fig. 5). CAU ION: When
cranking umbrella open, if you feel resistance and the umbrella is not opening, do not force
crank. Gently spread umbrella ribs with hands, then continue to crank open. Once fully
opened, squeeze the main frame grip handle to release lock and continue to slide handle
upward until desired height is reached (Fig. 6).
WARNING: Do not continue to crank once umbrella canopy is completely open, it may
impair your ability to disengage the tilt lever. Keep hands free of mainframe while moving
grip handle up and down.
(Fig. 5)
(Fig. 8) (Fig. 9)
IMPOR AN : PRIOR TO USING HORIZONTAL AND VERTICAL TILT FEATURE. To avoid
personal injury or damage to the umbrella, make sure the area behind you is clear and free
from any furniture or structure.
o ilt Canopy Vertically:
Position yourself behind umbrella. Squeeze main frame grip handle (Fig. 7) to disengage
from track (Fig. 8) and guide main frame grip down main frame until desired degree of
vertical shade is reached. Release grip handle to lock into place (Fig. 9).
WARNING: ake sure tilt is secure in track. Do not tilt umbrella past the track. Keep hands
free of mainframe while moving grip handle up and down.
(Fig. 6)
Track

65
(Fig. 12)
(Fig. 13)
(Fig. 10)
Tilting Gears
PULL
(Fig. 11)
IMPOR AN : PRIOR TO USING HORIZONTAL AND VERTICAL TILT FEATURE. To avoid
personal injury or damage to the umbrella, make sure the area behind you is clear and free
from any furniture or structure.
o ilt Canopy Horizontally:
ake sure canopy is fully OPEN. Position yourself in front of the tilt lever and pull loop lock from
main frame track (Fig. 10). Pull out further to disengage tilting gears and reveal gear teeth
(Fig. 11). ove the tilt lever to the left or right, opposite the desired tilt direction (Fig. 12).
U e the tilt degree cale a a guide (Fig. 13). Now, push forward slightly to re-engage tilting
gear teeth. ove tilt lever to center position (canopy should be moving also) and snap the
loop lock back into main frame track.

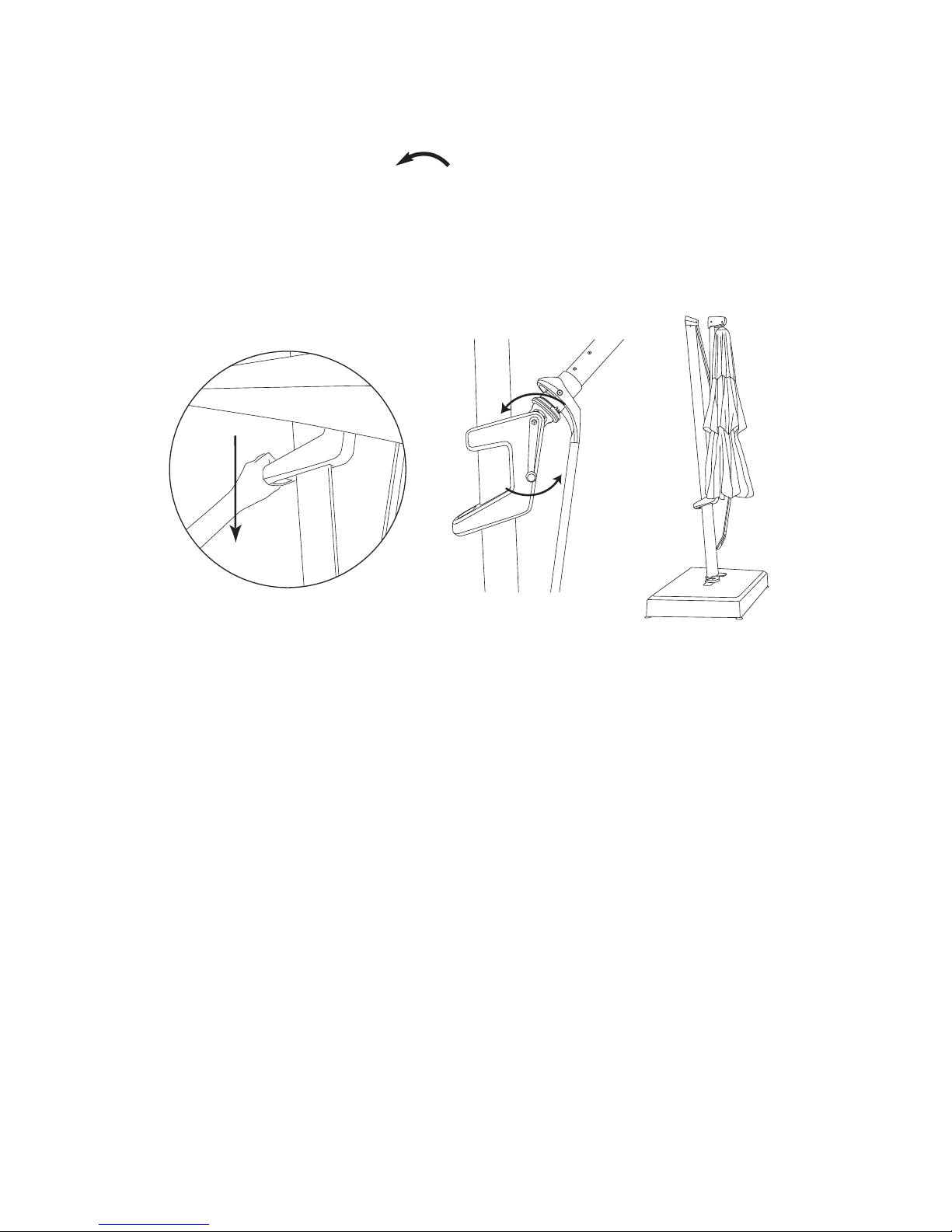

o Close Canopy:
Position yourself behind umbrella. Squeeze the main frame grip handle and slide handle
midway down main frame (Fig. 14). Release grip handle to lock into place. Slowly turn the
crank lift handle counter-clockwise until the canopy is fully closed (Fig. 15).
Squeeze main frame grip handle to release lock and continue to slide grip handle
downward SLOWLY until umbrella is fully closed in an upright position (Fig. 16) and locks
into position. NO E: Prior to clo ing en ure that the canopy i in a level (non-vertical tilt)
po ition. Properly tore umbrella when not in u e. Clo e umbrella, tie tring around canopy
and cover umbrella with provided protective cover.
(Fig. 14) (Fig. 15) (Fig. 16)
Tilt Degrees

65
(Fig. 12)
(Fig. 13)
(Fig. 10)
Tilting Gears
PULL
(Fig. 11)
IMPOR AN : PRIOR TO USING HORIZONTAL AND VERTICAL TILT FEATURE. To avoid
personal injury or damage to the umbrella, make sure the area behind you is clear and free
from any furniture or structure.
o ilt Canopy Horizontally:
ake sure canopy is fully OPEN. Position yourself in front of the tilt lever and pull loop lock from
main frame track (Fig. 10). Pull out further to disengage tilting gears and reveal gear teeth
(Fig. 11). ove the tilt lever to the left or right, opposite the desired tilt direction (Fig. 12).
U e the tilt degree cale a a guide (Fig. 13). Now, push forward slightly to re-engage tilting
gear teeth. ove tilt lever to center position (canopy should be moving also) and snap the
loop lock back into main frame track.
o Close Canopy:
Position yourself behind umbrella. Squeeze the main frame grip handle and slide handle
midway down main frame (Fig. 14). Release grip handle to lock into place. Slowly turn the
crank lift handle counter-clockwise until the canopy is fully closed (Fig. 15).
Squeeze main frame grip handle to release lock and continue to slide grip handle
downward SLOWLY until umbrella is fully closed in an upright position (Fig. 16) and locks
into position. NO E: Prior to clo ing en ure that the canopy i in a level (non-vertical tilt)
po ition. Properly tore umbrella when not in u e. Clo e umbrella, tie tring around canopy
and cover umbrella with provided protective cover.
(Fig. 14) (Fig. 15) (Fig. 16)
Tilt Degrees

47
(Fig. 17)
(Fig. 18)
(Fig. 19)
o OPERA E the 360° Rotating Hub Swivel:
Place your foot on the foot pedal of the rotating hub and tep-on the base pedal
to release rotating lock (Fig. 17). Place one hand on the main frame and one hand on the
tilt lever (Fig. 18), swivel the umbrella frame in either direction until desired position is
reached (Fig. 19). Step off the foot pedal to engage rotating lock and lock position (you will
hear the pedal click, as it reaches the next available lock position).
(Fig. 4)
(Fig. 7)
S T E P 2 O eration
o Open Canopy:
Position yourself behind umbrella. Squeeze the main frame grip handle and slide handle
midway up main frame (Fig. 4). Release grip handle to lock into place. Slowly turn the
crank lift handle clockwise to open the umbrella (Fig. 5). CAU ION: When
cranking umbrella open, if you feel resistance and the umbrella is not opening, do not force
crank. Gently spread umbrella ribs with hands, then continue to crank open. Once fully
opened, squeeze the main frame grip handle to release lock and continue to slide handle
upward until desired height is reached (Fig. 6).
WARNING: Do not continue to crank once umbrella canopy is completely open, it may
impair your ability to disengage the tilt lever. Keep hands free of mainframe while moving
grip handle up and down.
(Fig. 5)
(Fig. 8) (Fig. 9)
IMPOR AN : PRIOR TO USING HORIZONTAL AND VERTICAL TILT FEATURE. To avoid
personal injury or damage to the umbrella, make sure the area behind you is clear and free
from any furniture or structure.
o ilt Canopy Vertically:
Position yourself behind umbrella. Squeeze main frame grip handle (Fig. 7) to disengage
from track (Fig. 8) and guide main frame grip down main frame until desired degree of
vertical shade is reached. Release grip handle to lock into place (Fig. 9).
WARNING: ake sure tilt is secure in track. Do not tilt umbrella past the track. Keep hands
free of mainframe while moving grip handle up and down.
(Fig. 6)
Track

83
To ATTACH Umbrella Light: (sold se arately)
Loosen the light adapter built into the umbrella runner by turning counter-clockwise
(Fig. 20). After loosening, pull down light adapter post (Fig. 21) to attach the
umbrella light (sold separately).
To OPEN and ATTACH Light:
Open the Treasure Garden umbrella light by holding firmly with one hand and then depress
the clamp release button with the other hand to release the clamp lock. Open up the light
and clasp around the light adapter post (Fig. 22). Snap to close (Fig. 23).
To REMOVE Light and CLOSE ada ter:
Hold the umbrella light, depress the clamp release button to release the clamp lock.
Remove umbrella light and gently push up the light adapter post back into umbrella runner
and tighten turning clockwise (Fig. 20). NO E: It is not necessary to remove light
to close umbrella.
(Fig. 20) (Fig. 21)
(Fig. 22) (Fig. 23)
Features
NO E: REFER O SEPARA E BASE-13 OR MOUN KI MANUAL
FOR BASE ASSEMBLY PRIOR O PROCEEDING.
6mm
Hexagon
Wrench
2.5mm
Hexagon
Wrench
(Fig. 1)
(Fig. 2)
(Fig. 3)
S T E P 1 Umbrella Assembly
Two-persons recommended for team lift and to complete assembly.
With base cover in place or mount kit installed, insert the main frame onto the installed
rotating hub (Fig. 1) {align tilt lever with foot pedal}. Assembled in upright position, insert the
(2) bolts and (2) washers and tighten using 6mm hexagon wrench provided (Fig. 2). Install
the crank lift handle onto the mid-area of the main frame. Use the 2.5mm hexagon wrench
provided to lock in the small screw (Fig. 3).
REMOVE ALL PLAS IC PACKAGING MA ERIAL FROM ALL PAR S PRIOR O
OPENING UMBRELLA. CHECK UNDER CANOPY FOR PACKAGING AROUND RIBS.
Your umbrella i now ready to operate!

29
CAU ION: Fully assembled, the umbrella weighs over 500 lb .
oving the umbrella fully assembled will increase the risk of damage to your umbrella
and/or can cause serious injury. We recommend a two-per on team for a embly
and di a embly.
IMPOR AN :
Prior to assembly it is important to decide on the location of the umbrella.
• Allow ample height to avoid damage to your umbrella during assembly and usage.
• Choose a location that is level and sturdy.
• Avoid any sloping or soft ground.
• Consider a location that will maximize the umbrella’s rotating swivel function. Placing
the umbrella between two entertaining areas is ideal.
Storage:
• P ope ly sto e umb ella when not in use. Close umb ella, tie st ing a ound
canopy and cove umb ella with p ovided p otective cove .
NO E: Some parts may be included in the styrofoam packaging.
DO NOT discard any packaging or box until assembly is complete.
1 AKZP Main Frame 1
2 Crank Lift Handle 1
3 HubBolts 5
4 Washers 5
5 8mm Hexagon Wrench 1
6 6mm Hexagon Wrench 1
7 2.5mm Hexagon Wrench 1
AKZP PART LIST
Part Description Qty.
SAFETY PRECAUTIONS:
• Close the umbrella in windy conditions or when a storm approaches.
Never allow the umbrella to flap in the wind; this could damage the canopy.
• Properly store umbrella when not in use. Close umbrella, tie string around canopy and
cover umbrella with provided protective cover.
• Do not leave open umbrella unattended. If damage occurs, this is not covered
by the warranty.
• When adjusting the umbrella, make sure that no person(s) or item(s) are close to the
umbrella. This is important to prevent injury or material damage.
CARE AND MAINTENANCE:
• When not in use, close and cover umbrella with a protective cover.
• If necessary, clean the fabric with lukewarm water, mild detergent, and a sponge.
• Allow a wet canopy to dry slightly opened, but do not leave unattended.
• Wipe sliding marks on the aluminum poles with a damp cloth.
Winter Storage:
• Store in a dry place.
After the Winter:
• Check the condition and function of the umbrella. Any defects must be repaired by a
professional.

Thank you for purchasing Treasure Garden’s AKZP Cantilever Umbrella.
Please remove all contents from the package, inspect and review checklist.
CAUTION: To reduce personal injury and damage to your umbrella, read and follow this
assembly and operation guide. We recommend a two-person team for assembly and
disassembly. Save information for future reference.
101
E
H
I
D
L
J
Loop Lock
Spring Loaded
Rib End Cap (8)
AB
G
F
C
A - 360° Rotating Hub G - Tilt Degree Scale
B - Base Pedal H - Canopy Support Beam
C- Crank Lift Handle I - Canopy - Single or Double Wind Vent
D - ain Frame Stand J - Light Adapter (light sold separately)
E- Tilt Lever K - Valance (optional, not shown)
F - ain Frame Grip L - Spring Loaded Rib End Cap
CHECKLIST
WARRAN Y:
Treasure Garden warrants this product
(in residential use) to be free from
defects in original materials and
workmanship for a period of 2 year from
the date of purchase. If a defect in the
original material or workmanship
appears during the warranty period;
Treasure Garden will (at its option) repair
or replace the product without charge.
Simply contact your original authorized
Treasure Garden dealer with a
description of the defect. The dealer will
verify the defect and work closely with
Treasure Garden to obtain the necessary
service. In many cases, simple problems
can be solved with a replacement part
that can be shipped directly to the dealer
for professional installation / repair.
In the event that warranted factory
service is required, Treasure Garden will
assume the responsibility of the return
freight charges on warranted product for
the first year only.
Returned product that (upon receipt and
inspection) is deemed to be “not
covered” under our warranty, will be
shipped / billed at your expense.
This warranty gives you specific legal
rights, and you may have other rights
which vary from state to state.
RUS : Rust is a natural part of the
aging process of steel or iron based
materials, and is therefore NOT
considered a defect.
NO E: Failure caused by unreasonable
or abusive use, or failure caused by
neglect of reasonable and necessary
care are not covered by this warranty.
Additionally, acts of nature (including but
not limited to wind, hurricanes,
tornadoes, and storms) are not covered
by this warranty.

AKZP13/AKZPRT
13’
OC /10’x13’ RT
Cantilever
Assembly and Operation Guide
www.treasuregarden.com
©2017 Treasure Garden, Inc. - All Rights Reserved. 3/17
