AIRPLATE SERIES
USER MANUAL
CABINET COOLING SYSTEM

2

3
WELCOME
Thank you for choosing AC Infinity. We are committed to product quality and friendly customer service.
If you have any questions or suggestions, please don’t hesitate to contact us. Visit www.acinfinity.com
and click contact for our contact information.
EMAIL
[e-mail]
WEB
www.acinfinity.com
LOCATION
Los Angeles, CA

4
MANUAL CODE CF2207X1
PRODUCT MODEL UPC-A
AI-CFS80BA
AI-APS2
AI-CFS120BA
AI-CFD80BA
AI-CFD120BA
AI-APS9
AI-APP7
AI-APT3
AI-APT7
AI-APT8
AI-APT8-W
AI-APT9
AI-ATC
AI-TCD4
AIRPLATE S1
AIRPLATE S2
AIRPLATE S3
AIRPLATE S5
AIRPLATE S7
AIRPLATE S9
AIRPLATE P7
AIRPLATE T3
AIRPLATE T7
AIRPLATE T8
AIRPLATE T8 WHITE
AIRPLATE T9
CONTROLLER 2
CONTROLLER 8
854759004044
854759004723
854759004006
854759004105
854759004068
854759004549
819137022812
854759004372
854759004389
854759004945
819137020504
854759004396
854759004402
854759004730

5
MANUAL INDEX
Manual Index .................................................................................
Product Warning ............................................................................
Cabinet Cooling Guide ..................................................................
Key Features .................................................................................
Product Contents ...........................................................................
Changing Fan Direction .................................................................
Mounting ........................................................................................
Powering ........................................................................................
Connecting More Fans ..................................................................
Powering Other Devices ................................................................
Programming: S-Series .................................................................
Programming: T-Series ..................................................................
Programming: P-Series .................................................................
Multi-Zone Controller .....................................................................
Frequently Asked Questions ..........................................................
AC Infinity Products .......................................................................
Warranty ........................................................................................
Page 5
Page 6
Page 7
Page 8
Page 10
Page 11
Page 13
Page 16
Page 18
Page 19
Page 20
Page 21
Page 27
Page 29
Page 30
Page 31
Page 32

6
PRODUCT WARNING
Ensure your power source conforms to the electrical requirements of this product.
Check your local code restrictions for additional safety measures that may be needed for a proper
code compliant installation.
Read all instructions before installing and using this product.
If you are unfamiliar or have doubts about performing this product’s installation, seek the
services of a qualified, trained, and licensed professional. Inappropriate installation will void this
product’s warranty.
This product must not be used in potentially hazardous locations such as flammable, explosive,
chemical-laden or wet atmospheres.
Do not cover power cords with rugs or other fabric materials.
This product has rotating parts. Safety precautions should be exercised during the installation,
operation, and maintenance of this product.
Do not insert or allow fingers or foreign objects to enter any ventilation or exhaust openings as it
may cause electric shock, fire, or damage to this product. Do not block or tamper with this product
in any manner while it is in operation.
Do not depend on the on/off programming as the sole means of shutting power from this product.
Unplug the power cord before installing, servicing, or moving this product.
Do not operate this product while its cord is damaged, or if it malfunctions, has been dropped, or
is damaged in any manner.
1.
3.
4.
5.
6.
7.
8.
9.
10.
2.
TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK, OR INJURY TO
PERSONS, OBSERVE THE FOLLOWING:

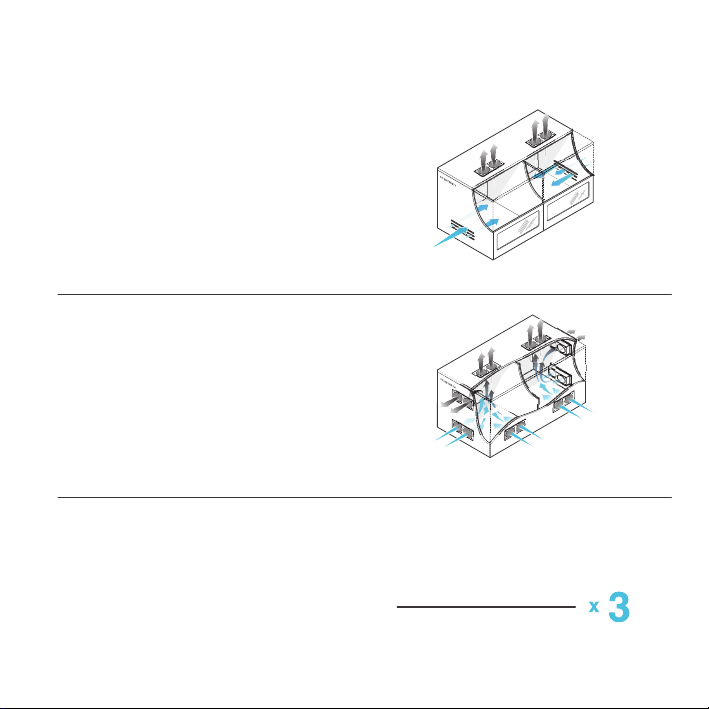

INTAKE AND EXHAUST
All cabinet fan systems should contain an
intake and an exhaust variable, which can
either be fans or ventilation holes. This is
required to balance the static pressures
between the inside and outside of the cabinet.
FAN POSITIONING
Due to natural convection, warmer air which is
less dense than colder air will rise on its own.
It is ideal to position fans near the top of the
cabinet configured to exhaust out the warmer
air and position fans near the bottom to push in
colder air.
CFM REQUIREMENTS
A fan or set of fan’s CFM rating measures the
rate at which air flows into a space. To obtain
the required CFM rating, divide the dimensions
of a cabinet by 1728 to get the cubic feet area
then multiply by three to account for various
real world variables.
SIZE OF CABINET
L x W x H (inches)
1728
7
CABINET COOLING GUIDE

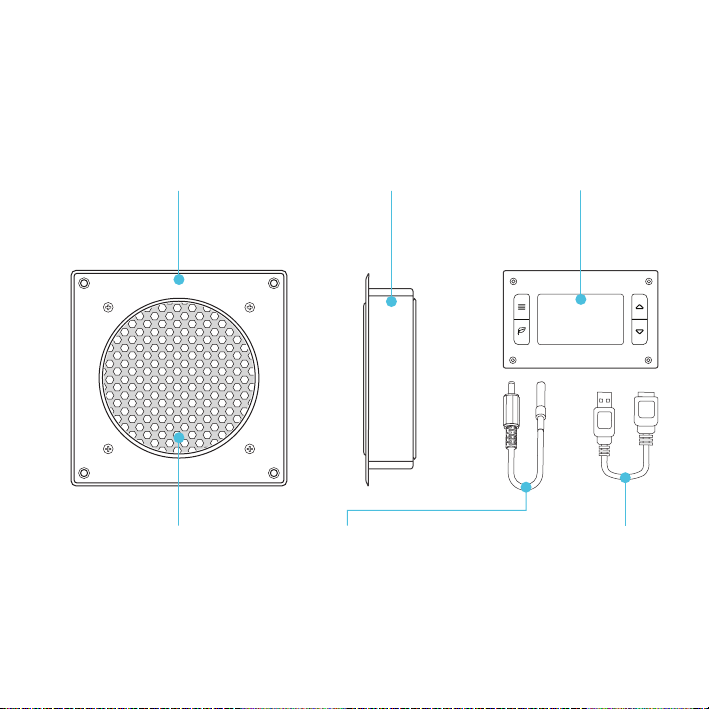

KEY FEATURES
ALUMINUM FRAME
Features an aluminum frame
with a brushed black finish
and CNC machined corners.
SMART CONTROLLER*
LCD display enables temp monitoring,
thermal control, speed control,
alarms, and SMART energy mode.
DUAL BALL BEARINGS
Fans contain long-life ball
bearings rated at 67,000 hours.
This feature also enables fans
to be mounted in any direction.
PROTECTIVE BACK
Fans are enclosed in
a hard shell cover to
prevent intrusions.
FAN EXPANSION PORTS
Each fan unit contains an USB
port to daisy chain additional
fan units. Up to six fans can
share the same power source.
THERMAL PROBE
The corded sensor probe
constructed of stainless
steel ensures an accurate
temperature reading.
*Included in AIRPLATE T-Series
AC INFINITY
S/T-SERIES
8

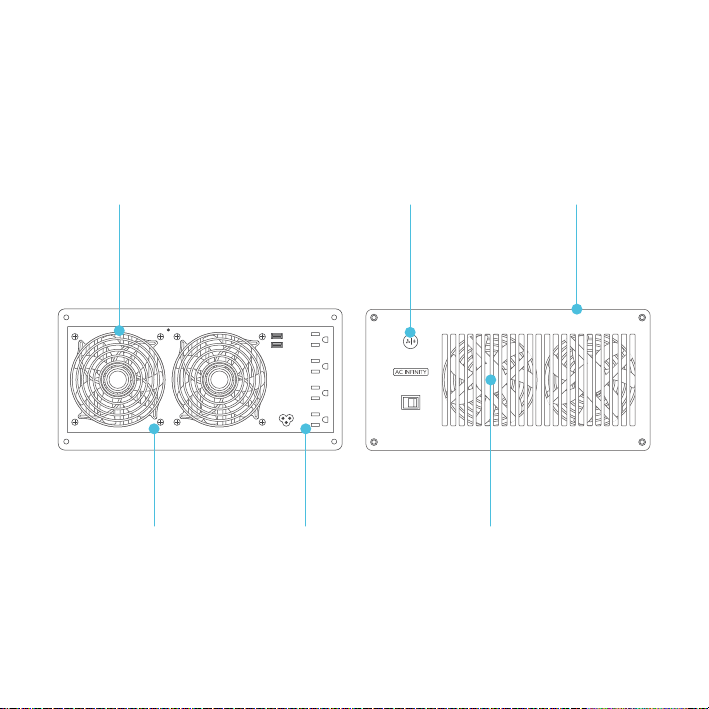

KEY FEATURES
SLEEK FRONT PLATE
Features an aluminum frame
with a brushed black finish and
CNC-machined edges for a
flush mount on flat surfaces.
EFFICIENT MOTOR
PWM-controlled motor
featuring precise speed
control, low noise operation,
and energy efficient DC power.
SILENT COOLING
Contains long-lasting dual ball
bearings that quietly produces
airflow and enables this unit to
be mounted in any direction.
THERMALLY ACTIVATED
Programmed with four speed
settings and thermal triggering to
turn on the fans upon reaching
temperature thresholds.
OUTLETS AND USB PORTS
Built with two USB ports and
four outlet sockets to power
devices that can be turned on
or off using the front switch.
BACKUP MEMORY
Retains fan speed and thermal
temperature trigger settings
when power is shut off for
convenient on/off operation.
P-SERIES
9

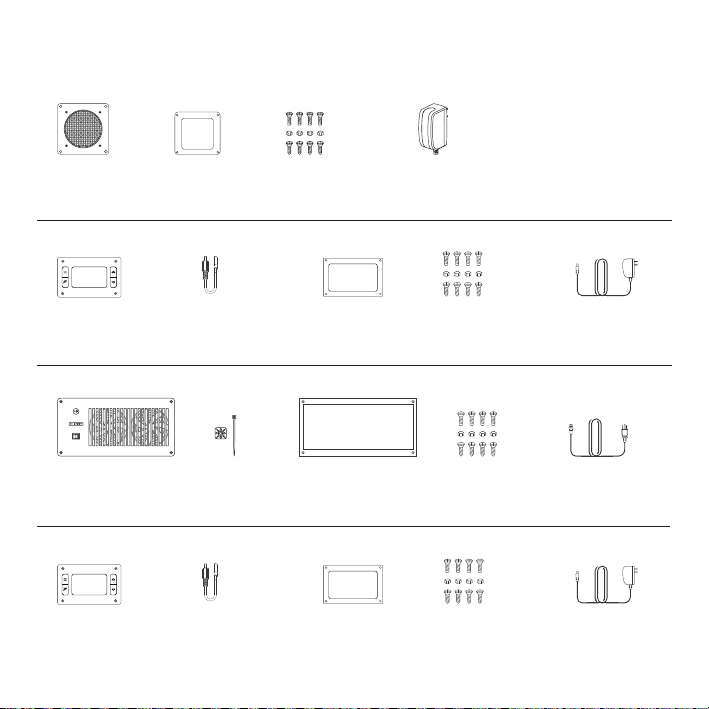

PRODUCT CONTENTS
CABINET FAN
+ OUTLET
(x1)
CABINET
FAN UNIT
(x1)
(Includes S-SERIES Fan Units)
THERMAL
CONTROLLER
(x1)
MULTI-ZONE
CONTROLLER
(x1)
PLASTIC
STENCIL
(x1)
THERMAL
PROBE
(x1)
THERMAL
PROBE
(x1)
MOUNTING
SCREW SET
(x4)
PLASTIC
STENCIL
(x1)
PLASTIC
STENCIL
(x1)
PLASTIC
STENCIL
(x1)
USB POWER
ADAPTER
(x1)
MOUNTING
SCREW SET
(x4)
MOUNTING
SCREW SET
(x4)
MOUNTING
SCREW SET
(x4)
AC POWER
ADAPTER
(x1)
AC POWER
ADAPTER
(x1)
S-SERIES
T-SERIES
P-SERIES
MULTI-ZONE CONTROLLER (Sold Separately)
10
CABLE
MOUNT
(x1)
AC POWER
CORD
(x1)
AC INFINITY
AC INFINITY

CHANGING FAN DIRECTION

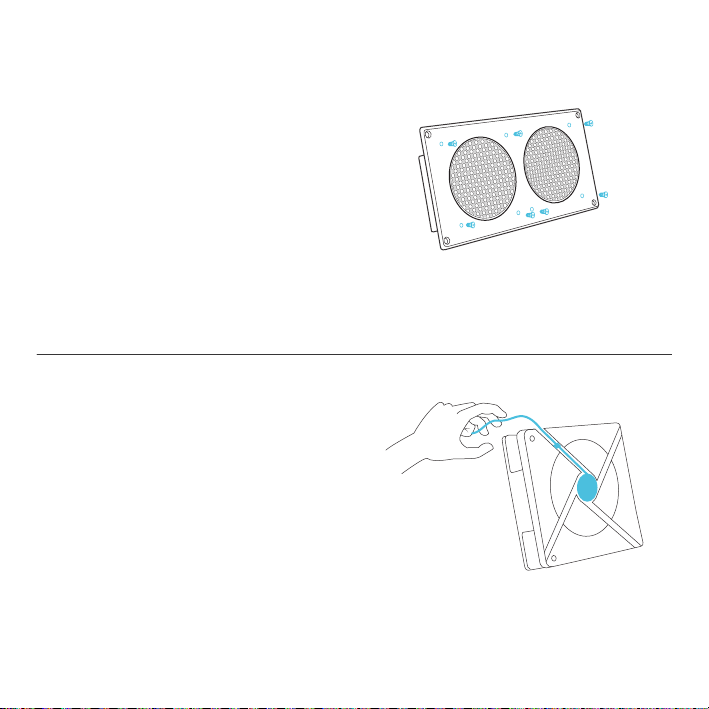

STEP 1
Unplug the cabinet fan before flipping the
internal fan.
Remove the screws using a Phillips screwdriver
to separate the front plate and the internal fan
from the shell.
STEP 2
Identify the airflow direction to achieve your
desired configuration; airflow will blow on the
label side.
Route the cord towards the label side if creating
an intake configuration.
11

CHANGING FAN DIRECTION
STEP 3
Lift the fan guard to run the cord through one
of the open grooves, then guide the fan into
the shell.
Reapply the screws to secure the fan, fan
guard, and shell together.
STEP 4
Replace the grille and front plate over the
open side. Reapply the screws to secure the
grille and front plate back and reassemble the
cabinet fan.
12

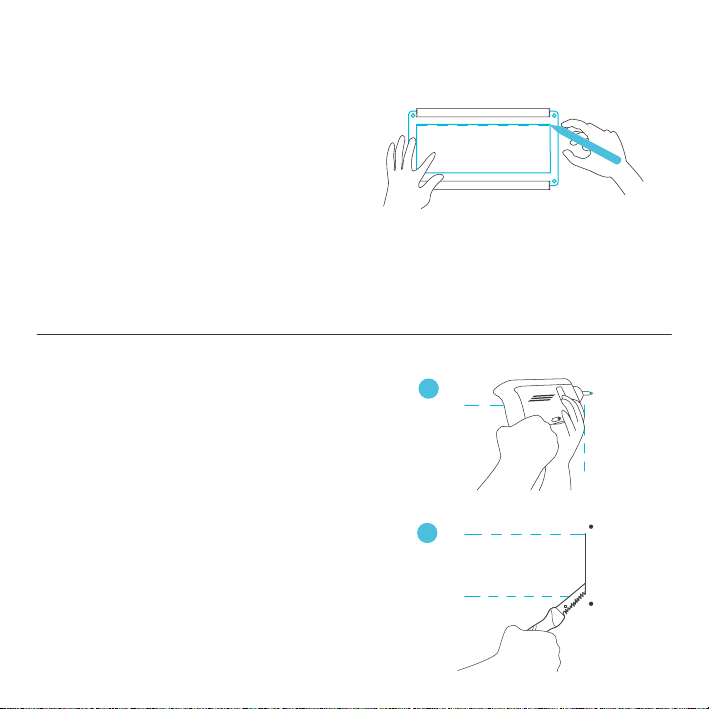

MOUNTING
STEP 1
Determine your desired mounting location.
Place and secure the stencil over it using tape
and mark the drilling points and outline.
STEP 2
Drill the mounting holes into your wall space.
Cut the rectangular outline to create the
opening. Use of a saw is recommended.
1
2
13

STEP 3
Push the cabinet fan into the cut opening to
create a flush mount, making sure the fan's
backside does not touch its perimeter to
minimize vibration noise.
MOUNTING
S-Series
P-Series
14

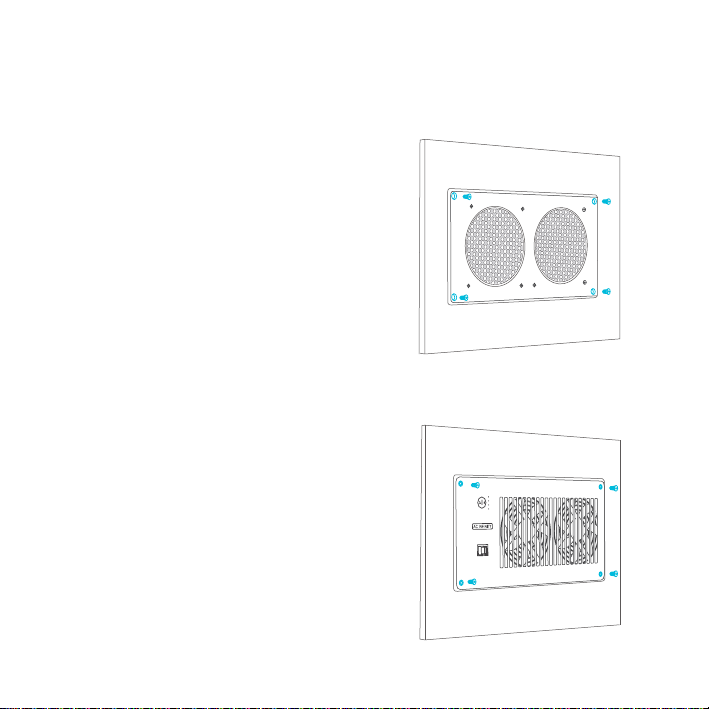

MOUNTING
STEP 4
Screw the bolts into the mounting holes to
secure the cabinet fan.
S-Series
P-Series
15

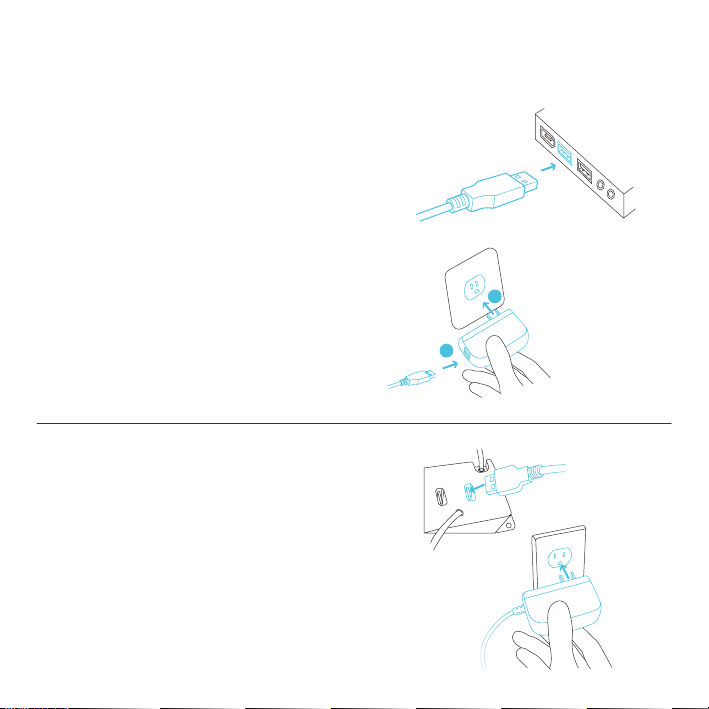

POWERING
S-SERIES
Power the cabinet fan by plugging the USB
connector into either a USB port or into the
included power adapter, to then plug into
an outlet.
T-SERIES
Plug the cabinet fan’s USB connector into one
of the multi-zone controller’s USB ports.
Plug the power adapter’s male connector into
the multi-zone controller’s power port, then plug
the two-pronged end into an outlet.
S/T-SERIES
16
1
2

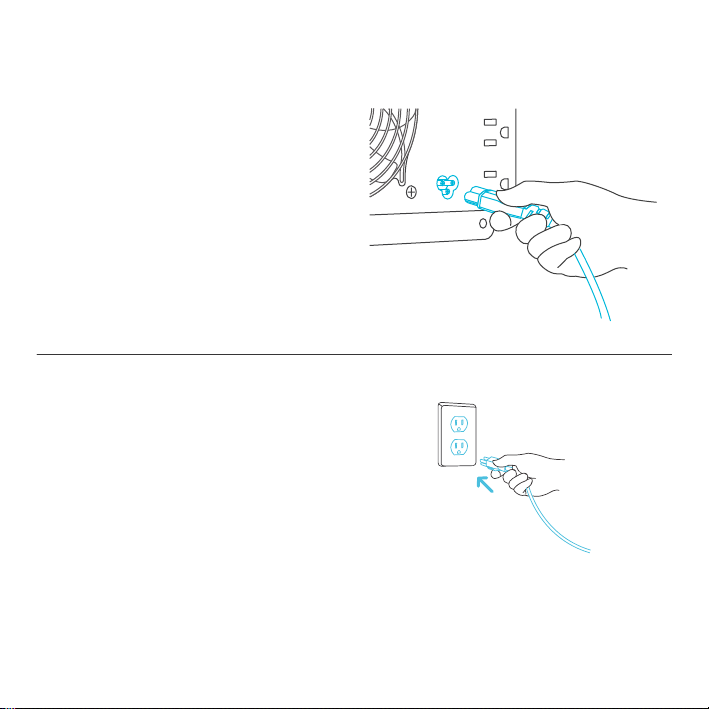

STEP 1
Plug the AC power cord into the 3-pin port,
located on the backside of the cabinet fan.
STEP 2
Plug the AC power cord into a wall outlet to
power the cabinet fan.
POWERING
P-SERIES
17

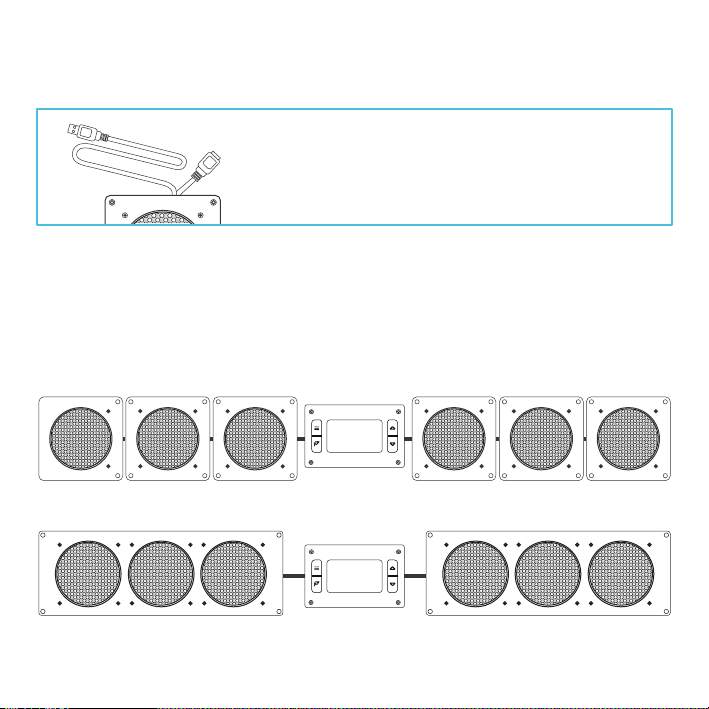

T-SERIES CONTROLLER
Thermal controllers can control up to six fans. Some models may contain more than one fan
(AIRPLATE S7 contains two fans and AIRPLATE S9 contains three fans). Fan units connected
with the thermal controller will share the same speed and temperature settings. If the fans
contain an inline speed controller, set their speeds to HIGH.
CONNECTING MORE FANS
AC INFINITY
AC INFINITY
S/T-SERIES
18
Each fan unit includes an USB port that enables you to
connect an additional fan. Up to four fans can share the same
USB port, and up to six fans can share the same power outlet.
Please see page 20 for limitations.

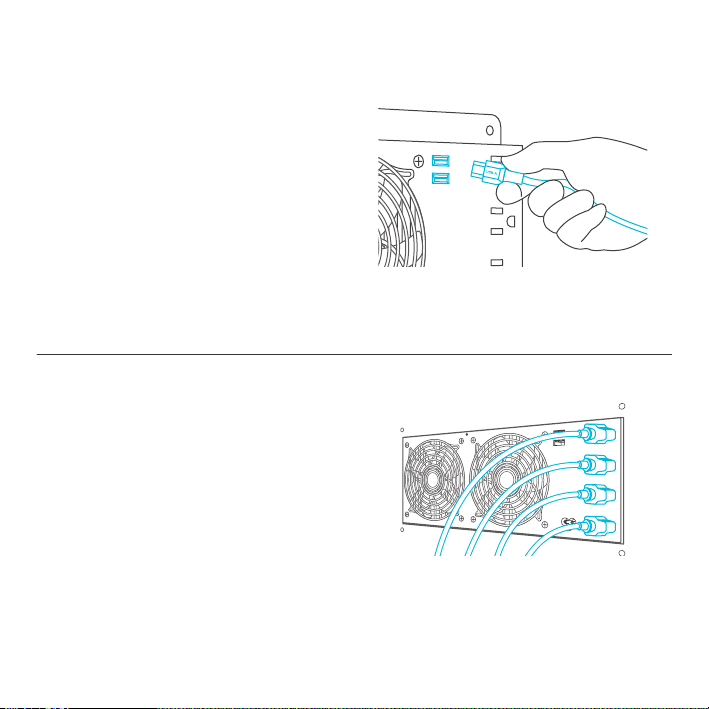

STEP 1
You may use the two rear USB ports to power
up to two USB devices (supports up to 5V per
port).
These devices are powered on and off using
the switch on the front side.
STEP 2
You may use the four rear outlet sockets as
you would a power strip to power up to four
additional devices (supports up to 850W).
Unplug the cabinet fan before plugging in
more devices.
These devices are powered on and off using
the switch on the front side.
POWERING OTHER DEVICES
P-SERIES
19

PROGRAMMING

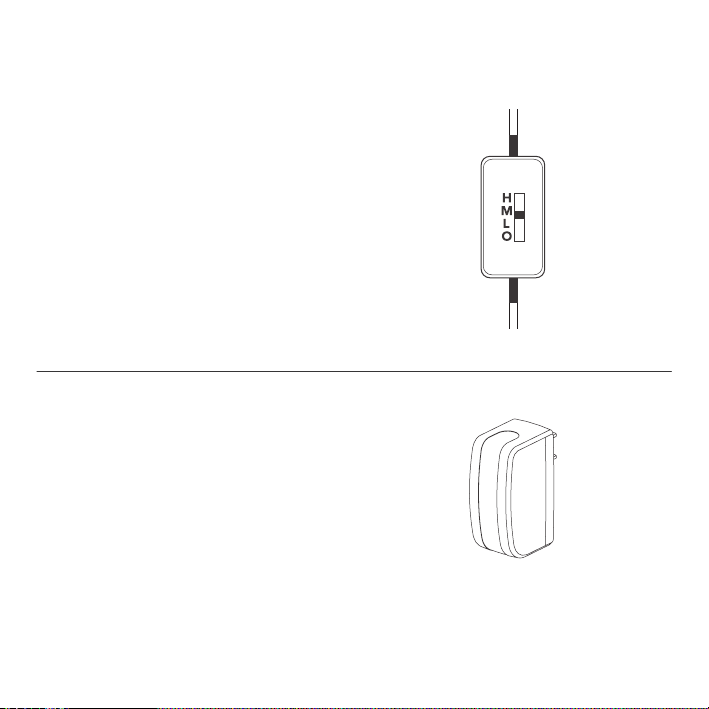

SPEED CONTROLLER
Sets the fan speed to OFF, LOW, MEDIUM,
or HIGH. Daisy-chained fans will also adjust
to this setting. All systems with more than four
daisy-chained fans must set their inline speed
controller to HIGH to prevent overloading this
speed controller (ex. two AIRPLATE S9 units
daisy-chained together must be set to HIGH).
S3/T3 – 1 Fan
S7/T7 – 2 Fans
S9/T9 – 3 Fans
TURBO BOOST ADAPTER
Maximizes fan performance by increasing fan
speed by up to 25%.You may use the speed
controller to reduce noise level if the higher
speeds are too loud for your application.
S-SERIES
