RAB Smart Task User manual

Smart Task
Retrofit Kit
Installation Manual
Contents:
Turn your
closet, cubicle
and kitchen lights
into motion
activated
lights.
Sensor Specifications
Switching Capacity:
500 watts incandescent or 250 watts
Fluorescent
Voltage:
120 Volts AC, 60Hz
UL Listing:
For indoor applications
Time Adjustment:
5 seconds to 15 minutes
Sensor Construction:
Precision molded polycarbonate
Detection Zone:
180 degrees by 30’
Sensor wires:
12” long
Vandal Resistant Lens:
Hard lens resists vandalism.
Why RAB Sensors are
Best for You
Smaller is better! Smart Task retrofit
kit sensor uses state-of-the-art surface
mount technology (SMT), just like cellular
phones and beepers.SMT gives you more
reliability, greater RF immunity, and a
compact sensor that can fit neatly where
others cannot.
Wider is better! The wide view
detects movement within its 120º area
with only one compact sensor, detecting
people as they exit or enter.
Molded is better! No leaky gaskets or
bug hotels with Smart Task.
The hard lens is molded as part of the
case. It’s absolutely sealed!
180º
Sensor

Cautions
• All wiring MUST comply with local
electrical codes and should be installed
by a qualified electrician.
• Read entire Installation Manual before
proceeding.
TURN OFF POWER BY REMOVING
POWER FUSE OR TURNING
OFF CIRCUIT BREAKER
BEFORE INSTALLATION.
• Total lighting load must not exceed:
500 watts incandescent or 250 watts
fluorescent at 120 volts.
• Line Carrier Remote Control Systems
such as X-10, Leviton or Radio Shack are
incompatible with sensors and cause false
activations.
• Do not install on circuits feeding motor
loads such as kitchen appliances, HVAC
equipment, washer/ dryer or garage door
openers.
• Sensor functions best when movement
is across its detection pattern, not towards
the sensor.
Assembly and Wiring
1. Smart Task retrofit sensor installs on your
existing task lighting fixture.
2.The opening in your existing fixture switch
knockout MUST measure 1.08” x .525” in
order for retrofit sensor to fit properly as
shown below.
3. Bring power leads out of fixture .
4. Strip 1/2” of insulation from all leads.
Connect as shown in Wiring Diagram.
5.Twist on wire nuts. Secure with electrical tape.
6.Turn on power.
7. Adjust coverage angles of the sensor from
left to right only. Tighten tilt set screw.

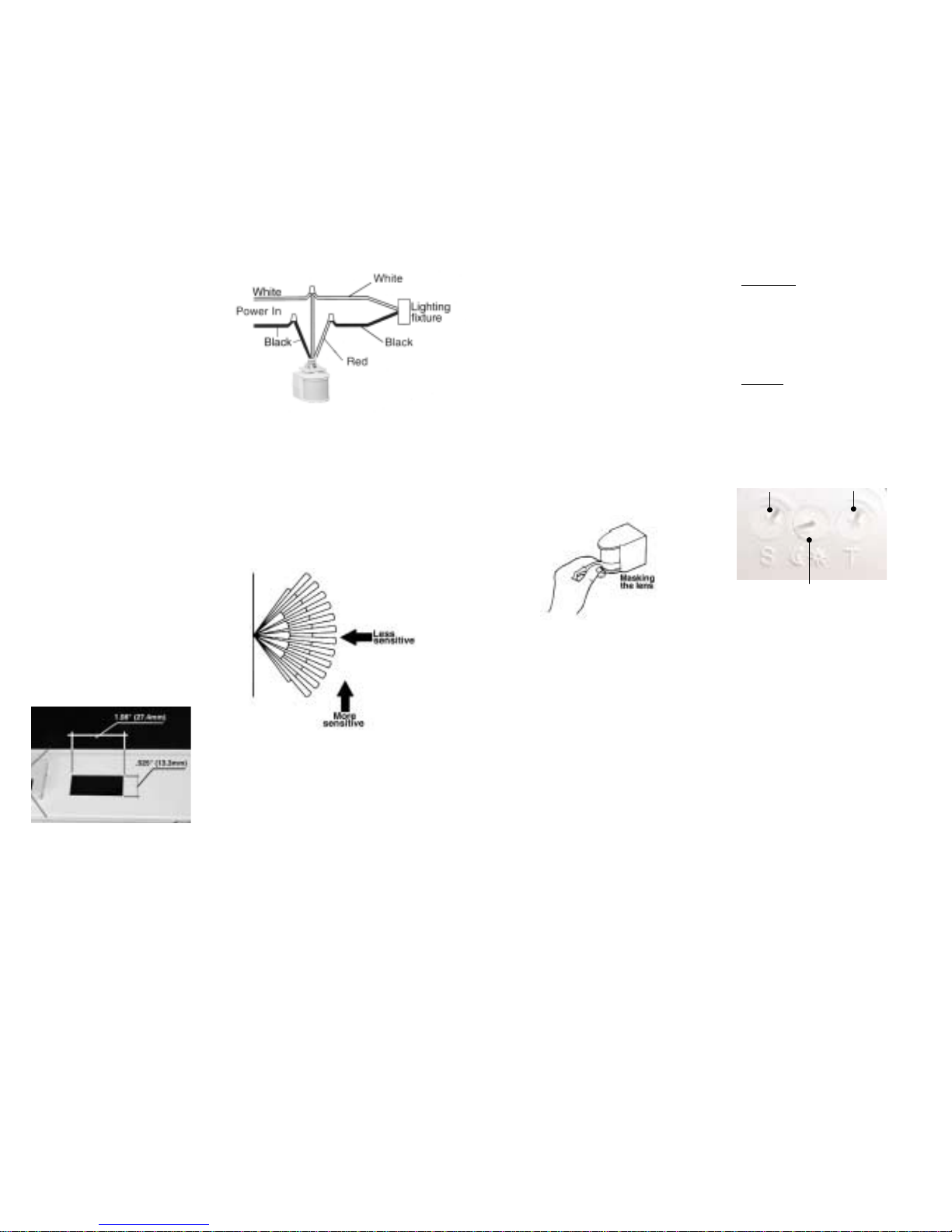

Wiring Diagram How are the Time, Sensitivity and
Photocell adjusted?
• Time Control: Sets the time that lights will
remain on after the Detection Zone is vacated
from approximately 5 seconds to 15 minutes.
Use small adjustment tool supplied to turn
clockwise to increase the time.
• Factory Setting: 5-8 minutes.
• Sensitivity: Increases or decreases the
responsiveness and range of the sensor.
Control Panel:
Turn controls gently. Do not force
past stops.
How Does Smart Task Work?
Sensitivity Time Control
Photocell
The Smart Task infrared sensor “sees”
small temperature changes caused by the
motion of people or pets within its Detection
Zone and turns on lights automatically.
How long do the lights stay on?
Lights remain on as long as there is move-
ment within the Detection Zone.Once the
zone is vacated, lights can be adjusted to
remain on approximately 5 seconds up to
15 minutes.
Will the sensor detect animals?
Smart Task may detect large animals.You can
limit animal detection by placing opaque tape
on the lower part of the lens or using the
bottom mask on the Lens Mask Kit provided.
What does Manual Override do?
Keep lights on by flipping the wall switch
two times within 5 seconds.Sensor resets
to auto mode at dawn. No extra wiring
needed.

Picking A Location
Location Considerations:
• If your fixture is not permanently mounted,
or can be moved, choose a location from
which the sensor can “see”all the paths of
movement that will be illuminated by its lights.
• Smart Task may be painted to blend in with
walls.Carefully apply masking tape to the
sensor lens before painting!
• Sensor functions best when the direction of
suspected movement is across its detection
pattern, not towards the sensor.
• The sensor has a “Double Look Down”
Lens with one “Look Out”zone and two
“Look Down” zones, for excellent detection
both at long and close range.
• If wall mounting, locate 5-8’high for optimum
range.Lower mounting height will reduce
range.
Side View 30’
Double Look Down Lens
8’
Top View 30’
40’
Detection Pattern
• Detection extends out a maximum of 30
feet and is 180º wide.
• To reduce Detection Pattern width, mask
the sides of the lens with the Lens Mask Kit
provided or opaque weatherproof tape.
• If sensor is mounted by a doorway at the
top of stairs, be aware that
the elevated mounting height may extend the
sensors range.
Control Panel:
Turn controls gently. Do not force past
stops.
Aiming and Walk Testing
Sensitivity Time Control
Photocell
Turn to
moon symbol
for night only
Turn to sun symbol
for 24 hour
operation (lights turn
on night and day)
Walk Test:
The purpose of the Walk Test is to check and
adjust the coverage pattern.
1. Aim the sensor approximately to cover the
area you desire.
2. Start outside the Detection Zone and walk
across the zone until the lights go on.As
distance from the sensor increases, it will take
more movement to be detected. For instance,
at 10 feet, a half step will be enough.while at
30 feet, several steps will be necessary.
3.To shorten the range, use the lens masks
provided or tilt the sensor down.
4. Repeat steps #2 and #3 until you are
satisfied with the coverage.
5.The Time Control is factory set between
5-8 minutes.This period starts after the
movement in the Detection Zone ceases.
If less time is desired, turn the time control
counterclockwise.For more time, turn the
control clockwise.
5.The sensor is factory set for night only
operation.To obtain operation in low level
light, turn the Photocell Control clockwise to
the sun symbol. Intermediate settings will
allow the sensor to operate earlier or later at
dusk.
6.Your sensor is ready for operation. See the
Technical Tips pages if additional help is needed.
Test Period:
The sensor has a 3 minute Test Period which
allows it to be aimed and walk tested day or
night.
• For the first 30 seconds, the lights will be
turned on. During this time, test that all
fixtures and lamps function properly.
• For the next 3 minutes, the sensor will keep
lights on for 5 seconds each time it detects
movement in its Detection Zone.The sensor
will change to Automatic Mode after the 3
minute Test Period.
• If another 3 minute Test Period is desired,
turn the power off for at least 10 seconds and
back on again.

Technical Tips:
Lights Do Not Turn On
1. Check that lightbulbs and fixtures work.
Compare wiring to the Wiring Diagram in this
manual.Check that the power is on.
2. If installing during daylight, remember that
the sensor will provide a 3 minuteTest Period
after power is turned on. After 3 minutes, the
sensor will switch to Automatic Mode and will
not work during daylight if the Photocell Control
is turned to or near the night only position
(fully counter clockwise to the moon symbol).
If you require another 3 minuteTest Period,
turn the power off for at least 10 seconds and
back on again.
3. Check that lights from other sources, from
inside the house are not in the sensor’s view.
See #1 under “LightsTurn Off Too Quickly”.
4.Was sensor wired hot? If so, circuitry may
have been damaged.
5. If sensor is painted, make sure there is no
paint on the lens and that the lens paint mask
is removed.
Lights Do Not Turn Off
1.Make sure sensor is not aimed at something
that would move or change temperature such
as waving curtains, air conditioners, windows
or heating vents.You can test for infrared
sources in the area by placing a box or bag
over the sensor.Put sensor into Test Mode.
After the initial 30 seconds of the lights being
on, lights should stay off.Wave your hand
inside the bag in front of sensor. Lights should
go on and then time out.
Problem: Sensor is triggered by unwanted
movement or heat source.

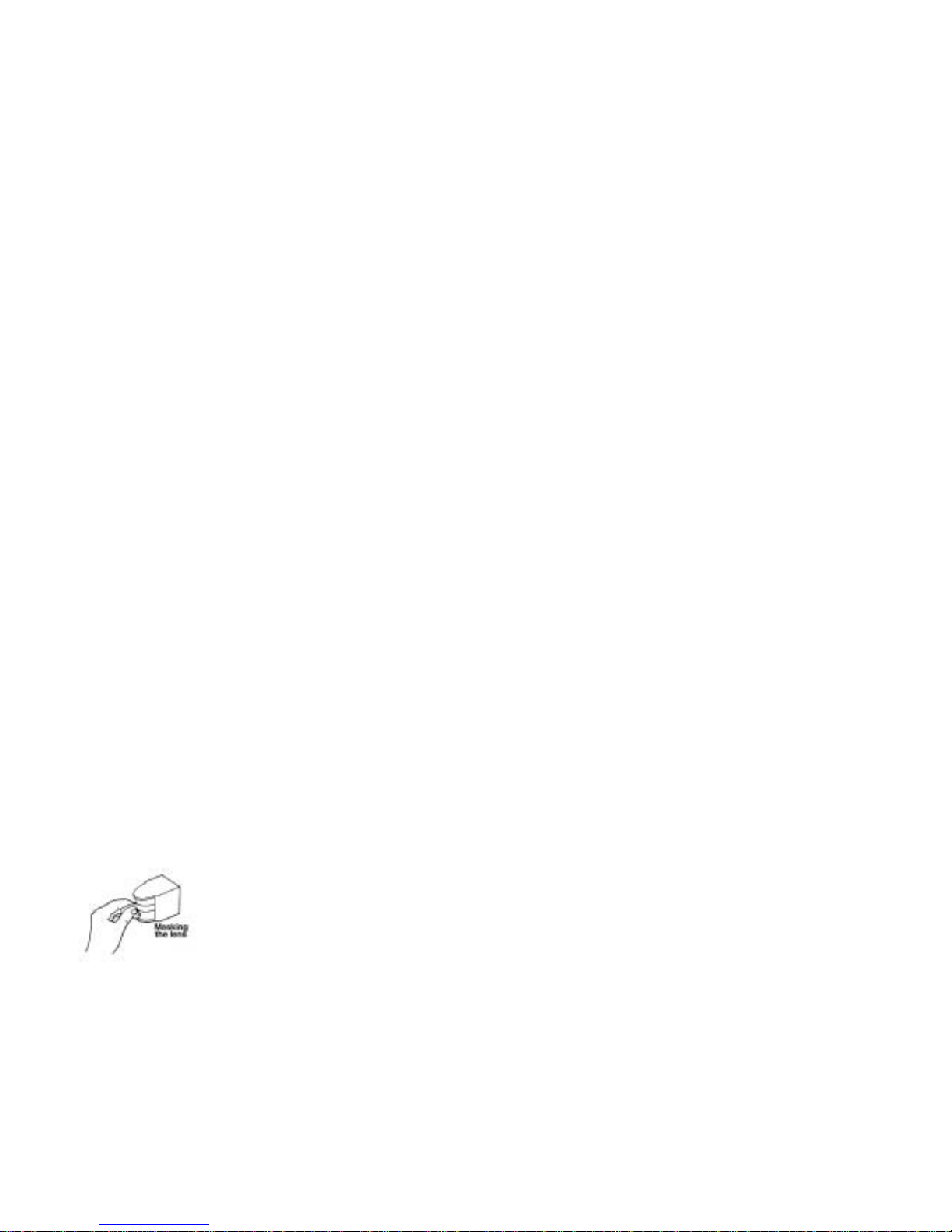

Solution: Mask lens in the direction of the
source.Move sensor or source.
Lights Turn On For
Unknown Reasons
1. Lights may turn on occassionally because
the sensor is detecting changes in tempera-
ture (Air conditioning or heating duct). If this is
a constant problem, mount the sensor in a
more protected area.
2.Tilt the sensor lower - it may be seeing
distant objects moving.
3.You may not be aware that house pets have
triggered sensor. Check sensor aiming to
reduce nuisance triggering or mask the lower
part of the lens with opaque weatherproof tape.
4.The sensor may turn on occassionally
during voltage surges.
5. A possible source of “mysterious” sensor
activations are strong local radio signals.
Check for nearby CB, Ham,VHF radio trans-
mitters or Cellular telephones.The sensor
may be activated, but will not be permanently
impaired by these signals.
6. Check all the solutions mentioned under “
Lights Turn On and Off Incorrectly”.
Solution: Aim sensor away from lights and
reflective objects or mask the lens in the
direction of the light.
1.Make sure the sensor is installed on its own
dedicated circuit free of motor loads such
as HVAC equipment, kitchen appliances or
garage door openers.
2. It is not recommended to wire sensors in
parallel.More than one sensor wired together
makes them difficult to troubleshoot. Dis-
connect multiple sensors and test separately.
3. Keep all people completely out of the
detection pattern to make sure the sensor is
not detecting them.
4. Make sure sensor is located below and as
far as possible from its lights. Heat from the
lights may trigger the sensor.
5. Make sure lights are not visible from or
reflecting back into sensor. Check for white or
reflective surfaces close to the sensor.
Lights Turn On and
Off Incorrectly
Lights Turn Off
Too Quickly
1. Check if sensor is being “tricked” by
reflected light. If lights shine or reflect into the
photocell, (located behind the lens), the unit
will go on briefly and turn off thinking it is
daytime.
Problems:
Lights reflect into photocell or lights shine
directly into photocell.
Solution: Adjust Photocell Control slightly
clockwise, toward the sun symbol.This
allows the sensor to function in brighter
ambient light conditions. Alternatively,
move the lights or mask the lens in the
direction of the lights or reflections. If the
problem persists, it may be necessary to
increase the length of the sun shield over
the sensor using weatherproof tape or
some other material.
2.Make sure sensor is mounted firmly and
does not move even slightly when touched. If
it moves, tighten all screws.
3. Make sure that fixture is not mounted on
an unstable pole that will move in the wind.
4.Was sensor wired hot? If so,
circuitry may have been damaged.
Limited Warranty
Your Smart Task sensor will be promptly
replaced or repaired, at our option, if it proves
to be defective in workmanship or materials
within 5 years of purchase.
For repair or replacement, please call the
Tech Help Line at 888 RAB-1000 for
instructions.
If the fixture/sensor is out of warranty or dam-
age is unrelated to its original manufacture,
return your unit freight prepaid to the address
below. Please include a description of the
problem and a check for $20.00 (made out to
RAB Electric).We will repair or replace your
unit promptly.
Under no circumstances shall RAB Electric
be liable for any incidental or consequential
damages arising out of or in connection with
the use or performance of this product or
other indirect damages with respect to loss of
property or revenue or cost of installation,
removal or re-installation.
This warranty gives you specific legal rights
and you may also have other rights which
vary from state to state. Smart Task sensor is
designed to detect movement in the detection
area. It should not be construed as a theft or
crime prevention device.RAB does not
accept responsibility for any damages resulting
from intrusion or other crimes.
© RAB Electric Manufacturing, Inc. 2002
Toll Free
Technical Assistance
If you need technical assistance, please do
the following:
1.Re-read the Technical Tips sections of this
manual.
2.Call the Tech Help Line
at 888 RAB-1000, 8AM to 4PM Eastern Time
M-F and we will be glad to help you.Before
you call, please have the following information
handy:
a) Catalog number of your unit;
b) Wattage, types and locations of lights con-
nected to the sensor;
c) The electrical circuit on which the sensor is
installed.What else does it feed? How is the
sensor power switched?
d) Serial Number (4 digits) on the back of the
sensor.
e) This installation Manual
Note: RAB Electric cannot give
electrical wiring instructions by phone.
Please consult a qualified electrician.
