AC Infinity CLOUDLINE AC-DCF4 User manual

USER MANUAL
DUCT CARBON FILTER
PREMIUM AUSTRALIAN CHARCOAL

3
WELCOME
Thank you for choosing AC Innity. We are committed to product quality and friendly customer
service. If you have any questions or suggestions, please don’t hesitate to contact us. Visit www.
acinnity.com and click contact for our contact information.
EMAIL
support@acinnity.com
WEB
www.acinnity.com
LOCATION
Los Angeles, CA

4
MANUAL CODE CL2208X1 (Carbon Filter)
PRODUCT
DUCT CARBON FILTER, 4"
DUCT CARBON FILTER, 6"
DUCT CARBON FILTER, 8"
DUCT CARBON FILTER, 10"
DUCT CARBON FILTER, 12"
DUCT CARBON FILTER XL, 4"
DUCT CARBON FILTER XL, 6"
DUCT CARBON FILTER XL, 8"
MODEL
AC-DCF4
AC-DCF6
AC-DCF8
AC-DCF10
AC-DCF12
AC-DCF4-XL
AC-DCF6-XL
AC-DCF8-XL
UPC-A
819137020665
819137020672
819137020689
819137020825
819137021617
819137023000
819137023017
819137023024

5
MANUAL INDEX
Manual Index .................................................................................
Product Warning ............................................................................
Key Features .................................................................................
Product Contents ...........................................................................
Installation .....................................................................................
Overhead Hanging ........................................................................
Conguration Set-up ......................................................................
Maintenance ..................................................................................
Other AC Innity Products .............................................................
Warranty ........................................................................................
Page 5
Page 6
Page 7
Page 8
Page 9
Page 11
Page 15
Page 18
Page 19
Page 20

6
Check your local code restrictions for additional safety measures that may be needed for a proper
code compliant installation.
Check local authority requirements for proper disposal of waste and residues.
Read all instructions before installing and using this product.
If you are unfamiliar or have doubts about performing this product’s installation, seek the services of a
qualied, trained, and licensed professional. Inappropriate installation will void this product’s warranty.
This product must not be used in potentially hazardous locations such as ammable, explosive,
chemical-laden, or wet atmospheres.
This product requires sufcient ventilation in order to properly function.
Ducted products must always be vented to outdoor areas.
Regular maintenance as outlined in the instructions is recommended to maintain ideal operation.
Preventing dust accumulation will minimize potential hazards.
This product pairs with those that have rotating parts. Safety precautions should be exercised during
the installation, operation, and maintenance of this product.
Ensure that safety systems are in place in case of any re breakout.
1.
2.
3.
4.
5.
6.
7.
8.
9.
10.
PRODUCT WARNING
TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK, OR INJURY TO PERSONS,
OBSERVE THE FOLLOWING:

7
KEY FEATURES
ALUMINUM FRAME
Features a resilient frame
that resists corrosion and
can be placed in high
humidity settings.
MAX AIR PASSTHROUGH
Galvanized steel mesh allows
complete passthrough of air
suitable for both intake and
exhaust applications.
CLOTH FILTER COVER
Traps particles from passing
through the carbon lter.
Rewash every six months to
extend its lifespan.
FILTER STRAPS
Includes two nylon straps
that secures the carbon
lter onto your grow tent
support beams.
REVERSIBLE FLANGES
The anges can be removed
and placed on the opposite
ends to fully utilize the
carbon bed inside.
ACTIVATED CARBON
Features RC412 1200+ IAV
Australian charcoal with high
adsorption rate to completely
block odor and scrub the air.

8

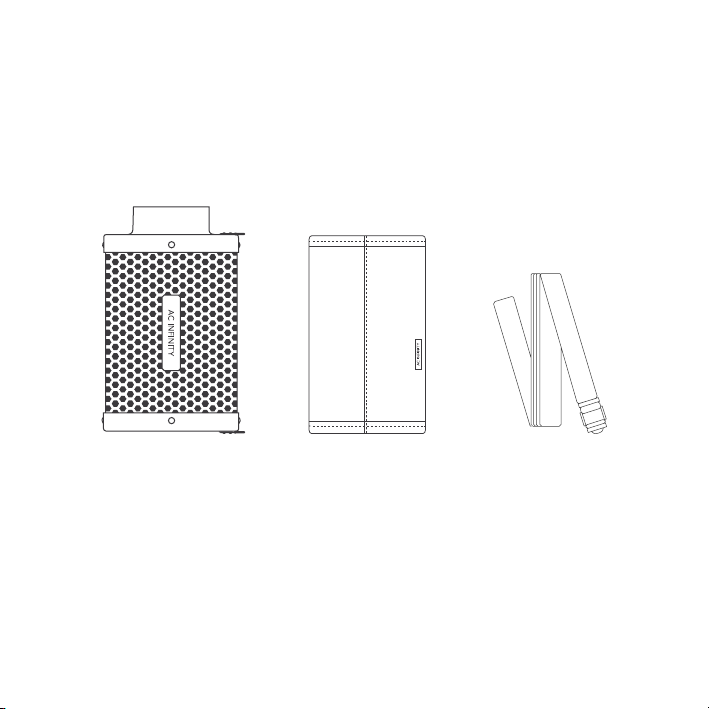

PRODUCT CONTENTS
DUCT
FILTER
(x1)
PREFILTER
CLOTH
(x2)
FILTER
STRAPS
(x2)

9
INSTALLATION
STEP 1
Slip the cloth over your lter to block dust and
other particles from passing through. Make sure
the entire metal mesh is covered by the cloth.
1 2
STEP 2
Connect your duct tube over your lter. Use duct
clamps to secure the connection. You may also
apply ducting tape before using the duct clamps
for even further security.
3
4

10
STEP 4
If your lter is placed in a humid space,
position it at the highest point possible.
INSTALLATION
STEP 3
You may also connect your lter directly
to your inline duct fan. Use ducting tape to
secure them together.

11
OVERHEAD HANGING

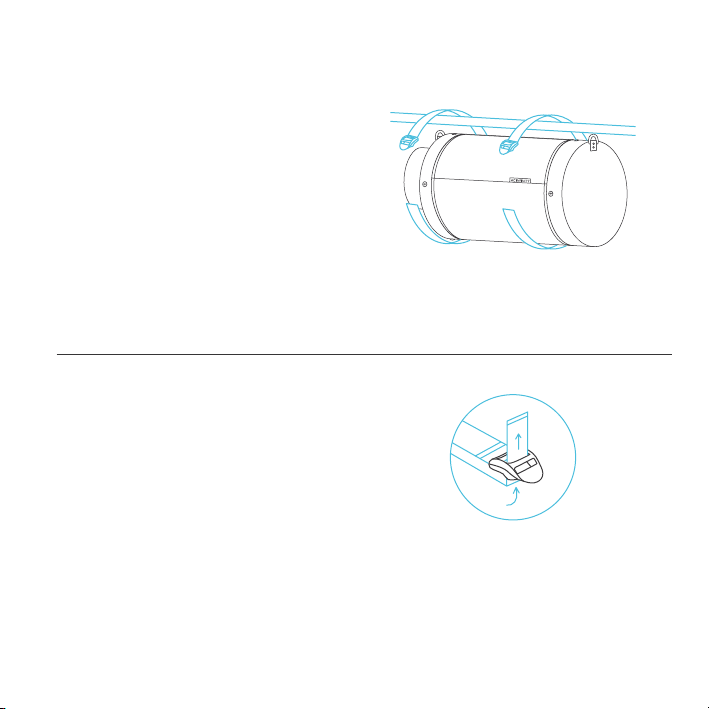

STEP 1
Loop the strap around a hanging pole.
STEP 2
Slip the strap through the inner ladder lock slot
from the bottom.
STRAPS

12
STEP 3
Route the strap into the outer ladder lock slot
from the top. Adjust the length of the completed
loop as needed.
STEP 4
Tuck the loose ends through the center gap of
the ladder lock to secure the loop.
OVERHEAD HANGING
STRAPS

13
OVERHEAD HANGING
STEP 5
Connect your lter to your ductwork using your
preferred method, as shown on pages 9 and 10.
STRAPS

14
OVERHEAD HANGING
ROPE CLIPS*
STEP 1
Loop the rope clip hangers around your grow
tent's support beams.
STEP 2
Hook the carabiners into the steel hooks
located on the anges.
* Sold separately

15
INSTALLATION
INTERIOR HANGING

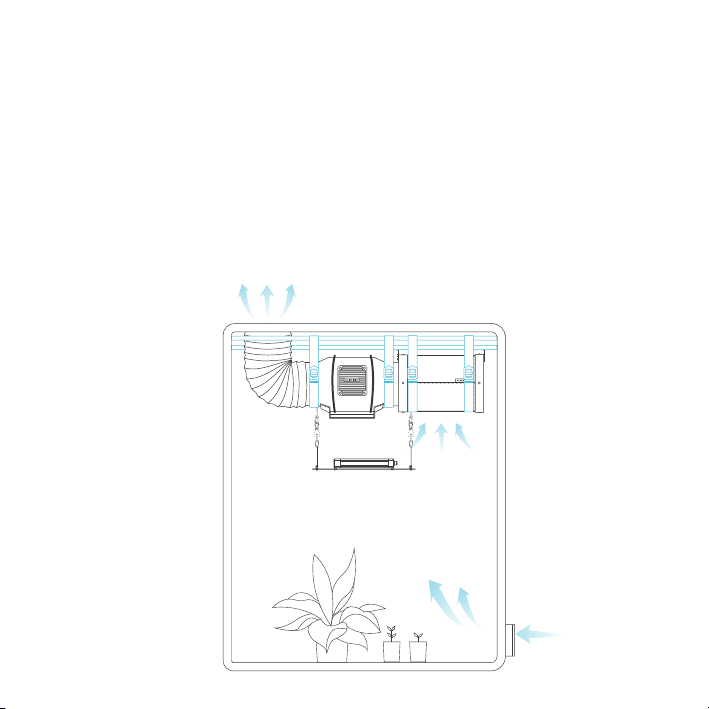

To use this lter in intake applications, place the lter inside your grow space. Make sure your lter
is connected to your inline duct fan's intake end before completing the installation.
CONFIGURATION SET-UP

16
EXTERIOR MOUNTING
To use this lter in exhaust applications, place the lter outside of your grow space. Make sure your
lter is connected to your inline duct fan's exhaust end before completing the installation. Stuff the
prelter inside of the lter to lengthen the carbon bed's lifespan.
INSTALLATION
CONFIGURATION SET-UP

17
INSTALLATION

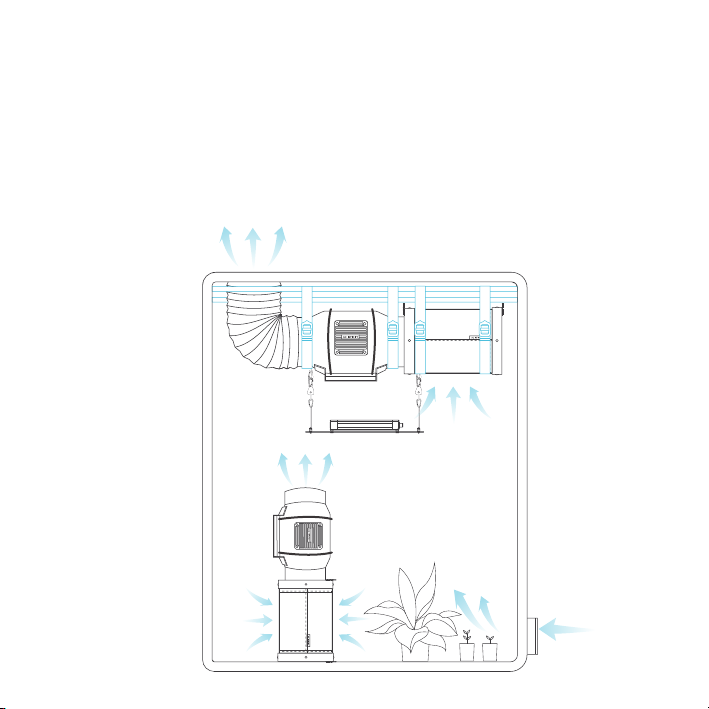

OVERSIZED GROW SPACE
Use a dual fan and lter combination inside your grow space to completely scrub away odor in
larger grow rooms and tents. Set the secondary lter on the oor and the inline fan on top of it so
that the exhaust end points up.
CONFIGURATION SET-UP

18
REVERSING THE FLANGES
To extend the lter's lifespan and utilize its
entire carbon bed, rotate the anges from either
end.
Remove the screws from the anges to release
them from the lter. Replace the anges on the
other ends and screw them back into place.
WASHING THE PREFILTER
Wash the reusable cloth as needed to clear it
of any dust and build-up. This will further extend
the lifespan of the lter.
MAINTENANCE
1
2
3

19
