AC Ryan ACR-PV73200 Playon!HD Mini User manual

Table of Contents
1. Introduction.......................................................................................................................... 2
1.1 Preface..............................................................................................................2
1.2 Packing List .....................................................................................................3
1.3 Cautions ...........................................................................................................3
1.4 Connection .......................................................................................................5
1.5 Power On / Off.................................................................................................8
1.6 Menu Language ...............................................................................................8
2. About the Player .................................................................................................................. 9
2.1 Remote Control................................................................................................9
2.2 Front Panel ..................................................................................................... 11
2.3 Rear Panel ......................................................................................................12
3. Setup Menu ........................................................................................................................ 13
3.1 Changing Audio Settings ...............................................................................13
3.2 Changing Video Settings................................................................................14
3.3 Changing Network Settings ...........................................................................15
3.4 Changing System Settings .............................................................................18
3.5 Miscellaneous ................................................................................................19
4. Functions............................................................................................................................ 21
4.1. Browser Menu...............................................................................................21
4.2 File Copy Menu .............................................................................................29
4.3 Internet Radio.................................................................................................30
4.4 Internet Feeds.................................................................................................31
5. Upgrading the Firmware ................................................................................................... 32
6. Appendixes......................................................................................................................... 33
6.1 Specifications.................................................................................................33
6.2 Frequently Asked Questions ..........................................................................34
6.3 Copyrights and Trademarks ...........................................................................35
6.4 Warranty.........................................................................................................36
6.5 GPL Statement ...............................................................................................36

2 / 36
1. Introduction
1.1 Preface
Thank you very much for purchasing our AC Ryan ACR-PV73200 Playon!HD Mini media
player. We hope you will enjoy using it as a great home entertainment partner. This player has
the following functionality.
A/V Output
•HDMI V1.3 for high-definition video and digital audio
•Composite & component video and stereo audio for analog audio-visual connection
•S/PDIF optical interface for high-fidelity digital audio
•Adjustable video output resolution (NTSC, PAL, 480p, 576p, 720p, 1080i, 1080p)
Multimedia Playback
•Supports major audio, video and image file formats (1080p HD video decoding)
•Movie format: AVI/MKV/TS/TP/TRP/M2TS/MPG/MP4/M4V/MOV/VOB/IFO/DAT/
WMV/ASF/RM/RMVB/FLV/DVD-ISO/BD-ISO
•Music format: MP3/OGG/WMA/WAV/AAC/FLAC
•Photo format: HD JPEG/BMP/GIF/TIF/PNG
•Photo slide show with background music
Network Feature
•A/V streaming/transmission via Ethernet (10M/100M) & Wi-Fi (802.11b/g/n, optional)
•A/V streaming via UPnP Media Server
•Internet Radio (SHOUTcast)
File Copy
•Supports copying & moving files among USB devices,and Network
USB 2.0 Support
•USB HOST port x 2 (for USB storage devices)
Note: All the information contained in this manual was correct at the time of publication.
However, as our engineers are always updating and improving the product, your device’s
software may have a slightly different appearance or modified functionality than presented in
this manual.

3 / 36
1.2 Packing List
Part Quantity
Player 1
A/V cable 1
Y/Pb/Pr cable 1
Remote Control 1
Remote Control Battery 2
AC/DC adaptor 1
User Manual (printed) 1
AC Ryan HDMI cable 1 (optional)
Note:
The actual contents in the package might be different from the packing list in this manual.
1.3 Cautions
This player’s design and manufacture has your safety in mind. In order to safely and effectively
use this player, please read the following before usage.
1.3.1 Usage Cautions
User should not modify this player. The environmental temperature should be within +5 ℃ ~
+35 ℃ .
1.3.2 Power
The player’s power voltage: DC 5V.
When using this player, please connect the supplied AC adapter or AC adapter cable to the
player’s power jack. When placing the adapter cable, make sure it can not get damaged or be
subjected to pressure. To reduce the risk of electric shock, unplug the adapter first before
cleaning it. Never connect the adapter to the player in a humid or dusty area. Do not replace
the adapter or cable’s wire or connector.
1.3.3 Radio Interference
- If not properly shielded, almost all electronic devices will get radio interference. Under some
conditions, your player might get interference.
- The design of this player has followed the FCC/CE standard, and has followed the following
rules:
(1) This player may not cause harmful interference;
(2) This player could accept some interference received including interference that may
cause undesired operation.

4 / 36
1.3.4 Repair
If the player has a problem, you should take it to an appointed repair center and let the
specialists do the repair, never repair the player yourself, you might damage the player or
endanger yourself or your data.
1.3.5 Disposing of the Player
When you dispose of the player, be sure to dispose it appropriately. Some countries may
regulate disposal of electrical device, please consult with your local authority.
1.3.6 Hard Disk Cautions
The player can use external hard disks for data storage, in normal case, format or repair is not
required.
You should carefully read the < Frequently Asked Questions > chapter, and check our website
for latest information before formatting the hard disk.
- Physical impact may create bad sector in the hard disk, you can use CHKDSK to fix the
problem.
- All data stored in the player may be lost due to physical impact, electrical shock, power lost,
HDD format etc. Please backup your data.
- It is suggested to do defragment after a long period of usage.
- Regularly backup the data in the hard disk so that it can be recovered in the event of data
corruption or loss. Our company takes no responsibility for loss of data stored on the hard disk.
1.3.7 Others
When using this player, please do not let the player come into contact with water or other liquid,
if water is accidentally spilled on the player, please use a dry cloth to absorb the spillage.
Electronic products are vulnerable, when using please avoid shaking or hitting the player, and
do not press the buttons too hard.
Do not let the player come into contact with water or other liquid.
Do not disassemble the player, repair the player or change the design of the player, any
damage done will not be included in the repair policy.
Do not press the buttons of the player too hard.
Avoid hitting the player with hard object, avoid shaking the player, and stay away from
magnetic fields.
During electrostatic discharge and the strong electromagnetic field, the product will
malfunction, then unplug the power cable and the product will return to normal
performance next time it is powered on.

5 / 36
1.4 Connection
1.4.1 Connecting the Power Supply
(1) Follow the picture and connect the AC adaptor to the player’s DC IN jack;
(2) Follow the picture and plug in the AC adaptor to the power outlet.
1.4.2 Connecting a USB Device
(1) Make sure the player is powered on;
(2) Plug in the USB stick or USB HDD etc. to the USB HOST port of this player.
In this way, you can browse contents on the USB device.
1.4.3 Connecting to a TV
1.4.3.1 A/V OUT
(1) Follow the picture and plug in the 3 color connector to the player’s A/V OUT jack;
(2) Follow the picture and plug in the 3 color connector to the TV’s A/V IN jack.

6 / 36
In this way, you can enjoy the content in the player on TV or other display devices.
1.4.3.2 Y/Pb/Pr Component OUT
(1) Follow the picture and plug in the 3 color connector to the player’s Y/Pb/Pr jack;
(2) Follow the picture and plug in the 3 color connector to the TV’s Y/Pb/Pr jack.
Audio Connection while using Y/Pb/Pr Video out:
First method: use the audio output from the A/V OUT jack;
Second method: use the audio output from the S/PDIF Optical jack.
In this way, you can also enjoy videos, music, and photos in the player on TV.
1.4.3.3 HDMI OUT
(1) Follow the picture and plug one connector on your HDMI cable to the player’s HDMI jack;
(2) Follow the picture and plug the other connector on your HDMI cable to the TV’s HDMI jack.
Note: The HDMI cable is an optional accessory sold separately.

7 / 36
In this way, you can have the highest quality video and audio via a single cable.
1.4.4 Connecting to an Digital Amplifier
(1) Follow the picture and plug in the Toslink connector on your optical fiber to the player’s
S/PDIF Optical jack;
(2) Follow the picture and plug in the other connector on your optical fiber to the digital audio
device (digital amplifier or decoder).
Note: Optical fiber is not supplied.
In this way, you can enjoy powerful Dolby Digital, DTS, or MPEG sound. (Please refer to ‘3.1
Changing Audio Settings’ for configuration)
1.4.4 Connecting to a LAN
To connect to a LAN (Local Area Network) you require a cat5, cat5e or cat6 network cable (not
supplied).
(1) Connect one of the crystal plugs on the cable to the player’s RJ45 LAN socket;
(2) Connect the other crystal plug on the cable to a RJ45 LAN port on your router, switch, or
hub devices.

8 / 36
1.4.6 Connecting to a WLAN
(1) Make sure the player is powered on;
(2) Plug the Wireless LAN USB Adapter (i.e. Wi-Fi USB Dongle) to the USB HOST port of the
player.
Note: The Wi-Fi Dongle is an optional accessory sold separately. (Please refer to ‘3.3
Changing Network Settings’ for more details about wireless setup)
1.5 Power On / Off
Power On
After connecting the DC IN jack and press the power button on the front panel, the player will
soon enter the home screen, and the power indicator will turn blue.
Power Off
Press the power button on the front panel, the player will soon enter standby mode, and the
power indicator will turn red. Then unplug the power cord to cut off the power supply.
1.6 Menu Language
The system language of this player can be set to English or other languages. Change the
language you wish in the setup menu, the selected language will take effect immediately.

9 / 36
2. About the Player
2.1 Remote Control
All procedures in this manual can be carried out using the remote control buttons.
See the following for details on each button and its function:
1. STANDBY 2. MUTE
3. TV SYSTEM 4. BROWSER
5. Numeric buttons
6. REPEAT
7. FR 8. VOL-
9. FF 10. PLAY
11. HOME 12.
Navigational buttons
13. MENU 14. PAUSE/STEP
15. SLOW 16. INS REPLAY
17. CM SKIP 18. SELECT
19. CONFIRM 20. AUDIO
21. SUBTITLE 22. ZOOM IN
23. ZOOM OUT 24. A-B
25. ANGLE 26. SETUP
27. ENTER 28. RETURN
29. STOP
31. VOL+
33. GOTO
35. MUSIC
30. NEXT
32. PREV
34. COPY
36. INFO
No. Button Function
1 STANDBY Press to enter standby mode or wake up.
2 MUTE Press to mute audio output, and press again to resume.
3 TV SYSTEM
Press to switch between NTSC, PAL, 480P, 576P, 720P, 1080I,
and 1080P.
4 BROWSER Press to enter the browser menu.

10 / 36
5 Numeric buttons Press to enter numeric input when changing settings.
6 REPEAT Press to set repeat option: One, All, (and Shuffle).
7 FR Press to fast rewind the current playback. Press repeatedly to
select speeds.
8 VOL- Press to decrease the volume.
9 FF Press to fast forward the current playback. Press repeatedly to
select speeds.
10 PLAY Press to begin playback.
11 HOME Press to enter the home screen.
12 Navigational
buttons
Press the arrow buttons to select menu options, and the ENTER
button to confirm.
13 MENU Press to activate tools menus:
 Press in the browser menu to rename and delete files.
 Press in My_Shortcuts in NET of the browser menu to
add shortcuts for network access.
14 PAUSE/STEP Press to pause the current playback. Press again to step to the
next frame. Press the PLAY button to resume playback.
15 SLOW Press to play back in slow motion. Press the PLAY button to
resume regular playback.
16 INS REPLAY Press to backward 10 seconds of the current playback, which
suitable for sport programs.
17 CM SKIP Press to advance 30 seconds of the current playback.
18 SELECT Press to select files in browser and file copy menu.
19 CONFIRM Reserved button. No function has been assigned to it yet.
20 AUDIO Press to select an audio track.
21 SUBTITLE Press to set subtitle options.
22 ZOOM IN Press to zoom in the image (photo or video).
23 ZOOM OUT Press to zoom out the image (photo or video).
24 A-B Press to set the beginning and end points of a section to repeat.
25 ANGLE Press to change the view angle during DVD (with multi-angle)
playback.
26 SETUP Press to enter the setup menu.
27 ENTER Press to select options in menus.
28 RETURN Press to return to the previous screen while navigating menus.
29 STOP Press to stop playback.

11 / 36
30 NEXT Press to view the next file / page down.
31 VOL+ Press to increase the volume.
32 PREV Press to view the previous file / page up.
33 GOTO Press to jump to a specific point on a title. Specify the point
using Title, Chapter and Time.
34 COPY Press to enter the file copy menu.
35 MUSIC Reserved button. No function has been assigned to it yet.
36 INFO Press to hide or display the information bar during playback.
2.2 Front Panel
1. Infrared Receiver window 2. Power indicator
3. Power button

12 / 36
2.3 Rear Panel

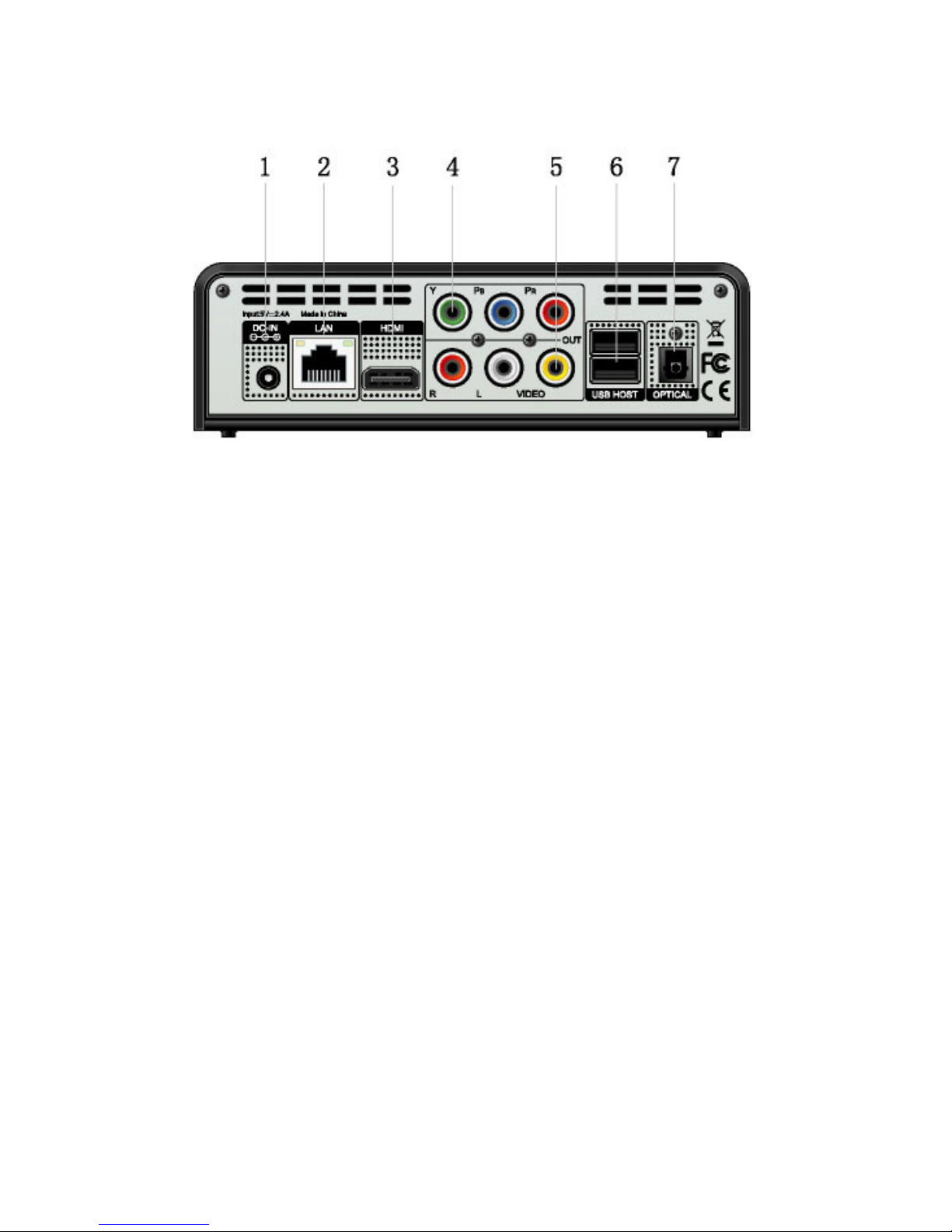

1. DC IN jack 2. RJ45 LAN socket
3. HDMI jack 4. Y/Pb/Pr OUT jack
5. A/V OUT jack 6. USB HOST port (A-Type) x 2
7. S/PDIF OPTICAL jack

13 / 36
3. Setup Menu
The Setup menu allows you to personalize and configure the preferences for your player.
To select a Setup option:
- Select the Setup icon on the home screen, or press the SETUP button on the remote
control.
- Use the LEFT/RIGHT navigational buttons to select an option, and then press ENTER.
There are five Setup options, including Audio, Video, Network, System, and MISC. Use the
UP/DOWN navigational buttons to select a menu. Press ENTER to confirm. Press RETURN to
cancel and display the previous menu screen.
3.1 Changing Audio Settings
Use this menu to configure audio settings.
Night Mode
- Choose between Off / On / Comfort. If the option is turned on, the audio output volume

14 / 36
will be decreased to make you more comfortable.
Digital Output
- Choose between HDMI LPCM / HDMI LPCM MULTI CH / HDMI RAW / SPDIF LPCM /
SPDIF RAW. In raw mode, Dolby Digital, DTS, or MPEG sound can be bypassed to the
HDMI TV or Digital amplifier.
3.2 Changing Video Settings
Use this menu to configure video settings.
Aspect Ratio
- Pan Scan 4:3: Display a wide picture on the entire screen and cuts off the redundant
portions. Select when a standard 4:3 TV is connected.
- Letter Box 4:3: Display a wide picture with two black borders on the top and bottom of 4:3
screen. Select when a standard 4:3 TV is connected.
- 16:9 / 16:10: Compress the image to convert the whole image. Select when a 16:9 / 16:10
TV is connected.
Brightness
- Adjust the level of brightness.
Contrast
- Adjust the level of contrast.
TV SYSTEM
- Select to adjust video output resolution: NTSC / PAL / 480P / 576P / 720P 50HZ / 720P
60HZ / 1080I 50HZ / 1080I 60HZ / 1080P 50HZ / 1080P 60HZ.

15 / 36
3.3 Changing Network Settings
Use this menu to configure Ethernet and WLAN (Wireless Local Area Network) settings.
Wired LAN Setup
- DHCP IP (AUTO)
Select to obtain IP address automatically.
- FIX IP (MANUAL)
Select to manually input the IP Address, Subnet Mask, Default Gateway, and DNS Server
IP Address.
Wireless Setup
- Selecting a connection profile
This player can store up to three wireless network connections. Press ENTER to go to
next step, press RETURN to cancel, and press PLAY to connect.
- Get Connection Mode

16 / 36
Choose between Infrastructure (AP) and Peer to Peer (Ad Hoc). Press ENTER to go to
next step, and press RETURN to cancel.
- Infrastructure (AP)
Infrastructure mode is used to connect computers with wireless network adapters, also
known as wireless clients, to an existing wired network with the help from wireless router
or access point.
Get SSID Name
Press ENTER to go to next step, press RETURN to cancel, and press SELECT to refresh
the SSID list.
Note: In the Security list, WEP (Wired Equivalent Privacy) and WPA (Wi-Fi Protected
Access) means the network is encrypted, i.e. an encryption key is needed to access the
network. NONE means it is an open system network.
Input WEP / WPA Key

17 / 36
Encryption keys can be inputted via the virtual keyboard. Press the navigational buttons to
select, ENTER to input, CAPS to switch between uppercase and lowercase, <- to delete a
character, -> to insert a space, shift to make more symbols available, and OK to confirm.
Test connection
The testing process will take for a while, please be patient to wait. If the test is ok, the
network information (Profile Name, IP address, Subnet Mask, Gateway, etc.) will be
displayed on the screen.
- Peer to Peer (Ad Hoc)
Peer to Peer mode, which is also called Ad Hoc mode or computer-to-computer mode, is
used to connect wireless clients directly together, without the need for a wireless router or
access point.
Ad-Hoc Setup

18 / 36
Press ENTER to go to next step, press RETURN to cancel, and press PLAY to connect.
3.4 Changing System Settings
Use this menu to configure system settings.
Menu Language
- Select to choose the OSD (On-Screen Display) language.
Text Encoding
- Select to set the text encoding option (subtitle display).
System Update
- Select to update the firmware via a USB stick.
1) Copy ‘install.img’ to the root directory of a USB stick, and connect it to the USB HOST
port of the player.
2) Select ‘System Upgrade’ or ‘System Reinstall’, and press ENTER to confirm.

19 / 36
Time
- Select to synchronize system time with Internet Time Server
System Info
- Select to view system information (firmware version, boot loader version, Mac address,
etc.)
Restore Default
- Select to restore factory defaults.
3.5 Miscellaneous
Use this menu to adjust miscellaneous settings.
Resume Playback
- Select to turn on / off resume playback (auto-bookmarking) feature for movies.
Slide Show Timing
- Select to set the interval time for photo slide show.
Transition Effect
- Select to set the transition effect for photo slide show.
Ken Burns
- Select to apply Pan/Scan effects for images.

20 / 36
Seamless Playback
- Select to playback sequential .TS / .M2TS videos without delay.
Background Music
- Select to set the background music options while view pictures: Off / Folder.
Screen Saver
- Select to turn on / off screen saver.
Movie Preview
- Select to turn on / off movie preview in the browser menu.
